NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-89
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Contr

Page 1546 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-90
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

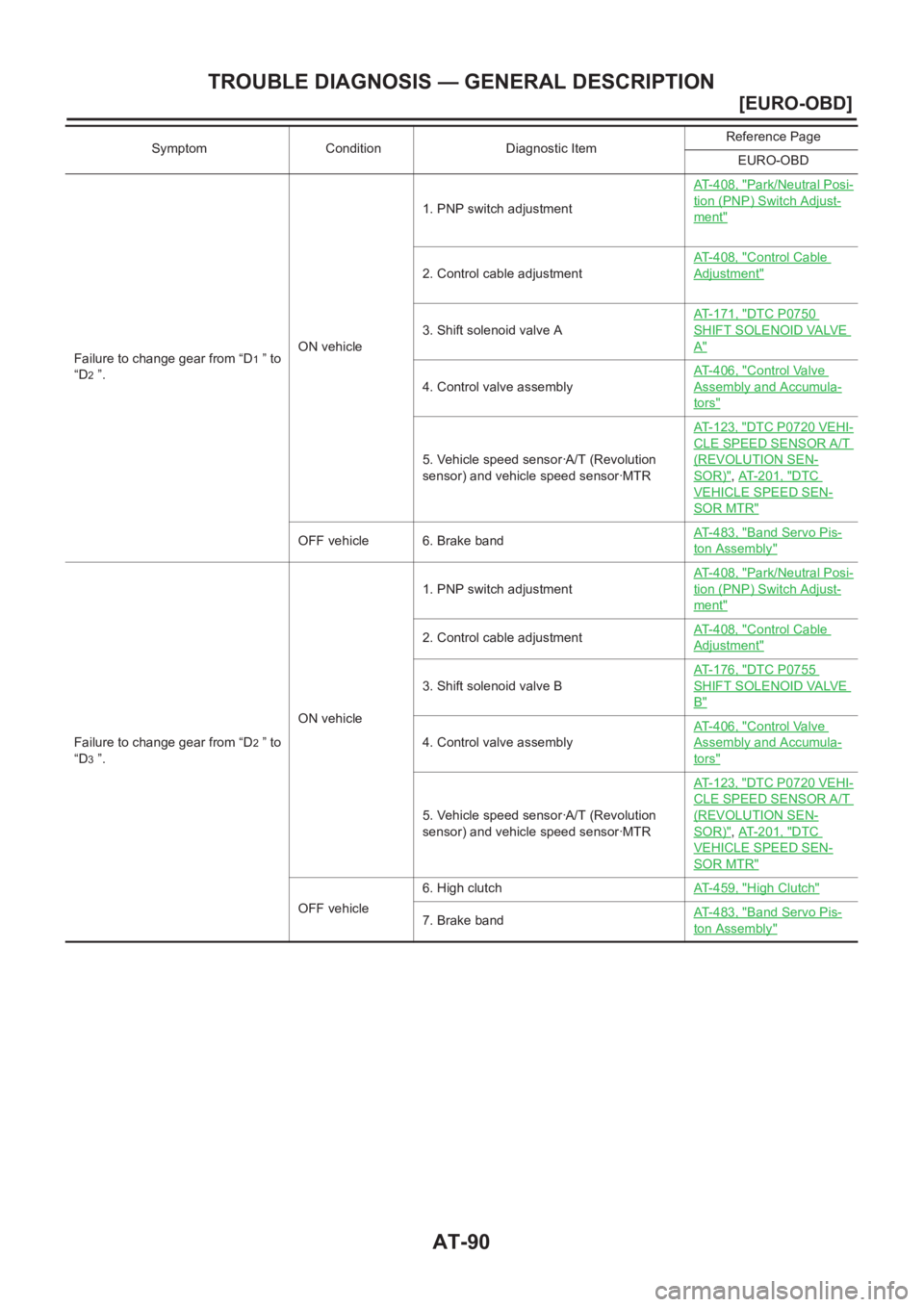

Failure to change gear from “D1 ” to
“D
2 ”.ON vehicle1. PNP switch adjustmentAT-408, "
Park/Neutral Posi-
tion (PNP) Switch Adj

Page 1547 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-91
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

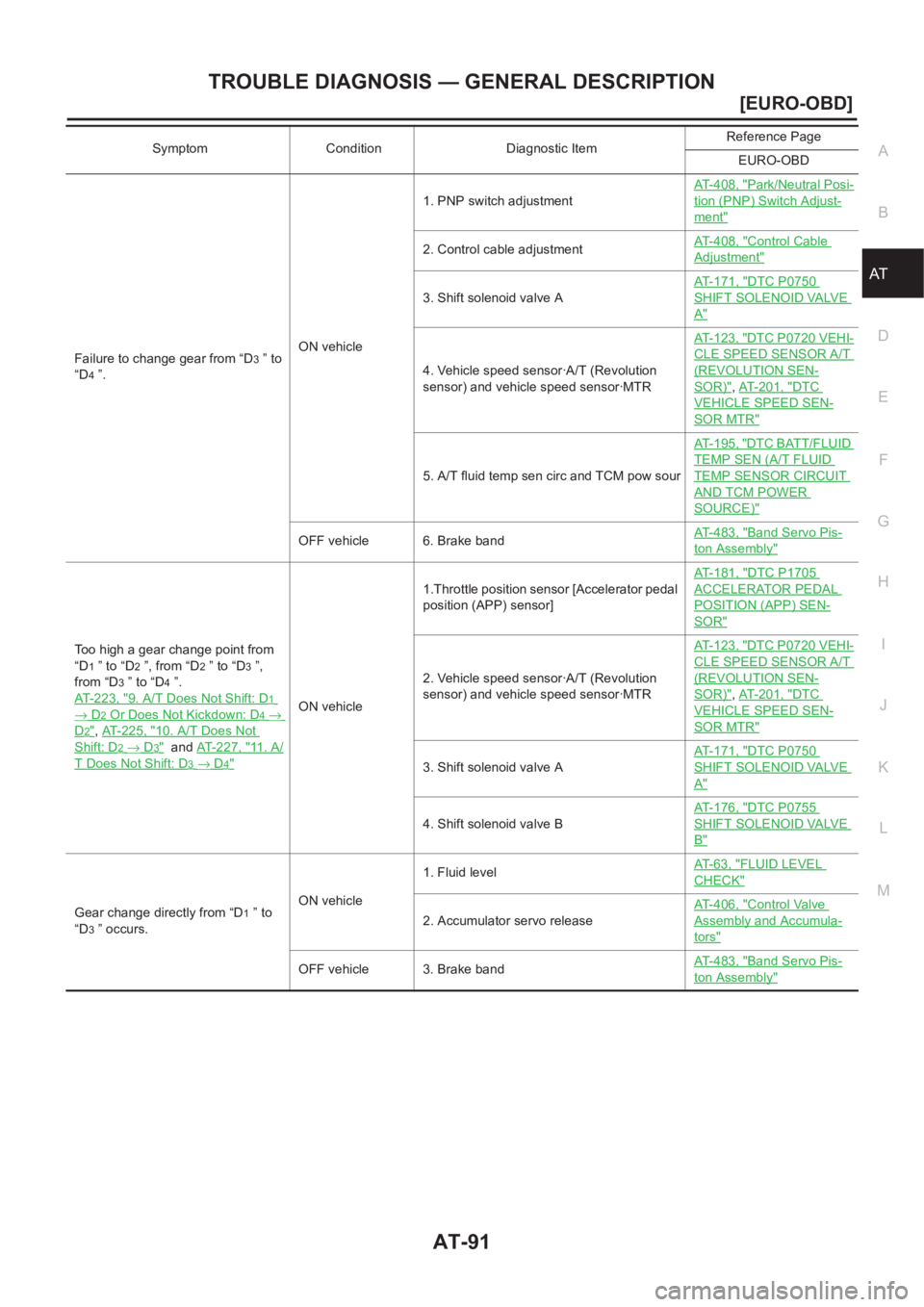

Failure to change gear from “D3 ” to
“D
4 ”.ON vehicle1. PNP switch adjustmentAT-408, "
Park/Neutral P

Page 1548 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-92
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Engine stops when shifting lever
into “R”, “D”, “2” and “1”.ON vehicle1. Engine idling rpmEC-30, "
Idle Speed and
Ignit

AT-92
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Engine stops when shifting lever
into “R”, “D”, “2” and “1”.ON vehicle1. Engine idling rpmEC-30, "
Idle Speed and
Ignition Timing Check"
2. Torque converter clutch solenoid valveAT-159, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
3. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 4. Torque converterAT-417, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Too sharp a shock in change from
“D
1 ” to “D2 ”.ON vehicle1. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Accumulator servo releaseAT-406, "
Control Valve
Assembly and Accumula-
tors"
4. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
5. A/T fluid temp sen circ and TCM pow sourAT-195, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle 6. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
Too sharp a shock in change from
“D
2 ” to “D3 ”.ON vehicle1. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle4. High clutchAT-459, "
High Clutch"
5. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
Too sharp a shock in change from
“D
3 ” to “D4 ”.ON vehicle1. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle4. Brake bandAT-483, "
Band Servo Pis-
ton Assembly"
5. Overrun clutchAT-464, "Forward and
Overrun Clutches"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

Page 1549 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-93
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

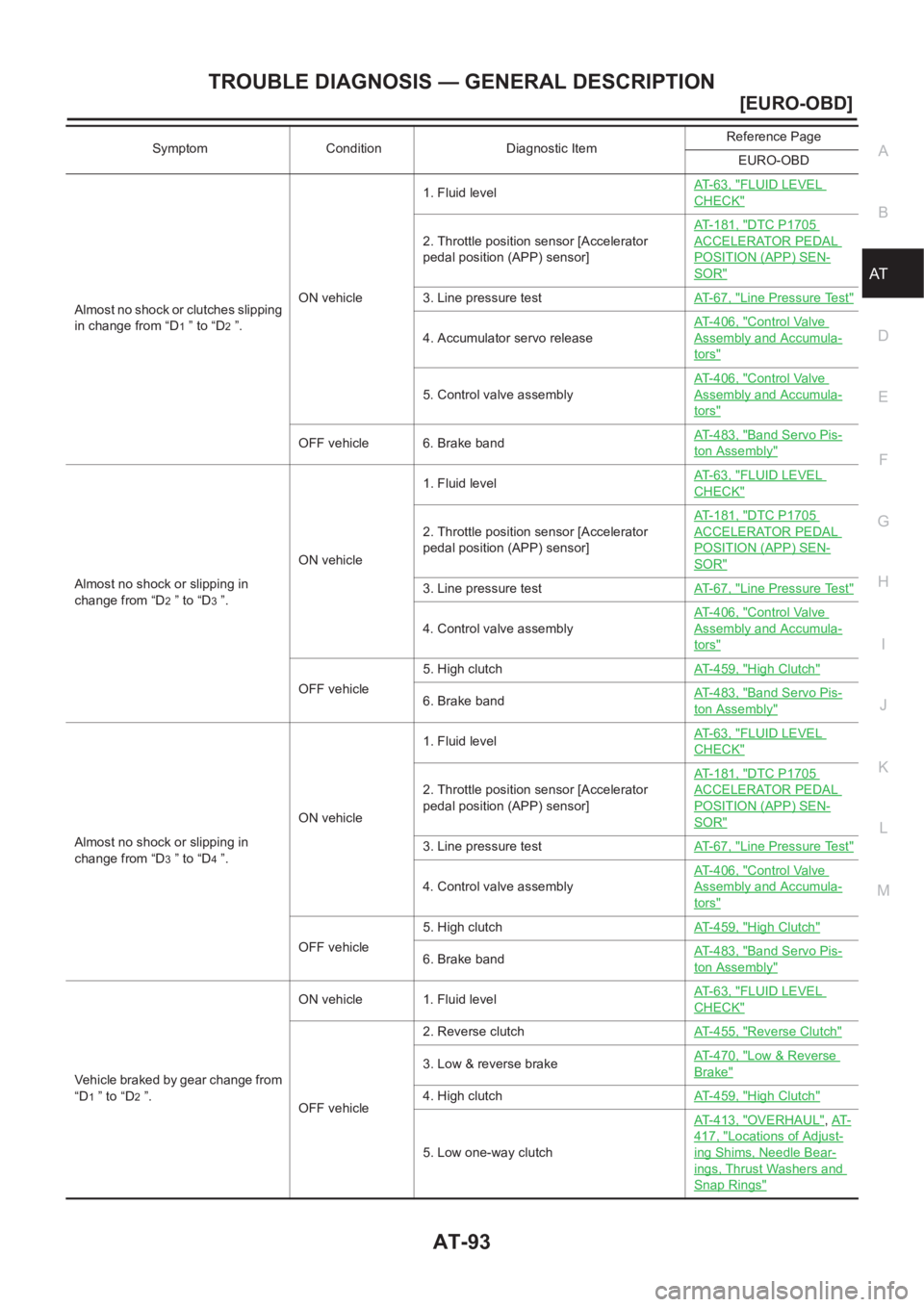

Almost no shock or clutches slipping
in change from “D
1 ” to “D2 ”.ON vehicle1. Fluid levelAT-63, "
F

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-93
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Almost no shock or clutches slipping
in change from “D
1 ” to “D2 ”.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT-67, "Line Pressure Test"
4. Accumulator servo releaseAT-406, "
Control Valve
Assembly and Accumula-
tors"
5. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 6. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
Almost no shock or slipping in
change from “D
2 ” to “D3 ”.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT-67, "Line Pressure Test"
4. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle5. High clutchAT-459, "
High Clutch"
6. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
Almost no shock or slipping in
change from “D
3 ” to “D4 ”.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT-67, "Line Pressure Test"
4. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle5. High clutchAT-459, "
High Clutch"
6. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
Vehicle braked by gear change from
“D
1 ” to “D2 ”.ON vehicle 1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
OFF vehicle2. Reverse clutchAT-455, "
Reverse Clutch"
3. Low & reverse brakeAT-470, "Low & Reverse
Brake"
4. High clutchAT-459, "High Clutch"
5. Low one-way clutchAT-413, "
OVERHAUL",AT-
417, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

Page 1550 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-94
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

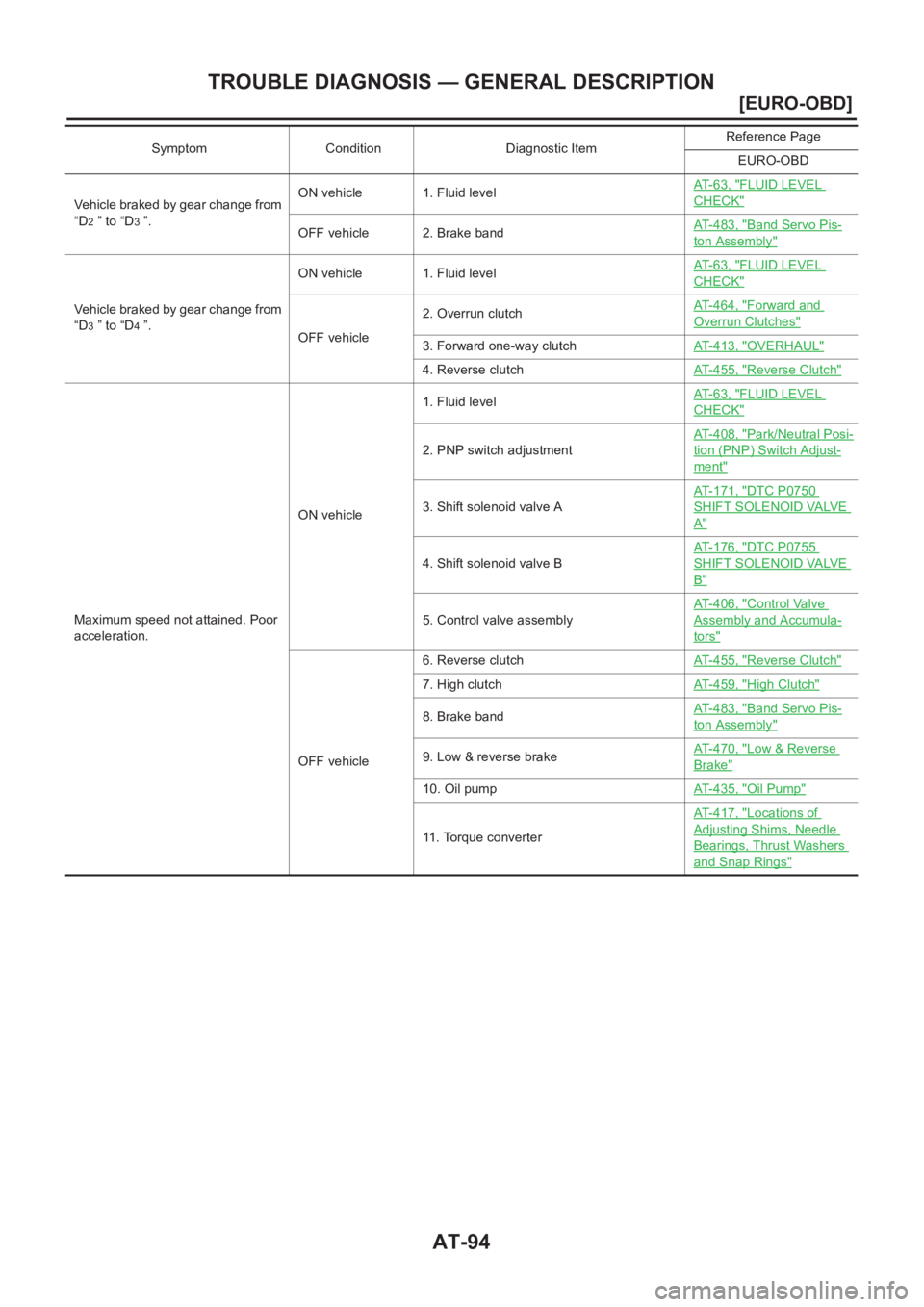

Vehicle braked by gear change from
“D
2 ” to “D3 ”.ON vehicle 1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
OFF vehicle 2.

Page 1551 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-95
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

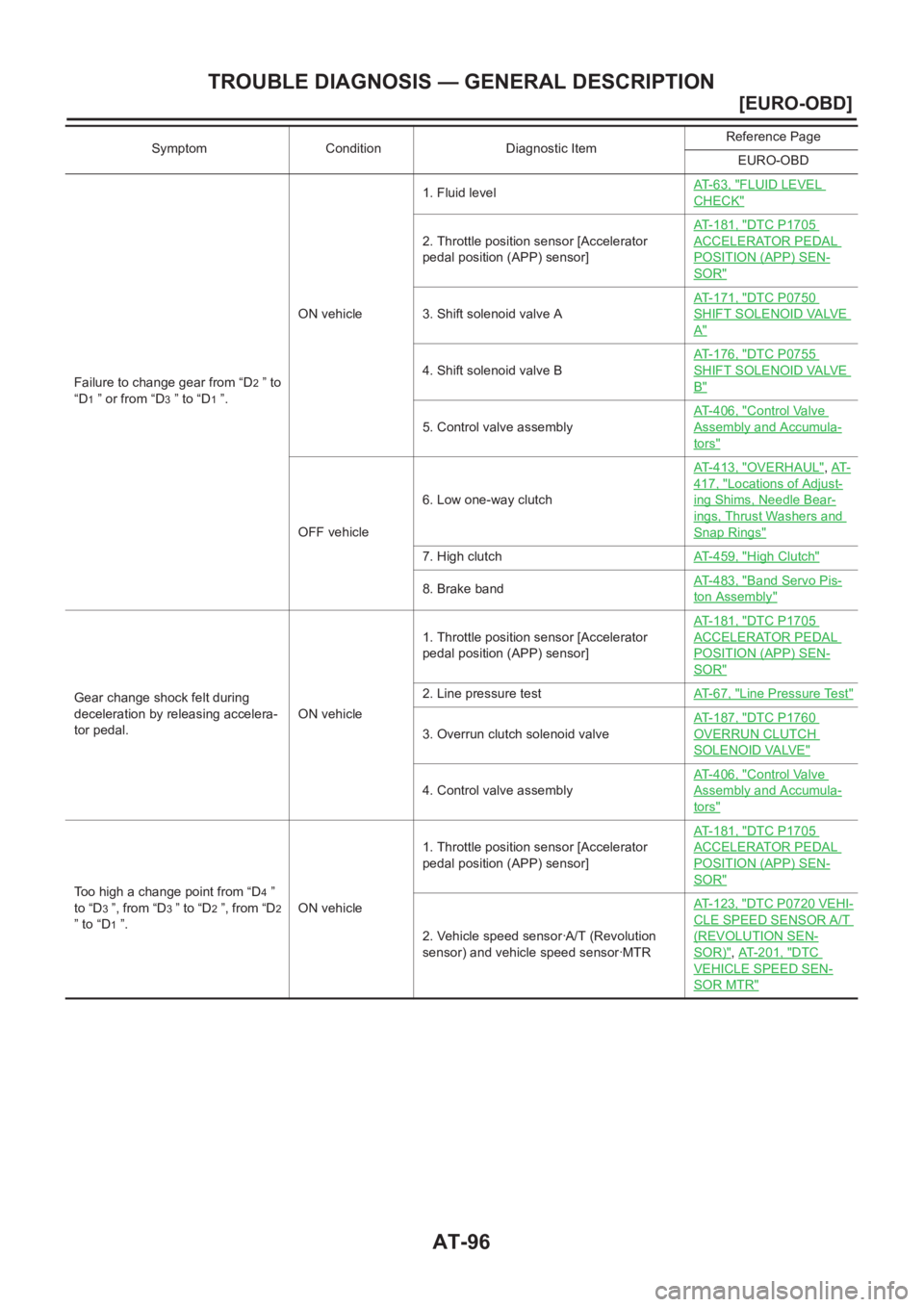

Failure to change gear from “D4 ” to
“D
3 ”.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2

Page 1552 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-96
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

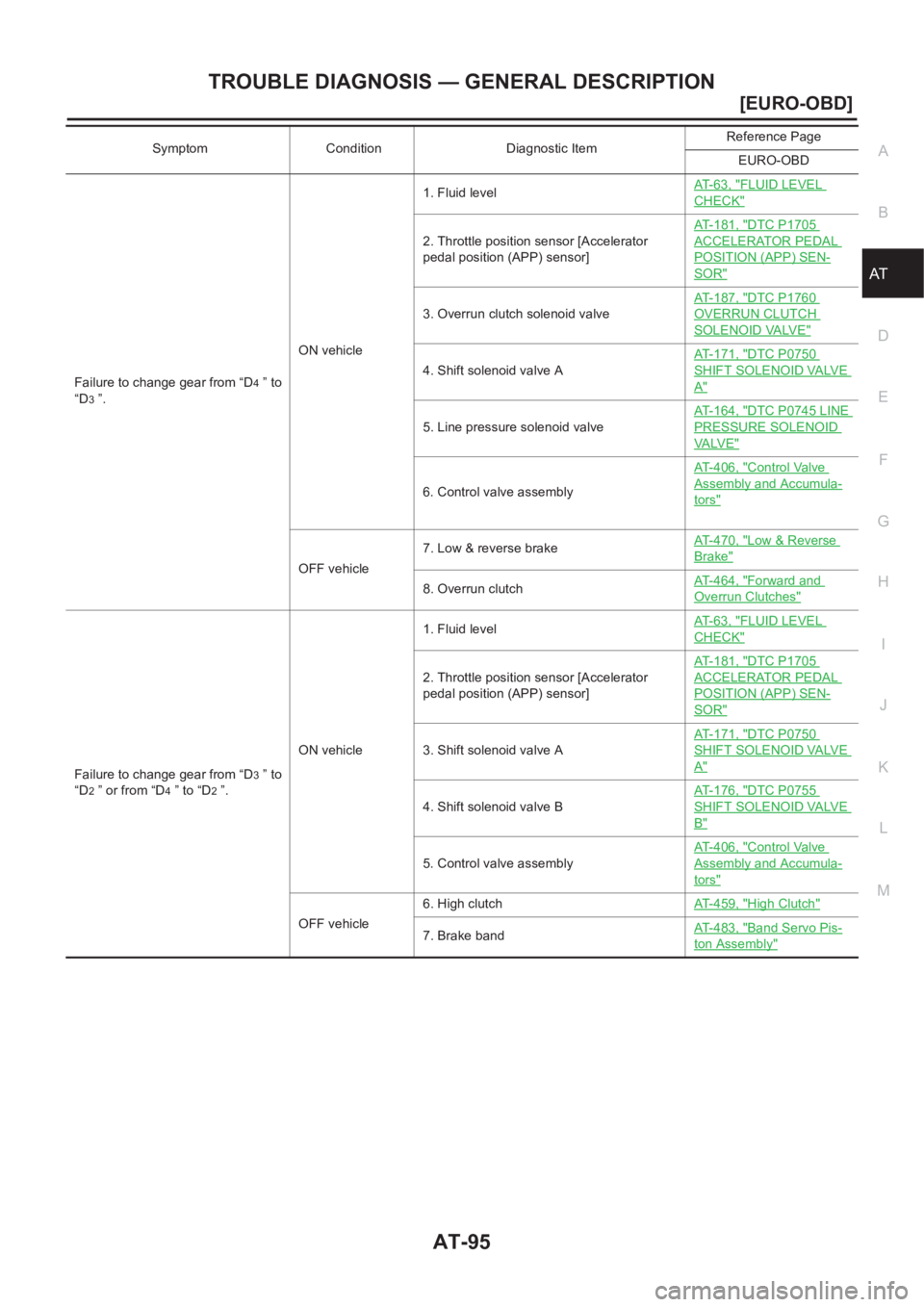

Failure to change gear from “D2 ” to
“D
1 ” or from “D3 ” to “D1 ”.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CH
