Page 201 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM116G 13. For Europe only, remove catalyst rear diffuser, EM-36, “Cata- lyst (For Europe)”. 14. Remove upper oil pan bolts in reverse order. 15. Remove four engine-to-transaxle bolts using a uni

Page 202 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM116G d. Install upper oil pan. Tighten bolts in numerical order. Bolt dimensions vary depending on the installation location. Refer to the following and use appropriate bolts. M6 x 30 mm: Bolt No.

Page 203 of 3189

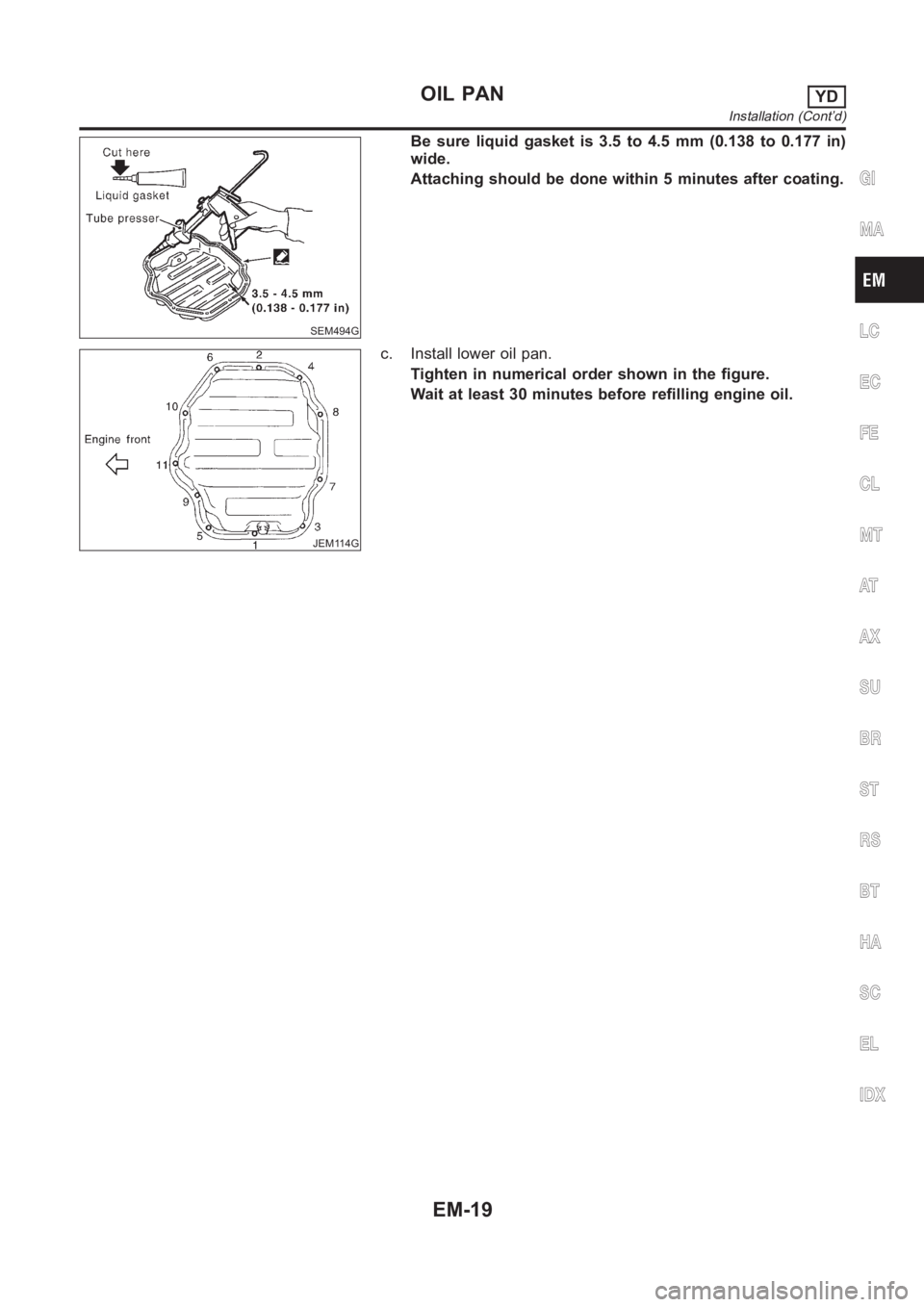

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM494G Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in) wide. Attaching should be done within 5 minutes after coating. JEM114G c. Install lower oil pan. Tighten in numerical order shown in

Page 204 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Secondary Timing ChainNJEM0093CAUTION: After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. When installing camshafts, chain tensioners, oil

Page 205 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM121G 3. Remove front chain case. Move power steering fluid reservoir tank from the bracket. Loosen fixing bolts in the reverse order of that shown in the figure and remove them. Remove No. 6, 10, a

Page 206 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM126G 6. Remove timing chain slack guide. Using a hexagon-head wrench (face to face: 6 mm, SST), remove bolt to remove timing chain slack guide. JEM127G 7. Remove timing chain tension guide. 8. Remo

Page 207 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM126G 3. Using a hexagon-head wrench (face to face: 6 mm, SST), install timing chain slack guide. JEM125G 4. Install chain tensioner. a. Push the plunger of the chain tensioner. While holding it wit

Page 208 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 6. Hereafter, install in the reverse order of removal. TIMING CHAINYD Secondary Timing Chain (Cont’d) EM-24
