Page 1569 of 3189
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-113
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — PNP/SWECS007O5
YAT 3 5 5
Page 1570 of 3189
AT-114
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

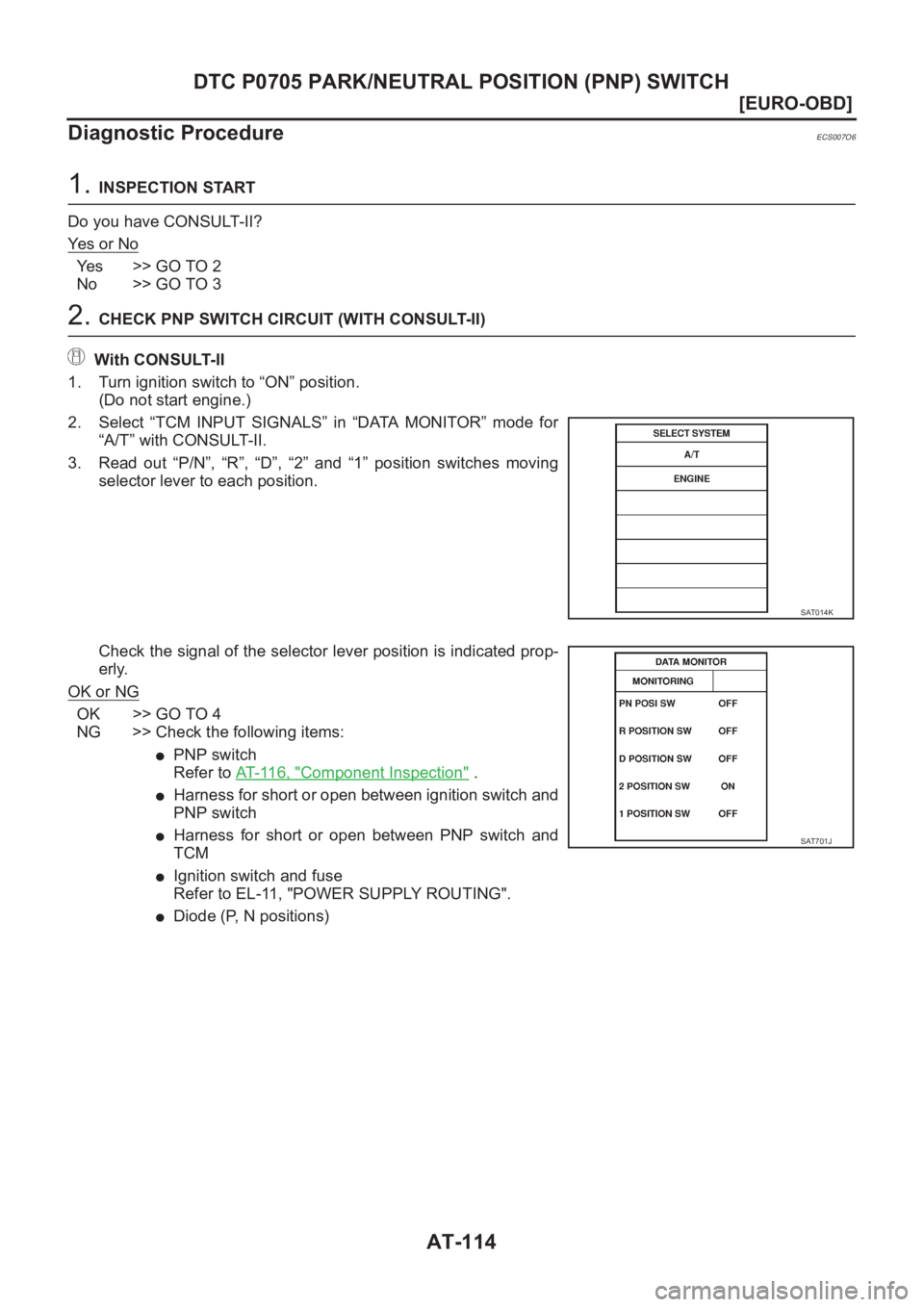

Diagnostic Procedure
ECS007O6
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2
No >> GO TO 3
2. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
Check the signal of the selector lever position is indicated prop-
erly.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●PNP switch
Refer to AT- 11 6 , "
Component Inspection" .
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Ignition switch and fuse
Refer to EL-11, "POWER SUPPLY ROUTING".
●Diode (P, N positions)
SAT014K
SAT701J
Page 1571 of 3189
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-115
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

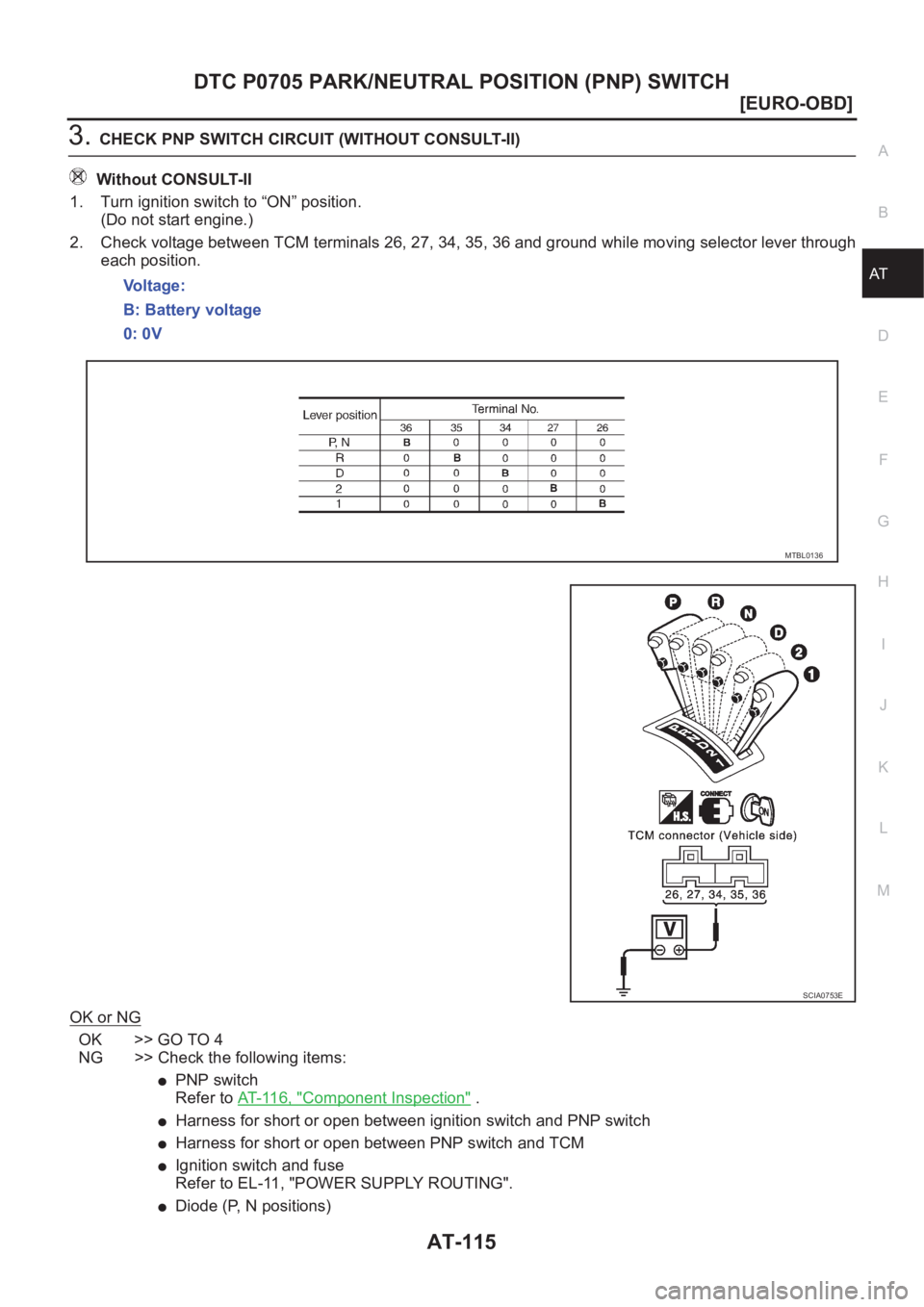

3.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and ground while moving selector lever through
each position.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●PNP switch
Refer to AT-116, "
Component Inspection" .
●Harness for short or open between ignition switch and PNP switch
●Harness for short or open between PNP switch and TCM
●Ignition switch and fuse
Refer to EL-11, "POWER SUPPLY ROUTING".
●Diode (P, N positions) Vo l t a g e :
B: Battery voltage
0: 0V
MTBL0136
SCIA0753E
Page 1572 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-116
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
4. CHECK DTC
Perform AT- 111 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. NISSAN ALMERA N16 2003 Electronic Repair Manual AT-116
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
4. CHECK DTC
Perform AT- 111 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1.](/manual-img/5/57350/w960_57350-1571.png)
AT-116
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

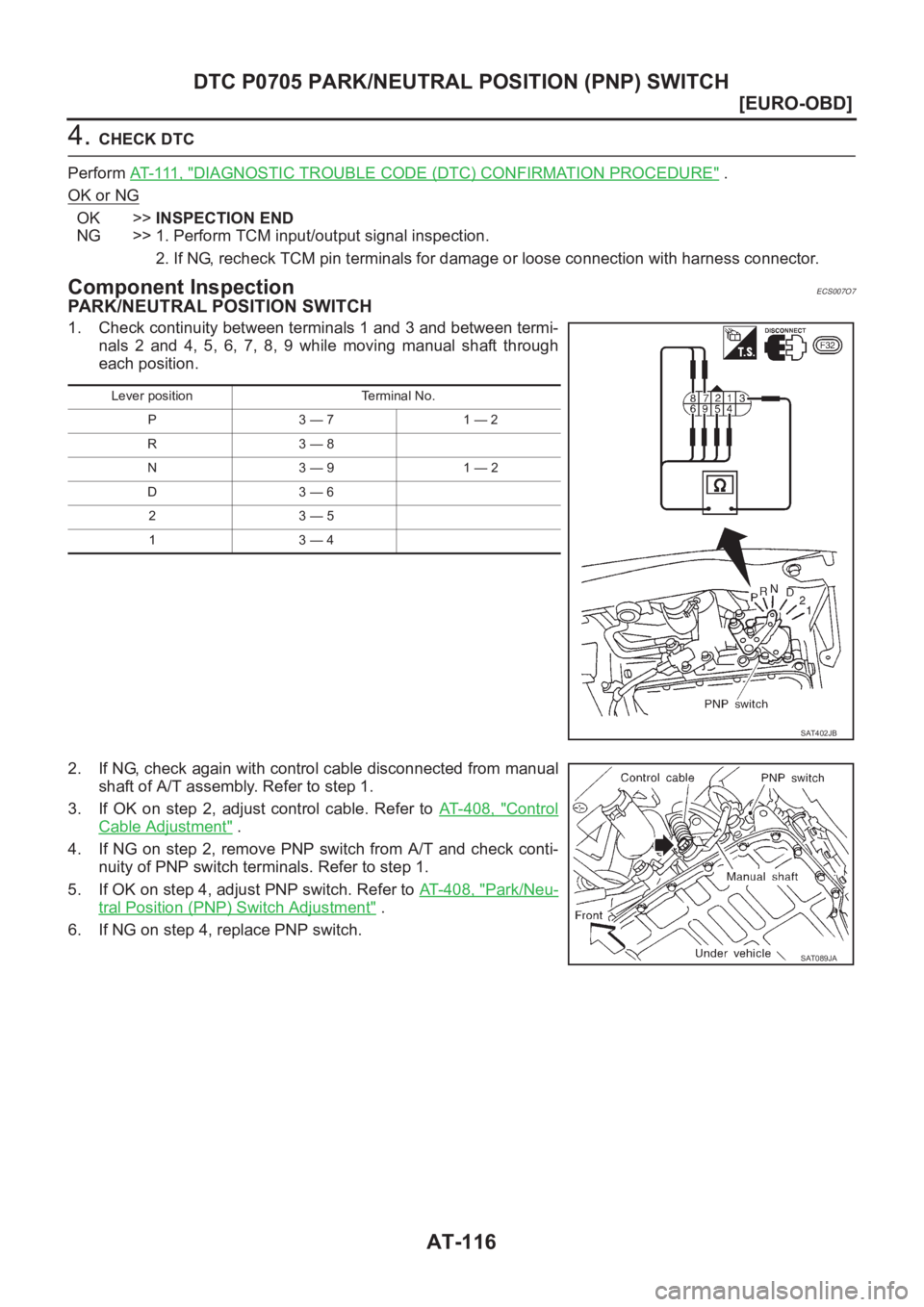

4. CHECK DTC
Perform AT- 111 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Component InspectionECS007O7
PARK/NEUTRAL POSITION SWITCH
1. Check continuity between terminals 1 and 3 and between termi-
nals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with control cable disconnected from manual
shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust control cable. Refer to AT- 4 0 8 , "
Control
Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT-408, "
Park/Neu-
tral Position (PNP) Switch Adjustment" .
6. If NG on step 4, replace PNP switch.
Lever position Terminal No.
P3 — 71 — 2
R3 — 8
N3 — 91 — 2
D3 — 6
23 — 5
13 — 4
SAT402JB
SAT089JA
Page 1573 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-117
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS007O8
The A/T fluid temperature sen NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-117
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS007O8
The A/T fluid temperature sen](/manual-img/5/57350/w960_57350-1572.png)
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-117
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

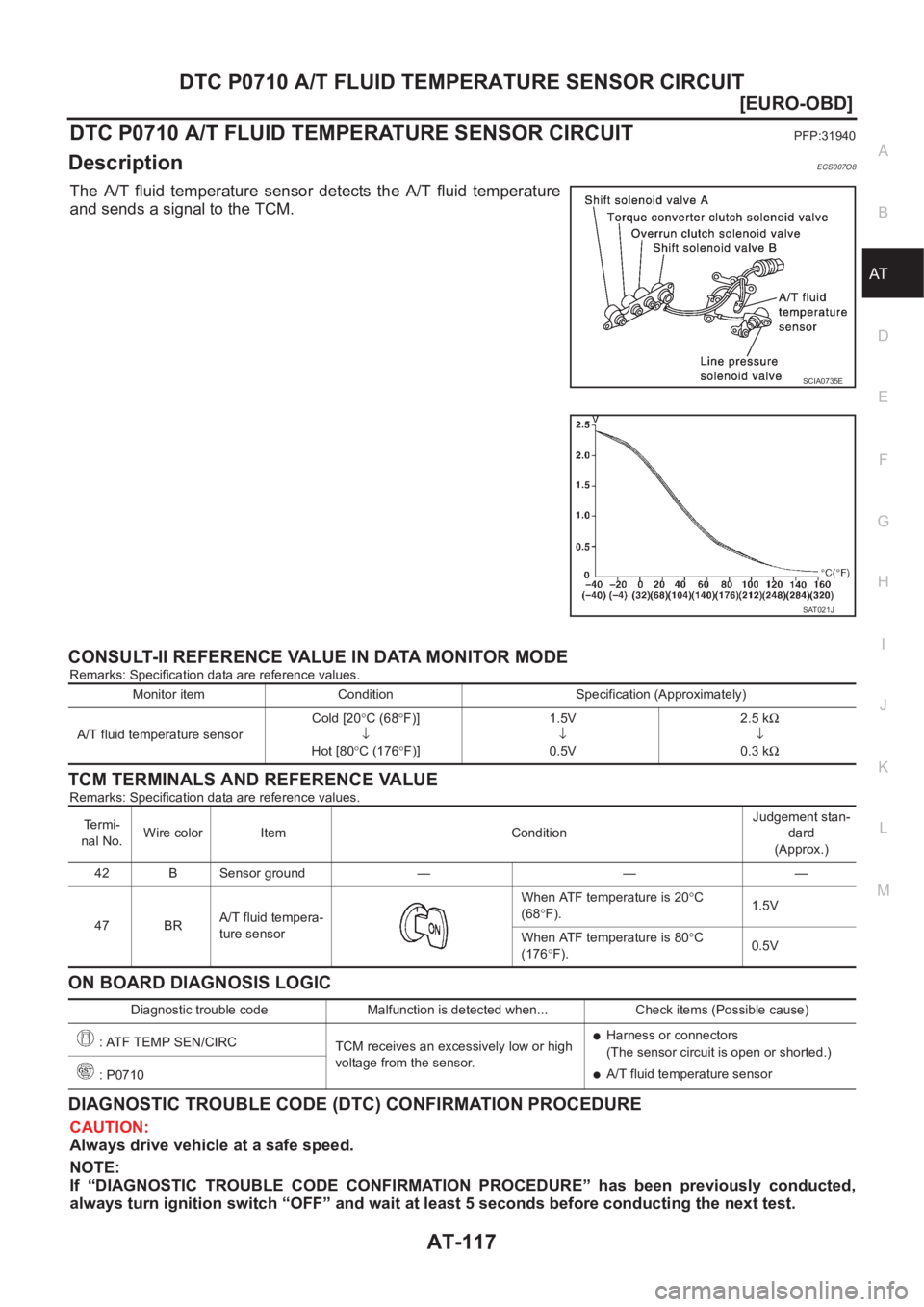

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionECS007O8
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
SCIA0735E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
42 B Sensor ground — — —
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: ATF TEMP SEN/CIRC
TCM receives an excessively low or high
voltage from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●A/T fluid temperature sensor
: P0710
Page 1574 of 3189
AT-118
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

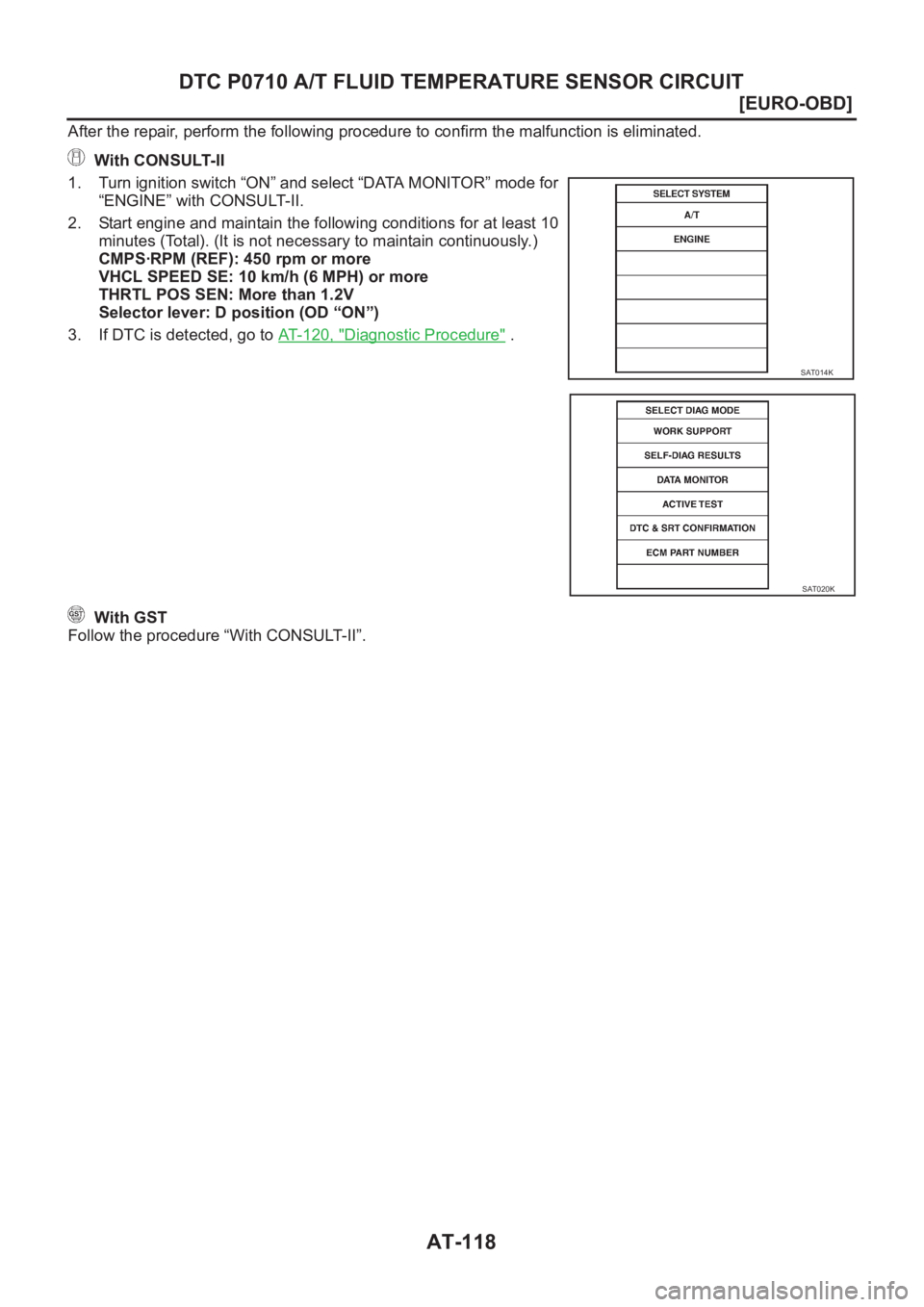

After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
CMPS·RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD “ON”)
3. If DTC is detected, go to AT- 1 2 0 , "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 1575 of 3189
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-119
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — FTSECS007O9
YAT 3 5 6
Page 1576 of 3189
AT-120
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

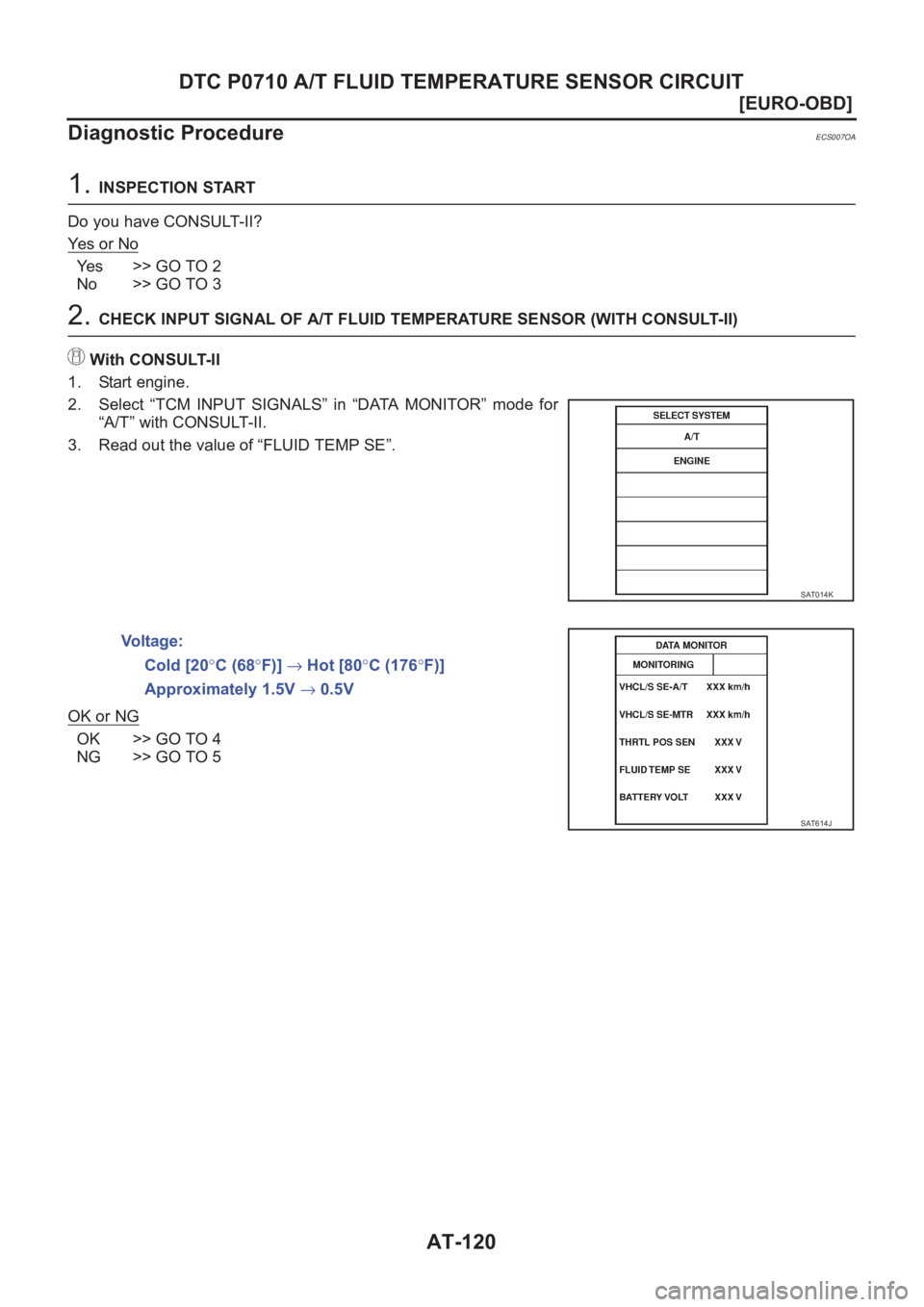

Diagnostic Procedure
ECS007OA
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2
No >> GO TO 3
2. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
OK or NG
OK >> GO TO 4
NG >> GO TO 5
SAT014K
Voltage:
Cold [20°C (68°F)]→ Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SAT614J
