Page 625 of 3189

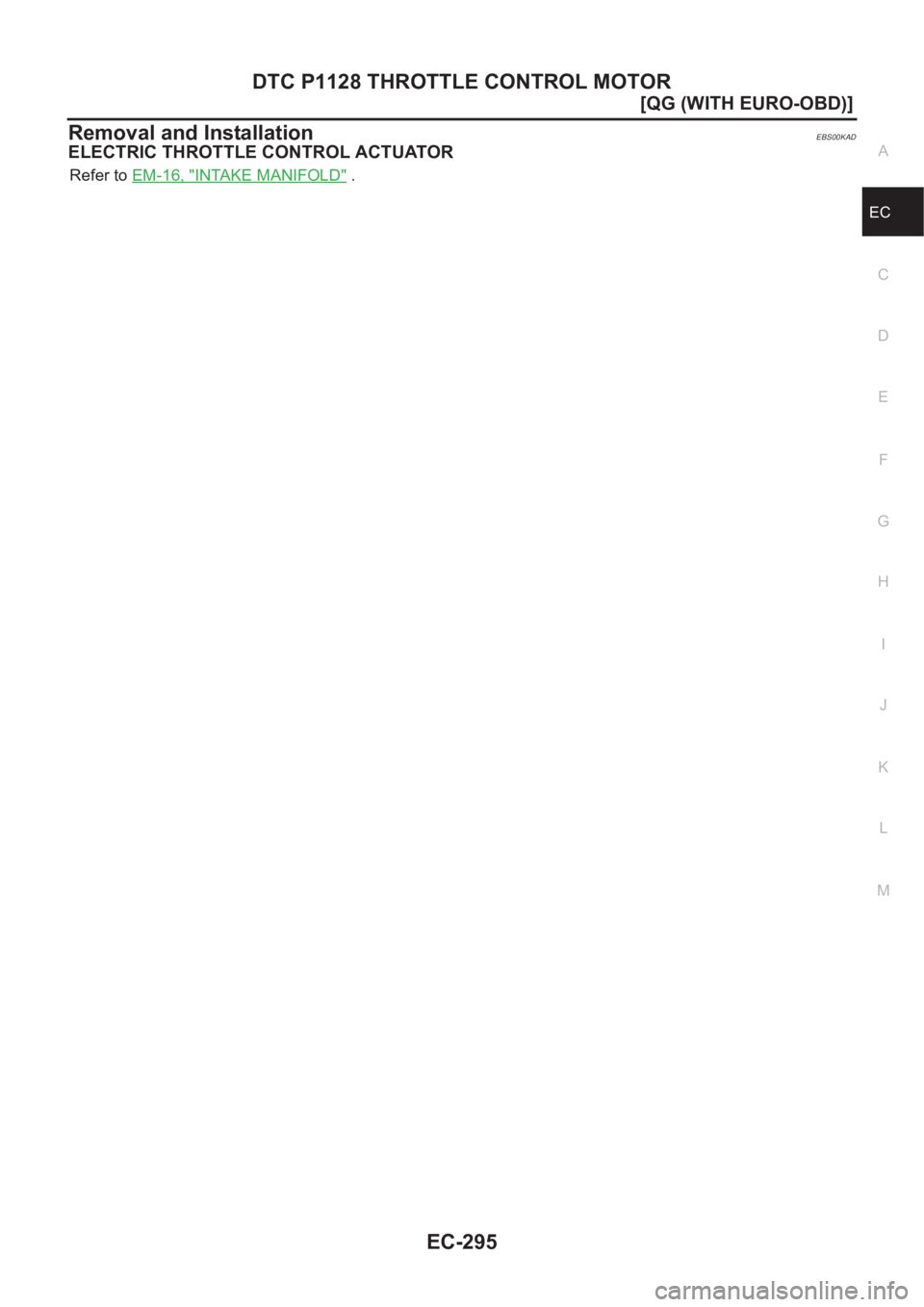

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1128 THROTTLE CONTROL MOTOR EC-295 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC Removal and InstallationEBS00KAD ELECTRIC THROTTLE CONTROL ACTUATOR Refer to EM-16, "INTAKE MANIFOLD" .

Page 626 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-296 [QG (WITH EURO-OBD)] DTC P1143 HO2S1 DTC P1143 HO2S1 PFP:22690 Component DescriptionEBS00KAE The heated oxygen sensor 1 is placed into the exhaust manifold. It detects the amount o

Page 627 of 3189

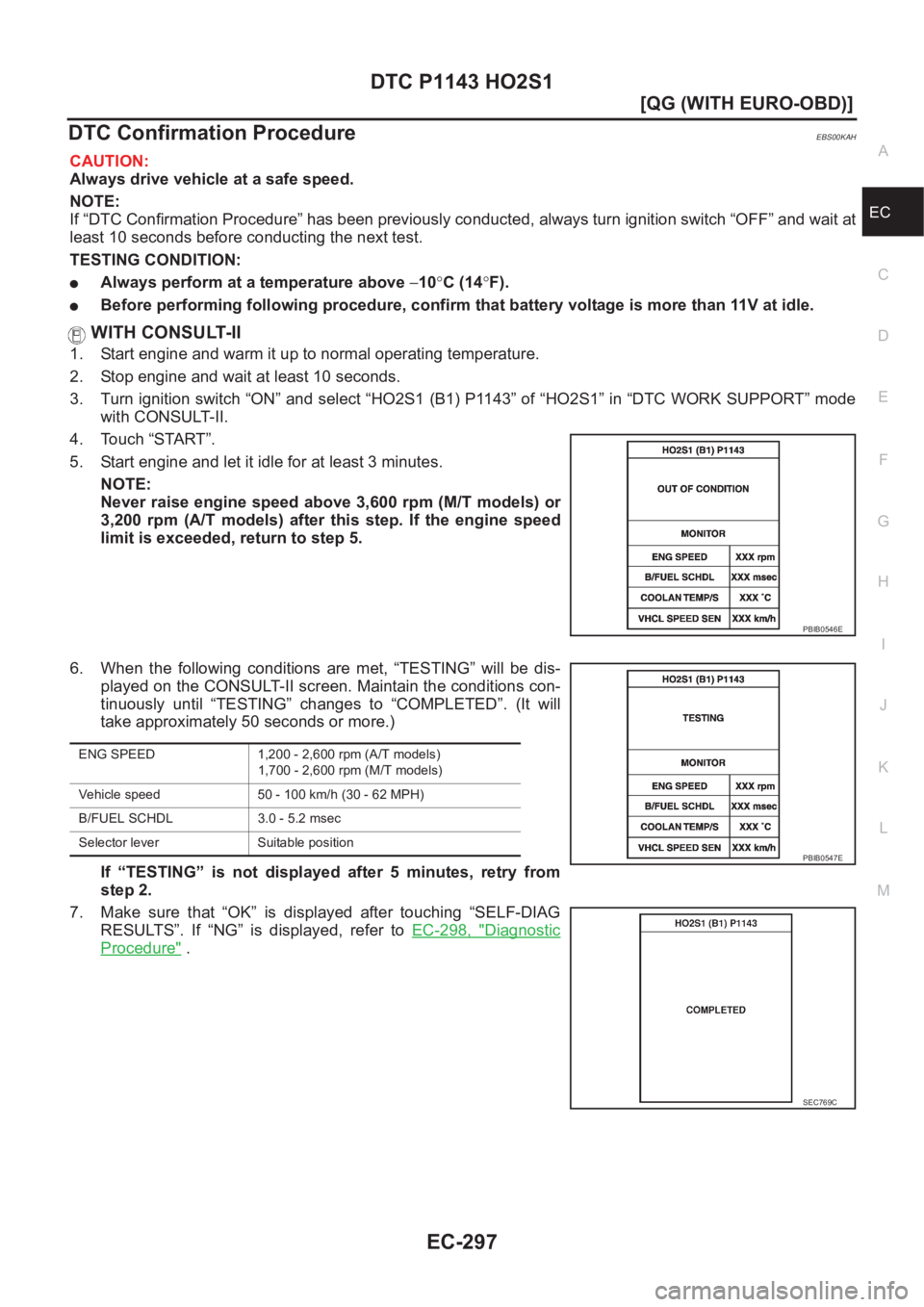

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1143 HO2S1 EC-297 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC Confirmation ProcedureEBS00KAH CAUTION: Always drive vehicle at a safe speed. NOTE: If “DTC Confirmation Procedure” has be

Page 628 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-298 [QG (WITH EURO-OBD)] DTC P1143 HO2S1 Overall Function Check EBS00KAI Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check,

Page 629 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1143 HO2S1 EC-299 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC 3.CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select “SELF-L

Page 630 of 3189

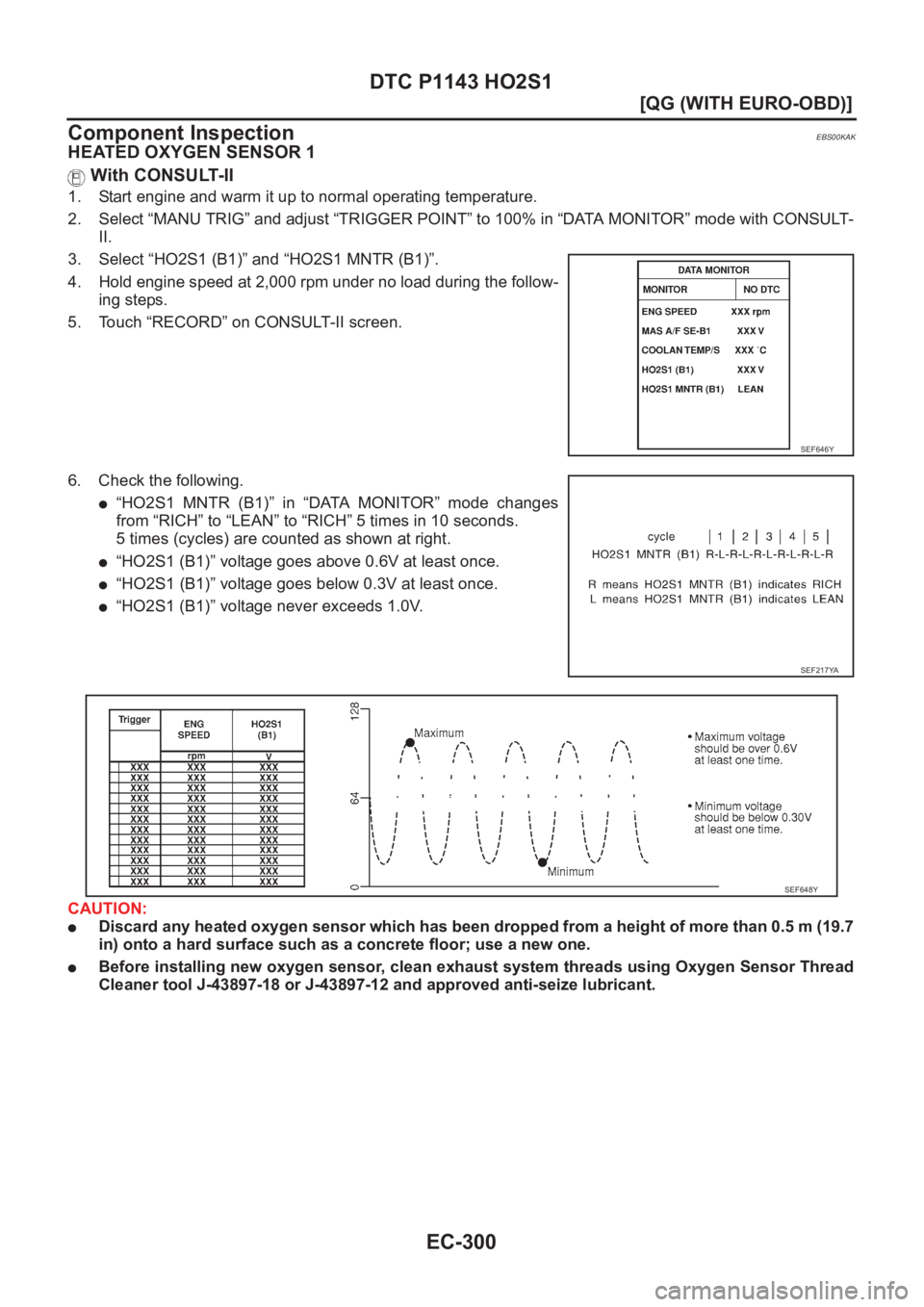

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-300 [QG (WITH EURO-OBD)] DTC P1143 HO2S1 Component Inspection EBS00KAK HEATED OXYGEN SENSOR 1 With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select “MANU TRI

Page 631 of 3189

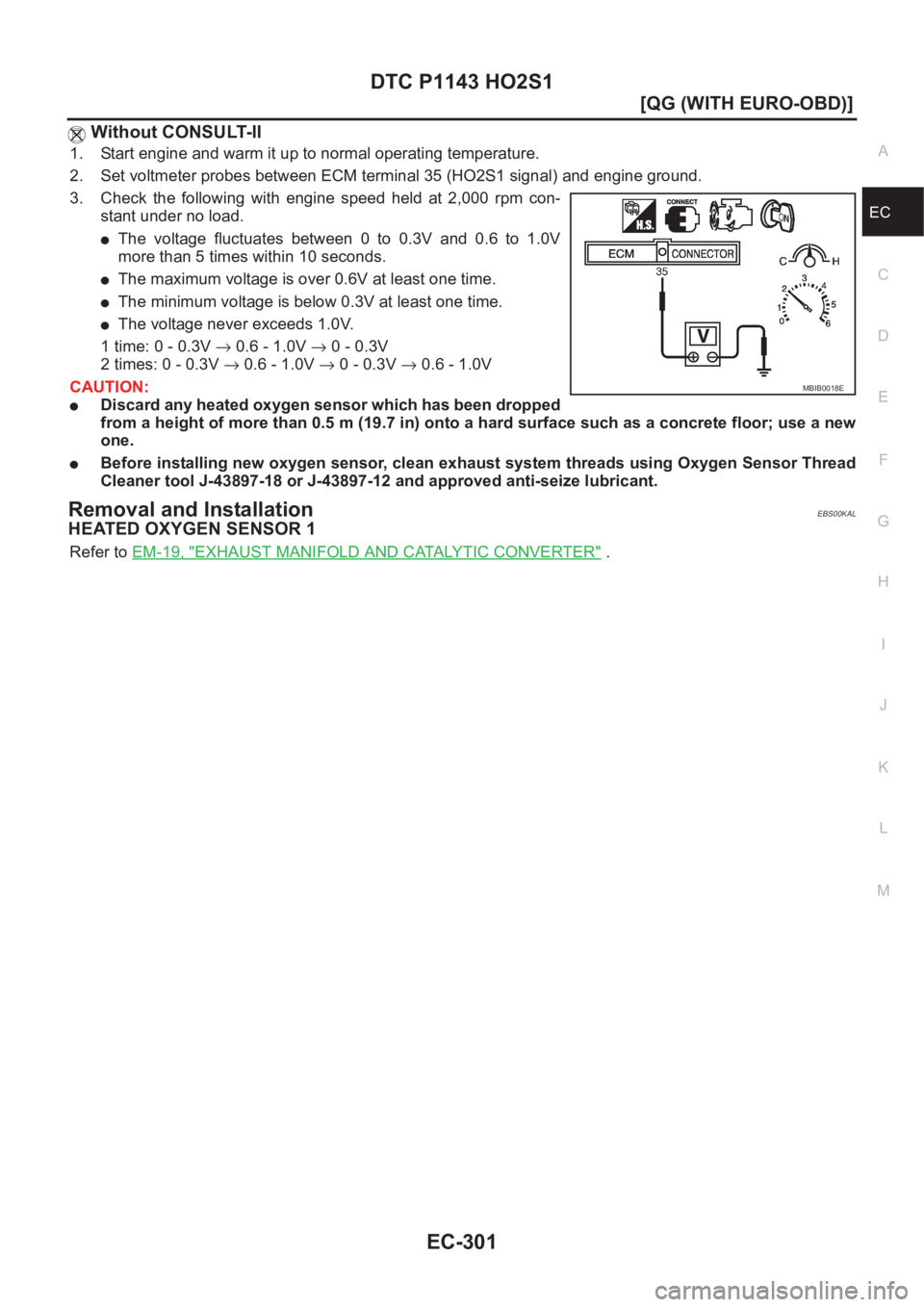

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1143 HO2S1 EC-301 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC Without CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Set voltmeter probes between ECM terminal 3

Page 632 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-302 [QG (WITH EURO-OBD)] DTC P1144 HO2S1 DTC P1144 HO2S1 PFP:22690 Component DescriptionEBS00KAM The heated oxygen sensor 1 is placed into the exhaust manifold. It detects the amount o
