NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-255
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●H

Page 586 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-256
[QG (WITH EURO-OBD)]
DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

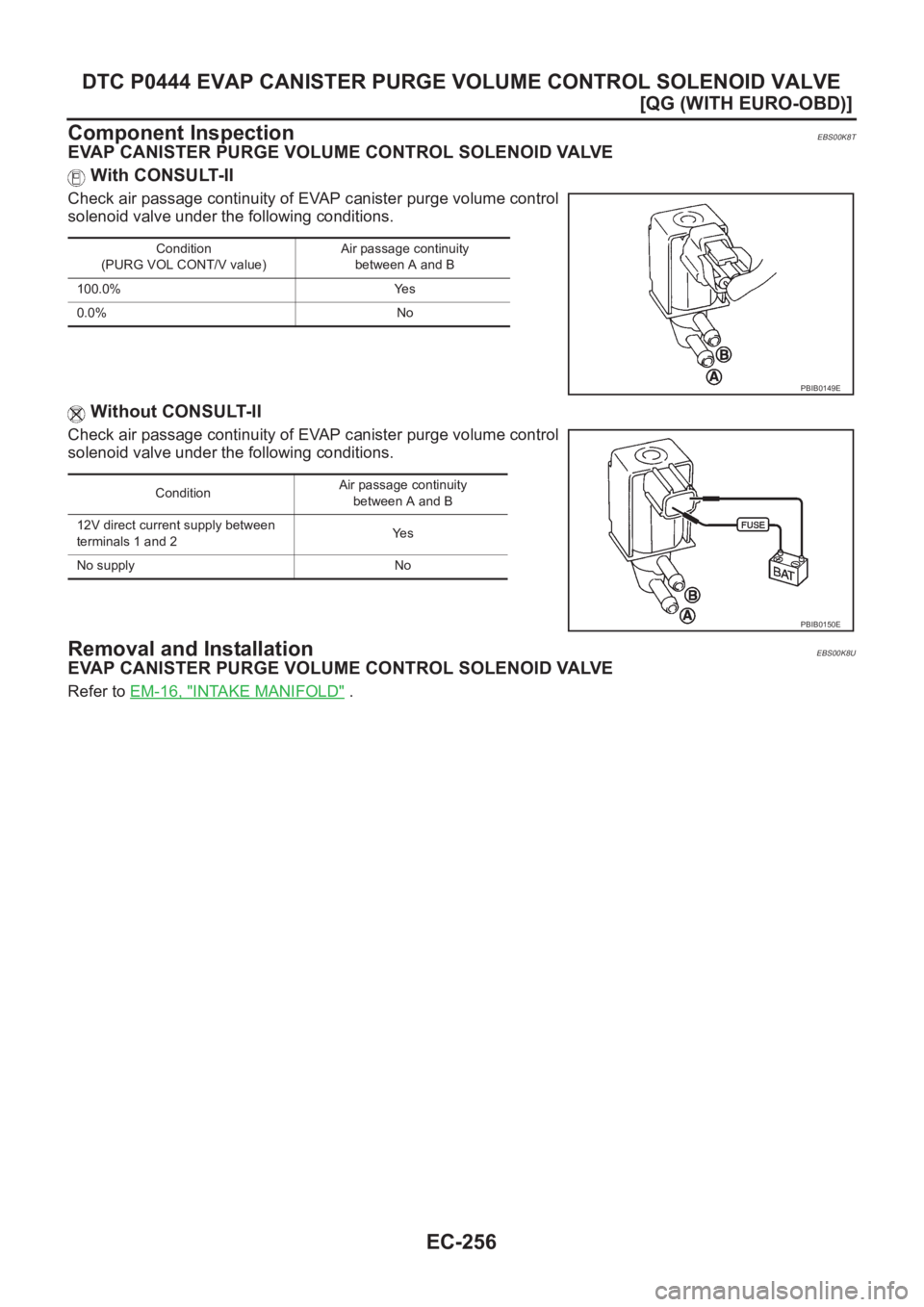

Component Inspection
EBS00K8T
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-II
Check air passa

Page 587 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0500 VSS
EC-257
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0500 VSSPFP:32702
DescriptionEBS00K8V
NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagno

DTC P0500 VSS
EC-257
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0500 VSSPFP:32702
DescriptionEBS00K8V
NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-116, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
The vehicle speed signal is sent from vehicle speed sensor (models without ABS) or ABS actuator and electric
unit (control unit) (models with ABS) to combination meter. The combination meter then sends a signal to the
ECM through CAN communication line.
On Board Diagnosis LogicEBS00K8W
DTC Confirmation ProcedureEBS00K8X
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-II. The vehicle speed on CONSULT-
II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-259, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-259, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM
even when vehicle is being driven.
●Harness or connectors
(The vehicle speed sensor circuit is open or
shorted)
●Harness or connectors
(The CAN communication line is open or
shorted.)
●Vehicle speed sensor (models without ABS)
●ABS actuator and electric unit (control unit)
(models with ABS)
●Combination meter
ENG SPEED More than 2,400 rpm (QG15DE models)
More then 2,100 rpm (QG18DE A/T models)
More then 2,700 rpm (QG18DE M/T models)
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL More than 4.6 msec (QG15DE models)
More than 5.2 msec (QG18DE A/T models)
More than 4.3 msec (QG18DE M/T models
Selector lever Suitable position
PW/ST SIGNAL OFF
SEF196Y

Page 588 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-258
[QG (WITH EURO-OBD)]
DTC P0500 VSS

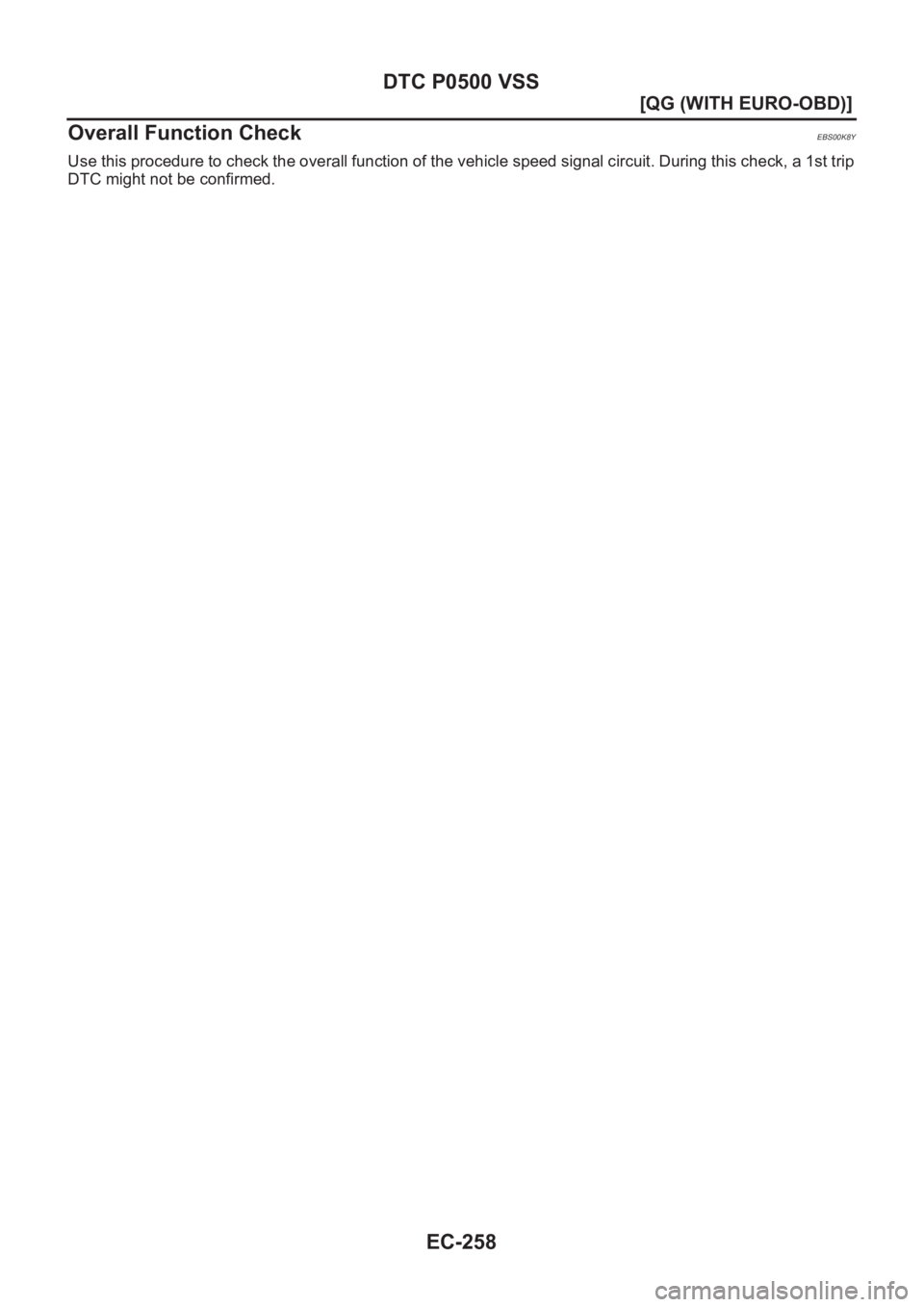

Overall Function Check
EBS00K8Y
Use this procedure to check the overall function of the vehicle speed signal circuit. During this check, a 1st trip
DTC might

Page 589 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0500 VSS
EC-259
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

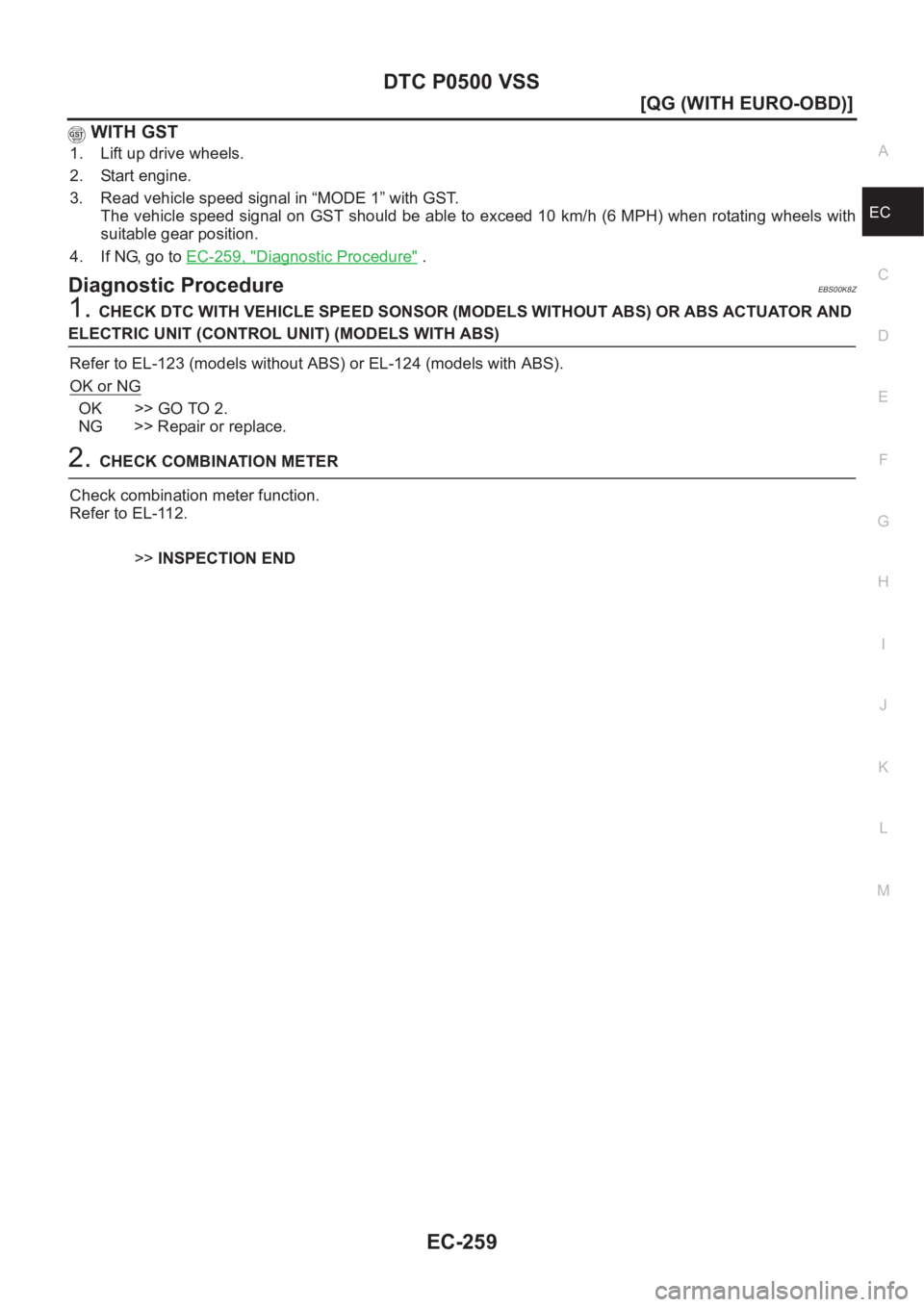

WITH GST
1. Lift up drive wheels.
2. Start engine.
3. Read vehicle speed signal in “MODE 1” with GST.
The vehicle speed signal

Page 590 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-260
[QG (WITH EURO-OBD)]

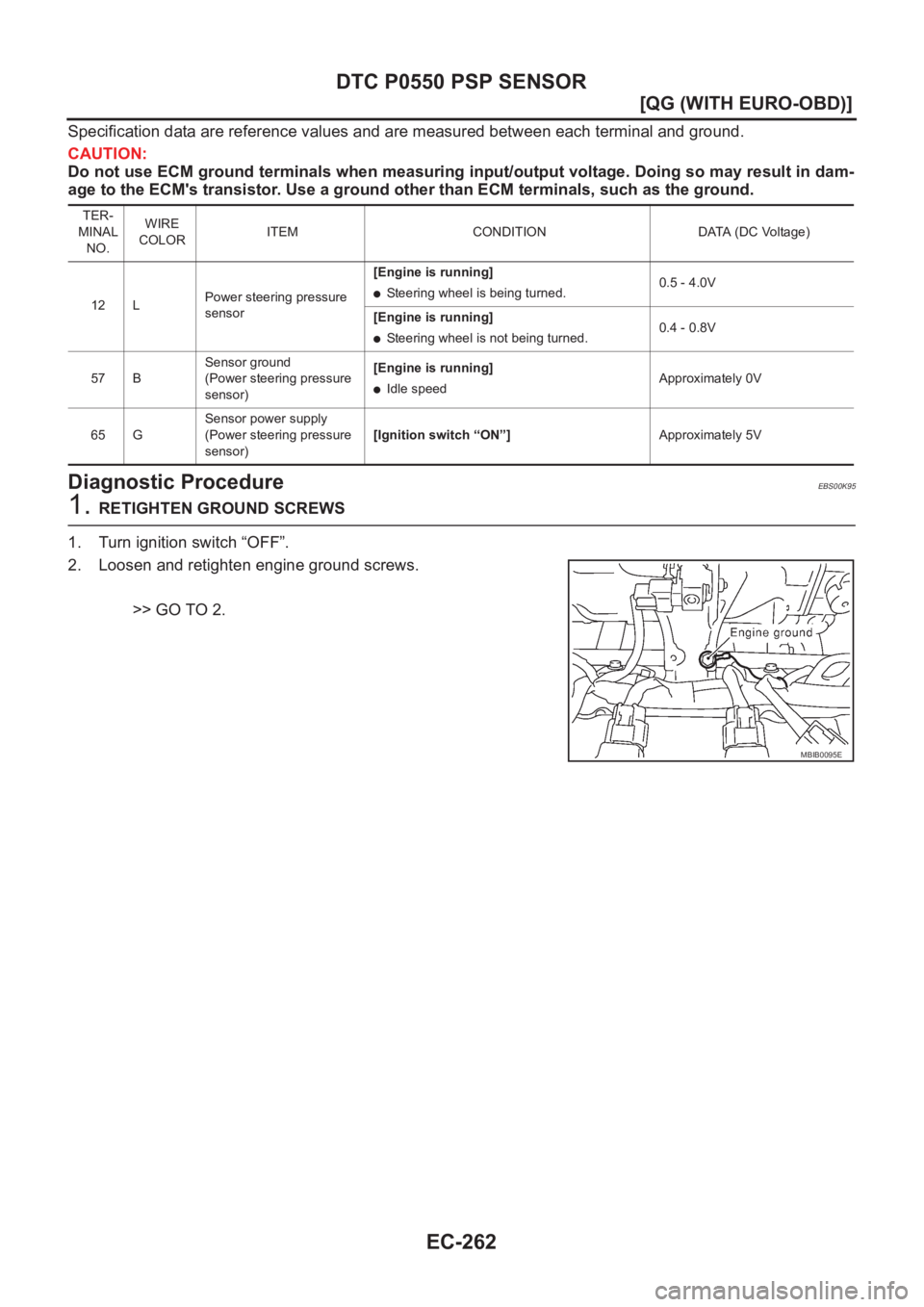

DTC P0550 PSP SENSOR
DTC P0550 PSP SENSOR
PFP:49763
Component DescriptionEBS00K90
Power steering pressure (PSP) sensor is installed to the power
steering high-pres

Page 591 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0550 PSP SENSOR
EC-261
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00K94
YEC294A

Page 592 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-262
[QG (WITH EURO-OBD)]
DTC P0550 PSP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring inpu
