Page 1881 of 3189

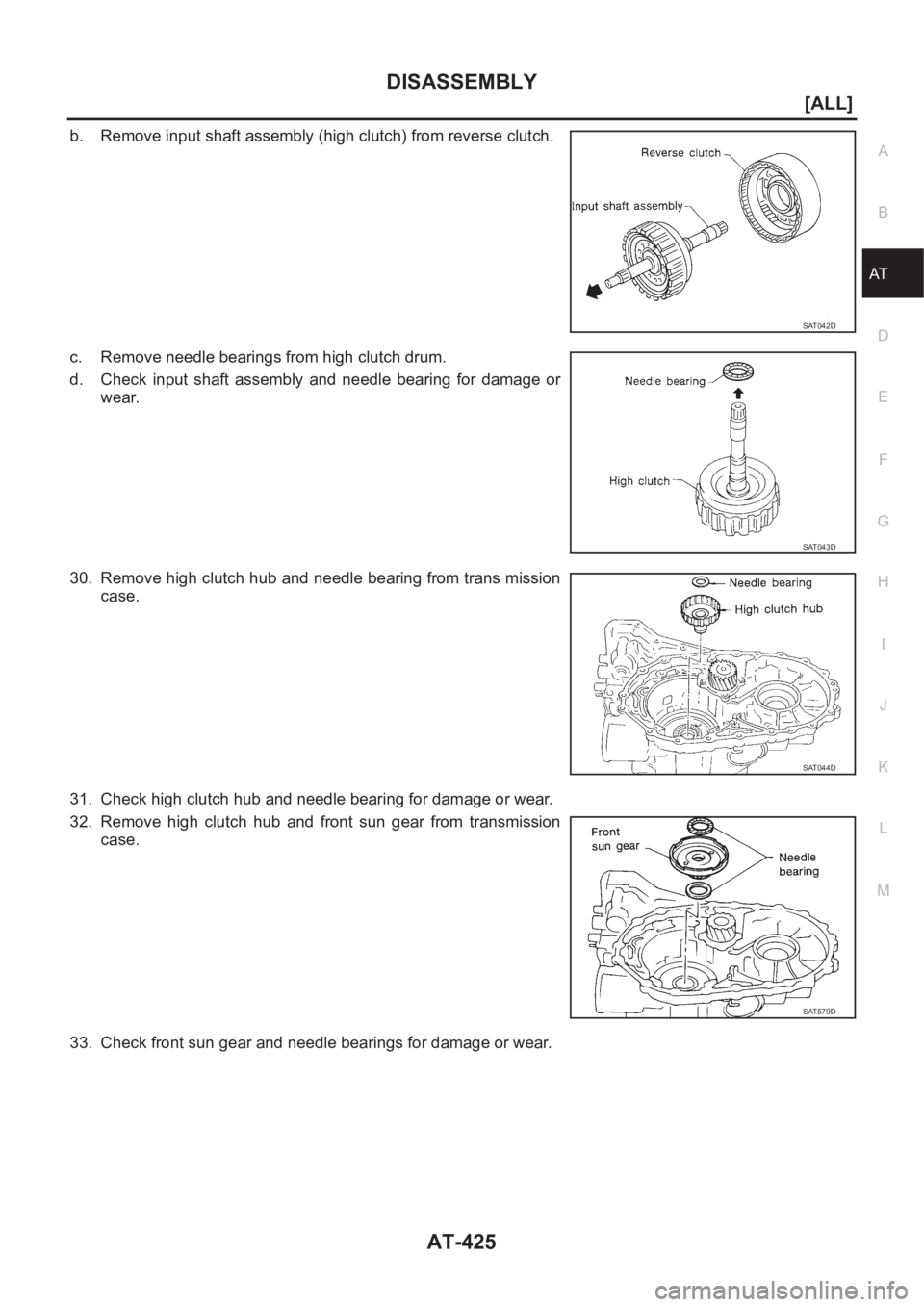

NISSAN ALMERA N16 2003 Electronic Repair Manual DISASSEMBLY AT-425 [ALL] D E F G H I J K L MA B AT b. Remove input shaft assembly (high clutch) from reverse clutch. c. Remove needle bearings from high clutch drum. d. Check input shaft assembly

Page 1882 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-426 [ALL] DISASSEMBLY 34. Remove low one-way clutch and front planetary carrier assem- bly according to the following procedures. a. Remove snap ring with flat-bladed screwdriver. b. Remove

Page 1883 of 3189

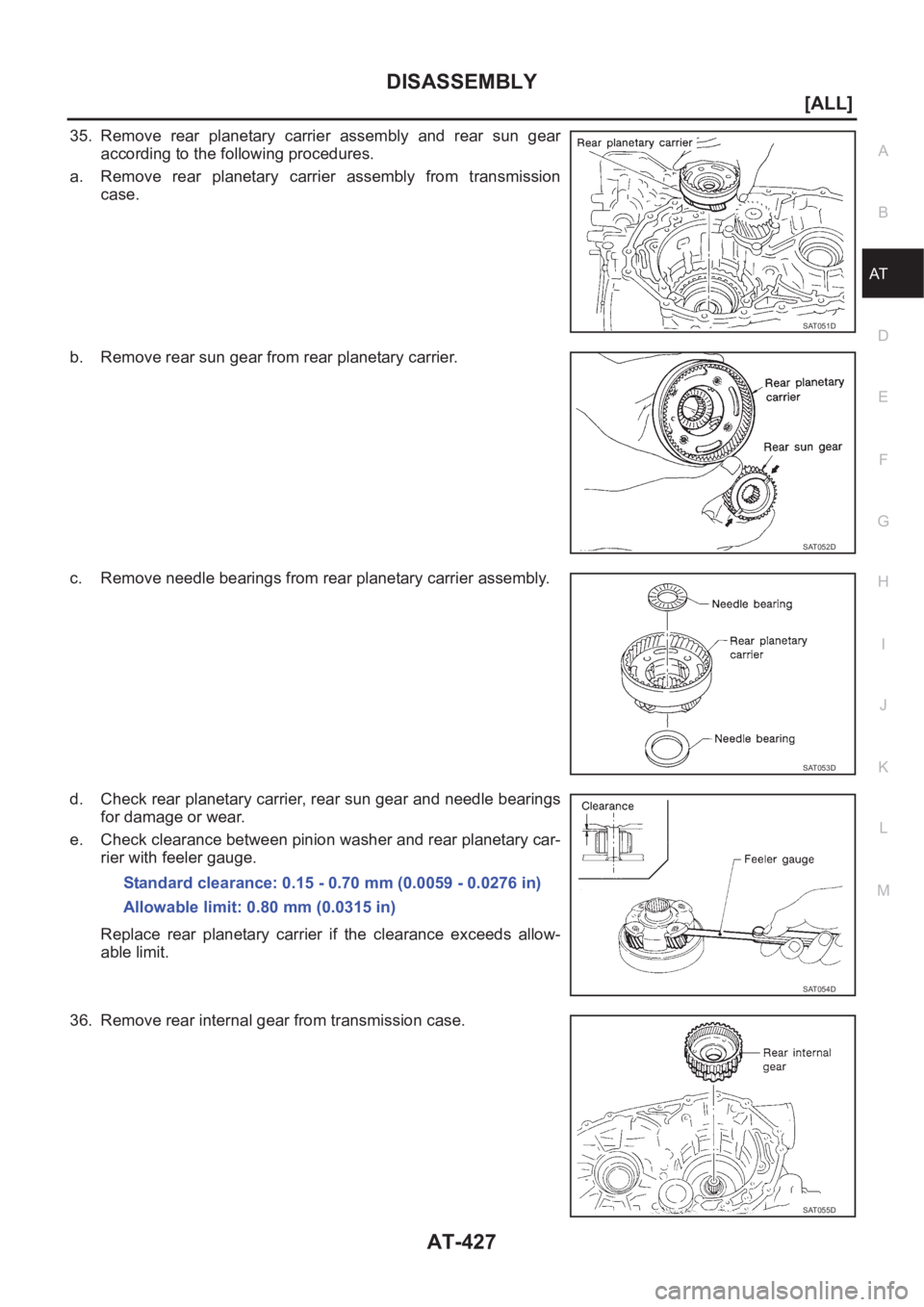

NISSAN ALMERA N16 2003 Electronic Repair Manual DISASSEMBLY AT-427 [ALL] D E F G H I J K L MA B AT 35. Remove rear planetary carrier assembly and rear sun gear according to the following procedures. a. Remove rear planetary carrier asse

Page 1884 of 3189

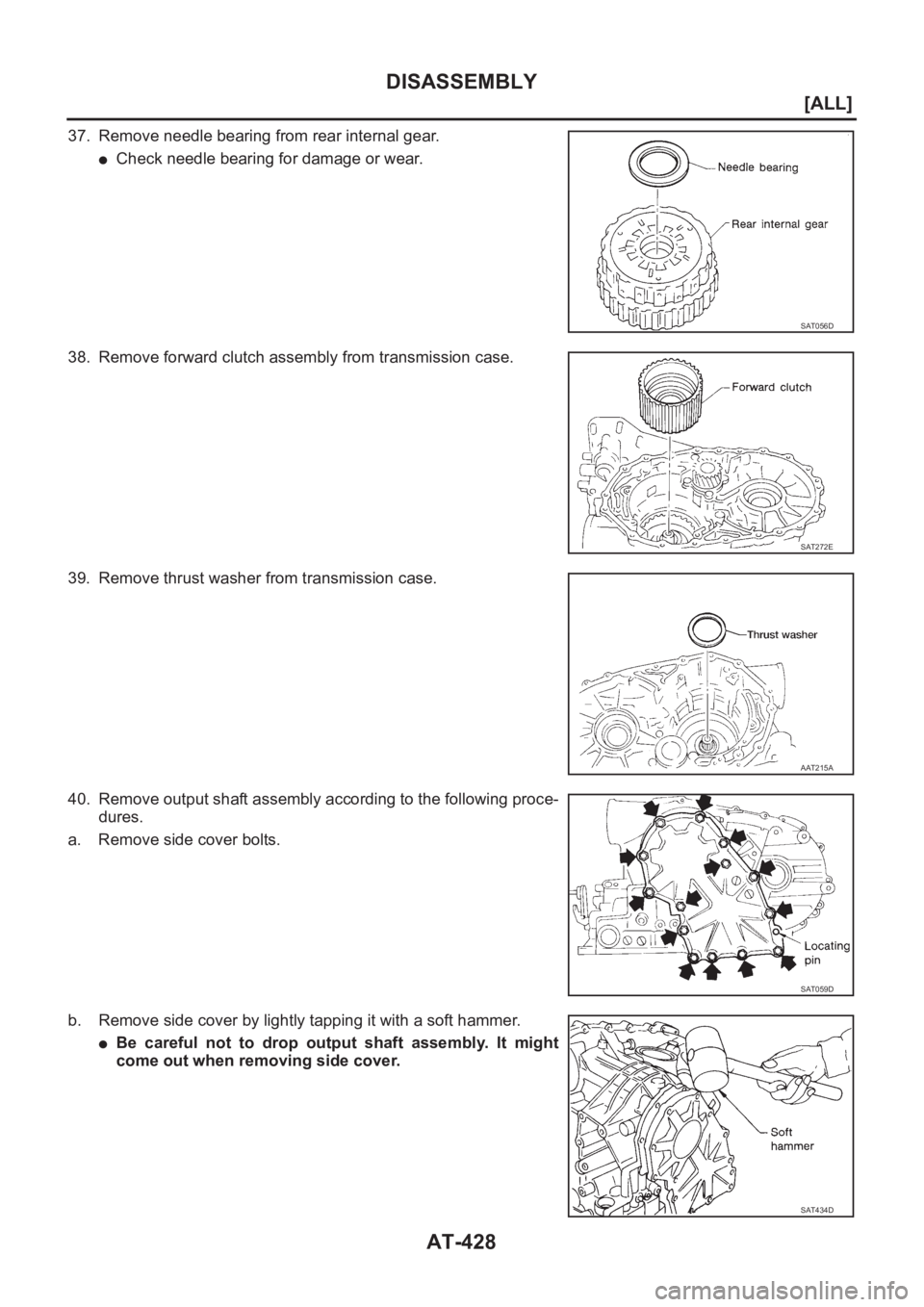

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-428 [ALL] DISASSEMBLY 37. Remove needle bearing from rear internal gear. ●Check needle bearing for damage or wear. 38. Remove forward clutch assembly from transmission case. 39. Remove thrust was

Page 1885 of 3189

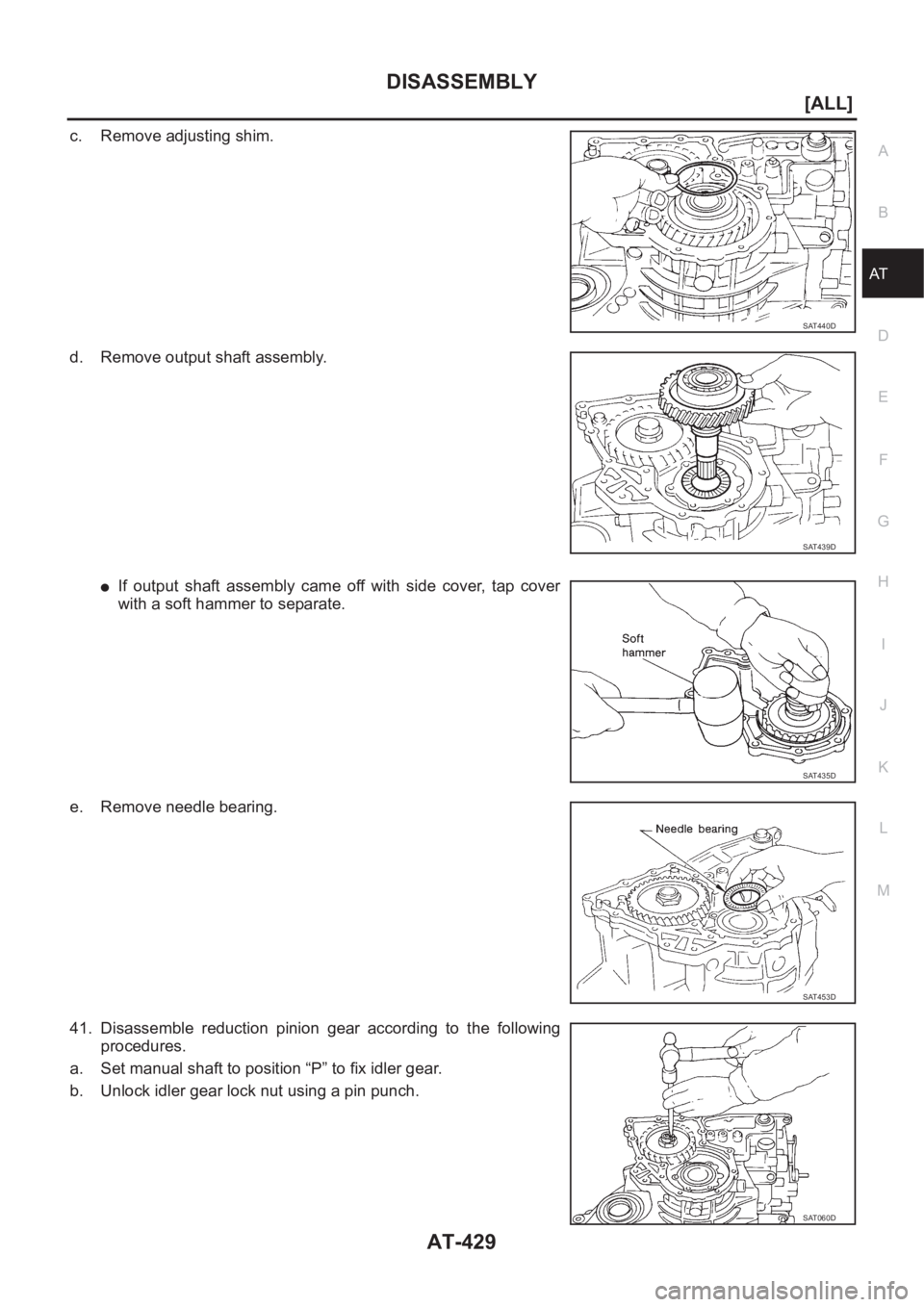

NISSAN ALMERA N16 2003 Electronic Repair Manual DISASSEMBLY AT-429 [ALL] D E F G H I J K L MA B AT c. Remove adjusting shim. d. Remove output shaft assembly. ●If output shaft assembly came off with side cover, tap cover with a soft hamm

Page 1886 of 3189

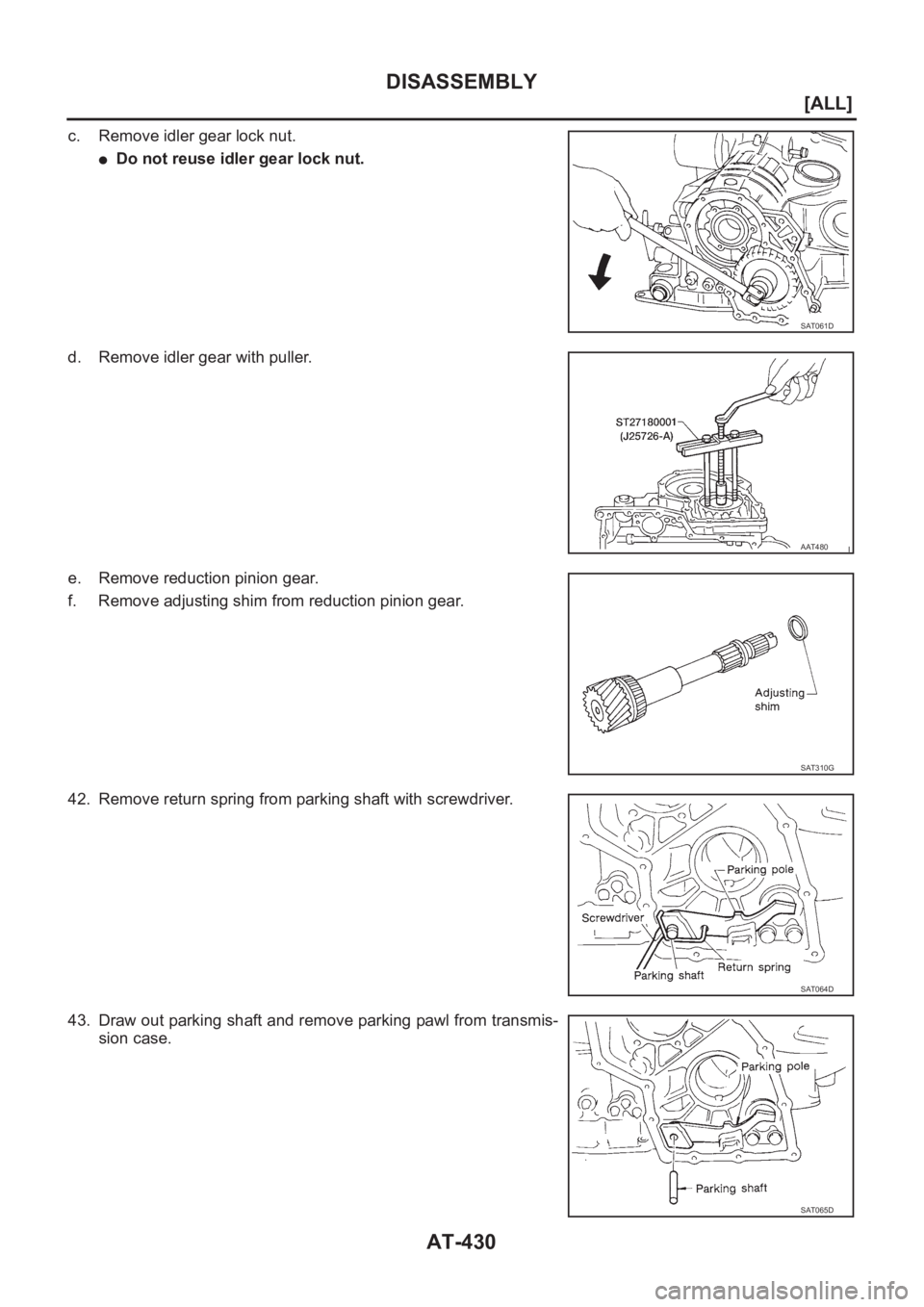

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-430 [ALL] DISASSEMBLY c. Remove idler gear lock nut. ●Do not reuse idler gear lock nut. d. Remove idler gear with puller. e. Remove reduction pinion gear. f. Remove adjusting shim from reduction

Page 1887 of 3189

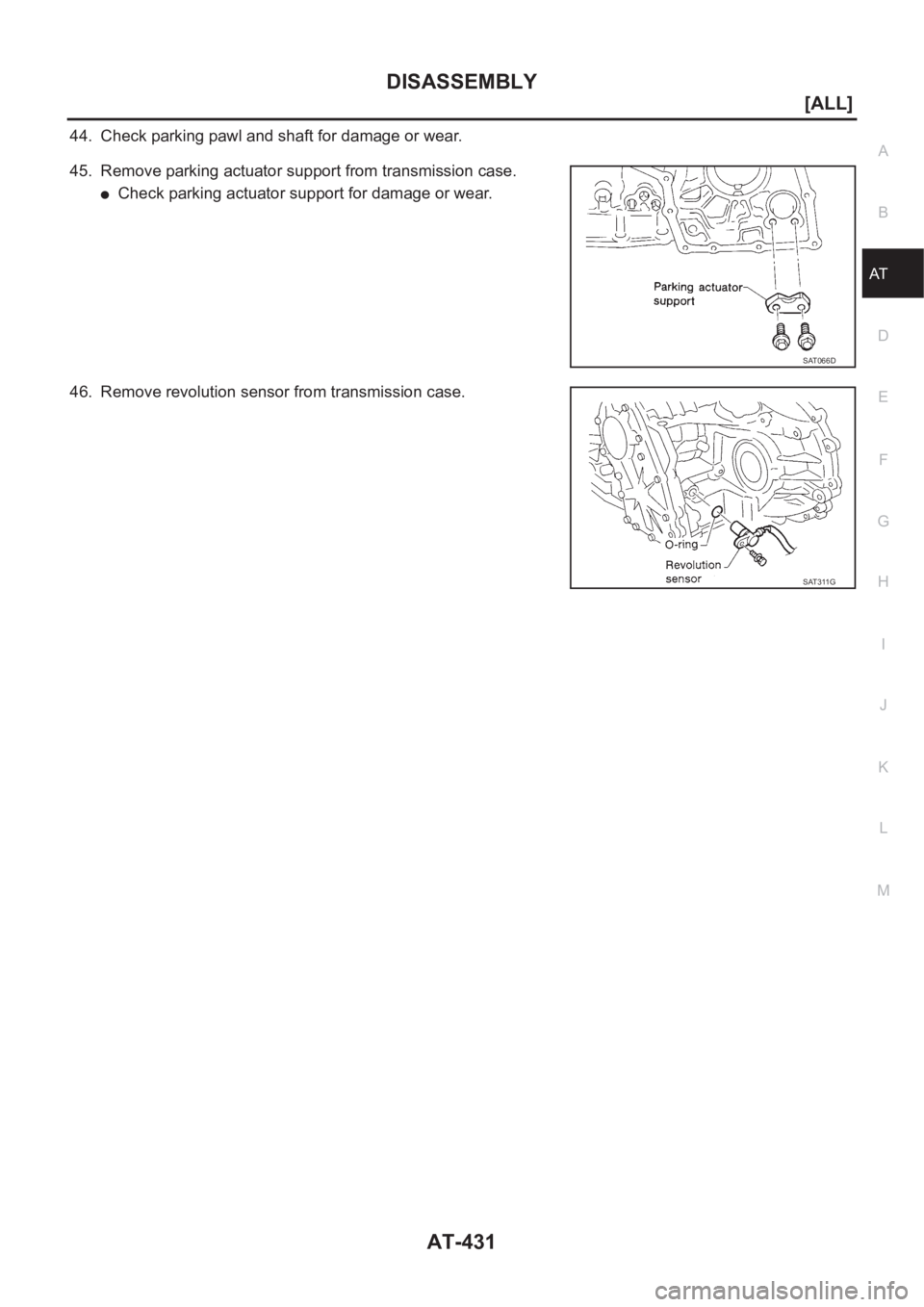

NISSAN ALMERA N16 2003 Electronic Repair Manual DISASSEMBLY AT-431 [ALL] D E F G H I J K L MA B AT 44. Check parking pawl and shaft for damage or wear. 45. Remove parking actuator support from transmission case. ●Check parking actuator support fo

Page 1888 of 3189

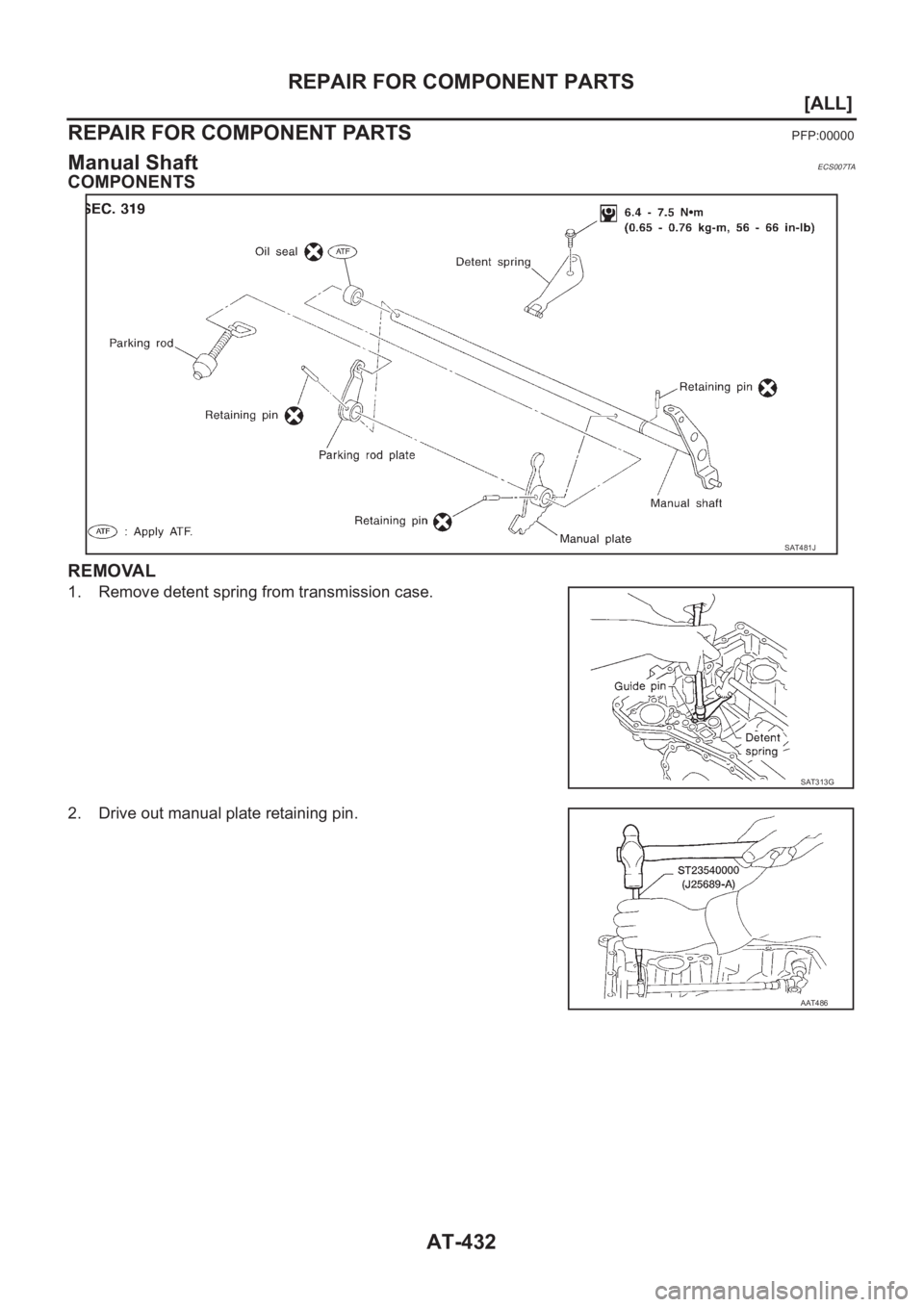

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-432 [ALL] REPAIR FOR COMPONENT PARTS REPAIR FOR COMPONENT PARTS PFP:00000 Manual ShaftECS007TA COMPONENTS REMOVAL 1. Remove detent spring from transmission case. 2. Drive out manual plate retaining
