Page 153 of 3189

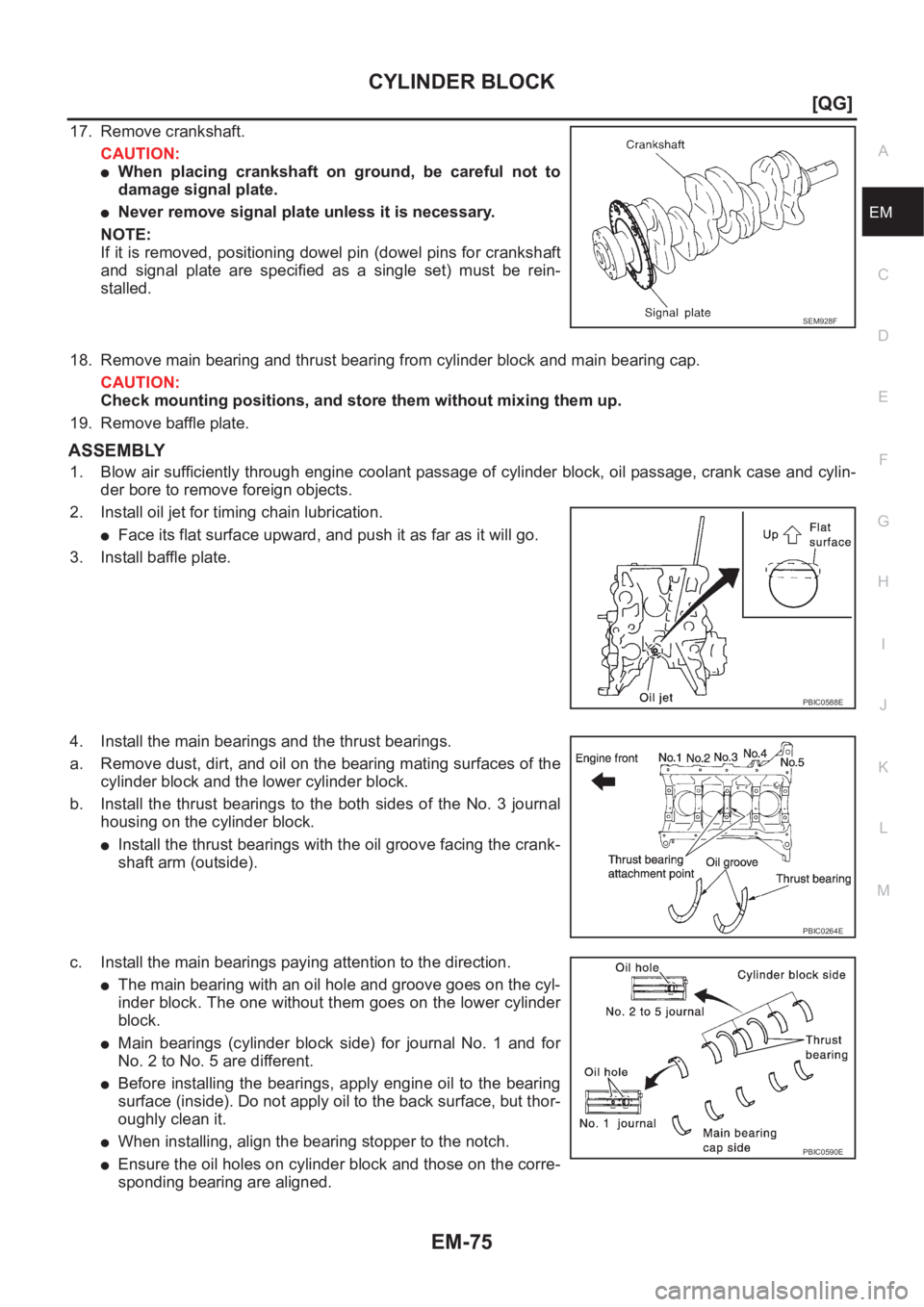

NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER BLOCK EM-75 [QG] C D E F G H I J K L MA EM 17. Remove crankshaft. CAUTION: ●When placing crankshaft on ground, be careful not to damage signal plate. ●Never remove signal plate un

Page 154 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-76 [QG] CYLINDER BLOCK 5. Install the signal plate to the crankshaft. a. Position crankshaft and signal plate using a positioning dowel pin, and tighten mounting bolts. b. Remove dowel pin.

Page 155 of 3189

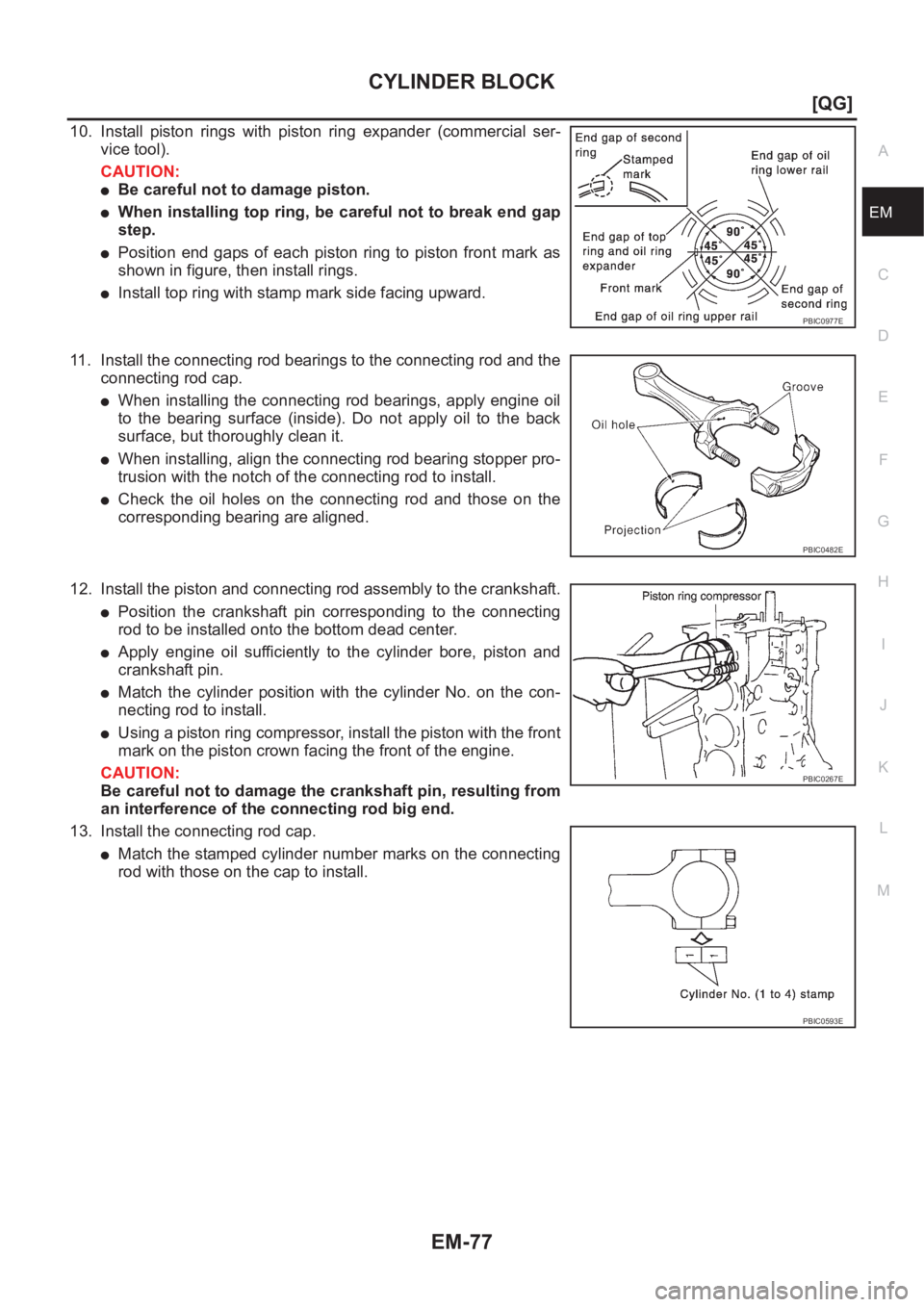

NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER BLOCK EM-77 [QG] C D E F G H I J K L MA EM 10. Install piston rings with piston ring expander (commercial ser- vice tool). CAUTION: ●Be careful not to damage piston. ●When instal

Page 156 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-78 [QG] CYLINDER BLOCK 14. Tighten connecting rod nuts with the following procedure. a. Lubricate connecting rod bolts and seat of nuts with new engine oil. b. Tighten to a torque of 13.72 - 1

Page 157 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER BLOCK EM-79 [QG] C D E F G H I J K L MA EM 18. Install flywheel or drive plate. ●Install drive plate in direction shown in figure. ●Fix crankshaft with ring gear stopper (special service

Page 158 of 3189

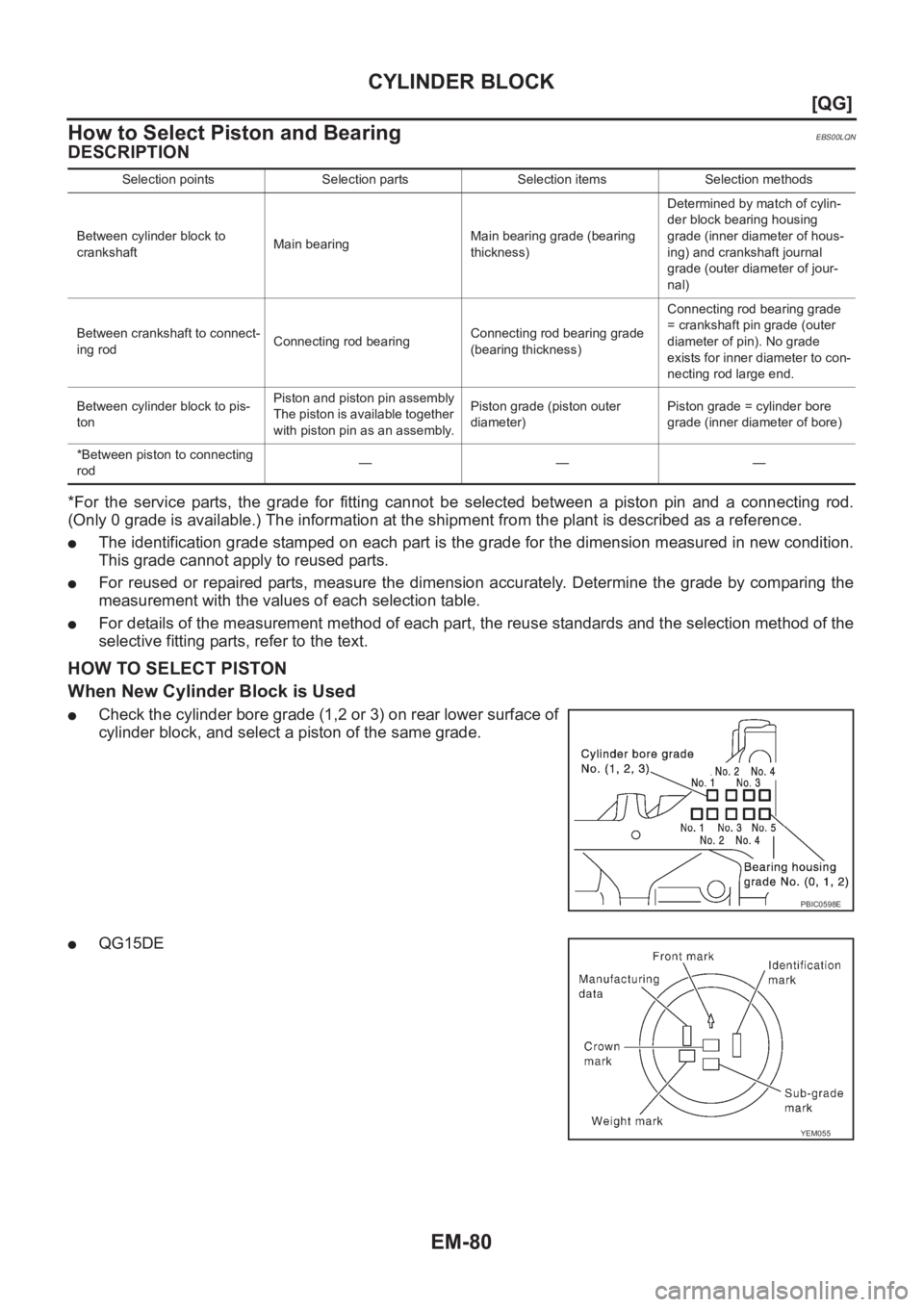

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-80 [QG] CYLINDER BLOCK How to Select Piston and Bearing EBS00LQN DESCRIPTION *For the service parts, the grade for fitting cannot be selected between a piston pin and a connecting

Page 159 of 3189

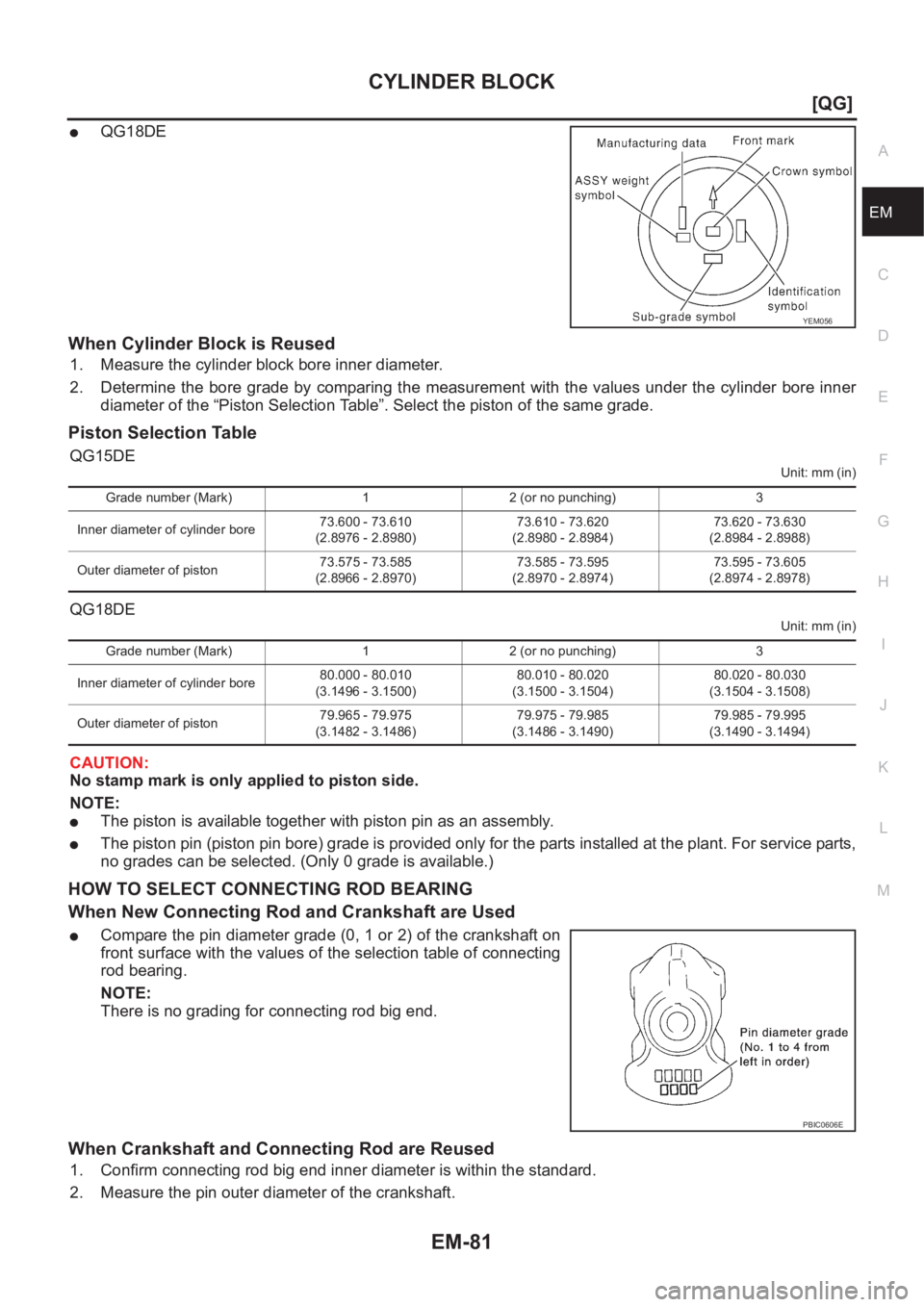

NISSAN ALMERA N16 2003 Electronic Repair Manual CYLINDER BLOCK EM-81 [QG] C D E F G H I J K L MA EM ●QG18DE When Cylinder Block is Reused 1. Measure the cylinder block bore inner diameter. 2. Determine the bore grade by comparing the measurement

Page 160 of 3189

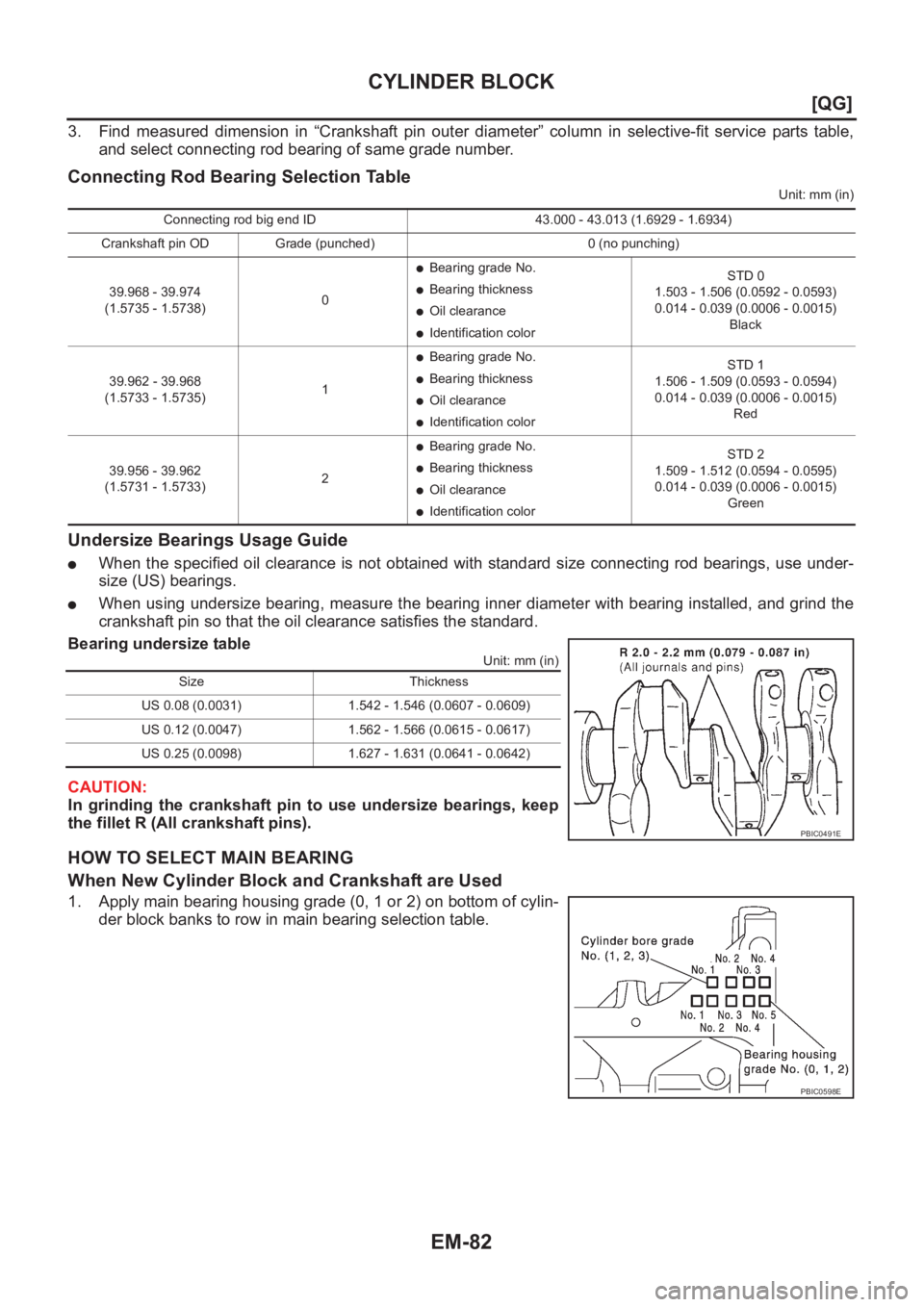

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-82 [QG] CYLINDER BLOCK 3. Find measured dimension in “Crankshaft pin outer diameter” column in selective-fit service parts table, and select connecting rod bearing of same grade nu
