Page 2081 of 3189

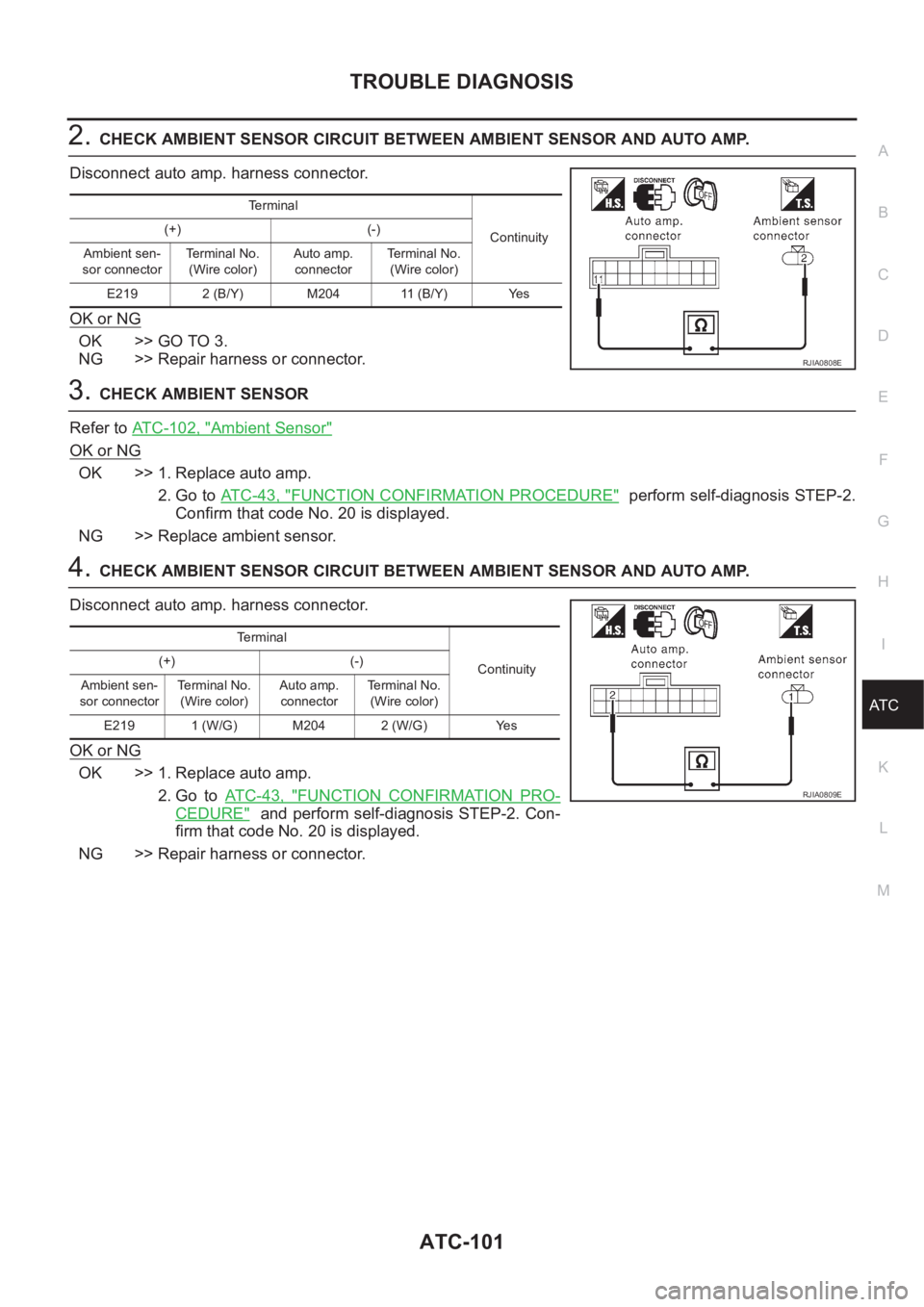

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-101 C D E F G H I K L MA B AT C 2.CHECK AMBIENT SENSOR CIRCUIT BETWEEN AMBIENT SENSOR AND AUTO AMP. Disconnect auto amp. harness connector. OK or NG OK >> GO TO 3. NG >> Repair h

Page 2082 of 3189

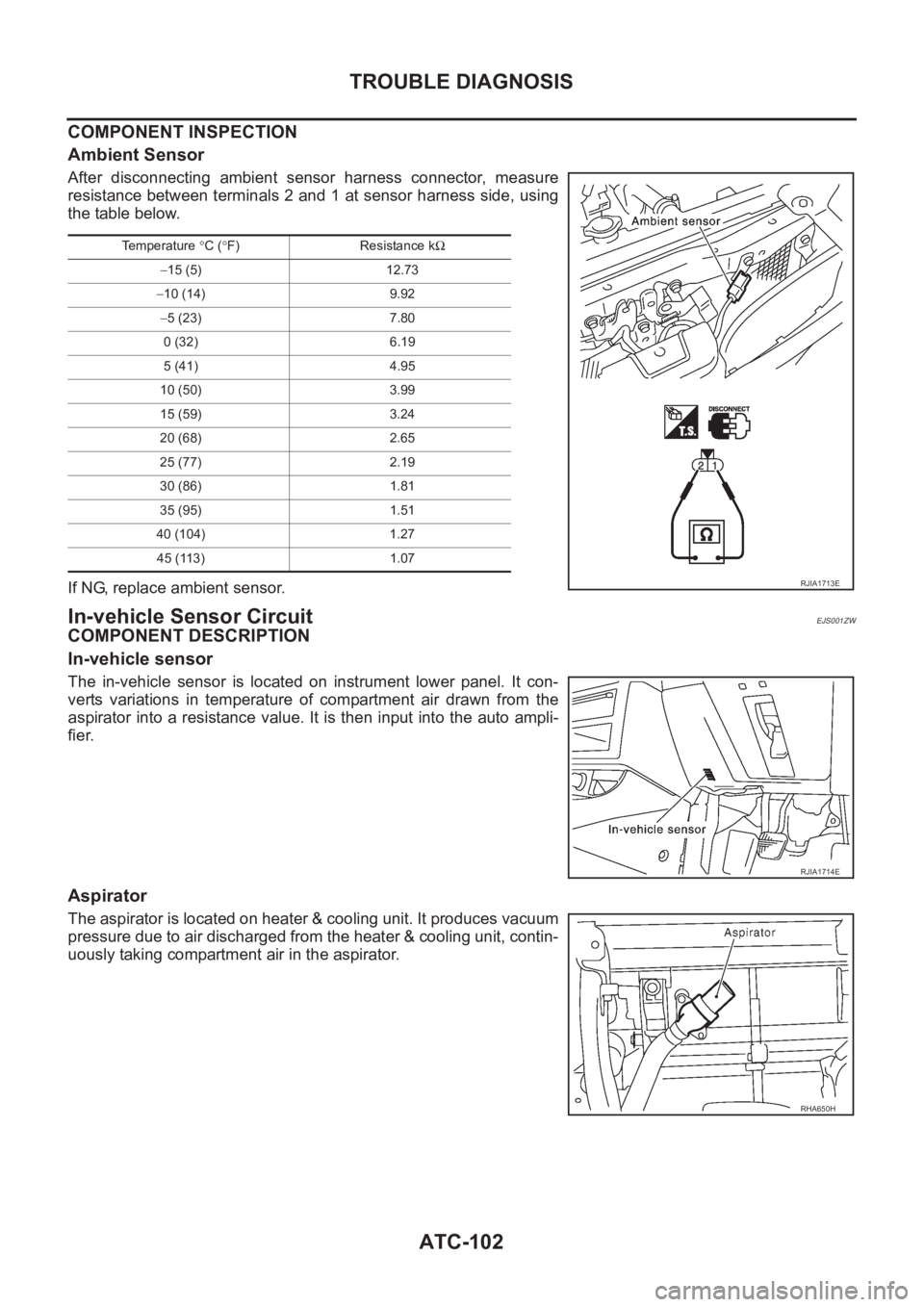

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-102 TROUBLE DIAGNOSIS COMPONENT INSPECTION Ambient Sensor After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the

Page 2083 of 3189

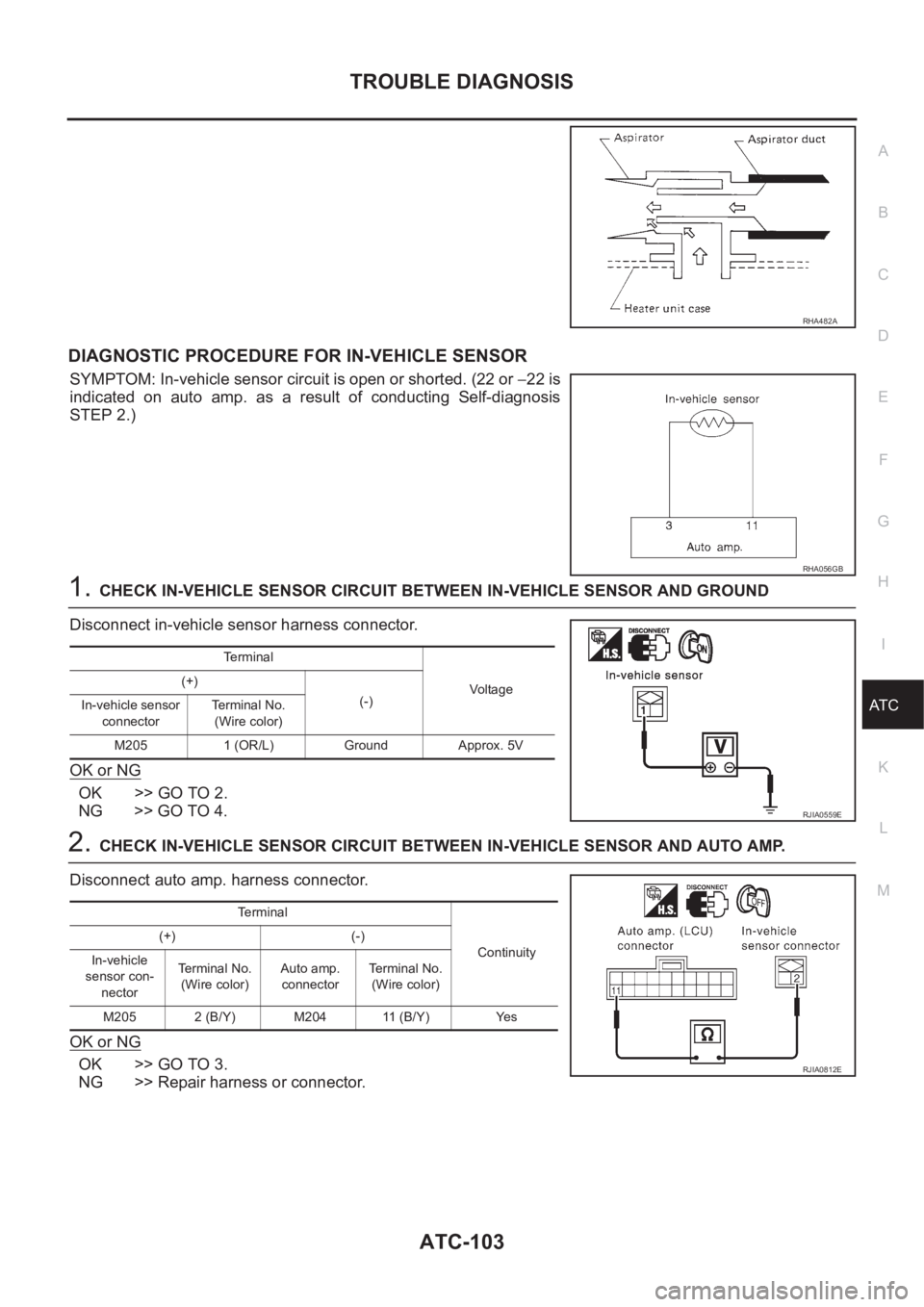

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-103 C D E F G H I K L MA B AT C DIAGNOSTIC PROCEDURE FOR IN-VEHICLE SENSOR SYMPTOM: In-vehicle sensor circuit is open or shorted. (22 or −22 is indicated on auto amp. as a

Page 2084 of 3189

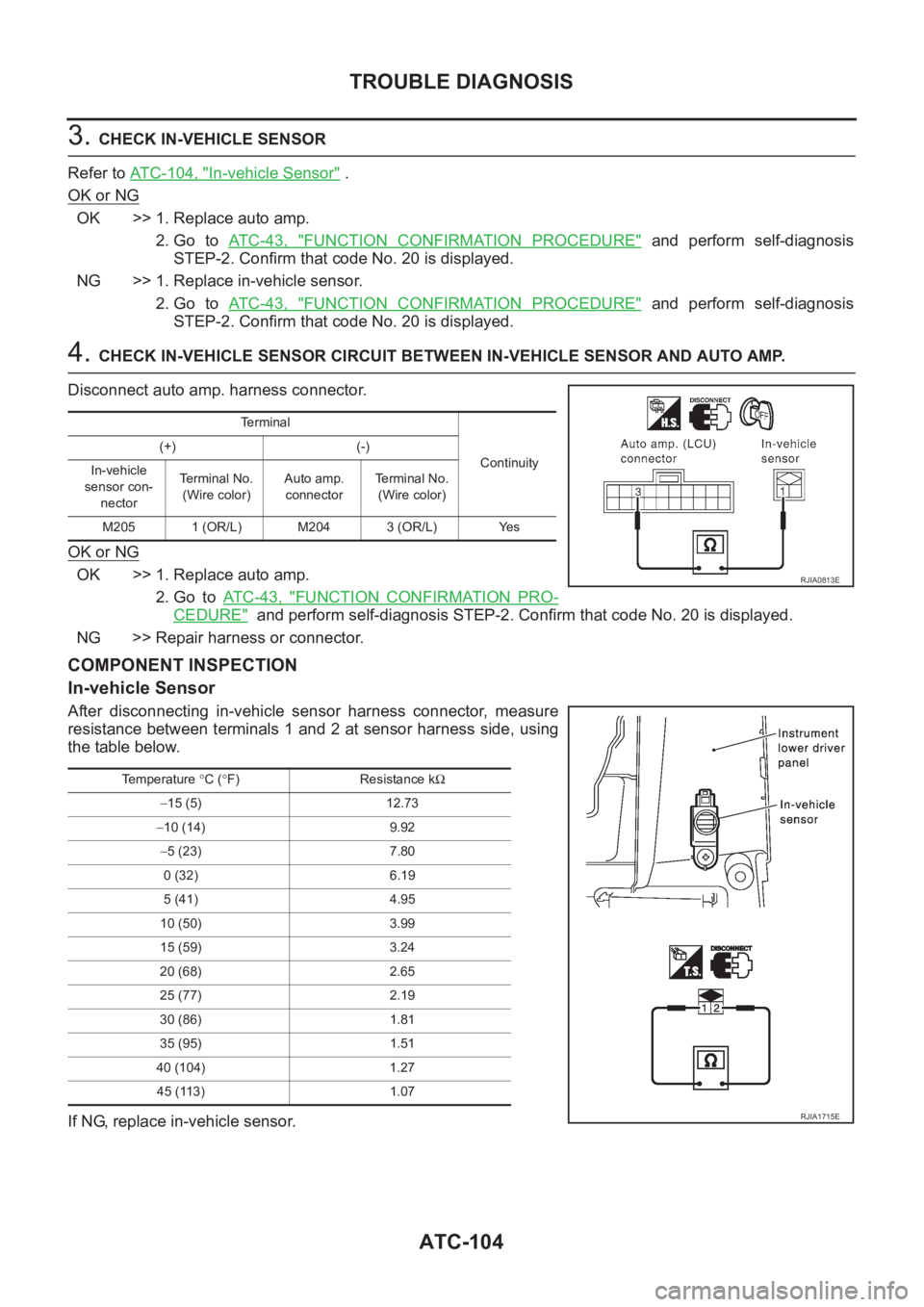

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-104 TROUBLE DIAGNOSIS 3. CHECK IN-VEHICLE SENSOR Refer to ATC-104, " In-vehicle Sensor" . OK or NG OK >> 1. Replace auto amp. 2. Go to AT C - 4 3 , " FUNCTION CONFIRMATION PROCEDU

Page 2085 of 3189

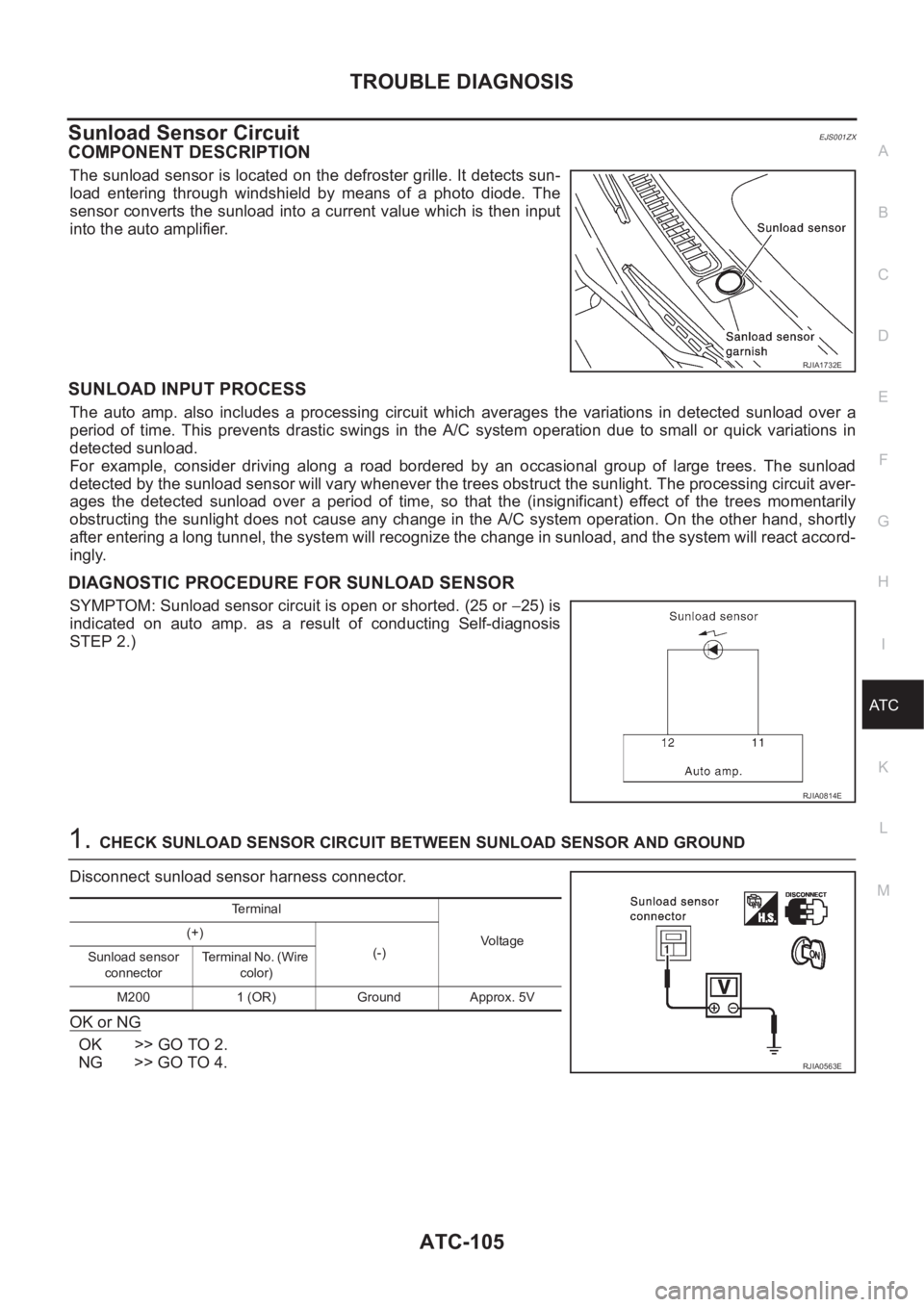

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-105 C D E F G H I K L MA B AT C Sunload Sensor CircuitEJS001ZX COMPONENT DESCRIPTION The sunload sensor is located on the defroster grille. It detects sun- load entering throug

Page 2086 of 3189

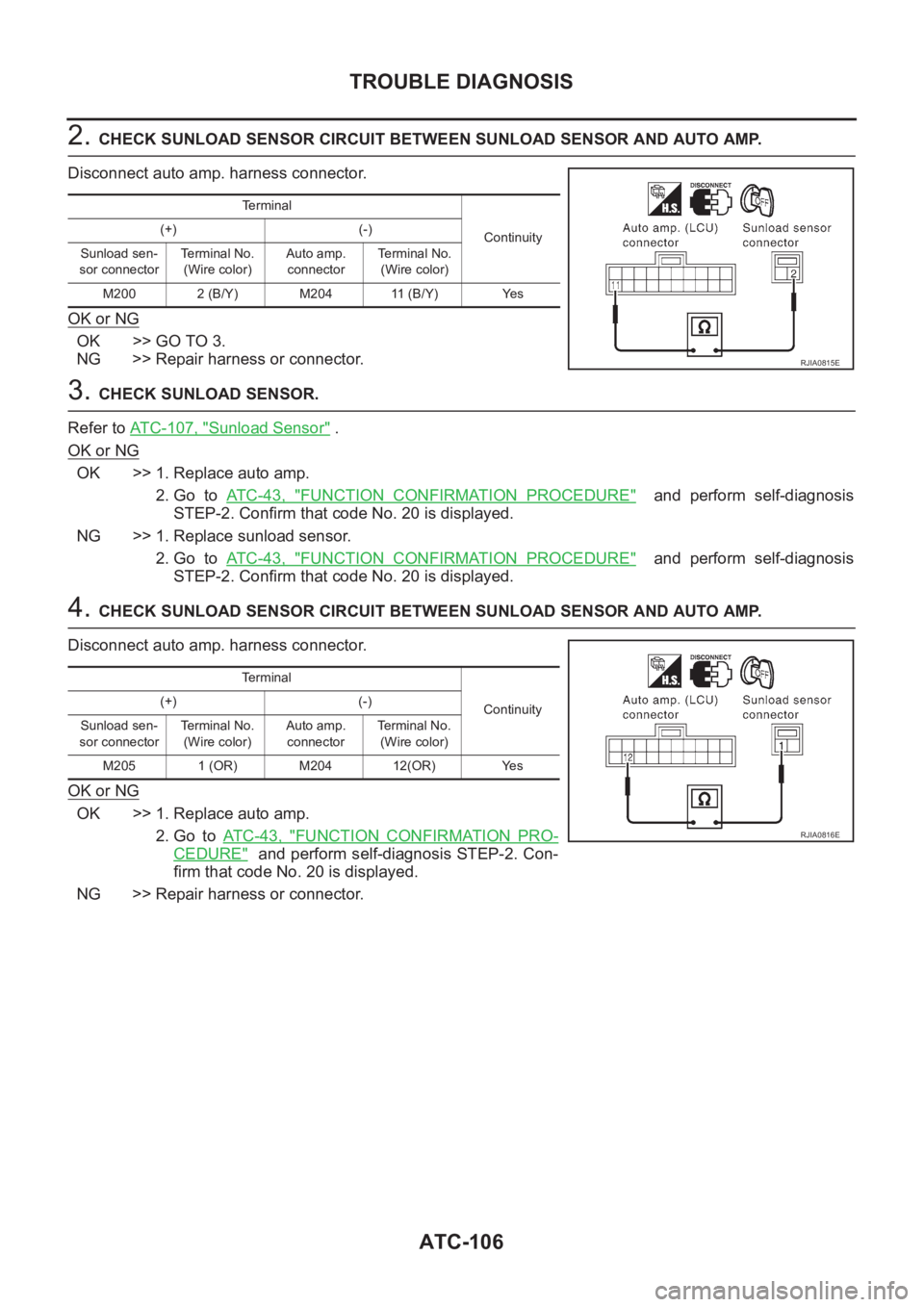

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-106 TROUBLE DIAGNOSIS 2. CHECK SUNLOAD SENSOR CIRCUIT BETWEEN SUNLOAD SENSOR AND AUTO AMP. Disconnect auto amp. harness connector. OK or NG OK >> GO TO 3. NG >> Repair harness or connector. 3. CHE

Page 2087 of 3189

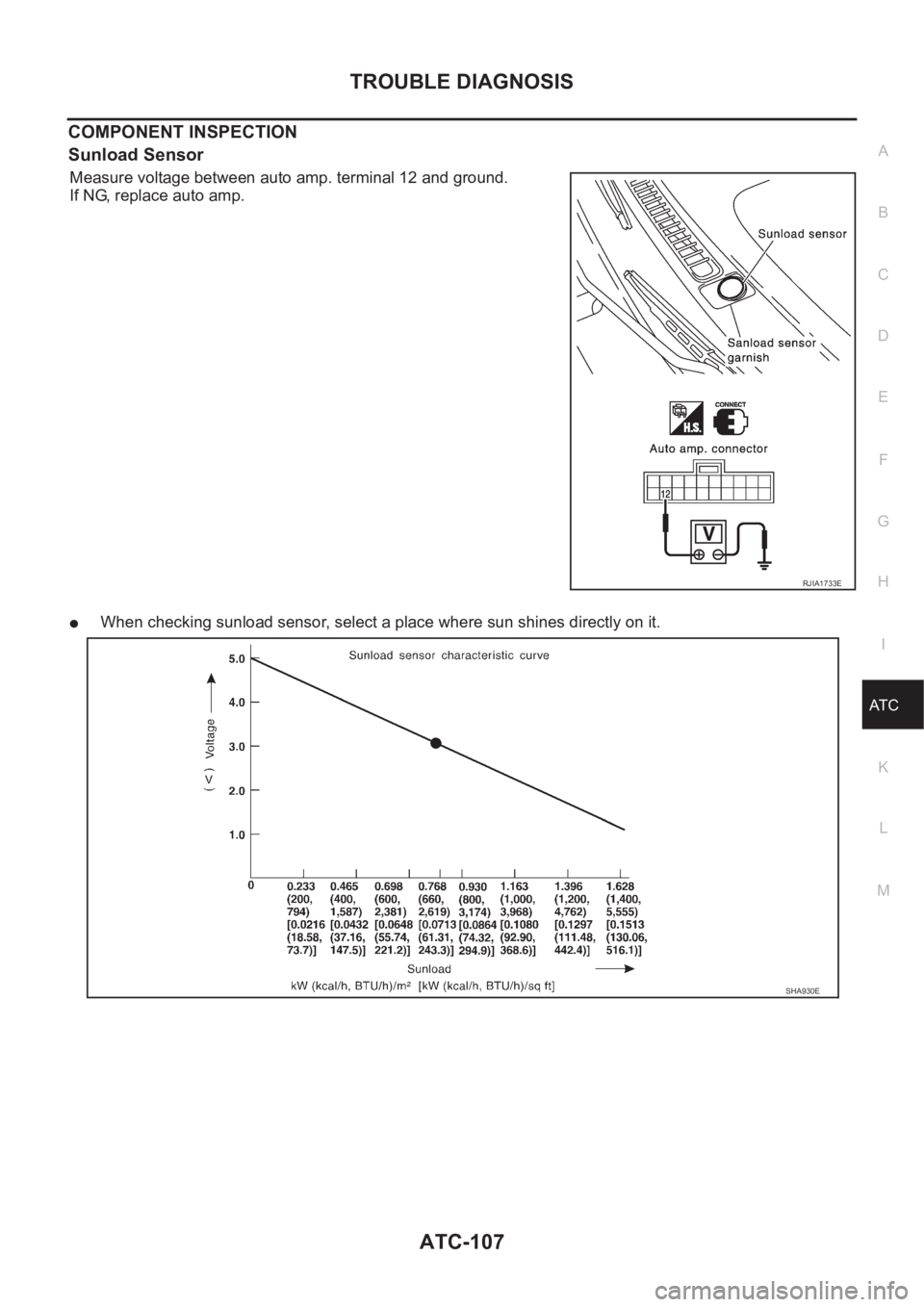

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-107 C D E F G H I K L MA B AT C COMPONENT INSPECTION Sunload Sensor Measure voltage between auto amp. terminal 12 and ground. If NG, replace auto amp. ●When checking sunload se

Page 2088 of 3189

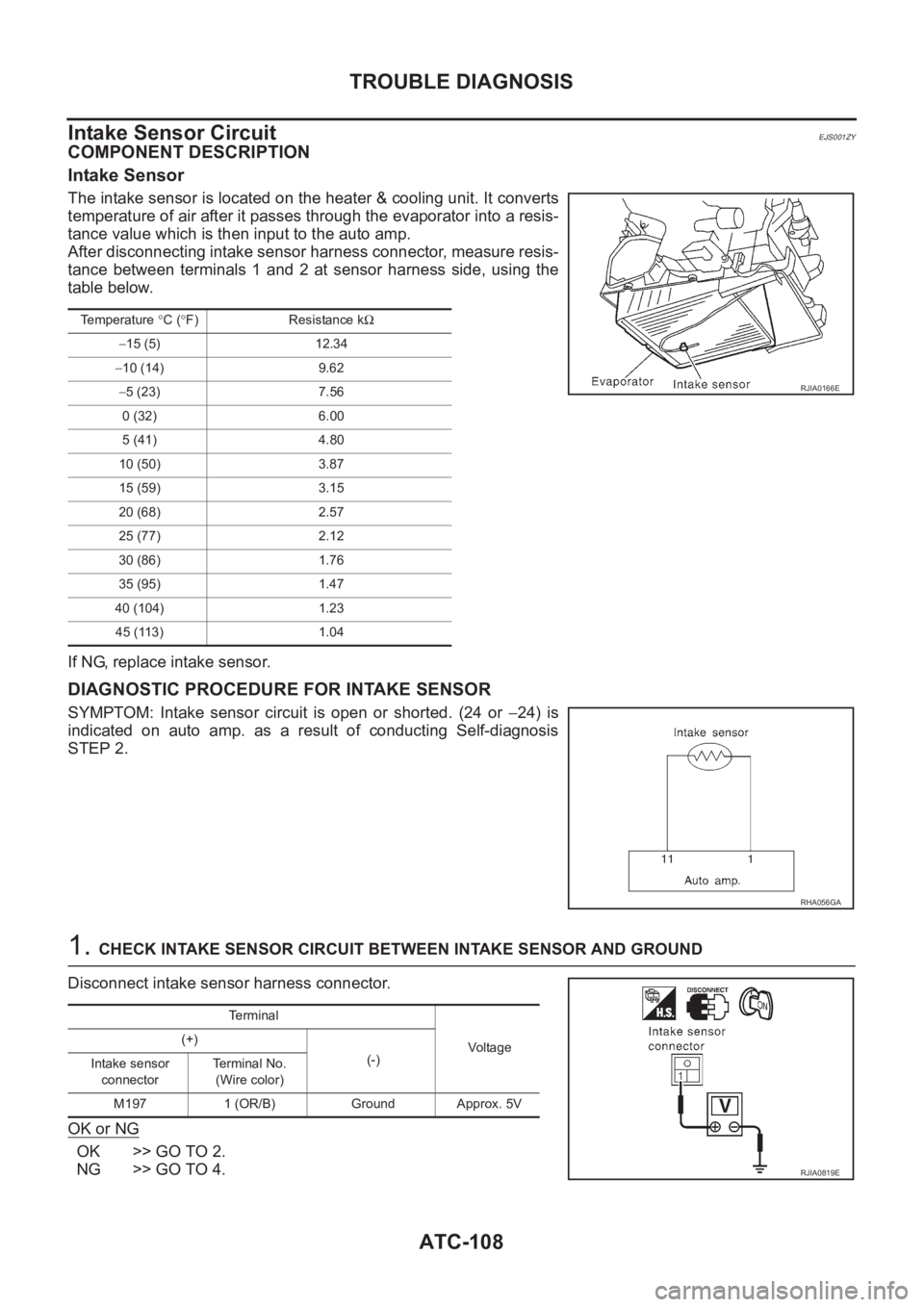

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-108 TROUBLE DIAGNOSIS Intake Sensor Circuit EJS001ZY COMPONENT DESCRIPTION Intake Sensor The intake sensor is located on the heater & cooling unit. It converts temperature of air after it passes t
