2003 NISSAN ALMERA N16 jack points

GENERAL INFORMATION
SECTION
GI
CONTENTS
PRECAUTIONS<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[3
Precautions <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..............3
PRECAUTIONS FOR SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)″AIR BAG″AND
″SEAT BELT PRE-TENSIONER″
.................................3
PRECAUTIONS FOR NATS (NISSAN ANTI-THEFT
SYSTEM)
<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[...3
GENERAL PRECAUTIONS.........................................4
PRECAUTIONS FOR MULTIPORT FUEL
INJECTION SYSTEM OR ENGINE CONTROL
SYSTEM
<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[....6
PRECAUTIONS FOR THREE WAY CATALYST...........6
PRECAUTIONS FOR HOSES.....................................6
PRECAUTIONS FOR ENGINE OILS...........................7
PRECAUTIONS FOR FUEL........................................8
PRECAUTIONS FOR AIR CONDITIONING..................9
HOW TO USE THIS MANUAL......................................10
HOW TO READ WIRING DIAGRAMS..........................12
Sample/Wiring Diagram - EXAMPL - ........................12
OPTIONAL SPLICE..................................................13
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[.............14
CONNECTOR SYMBOLS.........................................16
HARNESS INDICATION...........................................17
COMPONENT INDICATION......................................17
SWITCH POSITIONS...............................................17
DETECTABLE LINES AND NON-DETECTABLE
LINES
<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[......18
MULTIPLE SWITCH.................................................19
REFERENCE AREA.................................................20
HOW TO PERFORM EFFICIENT DIAGNOSES
FOR AN ELECTRICAL INCIDENT...............................22
Work Flow <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[...........22
Incident Simulation Tests ...........................................23
INTRODUCTION<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>3
VEHICLE VIBRATION..............................................23
HEAT SENSITIVE<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011>4
FREEZING<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011001100110011>24
WATER INTRUSION................................................25
ELECTRICAL LOAD.................................................25
COLD OR HOT START UP.......................................25
Circuit Inspection .......................................................25
INTRODUCTION<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>5
TESTING FOR″OPENS″IN THE CIRCUIT................26
TESTING FOR″SHORTS″IN THE CIRCUIT..............27
GROUND INSPECTION...........................................28
VOLTAGE DROP TESTS..........................................28
CONTROL UNIT CIRCUIT TEST...............................30
HOW TO FOLLOW TROUBLE DIAGNOSES...............32
How to Follow Test Groups in Trouble Diagnoses ....33
Key to Symbols Signifying Measurements or
Procedures<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[............34
CONSULT-II CHECKING SYSTEM...............................36
Function and System Application ..............................36
Nickel Metal Hydride Battery Replacement...............37
Checking Equipment..................................................37
CONSULT-II Data Link Connector (DLC) Circuit ......38
INSPECTION PROCEDURE.....................................38
IDENTIFICATION INFORMATION................................39
Model Variation ..........................................................39
FOR EUROPE<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011>9
FOR AUSTRALIA, NEW ZEALAND AND SOUTH
AFRICA
<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[....39
PREFIX AND SUFFIX DESIGNATIONS.....................40
Identification Number .................................................40
VEHICLE IDENTIFICATION NUMBER
ARRANGEMENT
<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011>1
IDENTIFICATION PLATE..........................................41
ENGINE SERIAL NUMBER.......................................42
AUTOMATIC TRANSAXLE NUMBER........................42
MANUAL TRANSAXLE NUMBER..............................43
Dimensions <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[...........44
Wheels and Tires .......................................................44
LIFTING POINTS AND TOW TRUCK TOWING...........45
Preparation <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[............45
SPECIAL SERVICE TOOLS......................................45
Board-on Lift <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11[...........45
Garage Jack and Safety Stand .................................46
2-pole Lift <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[..............47
Tow Truck Towing ......................................................48
TOWING AN AUTOMATIC TRANSAXLE MODEL
WITH FOUR WHEELS ON GROUND
........................48
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX

The security indicator is located on the combi meter. The indicator
blinks when the ignition switch is in “OFF” or “ACC” position.
Therefore, NATS warns outsiders that the vehicle is equipped with
the anti-theft system.
When NATS detects trouble, the security indicator lamp lights
up while ignition switch is in “ON” position.
This lighting up indicates that the anti-theft is not functioning,
so prompt service is required.
When servicing NATS (trouble diagnoses, system initialization
and additional registration of other NATS ignition key IDs),
CONSULT-II hardware and CONSULT-II NATS software is
necessary.
Regarding the procedures of NATS initialization and NATS
ignition key ID registration, refer to CONSULT-II operation
manual, NATS.
Therefore, CONSULT-II NATS software (program card and
operation manual) must be kept strictly confidential to main-
tain the integrity of the anti-theft function.
When servicing NATS (trouble diagnoses, system initialization
and additional registration of other NATS ignition key IDs), it
may be necessary to re-register original key identification.
Therefore, be sure to receive all keys from vehicle owner. A
maximum of five key IDs can be registered into NATS.
When failing to start the engine first time using the key of
NATS, start as follows.
a) Leave the ignition key in “ON” position for approximately 5
seconds.
b) Turn ignition key to “OFF” or “LOCK” position and wait approxi-
mately 5 seconds.
c) Repeat step 1 and 2 again.
d) Restart the engine while keeping the key separate from any
others on key-chain.
SGI285
GENERAL PRECAUTIONSNJGI0001S03Do not operate the engine for an extended period of time
without proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any
inflammable or poisonous materials, such as gasoline, refrig-
erant gas, etc. When working in a pit or other enclosed area,
be sure to properly ventilate the area before working with haz-
ardous materials.
Do not smoke while working on the vehicle.
SGI231
Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before work-
ing on the vehicle.
These operations should be done on a level surface.
When removing a heavy component such as the engine or
transaxle, be careful not to lose your balance and drop them.
Also, do not allow them to strike adjacent parts, especially the
brake tubes and master cylinder.
PRECAUTIONS
Precautions (Cont’d)
GI-4

Garage Jack and Safety Stand=NJGI0009S03WARNING:
Never get under the vehicle while it is supported only by
the jack. Always use safety stands when you have to get
under the vehicle.
Place wheel chocks at both front and back of the wheels
on the ground.
SGI110A
LIFTING POINTS AND TOW TRUCK TOWING
Garage Jack and Safety Stand
GI-46

Removal and InstallationNJEM0069
SEM554G
WARNING:
Situate vehicle on a flat and solid surface.
Place chocks at front and back of rear wheels.
Do not remove engine until exhaust system has com-
pletely cooled off. Otherwise, you may burn yourself
and/or fire may break out in fuel line.
For safety during subsequent steps, the tension of wires
should be slackened against the engine.
Before removing front axle from transaxle, place safety
stands under designated front supporting points. Refer to
GI-46, “Garage Jack and Safety Stand”.
Be sure to hoist engine and transaxle in a safe manner.
For engines not equipped with engine slingers, attach
proper slingers and bolts described in PARTS CATALOG.
CAUTION:
When lifting engine, be careful not to strike adjacent parts,
especially the following: Accelerator wire casing, brake
lines, and brake master cylinder.
In hoisting the engine, always use engine slingers in a
safe manner.
In removing drive shaft, be careful not to damage grease
seal of transaxle.
Before separating engine and transaxle, remove the
GI
MA
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX

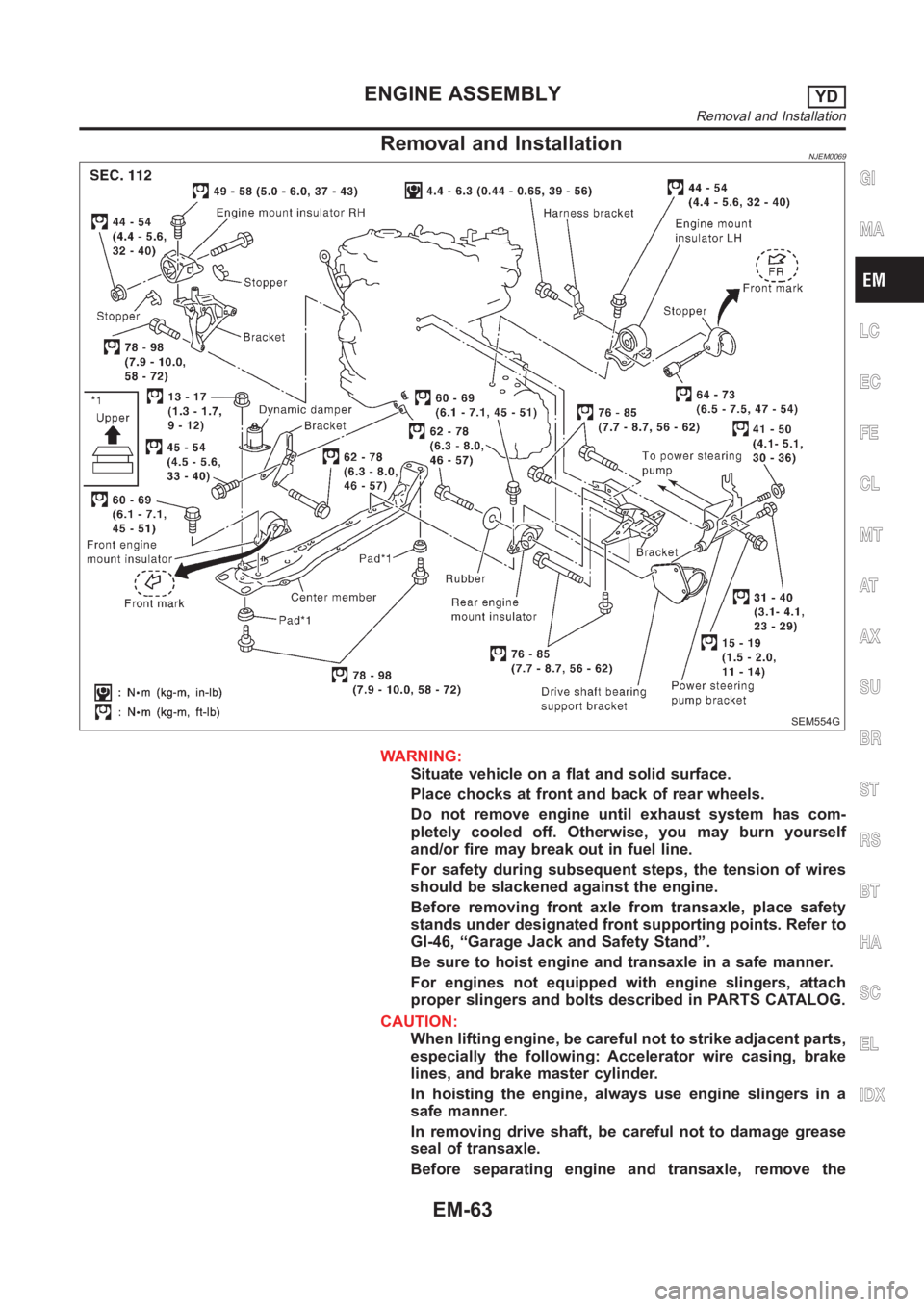

ENGINE ASSEMBLYYD
Removal and Installation
EM-63

Heated oxygen sensor 2 heater
(QG engine)................................EC-129, EC-640
Heated seat<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110028002f[-247
HEATER - Wiring diagram (manual
A/C) <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011[..HA-23
Heater and cooling unit (Heater core)
(manual A/C) ...............................................HA-87
Heater and cooling unit (Heater core)........ATC-123
Heater unit (heater core) ............................ATC-130
Height (Dimensions) ........................................GI-44
HFC134a (R134a) system precaution
(manual A/C) .................................................HA-2
HFC134a (R134a) system precaution............ATC-4
HFC134a (R134a) system service pro-
cedure (manual A/C)...................................HA-77
HFC134a (R134a) system service
procedure ................................................ATC-133
HFC134a (R134a) system service tools
(manual A/C) ...............................................HA-10
HFC134a (R134a) system service tools ......ATC-11
HFC134a system service equipment
precaution (manual A/C) ...............................HA-6
HFC134a system service equipment
precaution <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110024>TC-7
HO2S1 - Wiring diaram
(QG engine) ................EC-152, EC-159, EC-169,
EC-510, EC-516
HO2S1H - Wiring diagram (QG engine) ......EC-125
HO2S2 - Wiring diagram
(QG engine) ................EC-175, EC-182, EC-312,
EC-320, EC-522
HO2S2H - Wiring diagram (QG engine) ......EC-131
Hood<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011[.......BT-7
HORN - Wiring diagram................................EL-170
Horn <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011[...EL-170
How to erase DTC for OBD system
(QG engine)..................................EC-48, EC-431
How to erase DTC for OBD system
(YD engine).................................................EC-34
HSEAT - Wiring diagram ......................EL-246, 247
I
IATS - Wiring diagram (QG engine) .............EC-142
IATSEN - Wiring diagram (QG engine) ........EC-646
Identification plate............................................GI-41
Identification .....................................ATC-9, ATC-10
Idle air volume learning
(QG engine)..................................EC-31, EC-426
Idle speed (QG engine) ...................EC-65, EC-444
Idle speed (YD engine) ..................................EC-48
Ignition coil (QG engine) ................EC-366, EC-662
Ignition coil (QG engine) ................................EM-24
Ignition control system
(QG engine)................................EC-366, EC-662
Ignition timing (QG engine)..............EC-65, EC-444
IGNSYS - Wiring diagram
(QG engine)................................EC-367, EC-663
ILL - Wiring diagram .......................................EL-76
Illumination <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11[...EL-75In vehicle sensor ........ATC-103, ATC-105, ATC-117
INJECT - Wiring diagram
(QG engine)................................EC-377, EC-696
Injection nozzle (YD engine) ..........................EC-21
Injector (QG engine) ......................EC-376, EC-695
Input shaft (FF M/T).....................MT-36, 64, 93, 98
Instrument panel .............................................BT-25
INT/L - Wiring diagram..................................EL-108
Intake air temperature sensor
(QG engine)................................EC-141, EC-645
Intake door control linkage adjustment ........ATC-67
Intake door motor .........................ATC-66, ATC-122
Intake manifold (QG engine) .........................EM-16
Intake sensor ..............................ATC-109, ATC-119
Intake valve timing control
(QG engine) .................EC-120, EC-273, EC-685
Intake valve timing control solenoid
valve (QG engine) ......................EC-273, EC-685
Interior lamp on-off control........................EL-81, 83
Interior lamp <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11[.EL-80
Interior <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[......BT-31
ISO 15031-2 Terminology ................................GI-51
ISO 15031-5 Mode 1 - 9 (QG engine) ...........EC-36
IVC - Wiring diagram (QG engine)...............EC-274
IVC/V - Wiring diagram (QG engine) ...........EC-687
J
Jacking points ..................................................GI-46
Joint connector (J/C) ....................................Foldout
Junction box (J/B).........................................Foldout
K
Keyless entry system - See Multi-re-
mote control system ..................................EL-352
Knock sensor (KS) (QG engine) ....EC-231, EC-552
Knuckle spindle ................................................AX-5
KS - Wiring diagram
(QG engine)................................EC-232, EC-553
L
LAN system circuit........................................ATC-57
Length (Dimensions) .......................................GI-44
License lamp <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110028[L-55
Lifting points ....................................................GI-47
Line pressure solenoid valve ........................AT-159
Line pressure test (A/T) .....................AT-67, AT-266
Liquid gasket application (QG engine) ............EM-4
Liquid gasket application (YD engine) .............EM-3
LOAD - Wiring diagram
(QG engine)................................EC-394, EC-713
Location of electrical units ............................EL-543
Lock, door <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[.BT-21
Lubricant (R134a) A/C (manual A/C) .............HA-79
Lubricant (R134a) A/C......................ATC-5, ATC-20
ALPHABETICAL INDEX
IDX-6
