15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS007QG
SYMPTOM:
●Engine speed does not smoothly return NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-233
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS007QG
SYMPTOM:
●Engine speed does not smoothly return](/manual-img/5/57350/w960_57350-1688.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-233
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS007QG
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
187, "DTC P1760 OVERRUN CLUTCH SOLENOID
VA LV E" .
No >> GO TO 2
2.CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 1 8 1 , "
DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace accelerator pedal position (APP) sen-
sor. (AT- 1 8 1 , "
DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" )
3.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4
NG >> GO TO 6
SCIA0774E
MCIB9006E
SAT171B
Page 1690 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-234
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check th NISSAN ALMERA N16 2003 Electronic Repair Manual AT-234
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check th](/manual-img/5/57350/w960_57350-1689.png)

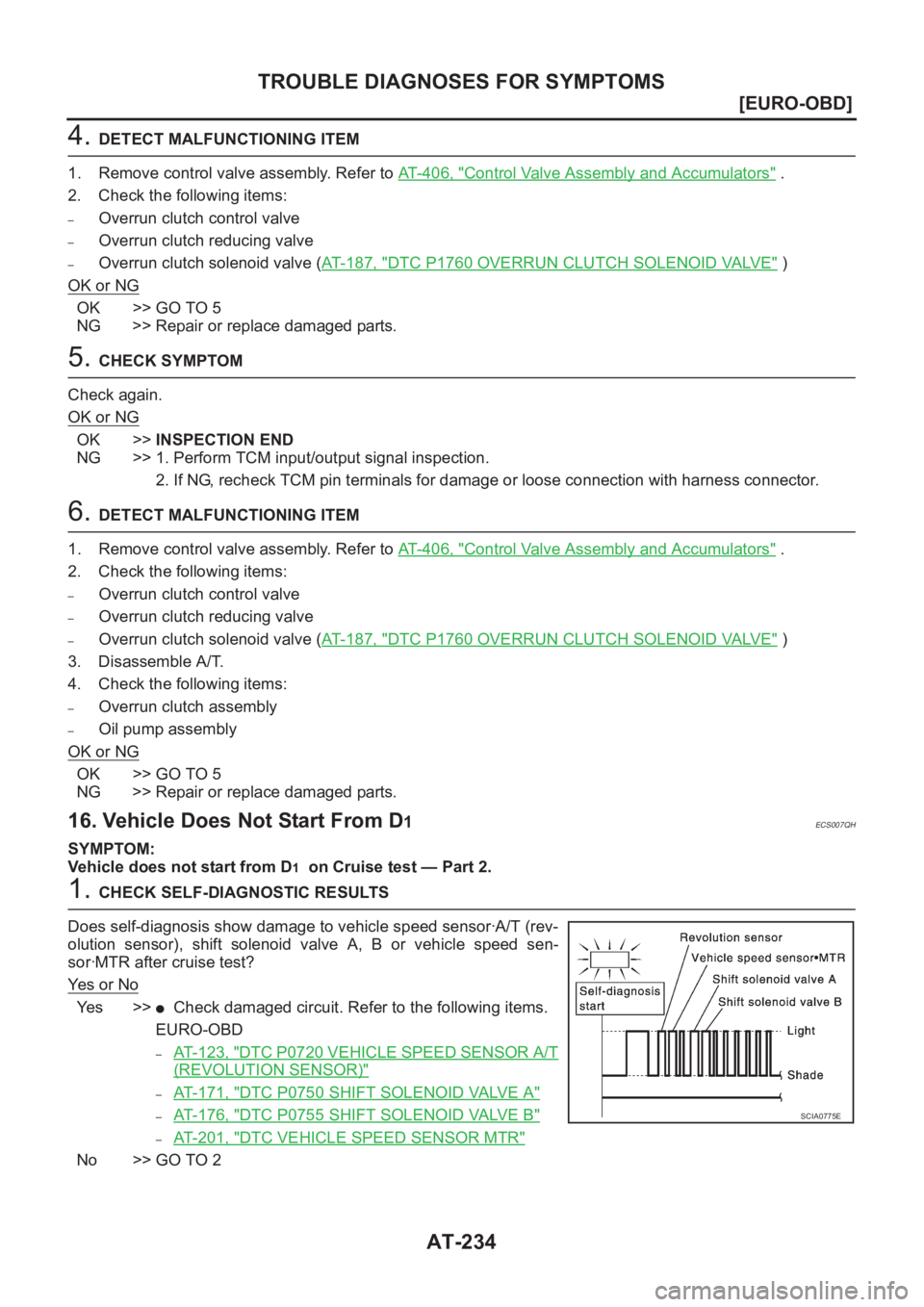

AT-234
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT-187, "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" )
OK or NG
OK >> GO TO 5
NG >> Repair or replace damaged parts.
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT-187, "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following items:
–Overrun clutch assembly
–Oil pump assembly
OK or NG
OK >> GO TO 5
NG >> Repair or replace damaged parts.
16. Vehicle Does Not Start From D1ECS007QH
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
EURO-OBD
–AT- 1 2 3 , "DTC P0720 VEHICLE SPEED SENSOR A/T
(REVOLUTION SENSOR)"
–AT- 1 7 1 , "DTC P0750 SHIFT SOLENOID VALVE A"
–AT- 1 7 6 , "DTC P0755 SHIFT SOLENOID VALVE B"
–AT- 2 0 1 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 2
SCIA0775E
Page 1691 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-235
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-221, "8. Vehicle Cannot Be Started From D1" .
NG >> 1. Perform T NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-235
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-221, "8. Vehicle Cannot Be Started From D1" .
NG >> 1. Perform T](/manual-img/5/57350/w960_57350-1690.png)

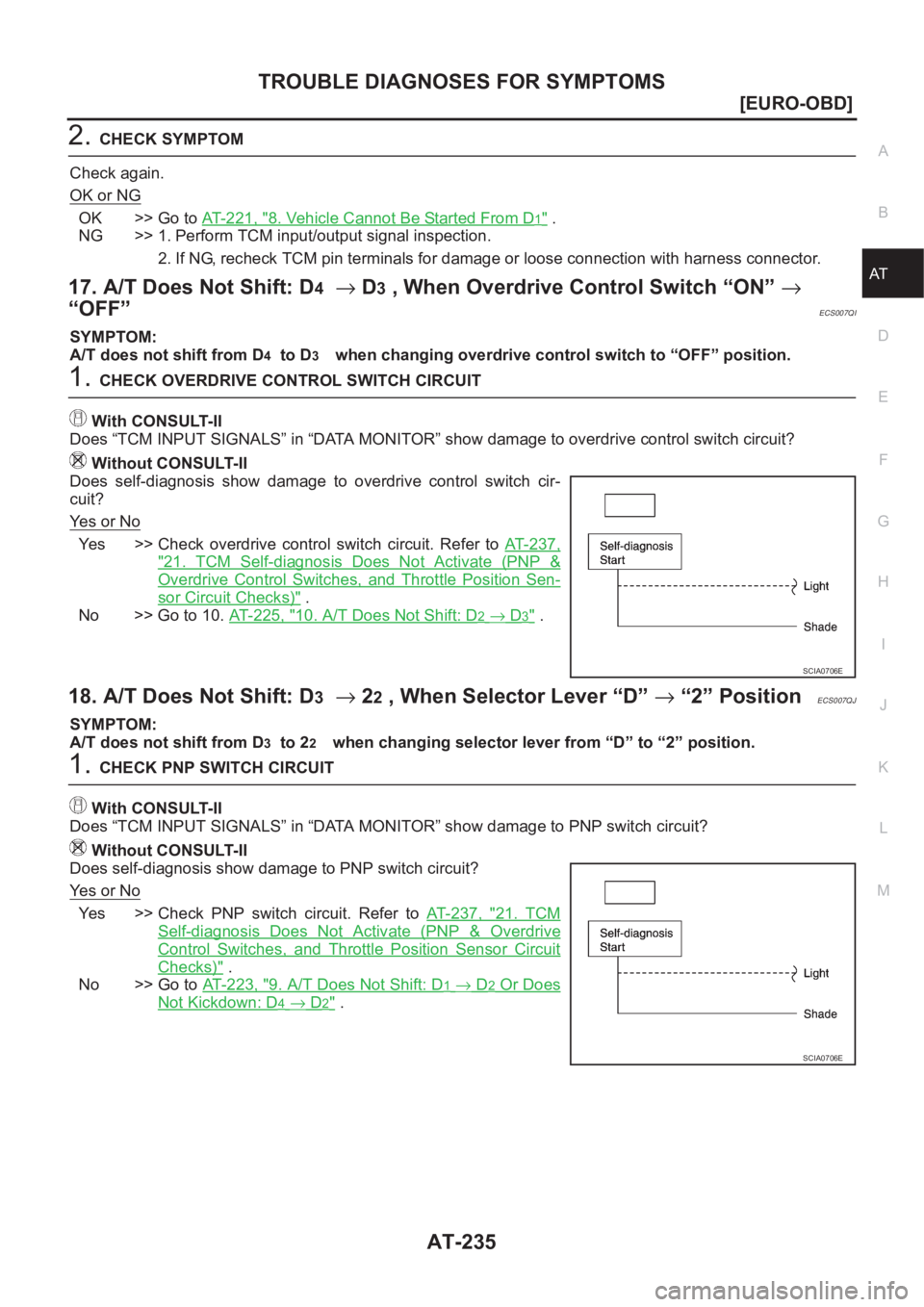

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-235
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-221, "8. Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
17. A/T Does Not Shift: D4→ D3 , When Overdrive Control Switch “ON” →
“OFF”
ECS007QI
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
1.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer to AT- 2 3 7 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> Go to 10. AT- 2 2 5 , "
10. A/T Does Not Shift: D2→ D3" .
18. A/T Does Not Shift: D3→ 22 , When Selector Lever “D” → “2” PositionECS007QJ
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 3 7 , "21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)" .
No >> Go to AT- 2 2 3 , "
9. A/T Does Not Shift: D1→ D2 Or Does
Not Kickdown: D4→ D2" .
SCIA0706E
SCIA0706E
Page 1692 of 3189
AT-236
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

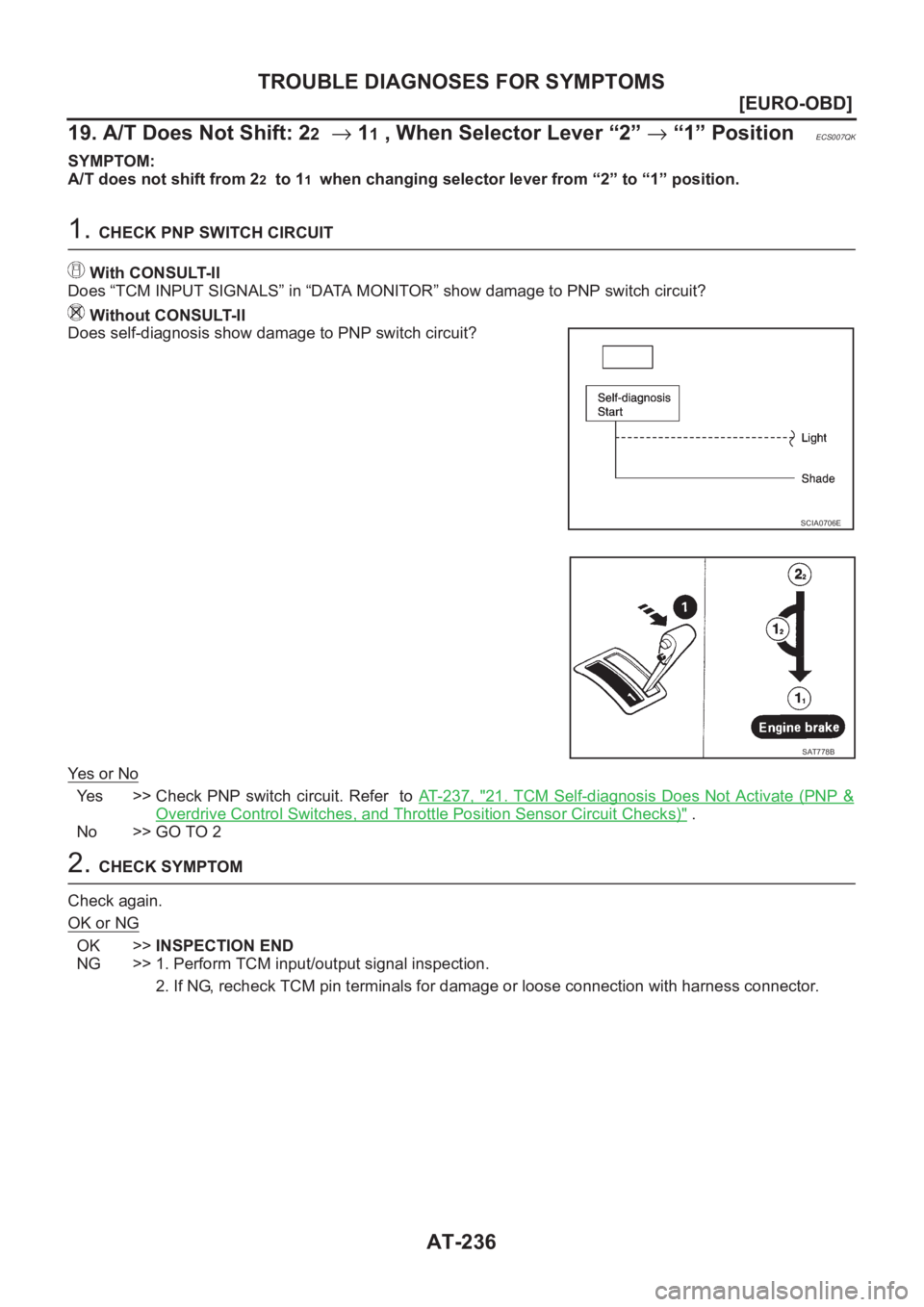

19. A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” PositionECS007QK
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 3 7 , "21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0706E
SAT778B
Page 1693 of 3189
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-237
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
20. Vehicle Does Not Decelerate By Engine BrakeECS007QL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> Go to AT-233, "15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )" .
No >> Go to AT- 2 1 6 , "
6. Vehicle Does Not Creep Backward In “R” Position" .
21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)
ECS007QM
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.
●Overdrive control switch
SCIA0752E
SCIA0776E
MCIB9006E
Page 1694 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
●Throttle position sensor*
*: This sensor means accelerator NISSAN ALMERA N16 2003 Electronic Repair Manual AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
●Throttle position sensor*
*: This sensor means accelerator](/manual-img/5/57350/w960_57350-1693.png)
AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
●Throttle position sensor*
*: This sensor means accelerator pedal position (APP) sensor.
Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 2 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SAT701J
Page 1695 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not star NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not star](/manual-img/5/57350/w960_57350-1694.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 2 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and TCM
●Diode (P, N positions)
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GO TO 5
NG >> Check the following items:
●Overdrive control switch (Refer to AT- 2 4 2 , "COMPO-
NENT INSPECTION" .)
●Harness for short or open between TCM and over-
drive control switch
●Harness of ground circuit for overdrive control switch
for short or open Vo l t a g e :
B: Battery voltage
0: 0V
Lever posi-
tionTerminal No.
36 35 34 27 26
P, N B 0 0 0 0
R0B000
D0 0B00
2000B0
10000B
SCIA0777E
SAT645J
Page 1696 of 3189
AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between A/T device connector terminal 2 and ground when overdrive control switch is “ON”
and “OFF”.
OK or NG
OK >> GO TO 6
NG >> Check the following items:
●Overdrive control switch (Refer to AT-242, "COMPONENT INSPECTION" .)
●Harness for short or open between TCM and overdrive control switch
●Harness of ground circuit for overdrive control switch for short or open
Voltage:
Switch position “ON”:
Battery voltage
Switch position “OFF”:
1V or less
