Page 2105 of 3189
MODE DOOR MOTOR
ATC-125
C
D
E
F
G
H
I
K
L
MA
B
AT C

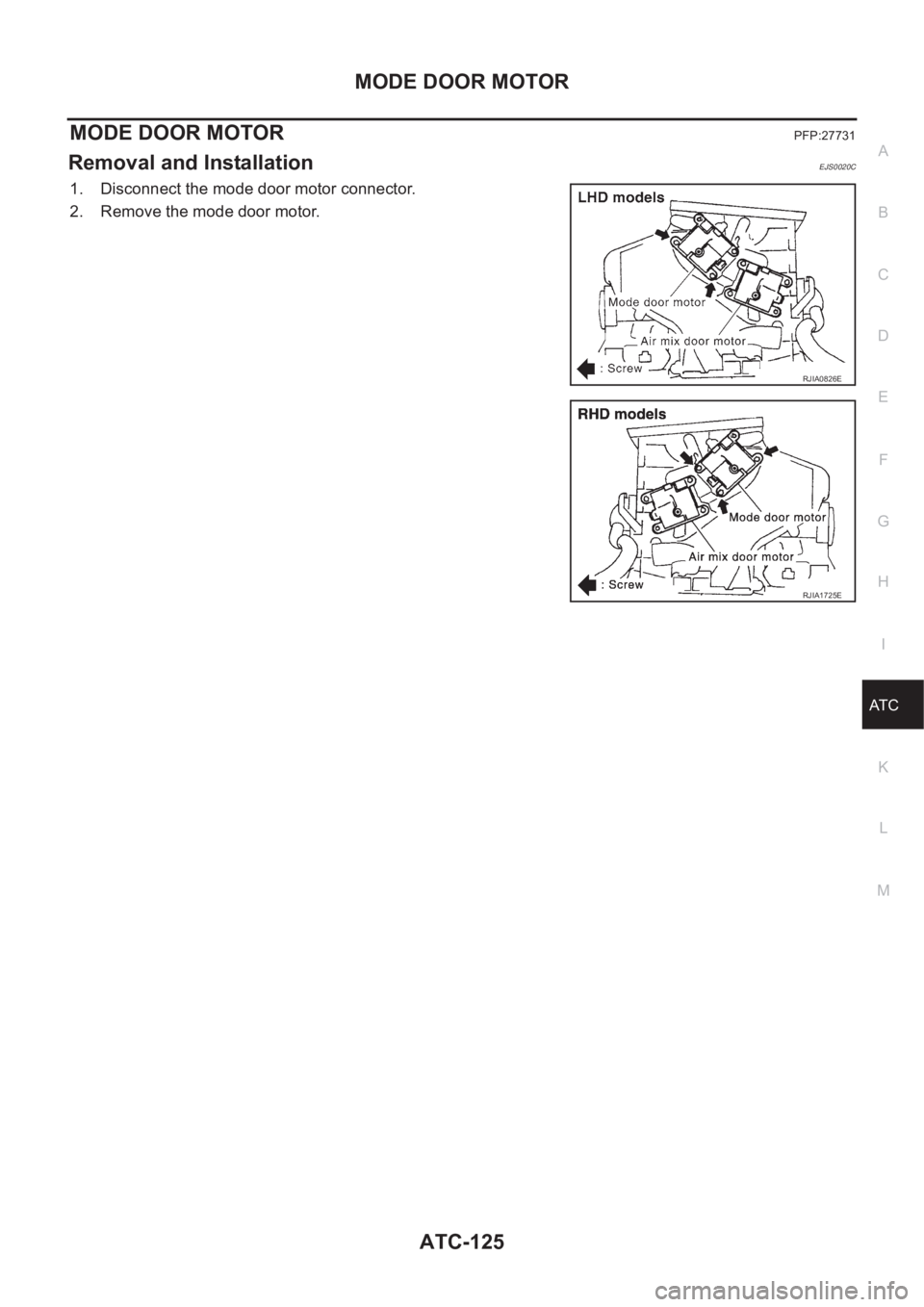

MODE DOOR MOTORPFP:27731
Removal and InstallationEJS0020C
1. Disconnect the mode door motor connector.
2. Remove the mode door motor.
RJIA0826E
RJIA1725E
Page 2106 of 3189
ATC-126

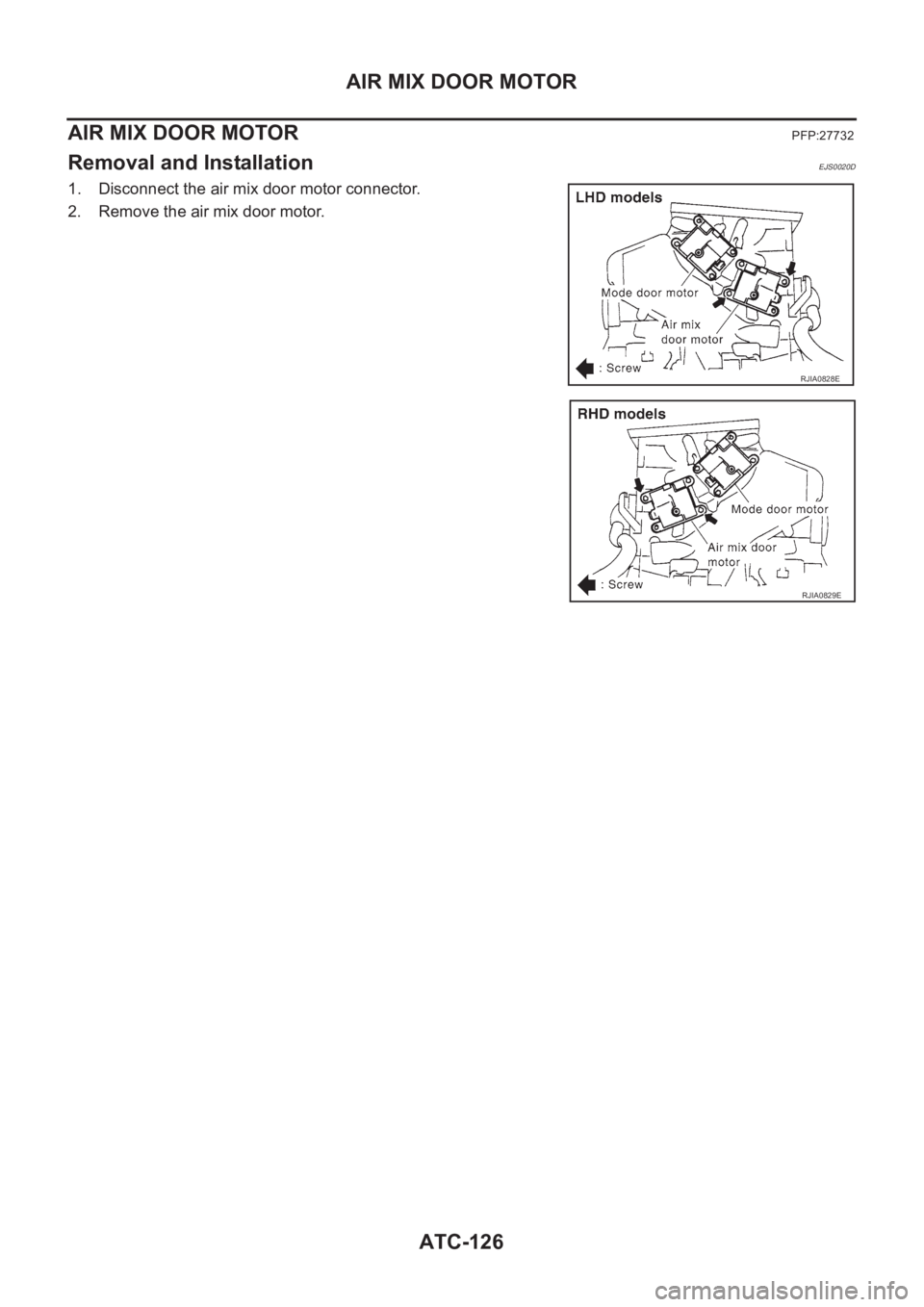

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR
PFP:27732
Removal and InstallationEJS0020D
1. Disconnect the air mix door motor connector.
2. Remove the air mix door motor.
RJIA0828E
RJIA0829E
Page 2107 of 3189
FAN CONTROL AMPLIFIER
ATC-127
C
D
E
F
G
H
I
K
L
MA
B
AT C

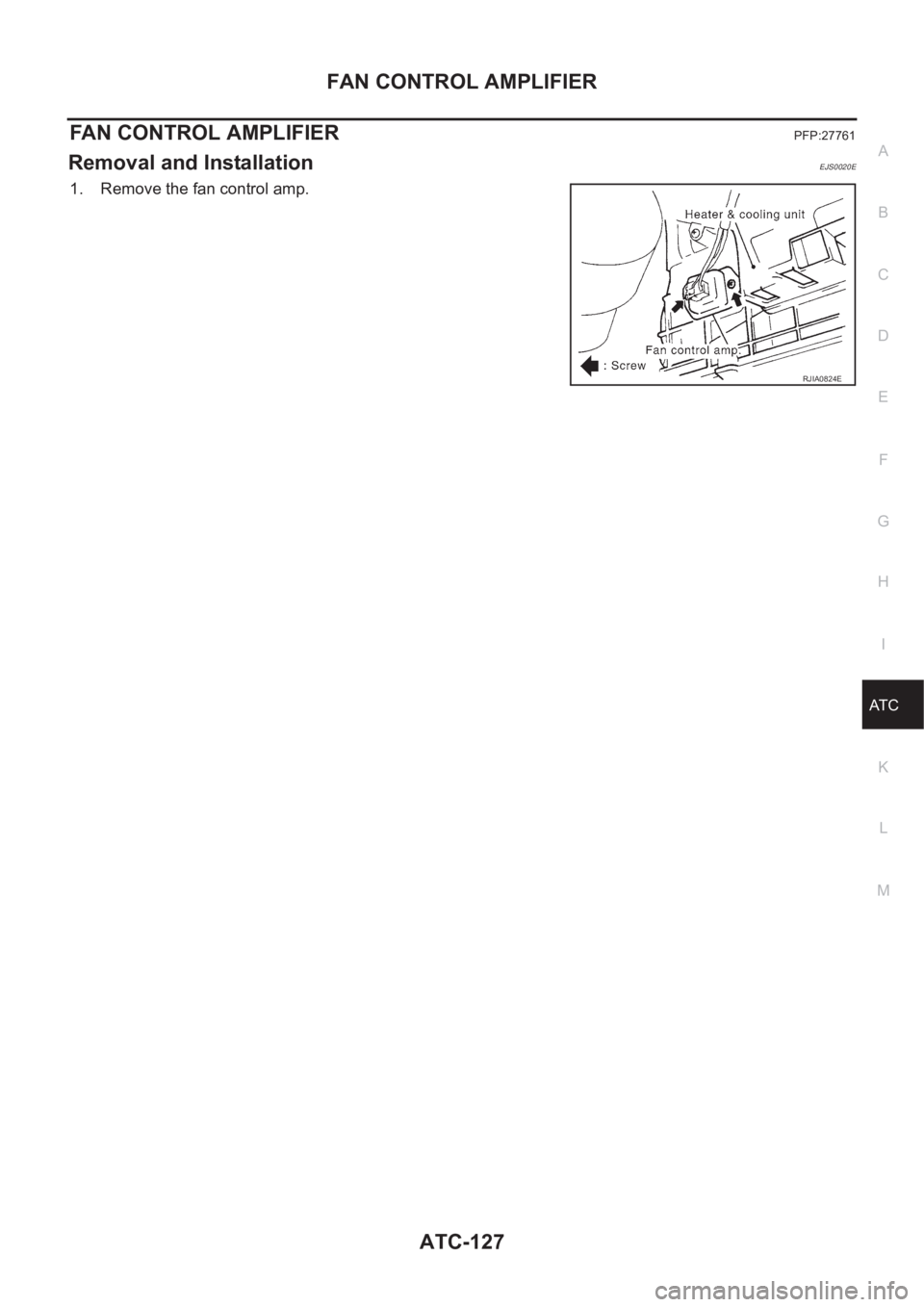

FAN CONTROL AMPLIFIERPFP:27761
Removal and InstallationEJS0020E
1. Remove the fan control amp.
RJIA0824E
Page 2108 of 3189
ATC-128
VENTILATION AIR FILTER
VENTILATION AIR FILTER
PFP:27277
Removal and InstallationEJS0020F
FUNCTION
Air inside passenger compartment is kept clean at either recircula-
tion or fresh mode by installing ventilation air filter into blower unit.
REPLACEMENT TIMING
Refer to MA-5 (Except for Europe), MA-8 or MA-10 (For Europe), “CHASSIS AND BODY MAINTENANCE”.
Caution label is fixed inside the glove box.
REPLACEMENT AND PROCEDURES
1. Remove the glove box.
2. Remove the ventilation air filter cover.
3. Take out the ventilation air filter from blower unit.
4. Replace with new one and reinstall on blower unit.
5. Reinstall the glove box.
RHA680H
RHA681H
Page 2109 of 3189
HEATER CORE
ATC-129
C
D
E
F
G
H
I
K
L
MA
B
AT C

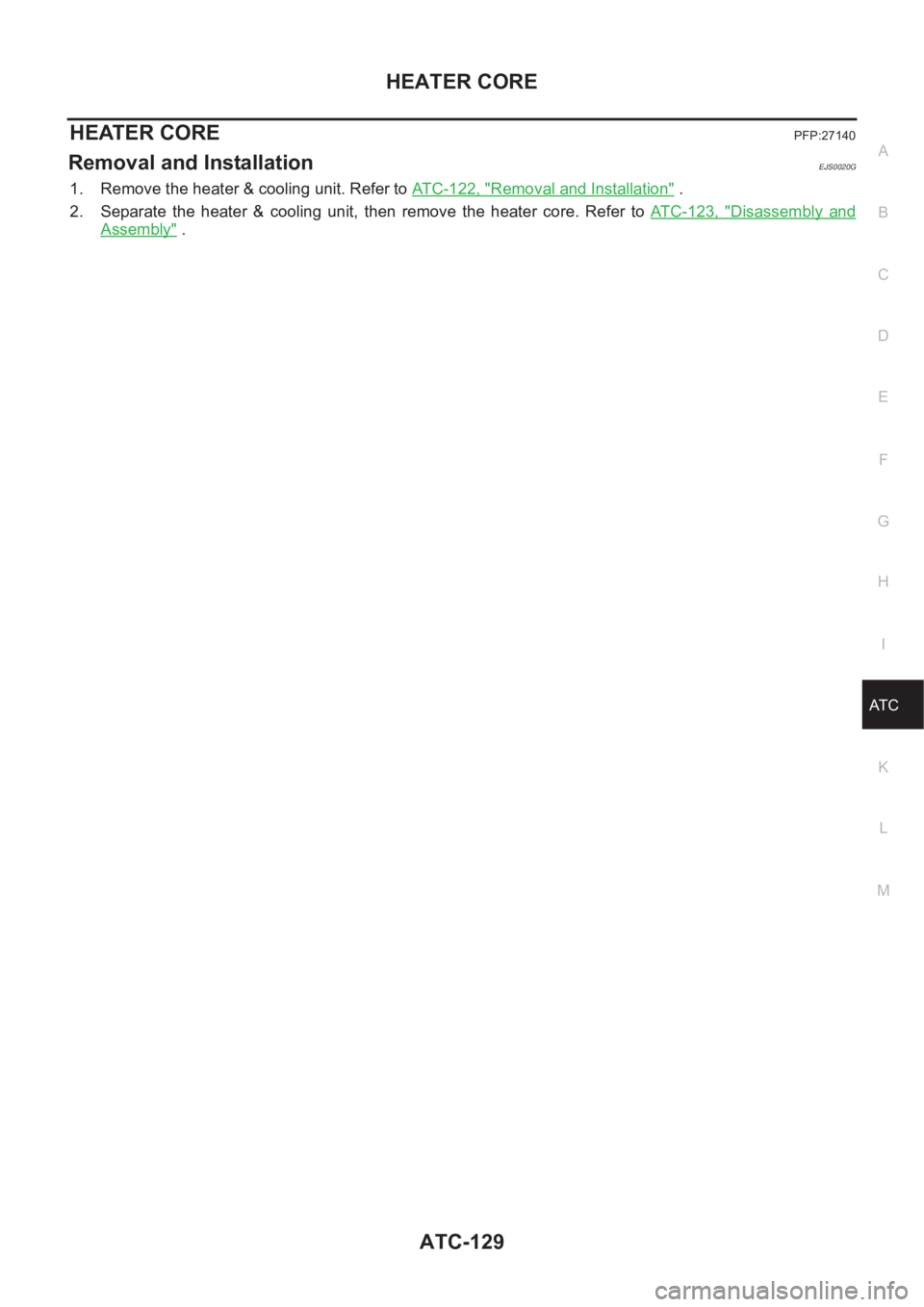

HEATER COREPFP:27140
Removal and InstallationEJS0020G
1. Remove the heater & cooling unit. Refer to ATC-122, "Removal and Installation" .
2. Separate the heater & cooling unit, then remove the heater core. Refer to ATC-123, "
Disassembly and
Assembly" .
Page 2110 of 3189
ATC-130

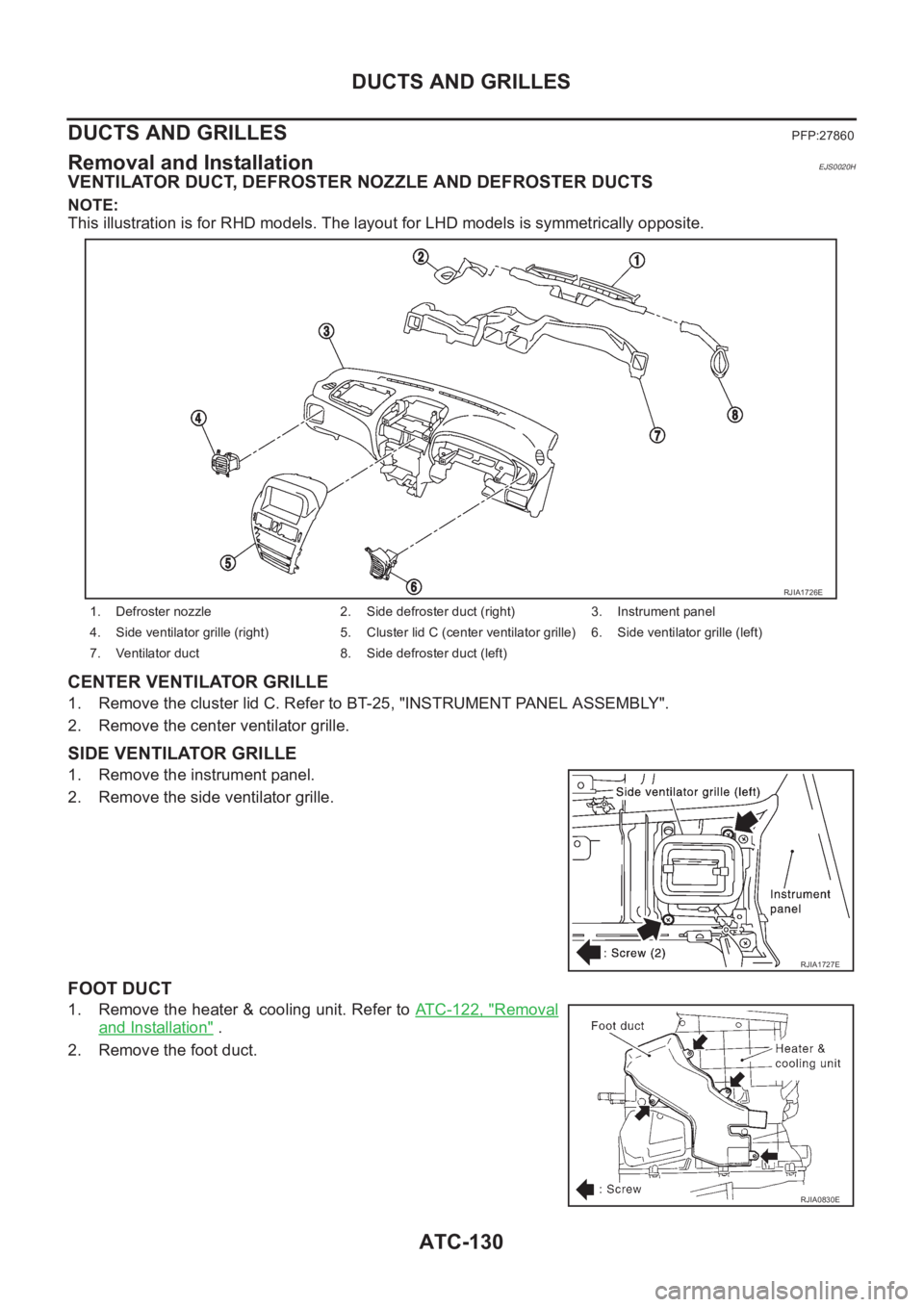

DUCTS AND GRILLES
DUCTS AND GRILLES
PFP:27860
Removal and InstallationEJS0020H
VENTILATOR DUCT, DEFROSTER NOZZLE AND DEFROSTER DUCTS
NOTE:
This illustration is for RHD models. The layout for LHD models is symmetrically opposite.
CENTER VENTILATOR GRILLE
1. Remove the cluster lid C. Refer to BT-25, "INSTRUMENT PANEL ASSEMBLY".
2. Remove the center ventilator grille.
SIDE VENTILATOR GRILLE
1. Remove the instrument panel.
2. Remove the side ventilator grille.
FOOT DUCT
1. Remove the heater & cooling unit. Refer to ATC-122, "Removal
and Installation" .
2. Remove the foot duct.
1. Defroster nozzle 2. Side defroster duct (right) 3. Instrument panel
4. Side ventilator grille (right) 5. Cluster lid C (center ventilator grille) 6. Side ventilator grille (left)
7. Ventilator duct 8. Side defroster duct (left)
RJIA1726E
RJIA1727E
RJIA0830E
Page 2111 of 3189
DUCTS AND GRILLES
ATC-131
C
D
E
F
G
H
I
K
L
MA
B
AT C
FLOOR DUCT
1. Remove the front seats.
2. Remove the instrument panel.
3. Remove the front floor duct.
4. Peel back the floor trim to a point where the floor duct is visible.
5. Remove the nut, then remove rear floor duct.
RJIA1728E
Page 2112 of 3189
ATC-132

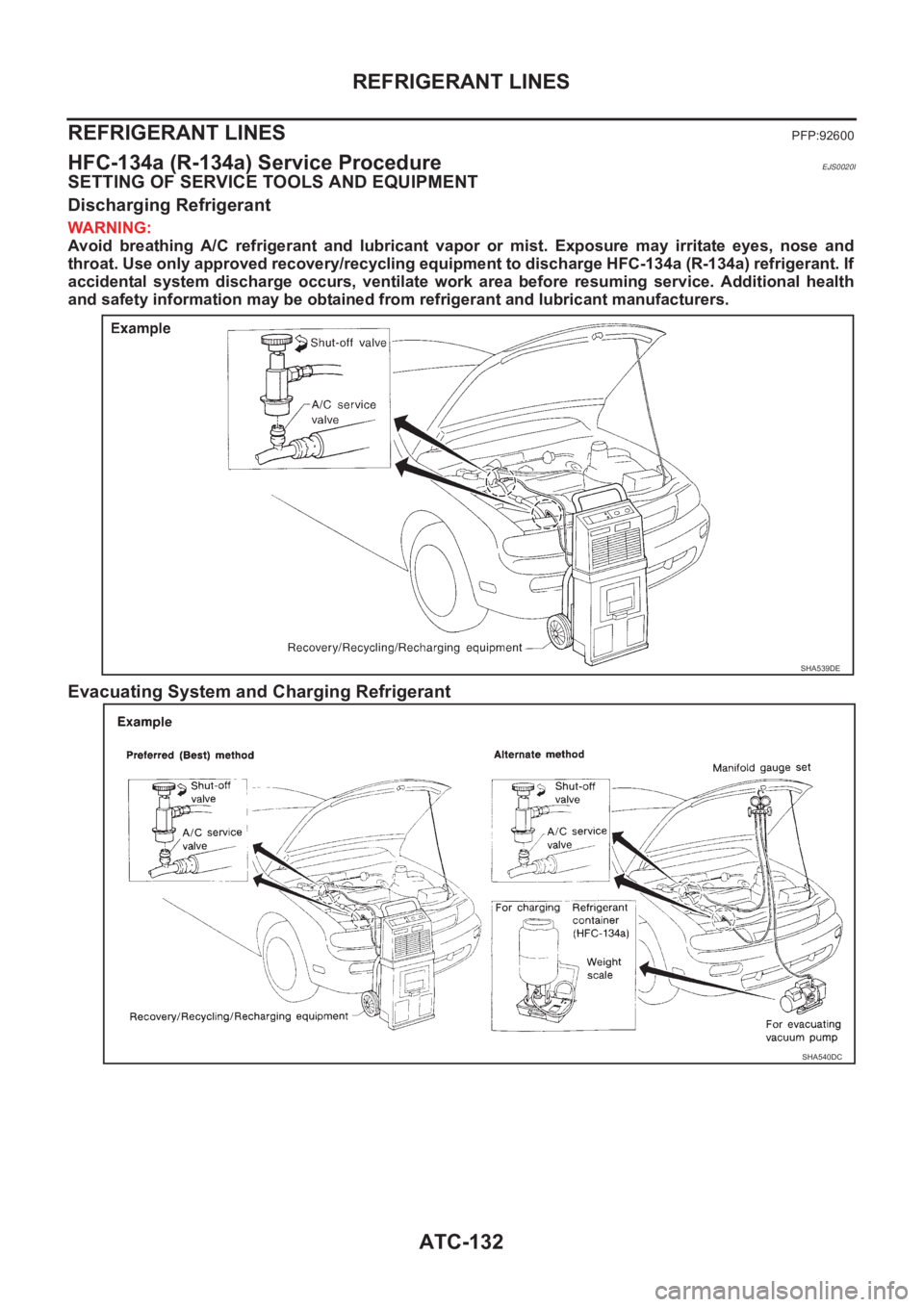

REFRIGERANT LINES
REFRIGERANT LINES
PFP:92600
HFC-134a (R-134a) Service ProcedureEJS0020I
SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant
WARNING:
Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Use only approved recovery/recycling equipment to discharge HFC-134a (R-134a) refrigerant. If
accidental system discharge occurs, ventilate work area before resuming service. Additional health
and safety information may be obtained from refrigerant and lubricant manufacturers.
Evacuating System and Charging Refrigerant
SHA539DE
SHA540DC
