DTC P0734 A/T 4TH GEAR FUNCTION
AT-153
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
Selector lever: D position (OD “ON”)
●Check that “GEAR” shows “3” after releasing pedal.
5. Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROT-
TLE POSI” from a speed of 55 to 65 km/h (34 to 40 MPH) until
“TESTING” has turned to “STOP VEHICLE” or “COMPLETED”.
(It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT-155, "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
●Check that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of “THROTTLE
POSI”.
●If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAGNOSIS” for
“ENGINE”. In case a 1st trip DTC other than P0734 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, go to AT-155, "
Diagnostic Procedure" .)
Refer to AT- 5 1 5 , "
Shift Schedule" .
With GST
Follow the procedure “With CONSULT-II”.
Vehicle conditionGear on actual transmission shift pattern when
screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for P0734 exists. 1 → 2 → 2 → 1
SAT971J
Page 1610 of 3189
AT-154
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
Wiring Diagram — AT — 4TH
ECS007OV
YAT 3 5 9
Page 1611 of 3189

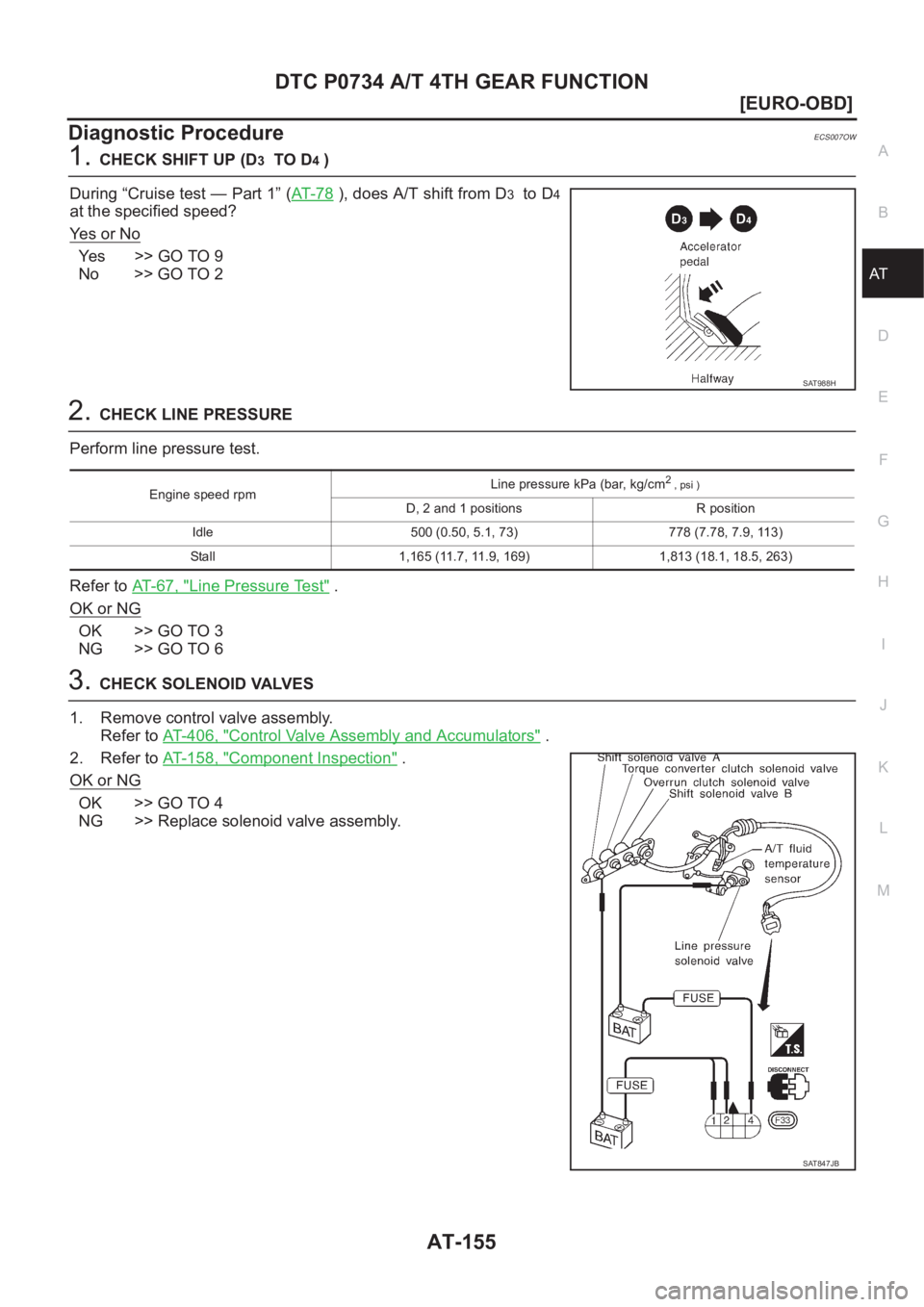

DTC P0734 A/T 4TH GEAR FUNCTION
AT-155
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS007OW
1.CHECK SHIFT UP (D3 TO D4 )
During “Cruise test — Part 1” (AT- 7 8
), does A/T shift from D3 to D4
at the specified speed?
Ye s o r N o
Ye s > > G O T O 9
No >> GO TO 2
2.CHECK LINE PRESSURE
Perform line pressure test.
Refer to AT-67, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3
NG >> GO TO 6
3.CHECK SOLENOID VALVES
1. Remove control valve assembly.
Refer to AT-406, "
Control Valve Assembly and Accumulators" .
2. Refer to AT-158, "
Component Inspection" .
OK or NG
OK >> GO TO 4
NG >> Replace solenoid valve assembly.
SAT988H
Engine speed rpmLine pressure kPa (bar, kg/cm2
, psi )
D, 2 and 1 positions R position
Idle 500 (0.50, 5.1, 73) 778 (7.78, 7.9, 113)
Stall 1,165 (11.7, 11.9, 169) 1,813 (18.1, 18.5, 263)
SAT847JB
Page 1612 of 3189

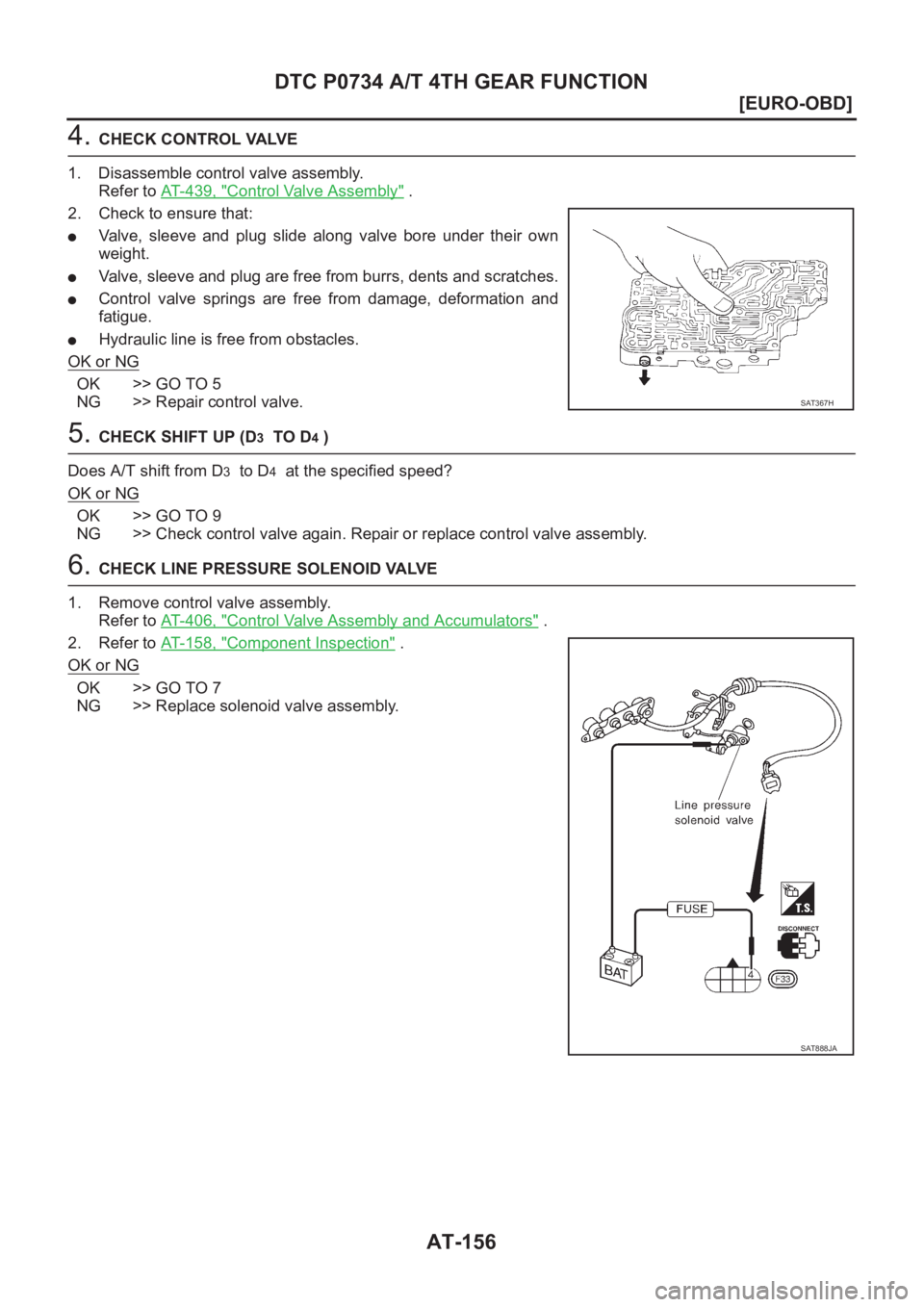

AT-156
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
4. CHECK CONTROL VALVE
1. Disassemble control valve assembly.
Refer to AT- 4 3 9 , "
Control Valve Assembly" .
2. Check to ensure that:
●Valve, sleeve and plug slide along valve bore under their own
weight.
●Valve, sleeve and plug are free from burrs, dents and scratches.
●Control valve springs are free from damage, deformation and
fatigue.
●Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 5
NG >> Repair control valve.
5. CHECK SHIFT UP (D3 TO D4 )
Does A/T shift from D
3 to D4 at the specified speed?
OK or NG
OK >> GO TO 9
NG >> Check control valve again. Repair or replace control valve assembly.
6. CHECK LINE PRESSURE SOLENOID VALVE
1. Remove control valve assembly.
Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Refer to AT- 1 5 8 , "
Component Inspection" .
OK or NG
OK >> GO TO 7
NG >> Replace solenoid valve assembly.
SAT367H
SAT888JA
Page 1613 of 3189

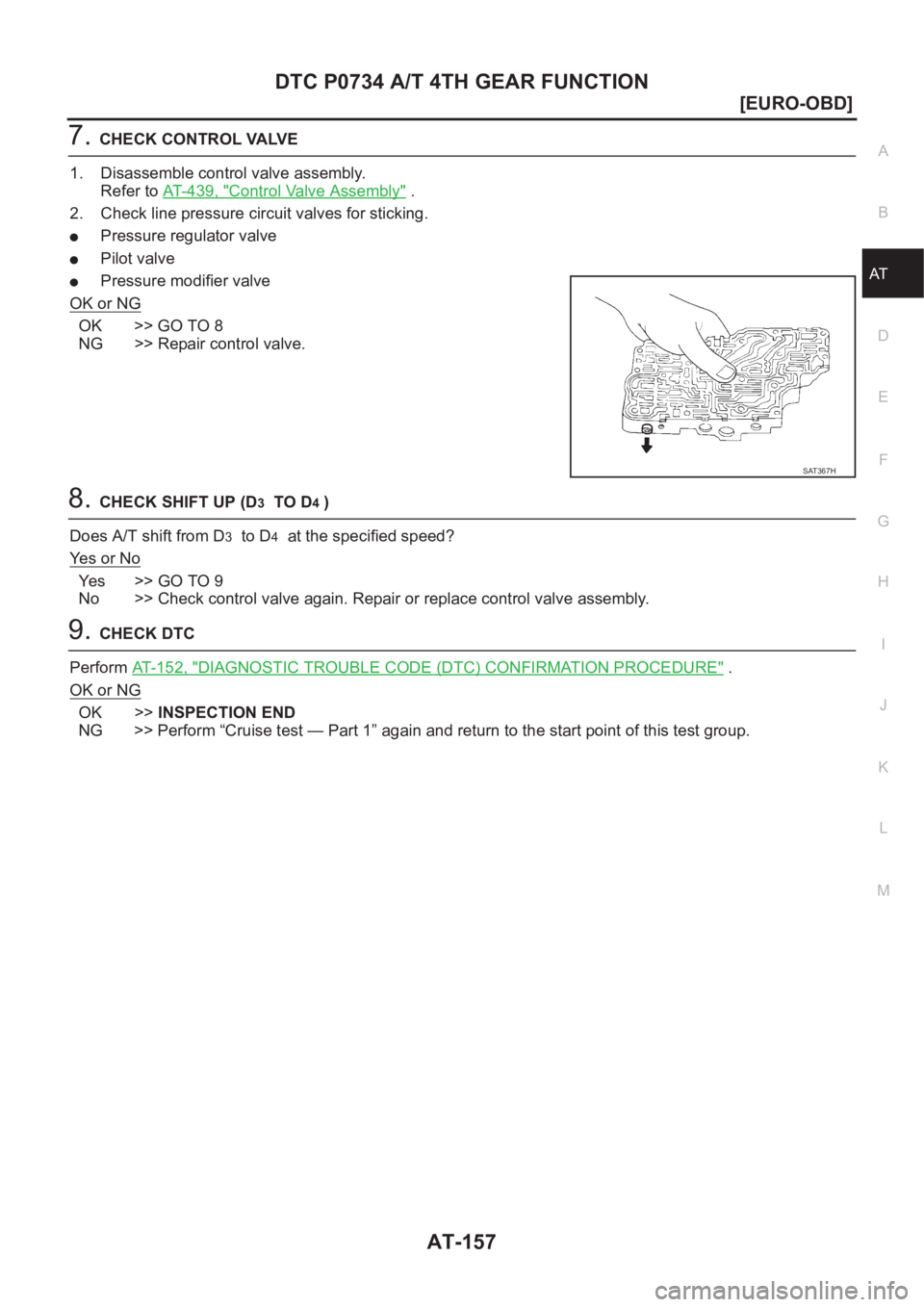

DTC P0734 A/T 4TH GEAR FUNCTION
AT-157
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
7.CHECK CONTROL VALVE
1. Disassemble control valve assembly.
Refer to AT-439, "
Control Valve Assembly" .
2. Check line pressure circuit valves for sticking.
●Pressure regulator valve
●Pilot valve
●Pressure modifier valve
OK or NG
OK >> GO TO 8
NG >> Repair control valve.
8.CHECK SHIFT UP (D3 TO D4 )
Does A/T shift from D
3 to D4 at the specified speed?
Ye s o r N o
Ye s > > G O T O 9
No >> Check control valve again. Repair or replace control valve assembly.
9.CHECK DTC
Perform AT- 1 5 2 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> Perform “Cruise test — Part 1” again and return to the start point of this test group.
SAT367H
Page 1614 of 3189

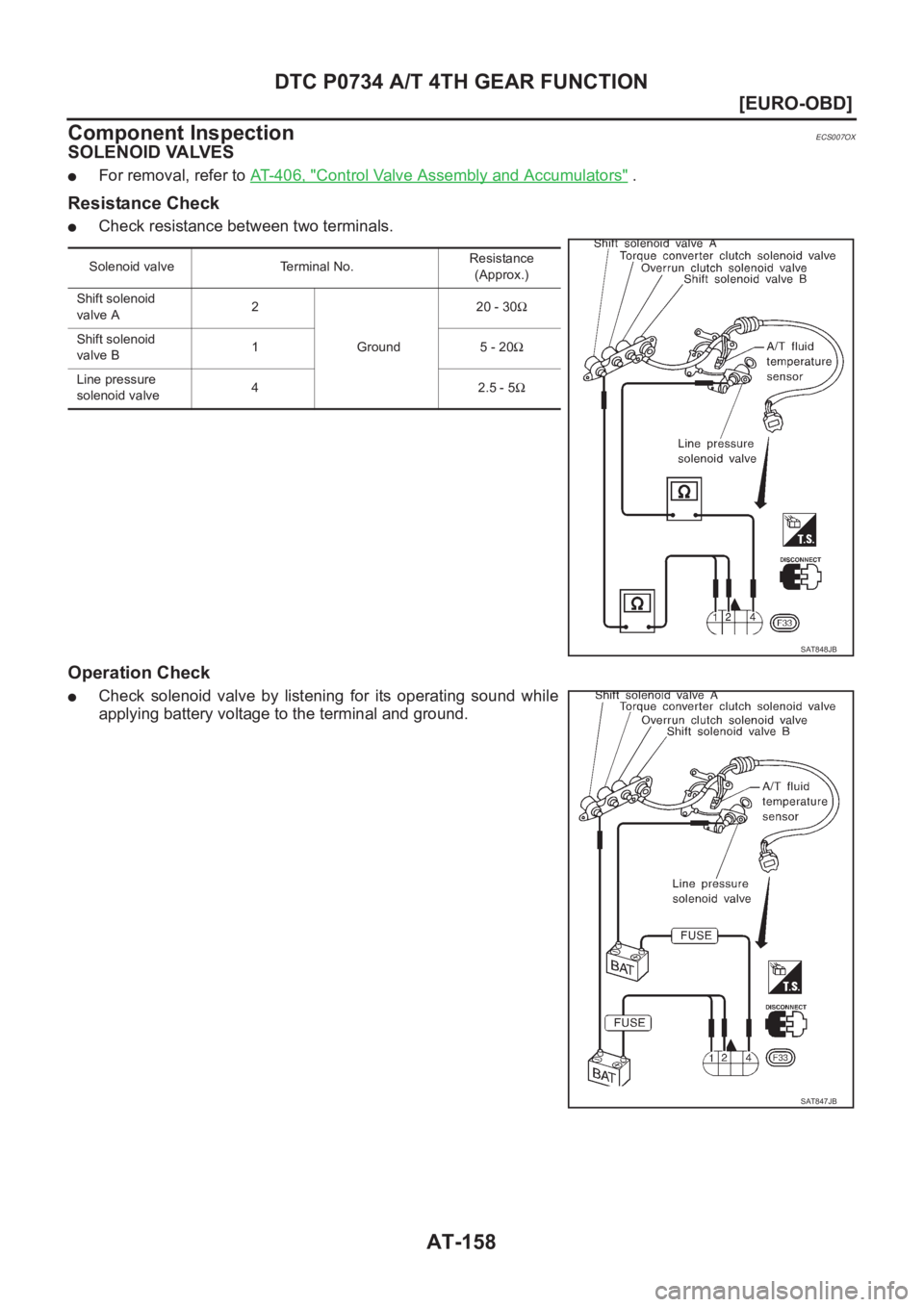

AT-158
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
Component Inspection
ECS007OX
SOLENOID VALVES
●For removal, refer to AT-406, "Control Valve Assembly and Accumulators" .
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2
Ground20 - 30Ω
Shift solenoid
valve B1 5 - 20Ω
Line pressure
solenoid valve4 2.5 - 5Ω
SAT848JB
SAT847JB
Page 1615 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-159
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS007OY
The torque converter clutch s NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-159
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS007OY
The torque converter clutch s](/manual-img/5/57350/w960_57350-1614.png)
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-159
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS007OY
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II
and wait at least 1 second.
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
↓
Lock-up “ON”Approximately 4%
↓
Approximately 94%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valve When A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: TCC SOLENOID/CIRC
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●T/C clutch solenoid valve
: P0740
SAT014K
Page 1616 of 3189
AT-160
[EURO-OBD]
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
3. If DTC is detected, go to AT- 1 6 2 , "Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II”.
SAT020K
