Page 3137 of 3189

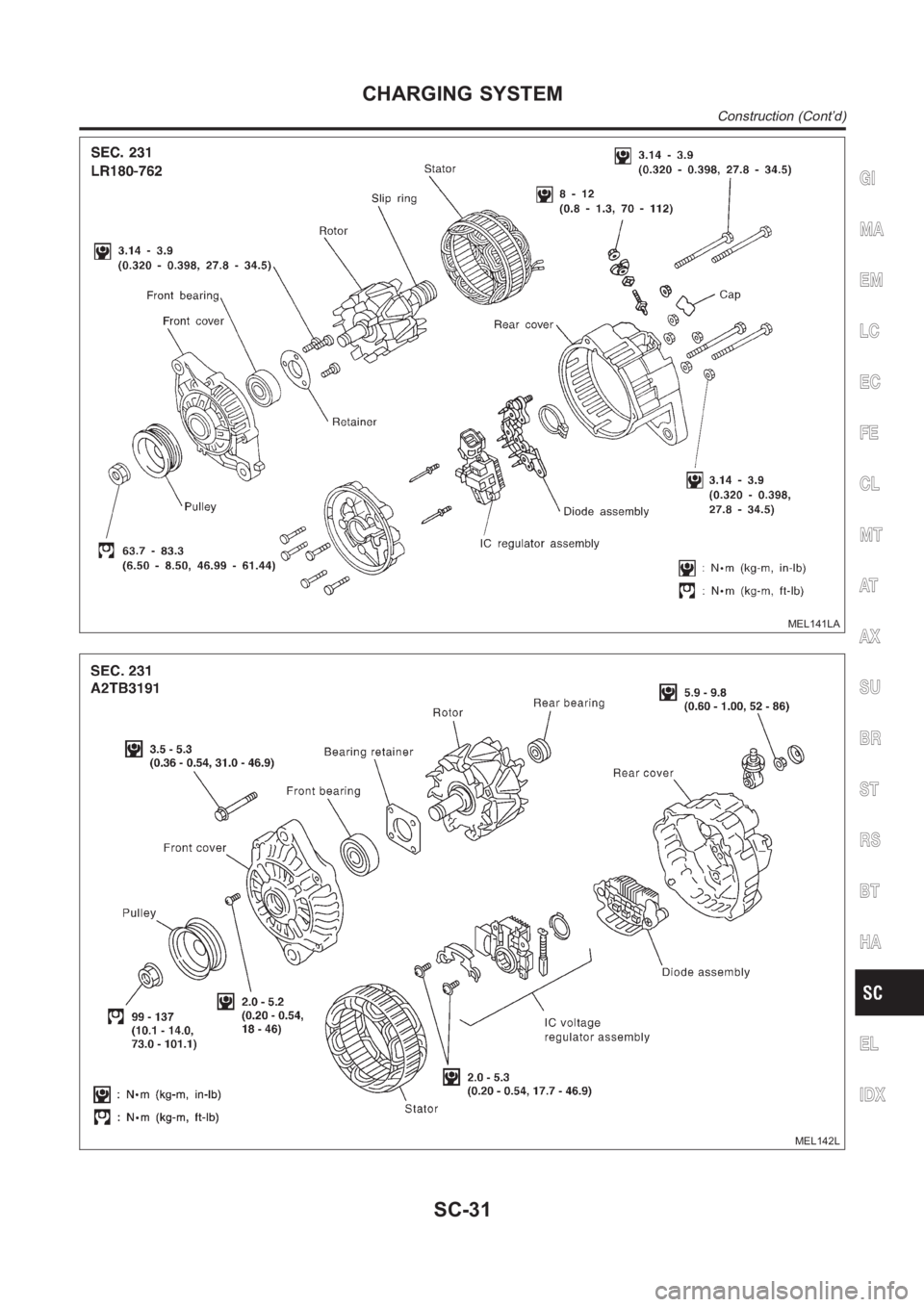

NISSAN ALMERA N16 2003 Electronic Repair Manual MEL141LA MEL142L GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA EL IDX CHARGING SYSTEM Construction (Cont’d) SC-31

Page 3138 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual MEL143LA MEL144L CHARGING SYSTEM Construction (Cont’d) SC-32

Page 3139 of 3189

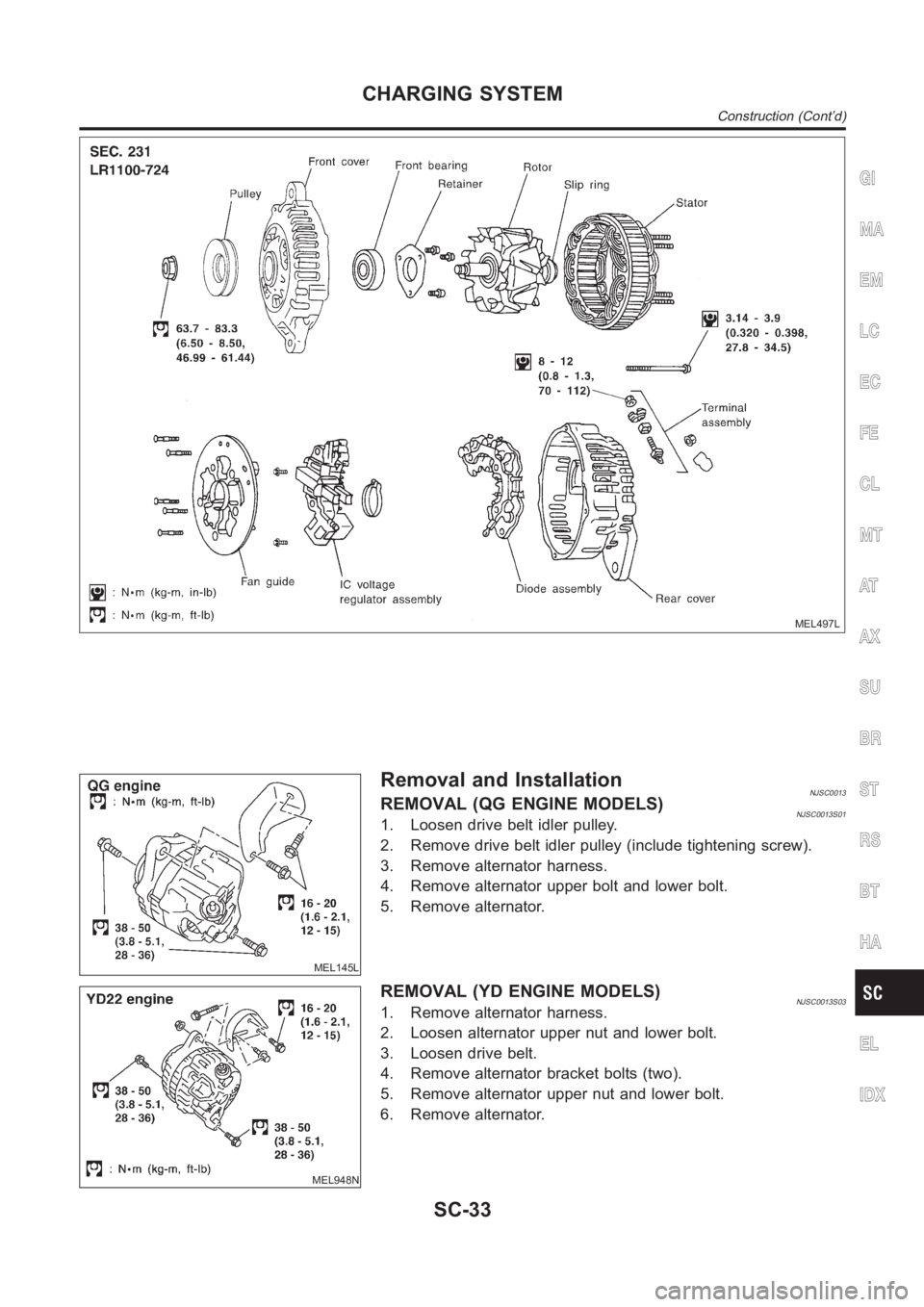

NISSAN ALMERA N16 2003 Electronic Repair Manual MEL497L MEL145L Removal and InstallationNJSC0013REMOVAL (QG ENGINE MODELS)NJSC0013S011. Loosen drive belt idler pulley. 2. Remove drive belt idler pulley (include tightening screw). 3. Remove alternat

Page 3140 of 3189

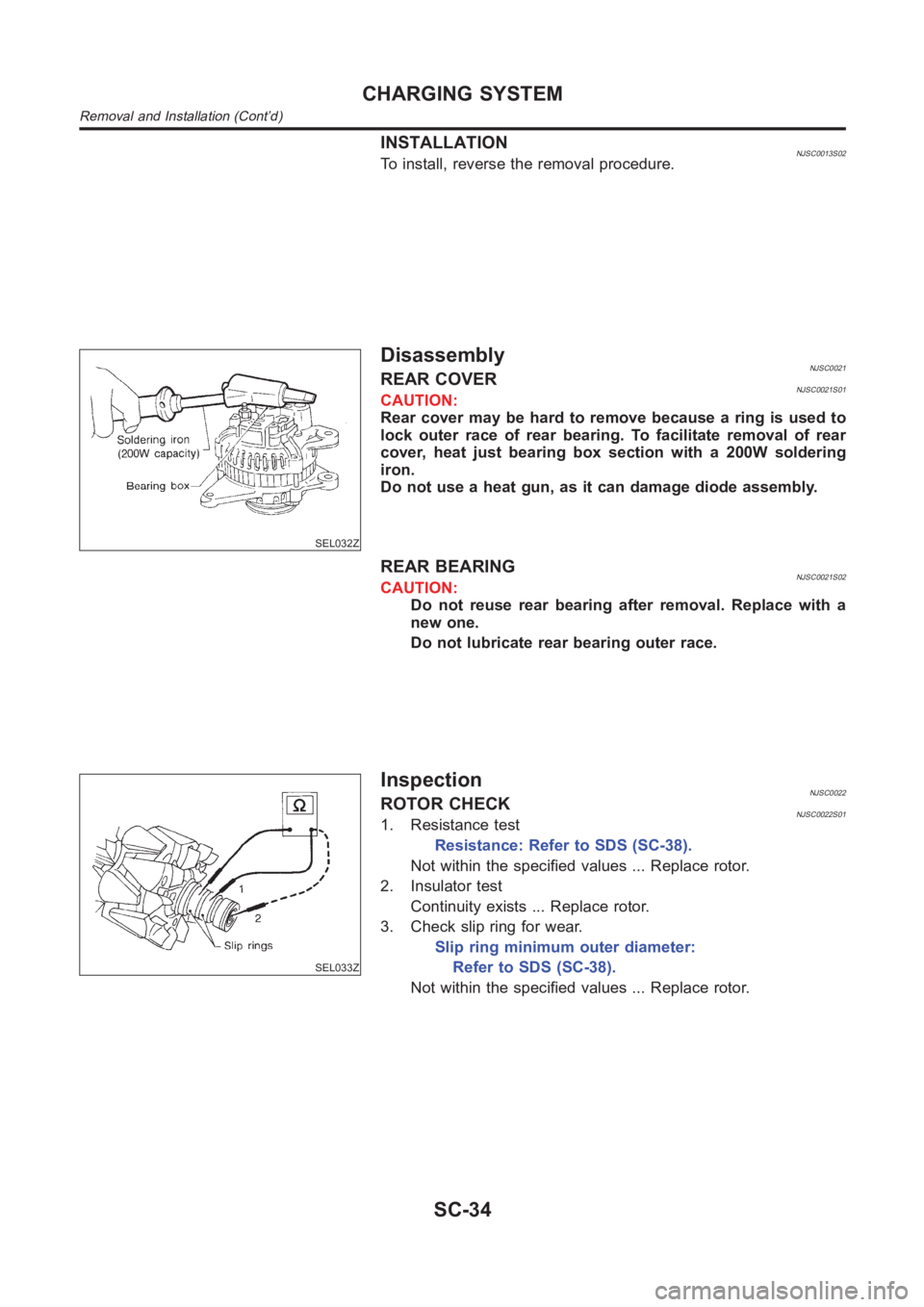

NISSAN ALMERA N16 2003 Electronic Repair Manual INSTALLATIONNJSC0013S02To install, reverse the removal procedure. SEL032Z DisassemblyNJSC0021REAR COVERNJSC0021S01CAUTION: Rear cover may be hard to remove because a ring is used to lock outer race of

Page 3141 of 3189

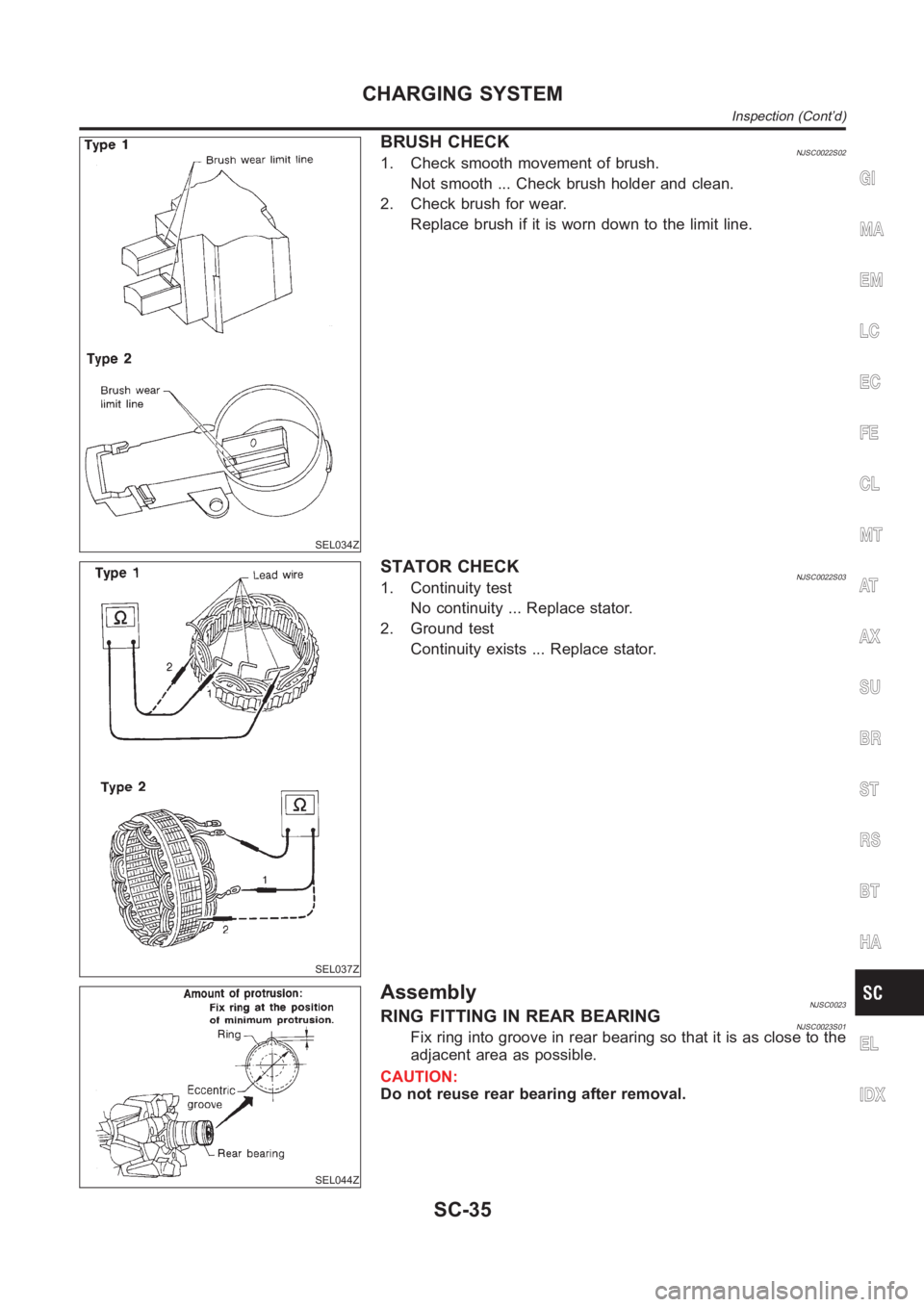

NISSAN ALMERA N16 2003 Electronic Repair Manual SEL034Z BRUSH CHECKNJSC0022S021. Check smooth movement of brush. Not smooth ... Check brush holder and clean. 2. Check brush for wear. Replace brush if it is worn down to the limit line. SEL037Z STATO

Page 3142 of 3189

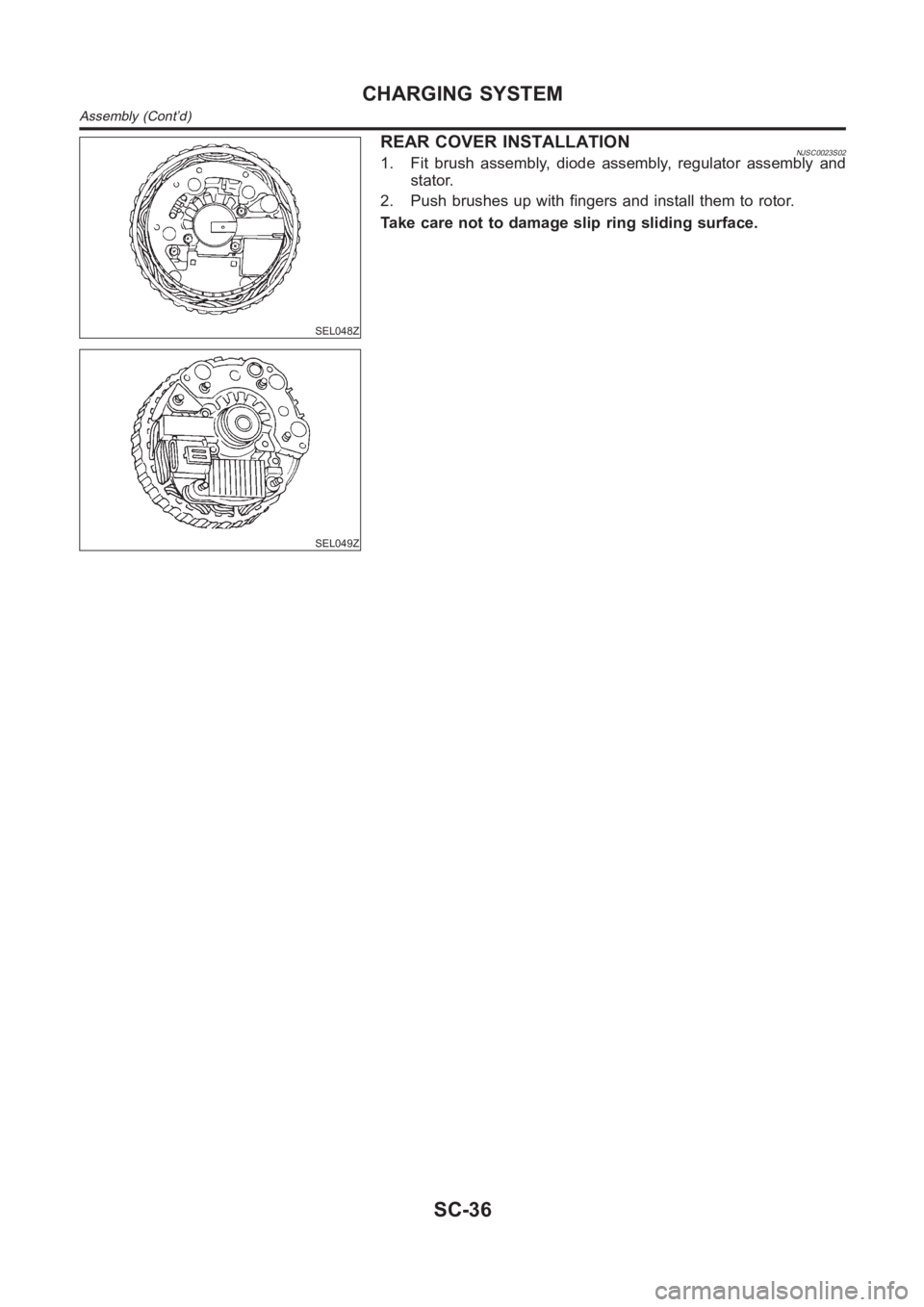

NISSAN ALMERA N16 2003 Electronic Repair Manual SEL048Z SEL049Z REAR COVER INSTALLATIONNJSC0023S021. Fit brush assembly, diode assembly, regulator assembly and stator. 2. Push brushes up with fingers and install them to rotor. Take care not to dama

Page 3143 of 3189

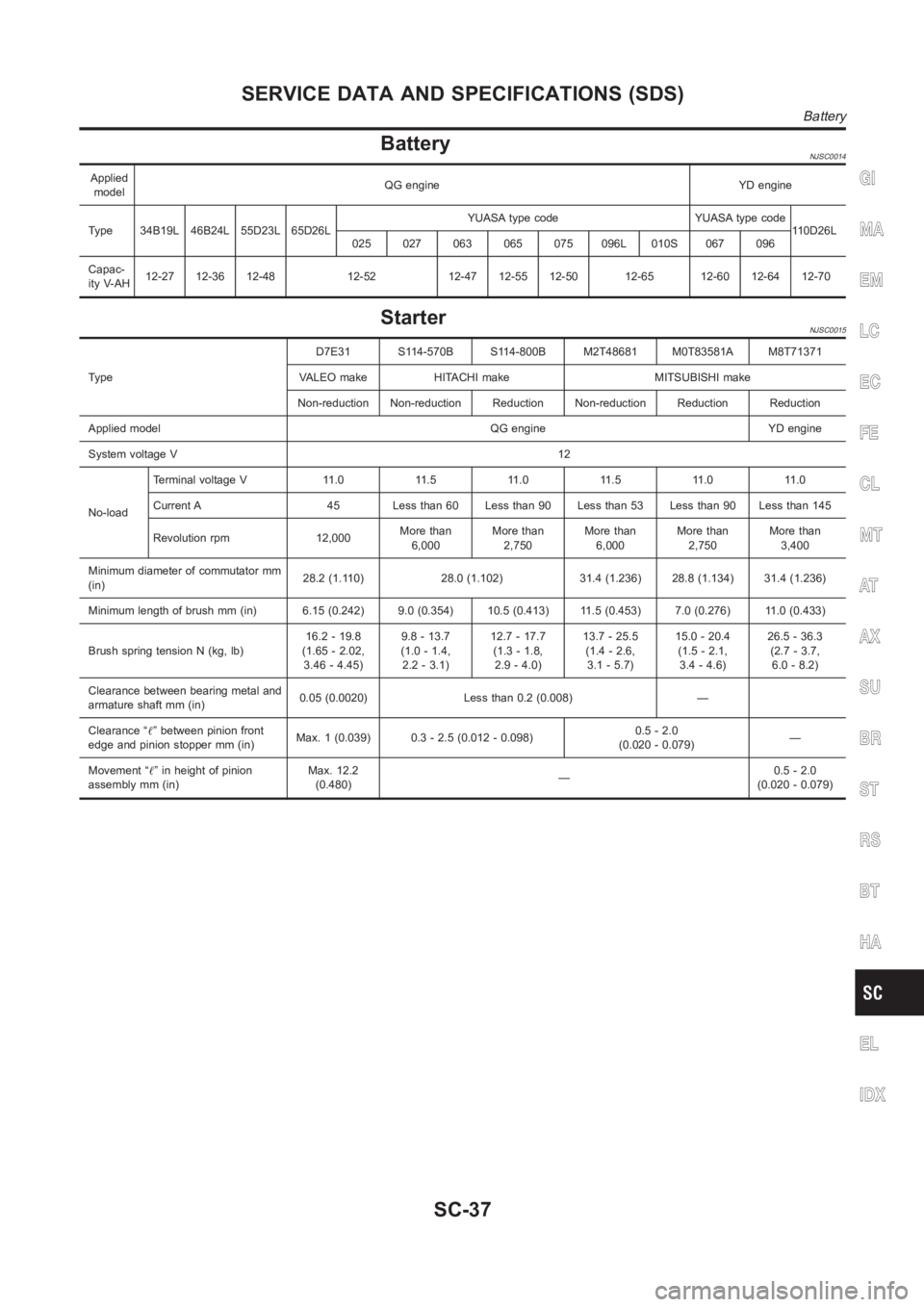

NISSAN ALMERA N16 2003 Electronic Repair Manual BatteryNJSC0014 Applied modelQG engine YD engine Type 34B19L 46B24L 55D23L 65D26LYUASA type code YUASA type code 110D26L 025 027 063 065 075 096L 010S 067 096 Capac- ity V-AH12-27 12-36 12-48 12-52 12

Page 3144 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AlternatorNJSC0016 Ty p eLR180-762 LR180-757 LR1100-724 A2TB3191 A3TB0771 HITACHI make MITSUBISHI make Applied model QG engine YD engine QG engine YD engine Nominal rating V-A 12-80 12-80 12-100 12-80
