Control Valve Upper BodyECS007TD
COMPONENTS
Numbers preceding valve springs correspond with those shown in AT- 5 1 5 , "SERVICE DATA AND SPECIFI-
CATIONS (SDS)" .
1. Control valve upper body 2. Return spring 3. Overrun clutch reducing valve
4. Plug 5. Retainer plate 6. Torque converter relief valve
7. Return spring 8. Retainer plate 9. Torque converter clutch control valve
10. Return spring 11. Plug 12. Sleeve
13. Retainer plate 14. 1-2 accumulator valve 15. Return spring
16. Plug 17. Retainer plate 18. Cooler check valve
19. Return spring 20. Plug 21. Retainer plate
22. Retainer plate 23. Return spring 24. Pilot valve
25. Retainer plate 26. Plug 27. 1-2 accumulator piston
28. Return spring 29. 1-2 accumulator retainer plate 30. Retainer plate
31. Plug 32. 1st reducing valve 33. Return spring
34. Retainer plate 35. Return spring 36. 3-2 timing valve
SAT863J
Page 1906 of 3189
AT-450
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY

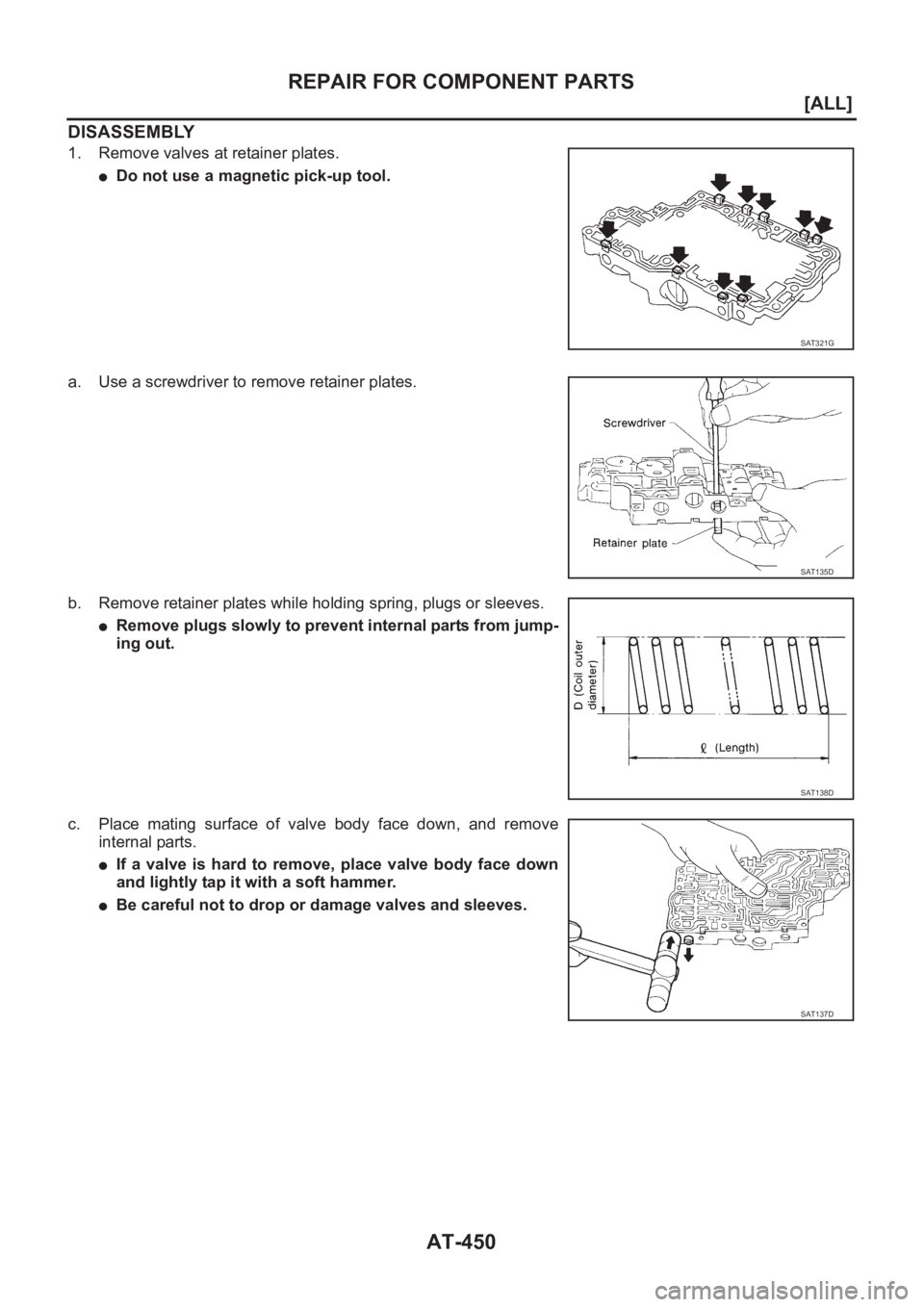

1. Remove valves at retainer plates.
●Do not use a magnetic pick-up tool.
a. Use a screwdriver to remove retainer plates.
b. Remove retainer plates while holding spring, plugs or sleeves.
●Remove plugs slowly to prevent internal parts from jump-
ing out.
c. Place mating surface of valve body face down, and remove
internal parts.
●If a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.
●Be careful not to drop or damage valves and sleeves.
SAT321G
SAT135D
SAT138D
SAT137D
Page 1907 of 3189
REPAIR FOR COMPONENT PARTS
AT-451
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
INSPECTION
Valve Spring

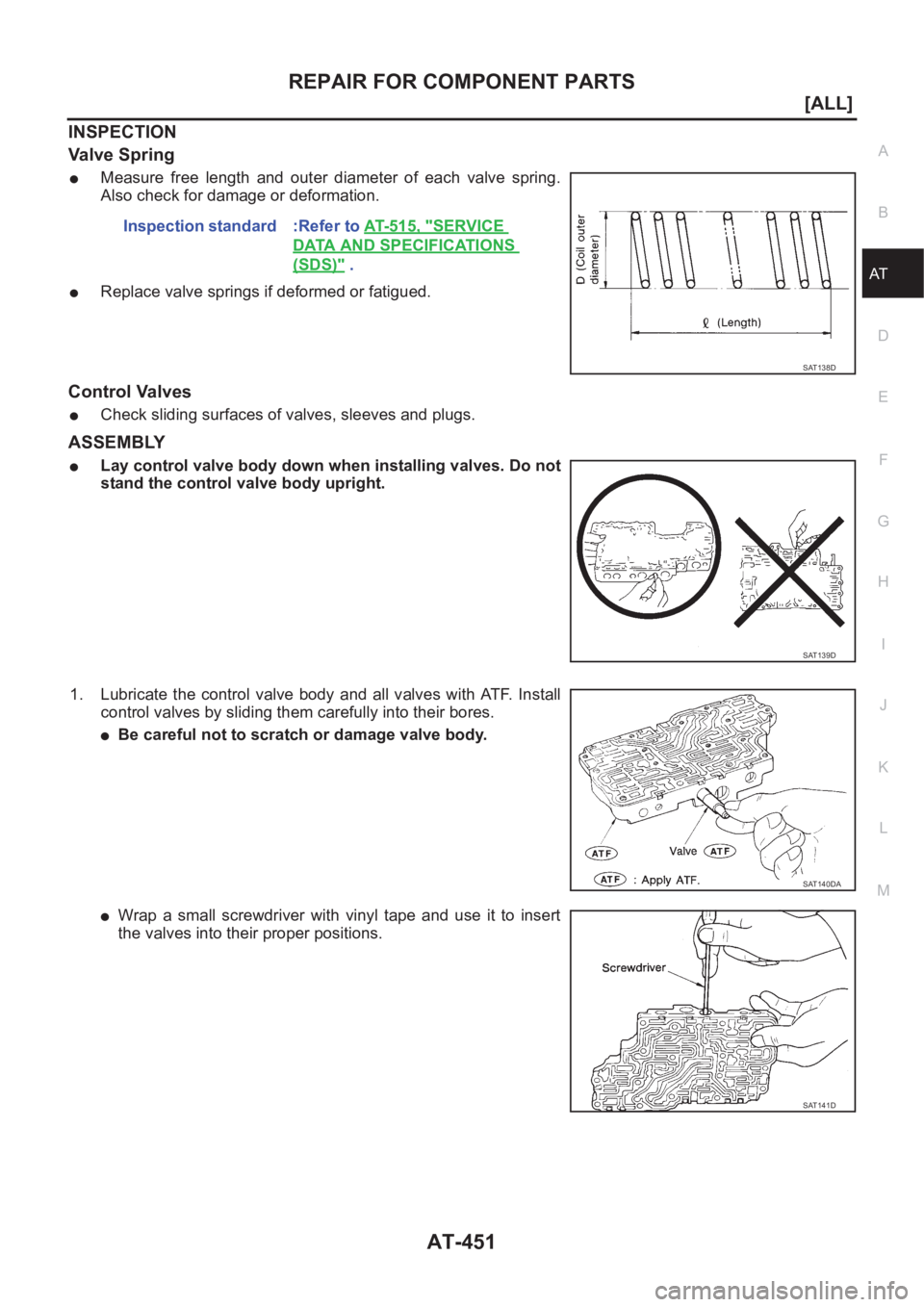

●Measure free length and outer diameter of each valve spring.
Also check for damage or deformation.
●Replace valve springs if deformed or fatigued.
Control Valves
●Check sliding surfaces of valves, sleeves and plugs.
ASSEMBLY
●Lay control valve body down when installing valves. Do not
stand the control valve body upright.
1. Lubricate the control valve body and all valves with ATF. Install
control valves by sliding them carefully into their bores.
●Be careful not to scratch or damage valve body.
●Wrap a small screwdriver with vinyl tape and use it to insert
the valves into their proper positions.Inspection standard :Refer to AT-515, "
SERVICE
DATA AND SPECIFICATIONS
(SDS)" .
SAT138D
SAT139D
SAT140DA
SAT141D
Page 1908 of 3189
AT-452
[ALL]
REPAIR FOR COMPONENT PARTS
1-2 Accumulator Valve
●Install 1-2 accumulator valve. Align 1-2 accumulator retainer
plate from opposite side of control valve body.
●Install return spring, 1-2 accumulator piston and plug.
1. Install retainer plates.
●Install retainer plate while pushing plug or return spring.
Retainer Plate (Upper Body)
Unit: mm (in)
●Install proper retainer plates.
Refer to AT- 4 4 9 , "
Control Valve Upper Body" .
SAT142D
SAT143D
No. Name of control valve Width A Length B
22 Pilot valve
6.0 (0.236)21.5 (0.846) 30 1st reducing valve
34 3-2 timing valve
8 Torque converter relief valve
17 1-2 accumulator valve
38.5 (1.516)
25 1-2 accumulator piston
5 Overrun clutch reducing valve
24.0 (0.945)
21 Cooler check valve
13 Torque converter clutch control valve 28.0 (1.102)
SAT086F
Page 1909 of 3189
REPAIR FOR COMPONENT PARTS
AT-453
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Control Valve Lower BodyECS007TE

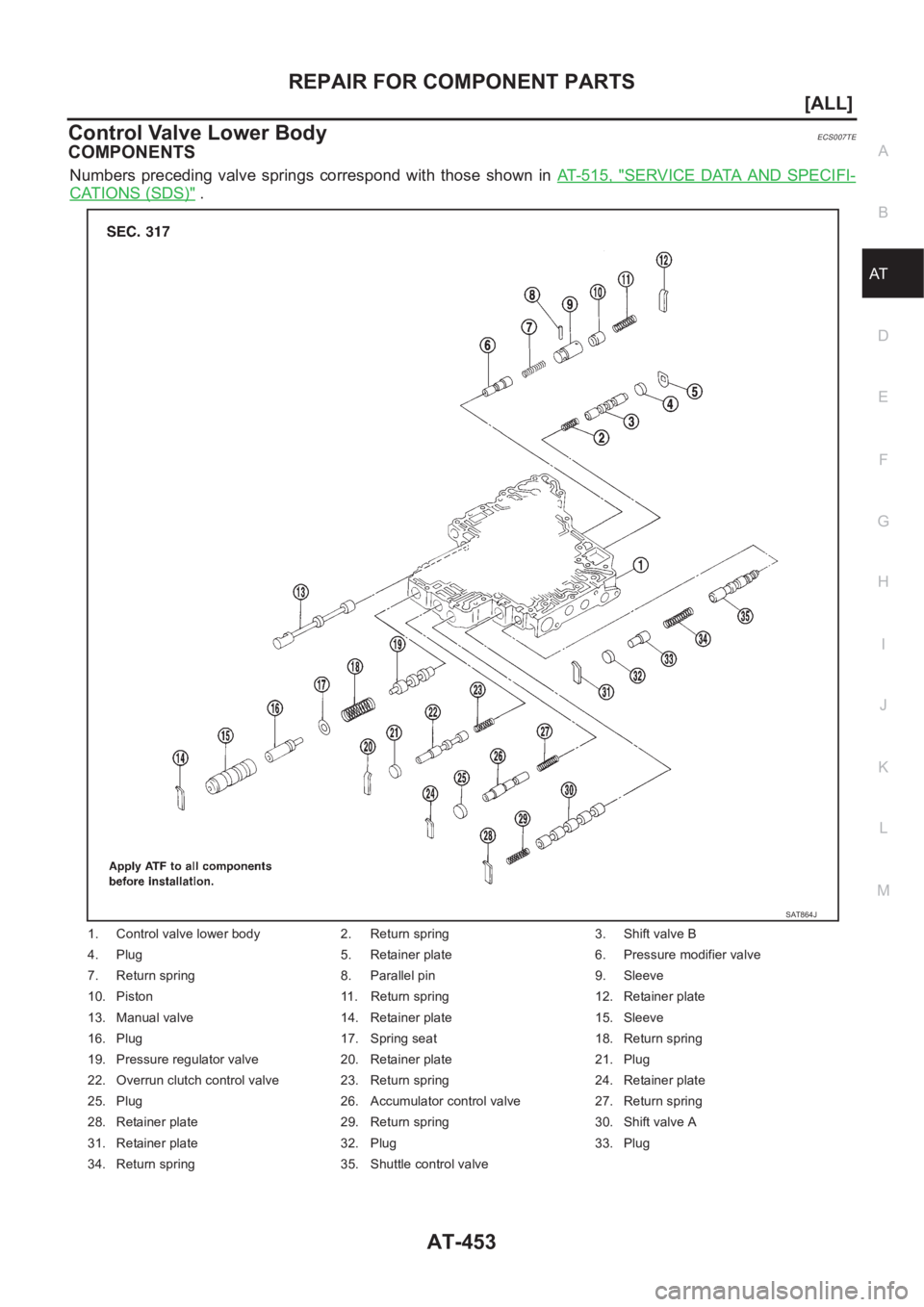

COMPONENTS
Numbers preceding valve springs correspond with those shown in AT- 5 1 5 , "SERVICE DATA AND SPECIFI-
CATIONS (SDS)" .
1. Control valve lower body 2. Return spring 3. Shift valve B
4. Plug 5. Retainer plate 6. Pressure modifier valve
7. Return spring 8. Parallel pin 9. Sleeve
10. Piston 11. Return spring 12. Retainer plate
13. Manual valve 14. Retainer plate 15. Sleeve
16. Plug 17. Spring seat 18. Return spring
19. Pressure regulator valve 20. Retainer plate 21. Plug
22. Overrun clutch control valve 23. Return spring 24. Retainer plate
25. Plug 26. Accumulator control valve 27. Return spring
28. Retainer plate 29. Return spring 30. Shift valve A
31. Retainer plate 32. Plug 33. Plug
34. Return spring 35. Shuttle control valve
SAT864J
Page 1910 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-454
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
●Remove valves at retainer plate.
For removal procedures, refer to AT-450, "
DISASSEMBLY" .
INSPECTION
Valve Springs
●Check each valve s NISSAN ALMERA N16 2003 Electronic Repair Manual AT-454
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
●Remove valves at retainer plate.
For removal procedures, refer to AT-450, "
DISASSEMBLY" .
INSPECTION
Valve Springs
●Check each valve s](/manual-img/5/57350/w960_57350-1909.png)
AT-454
[ALL]
REPAIR FOR COMPONENT PARTS

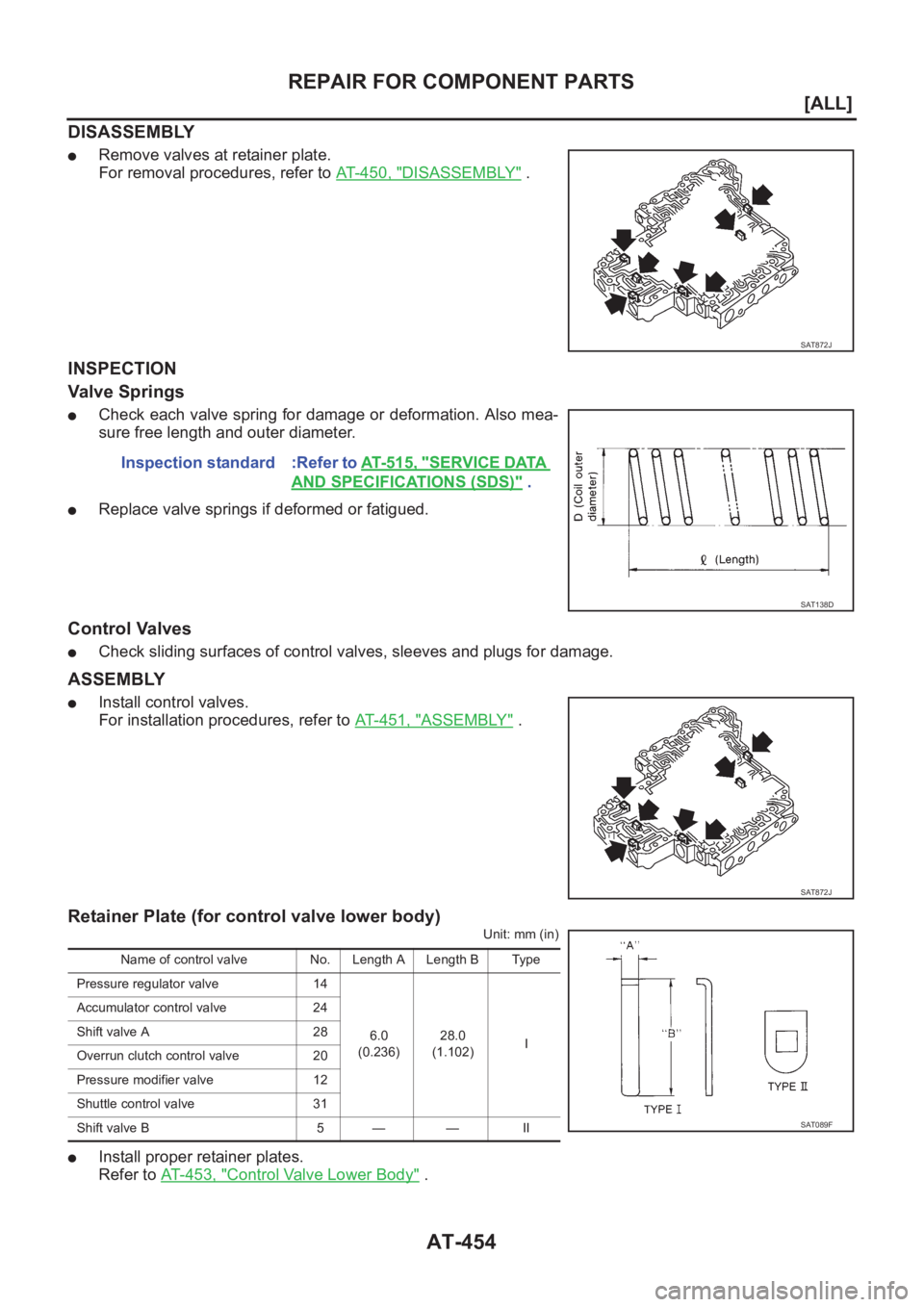

DISASSEMBLY
●Remove valves at retainer plate.
For removal procedures, refer to AT-450, "
DISASSEMBLY" .
INSPECTION
Valve Springs
●Check each valve spring for damage or deformation. Also mea-
sure free length and outer diameter.
●Replace valve springs if deformed or fatigued.
Control Valves
●Check sliding surfaces of control valves, sleeves and plugs for damage.
ASSEMBLY
●Install control valves.
For installation procedures, refer to AT- 4 5 1 , "
ASSEMBLY" .
Retainer Plate (for control valve lower body)
Unit: mm (in)
●Install proper retainer plates.
Refer to AT- 4 5 3 , "
Control Valve Lower Body" .
SAT872J
Inspection standard :Refer to AT- 5 1 5 , "SERVICE DATA
AND SPECIFICATIONS (SDS)" .
SAT138D
SAT872J
Name of control valve No. Length A Length B Type
Pressure regulator valve 14
6.0
(0.236)28.0
(1.102)I Accumulator control valve 24
Shift valve A 28
Overrun clutch control valve 20
Pressure modifier valve 12
Shuttle control valve 31
Shift valve B 5 — — II
SAT089F
Page 1911 of 3189
REPAIR FOR COMPONENT PARTS
AT-455
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Reverse ClutchECS007TF

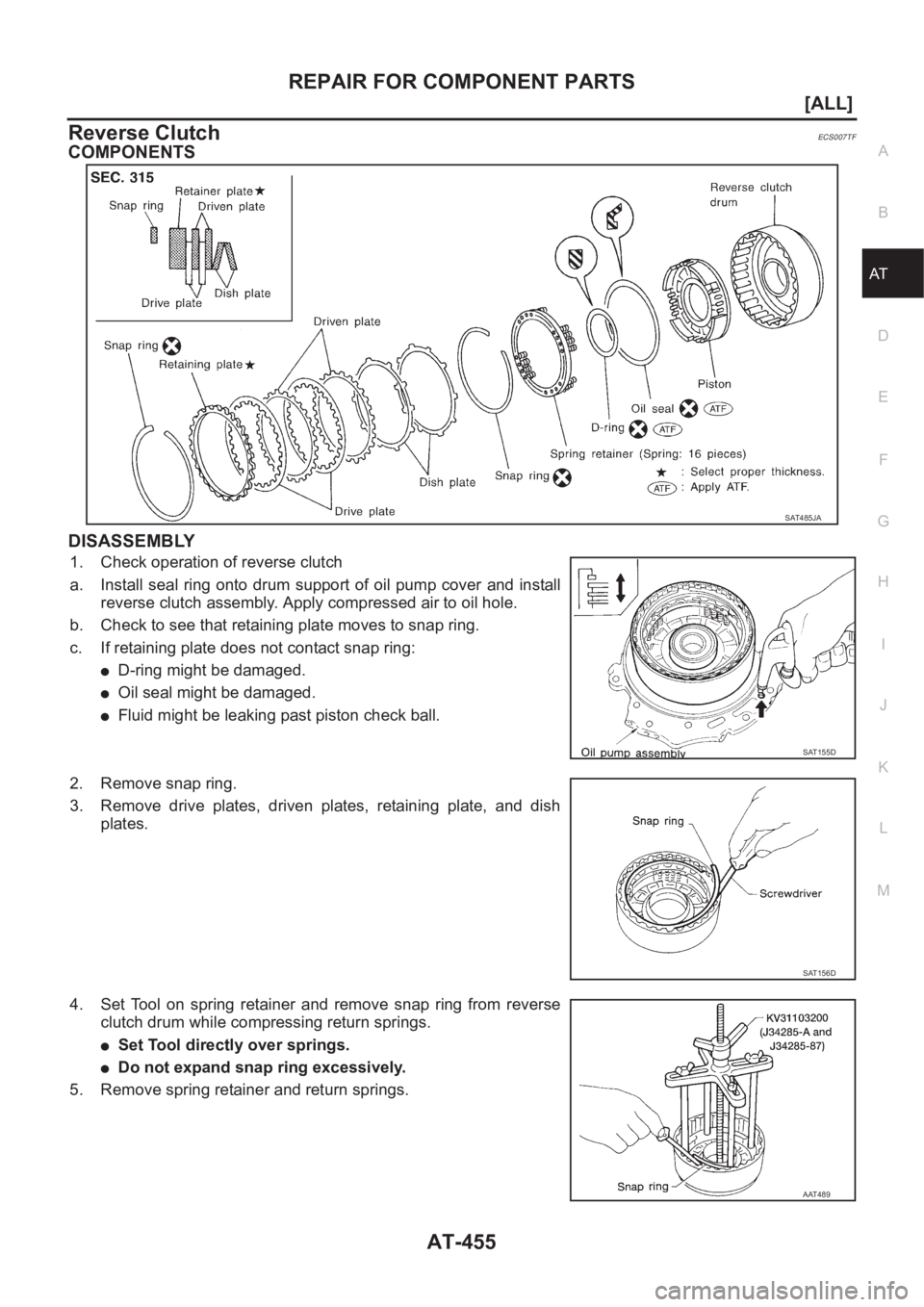

COMPONENTS
DISASSEMBLY
1. Check operation of reverse clutch
a. Install seal ring onto drum support of oil pump cover and install
reverse clutch assembly. Apply compressed air to oil hole.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
●D-ring might be damaged.
●Oil seal might be damaged.
●Fluid might be leaking past piston check ball.
2. Remove snap ring.
3. Remove drive plates, driven plates, retaining plate, and dish
plates.
4. Set Tool on spring retainer and remove snap ring from reverse
clutch drum while compressing return springs.
●Set Tool directly over springs.
●Do not expand snap ring excessively.
5. Remove spring retainer and return springs.
SAT485JA
SAT155D
SAT156D
AAT489
Page 1912 of 3189
AT-456
[ALL]
REPAIR FOR COMPONENT PARTS

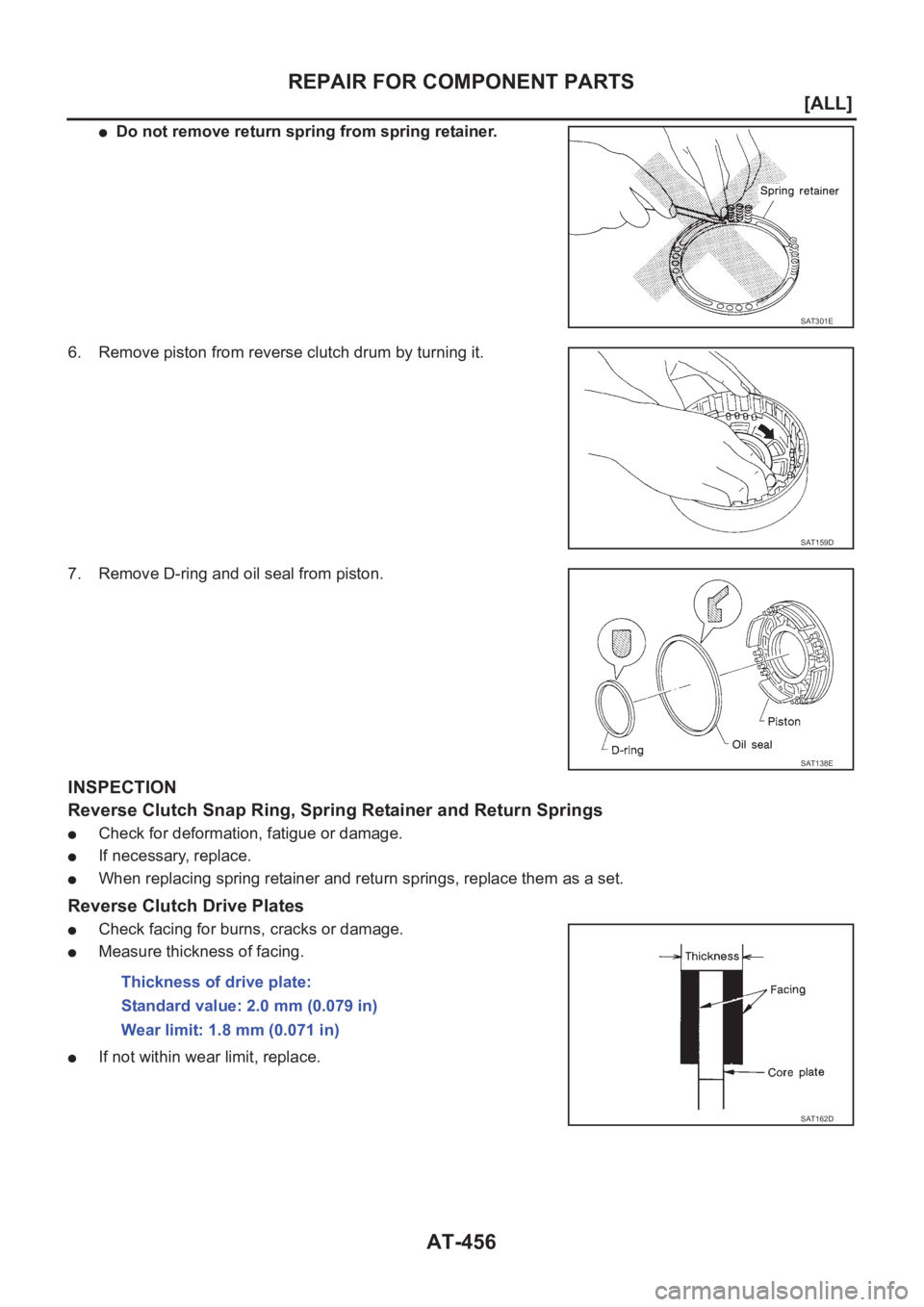

●Do not remove return spring from spring retainer.
6. Remove piston from reverse clutch drum by turning it.
7. Remove D-ring and oil seal from piston.
INSPECTION
Reverse Clutch Snap Ring, Spring Retainer and Return Springs
●Check for deformation, fatigue or damage.
●If necessary, replace.
●When replacing spring retainer and return springs, replace them as a set.
Reverse Clutch Drive Plates
●Check facing for burns, cracks or damage.
●Measure thickness of facing.
●If not within wear limit, replace.
SAT301E
SAT159D
SAT138E
Thickness of drive plate:
Standard value: 2.0 mm (0.079 in)
Wear limit: 1.8 mm (0.071 in)
SAT162D
