Page 1137 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 6 CHECK MASS AIR FLOW SENSOR 1. Reconnect harness connectors disconnected. 2. Start engine and warm it up to normal operating temperature. 3. Check voltage between ECM terminal 224 (Mass air flow sens

Page 1138 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SEF594K DescriptionNJEC0649The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the

Page 1139 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 3) Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM. 4) If DTC is detected, go to “Diagnostic Procedure”, EC-87. GI MA EM LC FE CL MT AT AX SU BR ST RS BT HA SC EL IDX DTC

Page 1140 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring DiagramNJEC0652 YEC011A DTC P0115 COOLANT TEMP SENYD Wiring Diagram EC-86

Page 1141 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Diagnostic ProcedureNJEC0653 1 CHECK ECTS POWER SUPPLY CIRCUIT 1. Turn ignition switch “OFF”. 2. Disconnect engine coolant temperature sensor harness connector. SEF382Y 3. Turn ignition switch “

Page 1142 of 3189

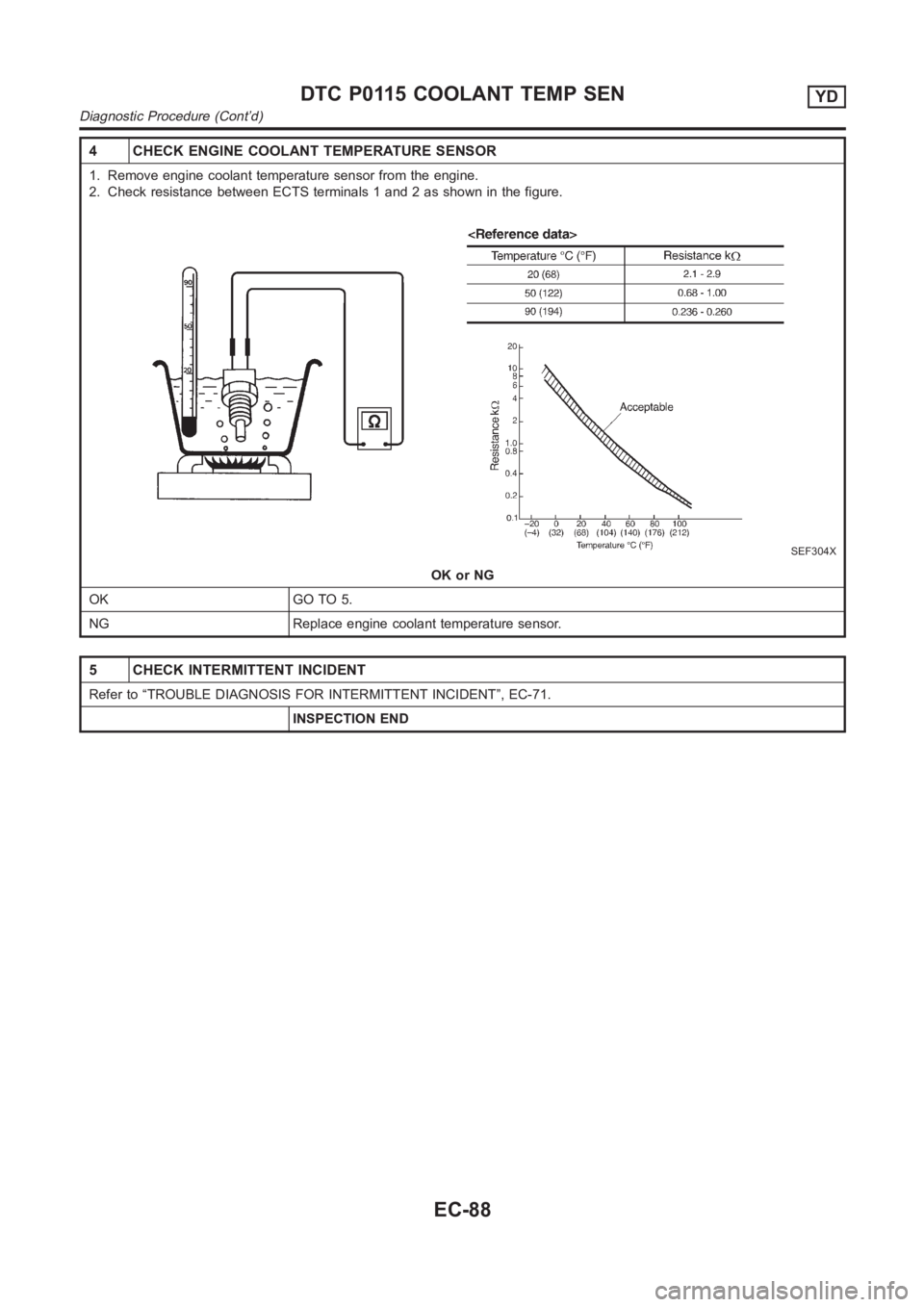

NISSAN ALMERA N16 2003 Electronic Repair Manual 4 CHECK ENGINE COOLANT TEMPERATURE SENSOR 1. Remove engine coolant temperature sensor from the engine. 2. Check resistance between ECTS terminals 1 and 2 as shown in the figure. SEF304X OK or NG OK GO

Page 1143 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DescriptionNJEC0679The accelerator work unit is installed on the upper end of the accelerator pedal assembly. The accelerator position sensor and accelerator position switch are built into the acceler

Page 1144 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA(DC Voltage) 434 W Accelerator position sensor[Ignition switch “ON”] Accelerator pedal fully released0.30 - 0.50V [Ignition switch “ON”] Accelerator
