Page 1769 of 3189

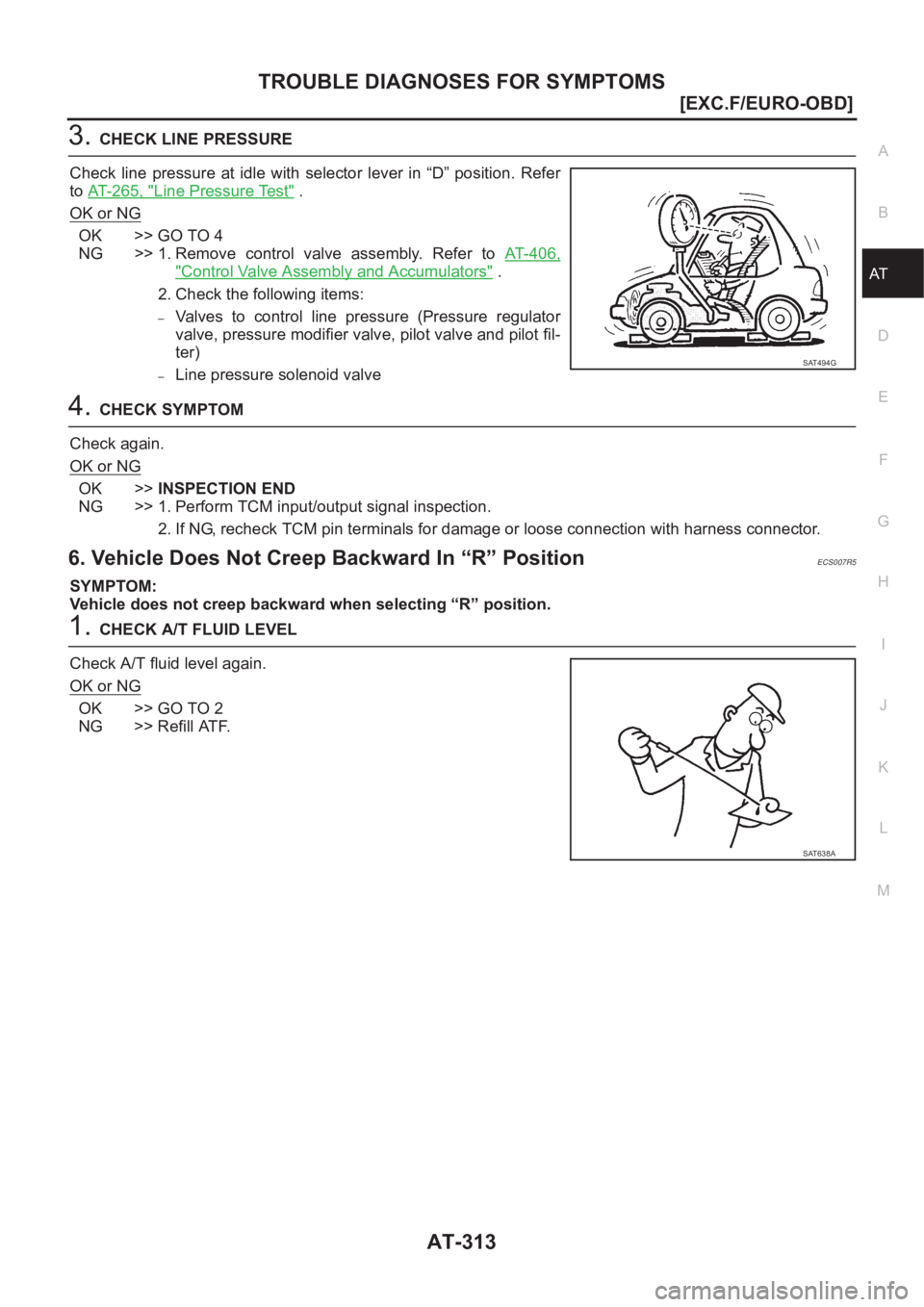

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-313 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 3.CHECK LINE PRESSURE Check line pressure at idle with selector lever in “D” position. Refer to AT-265,

Page 1770 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-314 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 2. CHECK STALL TEST Check stall revolution with selector lever in “1” and “R” positions. Refer to AT-262, " Stall Test" . OK or N

Page 1771 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-315 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 4.CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition

Page 1772 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-316 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 7. Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position ECS007R6 SYMPTOM: Vehicle does not creep forward when selecting “D”

Page 1773 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-317 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 4.CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition

Page 1774 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-318 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 2. CHECK SELF-DIAGNOSTIC RESULTS Does self-diagnosis show damage to vehicle speed sensor·A/T (rev- olution sensor), shift solenoid valve A,

Page 1775 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-319 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 6.DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT- 4 0 6 , " Control Valve Assembly and

Page 1776 of 3189

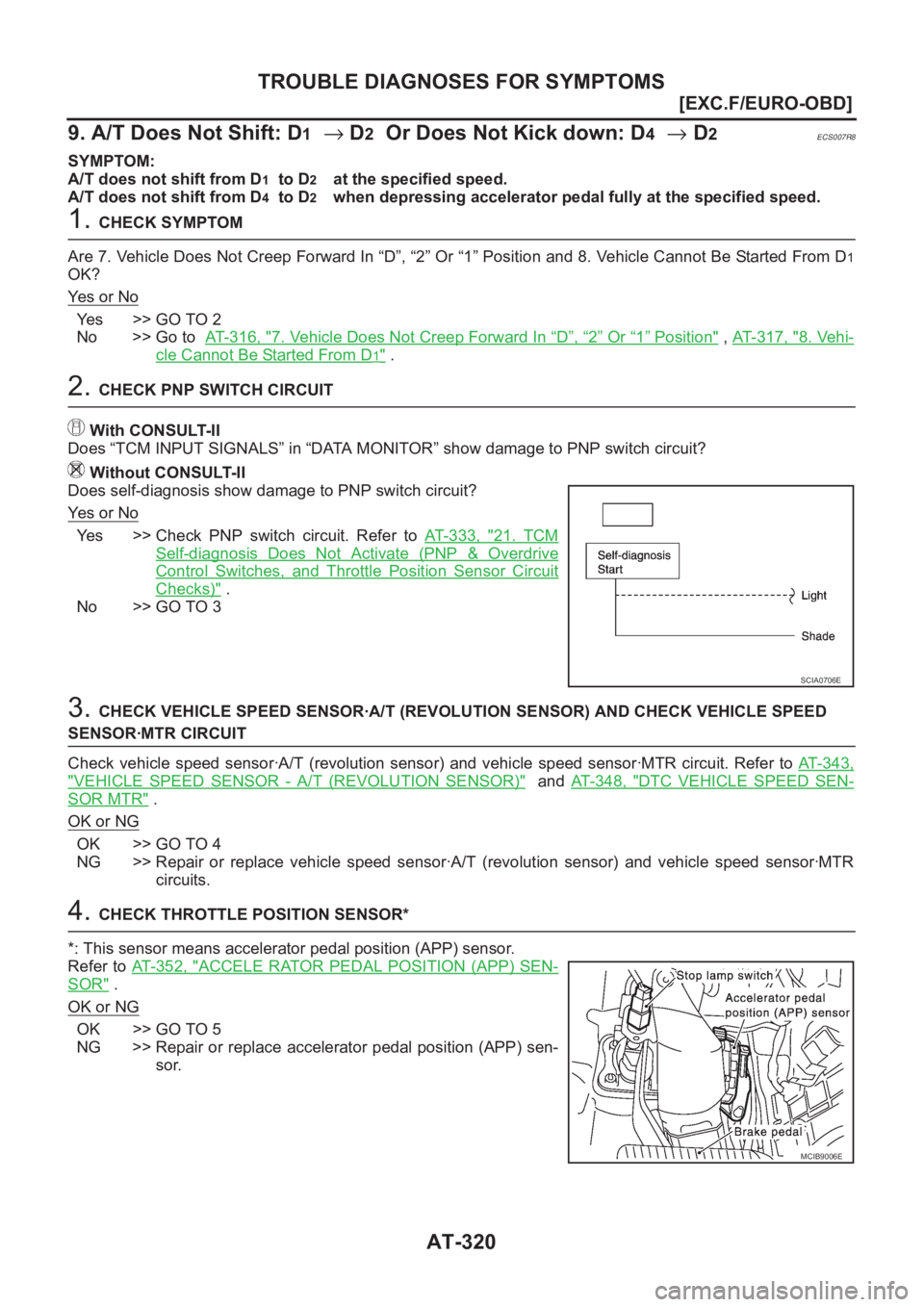

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-320 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 9. A/T Does Not Shift: D 1→ D2 Or Does Not Kick down: D4→ D2ECS007R8 SYMPTOM: A/T does not shift from D 1 to D2 at the specified speed. A/
