Page 289 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM855F SEM856F INSPECTIONNJLC0007Using a feeler gauge, check the following clearances. Standard clearance: Unit: mm (in) Body to outer rotor radial clearance10.250 - 0.325 (0.0098 - 0.0128) Inner rot

Page 290 of 3189

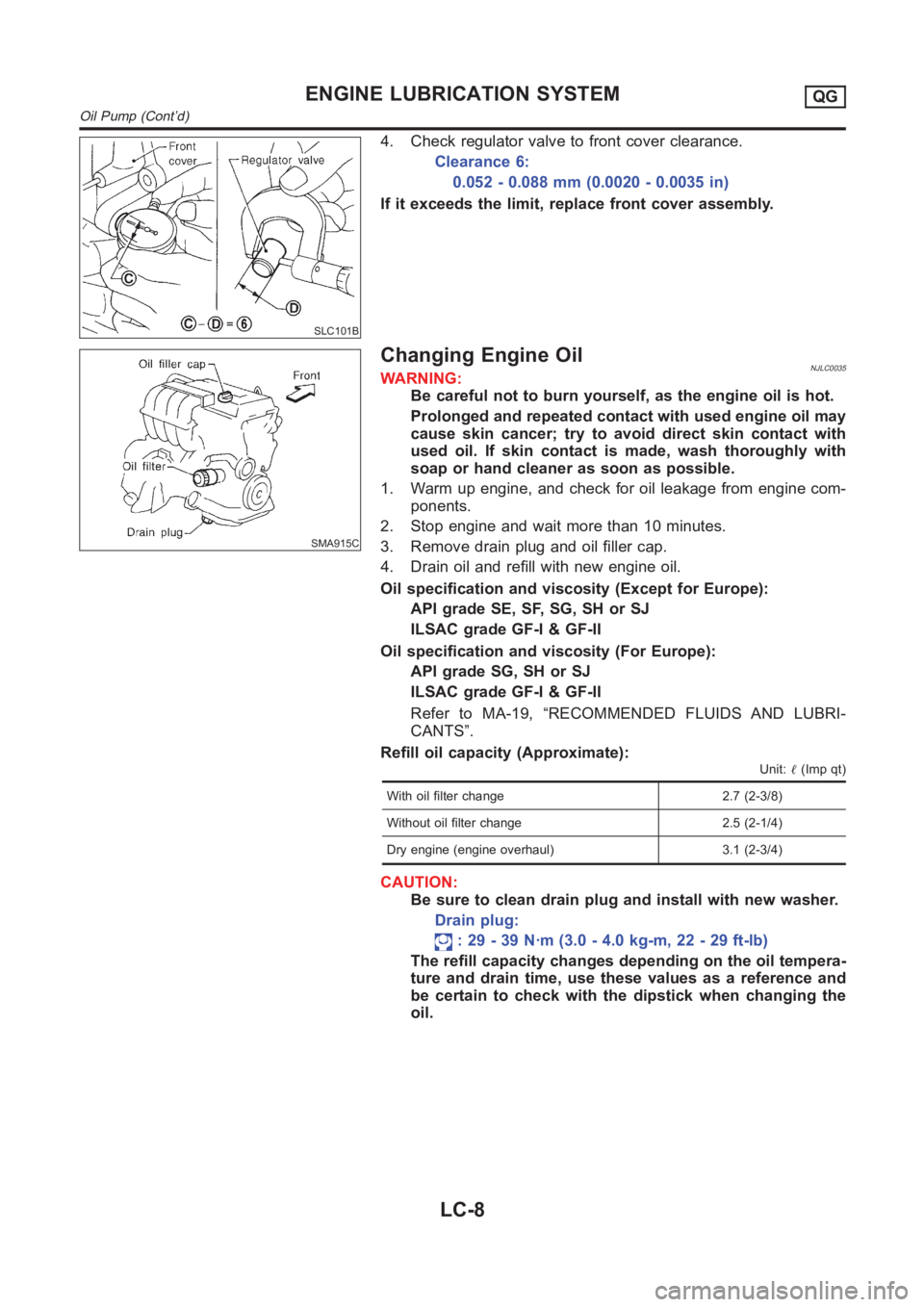

NISSAN ALMERA N16 2003 Electronic Repair Manual SLC101B 4. Check regulator valve to front cover clearance. Clearance 6: 0.052 - 0.088 mm (0.0020 - 0.0035 in) If it exceeds the limit, replace front cover assembly. SMA915C Changing Engine OilNJLC0035

Page 291 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YLC044 5. Check oil level. 6. Start engine and check area around drain plug and oil filter for oil leakage. 7. Run engine for a few minutes, then turn it off. After several minutes, check oil level. A

Page 292 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Service Data and Specifications (SDS) OIL PRESSURE CHECKNJLC0011 Engine speed rpmApproximate discharge pressure kPa (bar, kg/cm2, psi) 600 More than 98 (0.98, 1.0, 14) 2,000 More than 294 (2.94, 3.0,

Page 293 of 3189

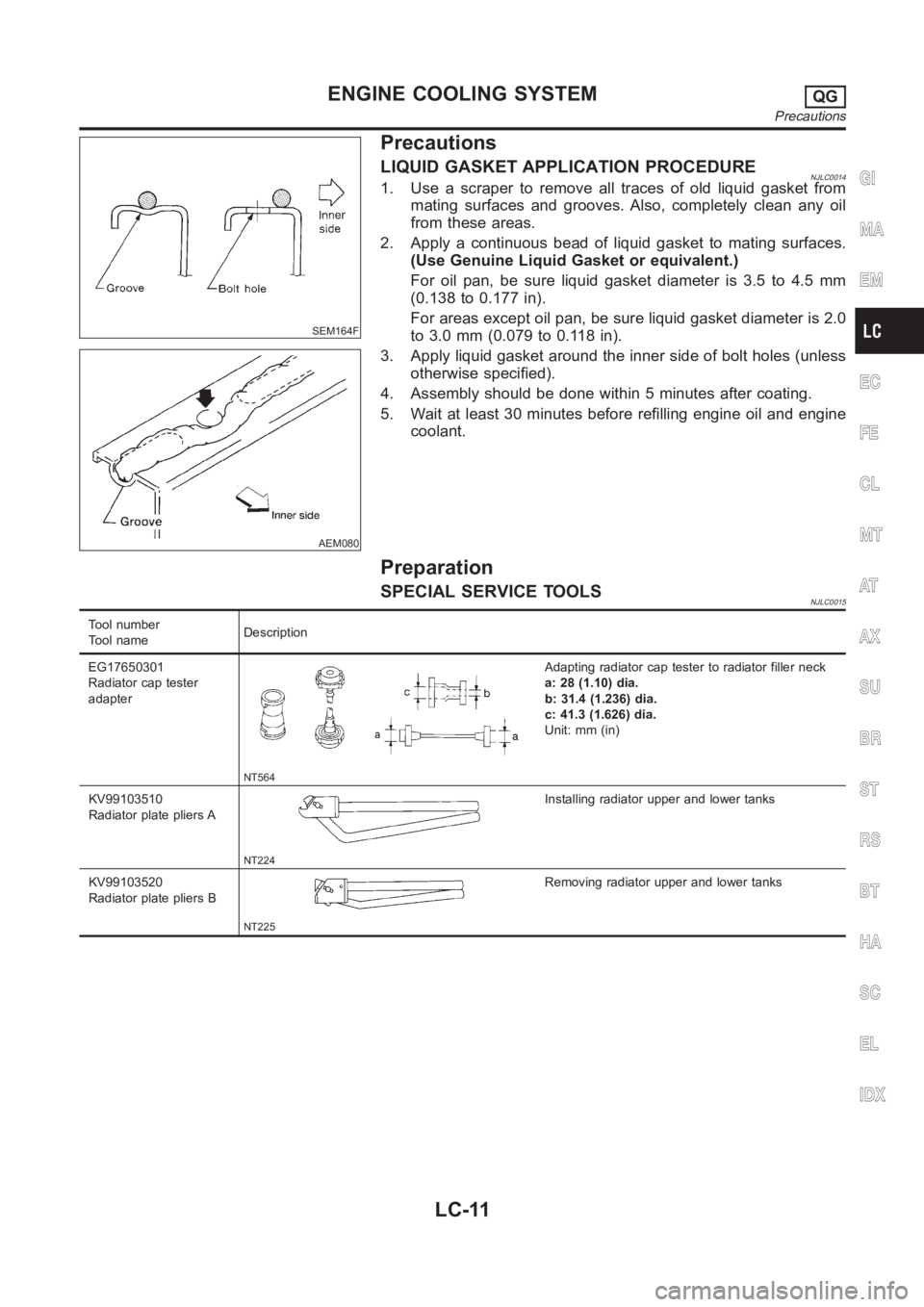

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM164F AEM080 Precautions LIQUID GASKET APPLICATION PROCEDURENJLC00141. Use a scraper to remove all traces of old liquid gasket from mating surfaces and grooves. Also, completely clean any oil from t

Page 294 of 3189

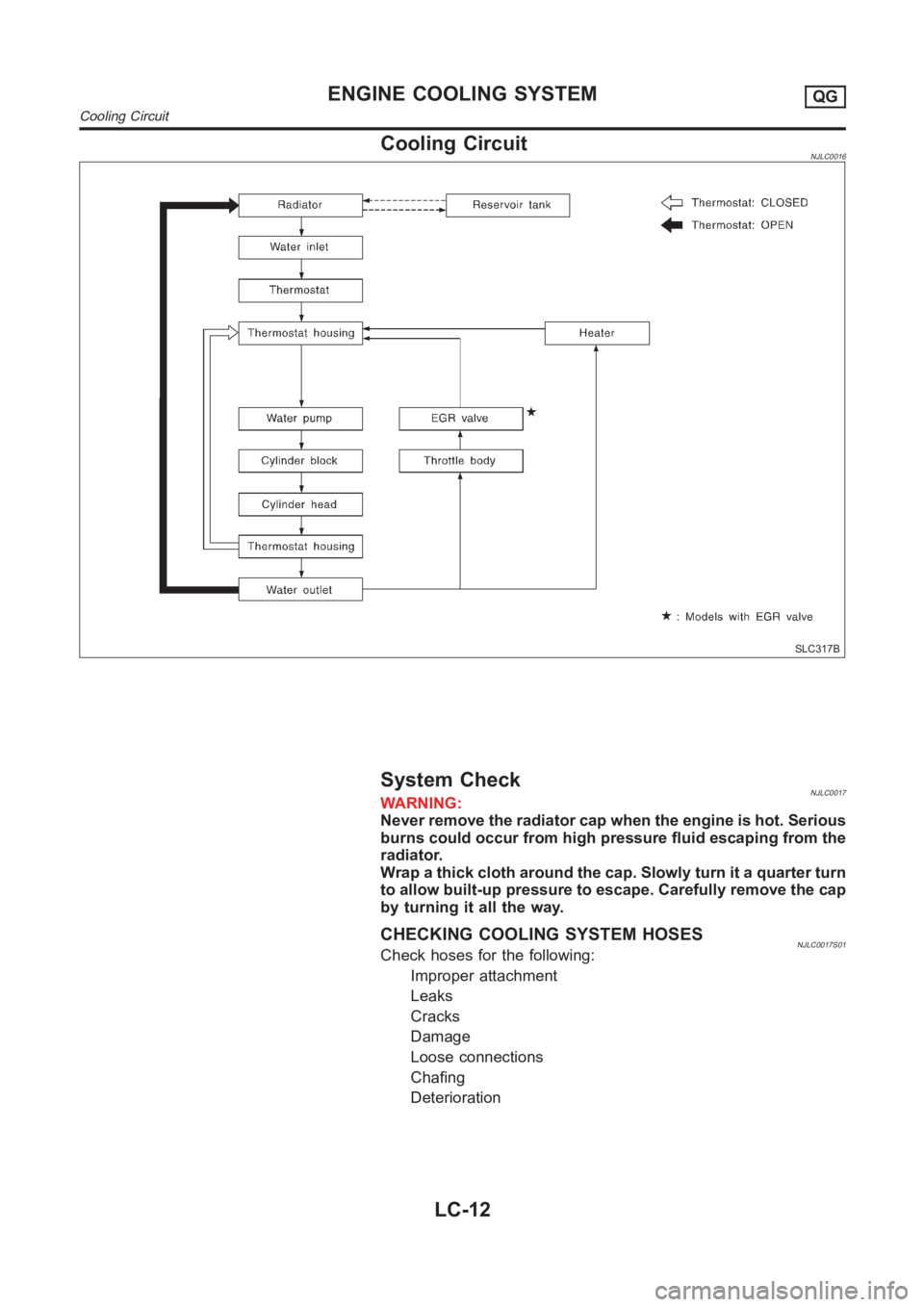

NISSAN ALMERA N16 2003 Electronic Repair Manual Cooling CircuitNJLC0016 SLC317B System CheckNJLC0017WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure fluid escaping from the radiator. Wrap a

Page 295 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual CHECKING RADIATORNJLC0017S04Check radiator for mud or clogging. If necessary, clean radiator as follows. Be careful not to bend or damage the radiator fins. When radiator is cleaned without removal, r

Page 296 of 3189

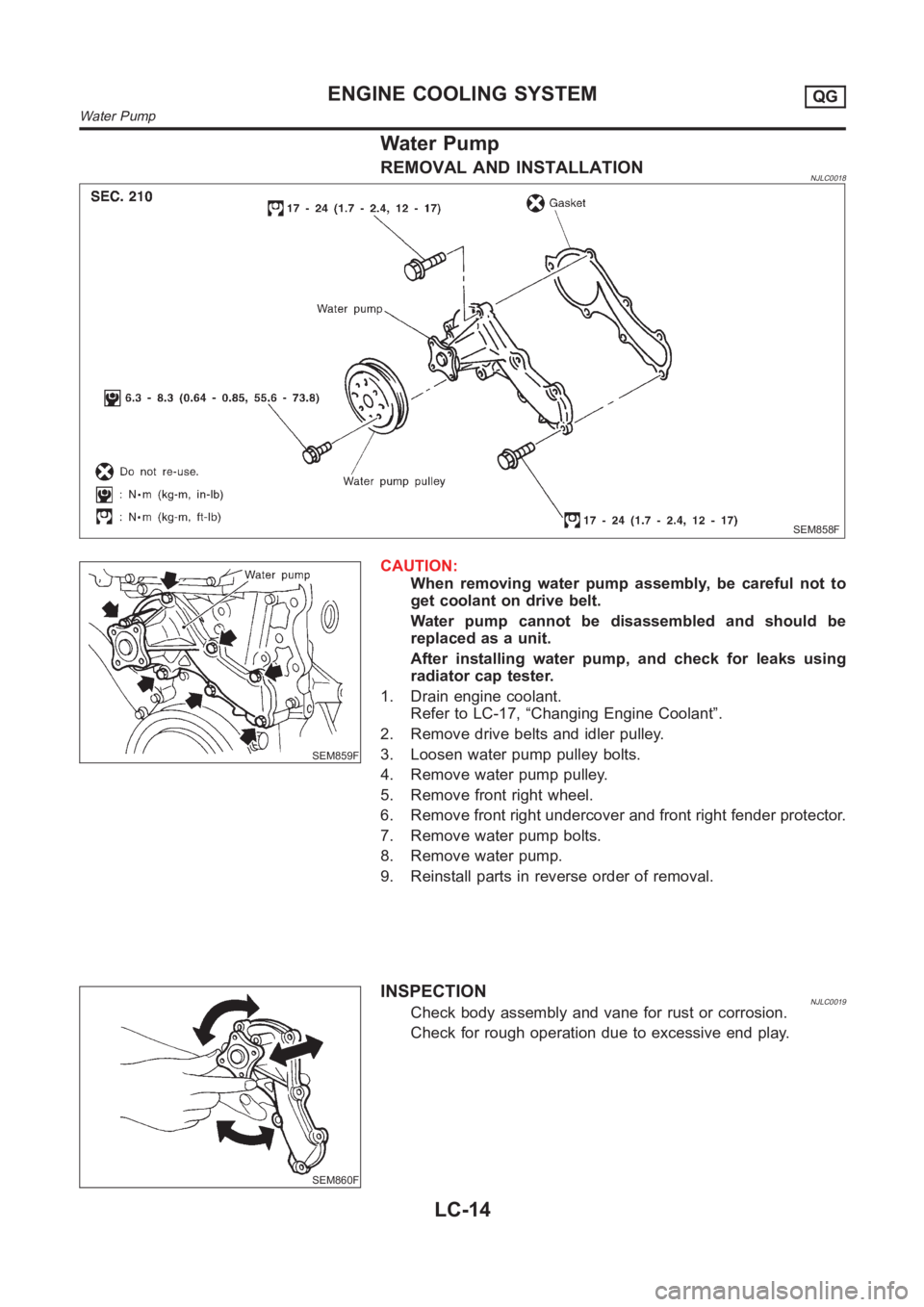

NISSAN ALMERA N16 2003 Electronic Repair Manual Water Pump REMOVAL AND INSTALLATIONNJLC0018 SEM858F SEM859F CAUTION: When removing water pump assembly, be careful not to get coolant on drive belt. Water pump cannot be disassembled and should be rep
