Page 1673 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-217 [EURO-OBD] D E F G H I J K L MA B AT 2.CHECK STALL TEST Check stall revolution with selector lever in “1” and “R” positions. Refer to AT-64, " Sta ll

Page 1674 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-218 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 4. CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition. OK or NG OK >> GO TO 5 NG >>

Page 1675 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-219 [EURO-OBD] D E F G H I J K L MA B AT 7. Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS007Q8 SYMPTOM: Vehicle does not creep forward whe

Page 1676 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-220 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 4. CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition. OK or NG OK >> GO TO 5 NG >>

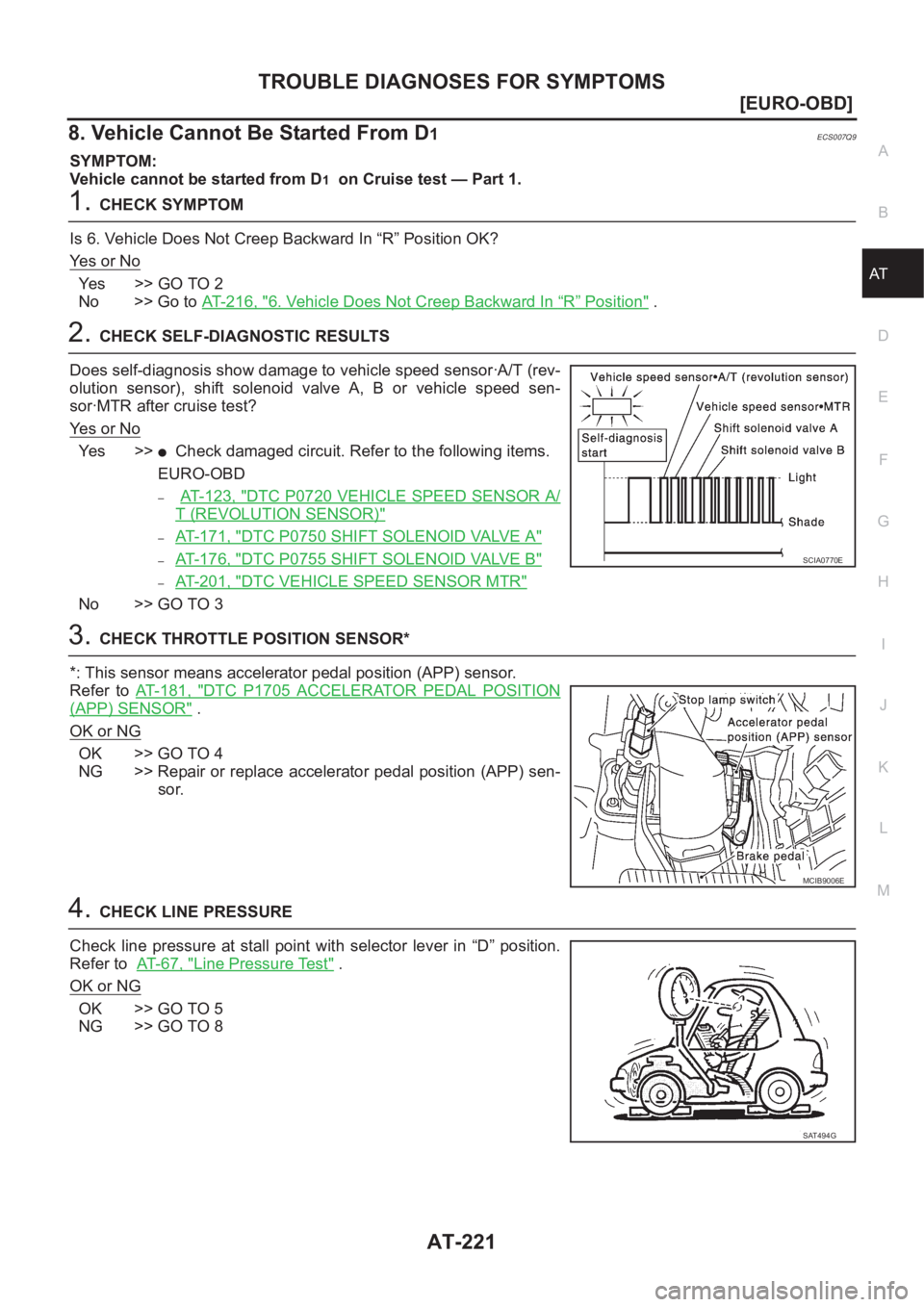

Page 1677 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-221 [EURO-OBD] D E F G H I J K L MA B AT 8. Vehicle Cannot Be Started From D1ECS007Q9 SYMPTOM: Vehicle cannot be started from D 1 on Cruise test — Part 1. 1.CHECK

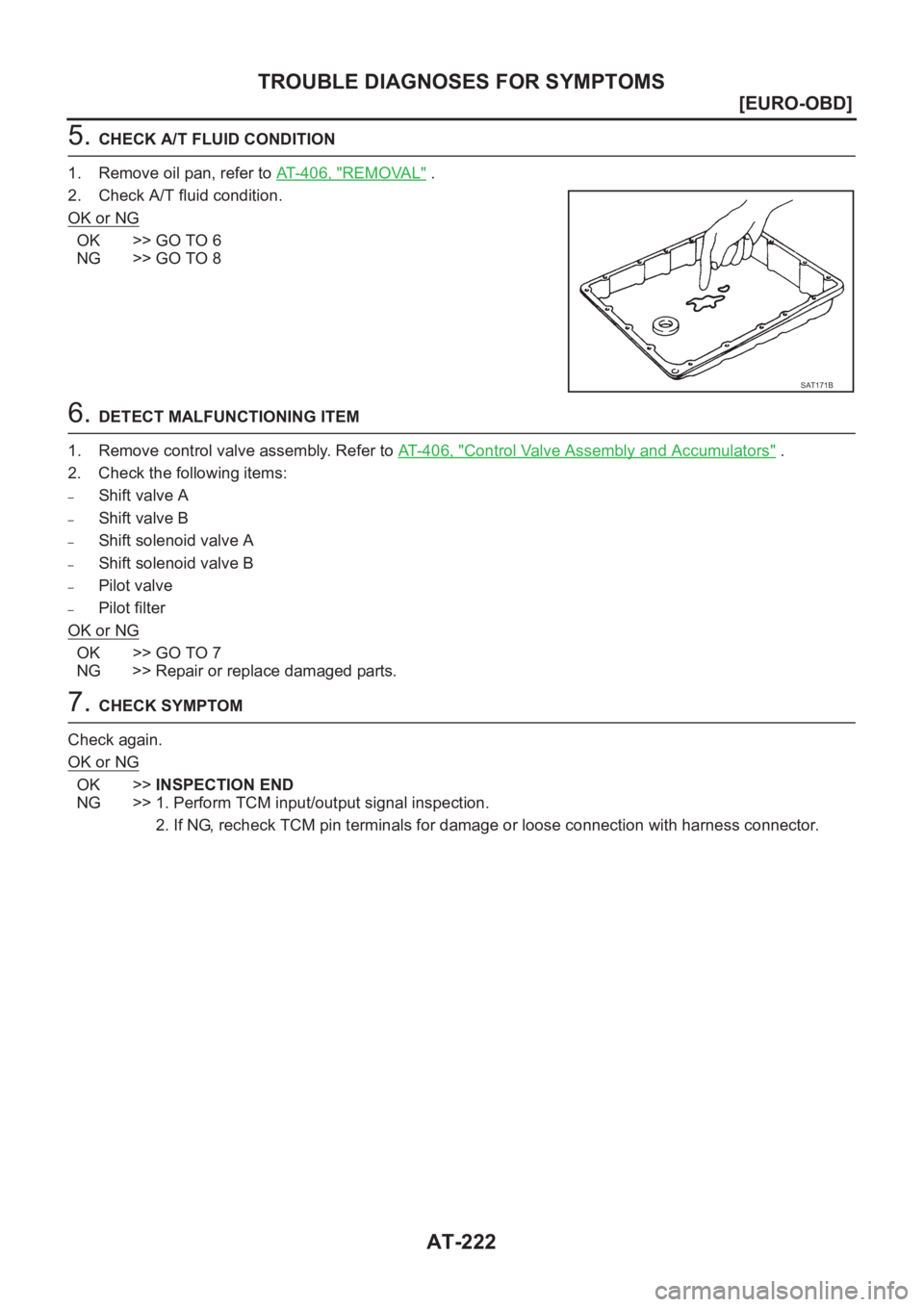

Page 1678 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-222 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 5. CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition. OK or NG OK >> GO TO 6 NG >>

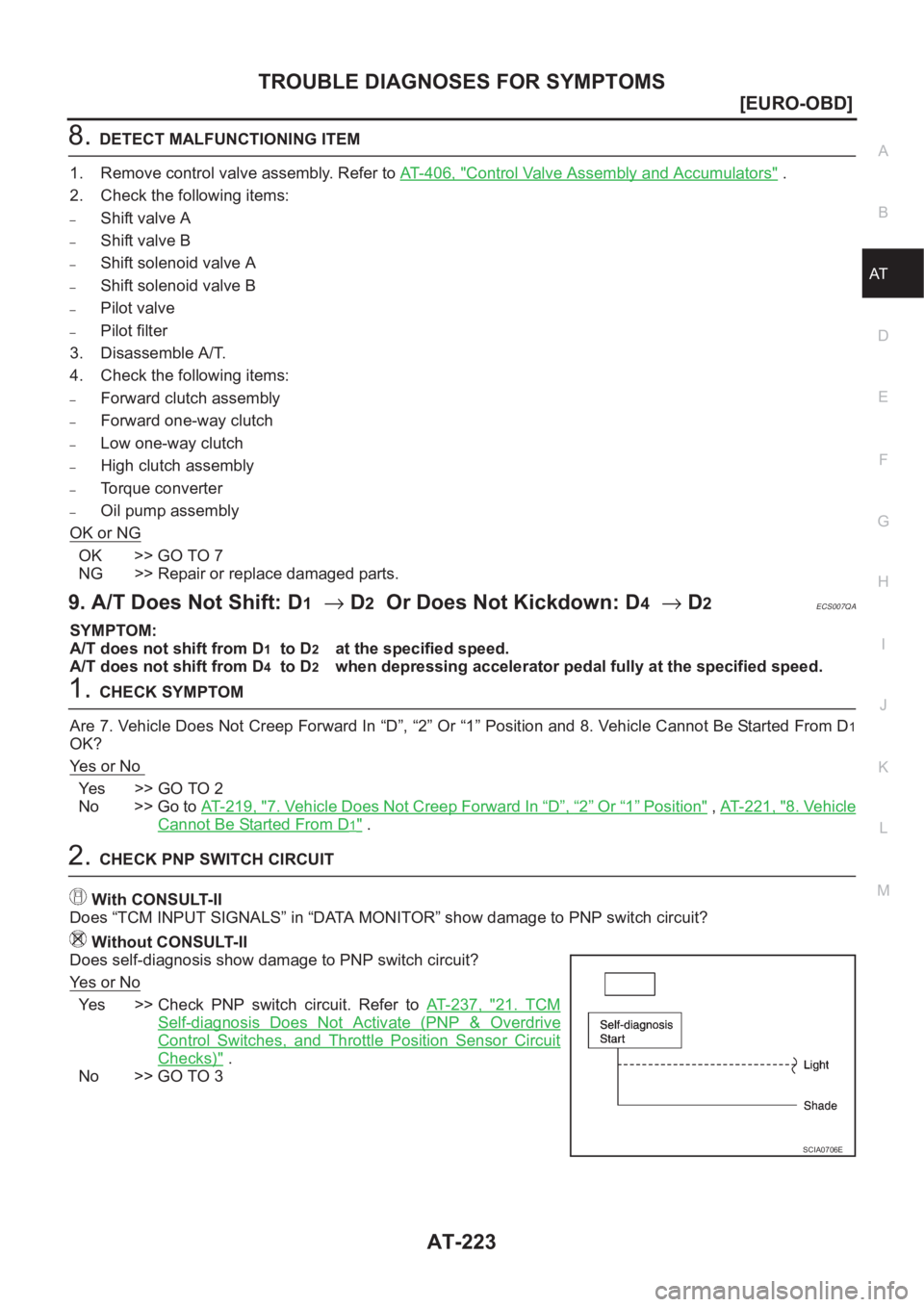

Page 1679 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-223 [EURO-OBD] D E F G H I J K L MA B AT 8.DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT- 4 0 6 , " Control Valve Assembly and Accumu

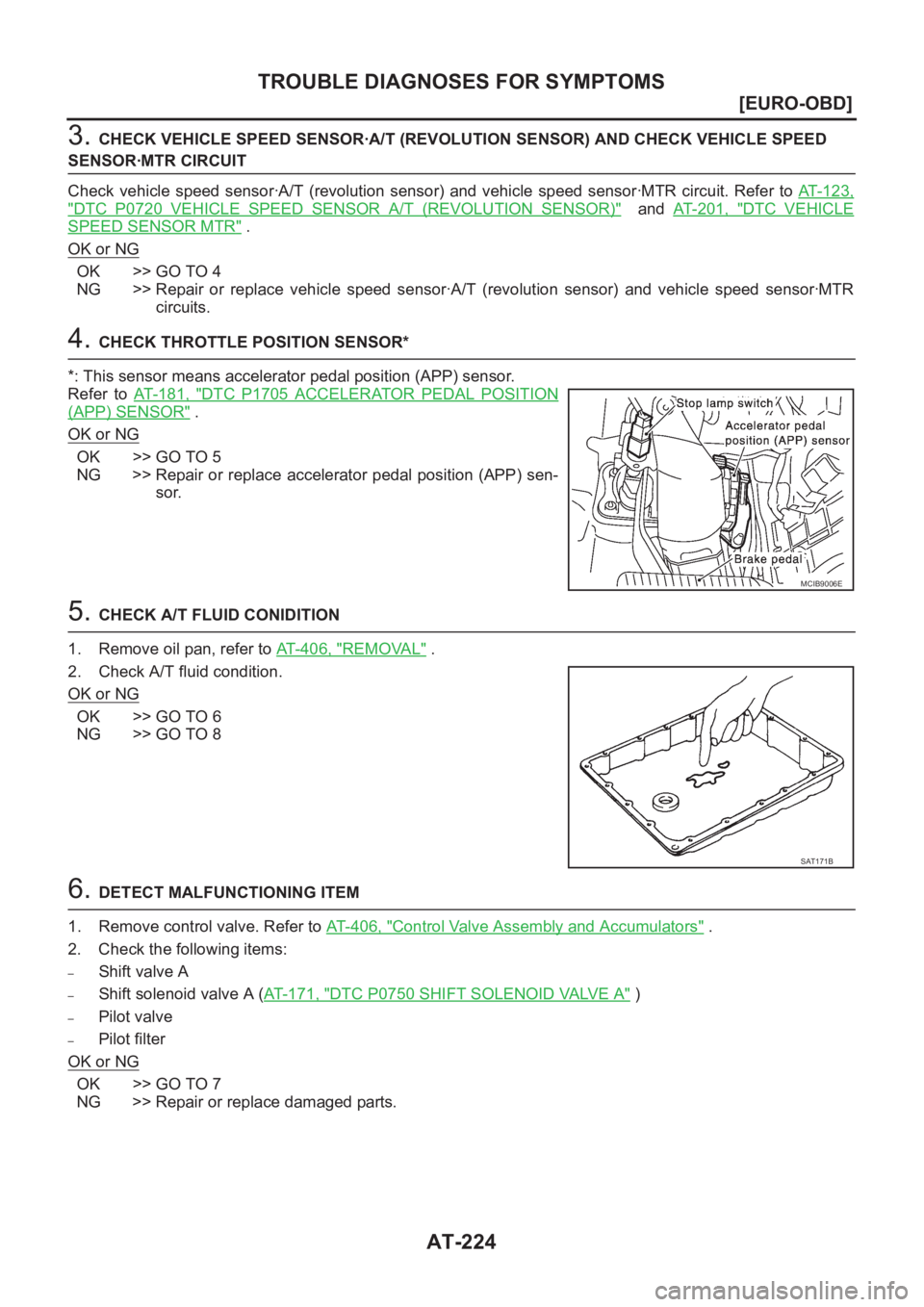

Page 1680 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-224 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED SENSOR·MTR CIRCUIT Check vehicle speed sensor·A/T (revolution se
