Page 961 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1805 BRAKE SWITCH EC-631 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3.DETECT MALFUNCTIONING PART Check the following. ●10A fuse ●Fuse block (J/B) connector M2 ●Harness for open and s

Page 962 of 3189

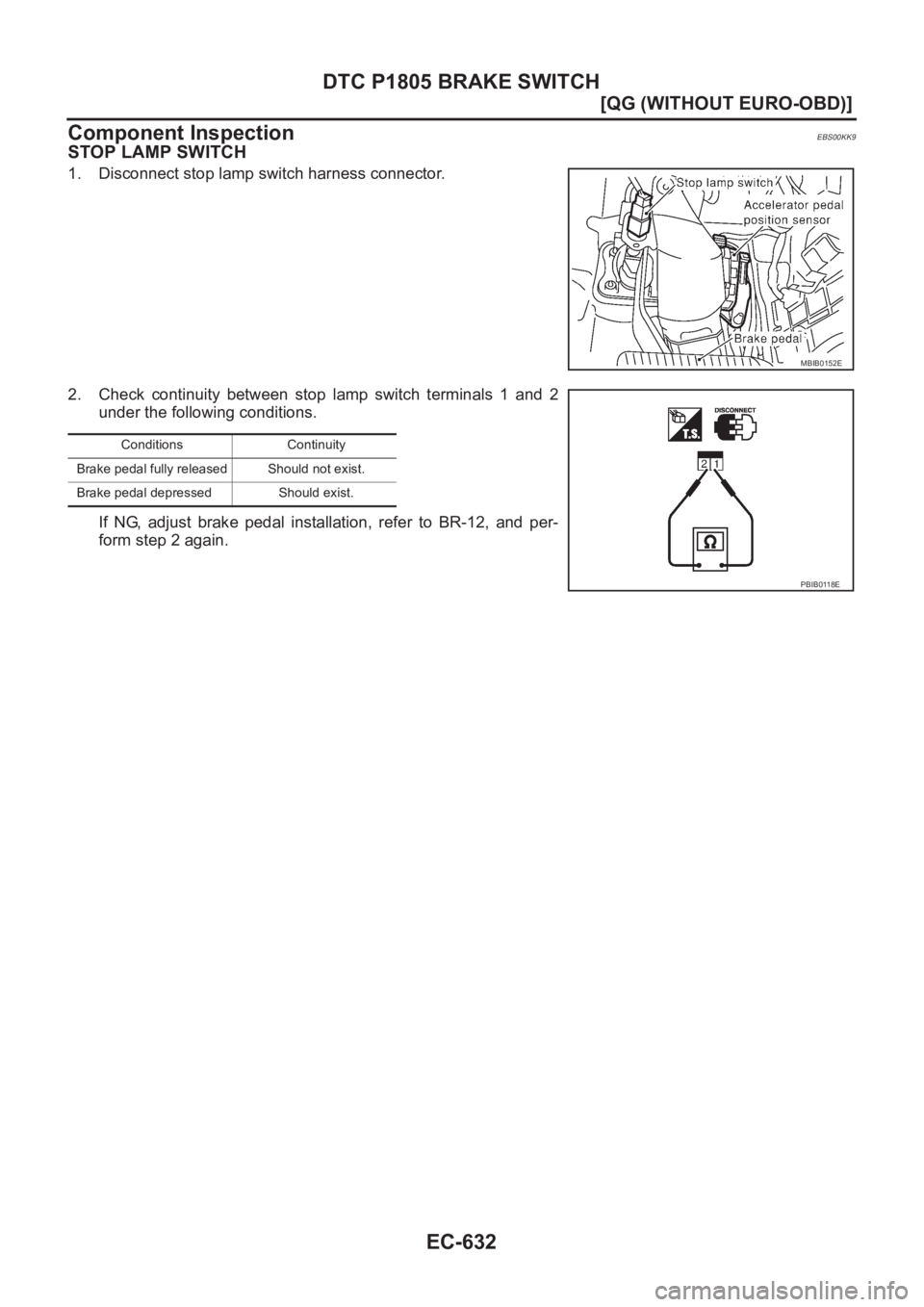

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-632 [QG (WITHOUT EURO-OBD)] DTC P1805 BRAKE SWITCH Component Inspection EBS00KK9 STOP LAMP SWITCH 1. Disconnect stop lamp switch harness connector. 2. Check continuity between stop lamp switch

Page 963 of 3189

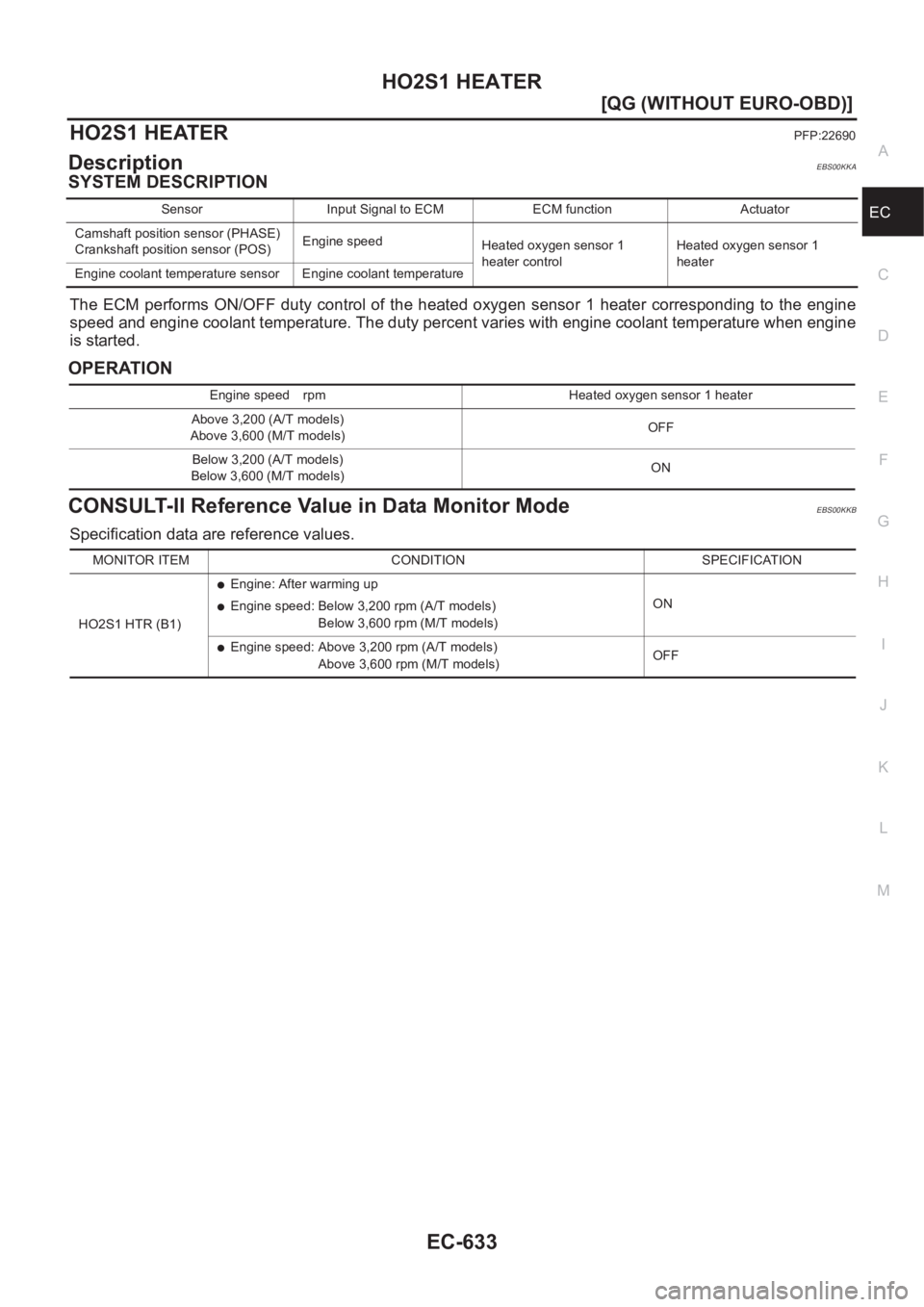

NISSAN ALMERA N16 2003 Electronic Repair Manual HO2S1 HEATER EC-633 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC HO2S1 HEATERPFP:22690 DescriptionEBS00KKA SYSTEM DESCRIPTION The ECM performs ON/OFF duty control of the heated oxygen s

Page 964 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-634 [QG (WITHOUT EURO-OBD)] HO2S1 HEATER Wiring Diagram EBS00KKC YEC314A

Page 965 of 3189

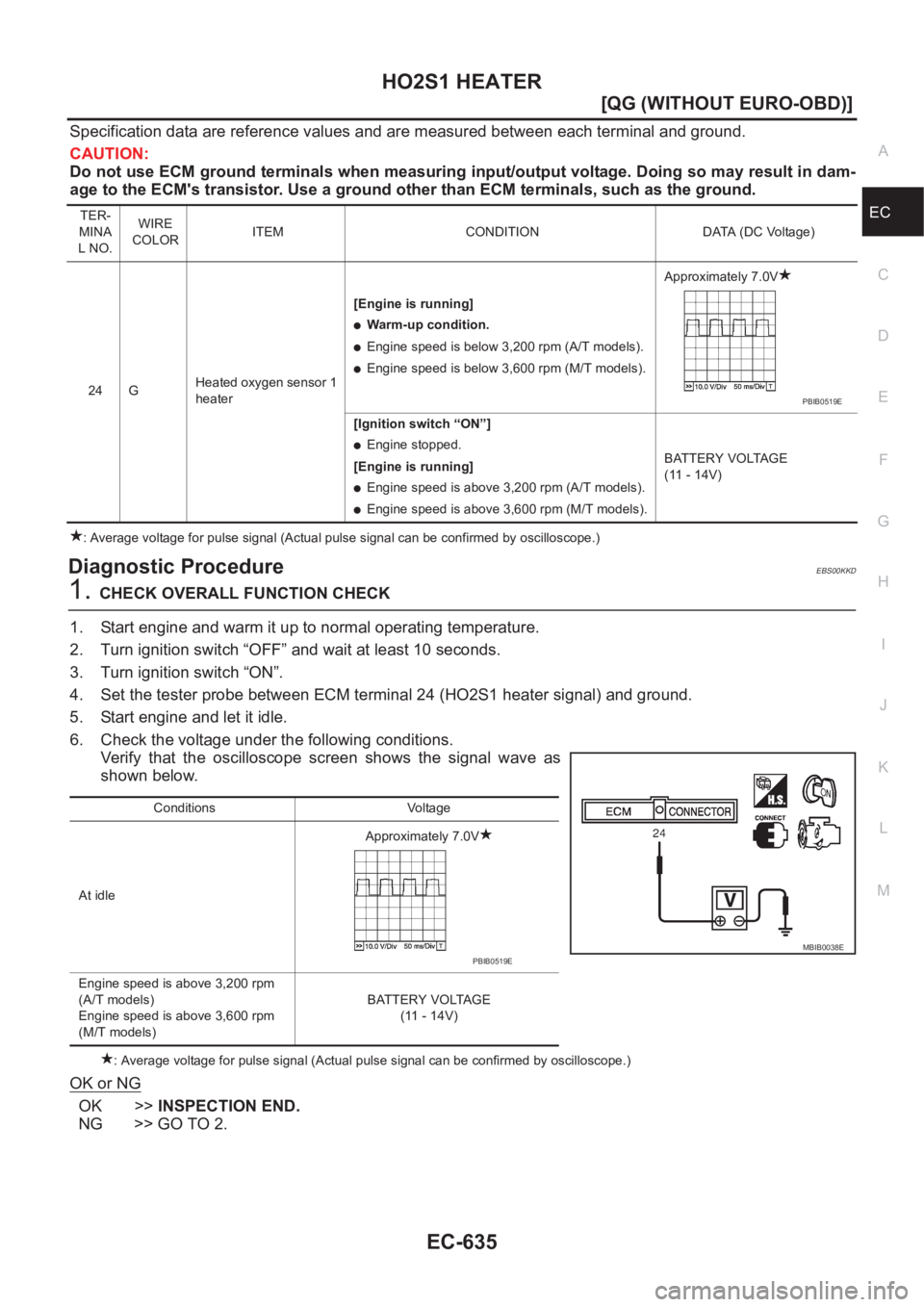

NISSAN ALMERA N16 2003 Electronic Repair Manual HO2S1 HEATER EC-635 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminal

Page 966 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-636 [QG (WITHOUT EURO-OBD)] HO2S1 HEATER 2. CHECK HO2S1 POWER SUPPLY CIRCUIT 1. Turn ignition switch “OFF”. 2. Disconnect heated oxygen sensor 1 harness connector. 3. Turn ignition switch “ON

Page 967 of 3189

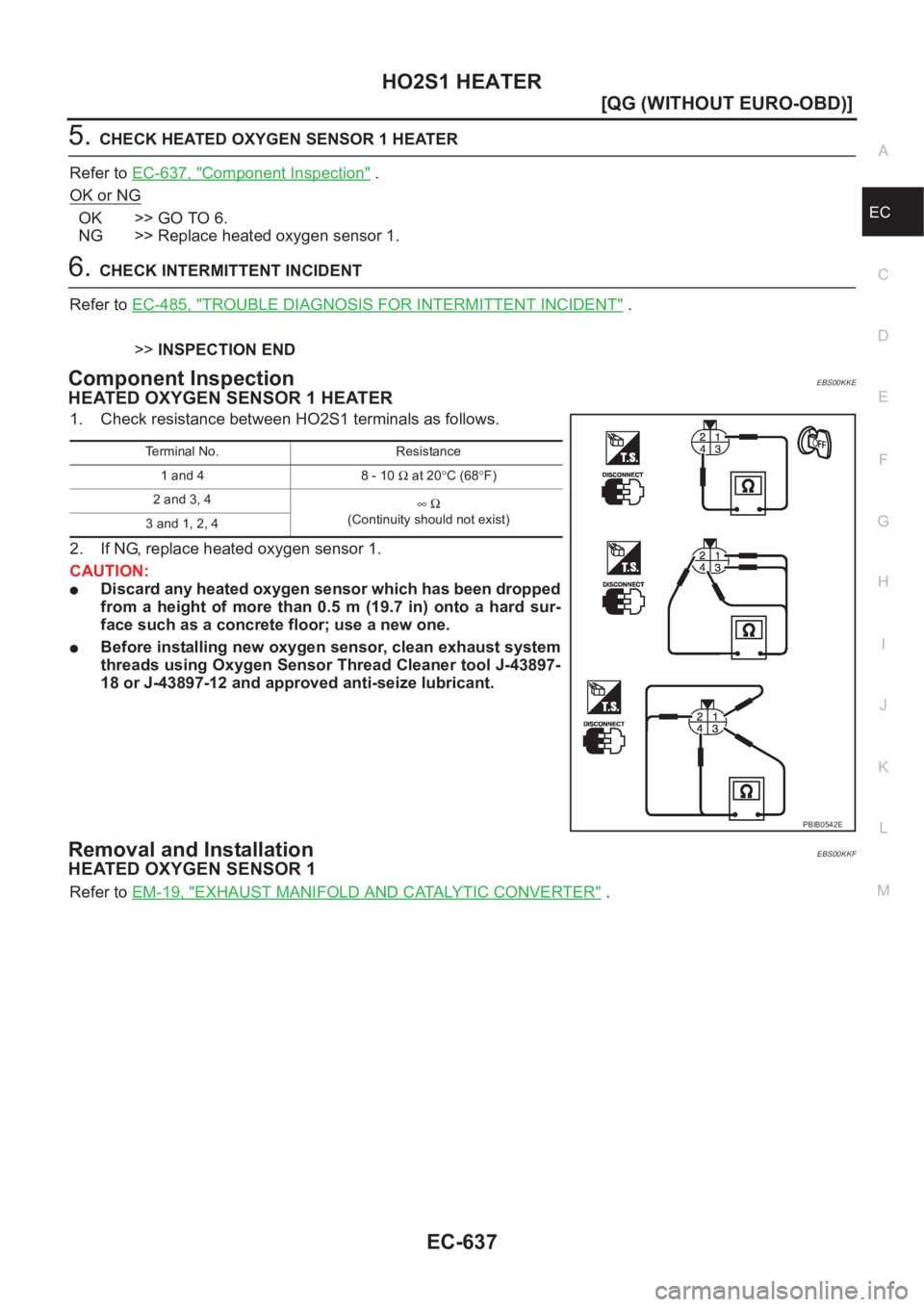

NISSAN ALMERA N16 2003 Electronic Repair Manual HO2S1 HEATER EC-637 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 5.CHECK HEATED OXYGEN SENSOR 1 HEATER Refer to EC-637, " Component Inspection" . OK or NG OK >> GO TO 6. NG >> Replace hea

Page 968 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-638 [QG (WITHOUT EURO-OBD)] HO2S2 HEATER HO2S2 HEATER PFP:226A0 DescriptionEBS00KKG SYSTEM DESCRIPTION The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engi
