Page 1529 of 3189

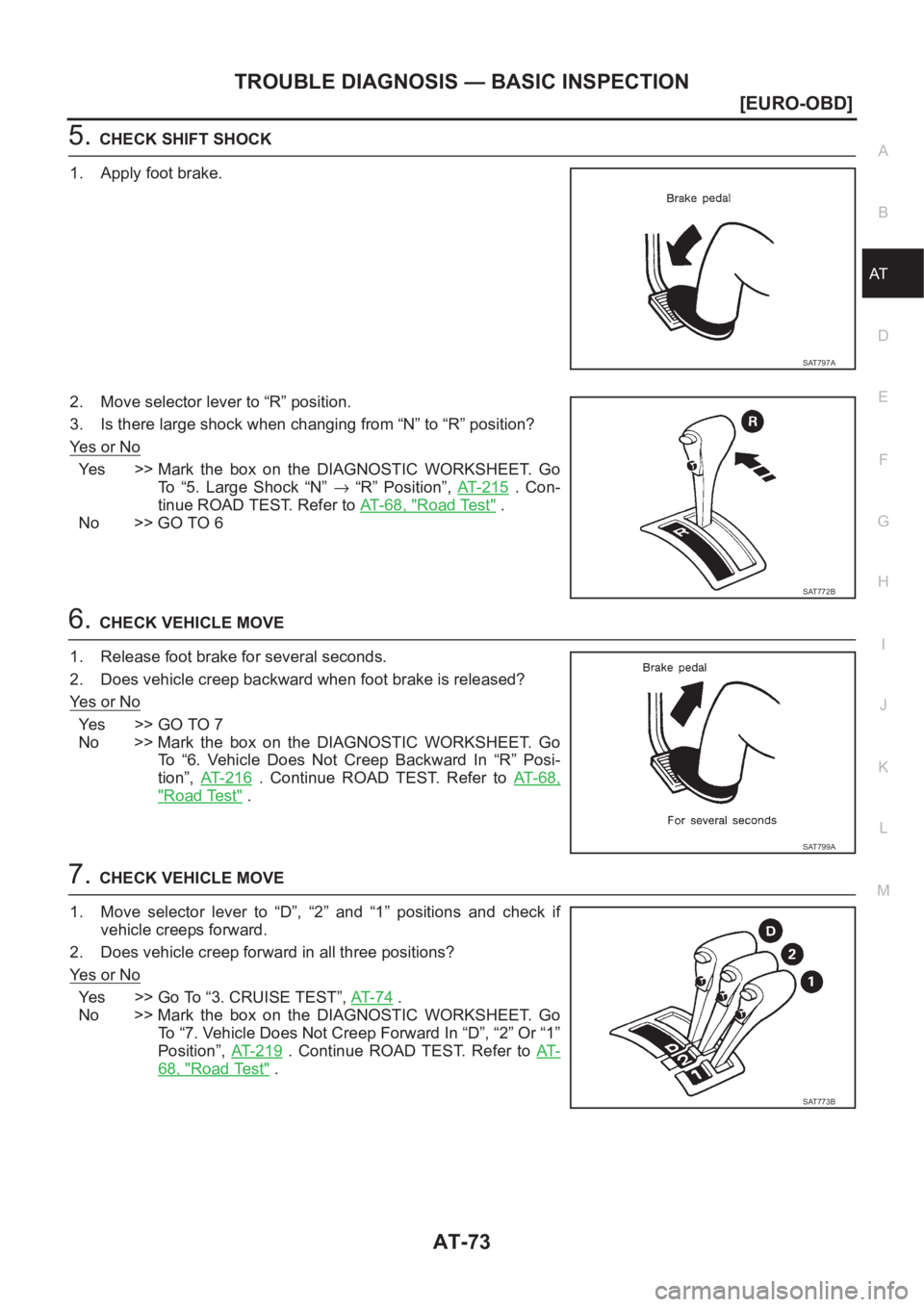

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-73 [EURO-OBD] D E F G H I J K L MA B AT 5.CHECK SHIFT SHOCK 1. Apply foot brake. 2. Move selector lever to “R” position. 3. Is there large shock when chan

Page 1530 of 3189

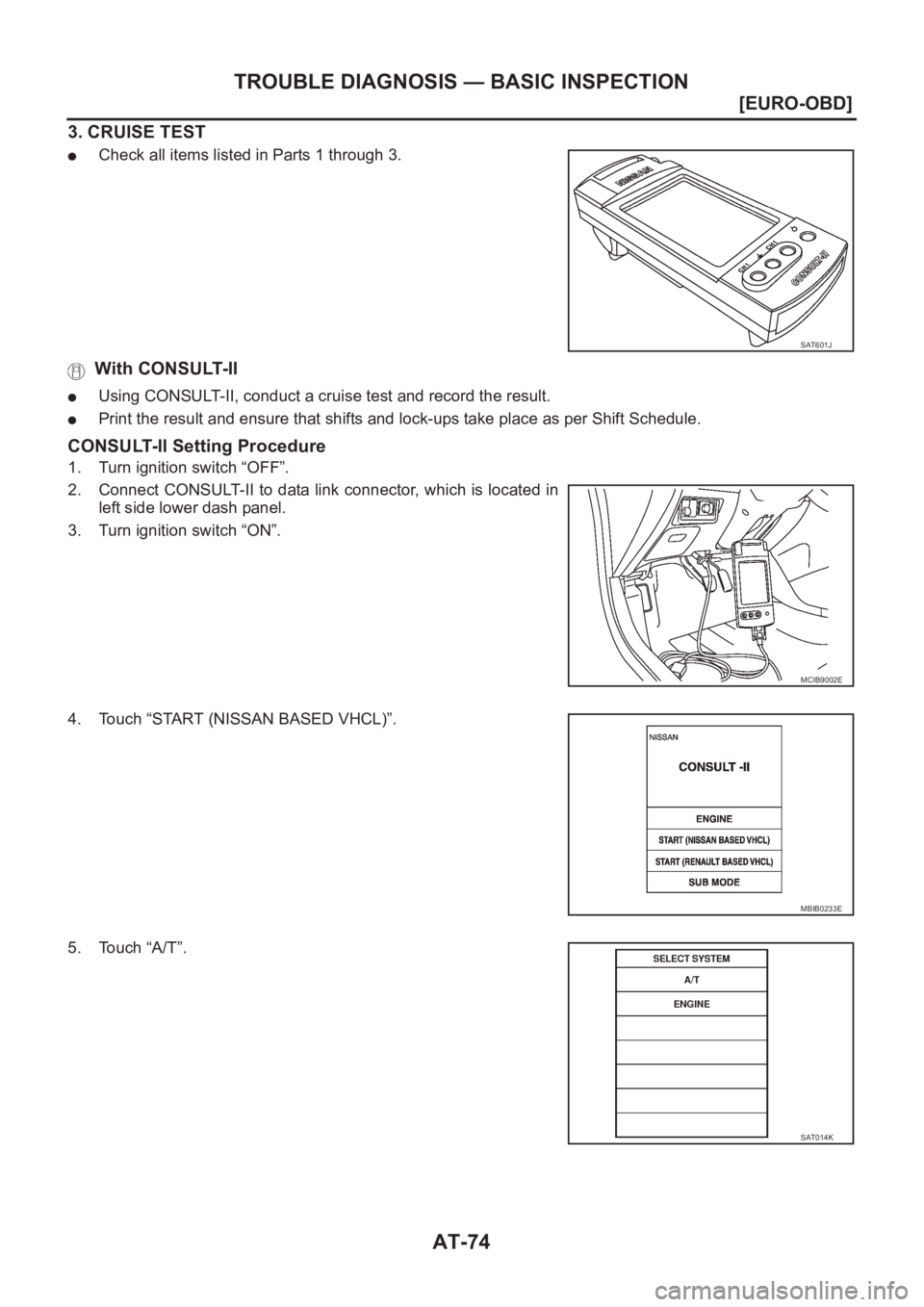

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-74 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 3. CRUISE TEST ●Check all items listed in Parts 1 through 3. With CONSULT-II ●Using CONSULT-II, conduct a cruise test and record the result

Page 1531 of 3189

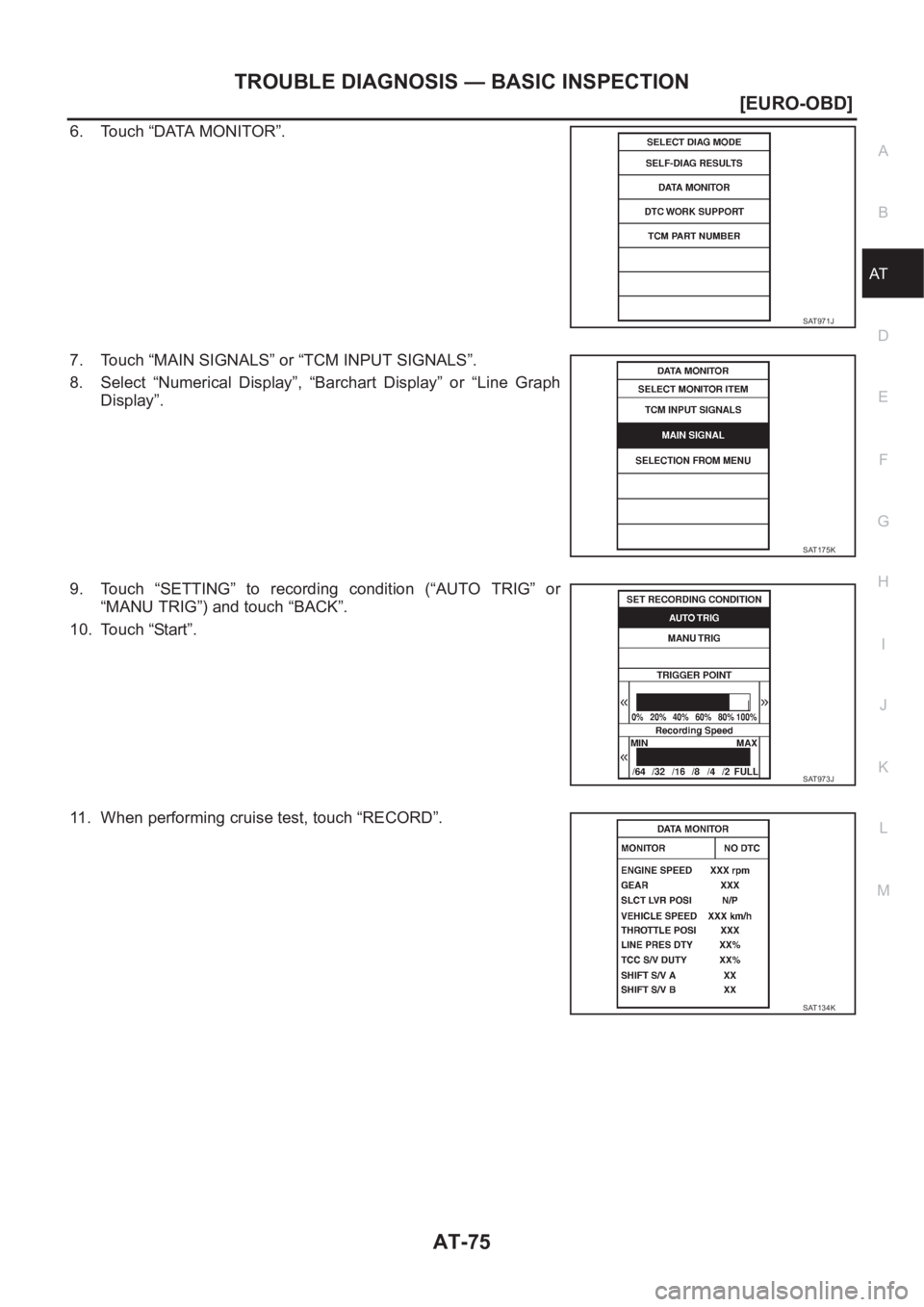

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-75 [EURO-OBD] D E F G H I J K L MA B AT 6. Touch “DATA MONITOR”. 7. Touch “MAIN SIGNALS” or “TCM INPUT SIGNALS”. 8. Select “Numerical Display

Page 1532 of 3189

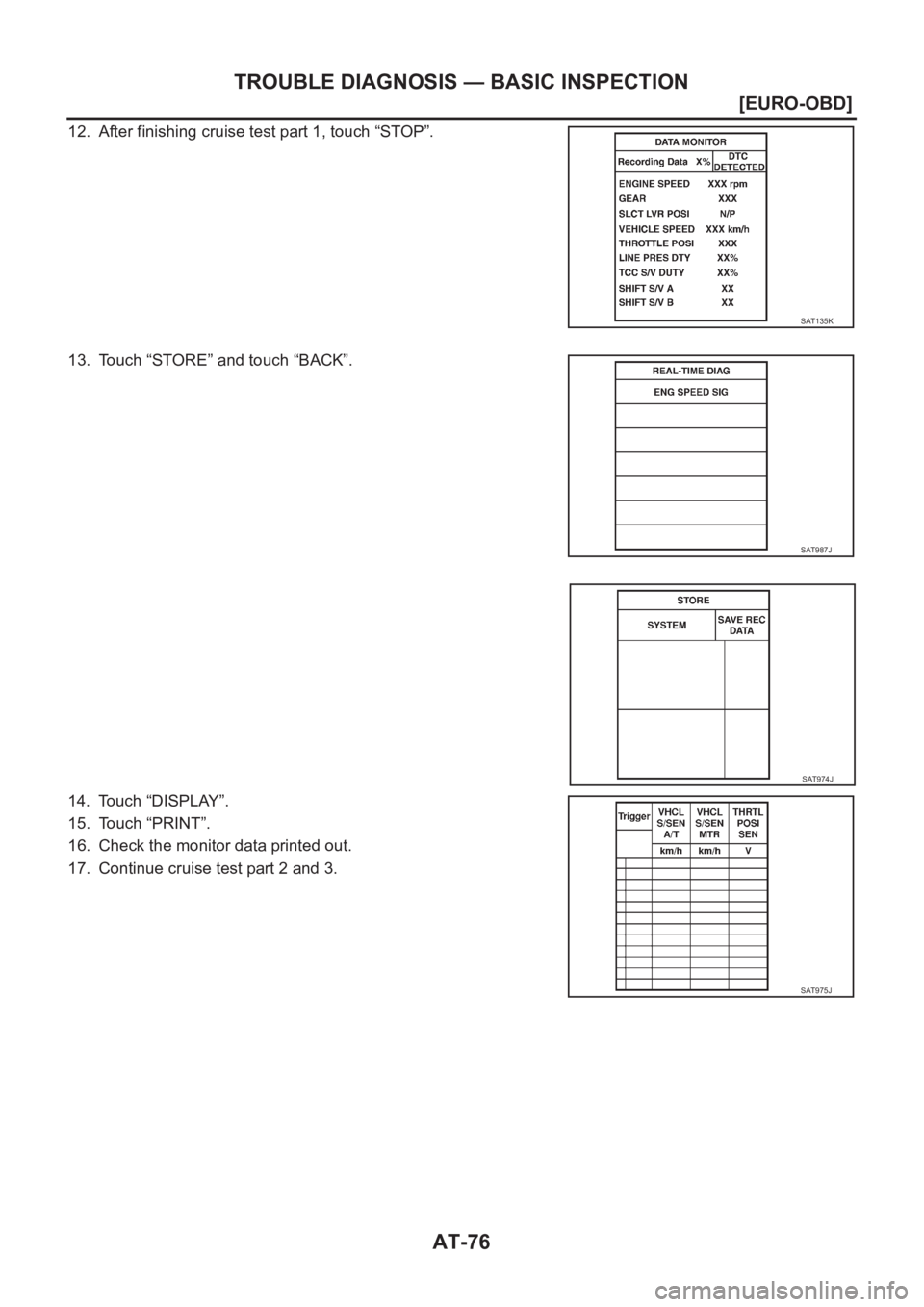

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-76 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 12. After finishing cruise test part 1, touch “STOP”. 13. Touch “STORE” and touch “BACK”. 14. Touch “DISPLAY”. 15. Touch “PRIN

Page 1533 of 3189

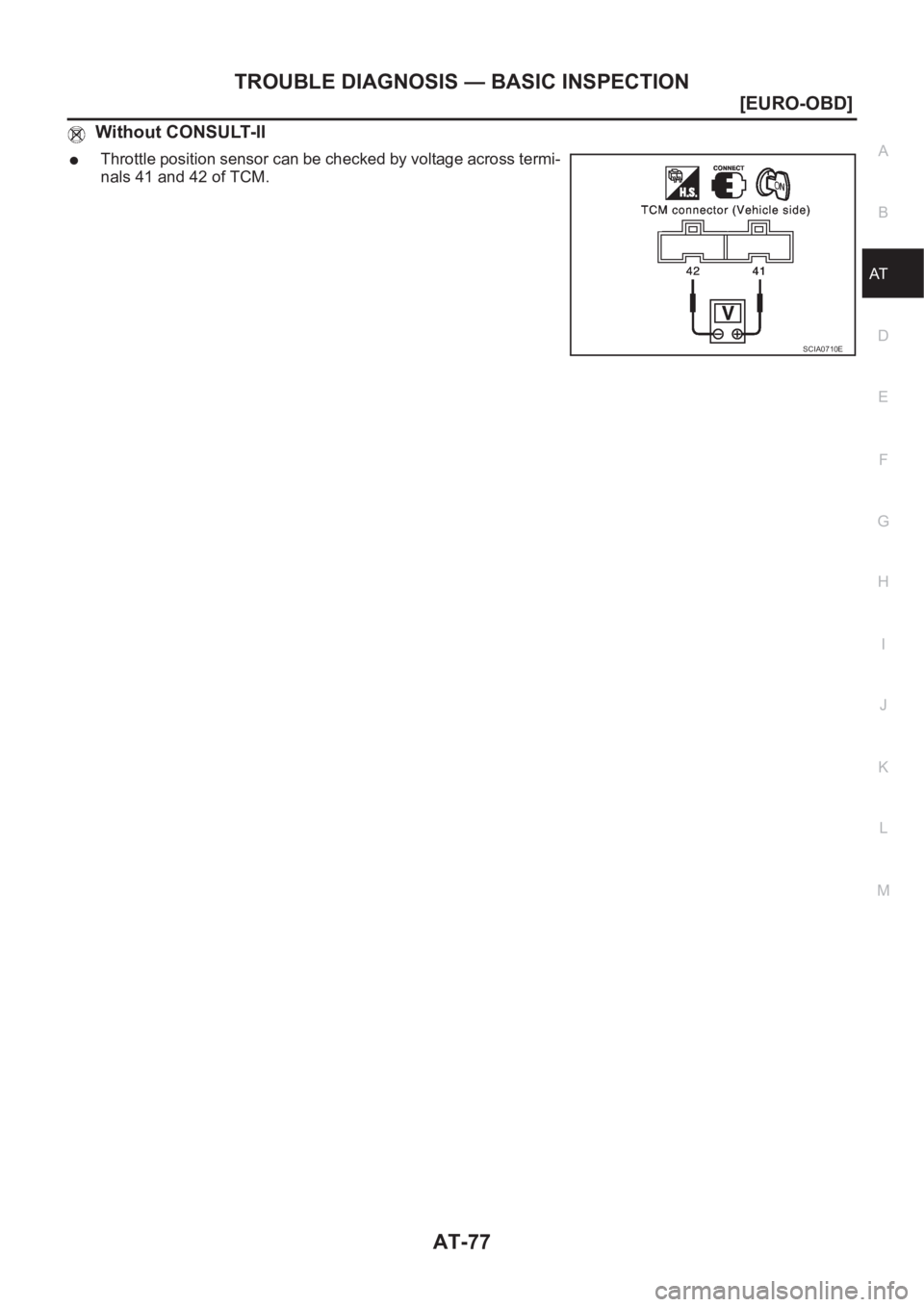

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-77 [EURO-OBD] D E F G H I J K L MA B AT Without CONSULT-II ●Throttle position sensor can be checked by voltage across termi- nals 41 and 42 of TCM. SCIA071

Page 1534 of 3189

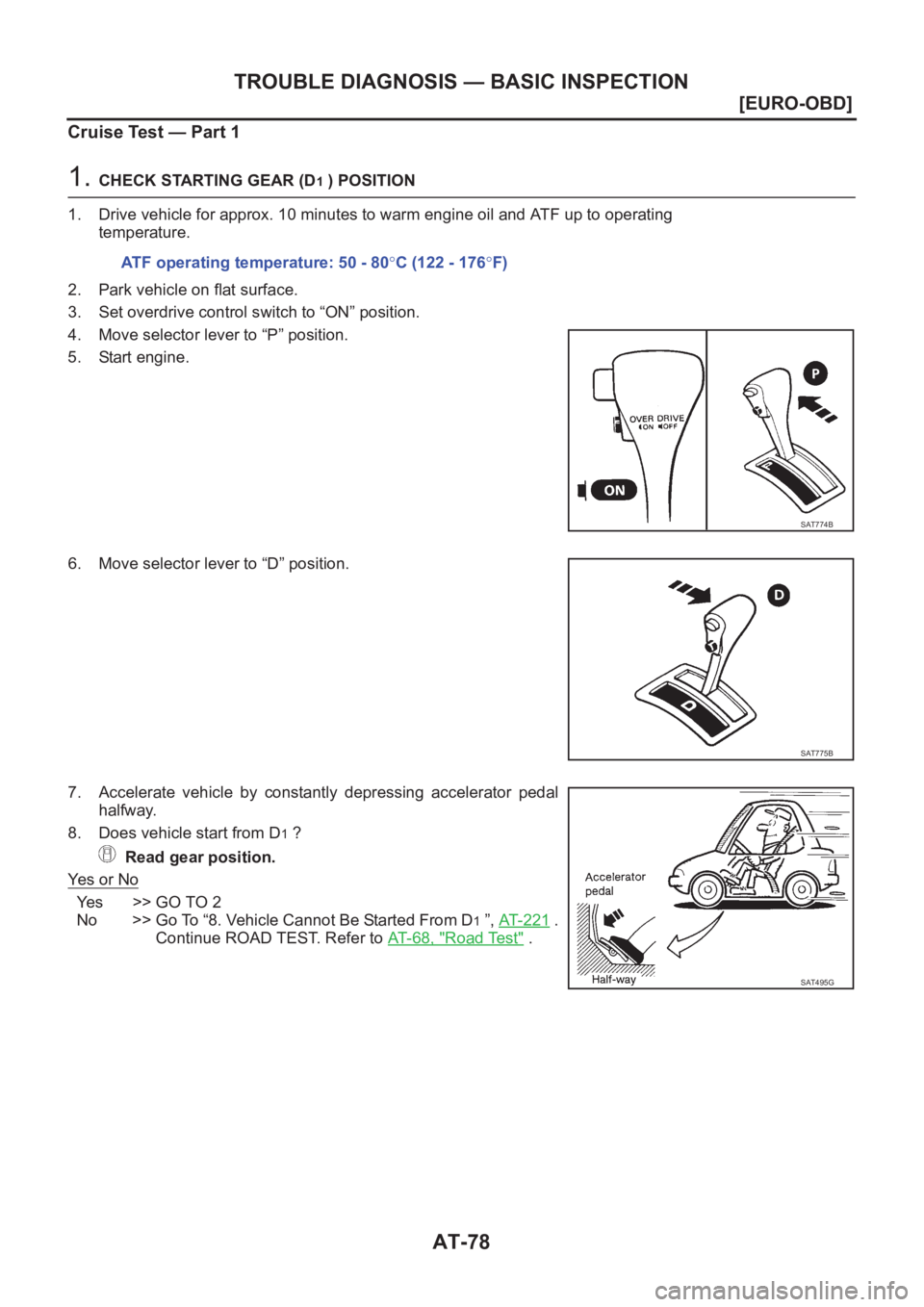

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-78 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION Cruise Test — Part 1 1. CHECK STARTING GEAR (D1 ) POSITION 1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating

Page 1535 of 3189

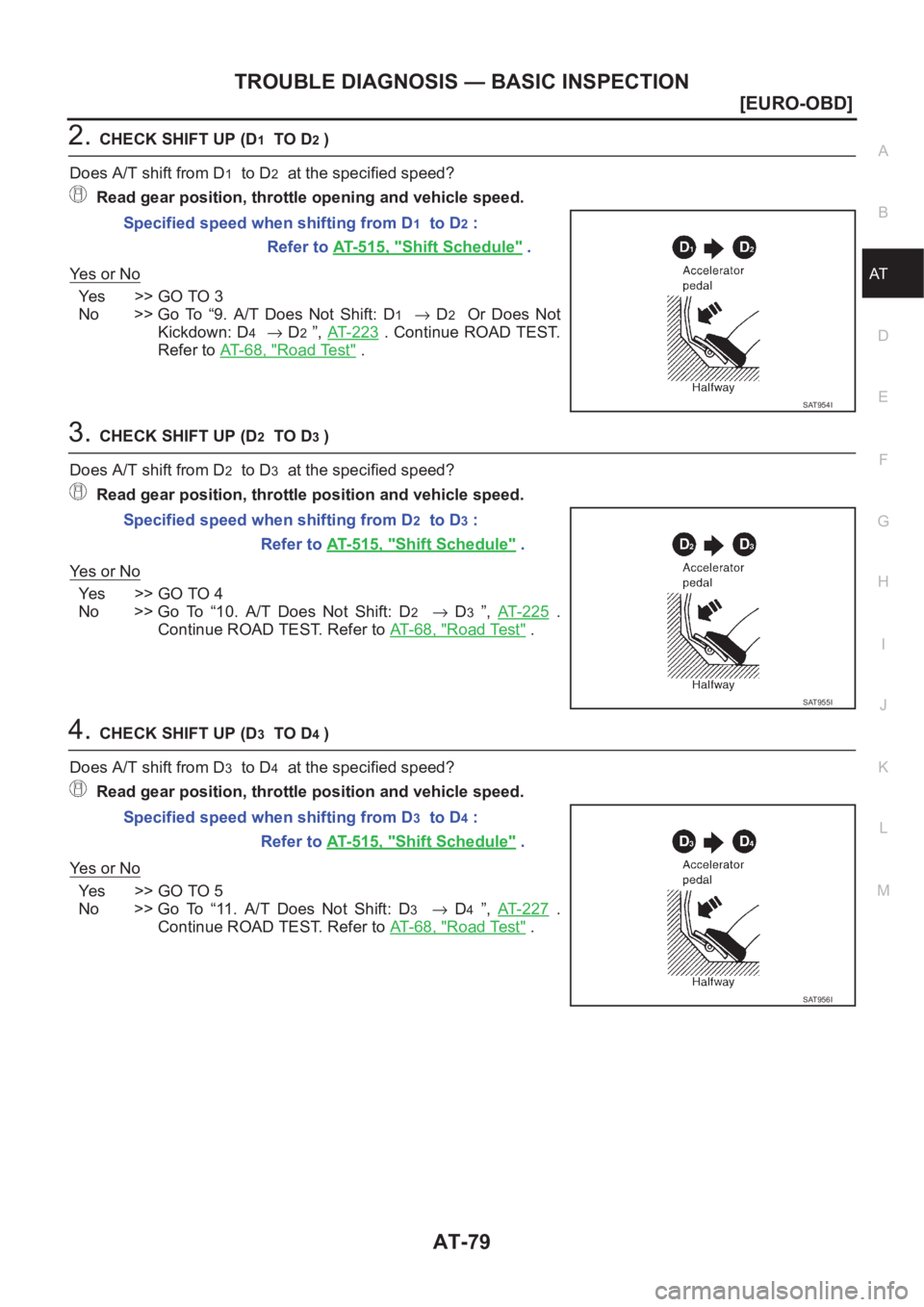

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-79 [EURO-OBD] D E F G H I J K L MA B AT 2.CHECK SHIFT UP (D1 TO D2 ) Does A/T shift from D 1 to D2 at the specified speed? Read gear position, throttle ope

Page 1536 of 3189

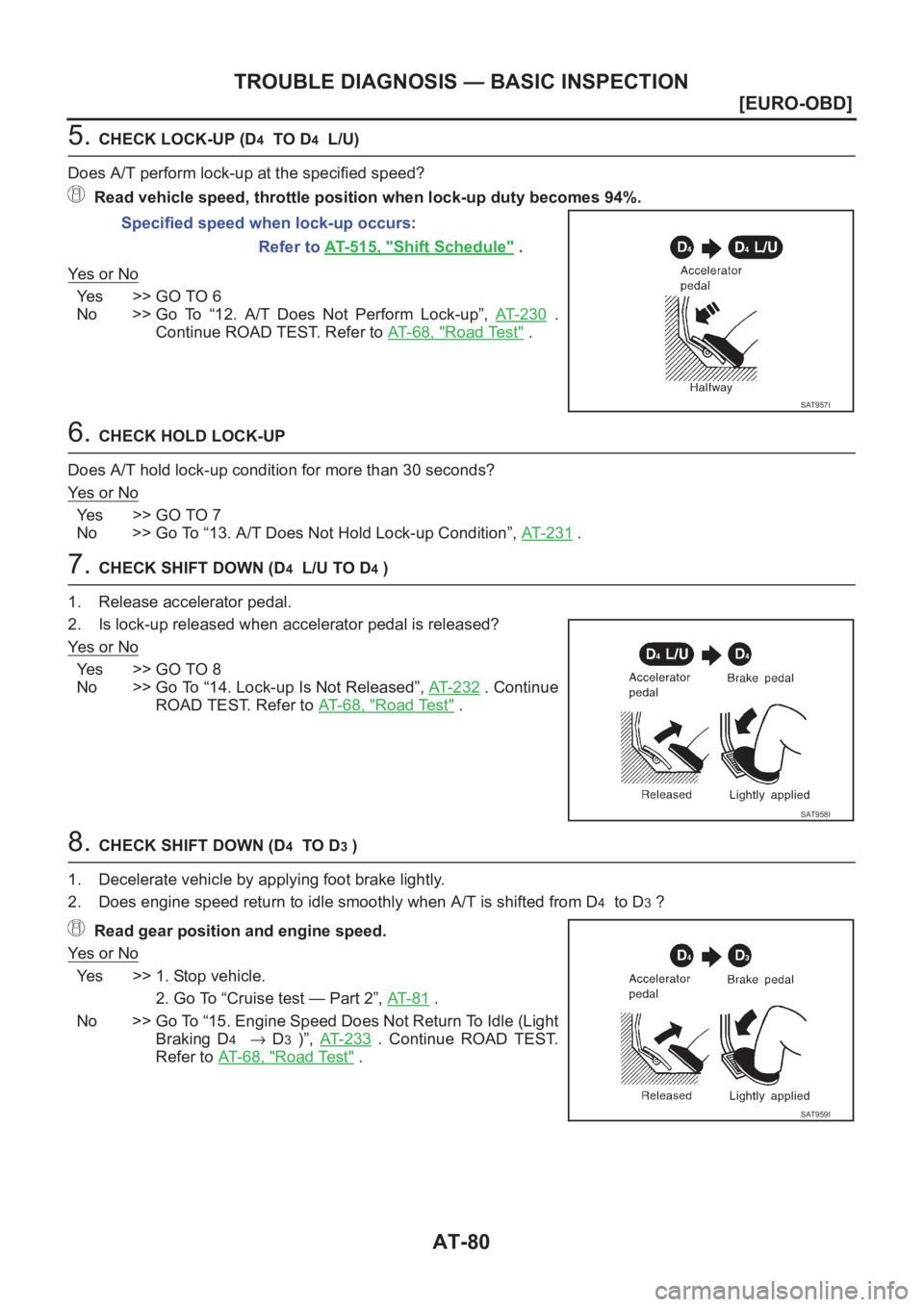

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-80 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 5. CHECK LOCK-UP (D4 TO D4 L/U) Does A/T perform lock-up at the specified speed? Read vehicle speed, throttle position when lock-up duty becom
