NISSAN ALMERA N16 2003  Electronic Repair Manual DTC P1227, P1228 APP SENSOR
EC-623
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

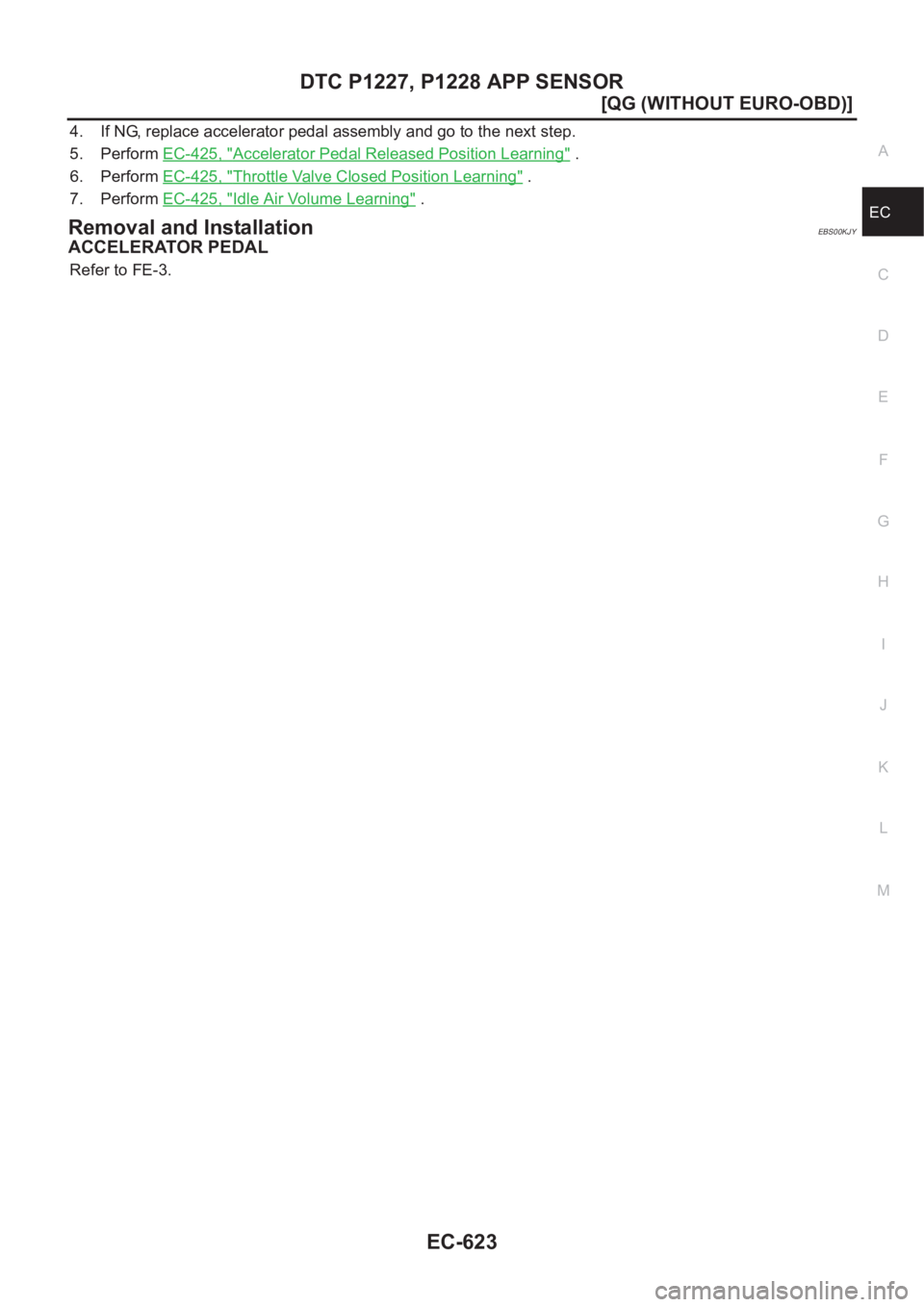

4. If NG, replace accelerator pedal assembly and go to the next step.
5. Perform EC-425, "
Accelerator Pedal Re

Page 954 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-624
[QG (WITHOUT EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLY
PFP:16119
On Board Diagnosis LogicEBS00KJZ
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MO

Page 955 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-625
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KK1
YEC303A

Page 956 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-626
[QG (WITHOUT EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when me

Page 957 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-627
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

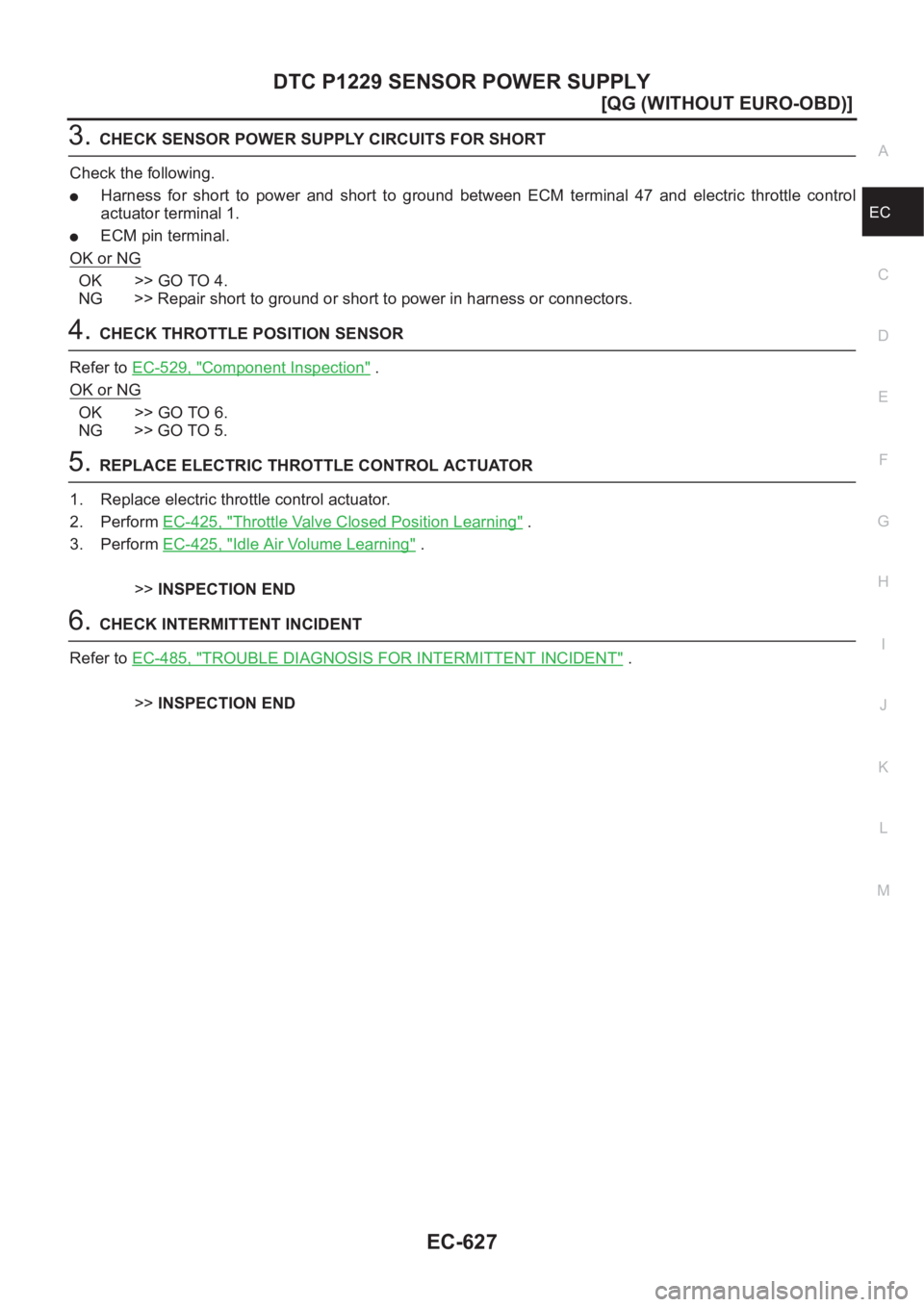

3.CHECK SENSOR POWER SUPPLY CIRCUITS FOR SHORT
Check the following.
●Harness  for  short  to  power  and  short

Page 958 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-628
[QG (WITHOUT EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
PFP:25320
DescriptionEBS00KK3
Brake  switch signal  is  applied  to  the  ECM  through  the  stop  lamp switch when the bra

Page 959 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DTC P1805 BRAKE SWITCH
EC-629
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KK7
YEC305A

Page 960 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-630
[QG (WITHOUT EURO-OBD)]
DTC P1805 BRAKE SWITCH

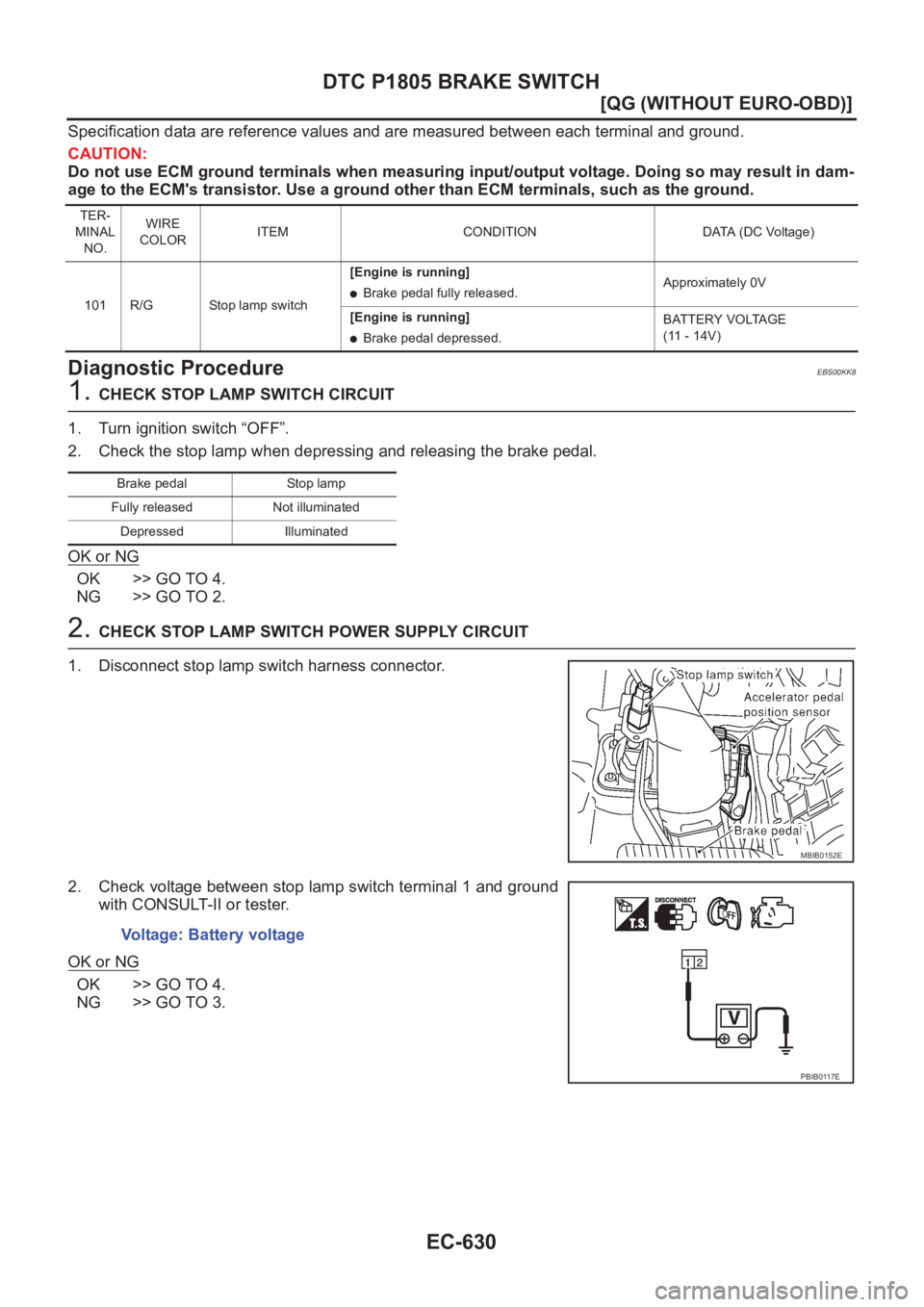

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring
