NISSAN ALMERA N16 2003 Electronic Repair Manual CAN COMMUNICATION AT-305 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT CAN COMMUNICATIONPFP:23710 System DescriptionECS007QX CAN (Controller Area Network) is a serial communication line for real time app

Page 1762 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-306 [EXC.F/EURO-OBD] CAN COMMUNICATION TYPE 2 System diagram Input/output signal chart T: Transmit R: Receive Vehicle speed signal R T Seat belt reminder signalRT Headlamp switch signalTR Flashin

Page 1763 of 3189

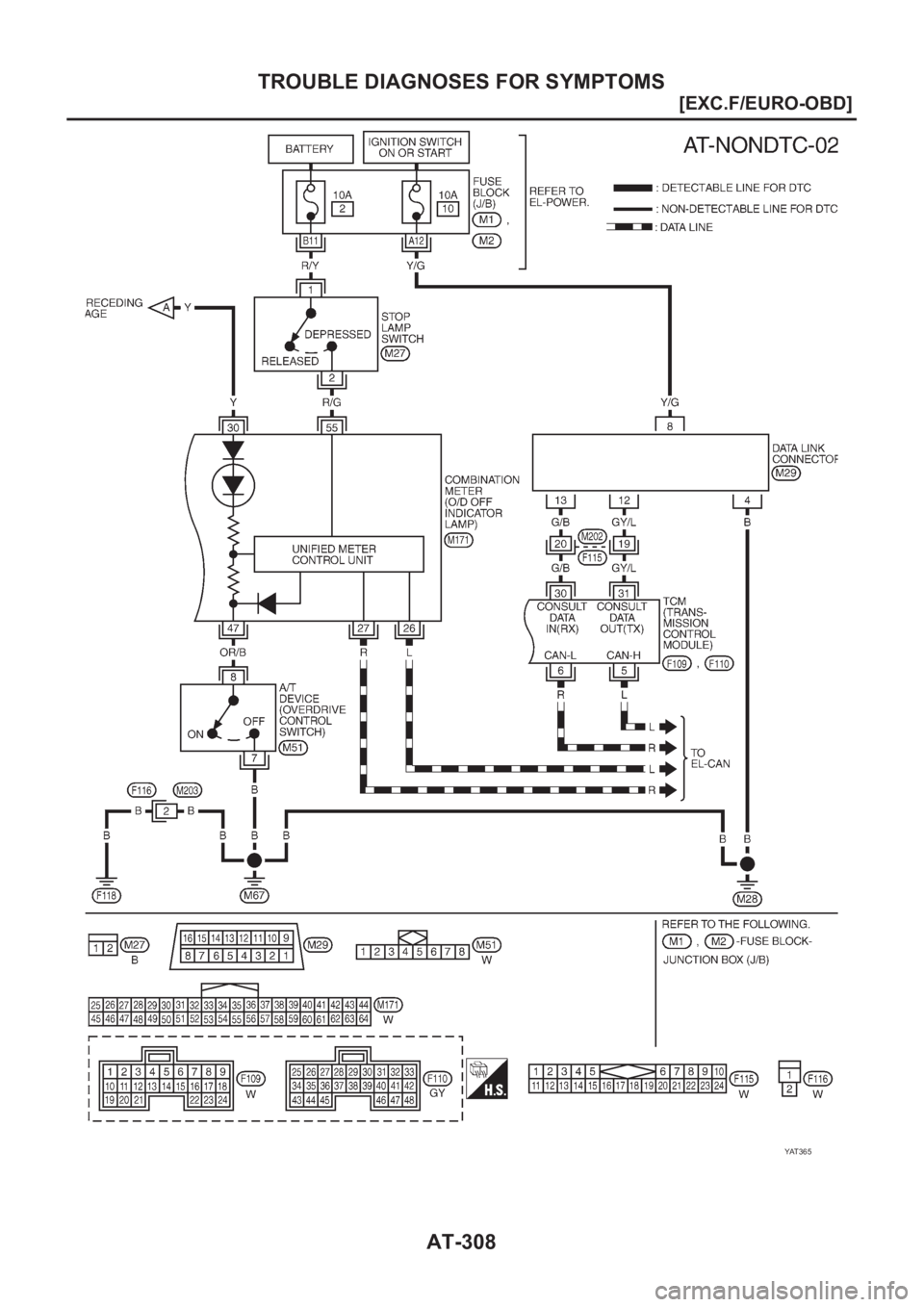

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-307 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT TROUBLE DIAGNOSES FOR SYMPTOMSPFP:00100 Wiring Diagram — AT — NONDTCECS007QZ YAT 3 6 4

Page 1764 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-308 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS YAT 3 6 5

Page 1765 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-309 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 1. O/D OFF Indicator Lamp Does Not Come OnECS007R0 SYMPTOM: O/D OFF indicator lamp does not come on for about 2 seconds

Page 1766 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-310 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 1. CHECK PNP SWITCH CIRCUIT With CONSULT-II Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit? Without CONSULT

Page 1767 of 3189

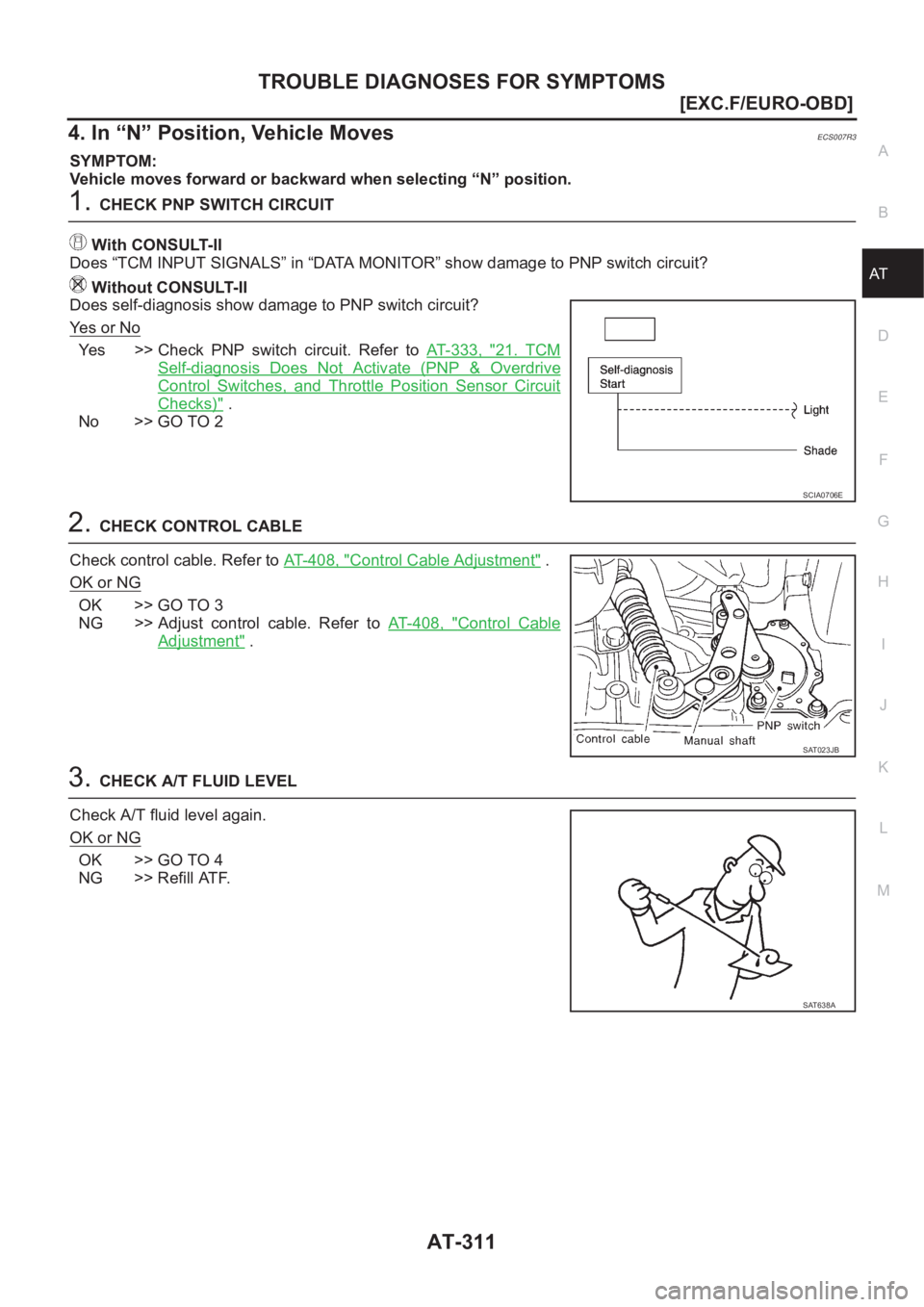

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-311 [EXC.F/EURO-OBD] D E F G H I J K L MA B AT 4. In “N” Position, Vehicle MovesECS007R3 SYMPTOM: Vehicle moves forward or backward when selecting “N” positio

Page 1768 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-312 [EXC.F/EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 4. CHECK A/T FLUID CONDITION 1. Remove oil pan, refer to AT- 4 0 6 , " REMOVAL" . 2. Check A/T fluid condition. OK or NG OK >> GO TO 5
