CYLINDER BLOCK
EM-91
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
OIL CLEARANCE OF CONNECTING ROD BEARING
Method of Measurement
●Install the connecting rod bearings to the connecting rod and the
cap, and tighten the connecting rod bolts to the specified torque.
Using a inside micrometer measure the inner diameter of con-
necting rod bearing.
(Oil clearance) = (Inner diameter of connecting rod bearing) – (Outer
diameter of crankshaft pin)
●If clearance cannot be adjusted within the standard, grind crank-
shaft pin and use undersized bearing. Refer to EM-81, "
HOW
TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage
●Remove oil and dust on the crankshaft pin and the surfaces of
each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Install the connecting rod bearings to the connecting rod cap,
and tighten the connecting rod bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the connecting rod cap and bearings, and using the
scale on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in the method by
calculation.
OIL CLEARANCE OF MAIN BEARING
Method of Measurement
●Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter
with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main bearing) – (Outer diameter of crankshaft journal)
●If the measured value exceeds the limit, select main bearings referring to the main bearing inner diameter
and crankshaft journal outer diameter, so that the oil clearance satisfies the standard. Refer to EM-82,
"HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage
●Remove oil and dust on the crankshaft journal and the surfaces
of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Tighten the main bearing bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the bearing cap and bearings, and using the scale on
the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in “the method by calculation.”Standard : 0.014 - 0.039 mm (0.0006 - 0.0015 in)
Limit : 0.10 mm (0.0039 in)
PBIC0119E
EM142
Standard : 0.020 - 0.044 mm (0.0008 - 0.0017 in)
Limit : 0.1 mm (0.004 in)
EM142
Page 170 of 3189
EM-92
[QG]
CYLINDER BLOCK
CRUSH HEIGHT OF MAIN BEARING
●When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude.
●If the standard is not met, replace main bearings.
FLYWHEEL RUNOUT
●Measure deflection of contact surface with dial gauge.Standard : There must be crush height
SEM502G
Flywheel (M/T models)
Limit : 0.1 mm (0.004 in)
SEM931F
Page 171 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-93
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00LQP
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-93
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00LQP
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST](/manual-img/5/57350/w960_57350-170.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
EM-93
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00LQP
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
DRIVE BELTS
Unit: mm (in) EngineQG15DE QG18DE
ClassificationGasoline
Cylinder arrangement4, in-line
Displacement
cm
3 (cu in)1,497 (91.35) 1,769 (107.94)
Bore and stroke mm (in)73.6 x 88.0
(2.898 x 3.465)80.0 x 88.0
(3.150 x 3.465)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil 1
Number of main bearings5
Compression ratio9.9 9.5
Compression pressure
kPa (bar, kg/cm
2 , psi) / 350 rpmStandard1,372 (13.72, 13.99,
198.9)1,324 (13.24, 135,
192)
Minimum1,176 (11.76, 12.0,
170.5)1,128 (11.28, 11.5,
164)
Differential limit between cylinders 98 (0.98, 1.0, 14)
Valve timing
(Intake valve timing control - OFF)
Unit: degree
abcde f
208 228−856−230
PBIC0187E
Limit
Surface distortionIntake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
Deflection adjustment
Used belt
New belt
Limit After adjustment
AlternatorWithout air conditioner compressor 10.2 (0.402)6.5 - 7.0
(0.256 - 0.276)5.5 - 6.1
(0.217 - 0.240)
With air conditioner compressor 8.1 (0.319)5.3 - 5.7
(0.209 - 0.224)4.5 - 5.0
(0.177 - 0.197)
Page 172 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-94
[QG]
SERVICE DATA AND SPECIFICATIONS (SDS)
SPARK PLUG
CYLINDER HEAD
Unit: mm (in)
VA LV E
Valve Dimensions
Unit: mm (in)
Valve Clearance
Shim Type
Unit: mm (in) Power steering oil pump 7.1 (0.28 NISSAN ALMERA N16 2003 Electronic Repair Manual EM-94
[QG]
SERVICE DATA AND SPECIFICATIONS (SDS)
SPARK PLUG
CYLINDER HEAD
Unit: mm (in)
VA LV E
Valve Dimensions
Unit: mm (in)
Valve Clearance
Shim Type
Unit: mm (in) Power steering oil pump 7.1 (0.28](/manual-img/5/57350/w960_57350-171.png)

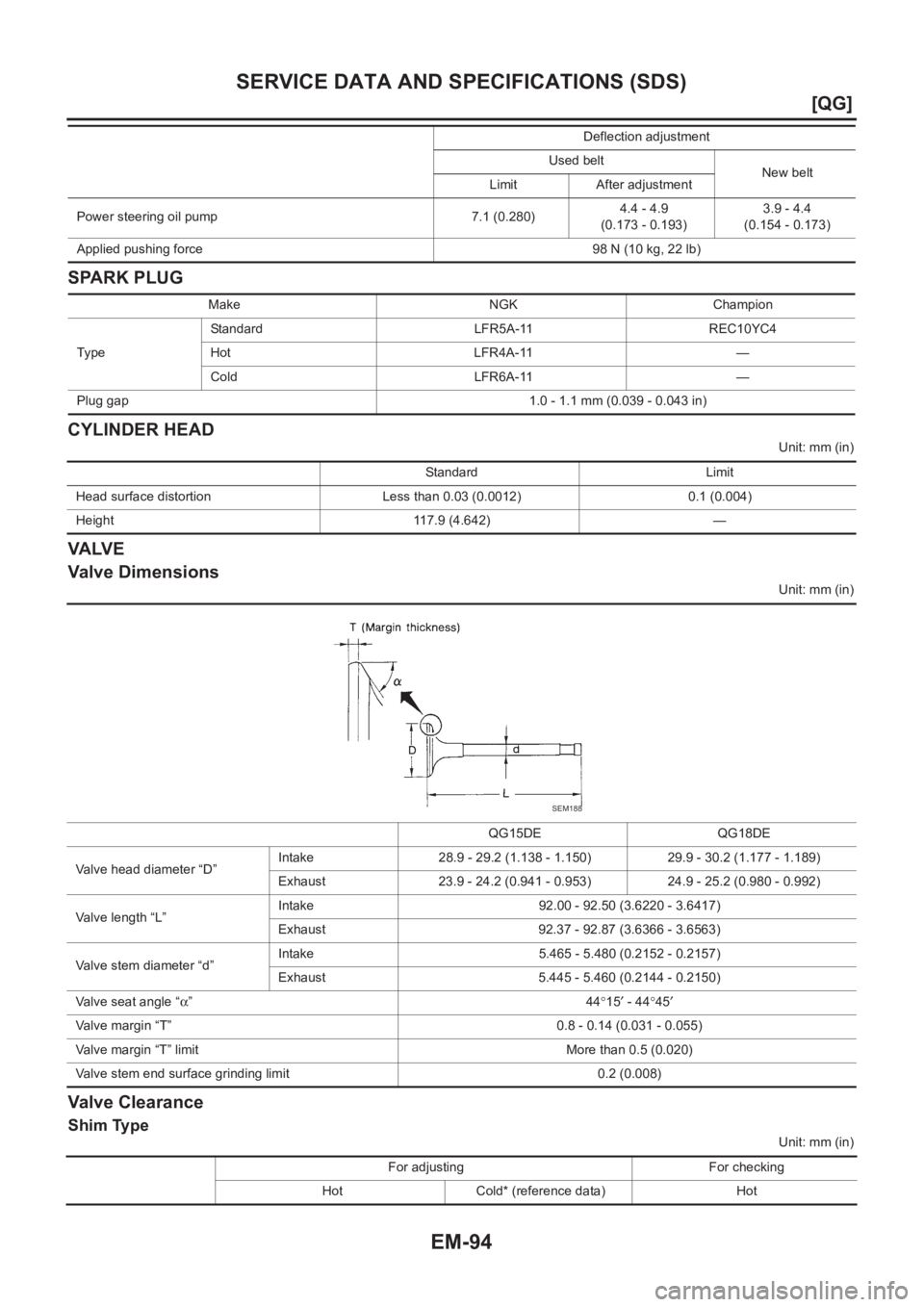

EM-94
[QG]
SERVICE DATA AND SPECIFICATIONS (SDS)
SPARK PLUG
CYLINDER HEAD
Unit: mm (in)
VA LV E
Valve Dimensions
Unit: mm (in)
Valve Clearance
Shim Type
Unit: mm (in) Power steering oil pump 7.1 (0.280)4.4 - 4.9
(0.173 - 0.193)3.9 - 4.4
(0.154 - 0.173)
Applied pushing force 98 N (10 kg, 22 lb)Deflection adjustment
Used belt
New belt
Limit After adjustment
Make NGK Champion
Ty p eStandard LFR5A-11 REC10YC4
Hot LFR4A-11 —
Cold LFR6A-11 —
Plug gap 1.0 - 1.1 mm (0.039 - 0.043 in)
Standard Limit
Head surface distortion Less than 0.03 (0.0012) 0.1 (0.004)
Height 117.9 (4.642) —
QG15DE QG18DE
Valve head diameter “D”Intake 28.9 - 29.2 (1.138 - 1.150) 29.9 - 30.2 (1.177 - 1.189)
Exhaust 23.9 - 24.2 (0.941 - 0.953) 24.9 - 25.2 (0.980 - 0.992)
Valve length “L”Intake 92.00 - 92.50 (3.6220 - 3.6417)
Exhaust 92.37 - 92.87 (3.6366 - 3.6563)
Valve stem diameter “d”Intake 5.465 - 5.480 (0.2152 - 0.2157)
Exhaust 5.445 - 5.460 (0.2144 - 0.2150)
Valve seat angle “α”44°15′ - 44°45′
Valve margin “T” 0.8 - 0.14 (0.031 - 0.055)
Valve margin “T” limit More than 0.5 (0.020)
Valve stem end surface grinding limit 0.2 (0.008)
SEM188
For adjusting For checking
Hot Cold* (reference data) Hot
Page 173 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-95
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: At a temperature of approximately 20°C (68°F)
Shimless Type
*: At a temperature of approximately 20°C (68°F)
Available NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-95
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: At a temperature of approximately 20°C (68°F)
Shimless Type
*: At a temperature of approximately 20°C (68°F)
Available](/manual-img/5/57350/w960_57350-172.png)

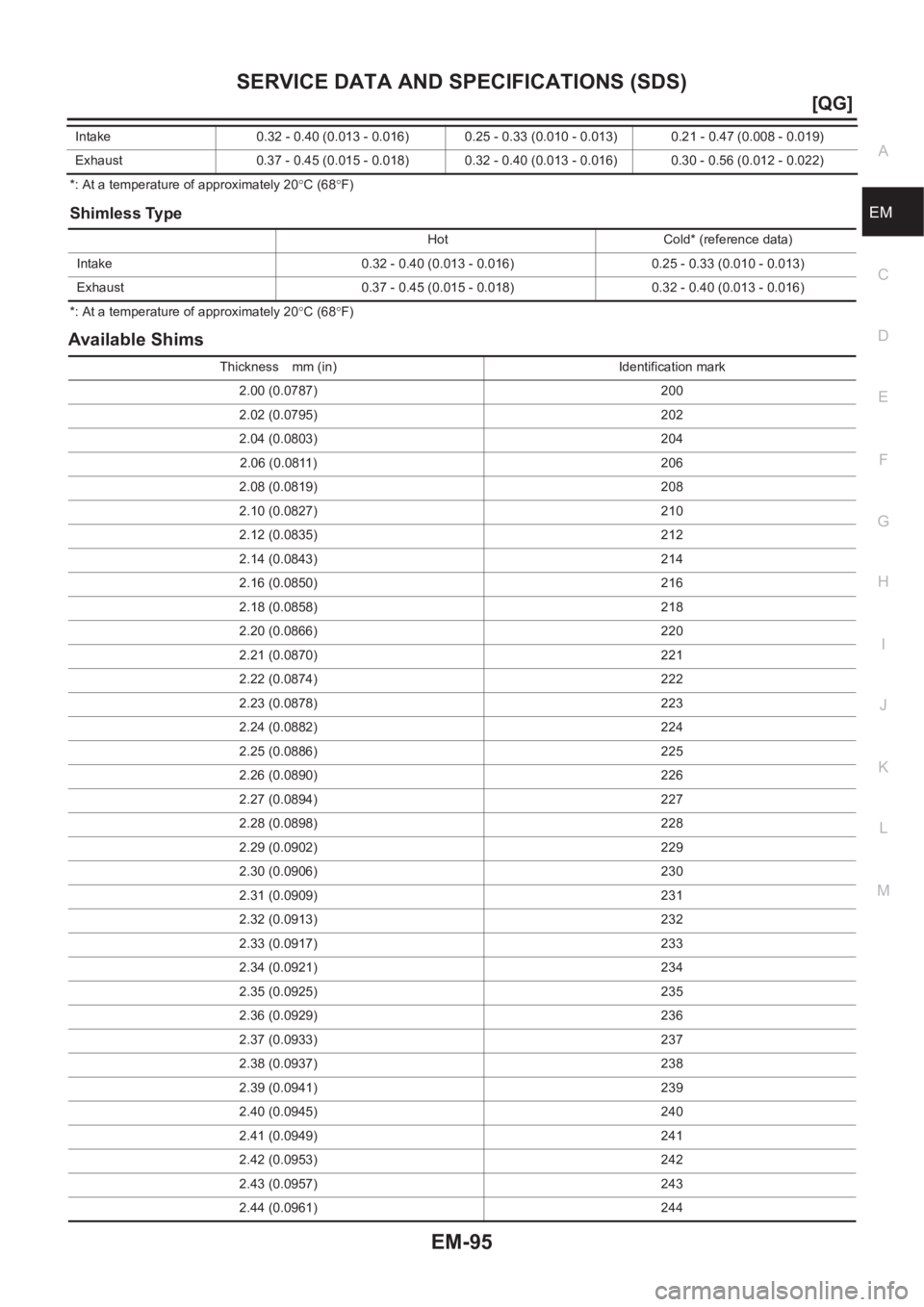

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-95
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
*: At a temperature of approximately 20°C (68°F)
Shimless Type
*: At a temperature of approximately 20°C (68°F)
Available Shims
Intake 0.32 - 0.40 (0.013 - 0.016) 0.25 - 0.33 (0.010 - 0.013) 0.21 - 0.47 (0.008 - 0.019)
Exhaust 0.37 - 0.45 (0.015 - 0.018) 0.32 - 0.40 (0.013 - 0.016) 0.30 - 0.56 (0.012 - 0.022)
Hot Cold* (reference data)
Intake 0.32 - 0.40 (0.013 - 0.016) 0.25 - 0.33 (0.010 - 0.013)
Exhaust 0.37 - 0.45 (0.015 - 0.018) 0.32 - 0.40 (0.013 - 0.016)
Thickness mm (in) Identification mark
2.00 (0.0787) 200
2.02 (0.0795) 202
2.04 (0.0803) 204
2.06 (0.0811) 206
2.08 (0.0819) 208
2.10 (0.0827) 210
2.12 (0.0835) 212
2.14 (0.0843) 214
2.16 (0.0850) 216
2.18 (0.0858) 218
2.20 (0.0866) 220
2.21 (0.0870) 221
2.22 (0.0874) 222
2.23 (0.0878) 223
2.24 (0.0882) 224
2.25 (0.0886) 225
2.26 (0.0890) 226
2.27 (0.0894) 227
2.28 (0.0898) 228
2.29 (0.0902) 229
2.30 (0.0906) 230
2.31 (0.0909) 231
2.32 (0.0913) 232
2.33 (0.0917) 233
2.34 (0.0921) 234
2.35 (0.0925) 235
2.36 (0.0929) 236
2.37 (0.0933) 237
2.38 (0.0937) 238
2.39 (0.0941) 239
2.40 (0.0945) 240
2.41 (0.0949) 241
2.42 (0.0953) 242
2.43 (0.0957) 243
2.44 (0.0961) 244
Page 174 of 3189
EM-96
[QG]
SERVICE DATA AND SPECIFICATIONS (SDS)
2.45 (0.0965) 245
2.46 (0.0969) 246
2.47 (0.0972) 247
2.48 (0.0976) 248
2.49 (0.0980) 249
2.50 (0.0984) 250
2.51 (0.0988) 251
2.52 (0.0992) 252
2.53 (0.0996) 253
2.54 (0.1000) 254
2.55 (0.1004) 255
2.56 (0.1008) 256
2.57 (0.1012) 257
2.58 (0.1016) 258
2.59 (0.1020) 259
2.60 (0.1024) 260
2.61 (0.1028) 261
2.62 (0.1031) 262
2.63 (0.1035) 263
2.64 (0.1039) 264
2.65 (0.1043) 265
2.66 (0.1047) 266
2.68 (0.1055) 268
2.70 (0.1063) 270
2.72 (0.1071) 272
2.74 (0.1079) 274
2.76 (0.1087) 276
2.78 (0.1094) 278
2.80 (0.1102) 280
2.82 (0.1110) 282
2.84 (0.1118) 284
2.86 (0.1126) 286
2.88 (0.1134) 288
2.90 (0.1142) 290
2.92 (0.1150) 292
2.94 (0.1157) 294
2.96 (0.1165) 296 Thickness mm (in) Identification mark
Page 175 of 3189

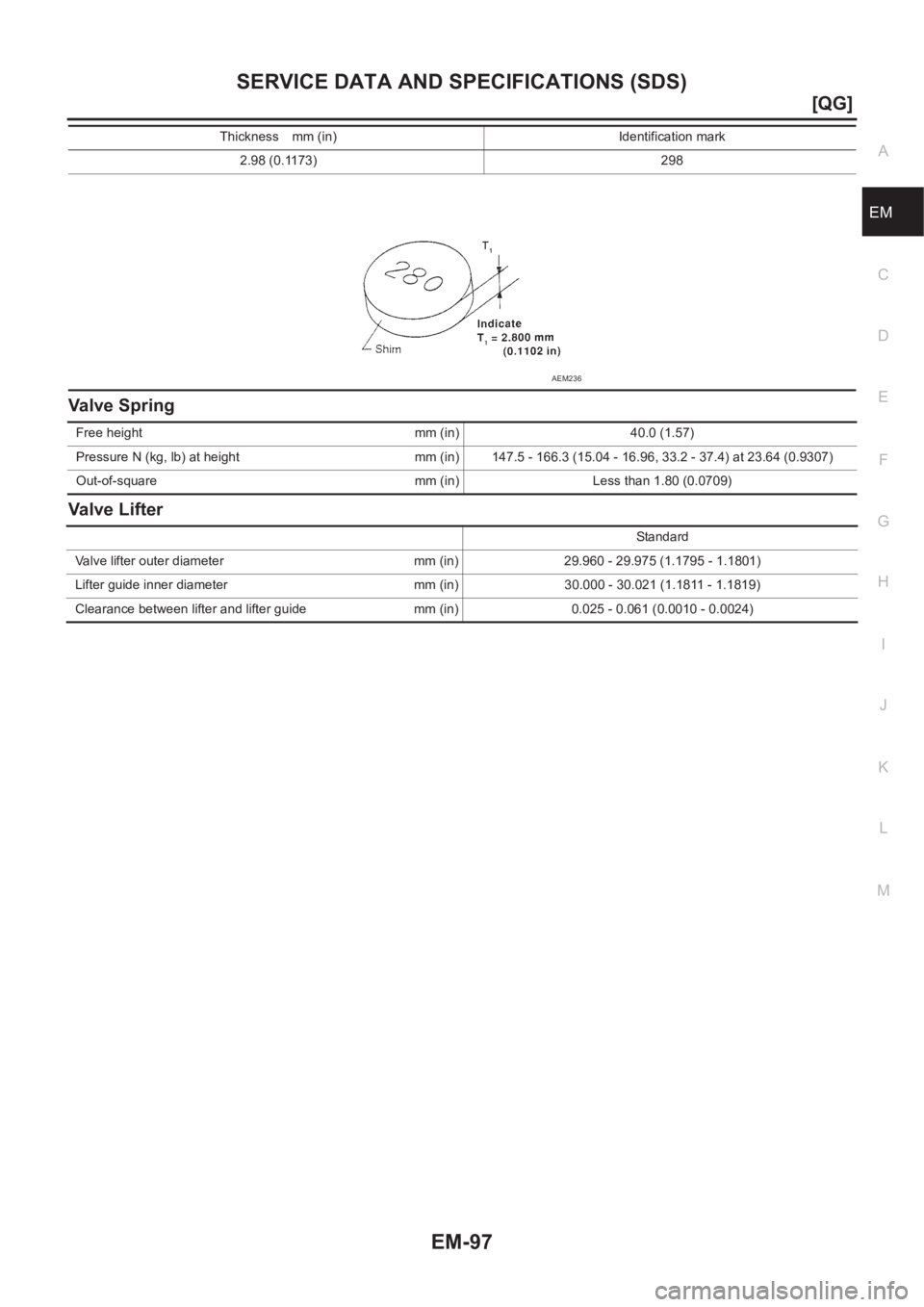

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-97
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
Valve Spring
Valve Lifter
2.98 (0.1173) 298 Thickness mm (in) Identification mark
AEM236
Free height mm (in) 40.0 (1.57)
Pressure N (kg, lb) at height mm (in) 147.5 - 166.3 (15.04 - 16.96, 33.2 - 37.4) at 23.64 (0.9307)
Out-of-square mm (in) Less than 1.80 (0.0709)
Standard
Valve lifter outer diameter mm (in) 29.960 - 29.975 (1.1795 - 1.1801)
Lifter guide inner diameter mm (in) 30.000 - 30.021 (1.1811 - 1.1819)
Clearance between lifter and lifter guide mm (in) 0.025 - 0.061 (0.0010 - 0.0024)
Page 176 of 3189

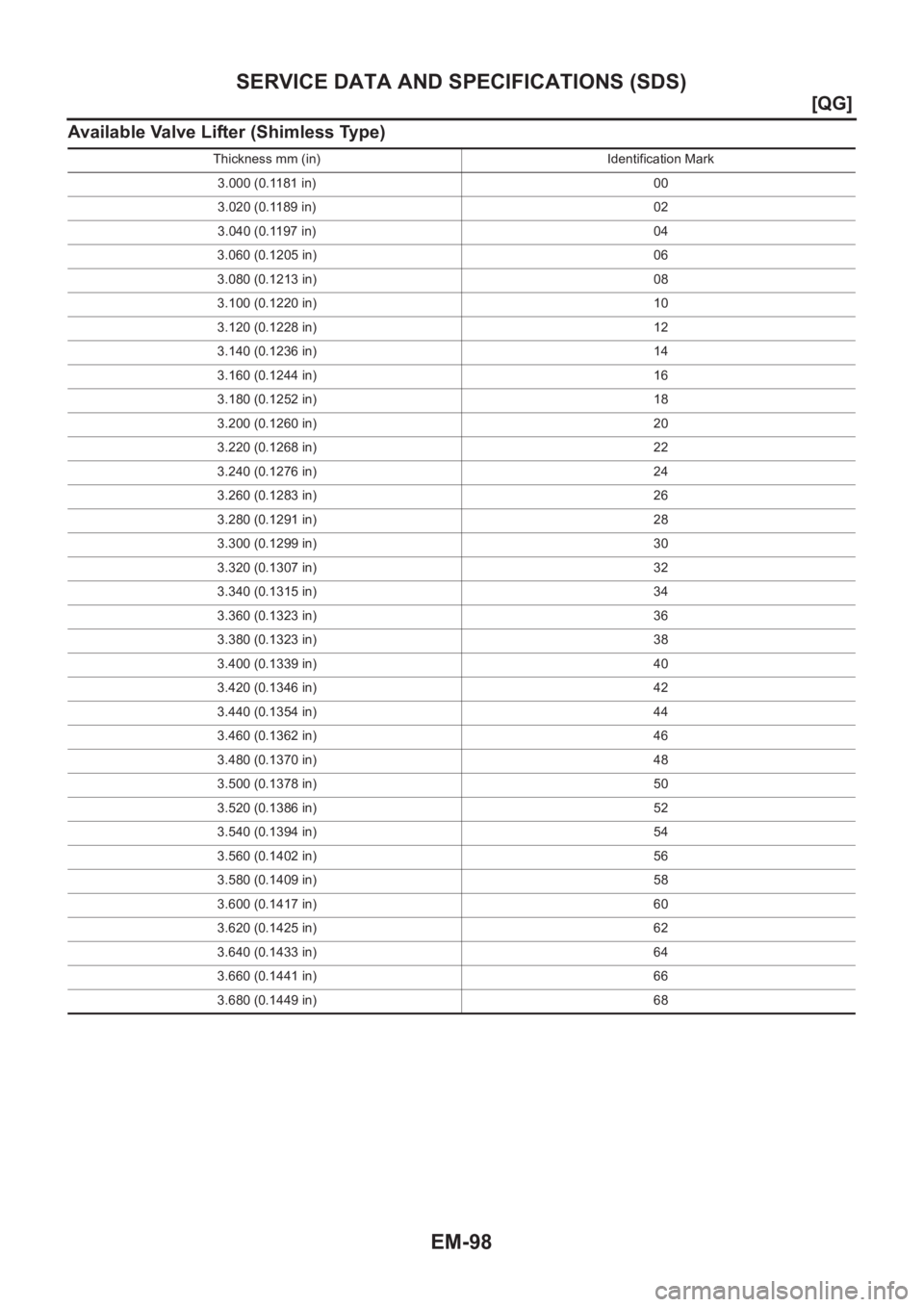

EM-98
[QG]
SERVICE DATA AND SPECIFICATIONS (SDS)
Available Valve Lifter (Shimless Type)
Thickness mm (in) Identification Mark
3.000 (0.1181 in) 00
3.020 (0.1189 in) 02
3.040 (0.1197 in) 04
3.060 (0.1205 in) 06
3.080 (0.1213 in) 08
3.100 (0.1220 in) 10
3.120 (0.1228 in) 12
3.140 (0.1236 in) 14
3.160 (0.1244 in) 16
3.180 (0.1252 in) 18
3.200 (0.1260 in) 20
3.220 (0.1268 in) 22
3.240 (0.1276 in) 24
3.260 (0.1283 in) 26
3.280 (0.1291 in) 28
3.300 (0.1299 in) 30
3.320 (0.1307 in) 32
3.340 (0.1315 in) 34
3.360 (0.1323 in) 36
3.380 (0.1323 in) 38
3.400 (0.1339 in) 40
3.420 (0.1346 in) 42
3.440 (0.1354 in) 44
3.460 (0.1362 in) 46
3.480 (0.1370 in) 48
3.500 (0.1378 in) 50
3.520 (0.1386 in) 52
3.540 (0.1394 in) 54
3.560 (0.1402 in) 56
3.580 (0.1409 in) 58
3.600 (0.1417 in) 60
3.620 (0.1425 in) 62
3.640 (0.1433 in) 64
3.660 (0.1441 in) 66
3.680 (0.1449 in) 68
