Page 1329 of 3189

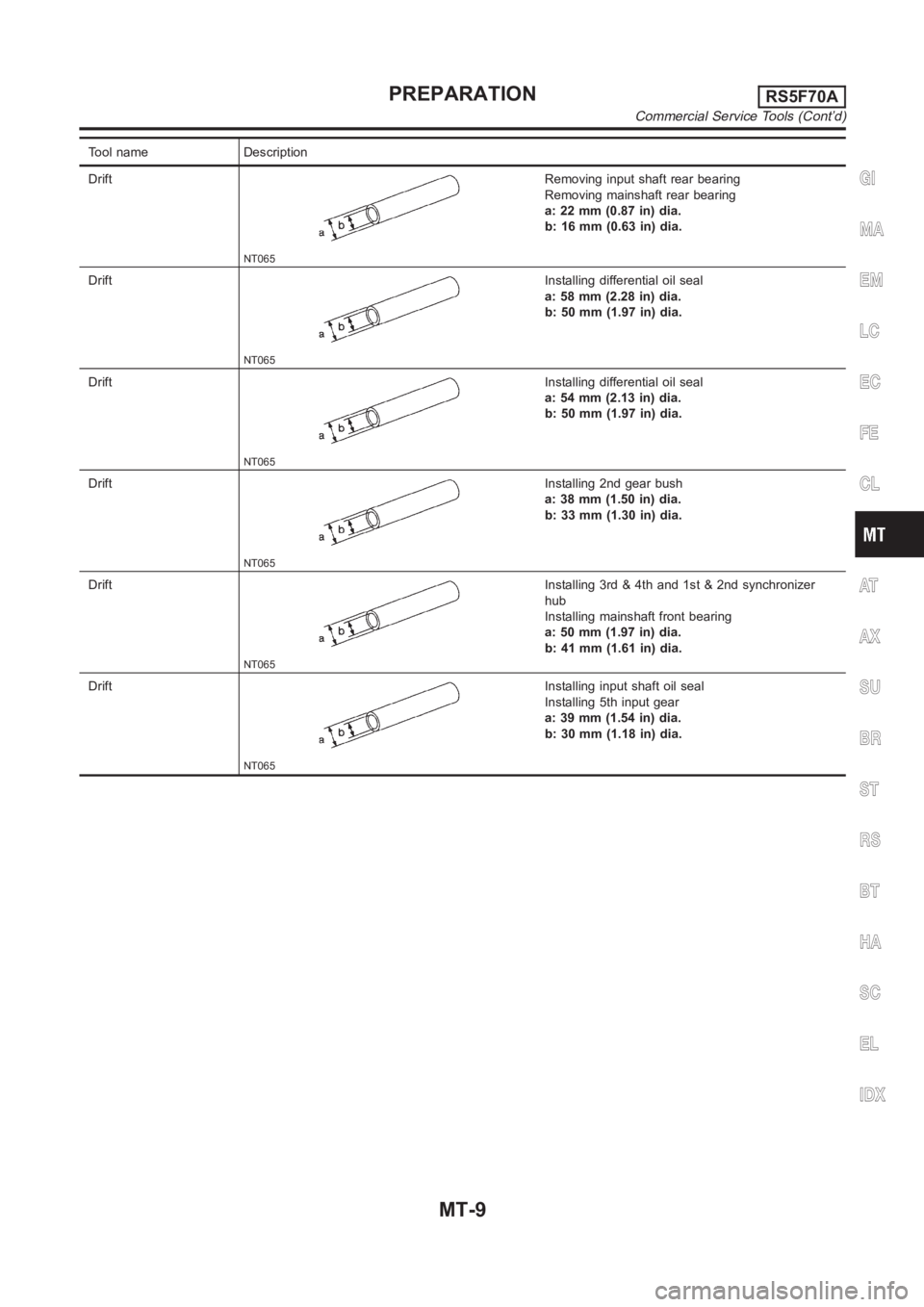

NISSAN ALMERA N16 2003 Electronic Repair Manual Tool name Description Drift NT065 Removing input shaft rear bearing Removing mainshaft rear bearing a: 22 mm (0.87 in) dia. b: 16 mm (0.63 in) dia. Drift NT065 Installing differential oil seal a: 58 m

Page 1330 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Special Service ToolsNJMT0001 Tool number Tool nameDescription KV38105210 Preload adapter NT075 Measuring turning torque of final drive assembly Measuring total turning torque KV32101000 Pin punch NT4

Page 1331 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Tool number Tool nameDescription ST33400001 Drift NT086 Installing differential oil seal a: 60 mm (2.36 in) dia. b: 47 mm (1.85 in) dia. ST30600000 Drift NT065 Installing input shaft front bearing a:

Page 1332 of 3189

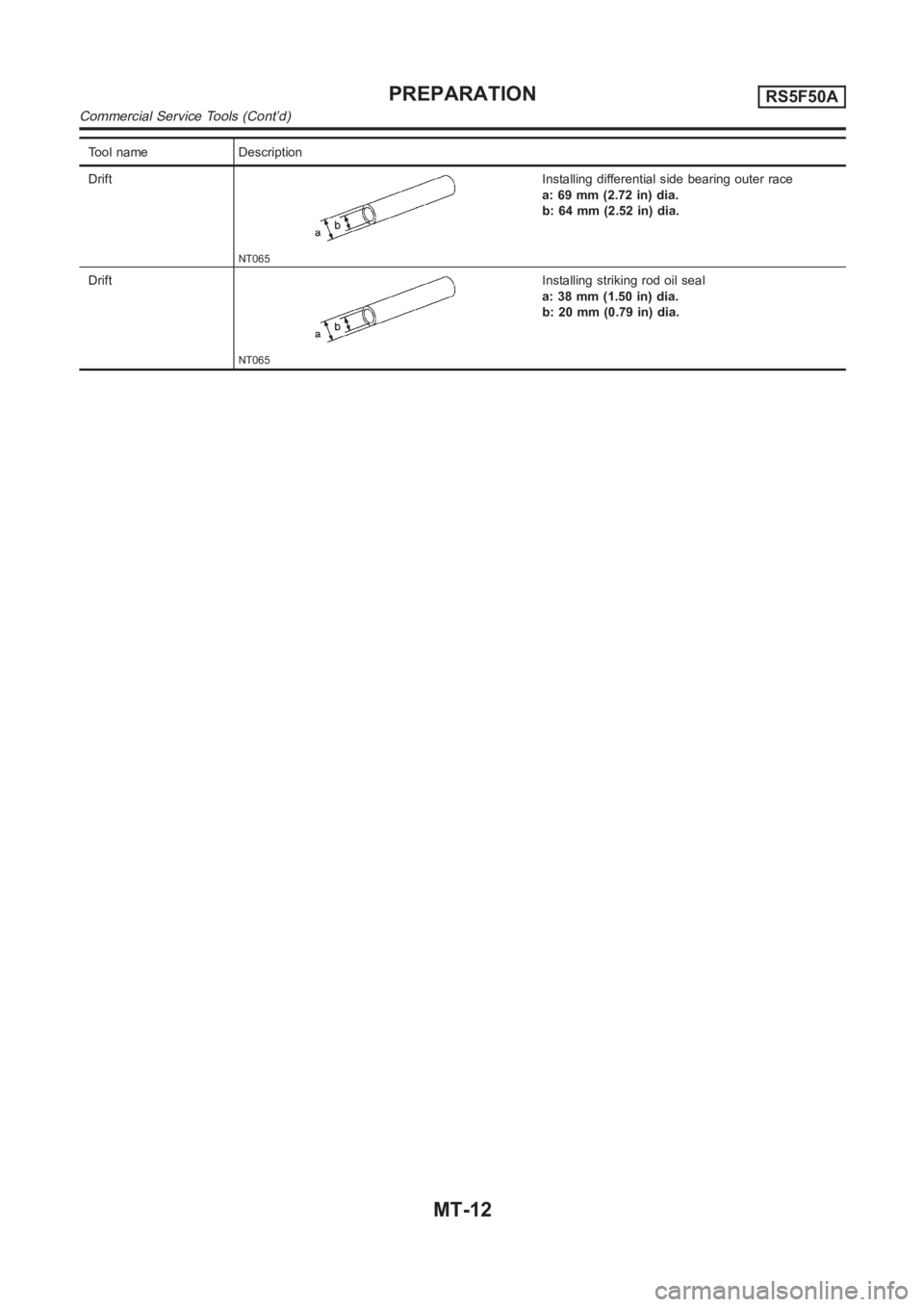

NISSAN ALMERA N16 2003 Electronic Repair Manual Tool name Description Drift NT065 Installing differential side bearing outer race a: 69 mm (2.72 in) dia. b: 64 mm (2.52 in) dia. Drift NT065 Installing striking rod oil seal a: 38 mm (1.50 in) dia. b

Page 1333 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0003 NVH Troubleshooting Chart NJMT0003S01 Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec- tion. If necessary, repair or replace these

Page 1334 of 3189

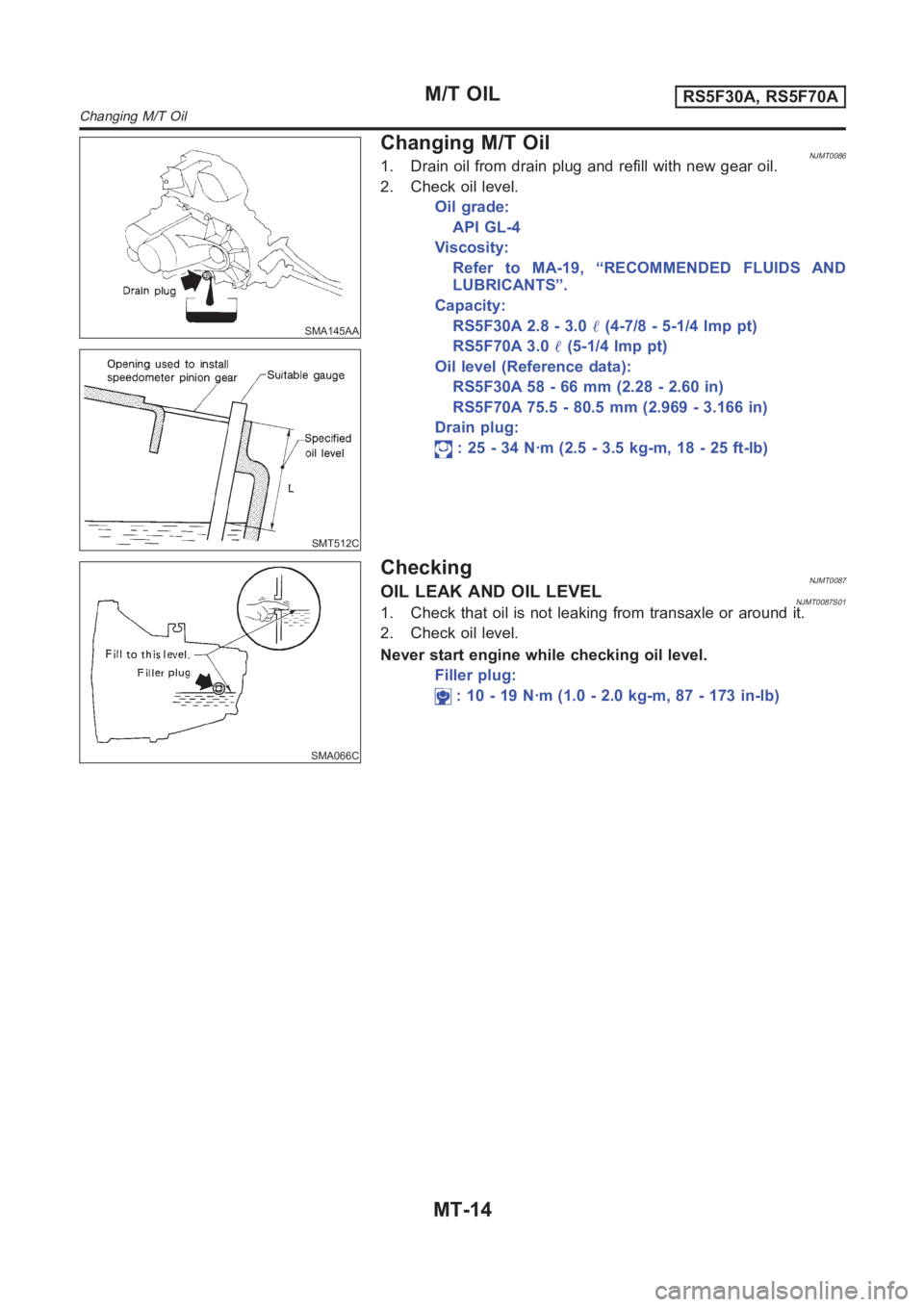

NISSAN ALMERA N16 2003 Electronic Repair Manual SMA145AA SMT512C Changing M/T OilNJMT00861. Drain oil from drain plug and refill with new gear oil. 2. Check oil level. Oil grade: API GL-4 Viscosity: Refer to MA-19, “RECOMMENDED FLUIDS AND LUBRICA

Page 1335 of 3189

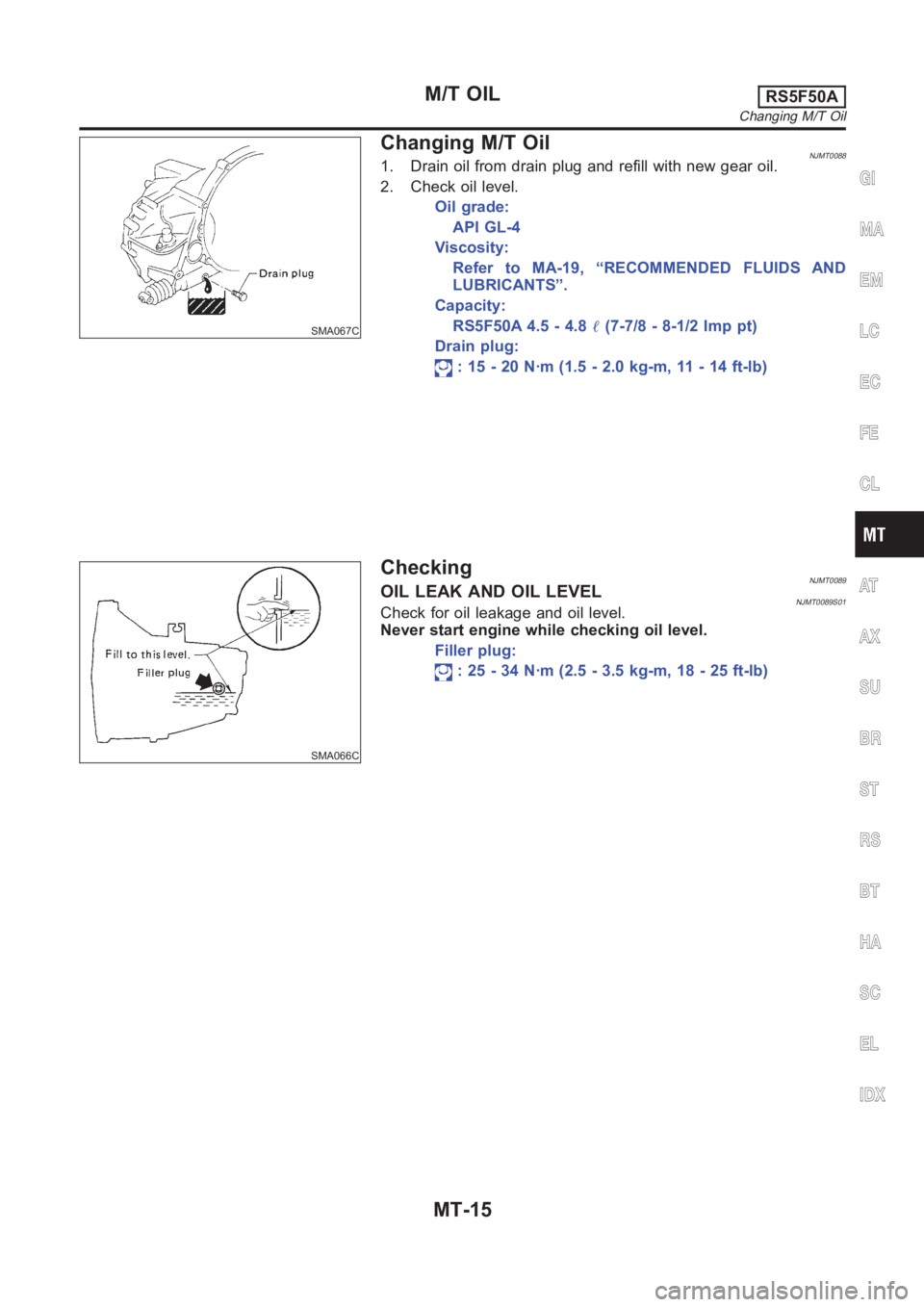

NISSAN ALMERA N16 2003 Electronic Repair Manual SMA067C Changing M/T OilNJMT00881. Drain oil from drain plug and refill with new gear oil. 2. Check oil level. Oil grade: API GL-4 Viscosity: Refer to MA-19, “RECOMMENDED FLUIDS AND LUBRICANTS”. C

Page 1336 of 3189

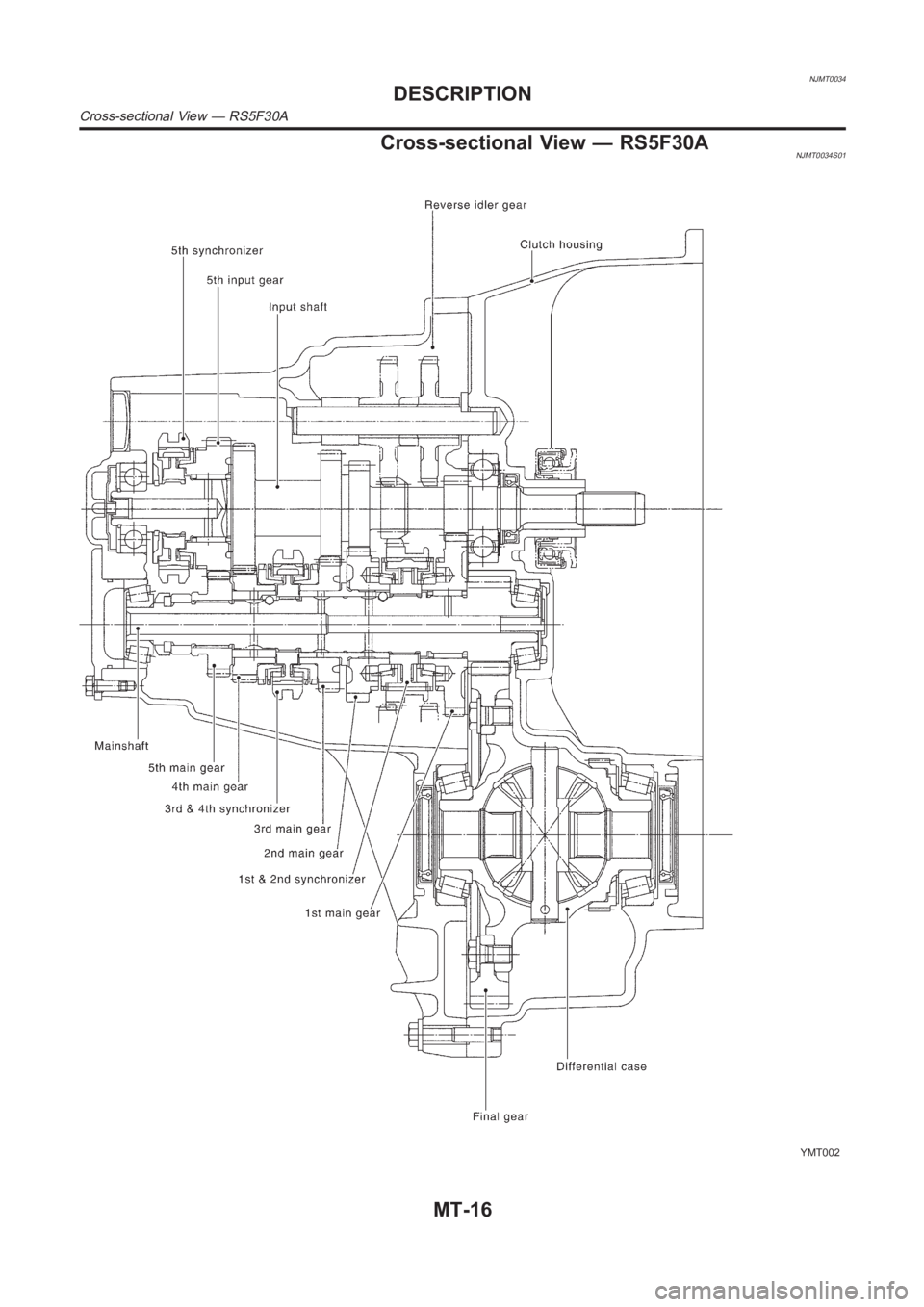

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0034 Cross-sectional View — RS5F30ANJMT0034S01 YMT002 DESCRIPTION Cross-sectional View — RS5F30A MT-16
