NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-241
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

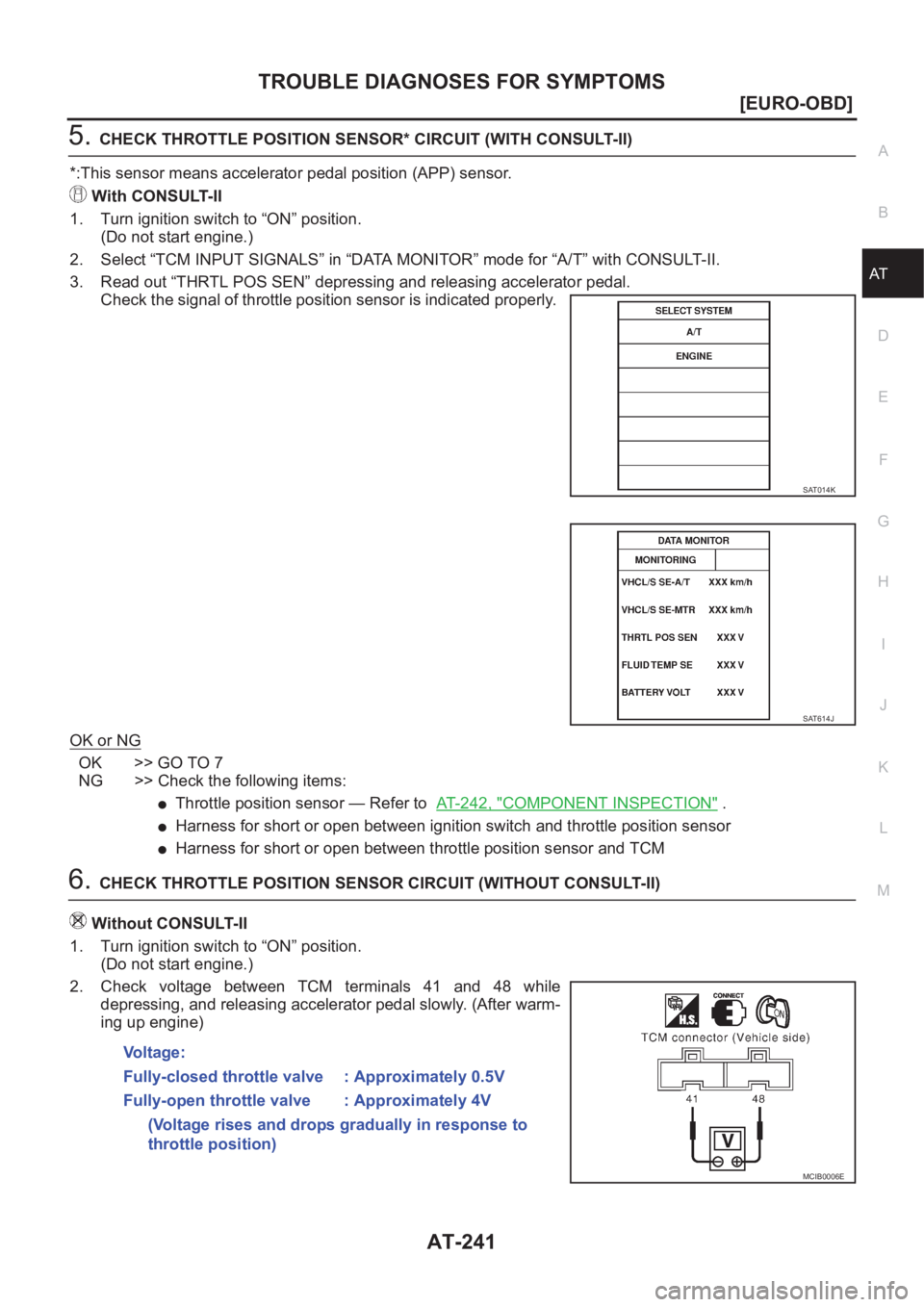

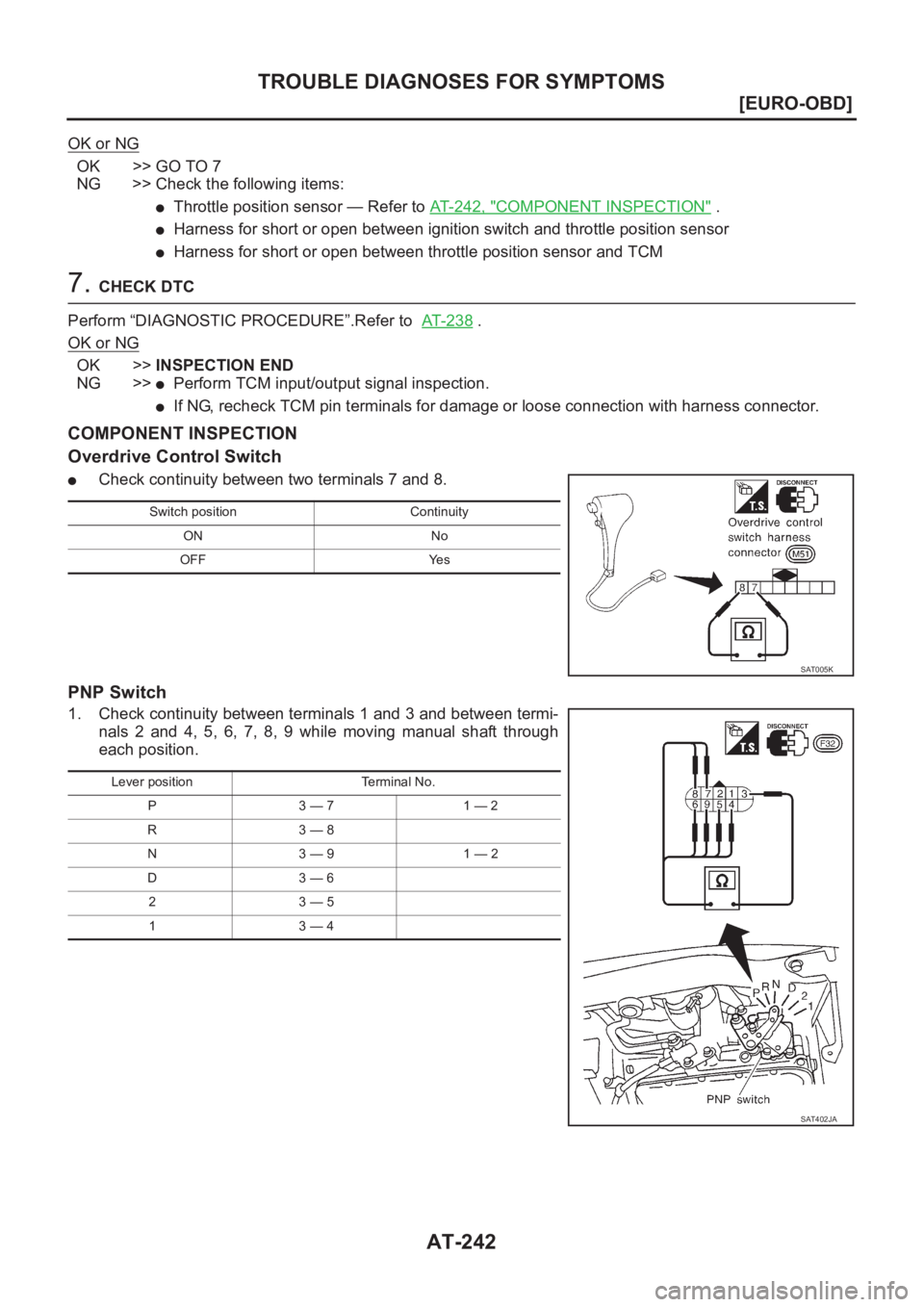

5.CHECK THROTTLE POSITION SENSOR* CIRCUIT (WITH CONSULT-II)
*:This sensor means accelerator pedal position (APP) sensor.
Wit

Page 1698 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-242
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
OK or NG
OK >> GO TO 7
NG >> Check the following items:
●Throttle position sensor — Refer to AT- 2 4 2 , "COMPONENT INSPECTION" .
●Harn

Page 1699 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-243
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK o

Page 1700 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-244
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS007QN
After performing AT- 2 4 4 , "SELF-DIAGNOSTIC

AT-244
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS007QN
After performing AT- 2 4 4 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT-256, "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.

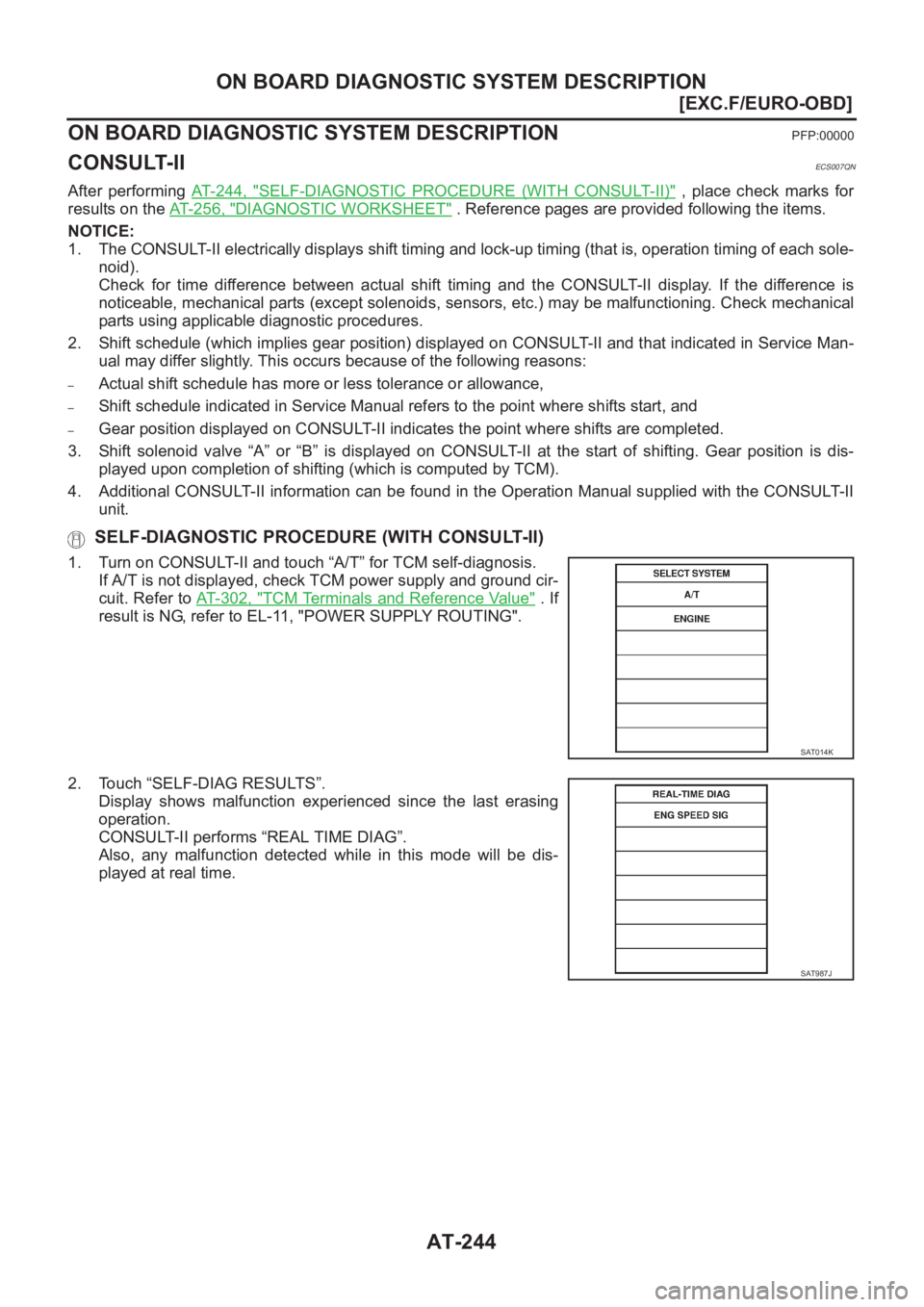

SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 3 0 2 , "
TCM Terminals and Reference Value" . If
result is NG, refer to EL-11, "POWER SUPPLY ROUTING".
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SAT014K
SAT987J

Page 1701 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-245
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

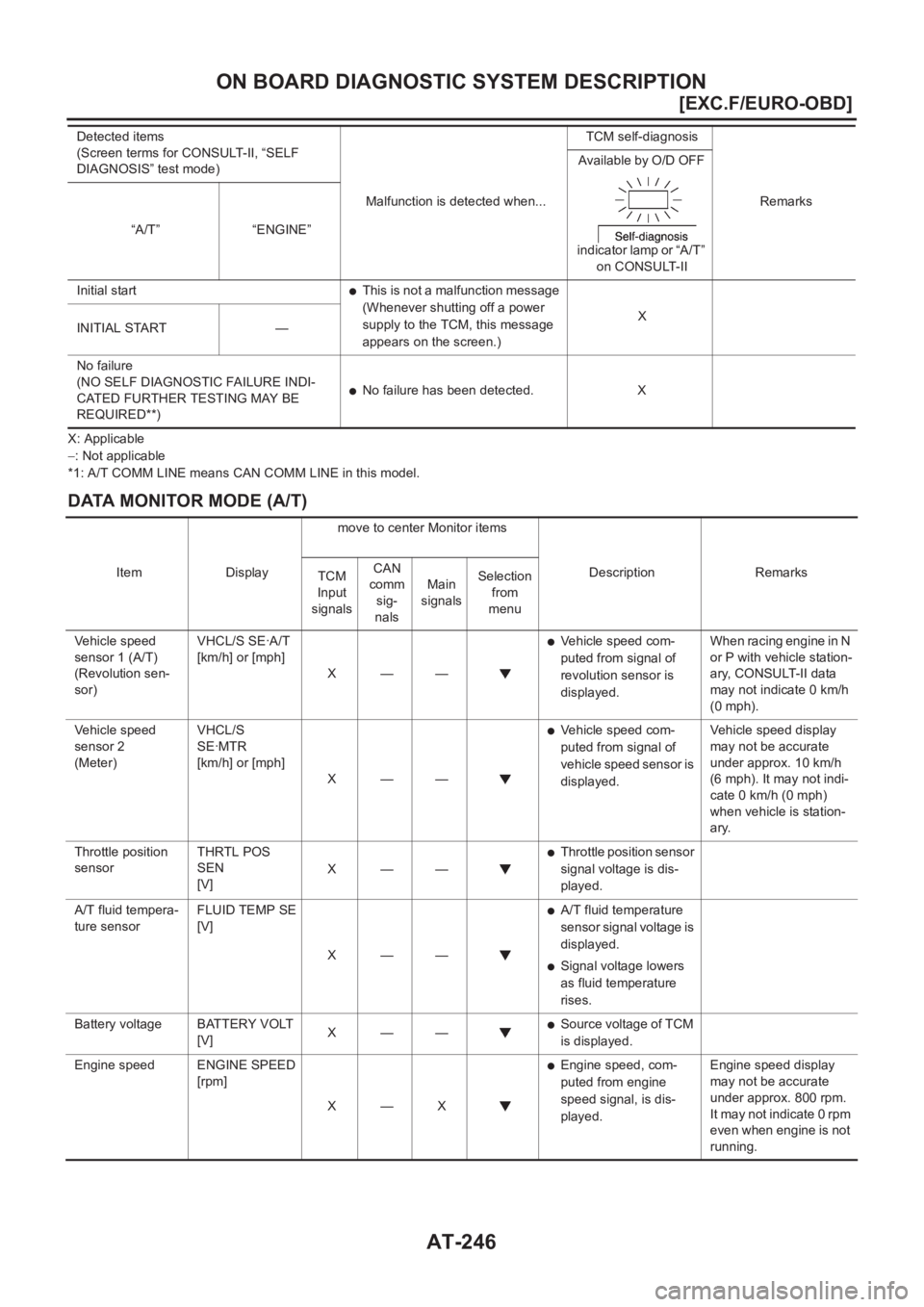

SELF-DIAGNOSTIC RESULT TEST MODE
Detected items
(Screen terms for CONSULT-II, “SELF
DIAGNOSIS” test mode)

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-245
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
SELF-DIAGNOSTIC RESULT TEST MODE
Detected items
(Screen terms for CONSULT-II, “SELF
DIAGNOSIS” test mode)
Malfunction is detected when...TCM self-diagnosis
Remarks Available by O/D OFF
indicator lamp or “A/T”
on CONSULT-II “A/T” “ENGINE”
Revolution sensor
●TCM does not receive the proper
voltage signal from the sensor.X—
VHCL SPEED SEN·A/TVEH SPD SEN/
CIR AT
Vehicle speed sensor (Meter)
●TCM does not receive the proper
voltage signal from the sensor.X—
VHCL SPEED
SEN·MTR—
Shift solenoid valve A
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
SHIFT SOLENOID/V A SFT SOL A/CIRC
Shift solenoid valve B
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
SHIFT SOLENOID/V B SFT SOL B/CIRC
Overrun clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
OVERRUN CLUTCH S/
VO/R CLUCH SOL/
CIRC
T/C clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
T/C CLUTCH SOL/VTCC SOLENOID/
CIRC
Line pressure solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
LINE PRESSURE S/VL/PRESS SOL/
CIRC
Throttle position sensor
(Accelerator Pedal Position (APP) sensor)
●TCM receives an excessively low
or high voltage from the sensor.X
THROTTLE POSI SEN TP SEN/CIRC A/T
Engine speed signal
●TCM does not receive the proper
voltage signal from the ECM.X
ENGINE SPEED SIG
A/T fluid temperature sensor
●TCM receives an excessively low
or high voltage from the sensor.XTo be displayed in
case of abnormality
and when no record-
ing is made. BATT/FLUID TEMP
SENATF TEMP SEN/
CIRC
Engine control
●The ECM-A/T communication line
is open or shorted.X
A/T COMM LINE
*1—
TCM (RAM)
●TCM memory (RAM) is malfunc-
tioning—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONTROL UNIT
(RAM)—
TCM (ROM)
●TCM memory (ROM) is malfunc-
tioning—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONTROL UNIT
(ROM)—
TCM (EEP ROM)
●TCM memory (EEP ROM) is mal-
functioning.—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONT UNIT(EEP
ROM)—

Page 1702 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-246
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
X: Applicable
−: Not applicable
*1: A/T COMM LINE means CAN COMM LINE in this model.
DATA MONITOR MODE (A/T)
Initial start●This is no

Page 1703 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——●ON/OFF state com-
puted from signal of
overdrive cont

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——●ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.
PN position (PNP)
switchPN POSI SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of PN
position SW is dis-
played.
R position switch R POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of R
position SW is dis-
played.
D position switch D POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of D
position SW is dis-
played.
2 position switch 2 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.
1 position switch 1 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
can communica-
tionCAN COMM
[OK/UNKWN]—X—
can circuit 1CAN CIRC 1
[OK/UNKWN]—X— Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

Page 1704 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
can circuit 2CAN CIRC 2
[OK/UNKWN]—X—
can circuit 3CAN CIRC 3
[OK/UNKWN]—X—
can circuit 4CAN CIRC 4
[OK/UNKWN]—X—
can circuit
