2003 NISSAN ALMERA N16 Electronic Repair Manual

fuel tank capacityalarmadbluemaintenance schedulemaintenancereset infotainment system
Popular search:
ground clearancebuttonsbattery locationSMART ENTRANCEsrs troublepower distribfuel type
Previous
Next
Load previous 8 pages

Page 2625 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Rear RH SideNJEL0580S0704 1 CHECK DOOR SWITCH INPUT SIGNAL With CONSULT-II Check door switch “RR RH DOOR SW” in “DATA MONITOR” mode with CONSULT-II. SIIA1596E MTBL1505 Without CONSULT-II 1. Tu

Page 2626 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK DOOR SWITCH Check continuity between rear door switch RH harness connector B35 terminal 1 (R/Y) and ground. SIIA1595E MTBL1507 OK or NG OKCheck the following. Rear door switch RH ground condit

Page 2627 of 3189

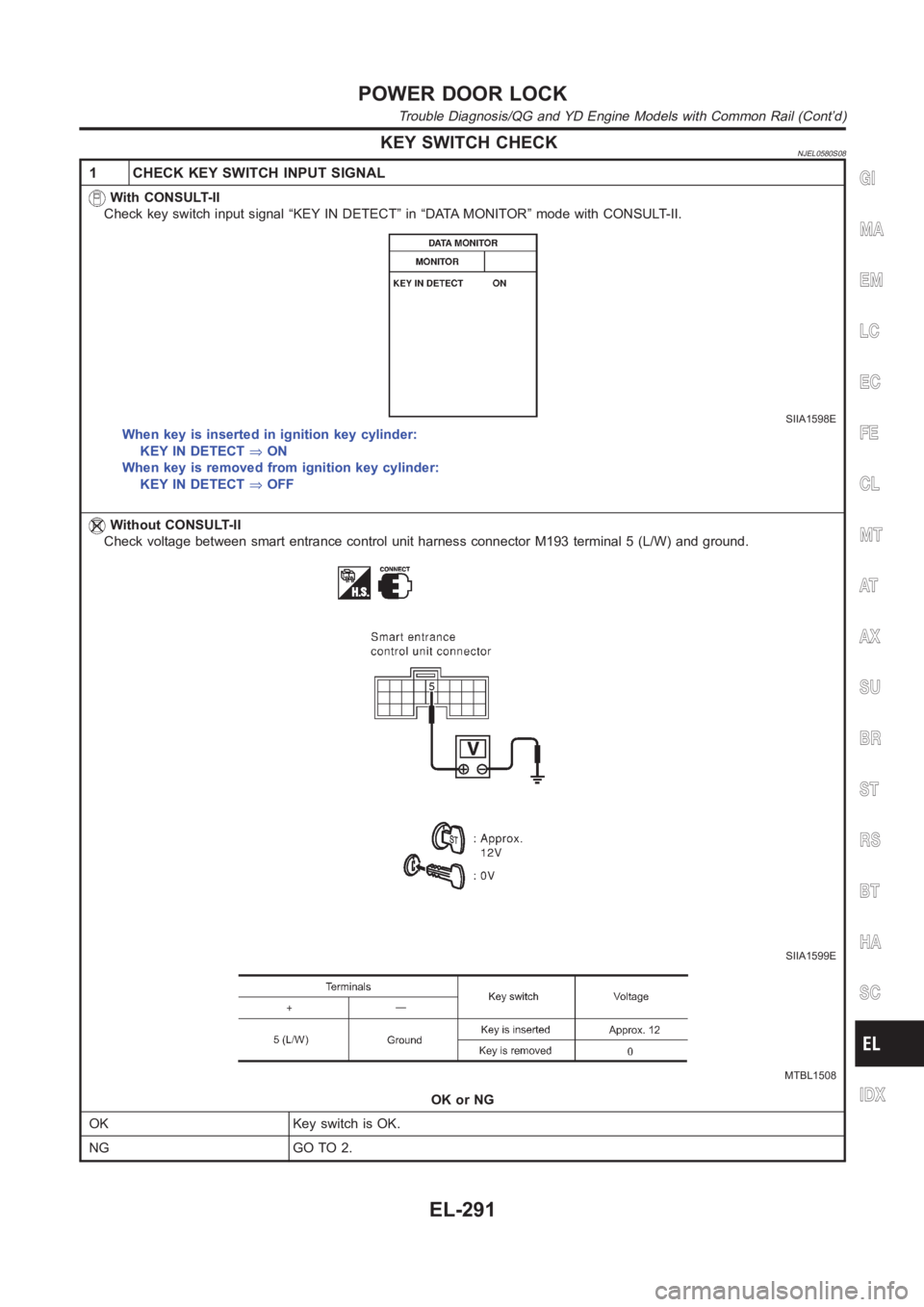

NISSAN ALMERA N16 2003 Electronic Repair Manual KEY SWITCH CHECKNJEL0580S08 1 CHECK KEY SWITCH INPUT SIGNAL With CONSULT-II Check key switch input signal “KEY IN DETECT” in “DATA MONITOR” mode with CONSULT-II. SIIA1598E When key is inserted

Page 2628 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK KEY SWITCH (INSERT) 1. Disconnect key switch connector. 2. Check continuity between key switch terminals 1 and 2. YEL791C OK or NG OKCheck the following. 10A fuse [No. 12, located in fuse bloc

Page 2629 of 3189

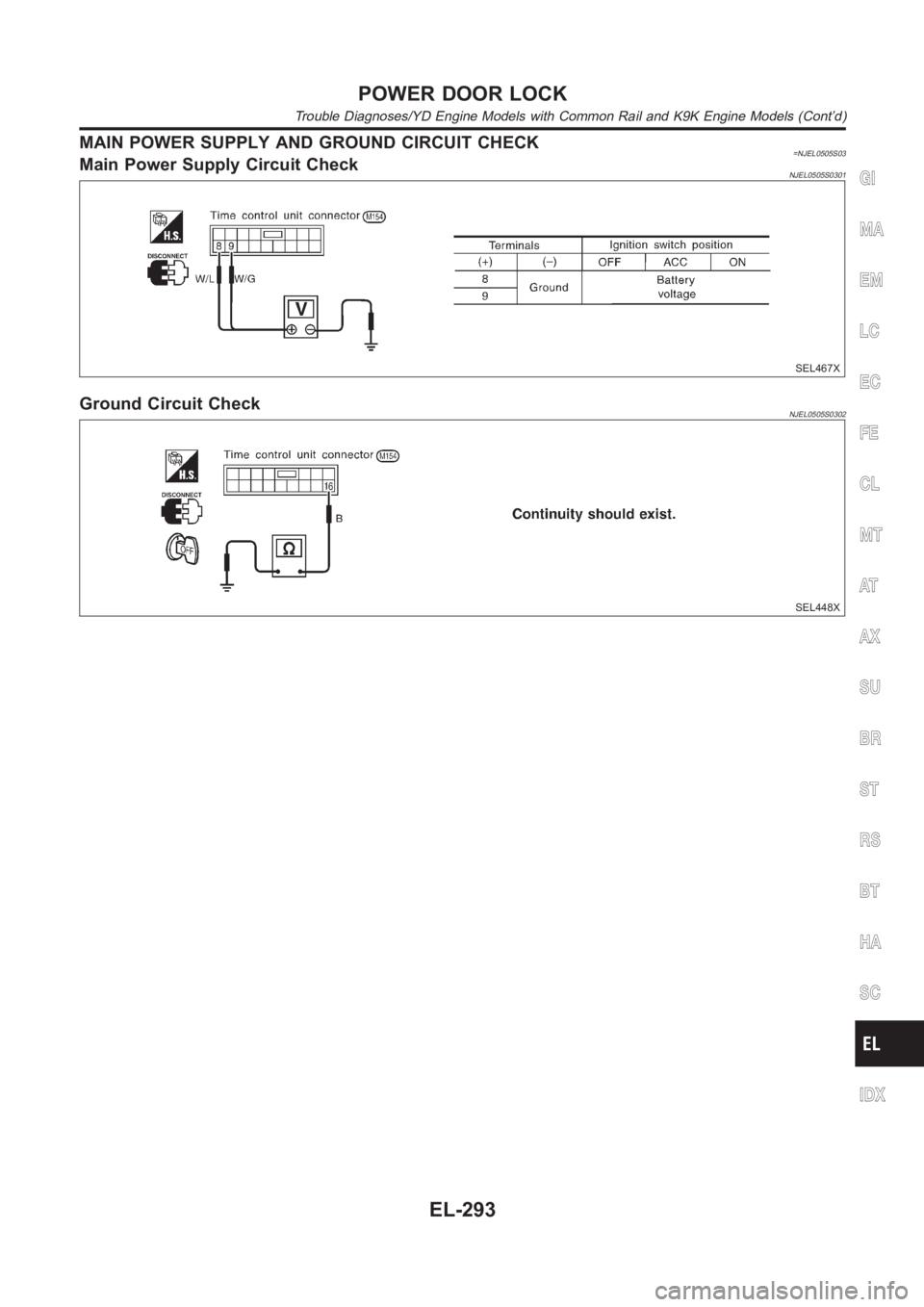

NISSAN ALMERA N16 2003 Electronic Repair Manual MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0505S03Main Power Supply Circuit CheckNJEL0505S0301 SEL467X Ground Circuit CheckNJEL0505S0302 SEL448X GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC

Page 2630 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DOOR LOCK/UNLOCK SWITCH CHECK=NJEL0505S04 1 CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL 1. Disconnect time control unit harness connector. 2. Check continuity between time control unit harness connecto

Page 2631 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DOOR KEY CYLINDER SWITCH CHECKNJEL0505S05 1 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL) Check voltage between time control unit harness connector terminals 28 or29 and ground. SEL

Page 2632 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DOOR LOCK ACTUATOR CHECKNJEL0505S06 1 CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL Check voltage for door lock actuator. Door lock actuator driver’s side YEL839D Door lock actuator passenger side and rear
Load next 8 pages
Page:   < prev 1-10 ... 2593-2600 2601-2608 2609-2616 2617-2624 2625-2632 2633-2640 2641-2648 2649-2656 2657-2664 ... 3192 next >
steeringpairing phonecheck engineengine coolanttire sizelock
Popular search:
Ignition cool diagramwiperheight adjustmentkeylesscenter consolecoolant temperatureconditioner
