Page 1649 of 3189
DTC U1000 CAN COMMUNICATION LINE
AT-193
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT ECS007PO
YAT 3 6 6
Page 1650 of 3189

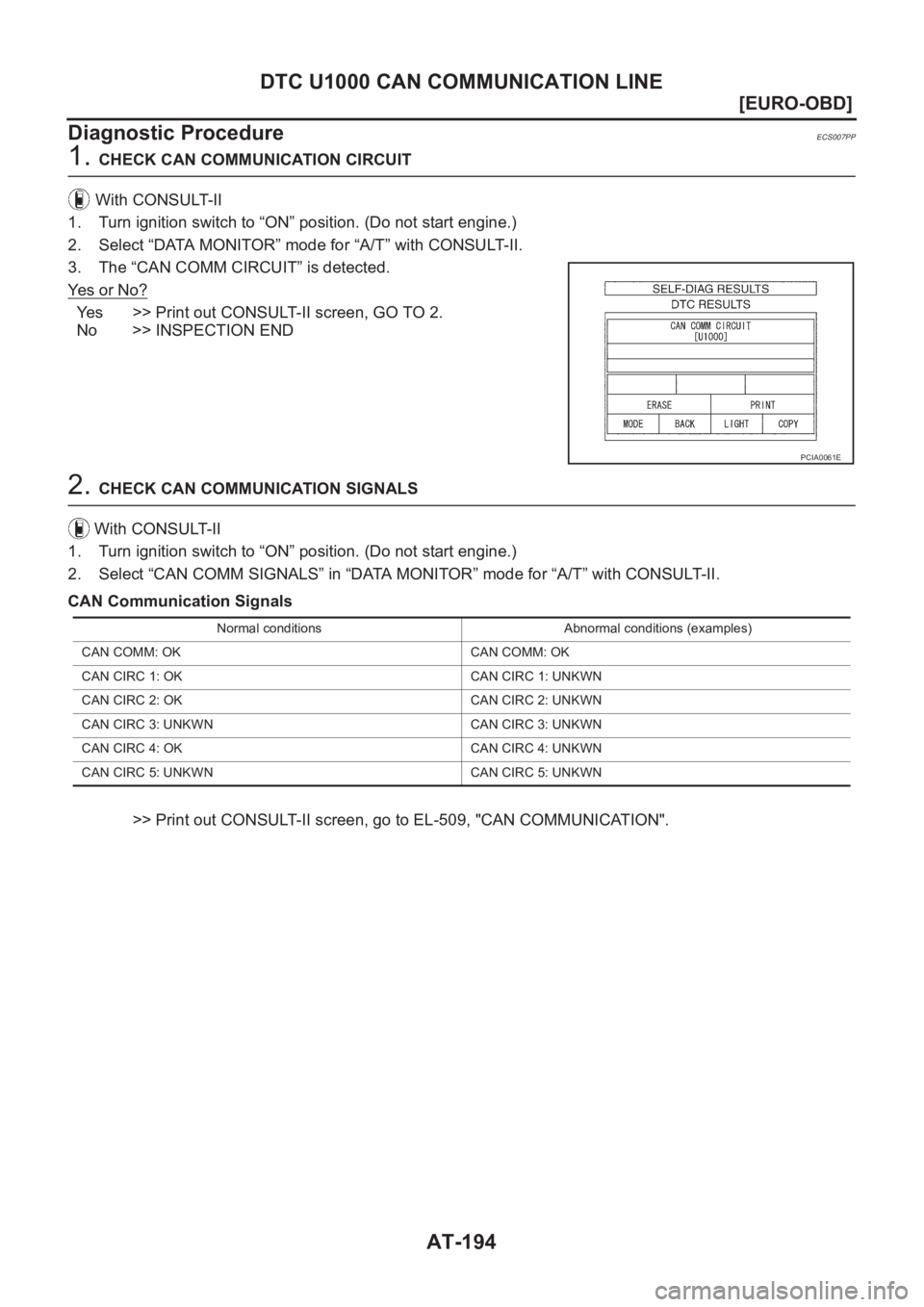

AT-194
[EURO-OBD]
DTC U1000 CAN COMMUNICATION LINE
Diagnostic Procedure
ECS007PP
1. CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. The “CAN COMM CIRCUIT” is detected.
Yes or No?
Yes >> Print out CONSULT-II screen, GO TO 2.
No >> INSPECTION END
2. CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Select “CAN COMM SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
CAN Communication Signals
>> Print out CONSULT-II screen, go to EL-509, "CAN COMMUNICATION".
PCIA0061E
Normal conditions Abnormal conditions (examples)
CAN COMM: OK CAN COMM: OK
CAN CIRC 1: OK CAN CIRC 1: UNKWN
CAN CIRC 2: OK CAN CIRC 2: UNKWN
CAN CIRC 3: UNKWN CAN CIRC 3: UNKWN
CAN CIRC 4: OK CAN CIRC 4: UNKWN
CAN CIRC 5: UNKWN CAN CIRC 5: UNKWN
Page 1651 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-195
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER NISSAN ALMERA N16 2003 Electronic Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-195
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER](/manual-img/5/57350/w960_57350-1650.png)

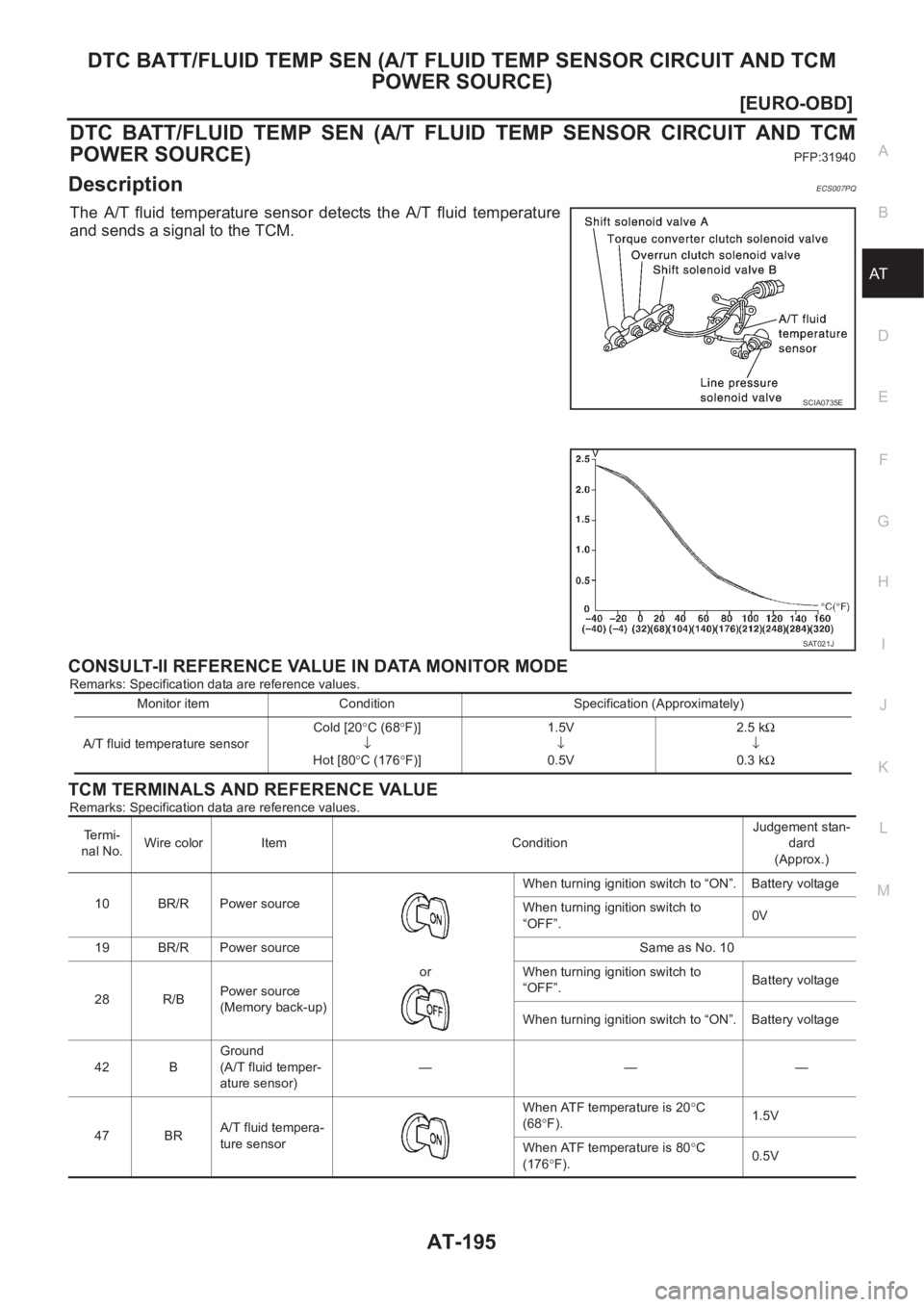

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-195
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
PFP:31940
DescriptionECS007PQ
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
SCIA0735E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/R Power sourceWhen turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/R Power source Same as No. 10
28 R/BPower source
(Memory back-up)or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
42 BGround
(A/T fluid temper-
ature sensor)———
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
Page 1652 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-196
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform NISSAN ALMERA N16 2003 Electronic Repair Manual AT-196
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform](/manual-img/5/57350/w960_57350-1651.png)

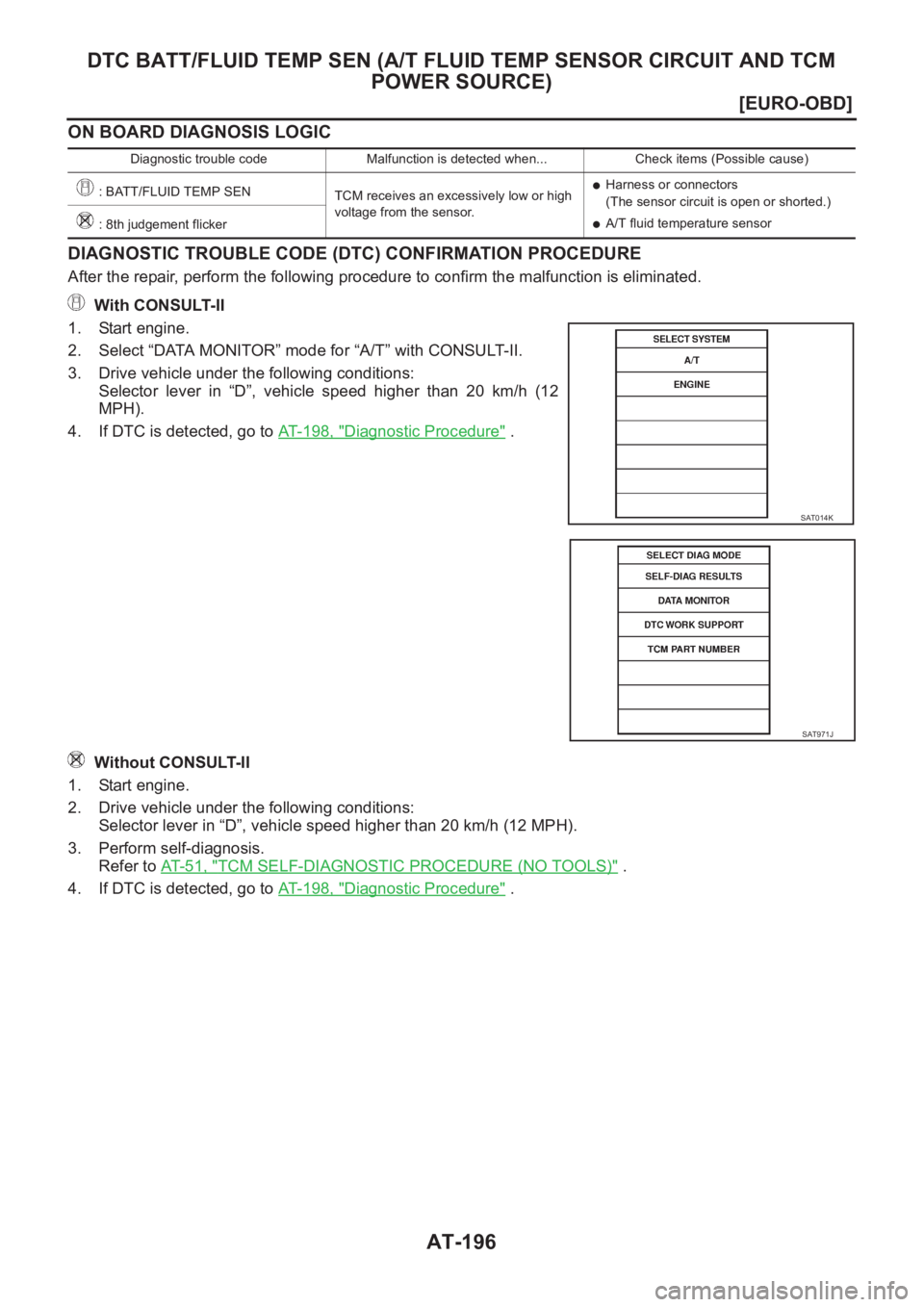

AT-196
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D”, vehicle speed higher than 20 km/h (12
MPH).
4. If DTC is detected, go to AT- 1 9 8 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D”, vehicle speed higher than 20 km/h (12 MPH).
3. Perform self-diagnosis.
Refer to AT-51, "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)" .
4. If DTC is detected, go to AT- 1 9 8 , "
Diagnostic Procedure" .
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●A/T fluid temperature sensor
: 8th judgement flicker
SAT014K
SAT971J
Page 1653 of 3189
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-197
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — BA/FTSECS007PR
YAT 3 6 2
Page 1654 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-198
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Diagnostic Procedure
ECS007PS
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(D NISSAN ALMERA N16 2003 Electronic Repair Manual AT-198
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Diagnostic Procedure
ECS007PS
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(D](/manual-img/5/57350/w960_57350-1653.png)

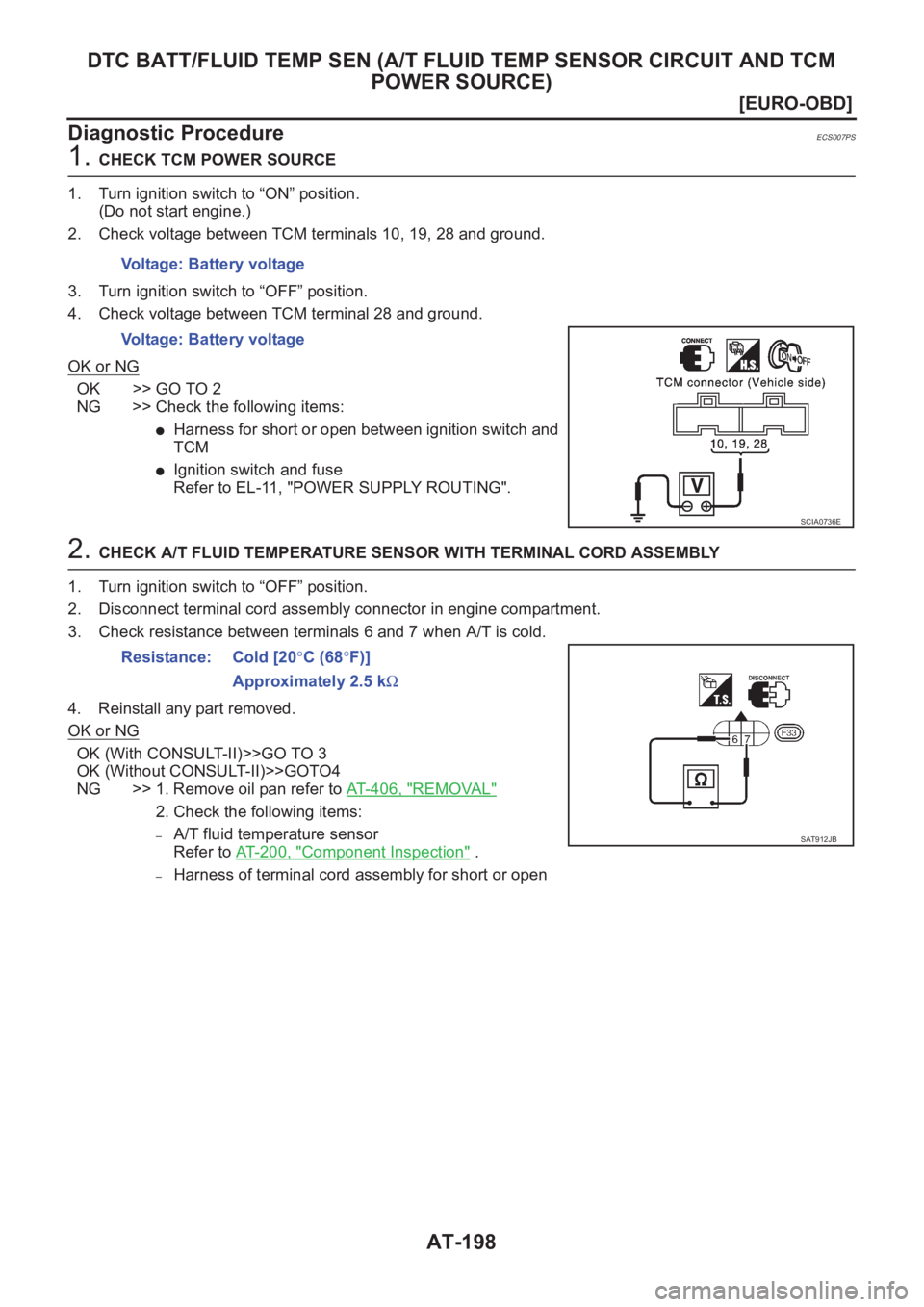

AT-198
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Diagnostic Procedure
ECS007PS
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 2
NG >> Check the following items:
●Harness for short or open between ignition switch and
TCM
●Ignition switch and fuse
Refer to EL-11, "POWER SUPPLY ROUTING".
2. CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)>>GO TO 3
OK (Without CONSULT-II)>>GOTO4
NG >> 1. Remove oil pan refer to AT-406, "
REMOVAL"
2. Check the following items:
–A/T fluid temperature sensor
Refer to AT-200, "
Component Inspection" .
–Harness of terminal cord assembly for short or open Voltage: Battery voltage
Voltage: Battery voltage
SCIA0736E
Resistance: Cold [20°C (68°F)]
Approximately 2.5 kΩ
SAT912JB
Page 1655 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-199
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CO NISSAN ALMERA N16 2003 Electronic Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-199
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CO](/manual-img/5/57350/w960_57350-1654.png)
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-199
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" .
4.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up A/T.
3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check resistance between terminal 42 and ground.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" .
5.CHECK DTC
Perform AT- 1 9 6 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l t a g e :
Cold [20°C (68°F)]→ Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SAT614J
Vo l t a g e :
Cold [20°C (68°F)]→ Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SCIA0738E
Continuity should exist.
SCIA0739E
Page 1656 of 3189

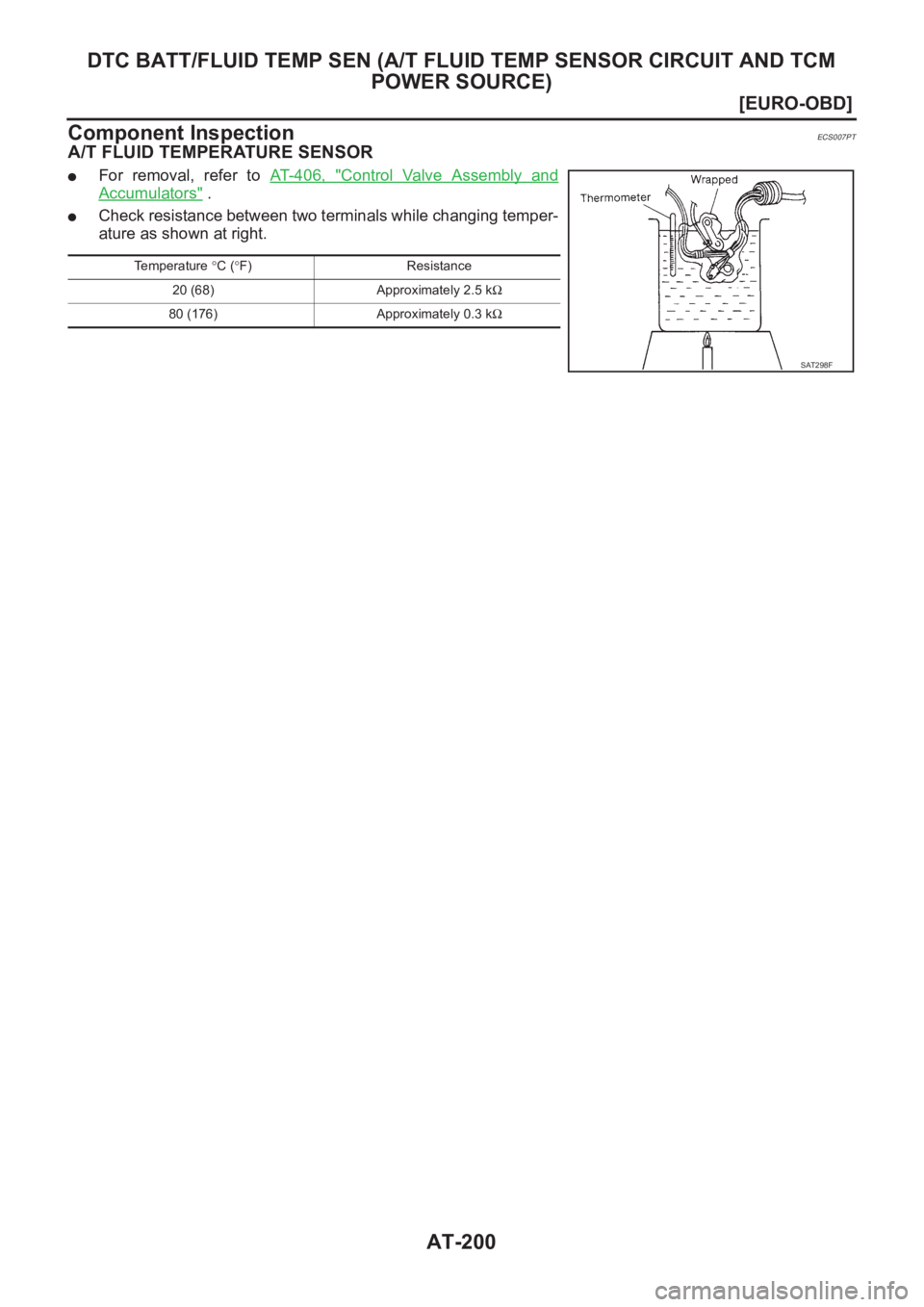

AT-200
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Component Inspection
ECS007PT
A/T FLUID TEMPERATURE SENSOR
●For removal, refer to AT- 4 0 6 , "Control Valve Assembly and
Accumulators" .
●Check resistance between two terminals while changing temper-
ature as shown at right.
Temperature °C (°F) Resistance
20 (68) Approximately 2.5 kΩ
80 (176) Approximately 0.3 kΩ
SAT298F
