DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-121
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up A/T.
3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check continuity between terminal 42 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4
NG >> GO TO 5
4.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT- 11 7 , "
DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
5.CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)>>GOTO2
OK (Without CONSULT-II)>>GOTO3
NG >> 1. Remove oil pan.
2. Check the following items:
–A/T fluid temperature sensor
Refer to AT- 1 2 2 , "
Component Inspection" .
–Harness of terminal cord assembly for short or open Vo l t a g e :
Cold [20°C (68°F)] → Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SCIA0738E
Continuity should exist.
SCIA0739E
Resistance:
Cold [20°C (68°F)]
Approximately 2.5 kΩ
SAT880JA
Page 1578 of 3189
AT-122
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Component Inspection
ECS007OB
A/T FLUID TEMPERATURE SENSOR
●For removal, refer to AT- 4 0 6 , "Control Valve Assembly and
Accumulators" .
●Check resistance between two terminals while changing temper-
ature as shown at right.
Temperature °C (°F) Resistance
20 (68) Approximately 2.5 kΩ
80 (176) Approximately 0.3 kΩ
SAT298F
Page 1579 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-123
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS007OC
The revolution se NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-123
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS007OC
The revolution se](/manual-img/5/57350/w960_57350-1578.png)

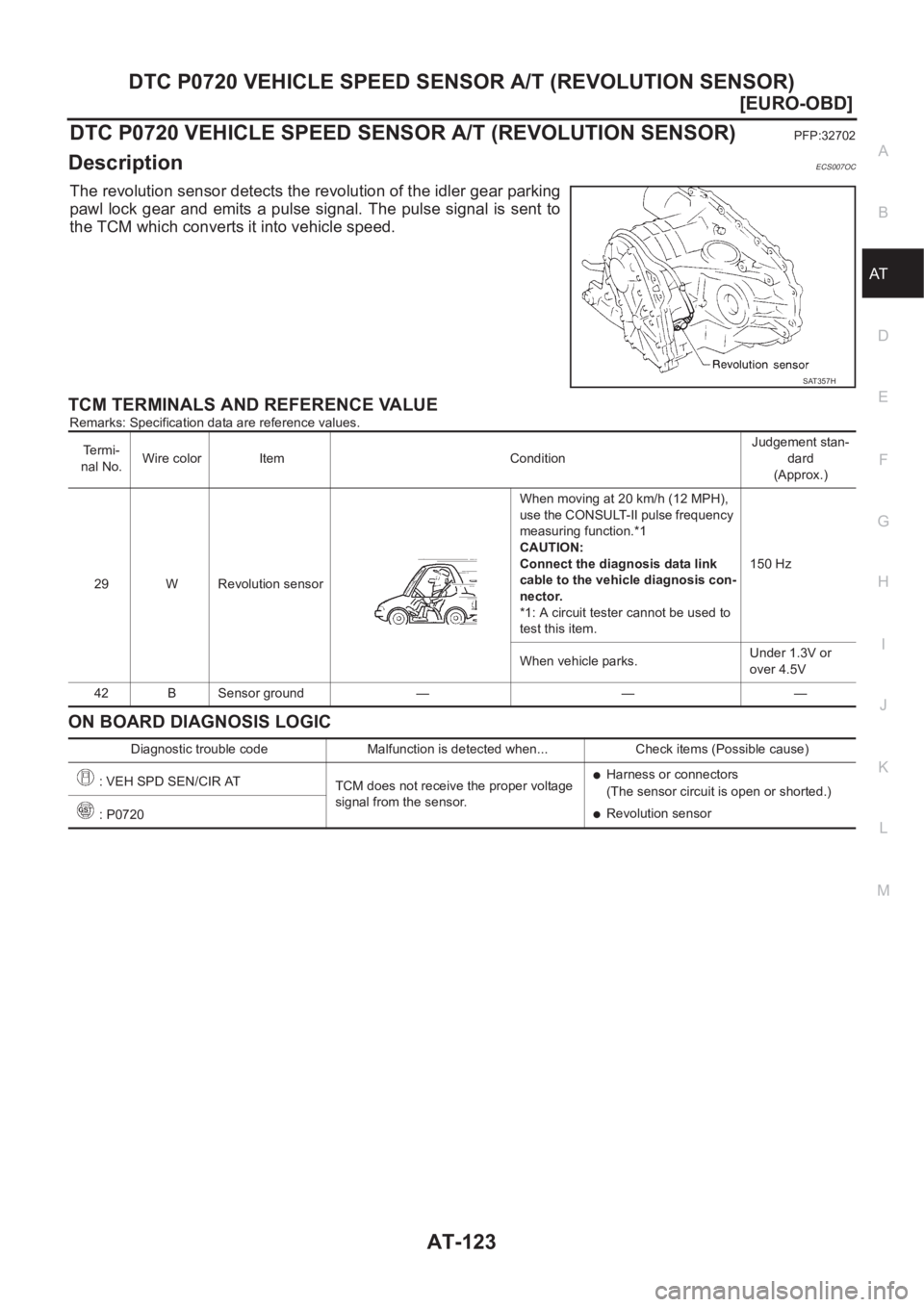

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-123
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS007OC
The revolution sensor detects the revolution of the idler gear parking
pawl lock gear and emits a pulse signal. The pulse signal is sent to
the TCM which converts it into vehicle speed.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SAT357H
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*1: A circuit tester cannot be used to
test this item.150 Hz
When vehicle parks.Under 1.3V or
over 4.5V
42 B Sensor ground — — —
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VEH SPD SEN/CIR AT
TCM does not receive the proper voltage
signal from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Revolution sensor
: P0720
Page 1580 of 3189
AT-124
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Drive vehicle and check for an increase of “VHCL/S SE·MTR” value increase.
If the check result is NG, go to AT-127, "
Diagnostic Procedure" .
If the check result is OK, go to following step.
3. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
SAT014K
SAT971J
SAT014K
Page 1581 of 3189
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-125
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

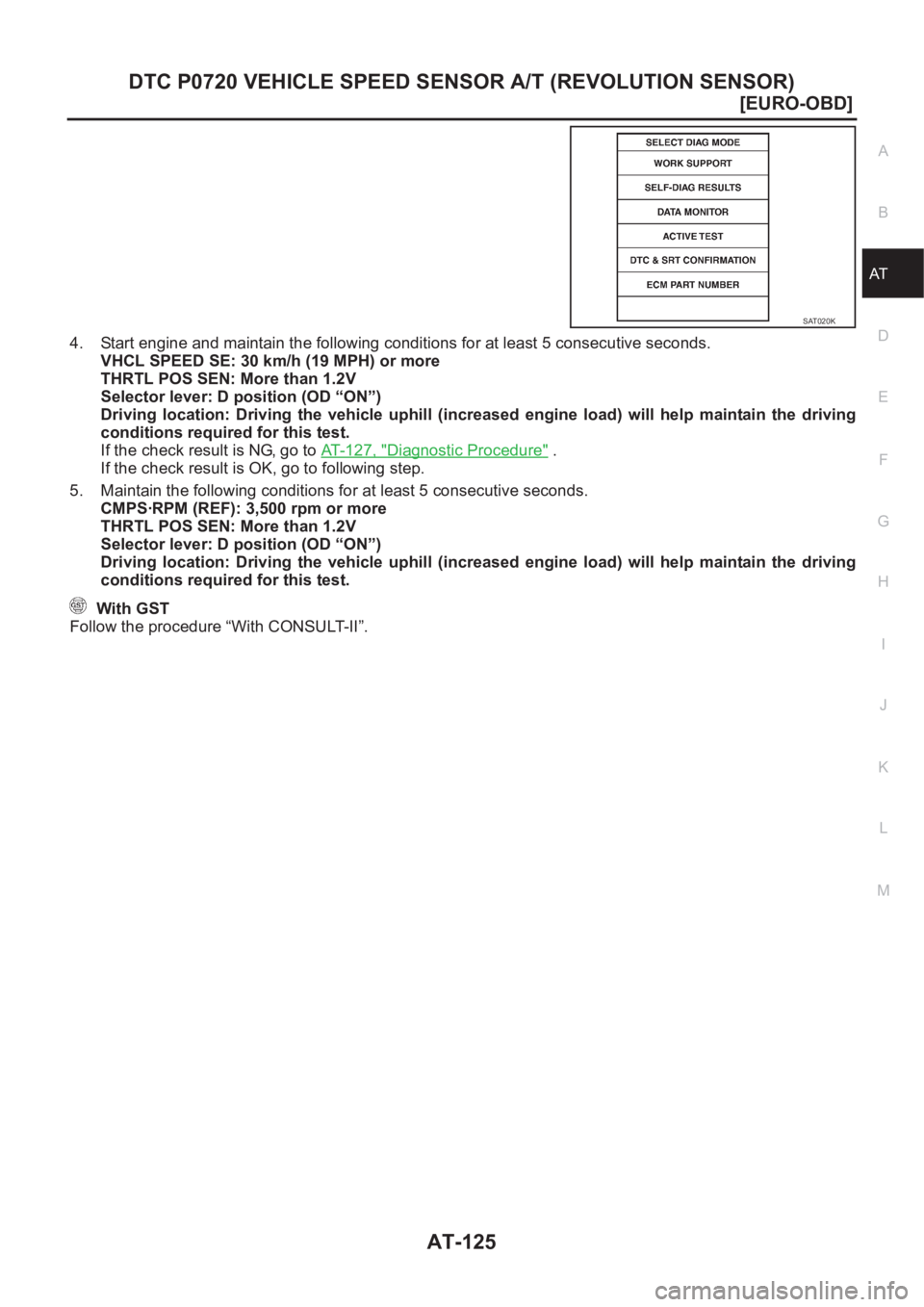

4. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD “ON”)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 1 2 7 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
5. Maintain the following conditions for at least 5 consecutive seconds.
CMPS·RPM (REF): 3,500 rpm or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD “ON”)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
With GST
Follow the procedure “With CONSULT-II”.
SAT020K
Page 1582 of 3189
AT-126
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Wiring Diagram — AT — VSSA/T
ECS007OD
YAT 3 5 7
Page 1583 of 3189
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-127
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS007OE
1.CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 3
NG >> GO TO 2
2.CHECK REVOLUTION SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
–Harness for short or open between TCM, ECM and revolution sensor
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
3.CHECK DTC
Perform AT- 1 2 4 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4
SAT014K
SAT614J
MTBL0581
Page 1584 of 3189
AT-128
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
4. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
