Page 1665 of 3189

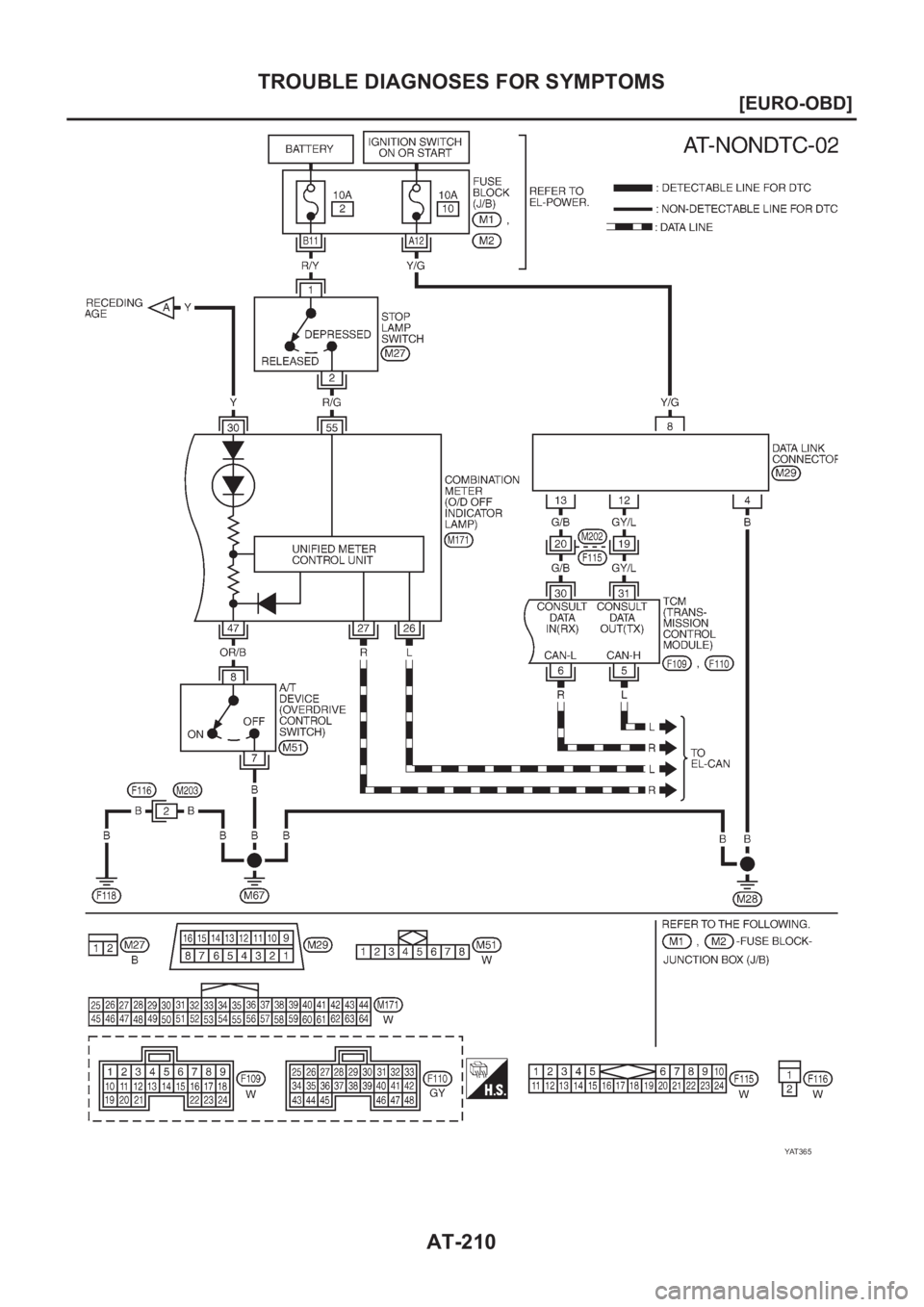

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-209 [EURO-OBD] D E F G H I J K L MA B AT TROUBLE DIAGNOSES FOR SYMPTOMSPFP:00100 Wiring Diagram — AT — NONDTCECS007Q1 YAT 3 6 4

Page 1666 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-210 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS YAT 3 6 5

Page 1667 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-211 [EURO-OBD] D E F G H I J K L MA B AT 1. O/D OFF Indicator Lamp Does Not Come OnECS007Q2 SYMPTOM: O/D OFF indicator lamp does not come on for about 2 seconds when

Page 1668 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-212 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 2. Engine Cannot Be Started In “P” and “N” Position ECS007Q3 SYMPTOM: ●Engine cannot be started with selector lever in “P” or “N” pos

Page 1669 of 3189

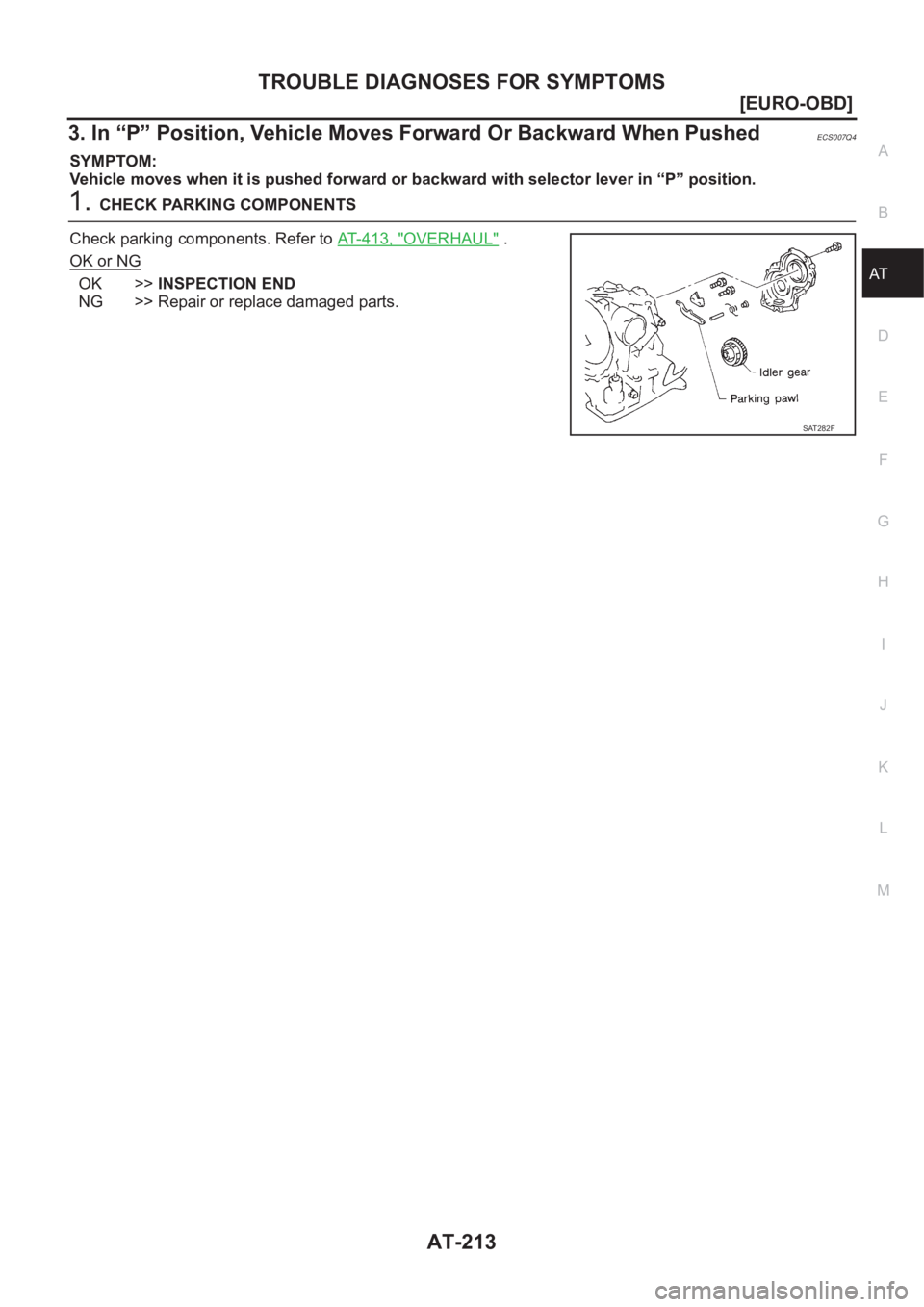

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-213 [EURO-OBD] D E F G H I J K L MA B AT 3. In “P” Position, Vehicle Moves Forward Or Backward When PushedECS007Q4 SYMPTOM: Vehicle moves when it is pushed forwar

Page 1670 of 3189

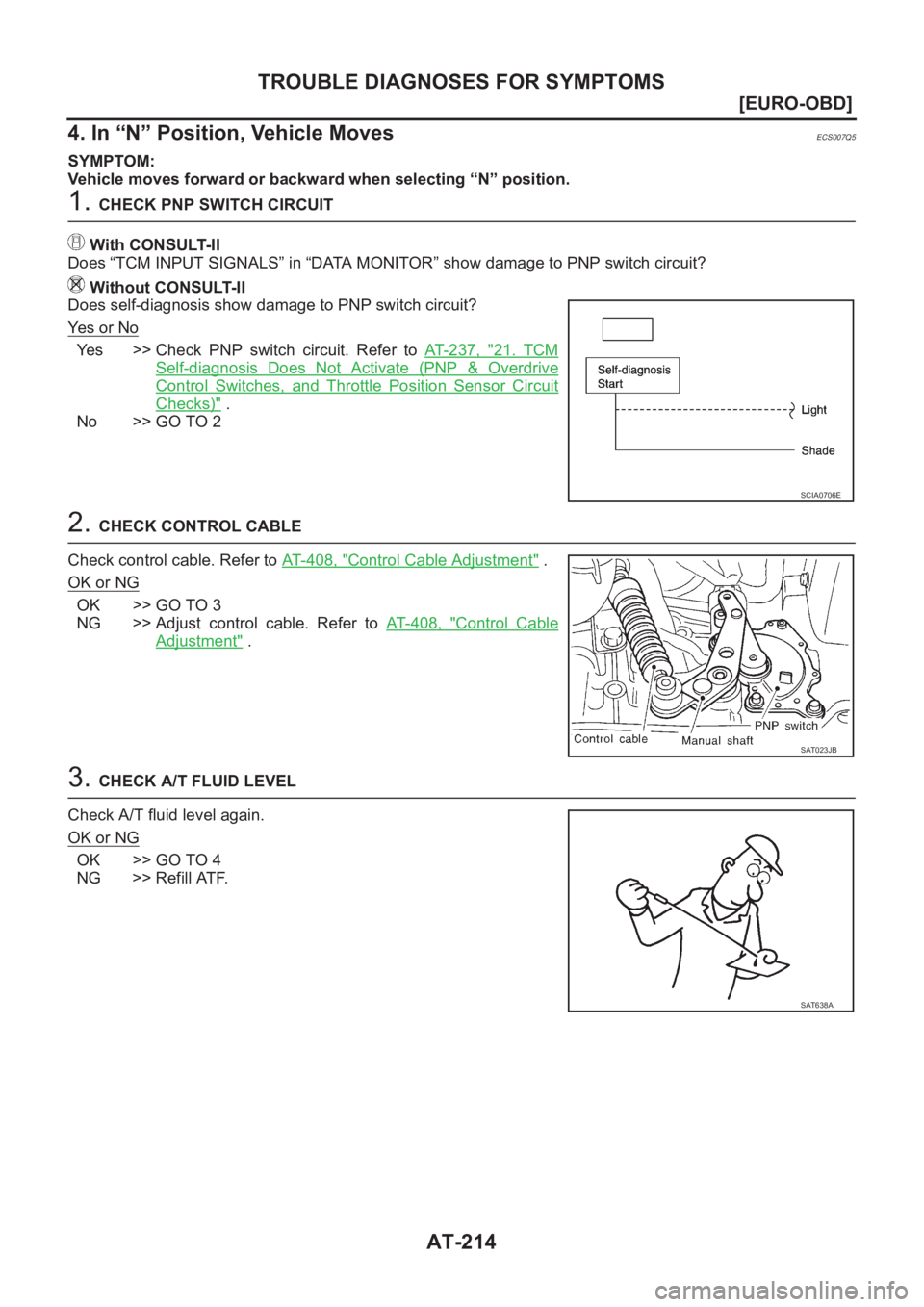

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-214 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 4. In “N” Position, Vehicle Moves ECS007Q5 SYMPTOM: Vehicle moves forward or backward when selecting “N” position. 1. CHECK PNP SWITCH CIRCUIT

Page 1671 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-215 [EURO-OBD] D E F G H I J K L MA B AT 4.CHECK A/T FLUID CONDITION 1. Remove oil pan refer to AT-406, " REMOVAL" . 2. Check A/T fluid condition. OK or NG OK

Page 1672 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-216 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 3. CHECK LINE PRESSURE Check line pressure at idle with selector lever in “D” position. Refer to AT-67, " Line Pressure Test" .
