Page 1897 of 3189
REPAIR FOR COMPONENT PARTS
AT-441
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
3. Remove O-rings from solenoid valves and terminal body.
4. Place upper body facedown, and remove bolts B, C and F.
5. Remove lower body from inter body.
6. Turn over lower body, and accumulator support plates.
7. Remove bolts E, separating plate and separating gaskets from
lower body.
8. Remove check balls, fluid cooler relief valve springs and T/C
pressure holding spring from lower body.
●Be careful not to lose steel balls and relief valve springs.
SAT317G
SAT064F
SAT432D
SAT109D
MCIB9019E
Page 1898 of 3189
AT-442
[ALL]
REPAIR FOR COMPONENT PARTS

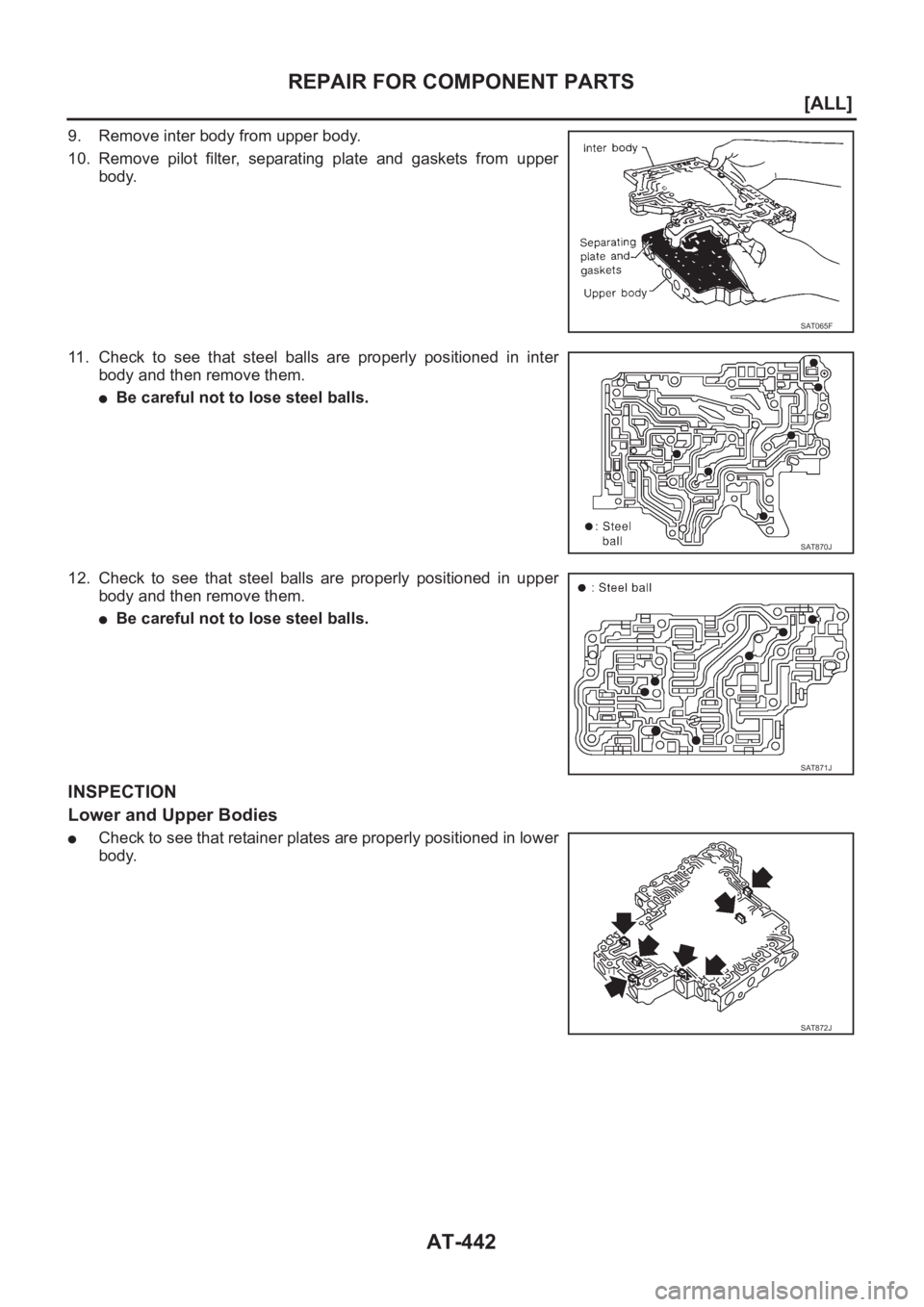

9. Remove inter body from upper body.
10. Remove pilot filter, separating plate and gaskets from upper
body.
11. Check to see that steel balls are properly positioned in inter
body and then remove them.
●Be careful not to lose steel balls.
12. Check to see that steel balls are properly positioned in upper
body and then remove them.
●Be careful not to lose steel balls.
INSPECTION
Lower and Upper Bodies
●Check to see that retainer plates are properly positioned in lower
body.
SAT065F
SAT870J
SAT871J
SAT872J
Page 1899 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-443
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Check to see that retainer plates are properly positioned in
upper body.
●Be careful not to lose these parts.
Oil Strain NISSAN ALMERA N16 2003 Electronic Repair Manual REPAIR FOR COMPONENT PARTS
AT-443
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Check to see that retainer plates are properly positioned in
upper body.
●Be careful not to lose these parts.
Oil Strain](/manual-img/5/57350/w960_57350-1898.png)
REPAIR FOR COMPONENT PARTS
AT-443
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Check to see that retainer plates are properly positioned in
upper body.
●Be careful not to lose these parts.
Oil Strainer
●Check wire netting of oil strainer for damage.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve
●Measure resistance.
●Except for EURO-OBD:
●For shift solenoid valve A, refer to AT- 3 5 7 , "SHIFT SOLENOID
VA LV E A" .
●For shift solenoid valve B, refer to AT- 3 6 2 , "SHIFT SOLENOID
VA LV E B" .
●For line pressure solenoid valve, refer to AT- 3 8 8 , "LINE PRES-
SURE SOLENOID VALVE" .
●For torque converter clutch solenoid valve, refer to AT- 3 7 2 ,
"TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
●For overrun clutch solenoid valve, refer to AT- 3 6 7 , "OVERRUN
CLUTCH SOLENOID VALVE" .
●EURO-OBD:
●For shift solenoid valve A, refer to AT-171, "DTC P0750 SHIFT SOLENOID VALVE A" .
●For shift solenoid valve B, refer to AT-176, "DTC P0755 SHIFT SOLENOID VALVE B" .
●For line pressure solenoid valve, refer to AT-164, "DTC P0745 LINE PRESSURE SOLENOID VALVE" .
●For torque converter clutch solenoid valve, refer to AT-159, "DTC P0740 TORQUE CONVERTER
CLUTCH SOLENOID VALVE" .
●For overrun clutch solenoid valve, refer to AT- 1 8 7 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE"
.
SAT321G
SAT115D
SAT283HB
Page 1900 of 3189
AT-444
[ALL]
REPAIR FOR COMPONENT PARTS

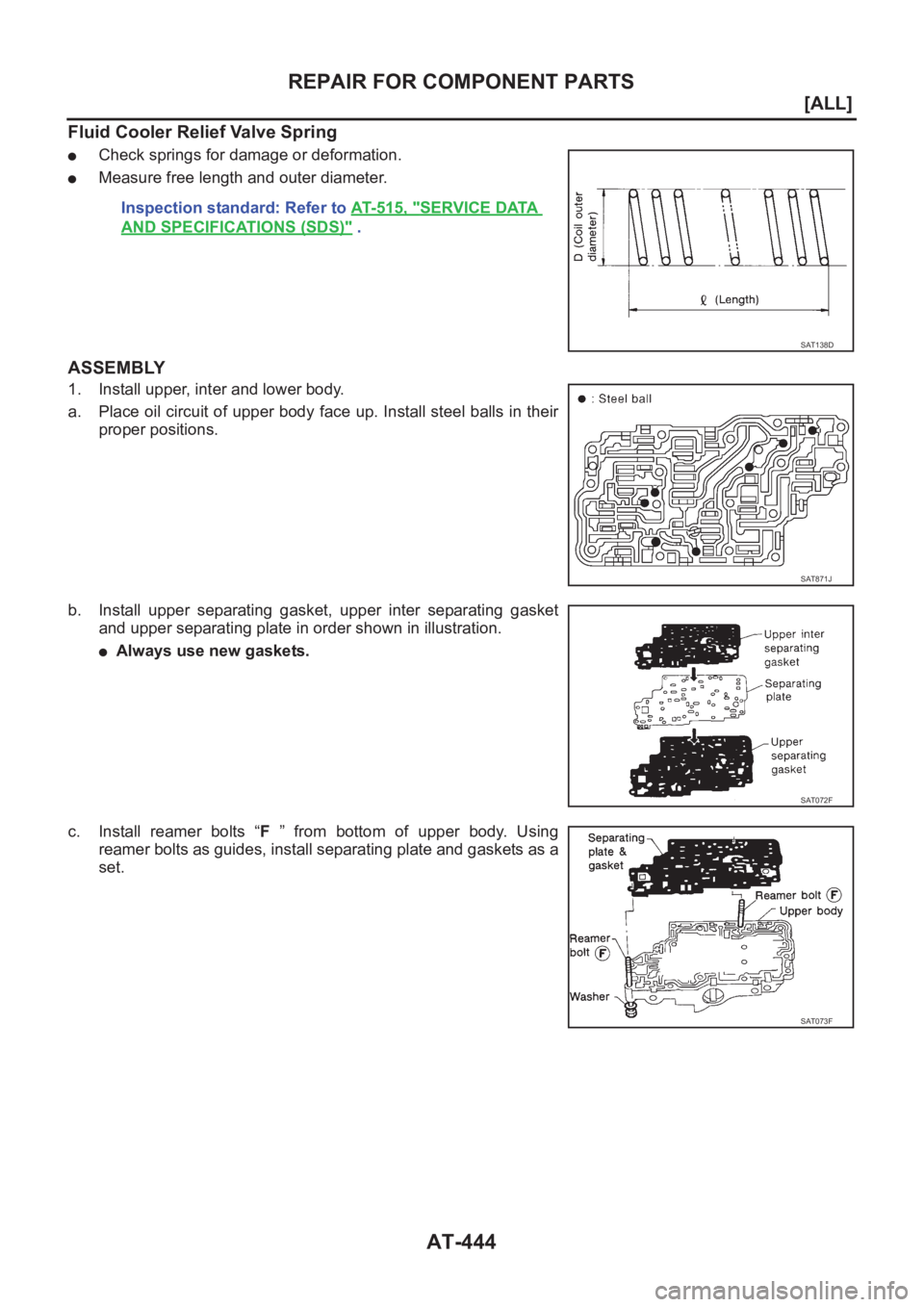

Fluid Cooler Relief Valve Spring
●Check springs for damage or deformation.
●Measure free length and outer diameter.
ASSEMBLY
1. Install upper, inter and lower body.
a. Place oil circuit of upper body face up. Install steel balls in their
proper positions.
b. Install upper separating gasket, upper inter separating gasket
and upper separating plate in order shown in illustration.
●Always use new gaskets.
c. Install reamer bolts “F ” from bottom of upper body. Using
reamer bolts as guides, install separating plate and gaskets as a
set.Inspection standard: Refer to AT- 5 1 5 , "
SERVICE DATA
AND SPECIFICATIONS (SDS)" .
SAT138D
SAT871J
SAT072F
SAT073F
Page 1901 of 3189
REPAIR FOR COMPONENT PARTS
AT-445
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

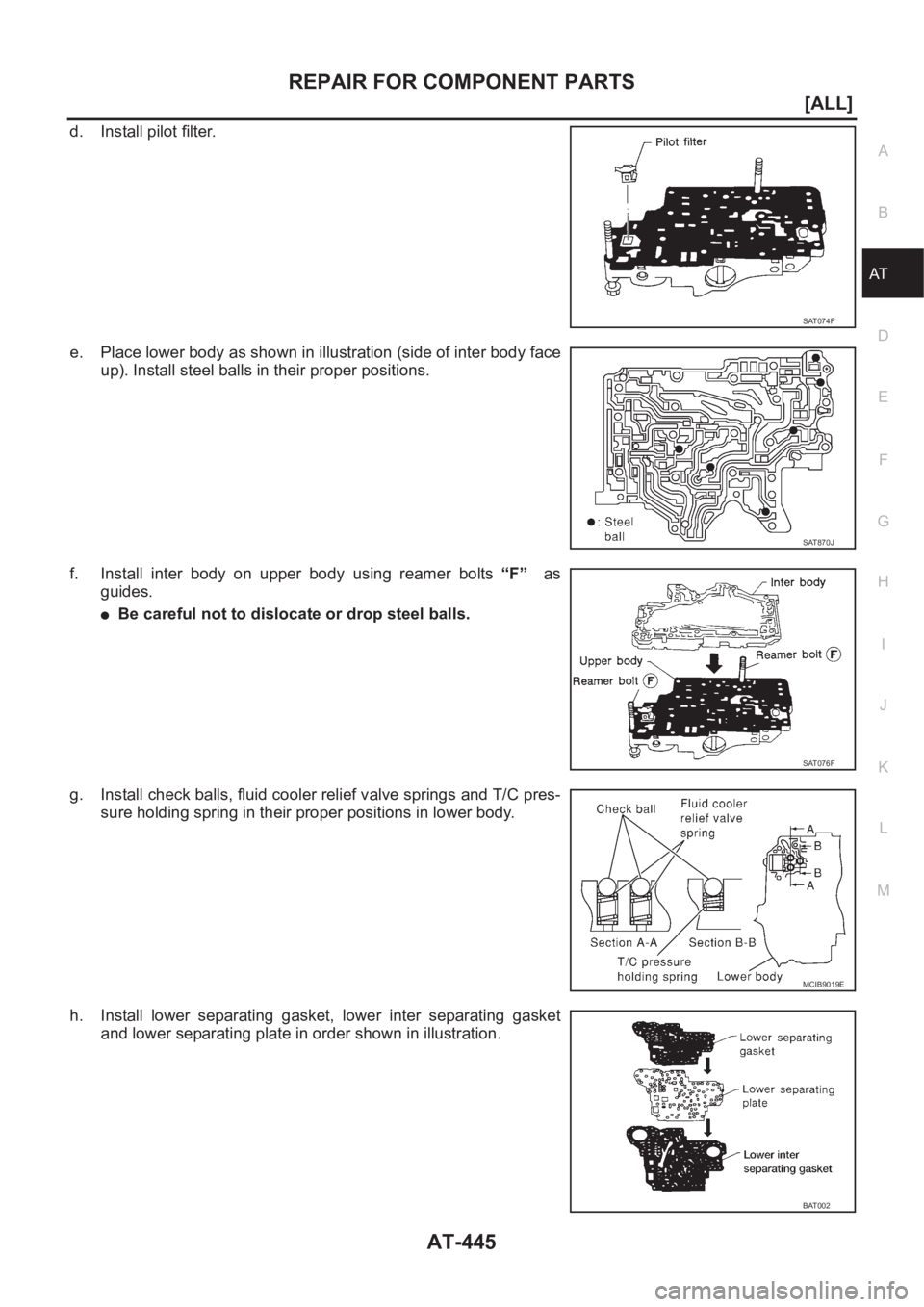

d. Install pilot filter.
e. Place lower body as shown in illustration (side of inter body face
up). Install steel balls in their proper positions.
f. Install inter body on upper body using reamer bolts “F” as
guides.
●Be careful not to dislocate or drop steel balls.
g. Install check balls, fluid cooler relief valve springs and T/C pres-
sure holding spring in their proper positions in lower body.
h. Install lower separating gasket, lower inter separating gasket
and lower separating plate in order shown in illustration.
SAT074F
SAT870J
SAT076F
MCIB9019E
BAT002
Page 1902 of 3189
AT-446
[ALL]
REPAIR FOR COMPONENT PARTS

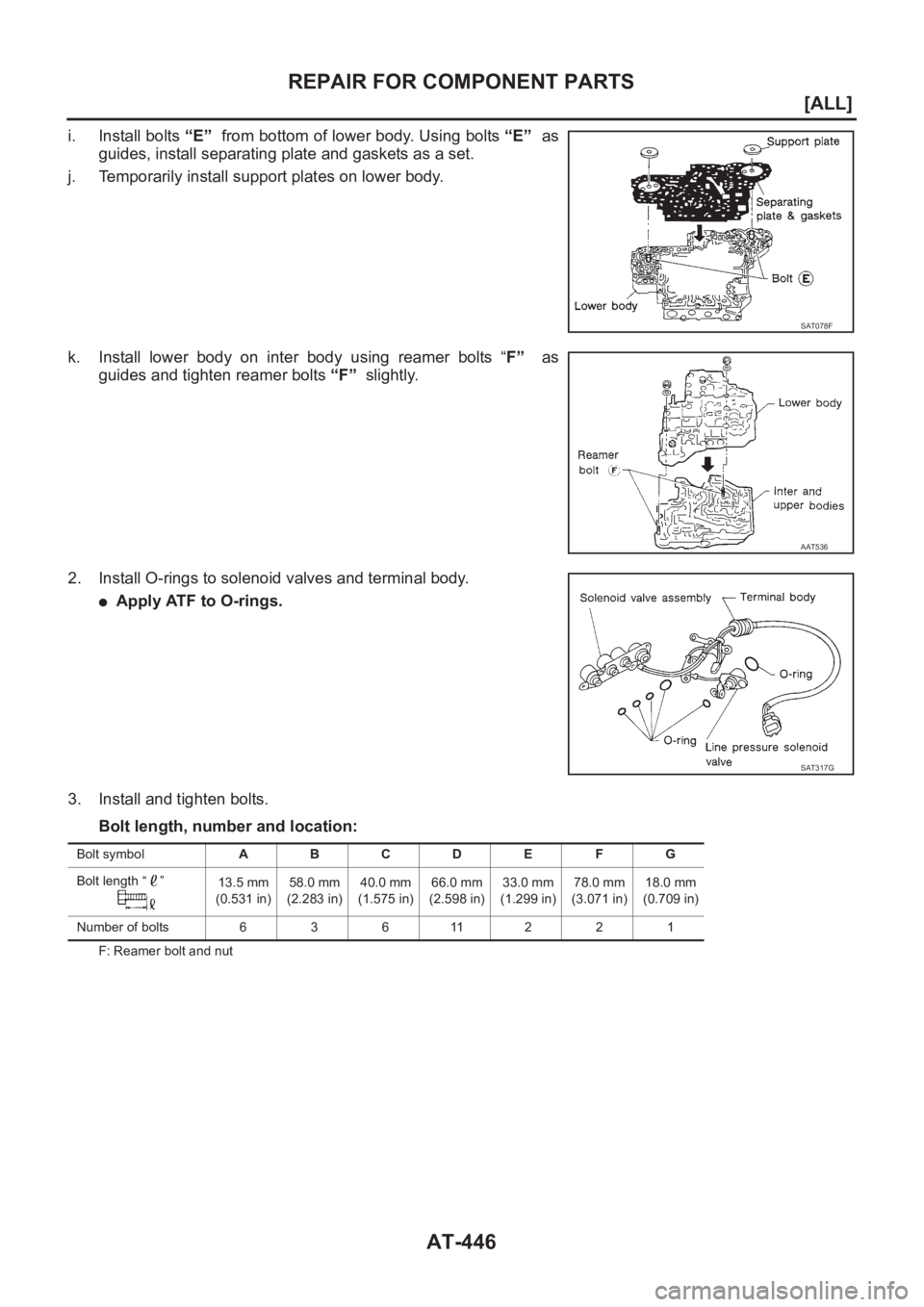

i. Install bolts “E” from bottom of lower body. Using bolts “E” as
guides, install separating plate and gaskets as a set.
j. Temporarily install support plates on lower body.
k. Install lower body on inter body using reamer bolts “F” as
guides and tighten reamer bolts “F” slightly.
2. Install O-rings to solenoid valves and terminal body.
●Apply ATF to O-rings.
3. Install and tighten bolts.
Bolt length, number and location:
F: Reamer bolt and nut
SAT078F
AAT536
SAT317G
Bolt symbolABCDE FG
Bolt length “ ”
13.5 mm
(0.531 in)58.0 mm
(2.283 in)40.0 mm
(1.575 in)66.0 mm
(2.598 in)33.0 mm
(1.299 in)78.0 mm
(3.071 in)18.0 mm
(0.709 in)
Number of bolts 6 3 6 11 2 2 1
Page 1903 of 3189
REPAIR FOR COMPONENT PARTS
AT-447
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
a. Install and tighten bolts B to specified torque.
b. Install solenoid valve assembly and line pressure solenoid valve
to lower body.
c. Remove reamer bolts F and set oil strainer on control valve
assembly.
d. Reinstall reamer bolt F from lower body side.
SAT869J
: 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
SAT081F
SAT316GA
SAT323G
Page 1904 of 3189
AT-448
[ALL]
REPAIR FOR COMPONENT PARTS
e. Set oil strainer, then tighten bolts A , C , D and nuts F to speci-
fied torque.
f. Tighten bolts e to specified torque. : 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
SAT083F
: 3.4 - 4.4 N-m (0.35 - 0.45 kg-m, 30 - 39 in-lb)
SAT084FA
