2003 NISSAN ALMERA N16 Electronic Repair Manual

Page 769 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS
EC-439
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DIAGNOSTIC WORKSHEET
Description
There are many operating conditions that lead to the malfunction  of
engine components. A go

Page 770 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-440
[QG (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

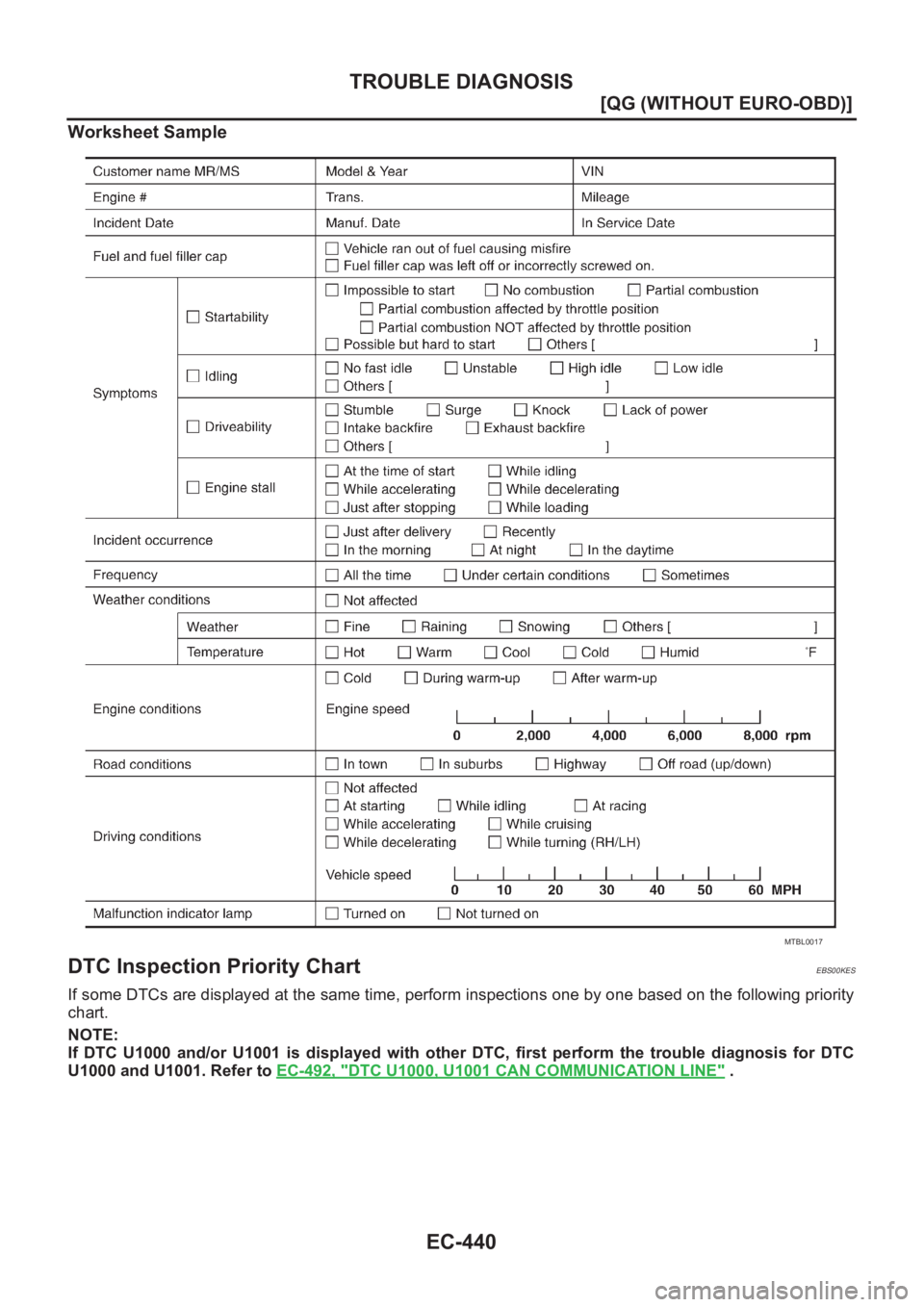

Worksheet Sample
DTC Inspection Priority ChartEBS00KES
If some DTCs are displayed at the same time, perform inspections one by one based on the followi

Page 771 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS
EC-441
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00KET
●When the DTC listed below is detected, the ECM enters the fail-safe mode and the MI lights up.
Pri

Page 772 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-442
[QG (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
●When there is an open circuit on MI circuit, the ECM cannot warn the driver by lighting MI up when there
is malfunction on engine control system.
Th

Page 773 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS
EC-443
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Basic InspectionEBS00KEU
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfu

Page 774 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-444
[QG (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

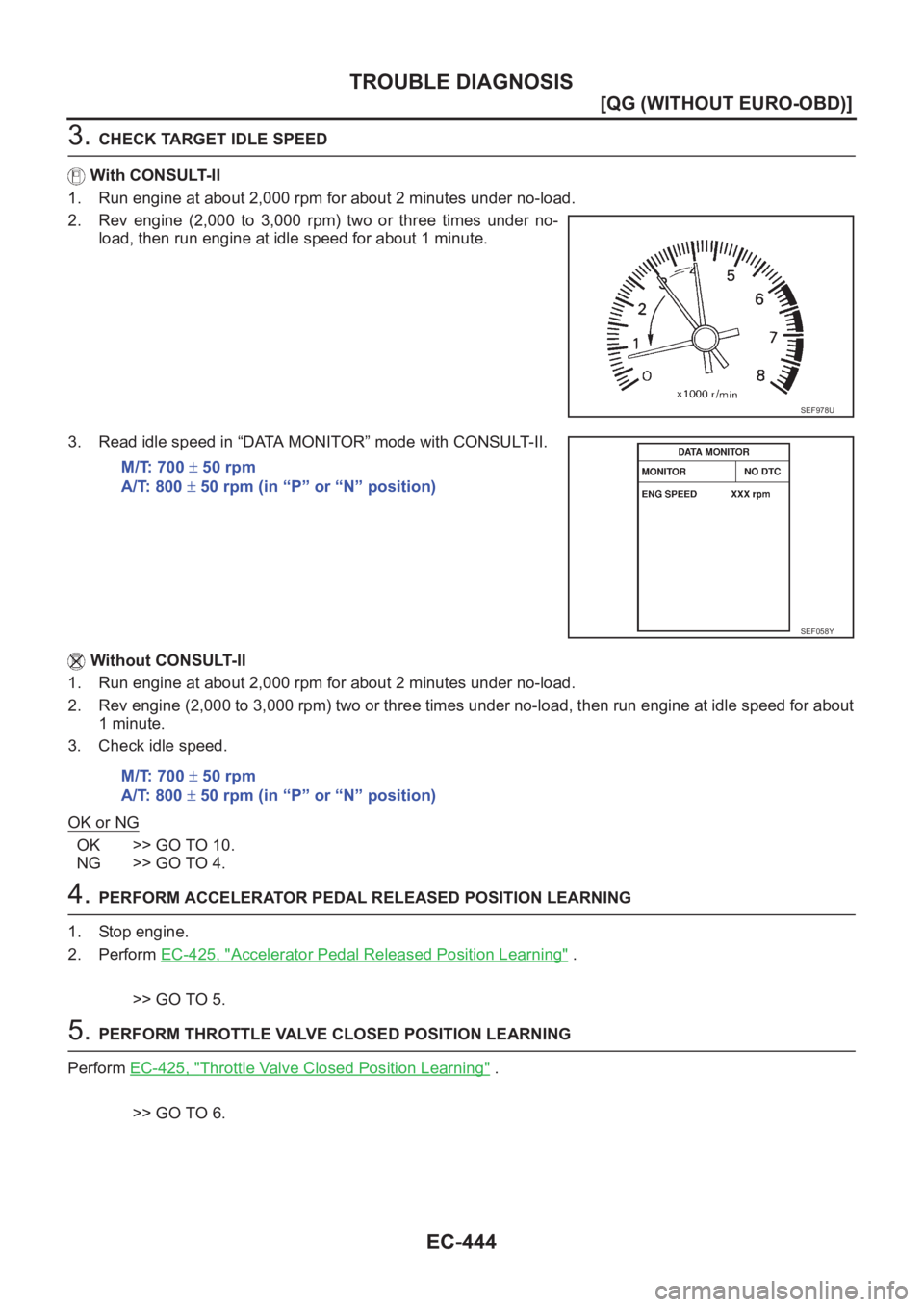

3. CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev  engine  (2,000  to  3,000  rpm)

Page 775 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual TROUBLE DIAGNOSIS
EC-445
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-425, "
Idle Air Volume Learning" .
Ye s   o r   N o
Ye s > > G O   T O

Page 776 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual EC-446
[QG (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

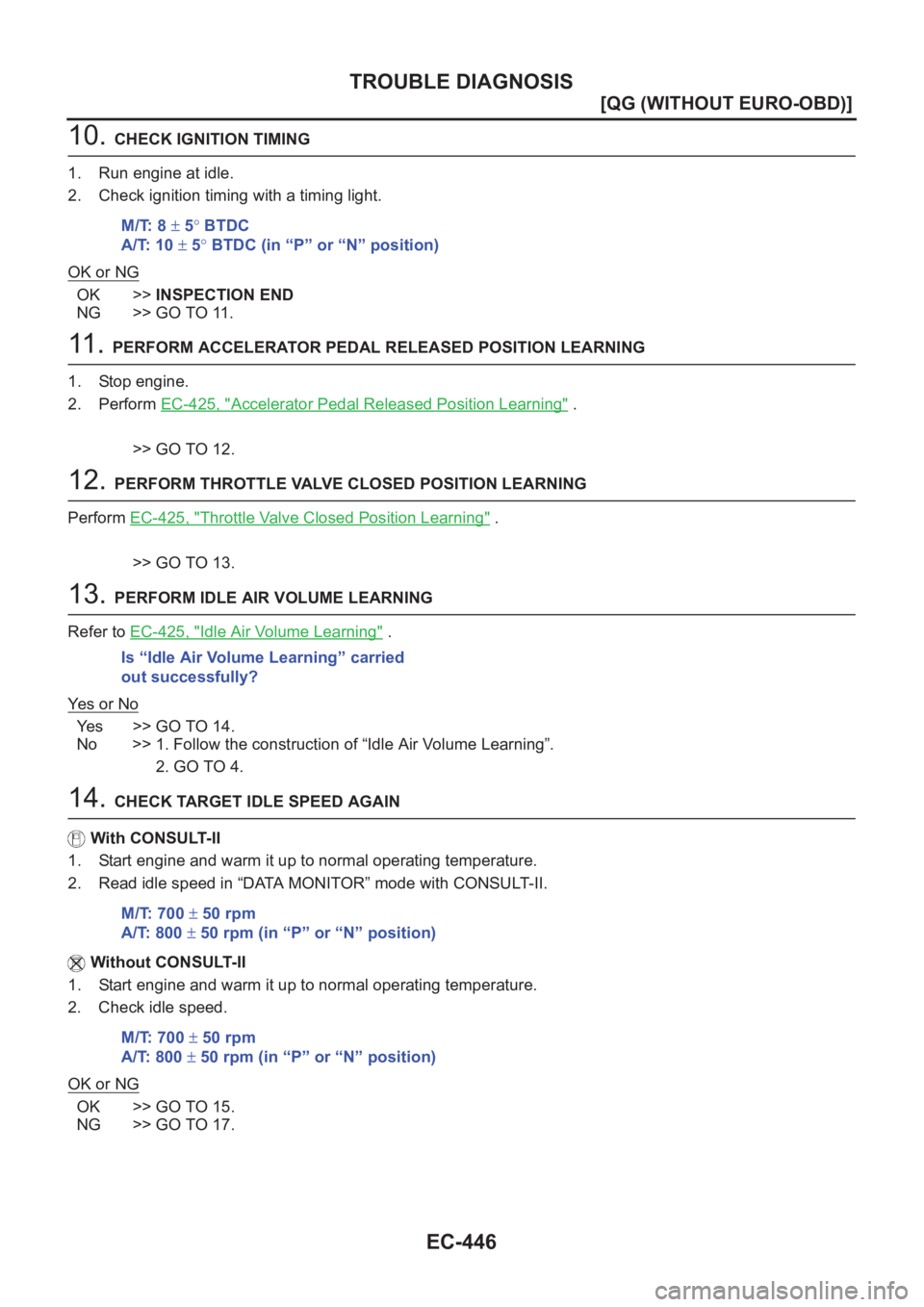

10. CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.
11 .  PERFO
