Page 1537 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-81
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

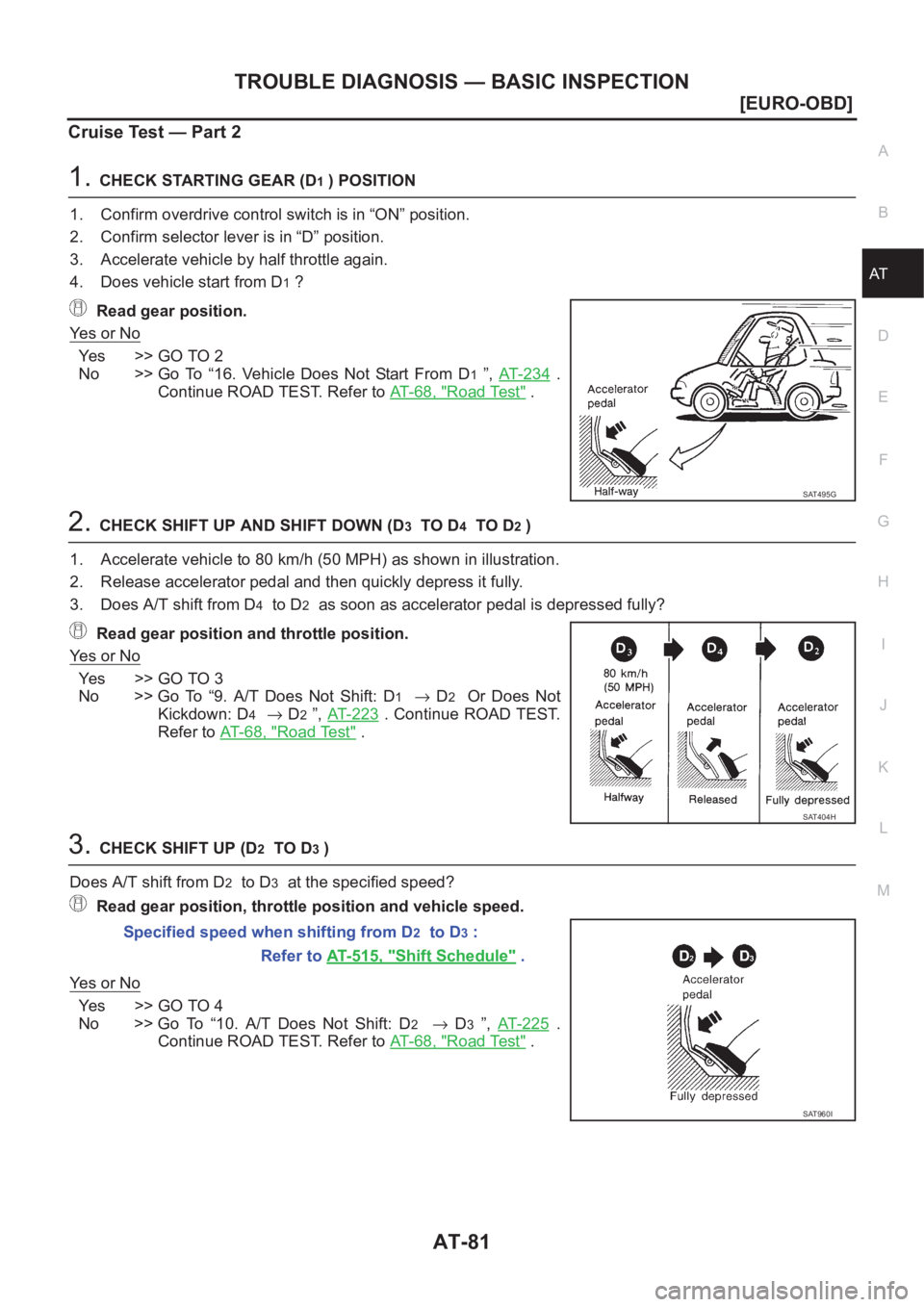

Cruise Test — Part 2
1.CHECK STARTING GEAR (D1 ) POSITION
1. Confirm overdrive control switch is in “ON” positio

Page 1538 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-82
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

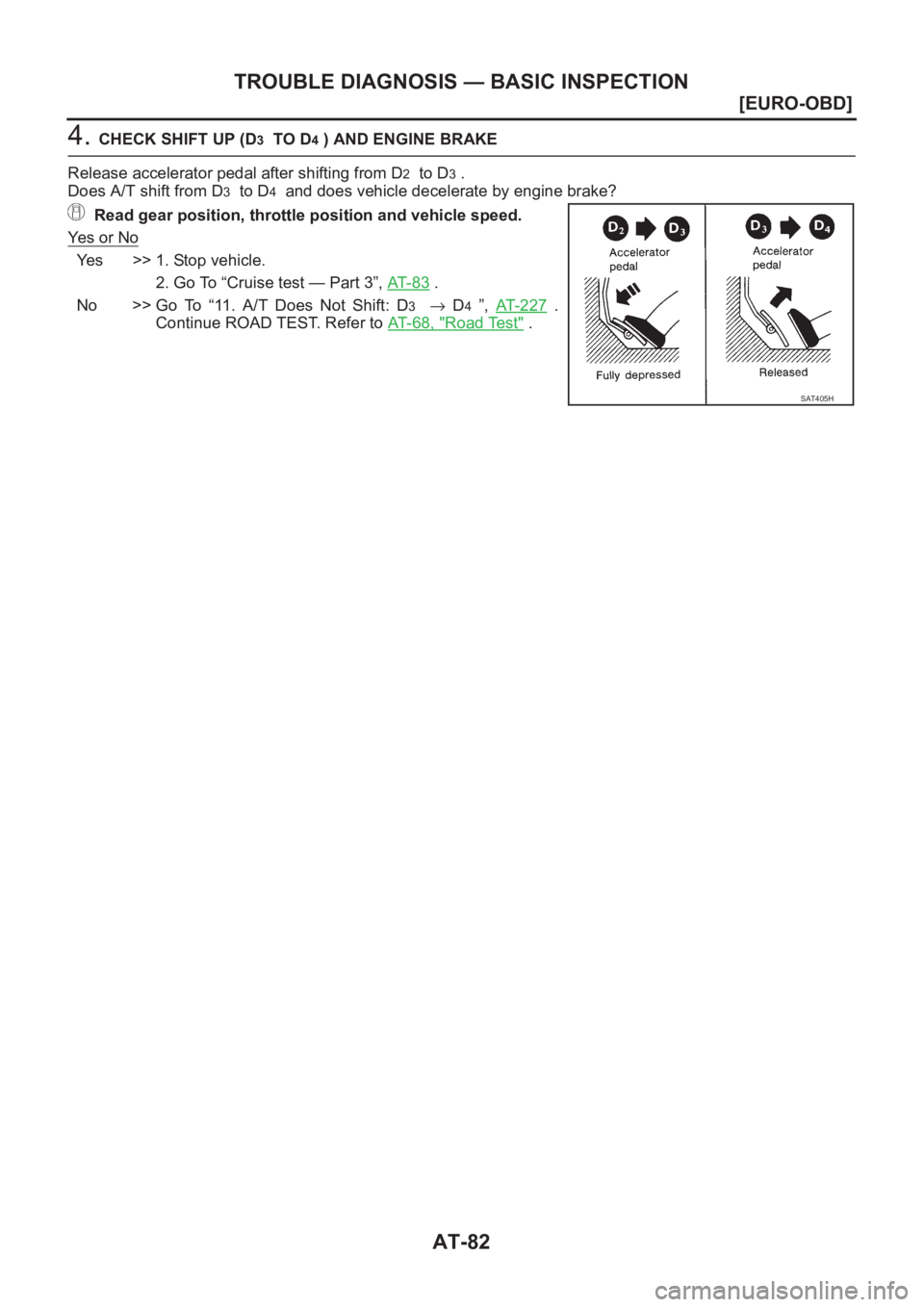

4. CHECK SHIFT UP (D3 TO D4 ) AND ENGINE BRAKE
Release accelerator pedal after shifting from D
2 to D3 .
Does A/T shift from D
3 to D4 and d

Page 1539 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-83
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Cruise Test — Part 3
1.CHECK SHIFT DOWN (D4 TO D3 )
1. Confirm overdrive control switch is in “ON” position.
2.

Page 1540 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-84
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

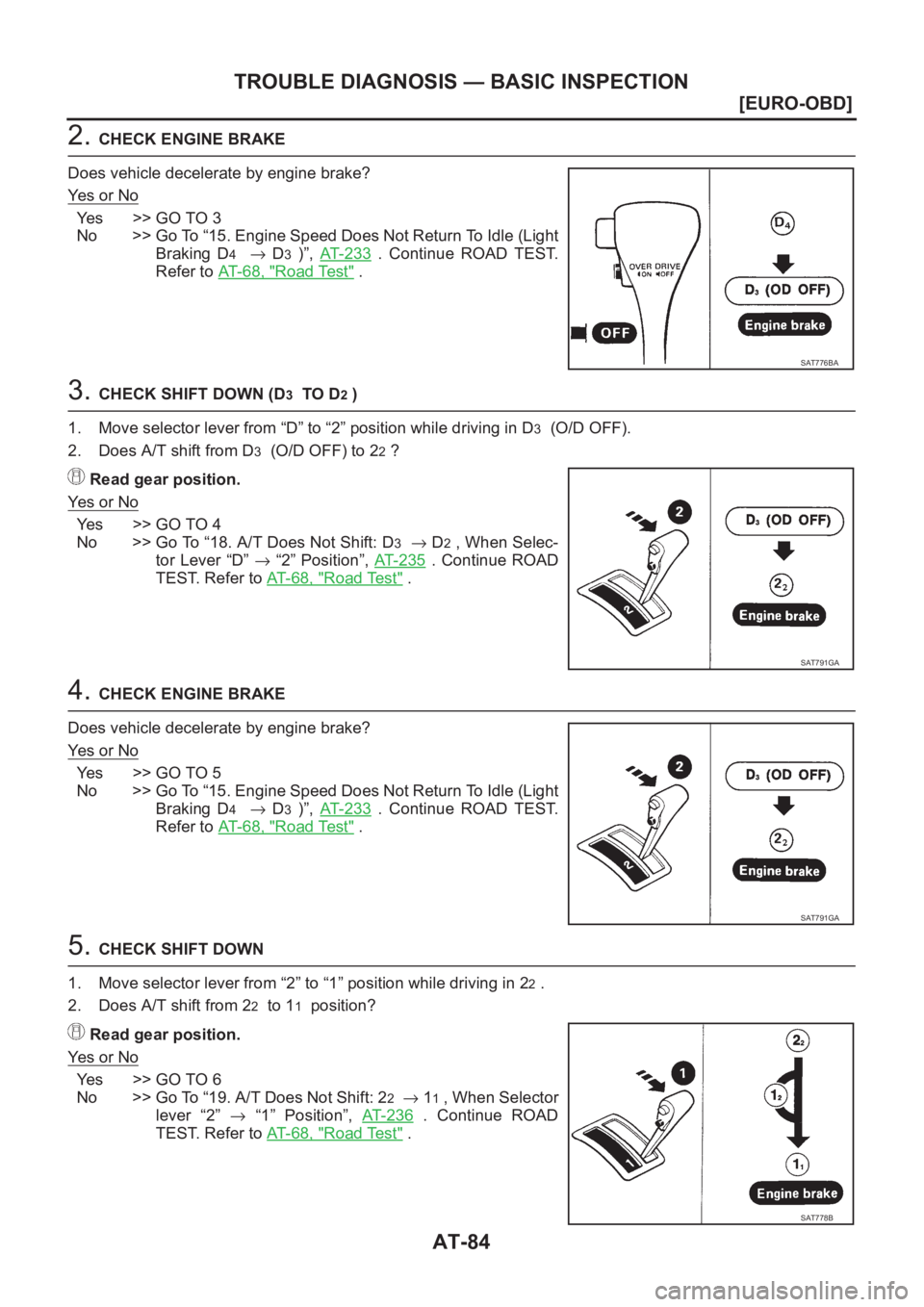

2. CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> GO TO 3
No >> Go To “15. Engine Speed Does Not Return T

Page 1541 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-85
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6.CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> 1. Stop vehicle.
2. Perform self

Page 1542 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-86
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
PFP:00000

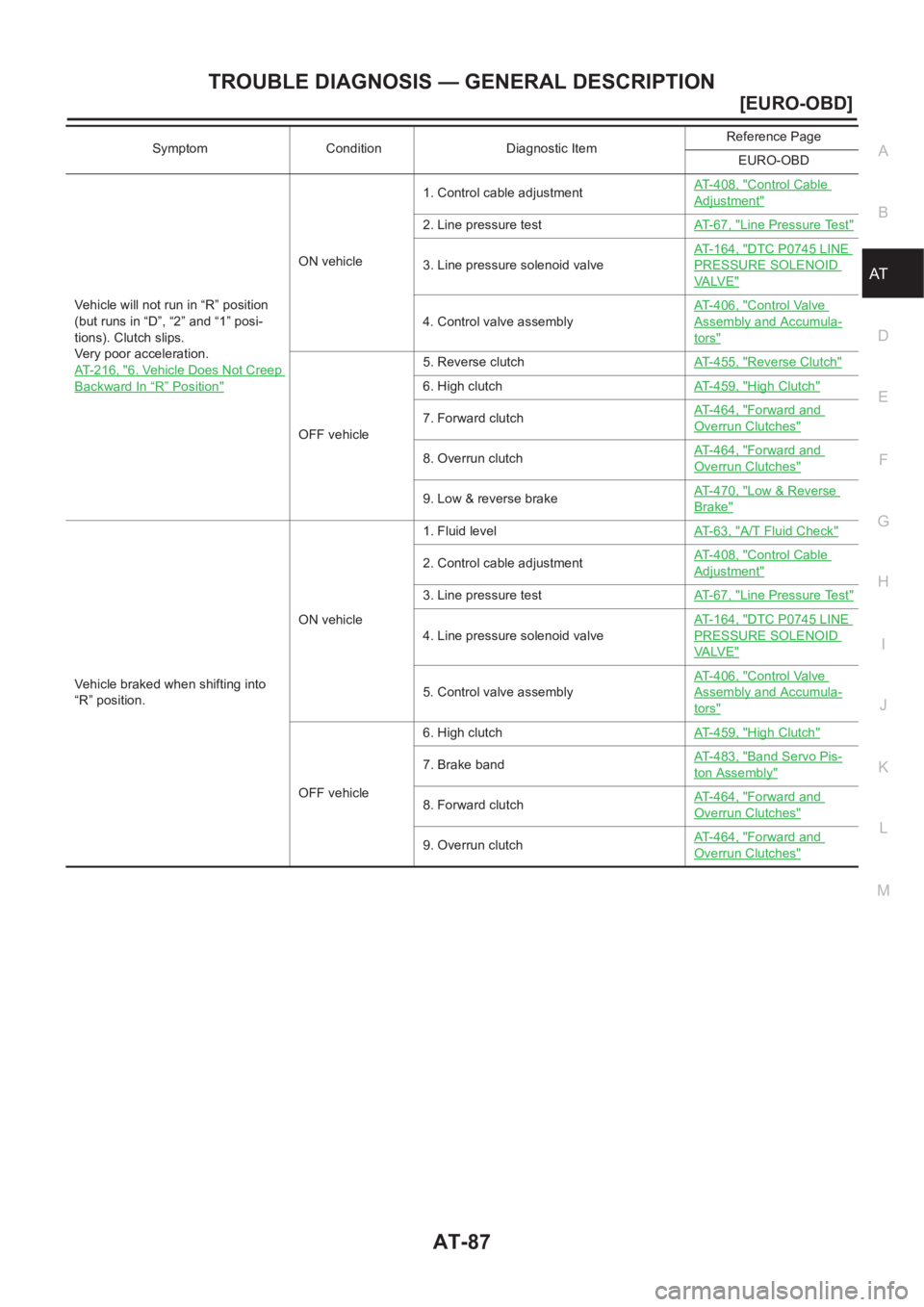

Symptom ChartECS007O0
Numbers are arranged in order of inspection.
Perform inspections st

AT-86
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
PFP:00000
Symptom ChartECS007O0
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
Engine cannot start in “P” and “N”
positions.
AT- 2 1 2 , "
2. Engine Cannot Be
Sta r te d I n “P” and “N” Position"
ON vehicle1. Ignition switch and starter EL-11, SC-13
2. Control cable adjustmentAT-408, "
Control Cable
Adjustment"
3. PNP switch adjustmentAT-408, "
Park/Neutral Posi-
tion (PNP) Switch Adjust-
ment"
Engine starts in position other than
“N” and “P” positions.
AT- 2 1 2 , "
2. Engine Cannot Be
Sta r te d I n “P” and “N” Position"
ON vehicle1. Control cable adjustmentAT-408, "
Control Cable
Adjustment"
2. PNP switch adjustmentAT-408, "
Park/Neutral Posi-
tion (PNP) Switch Adjust-
ment"
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-123, "
DTC P0720 VEHI-
CLE SPEED SENSOR A/T
(REVOLUTION SEN-
SOR)",
AT-201, "
DTC VEHICLE
SPEED SENSOR MTR"
5. Engine speed signalAT-129, "DTC P0725
ENGINE SPEED SIGNAL"
OFF vehicle6. Oil pumpAT-435, "
Oil Pump"
7. Torque converterAT-417, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle moves when changing into
“P” position, or parking gear does
not disengage when shifted out of
“P” position.
AT- 2 1 3 , "
3. In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"
ON vehicle 1. Control cable adjustmentAT-408, "Control Cable
Adjustment"
OFF vehicle 2. Parking componentsAT-413, "
Output Shaft, Idler
Gear, Reduction Pinion
Gear and Bearing
Retainer",AT-432,
"REPAIR FOR COMPO-
NENT PARTS"
Vehicle runs in “N” position.
AT- 2 1 4 , "
4. In “N” Position, Vehicle
Moves"
ON vehicle 1. Control cable adjustmentAT-408, "Control Cable
Adjustment"
OFF vehicle2. Forward clutchAT-464, "
Forward and
Overrun Clutches"
3. Reverse clutchAT-455, "Reverse Clutch"
4. Overrun clutchAT-464, "Forward and
Overrun Clutches"

Page 1543 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-87
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle will not run in “R” position
(but runs in “D”, “2” and “1” posi-
tions). Clutch slips.
Ver

Page 1544 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-88
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Sharp shock in shifting from “N” to
“D” position.ON vehicle1. Engine idling rpmEC-30, "
Idle Speed and
Ignition Timing Check

AT-88
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Sharp shock in shifting from “N” to
“D” position.ON vehicle1. Engine idling rpmEC-30, "
Idle Speed and
Ignition Timing Check"
2. Throttle position sensor [Accelerator
pedal position (APP) sensor]AT-181, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. A/T fluid temp sen circ and TCM pow sourAT-195, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
5. Engine speed signalAT-129, "DTC P0725
ENGINE SPEED SIGNAL"
6. Line pressure solenoid valveAT-164, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
7. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
8. Accumulator N-DAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 9. Forward clutchAT-464, "Forward and
Overrun Clutches"
Vehicle will not run in “D” and “2”
positions (but runs in “1” and “R”
positions).ON vehicle 1. Control cable adjustmentAT-408, "
Control Cable
Adjustment"
OFF vehicle 2. Low one-way clutchAT-413, "
OVERHAUL",AT-
417, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT-219, "
7. Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Line pressure solenoid valveAT-164, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
4. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
5. Accumulator N-DAT-406, "
Control Valve
Assembly and Accumula-
tors"
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT-219, "
7. Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
OFF vehicle6. Reverse clutchAT-455, "
Reverse Clutch"
7. High clutchAT-459, "High Clutch"
8. Forward clutchAT-464, "Forward and
Overrun Clutches"
9. Forward one-way clutchAT-413, "OVERHAUL"
10. Low one-way clutchAT-413, "
OVERHAUL",AT-
417, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
