Page 1825 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERRUN CLUTCH SOLENOID VALVE AT-369 [ALL] D E F G H I J K L MA B AT Wiring Diagram — AT — OVRCSVECS007S5 YAT 2 4 4

Page 1826 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-370 [ALL] OVERRUN CLUTCH SOLENOID VALVE Diagnostic Procedure ECS007S6 1. CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect terminal cord assembly connector in engi

Page 1827 of 3189

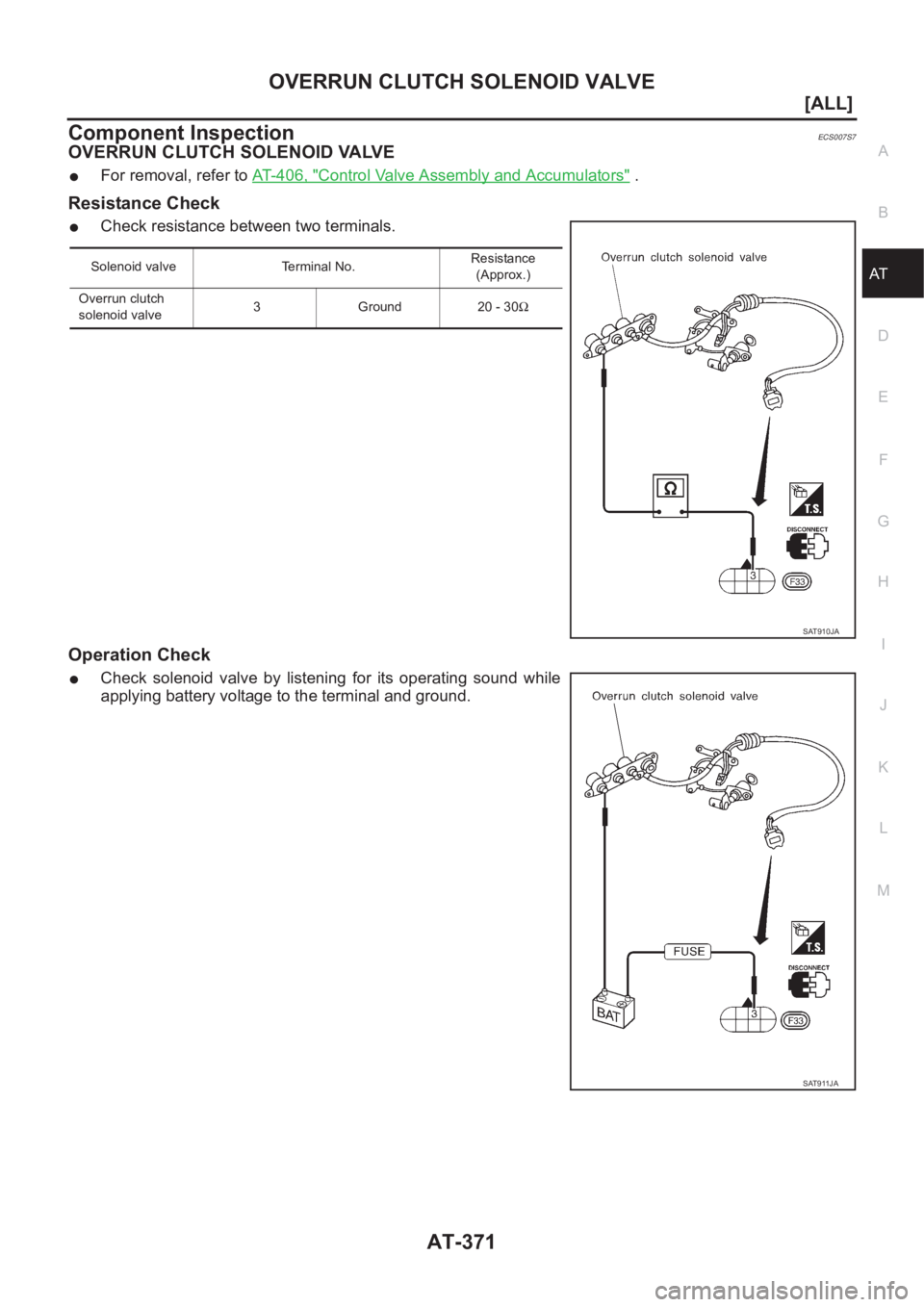

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERRUN CLUTCH SOLENOID VALVE AT-371 [ALL] D E F G H I J K L MA B AT Component InspectionECS007S7 OVERRUN CLUTCH SOLENOID VALVE ●For removal, refer to AT-406, "Control Valve Assembly and Accumul

Page 1828 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-372 [ALL] TORQUE CONVERTER CLUTCH SOLENOID VALVE TORQUE CONVERTER CLUTCH SOLENOID VALVE PFP:31940 DescriptionECS007S8 The torque converter clutch solenoid valve is activated, with the gear in “D

Page 1829 of 3189

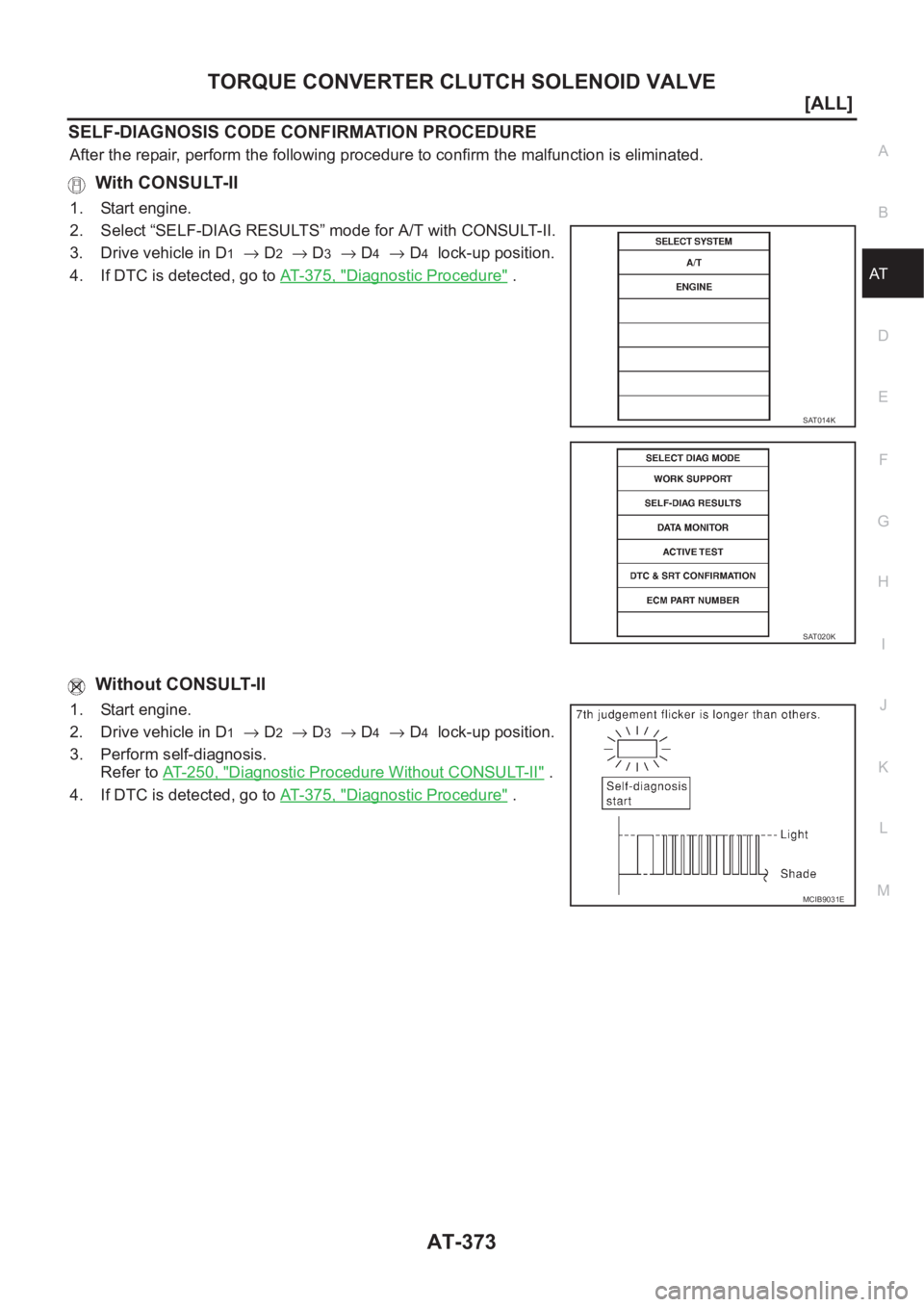

NISSAN ALMERA N16 2003 Electronic Repair Manual TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-373 [ALL] D E F G H I J K L MA B AT SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE After the repair, perform the following procedure to confirm the malfunction is

Page 1830 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-374 [ALL] TORQUE CONVERTER CLUTCH SOLENOID VALVE Wiring Diagram — AT — TCV ECS007S9 YAT 2 3 9

Page 1831 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-375 [ALL] D E F G H I J K L MA B AT Diagnostic ProcedureECS007SA 1.CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect termina

Page 1832 of 3189

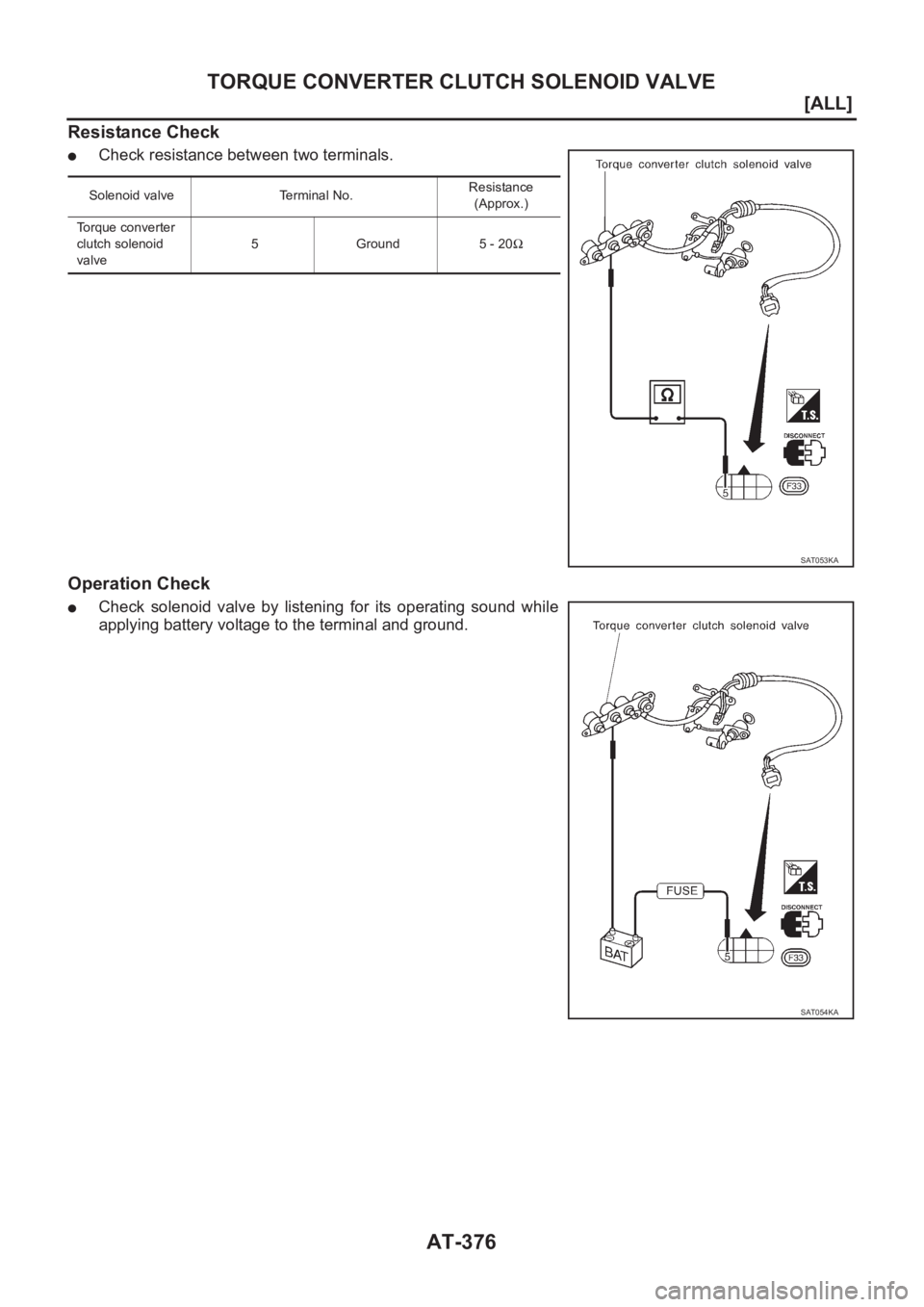

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-376 [ALL] TORQUE CONVERTER CLUTCH SOLENOID VALVE Resistance Check ●Check resistance between two terminals. Operation Check ●Check solenoid valve by listening for its operating sound wh
