Page 849 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0138 HO2S2
EC-519
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

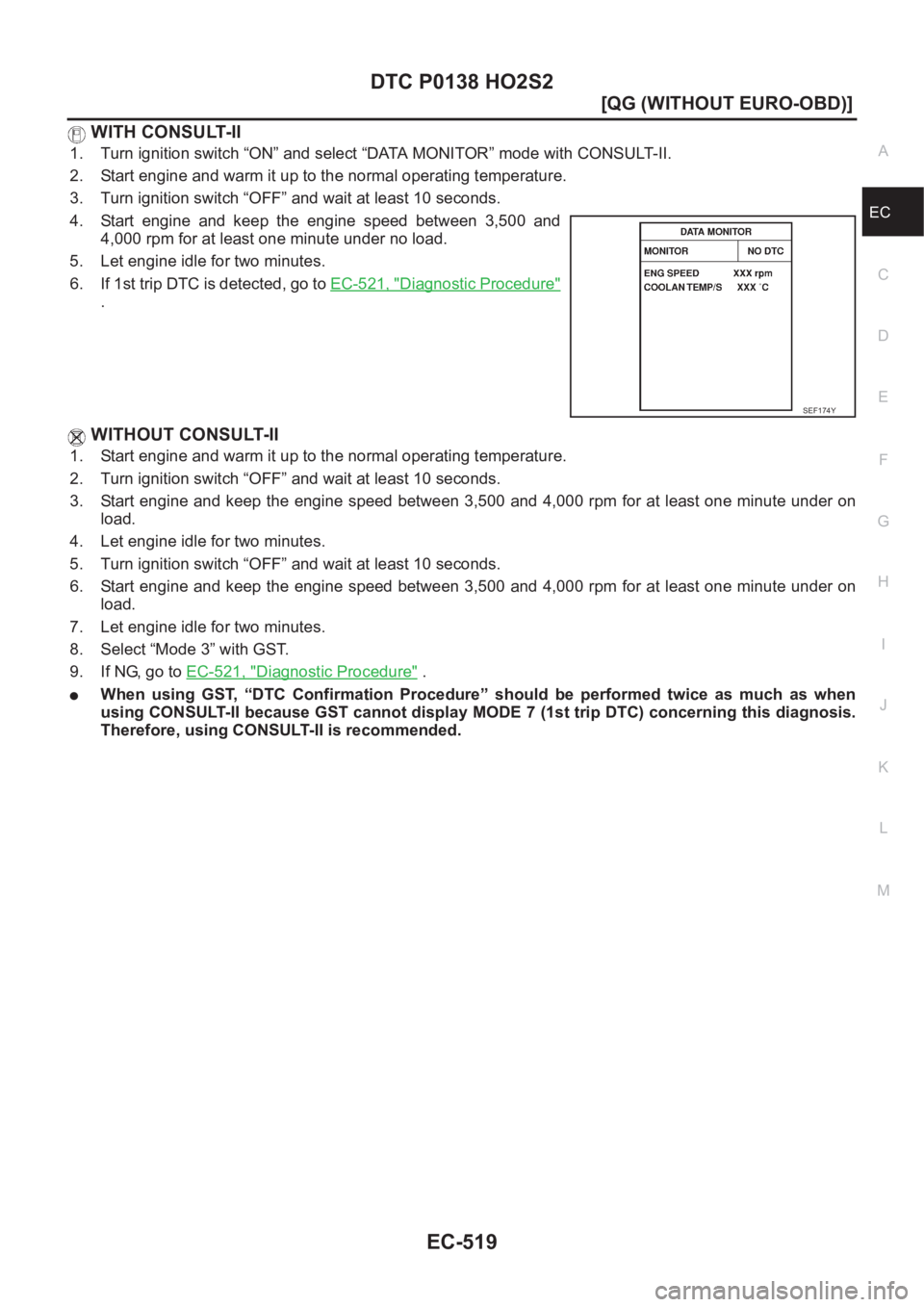

WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.
2. Start engine and warm

Page 850 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-520
[QG (WITHOUT EURO-OBD)]
DTC P0138 HO2S2
Wiring Diagram
EBS00KGG
YEC283A

Page 851 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0138 HO2S2
EC-521
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground termi

Page 852 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-522
[QG (WITHOUT EURO-OBD)]
DTC P0138 HO2S2
3. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 16 and HO2S2 terminal 2.
Refer to Wiring Diagram.

Page 853 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0138 HO2S2
EC-523
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

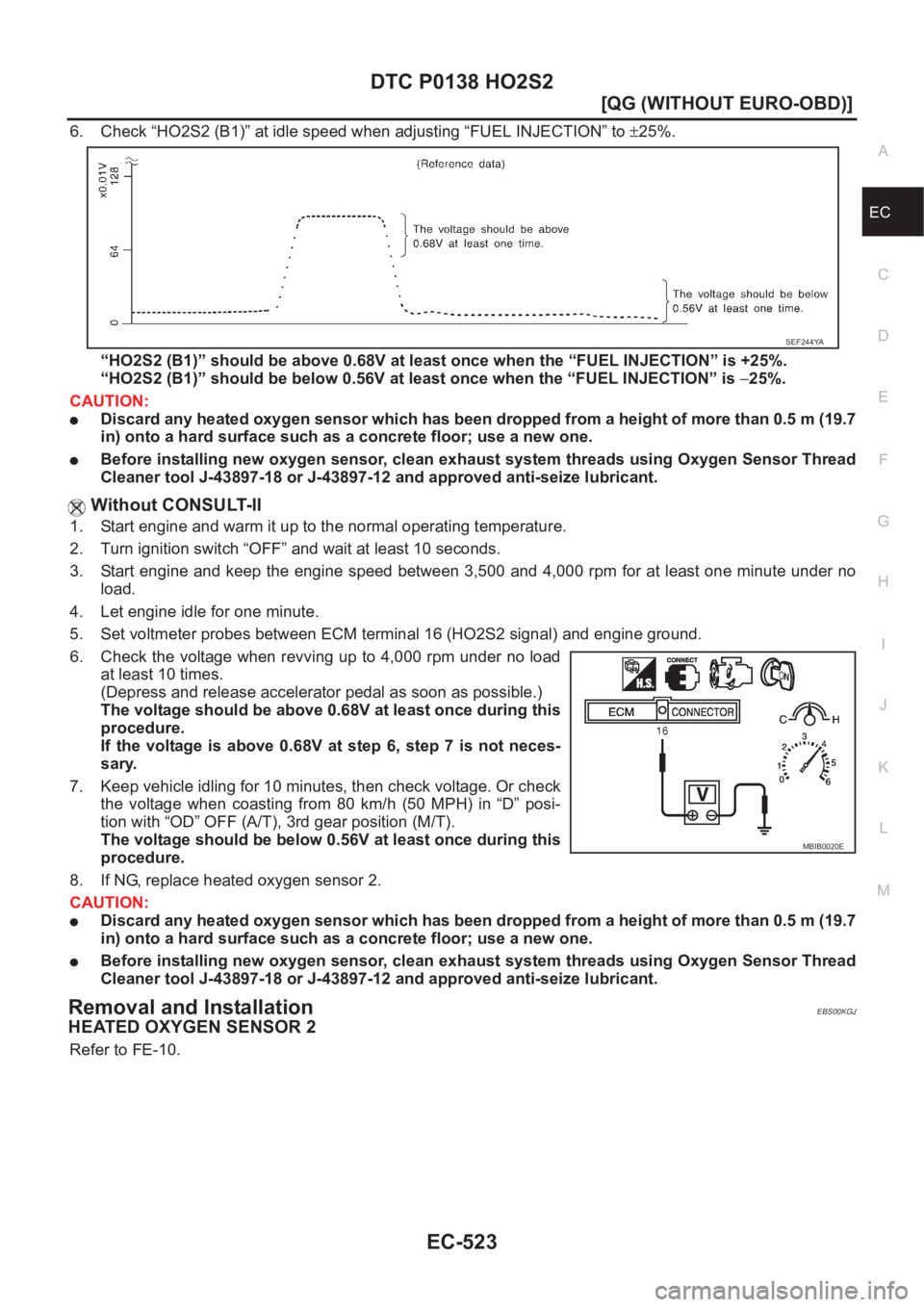

6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at

DTC P0138 HO2S2
EC-523
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.56V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and engine ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 6, step 7 is not neces-
sary.
7. Keep vehicle idling for 10 minutes, then check voltage. Or check
the voltage when coasting from 80 km/h (50 MPH) in “D” posi-
tion with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.56V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationEBS00KGJ
HEATED OXYGEN SENSOR 2
Refer to FE-10.
SEF244YA
MBIB0020E

Page 854 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-524
[QG (WITHOUT EURO-OBD)]
DTC P0221 TP SENSOR
DTC P0221 TP SENSOR
PFP:16119
Component DescriptionEBS00KGK
Electric Throttle Control Actuator consists of throttle control motor,
throttle po

EC-524
[QG (WITHOUT EURO-OBD)]
DTC P0221 TP SENSOR
DTC P0221 TP SENSOR
PFP:16119
Component DescriptionEBS00KGK
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeEBS00KGL
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00KGM
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KGN
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
●Shift lever:
D (A/T models)
1st (M/T models)Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0221
0221Throttle position sensor
circuit range/performance
problemRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.
●Harness or connector
(The TP sensor 1 and 2 circuit is open or
shorted.)
●Electric throttle control actuator
(TP sensor 1 and 2)
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 855 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0221 TP SENSOR
EC-525
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

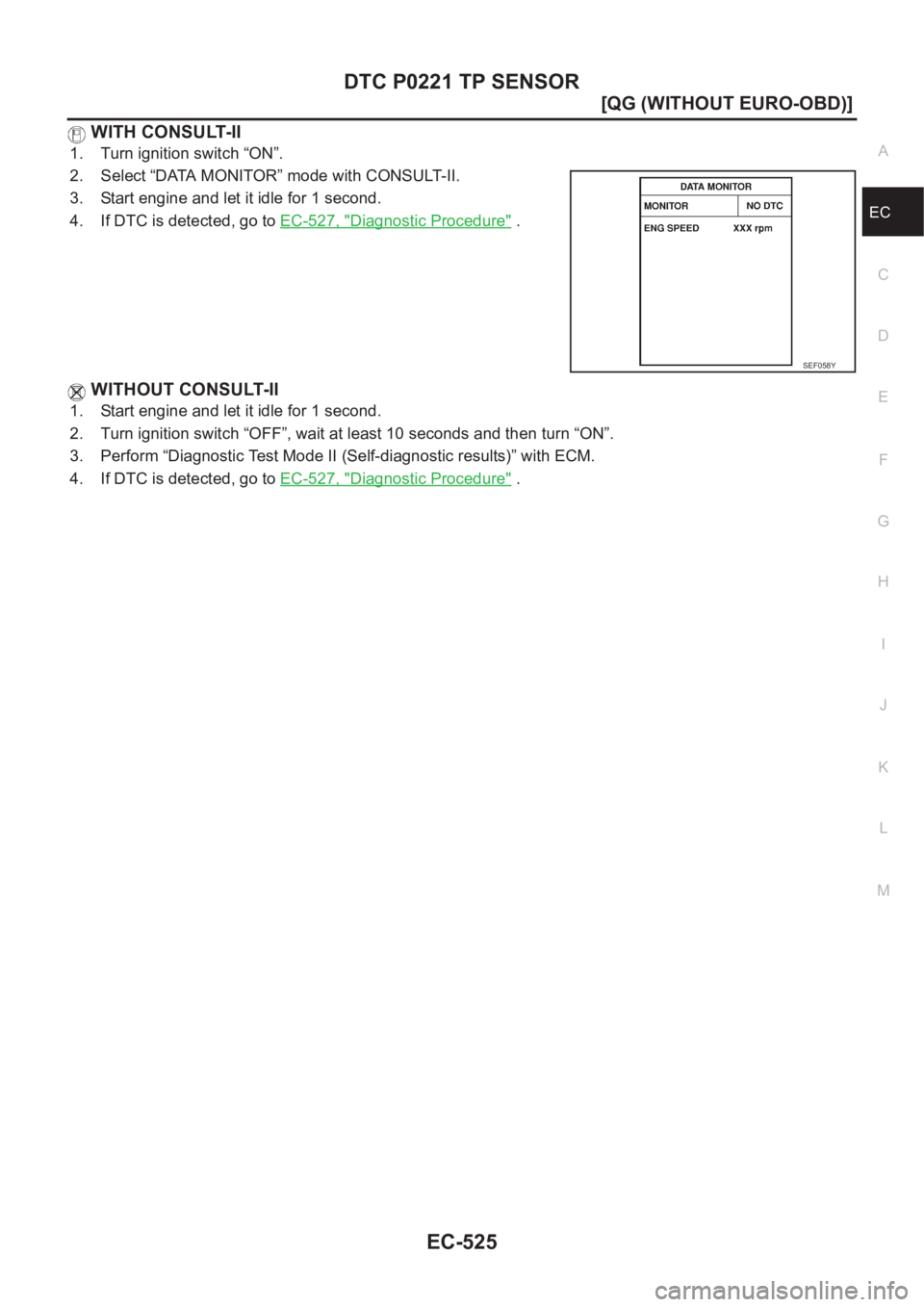

WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and l

Page 856 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-526
[QG (WITHOUT EURO-OBD)]
DTC P0221 TP SENSOR
Wiring Diagram
EBS00KGO
YEC286A
