Page 881 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0327, P0328 KS
EC-551
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KHJ
YEC290A

Page 882 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-552
[QG (WITHOUT EURO-OBD)]
DTC P0327, P0328 KS
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in

Page 883 of 3189

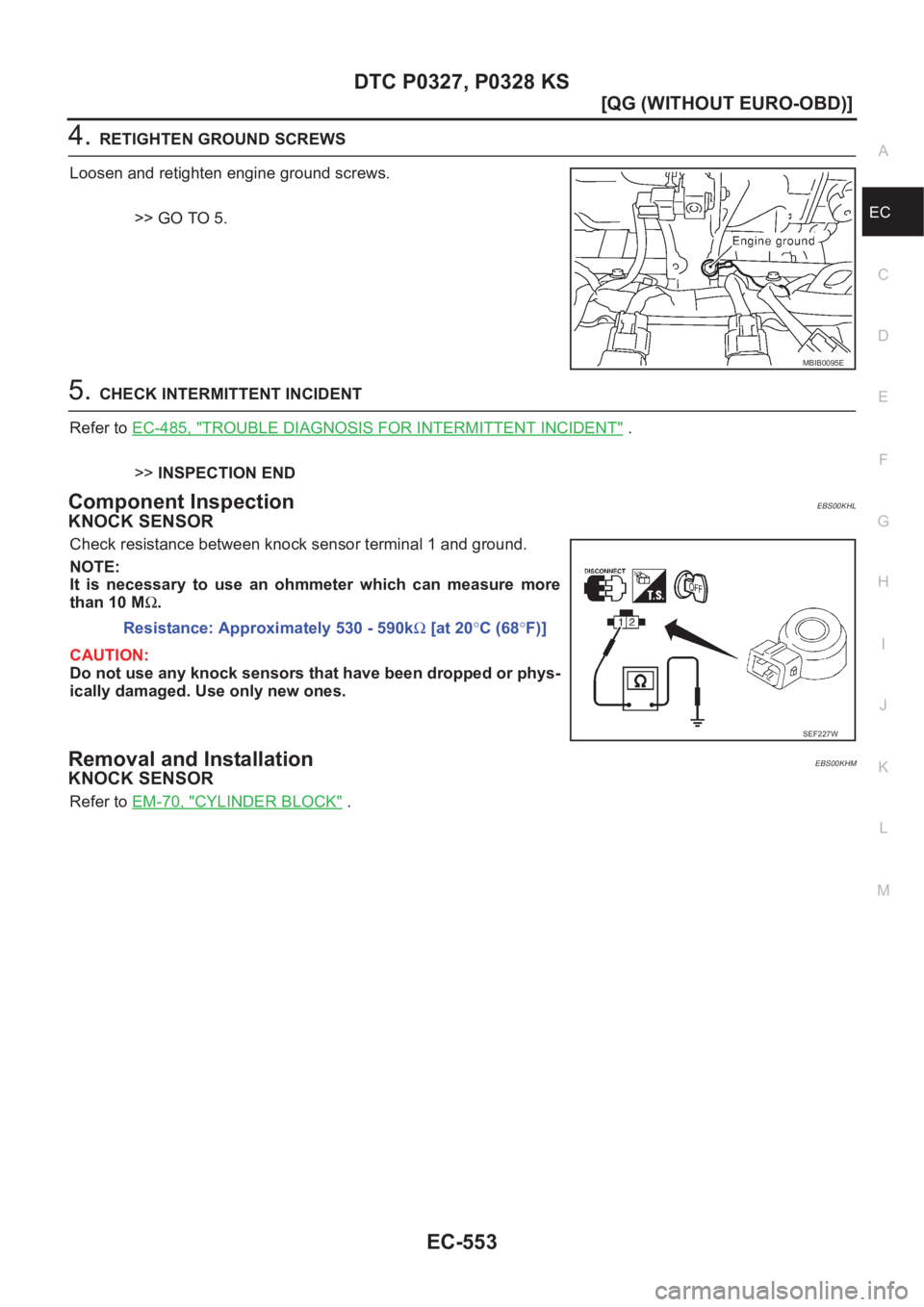

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0327, P0328 KS
EC-553
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.RETIGHTEN GROUND SCREWS
Loosen and retighten engine ground screws.
>> GO TO 5.
5.CHECK INTERMITTENT INCIDENT
Refer to EC-

Page 884 of 3189

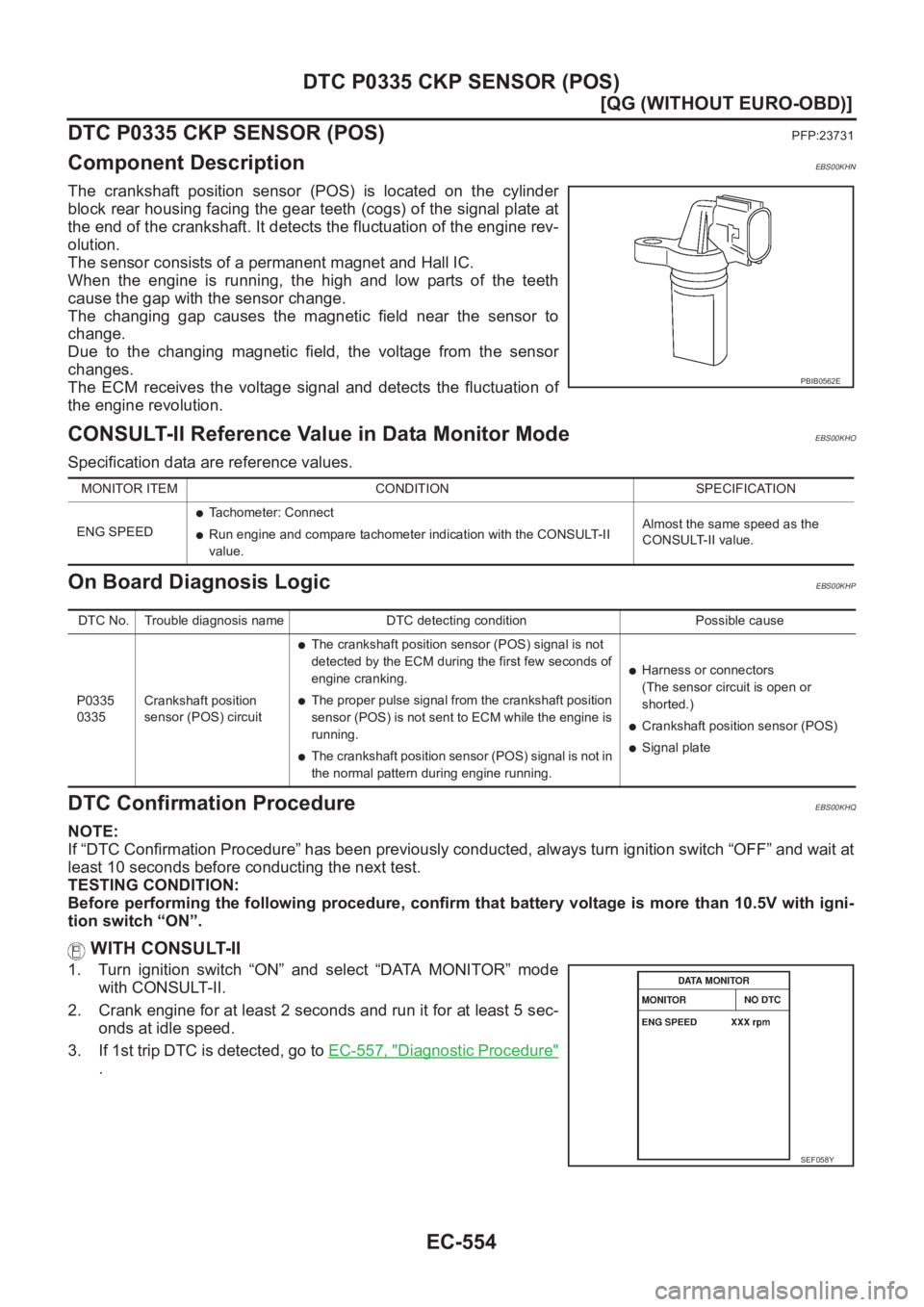

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-554
[QG (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
DTC P0335 CKP SENSOR (POS)
PFP:23731
Component DescriptionEBS00KHN
The crankshaft position sensor (POS) is located on the cylinder
bl

EC-554
[QG (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
DTC P0335 CKP SENSOR (POS)
PFP:23731
Component DescriptionEBS00KHN
The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear teeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
CONSULT-II Reference Value in Data Monitor ModeEBS00KHO
Specification data are reference values.
On Board Diagnosis LogicEBS00KHP
DTC Confirmation ProcedureEBS00KHQ
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch “ON”.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
3. If 1st trip DTC is detected, go to EC-557, "
Diagnostic Procedure"
.
PBIB0562E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
●Tachometer: Connect
●Run engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
CONSULT-II value.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335Crankshaft position
sensor (POS) circuit
●The crankshaft position sensor (POS) signal is not
detected by the ECM during the first few seconds of
engine cranking.
●The proper pulse signal from the crankshaft position
sensor (POS) is not sent to ECM while the engine is
running.
●The crankshaft position sensor (POS) signal is not in
the normal pattern during engine running.
●Harness or connectors
(The sensor circuit is open or
shorted.)
●Crankshaft position sensor (POS)
●Signal plate
SEF058Y

Page 885 of 3189

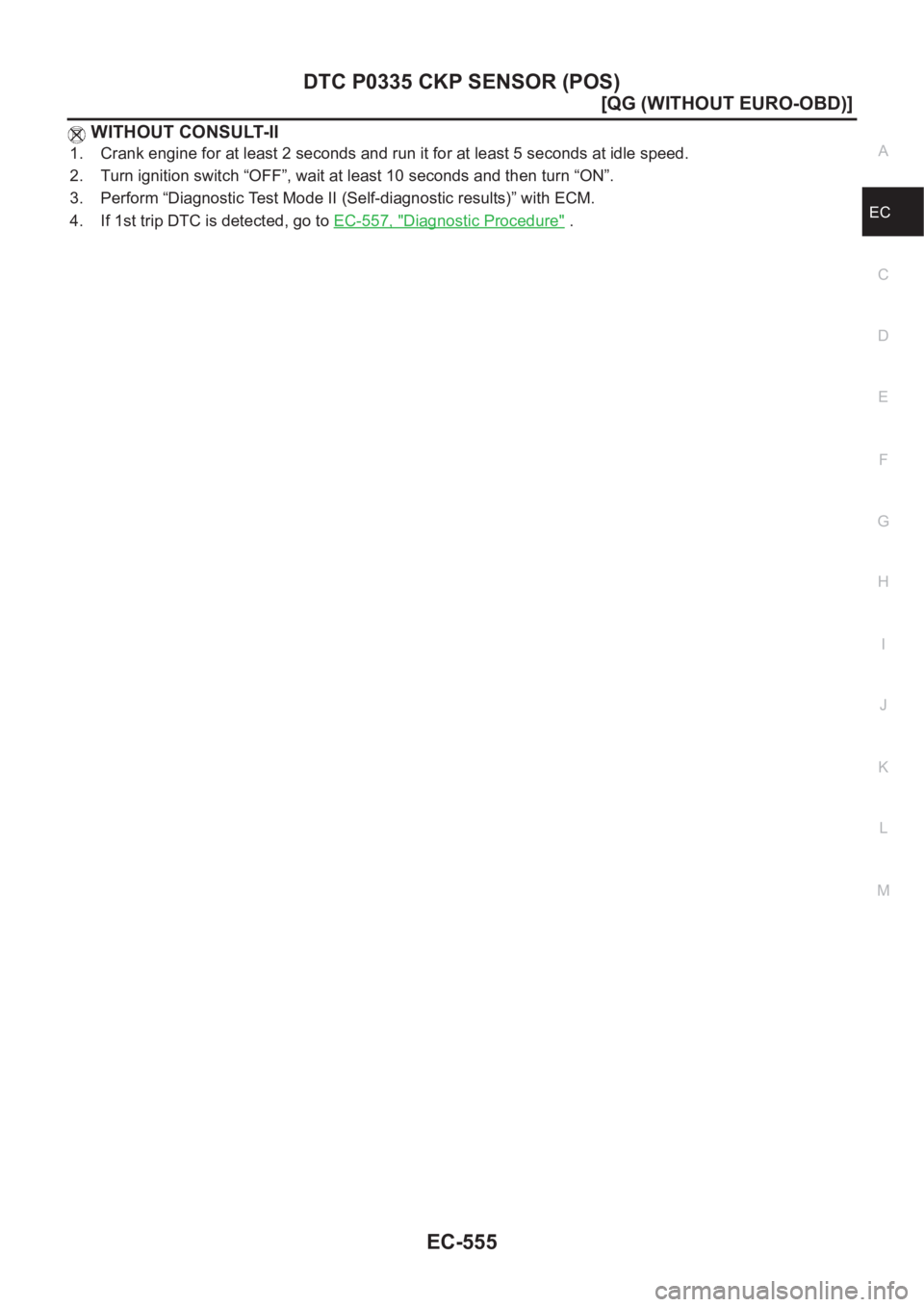

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0335 CKP SENSOR (POS)
EC-555
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITHOUT CONSULT-II
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Turn

Page 886 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-556
[QG (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
Wiring Diagram
EBS00KHR
YEC291A

Page 887 of 3189

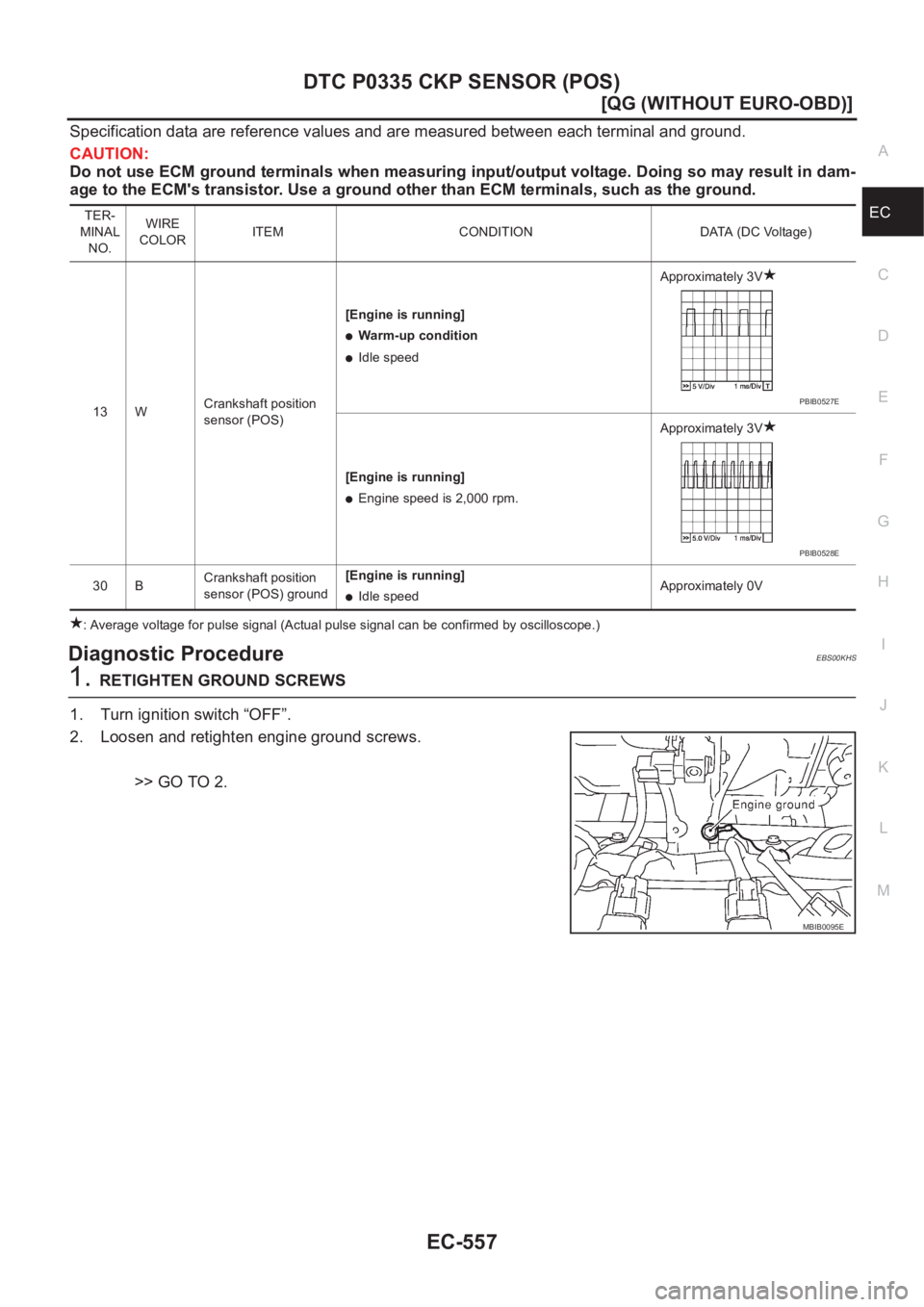

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0335 CKP SENSOR (POS)
EC-557
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM g

Page 888 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-558
[QG (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
2. CHECK CKP SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (POS) harness
connector.
2. Turn ignition
