Page 1473 of 3189

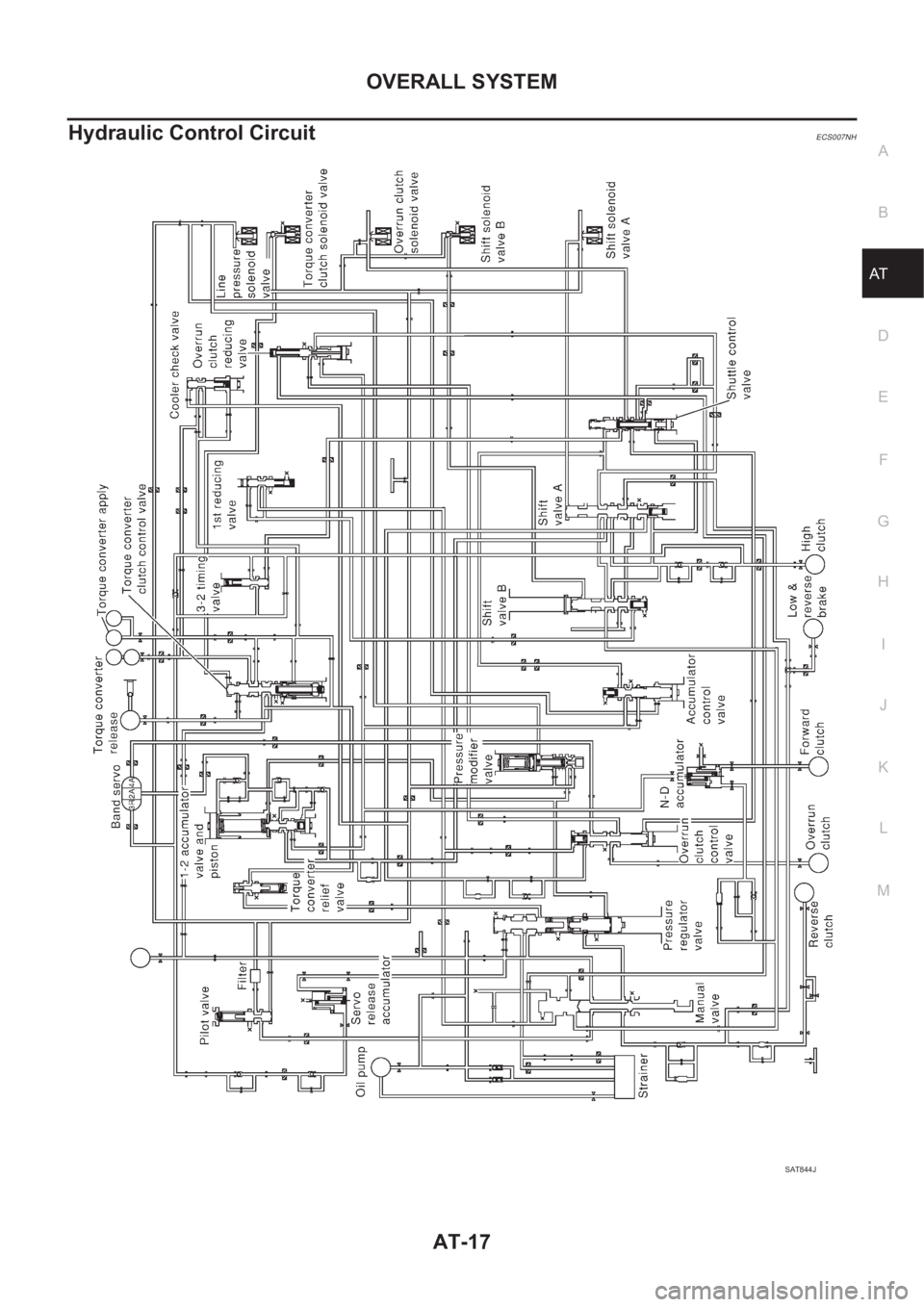

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERALL SYSTEM AT-17 D E F G H I J K L MA B AT Hydraulic Control CircuitECS007NH SAT844J

Page 1474 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-18 OVERALL SYSTEM Shift Mechanism ECS007NI CONSTRUCTION FUNCTION OF CLUTCH AND BRAKE CLUTCH AND BAND CHART 1. Torque converter 2. Oil pump 3. Input shaft 4. Brake band 5. Reverse clutch 6. High clu

Page 1475 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERALL SYSTEM AT-19 D E F G H I J K L MA B AT ●*1: Operates when overdrive control switch is set in “OFF” position. ●*2: Oil pressure is applied to both 2nd “apply” side and 3rd “releas

Page 1476 of 3189

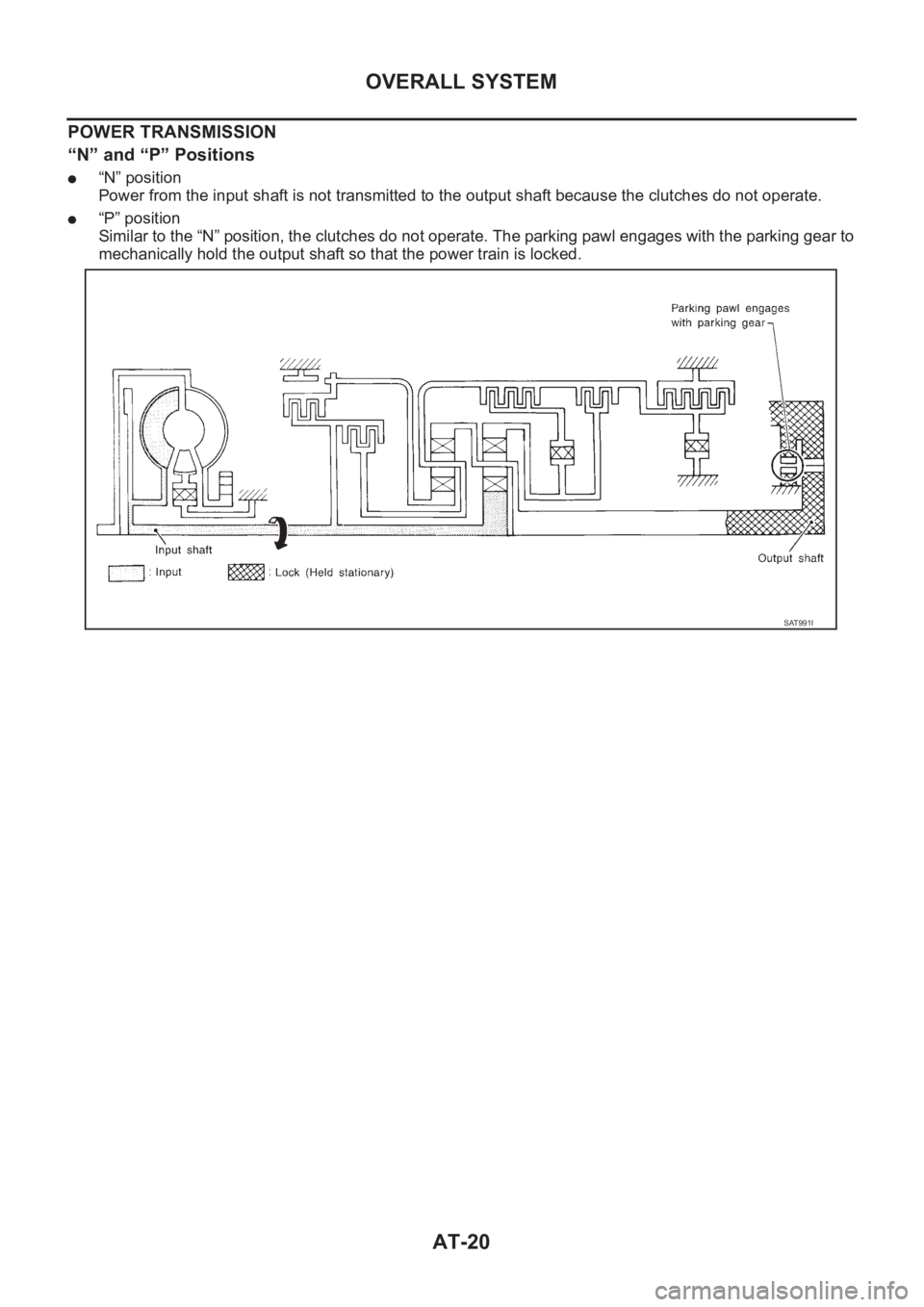

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-20 OVERALL SYSTEM POWER TRANSMISSION “N” and “P” Positions ●“N” position Power from the input shaft is not transmitted to the output shaft because the clutches do not operate. ●“P

Page 1477 of 3189

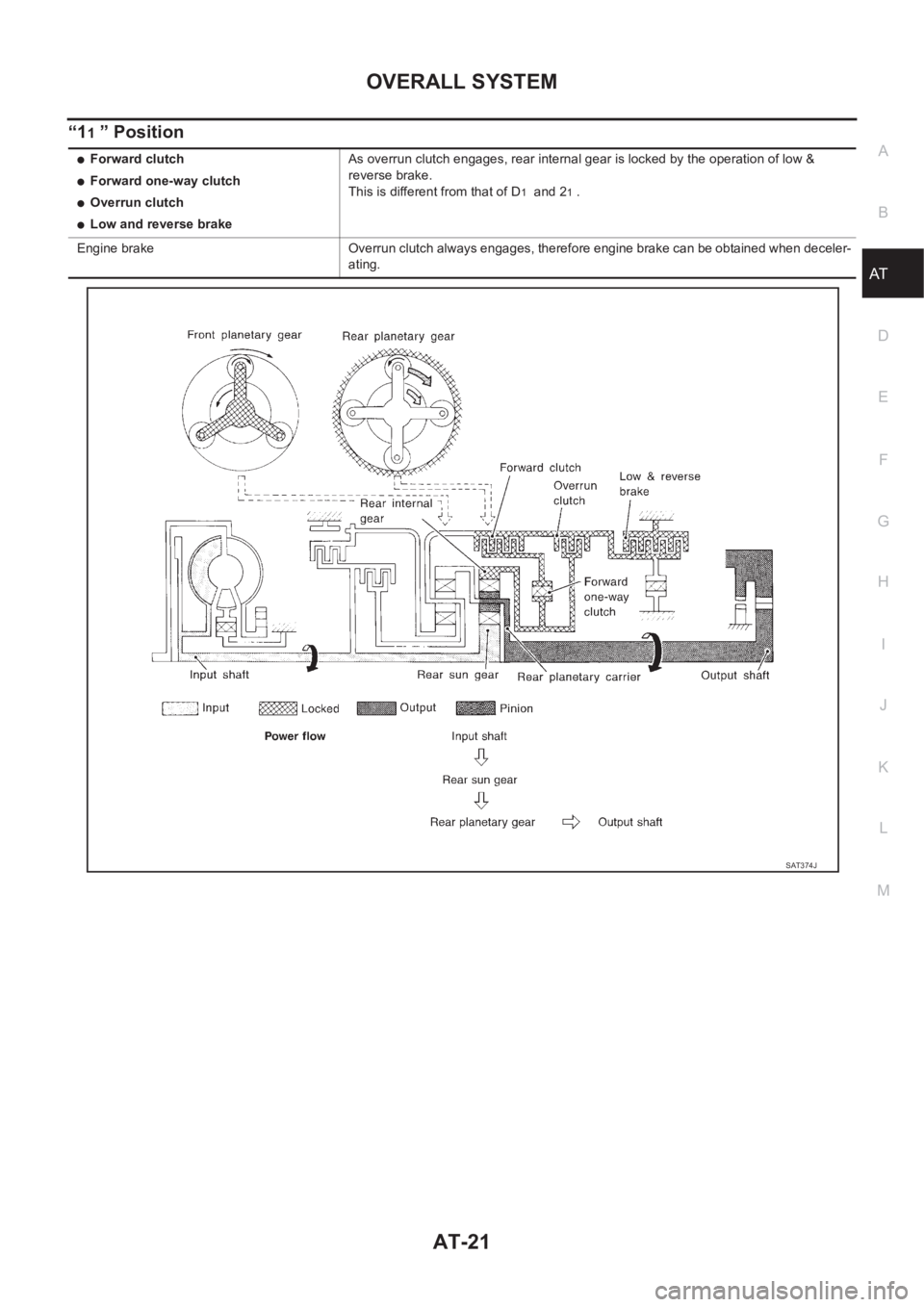

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERALL SYSTEM AT-21 D E F G H I J K L MA B AT “11 ” Position ●Forward clutch ●Forward one-way clutch ●Overrun clutch ●Low and reverse brakeAs overrun clutch engages, rear internal gear is

Page 1478 of 3189

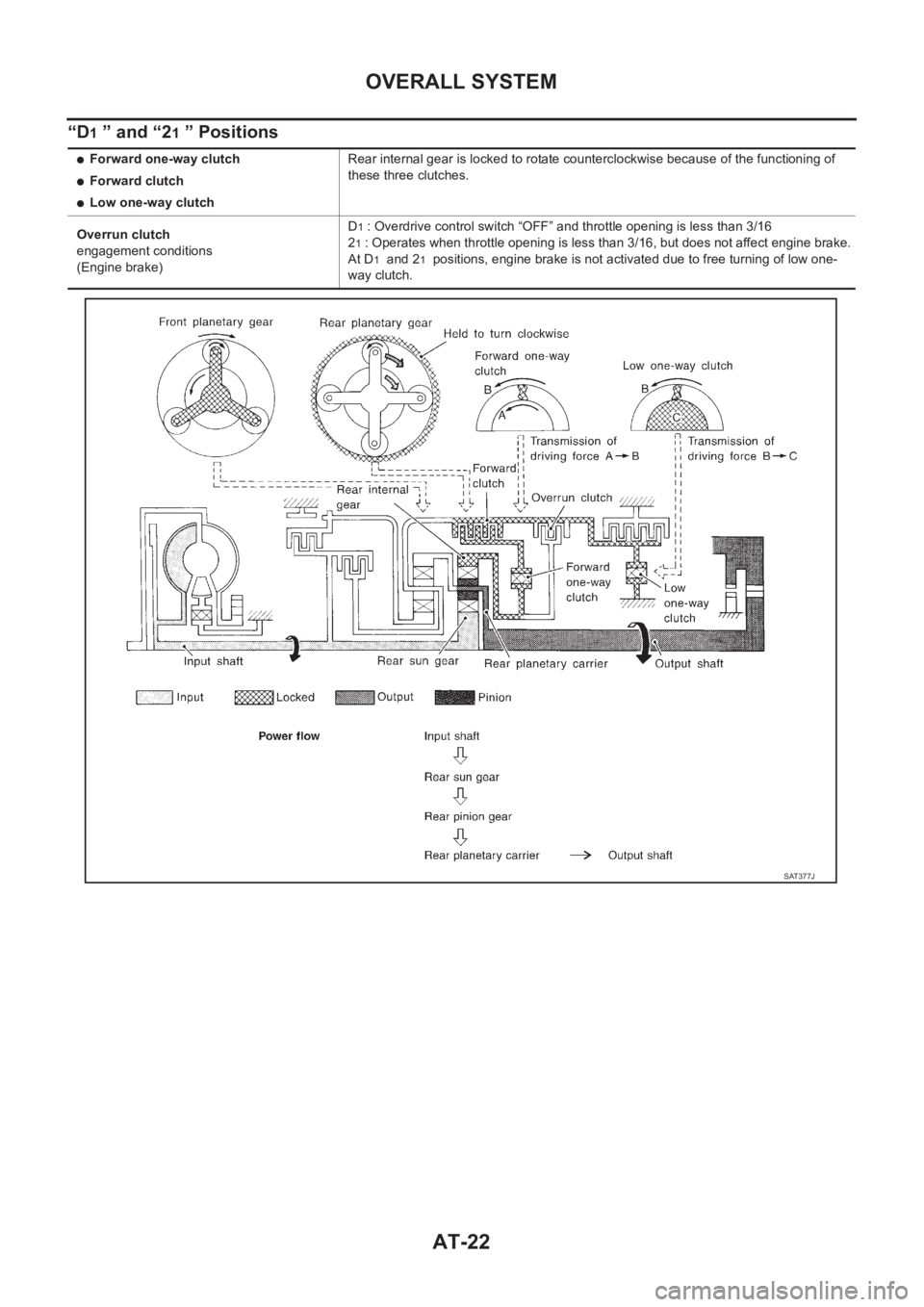

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-22 OVERALL SYSTEM “D1 ” and “21 ” Positions ●Forward one-way clutch ●Forward clutch ●Low one-way clutchRear internal gear is locked to rotate counterclockwise because of the functioni

Page 1479 of 3189

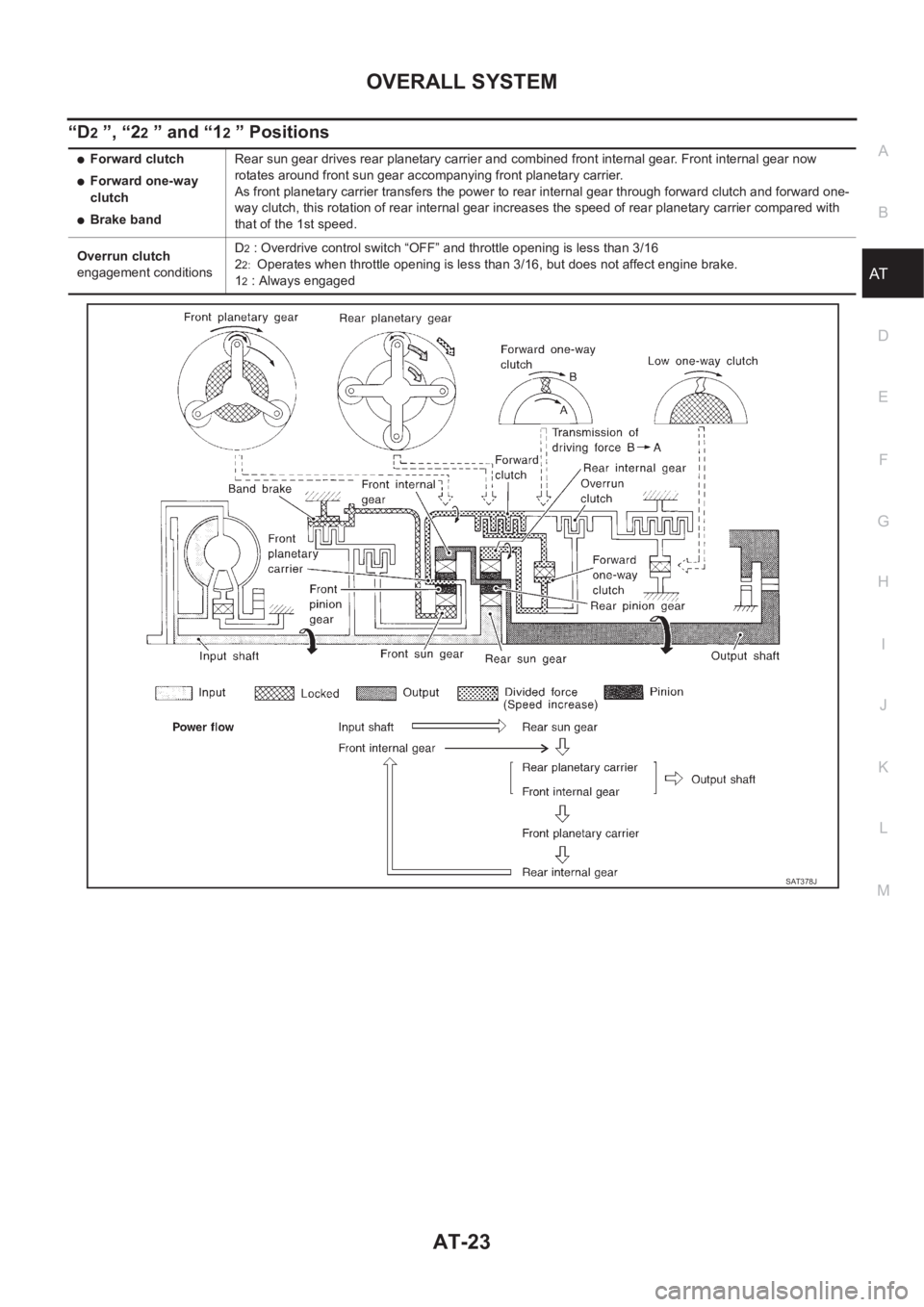

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERALL SYSTEM AT-23 D E F G H I J K L MA B AT “D2 ”, “22 ” and “12 ” Positions ●Forward clutch ●Forward one-way clutch ●Brake bandRear sun gear drives rear planetary carrier and co

Page 1480 of 3189

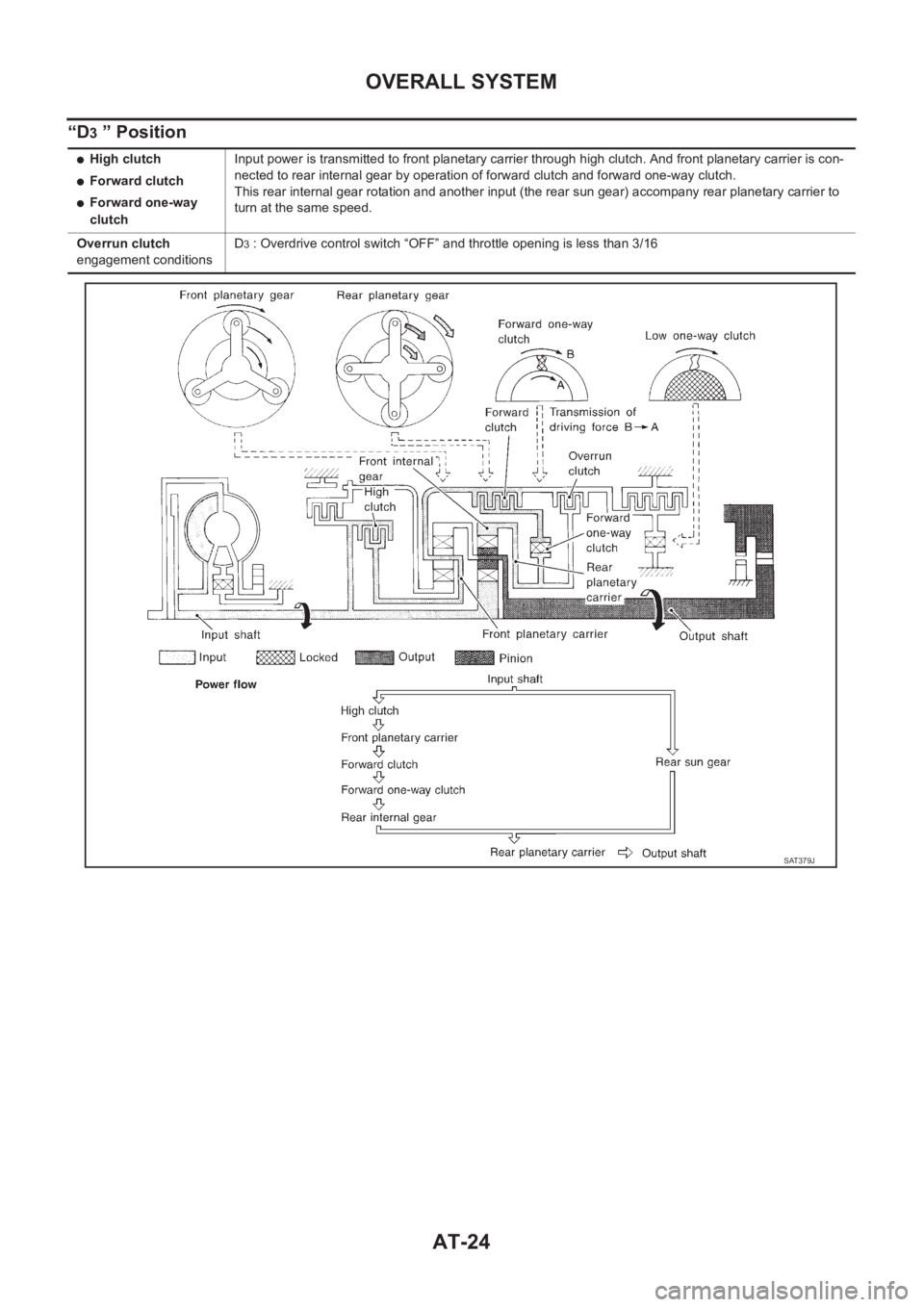

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-24 OVERALL SYSTEM “D3 ” Position ●High clutch ●Forward clutch ●Forward one-way clutchInput power is transmitted to front planetary carrier through high clutch. And front planetary carrie
