Page 2329 of 3189

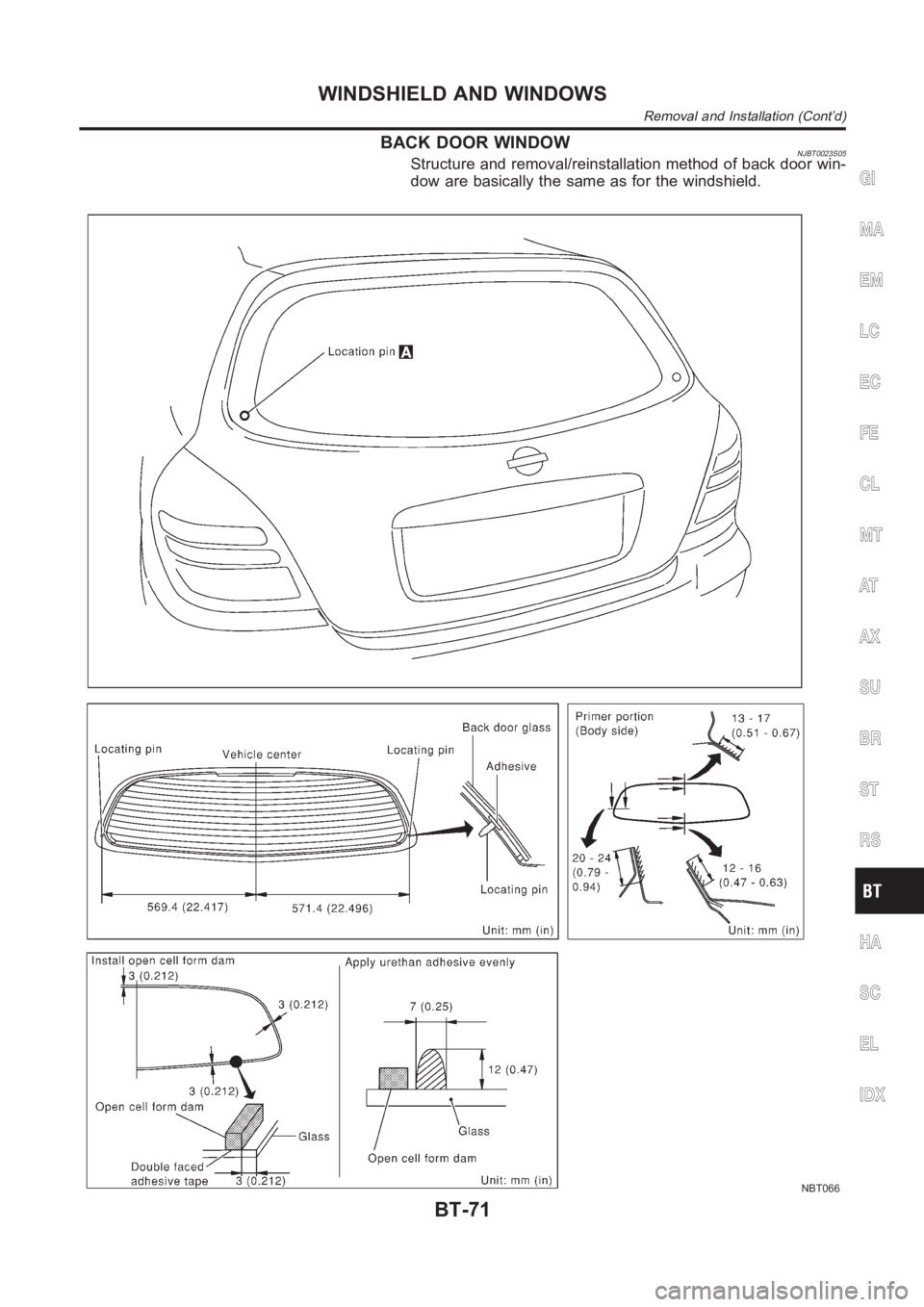

BACK DOOR WINDOWNJBT0023S05Structure and removal/reinstallation method of back door win-
dow are basically the same as for the windshield.
NBT066
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
WINDSHIELD AND WINDOWS
Removal and Installation (Cont’d)
BT-71
Page 2330 of 3189
Removal and InstallationNJBT0024CAUTION:
Be careful not to scratch door rearview mirror body.
★For Wiring Diagram, refer to EL-251, “DOOR MIRROR” for details.
1. Remove front corner of door inner cover.
2. Disconnect door mirror harness connector.
3. Remove bolts securing door mirror assembly.
4. Remove the mirror glass. Do not insert flat-bladed screwdriver too far.
NBT205
DOOR MIRROR
Removal and Installation
BT-72
Page 2331 of 3189

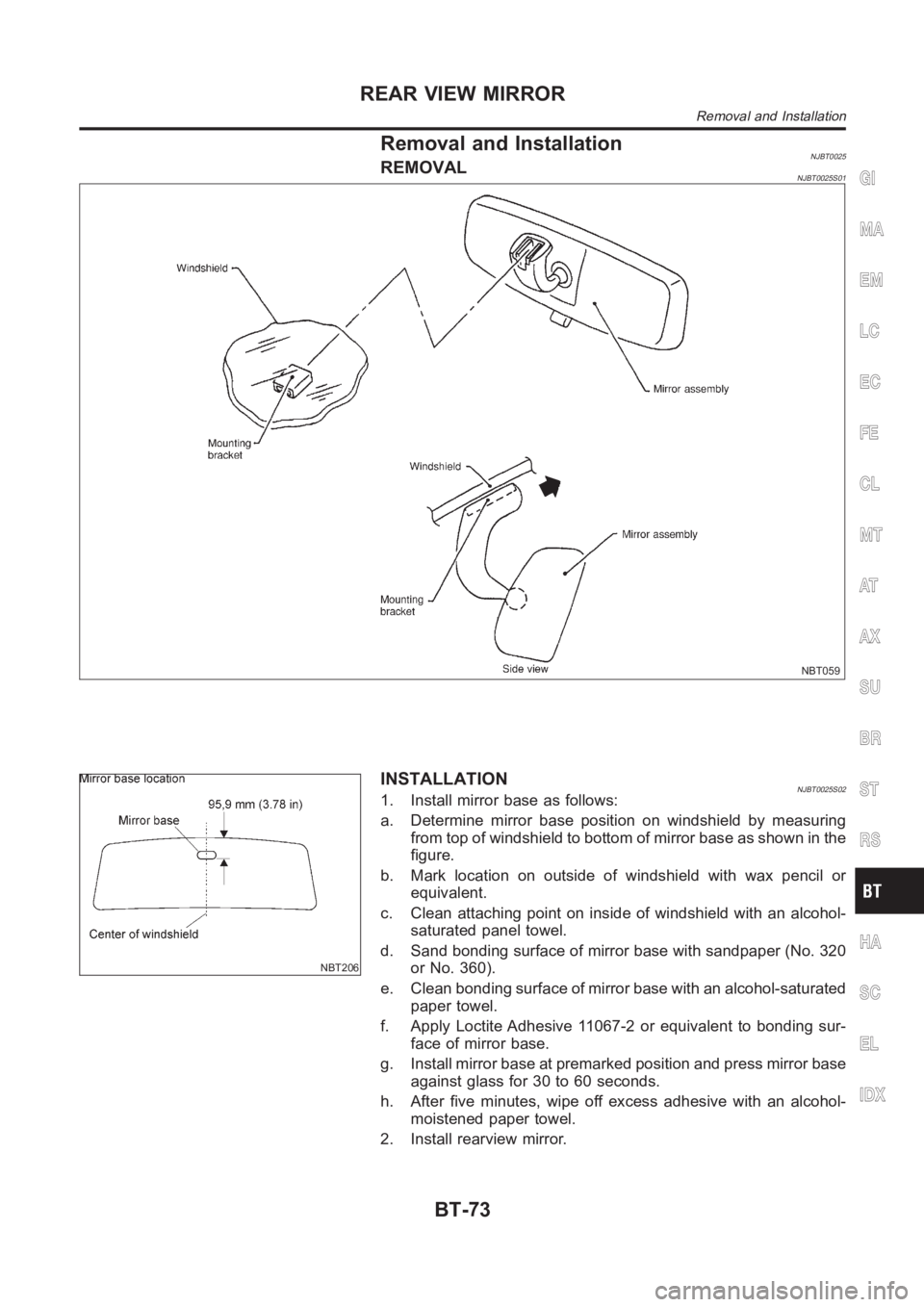

Removal and InstallationNJBT0025REMOVALNJBT0025S01
NBT059
NBT206
INSTALLATIONNJBT0025S021. Install mirror base as follows:
a. Determine mirror base position on windshield by measuring
from top of windshield to bottom of mirror base as shown in the
figure.
b. Mark location on outside of windshield with wax pencil or
equivalent.
c. Clean attaching point on inside of windshield with an alcohol-
saturated panel towel.
d. Sand bonding surface of mirror base with sandpaper (No. 320
or No. 360).
e. Clean bonding surface of mirror base with an alcohol-saturated
paper towel.
f. Apply Loctite Adhesive 11067-2 or equivalent to bonding sur-
face of mirror base.
g. Install mirror base at premarked position and press mirror base
against glass for 30 to 60 seconds.
h. After five minutes, wipe off excess adhesive with an alcohol-
moistened paper towel.
2. Install rearview mirror.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
REAR VIEW MIRROR
Removal and Installation
BT-73
Page 2332 of 3189
AlignmentNJBT0026All dimensions indicated in figures are actual ones.
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
Measurements should be taken at the center of the mounting holes.
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
The coordinates of the measurement points are the distances measured fromthe standard line of “X”, “Y”
and “Z”.
SBF874GB
BODY (ALIGNMENT)
Alignment
BT-74
Page 2333 of 3189
ENGINE COMPARTMENTNJBT0026S01MeasurementNJBT0026S0101
SBT008A
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
BODY (ALIGNMENT)
Alignment (Cont’d)
BT-75
Page 2334 of 3189

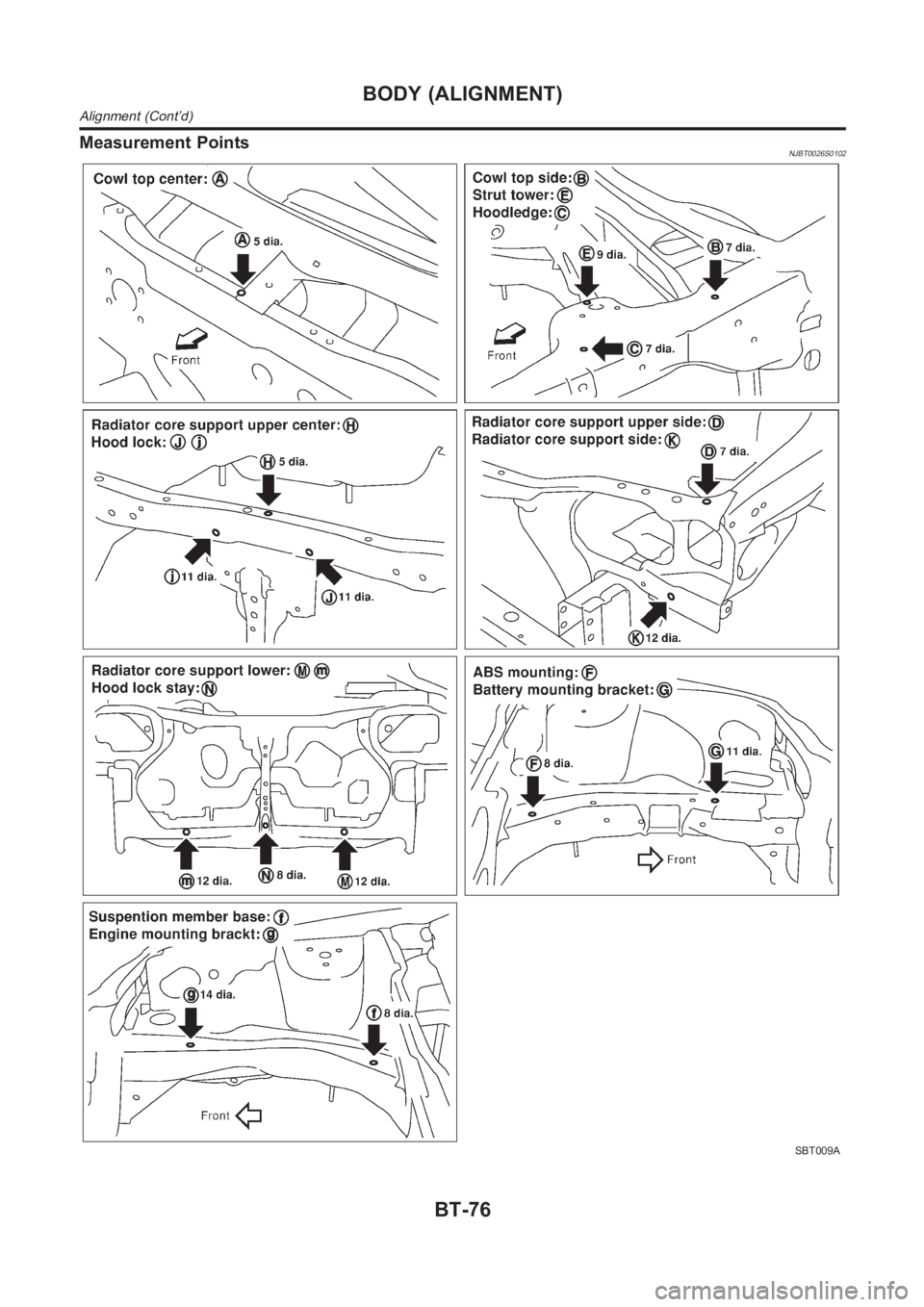

Measurement PointsNJBT0026S0102
SBT009A
BODY (ALIGNMENT)
Alignment (Cont’d)
BT-76
Page 2335 of 3189

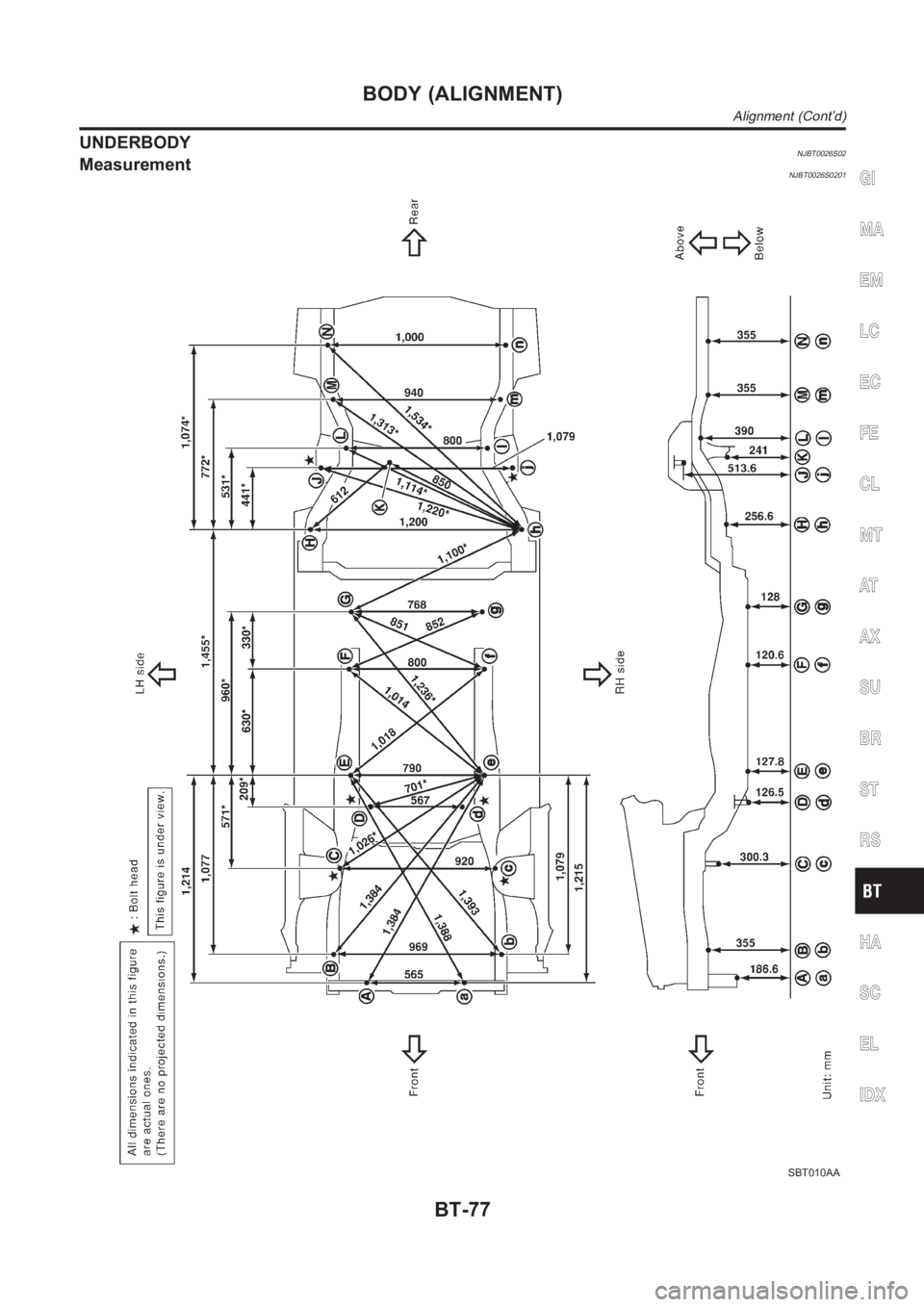

UNDERBODYNJBT0026S02MeasurementNJBT0026S0201
SBT010AA
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
HA
SC
EL
IDX
BODY (ALIGNMENT)
Alignment (Cont’d)
BT-77
Page 2336 of 3189

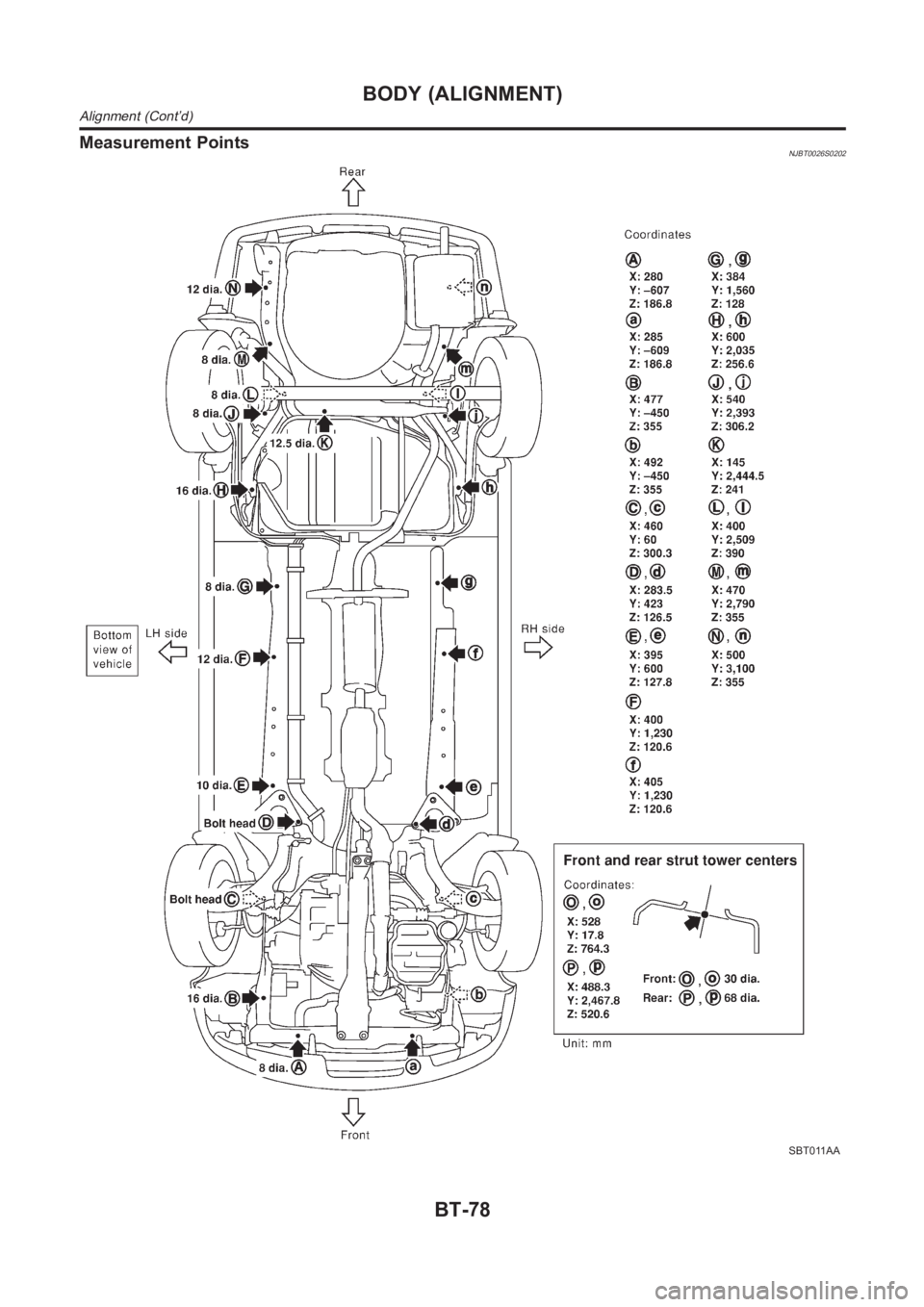

Measurement PointsNJBT0026S0202
SBT011AA
BODY (ALIGNMENT)
Alignment (Cont’d)
BT-78
