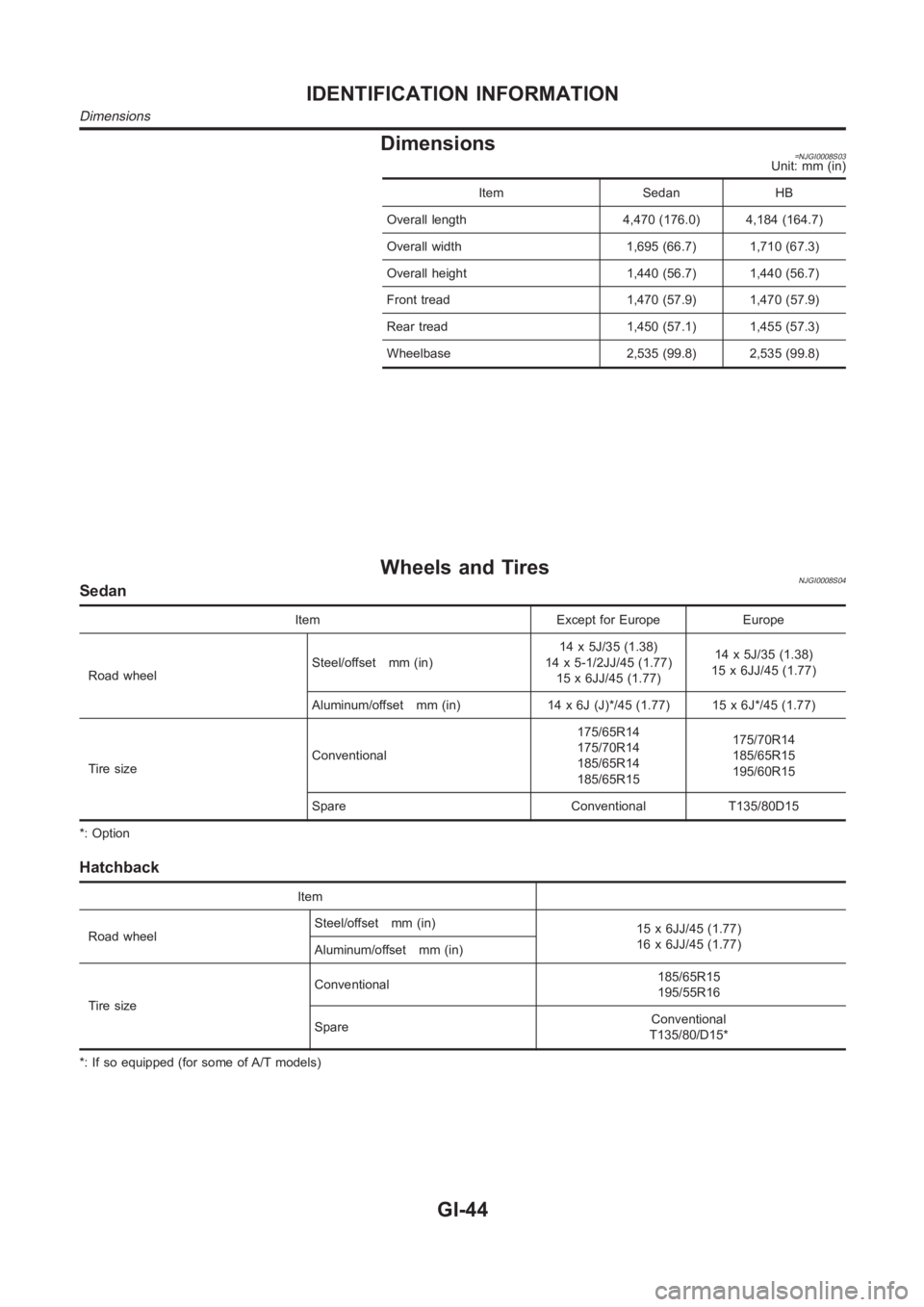

Dimensions=NJGI0008S03Unit: mm (in)
Item Sedan HB
Overall length 4,470 (176.0) 4,184 (164.7)
Overall width 1,695 (66.7) 1,710 (67.3)
Overall height 1,440 (56.7) 1,440 (56.7)
Front tread 1,470 (57.9) 1,470 (57.9)
Rear tread 1,450 (57.1) 1,455 (57.3)
Wheelbase 2,535 (99.8) 2,535 (99.8)
Wheels and TiresNJGI0008S04Sedan
Item Except for Europe Europe
Road wheelSteel/offset mm (in)14 x 5J/35 (1.38)
14 x 5-1/2JJ/45 (1.77)
15 x 6JJ/45 (1.77)14 x 5J/35 (1.38)
15 x 6JJ/45 (1.77)
Aluminum/offset mm (in) 14 x 6J (J)*/45 (1.77) 15 x 6J*/45 (1.77)
Tire sizeConventional175/65R14
175/70R14
185/65R14
185/65R15175/70R14
185/65R15
195/60R15
Spare Conventional T135/80D15
*: Option
Hatchback
Item
Road wheelSteel/offset mm (in)
15 x 6JJ/45 (1.77)
16 x 6JJ/45 (1.77)
Aluminum/offset mm (in)
Tire sizeConventional185/65R15
195/55R16
SpareConventional
T135/80/D15*
*: If so equipped (for some of A/T models)
IDENTIFICATION INFORMATION
Dimensions
GI-44

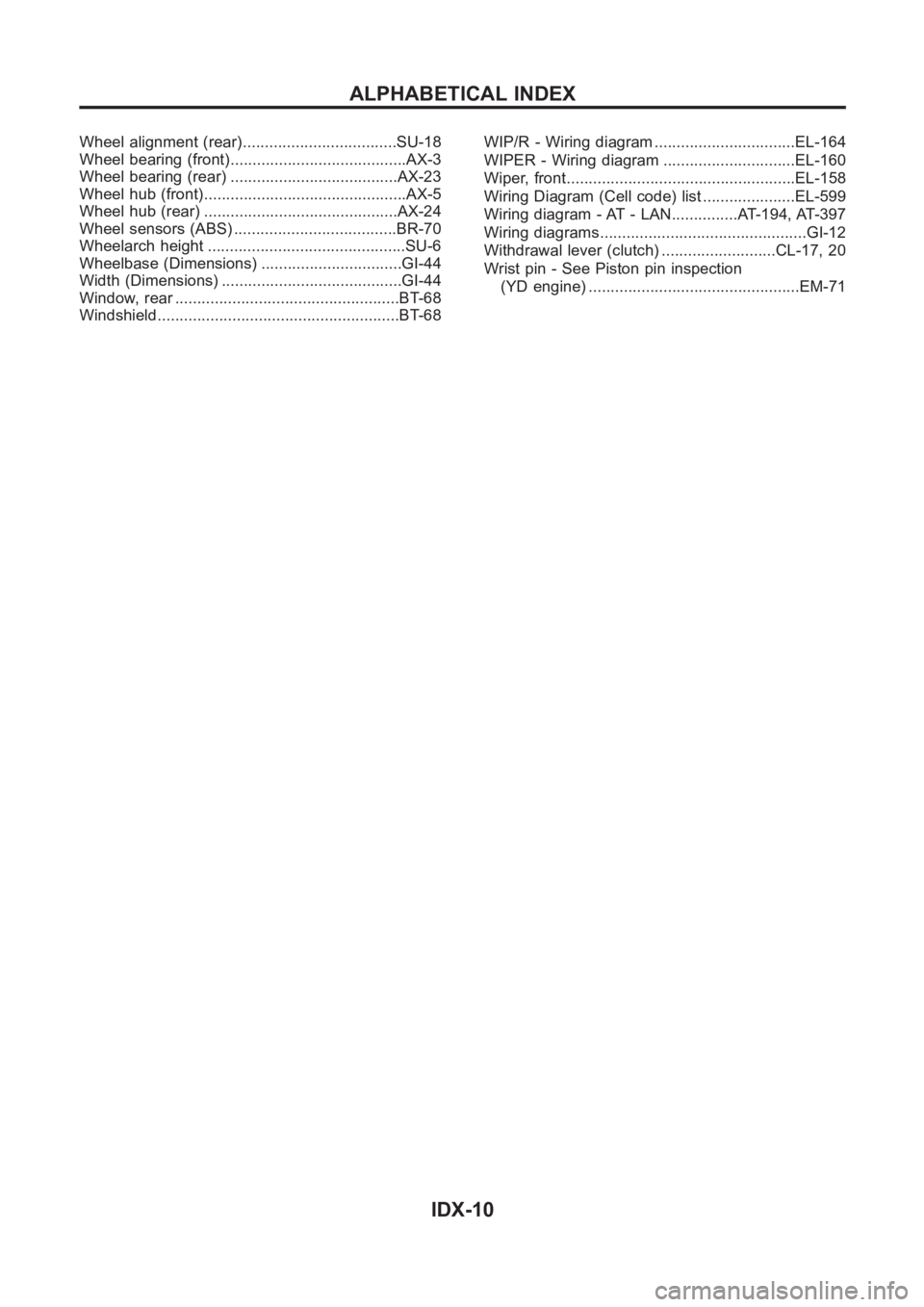

Wheel alignment (rear)...................................SU-18
Wheel bearing (front)........................................AX-3
Wheel bearing (rear) ......................................AX-23
Wheel hub (front)..............................................AX-5
Wheel hub (rear) ............................................AX-24
Wheel sensors (ABS) .....................................BR-70
Wheelarch height .............................................SU-6
Wheelbase (Dimensions) ................................GI-44
Width (Dimensions) .........................................GI-44
Window, rear <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110025[T- 6 8
Windshield<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[..BT-68WIP/R - Wiring diagram ................................EL-164
WIPER - Wiring diagram ..............................EL-160
Wiper, front<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[EL-158
Wiring Diagram (Cell code) list .....................EL-599
Wiring diagram - AT - LAN...............AT-194, AT-397
Wiring diagrams...............................................GI-12
Withdrawal lever (clutch) ..........................CL-17, 20
Wrist pin - See Piston pin inspection
(YD engine) ................................................EM-71
ALPHABETICAL INDEX
IDX-10
