EXHAUST MANIFOLD AND CATALYTIC CONVERTER
EM-19
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

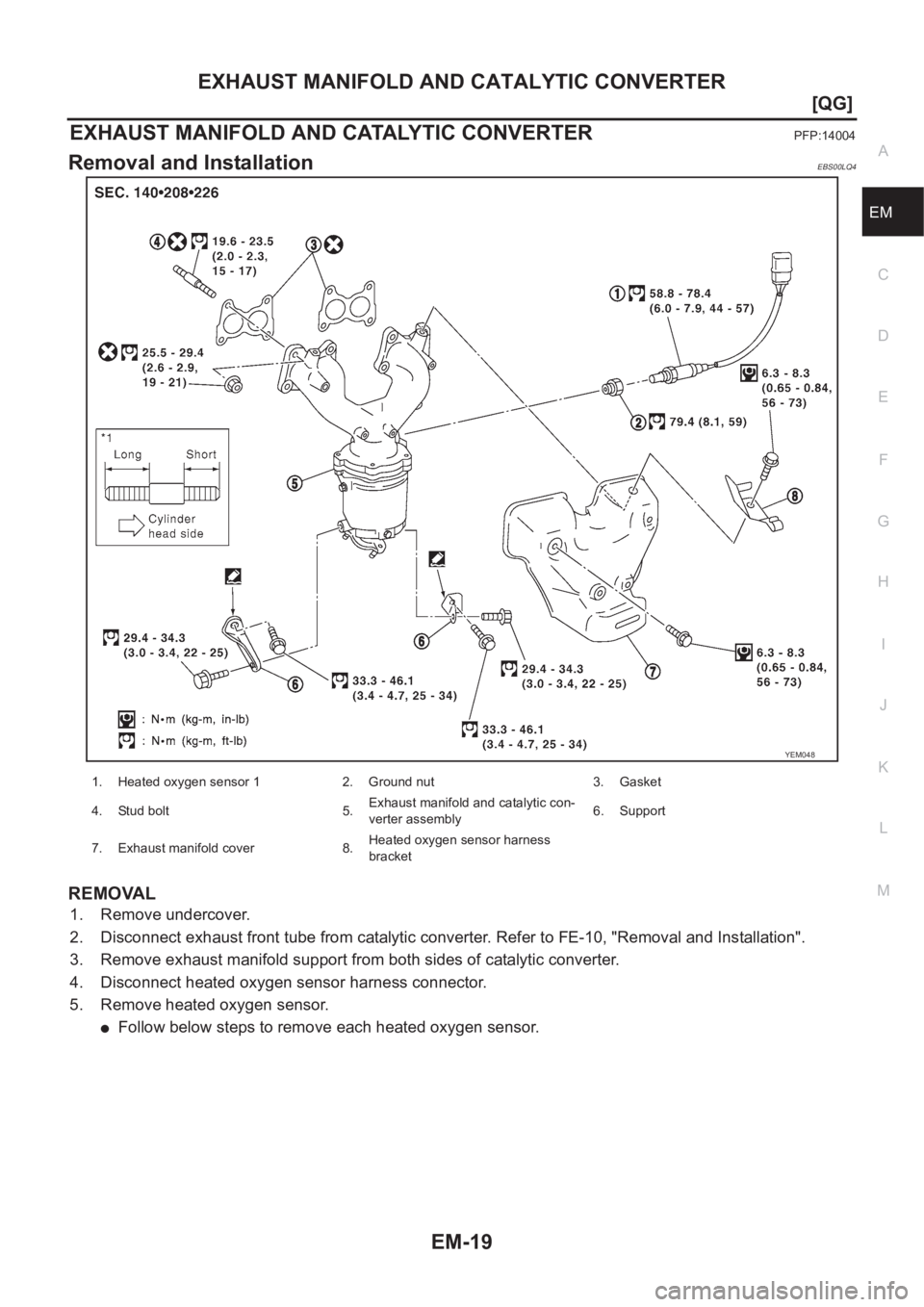

EXHAUST MANIFOLD AND CATALYTIC CONVERTERPFP:14004
Removal and InstallationEBS00LQ4
REMOVAL
1. Remove undercover.
2. Disconnect exhaust front tube from catalytic converter. Refer to FE-10, "Removal and Installation".
3. Remove exhaust manifold support from both sides of catalytic converter.
4. Disconnect heated oxygen sensor harness connector.
5. Remove heated oxygen sensor.
●Follow below steps to remove each heated oxygen sensor.
YEM048
1. Heated oxygen sensor 1 2. Ground nut 3. Gasket
4. Stud bolt 5.Exhaust manifold and catalytic con-
verter assembly6. Support
7. Exhaust manifold cover 8.Heated oxygen sensor harness
bracket
Page 98 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-20
[QG]
EXHAUST MANIFOLD AND CATALYTIC CONVERTER
●Using heated oxygen sensor wrench, remove heated oxygen
sensor.
CAUTION:
●Be careful not to damage heated oxygen sensor.
●When using heate NISSAN ALMERA N16 2003 Electronic Repair Manual EM-20
[QG]
EXHAUST MANIFOLD AND CATALYTIC CONVERTER
●Using heated oxygen sensor wrench, remove heated oxygen
sensor.
CAUTION:
●Be careful not to damage heated oxygen sensor.
●When using heate](/manual-img/5/57350/w960_57350-97.png)
EM-20
[QG]
EXHAUST MANIFOLD AND CATALYTIC CONVERTER
●Using heated oxygen sensor wrench, remove heated oxygen
sensor.
CAUTION:
●Be careful not to damage heated oxygen sensor.
●When using heated oxygen sensor wrench, tighten to the
middle of specified torque because length of tool may
induce sight indication increase. (Do not tighten to the
maximum specified torque)
●Do not over torque the heated oxygen sensor. Doing so
may cause damage to the heated oxygen sensor, result-
ing in the MI coming on.
6. Remove exhaust manifold cover.
7. Loosen mounting nuts in reverse order shown in figure to
remove exhaust manifold and catalytic converter assembly.
INSPECTION AFTER REMOVAL
Surface Distortion
●Use a reliable straightedge and feeler gauge to check the flat-
ness of exhaust manifold fitting surface.
INSTALLATION
●Install in the reverse order of removal after this step.
●Tighten mounting nuts for exhaust manifold and catalytic con-
verter assembly in order shown in figure.
●Before installing exhaust manifold support, apply liquid gasket to
contact surface on engine side.
Use Genuine Liquid Gasket or equivalent.
Installation of Heated Oxygen Sensor
CAUTION:
●Do not over torque the heated oxygen sensor. Doing so may cause damage to the heated oxygen
sensor, resulting in the MI coming on.
PBIC0541E
PBIC0542E
Limit : 0.3 mm (0.012 in)
PBIC0543E
PBIC0542E
Page 99 of 3189
EXHAUST MANIFOLD AND CATALYTIC CONVERTER
EM-21
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

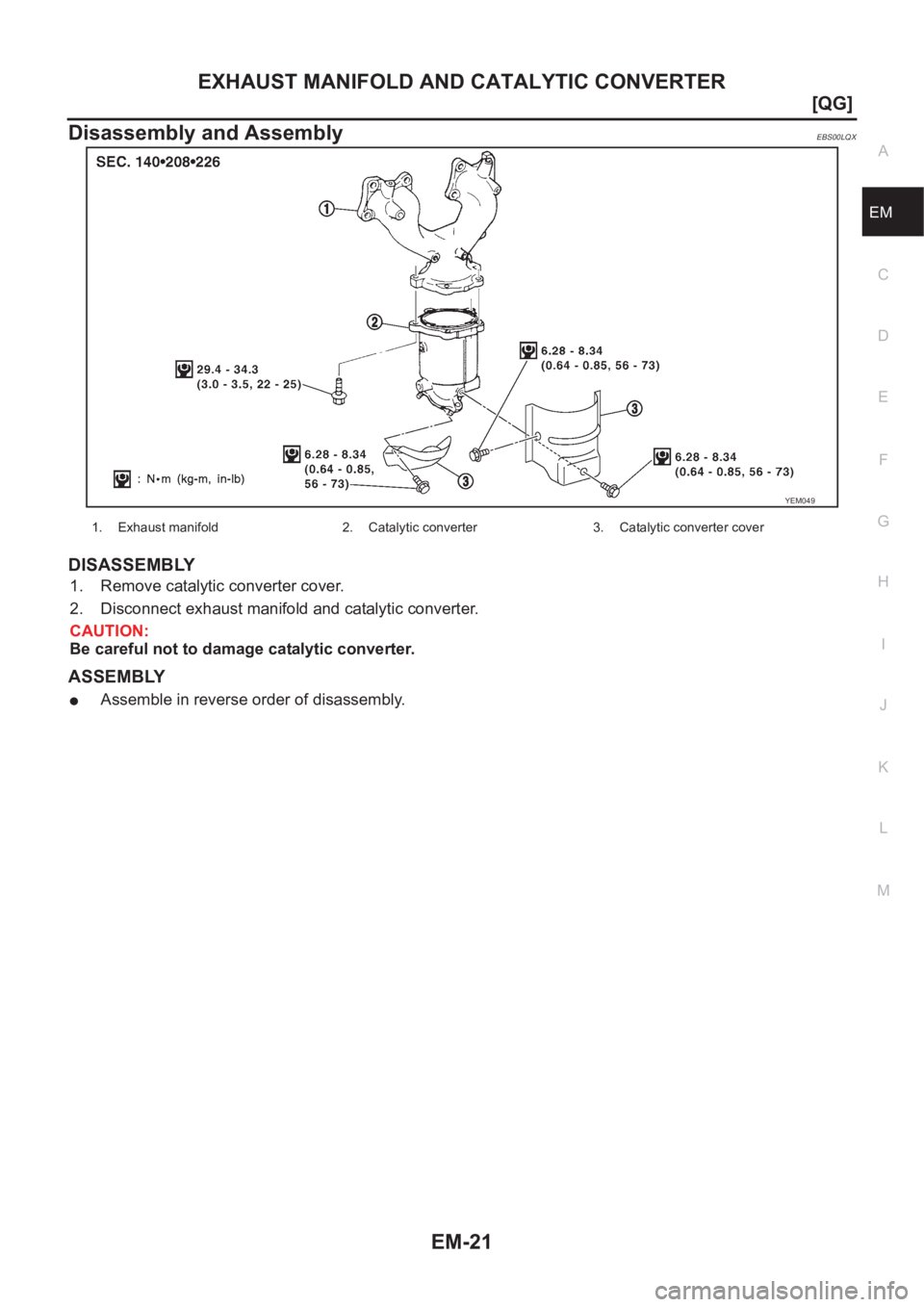

Disassembly and AssemblyEBS00LQX
DISASSEMBLY
1. Remove catalytic converter cover.
2. Disconnect exhaust manifold and catalytic converter.
CAUTION:
Be careful not to damage catalytic converter.
ASSEMBLY
●Assemble in reverse order of disassembly.
YEM049
1. Exhaust manifold 2. Catalytic converter 3. Catalytic converter cover
Page 100 of 3189
EM-22
[QG]

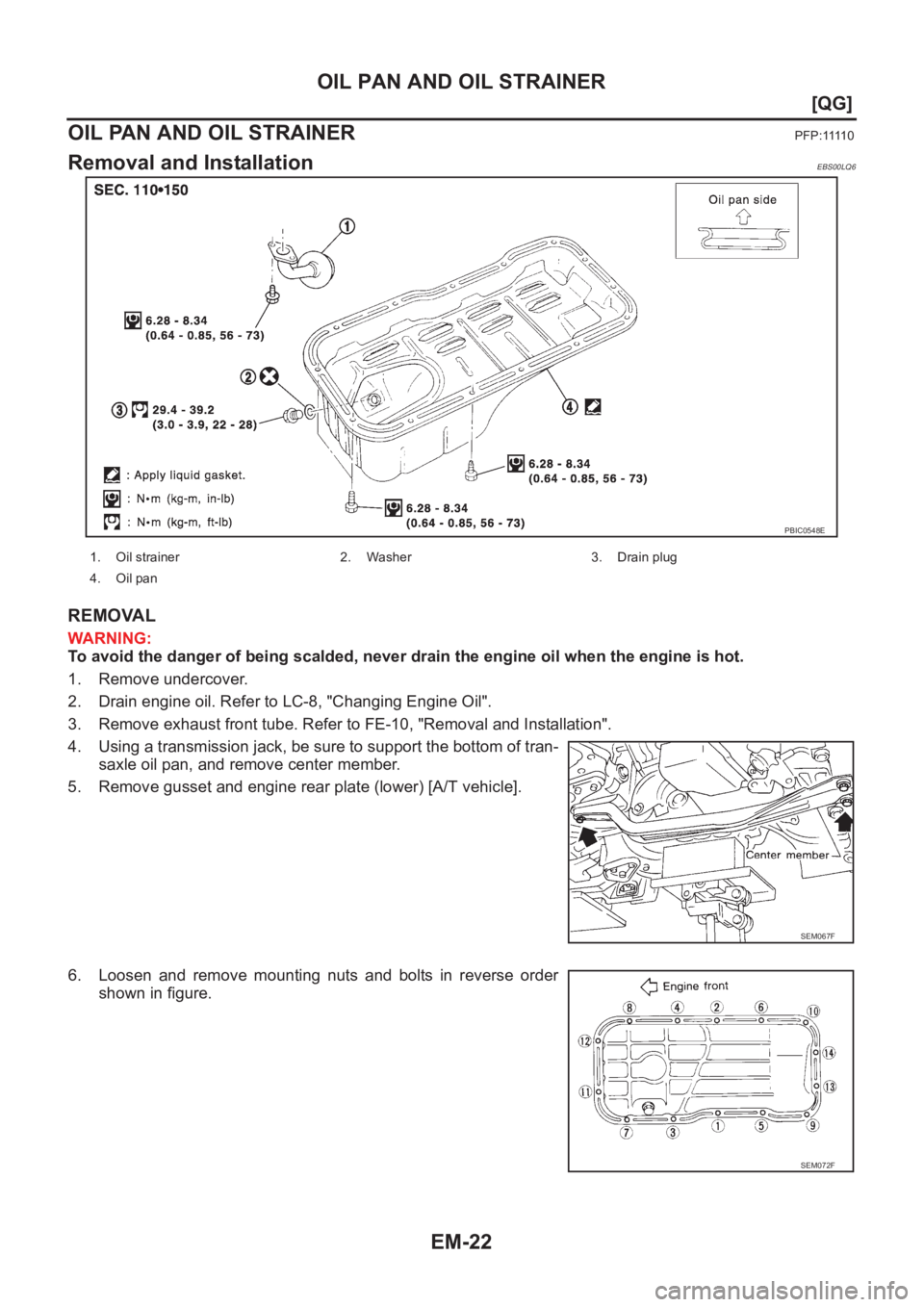

OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER
P F P : 1111 0
Removal and InstallationEBS00LQ6
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
1. Remove undercover.
2. Drain engine oil. Refer to LC-8, "Changing Engine Oil".
3. Remove exhaust front tube. Refer to FE-10, "Removal and Installation".
4. Using a transmission jack, be sure to support the bottom of tran-
saxle oil pan, and remove center member.
5. Remove gusset and engine rear plate (lower) [A/T vehicle].
6. Loosen and remove mounting nuts and bolts in reverse order
shown in figure.
PBIC0548E
1. Oil strainer 2. Washer 3. Drain plug
4. Oil pan
SEM067F
SEM072F
Page 101 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual OIL PAN AND OIL STRAINER
EM-23
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Insert Tool (Seal cutter) between oil pan and cylinder block.
Slide tool by tapping on the side of the tool with a hammer.
NISSAN ALMERA N16 2003 Electronic Repair Manual OIL PAN AND OIL STRAINER
EM-23
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Insert Tool (Seal cutter) between oil pan and cylinder block.
Slide tool by tapping on the side of the tool with a hammer.](/manual-img/5/57350/w960_57350-100.png)

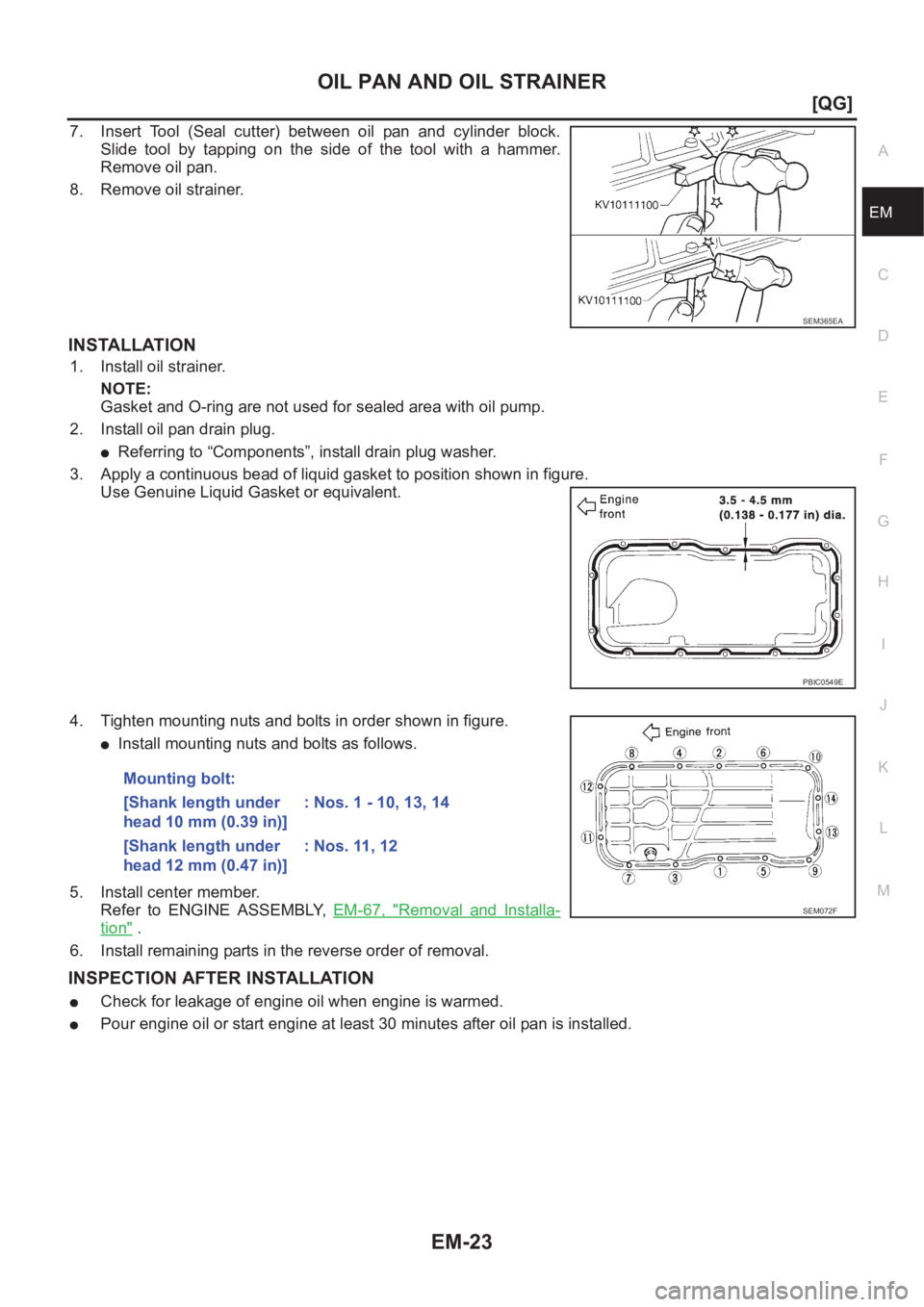

OIL PAN AND OIL STRAINER
EM-23
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Insert Tool (Seal cutter) between oil pan and cylinder block.
Slide tool by tapping on the side of the tool with a hammer.
Remove oil pan.
8. Remove oil strainer.
INSTALLATION
1. Install oil strainer.
NOTE:
Gasket and O-ring are not used for sealed area with oil pump.
2. Install oil pan drain plug.
●Referring to “Components”, install drain plug washer.
3. Apply a continuous bead of liquid gasket to position shown in figure.
Use Genuine Liquid Gasket or equivalent.
4. Tighten mounting nuts and bolts in order shown in figure.
●Install mounting nuts and bolts as follows.
5. Install center member.
Refer to ENGINE ASSEMBLY, EM-67, "
Removal and Installa-
tion" .
6. Install remaining parts in the reverse order of removal.
INSPECTION AFTER INSTALLATION
●Check for leakage of engine oil when engine is warmed.
●Pour engine oil or start engine at least 30 minutes after oil pan is installed.
SEM365EA
PBIC0549E
Mounting bolt:
[Shank length under
head 10 mm (0.39 in)]: Nos. 1 - 10, 13, 14
[Shank length under
head 12 mm (0.47 in)]: Nos. 11, 12
SEM072F
Page 102 of 3189
EM-24
[QG]

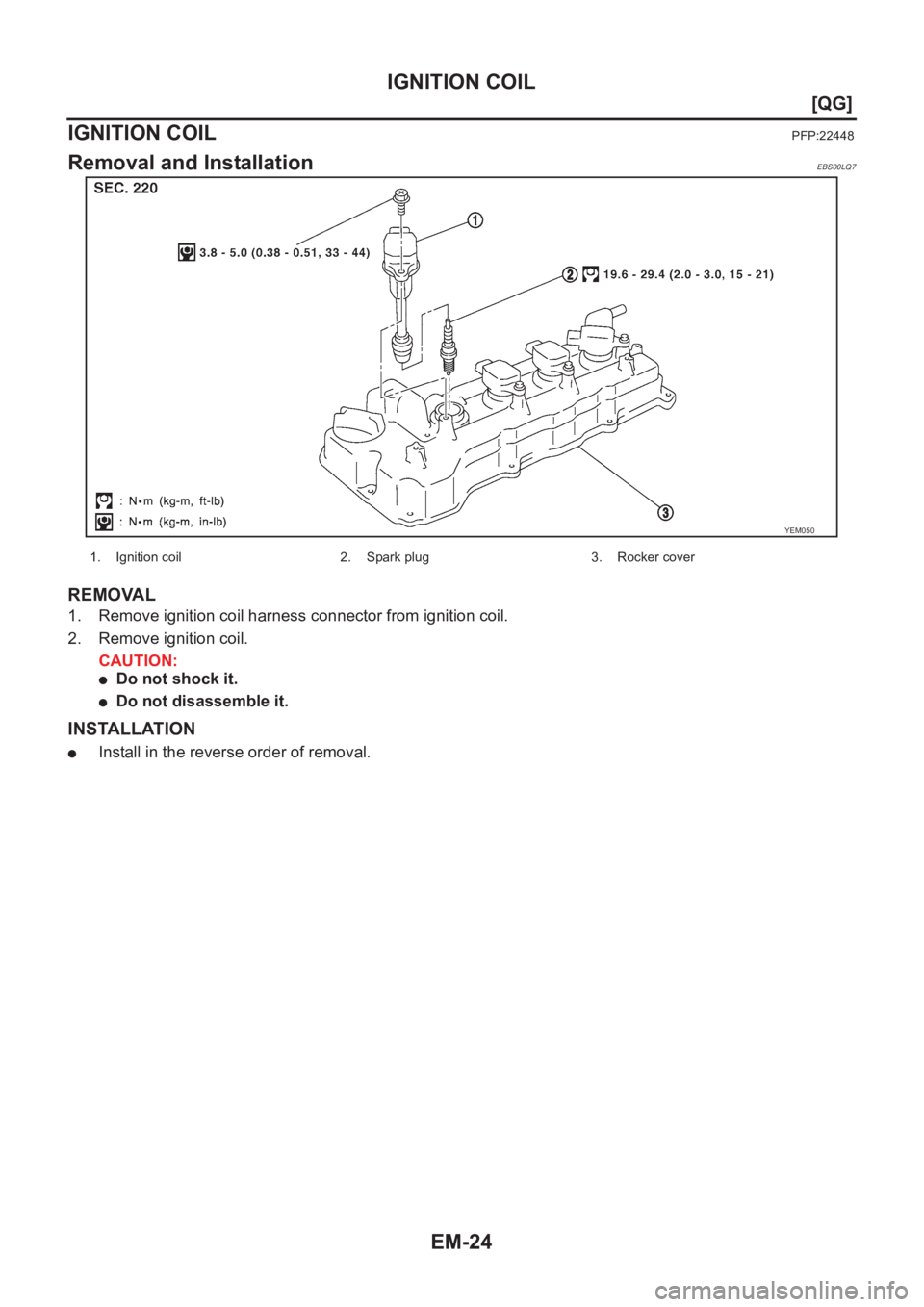

IGNITION COIL
IGNITION COIL
PFP:22448
Removal and InstallationEBS00LQ7
REMOVAL
1. Remove ignition coil harness connector from ignition coil.
2. Remove ignition coil.
CAUTION:
●Do not shock it.
●Do not disassemble it.
INSTALLATION
●Install in the reverse order of removal.
YEM050
1. Ignition coil 2. Spark plug 3. Rocker cover
Page 103 of 3189
SPARK PLUG (CONVENTIONAL)
EM-25
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
SPARK PLUG (CONVENTIONAL)PFP:22401
Removal and InstallationEBS00LQ8
REMOVAL
1. Disconnect ignition coil harness connector from ignition coil.
2. Remove ignition coil.
3. Remove spark plugs with a spark plug wrench (commercial ser-
vice tool).
Spark plug
INSPECTION AFTER REMOVAL
Check spark plug gap. Adjust or replace if necessary.
●Use a wire brush for cleaning, if necessary.
INSTALLATION
Install in the reverse order of removal, paying attention to the following.
Make NGK Champion
Standard type LFR5A-11 REC10YC4
Hot type LFR4A-11 —
Cold type LFR6A-11 —
SMA581C
Standard : 1.0 - 1.1 mm (0.039 - 0.043 in)
SMA476
Spark plug:
: 19.6 - 29.4 N·m (2.0 - 3.0 kg-m, 15 - 21 ft-lb)
Page 104 of 3189
EM-26
[QG]
FUEL INJECTOR AND FUEL TUBE
FUEL INJECTOR AND FUEL TUBE
PFP:16600
Removal and InstallationEBS00LQ9
CAUTION:
●Apply new engine oil when installing the parts that specified to do so in the figure.
●Do not remove or disassembly parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-34, "FUEL PRESSURE RELEASE" (WITH EURO-OBD), EC-427,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Disconnect harness for fuel injector, and move it aside.
3. Remove fuel hose.
CAUTION:
After removal, install blind plug to fuel hose to prevent the fuel from draining.
4. Remove fuel tube and injector assembly with the following pro-
cedure:
a. Loosen mounting bolts in reverse order shown in figure.
b. Pull out fuel injector/fuel tube assembly toward engine rear side.
YEM051
1. Fuel tube 2. Fuel feed hose 3. O-ring
4. Clip 5. Fuel injector 6. Intake manifold
PBIC0617E
