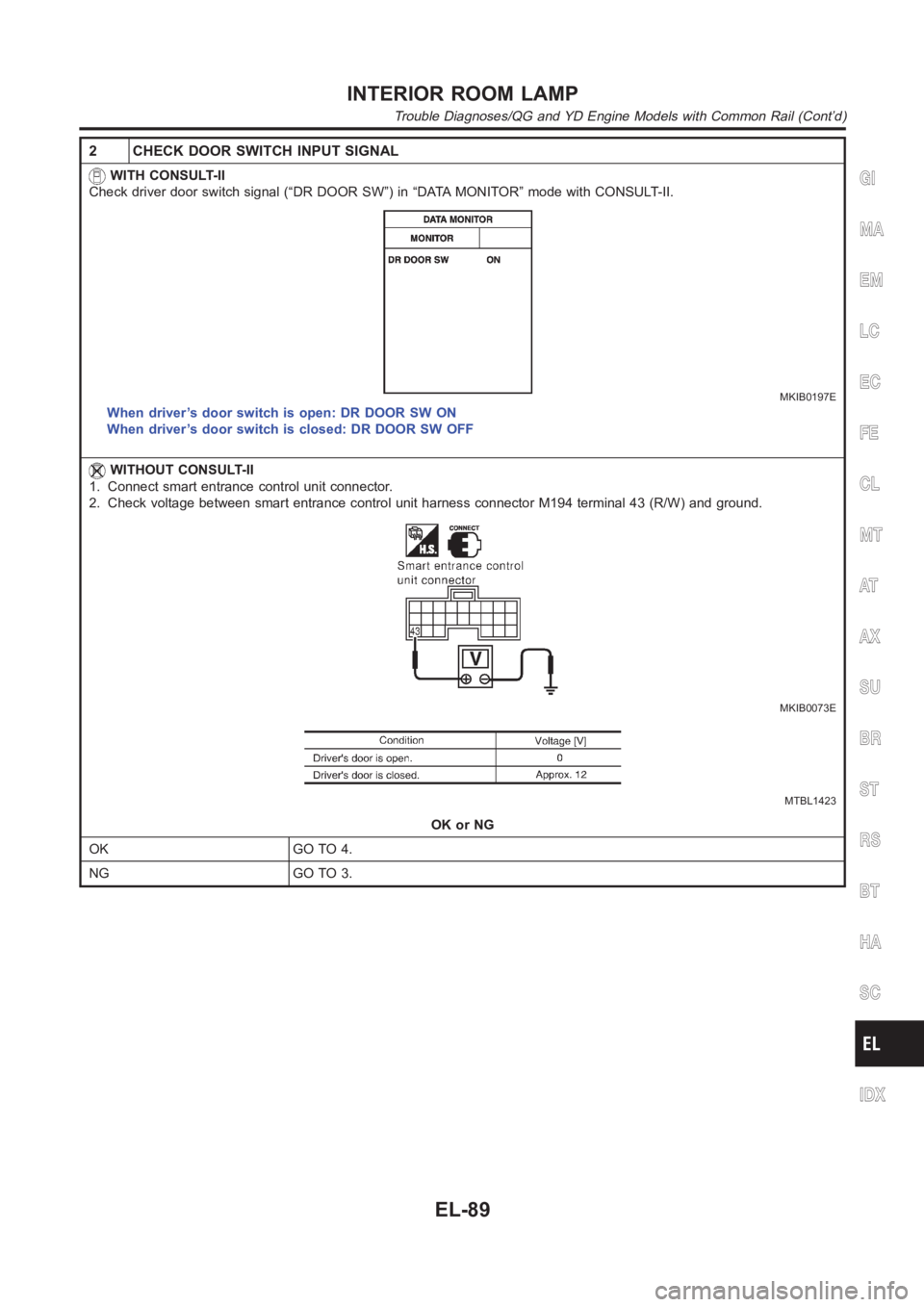

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK DOOR SWITCH INPUT SIGNAL WITH CONSULT-II Check driver door switch signal (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II. MKIB0197E When driver’s door switch is open: DR DOOR S

Page 2426 of 3189

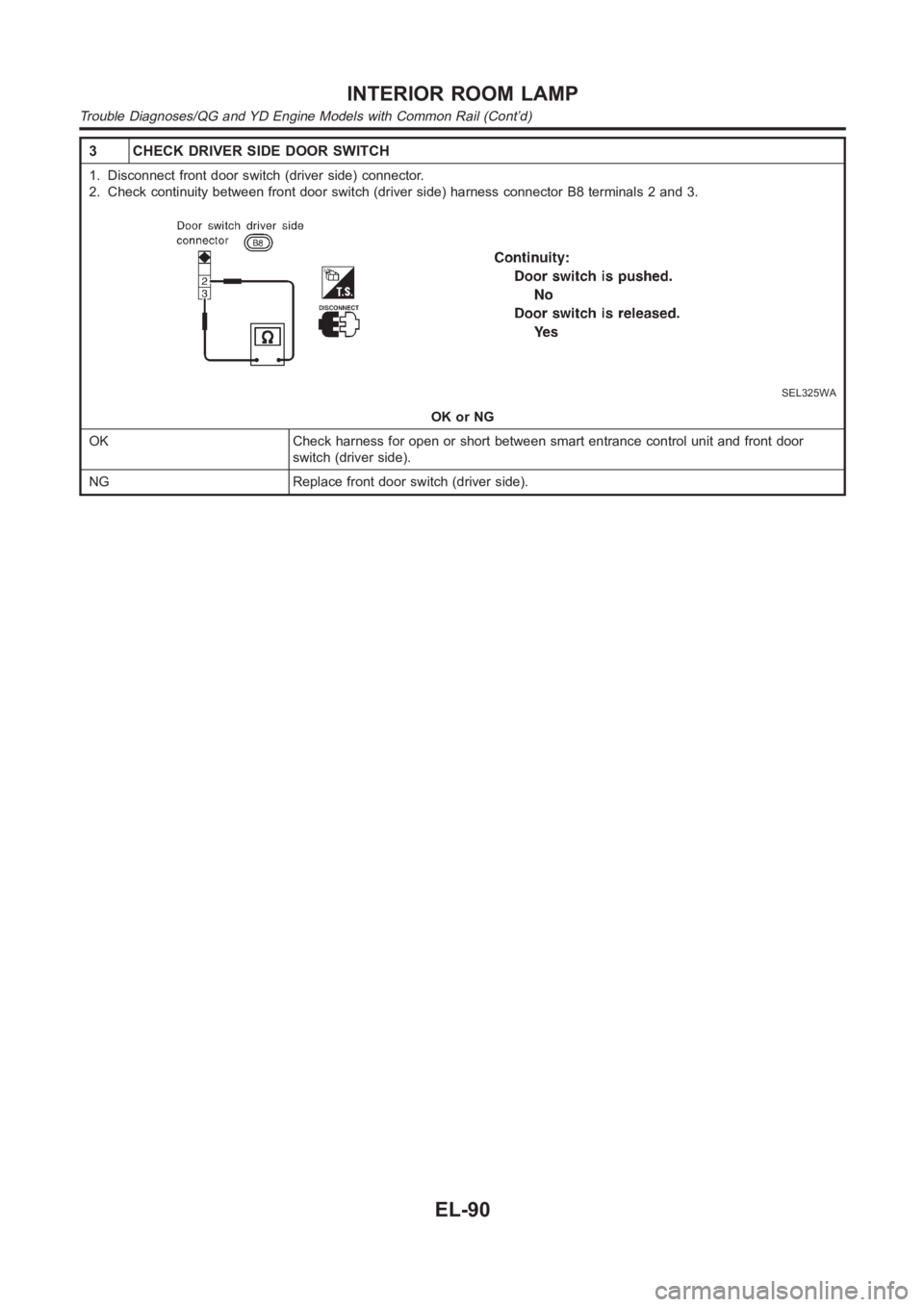

NISSAN ALMERA N16 2003 Electronic Repair Manual 3 CHECK DRIVER SIDE DOOR SWITCH 1. Disconnect front door switch (driver side) connector. 2. Check continuity between front door switch (driver side) harness connector B8 terminals 2 and 3. SEL325WA OK

Page 2427 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 4 CHECK DOOR LOCK/UNLOCK SWITCH WITH CONSULT-II Check door lock/unlock switch signal (“CDL LOCK SW” or “CDL UNLOCK SW”) in “DATA MONITOR” mode with CON- SULT-II. MKIB0198E When door lock/u

Page 2428 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 5 CHECK DOOR LOCK/UNLOCK SWITCH 1. Disconnect door lock/unlock switch harness connector. 2. Check continuity between door lock/unlock switch harness connector terminals 2 and 3. Power window main swit

Page 2429 of 3189

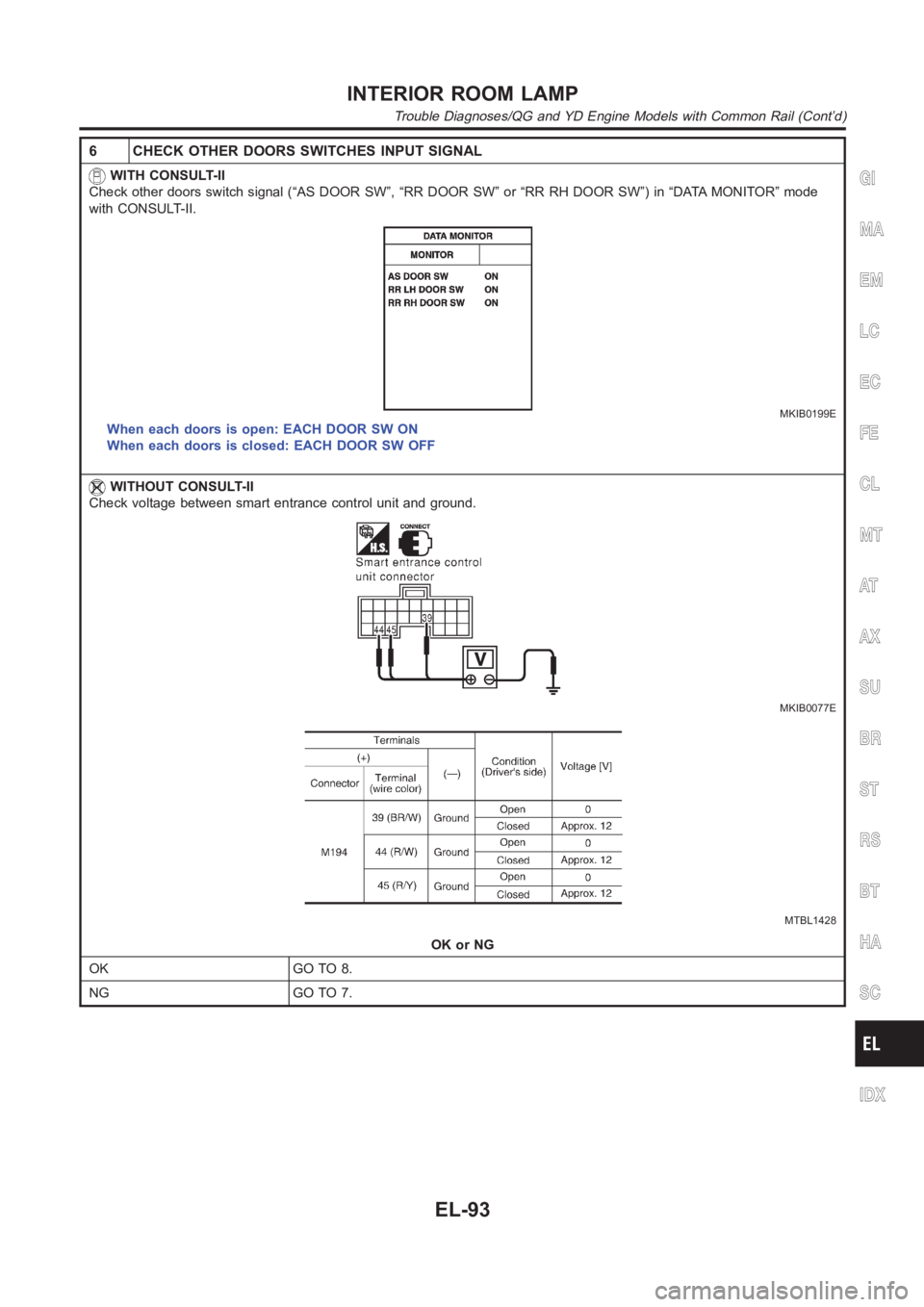

NISSAN ALMERA N16 2003 Electronic Repair Manual 6 CHECK OTHER DOORS SWITCHES INPUT SIGNAL WITH CONSULT-II Check other doors switch signal (“AS DOOR SW”, “RR DOOR SW” or “RR RH DOOR SW”) in “DATA MONITOR” mode with CONSULT-II. MKIB01

Page 2430 of 3189

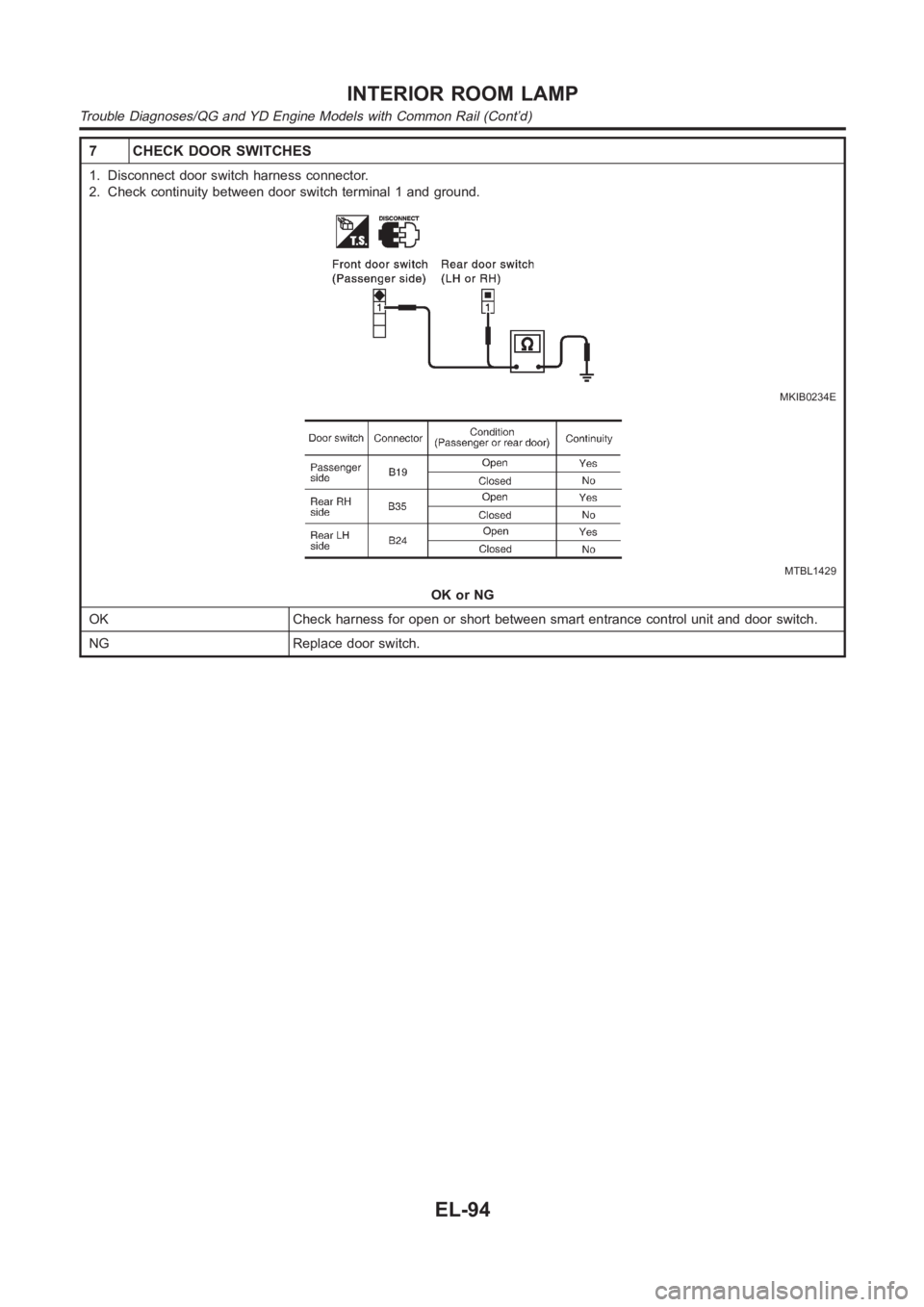

NISSAN ALMERA N16 2003 Electronic Repair Manual 7 CHECK DOOR SWITCHES 1. Disconnect door switch harness connector. 2. Check continuity between door switch terminal 1 and ground. MKIB0234E MTBL1429 OK or NG OK Check harness for open or short between

Page 2431 of 3189

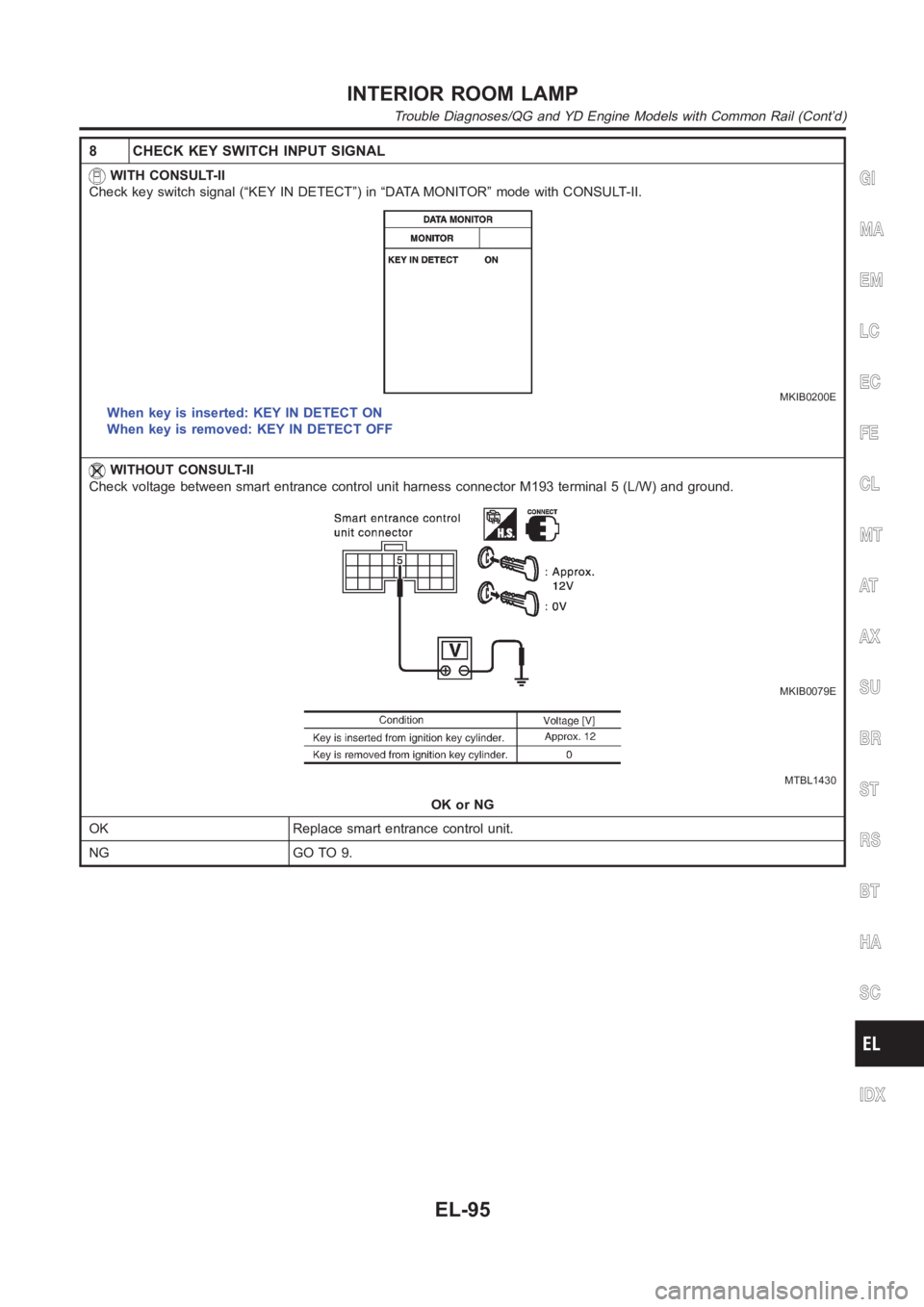

NISSAN ALMERA N16 2003 Electronic Repair Manual 8 CHECK KEY SWITCH INPUT SIGNAL WITH CONSULT-II Check key switch signal (“KEY IN DETECT”) in “DATA MONITOR” mode with CONSULT-II. MKIB0200E When key is inserted: KEY IN DETECT ON When key is r

Page 2432 of 3189

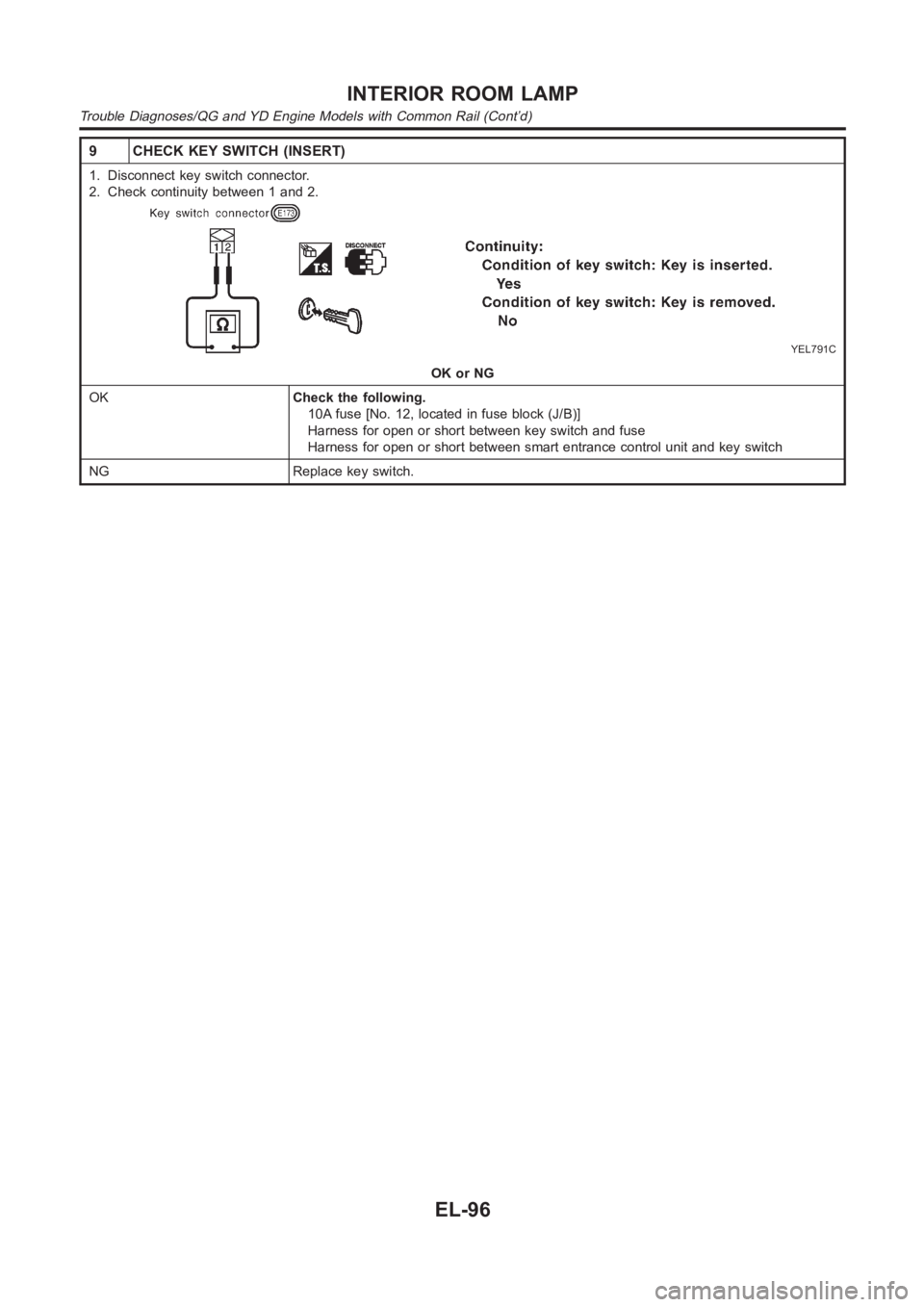

NISSAN ALMERA N16 2003 Electronic Repair Manual 9 CHECK KEY SWITCH (INSERT) 1. Disconnect key switch connector. 2. Check continuity between 1 and 2. YEL791C OK or NG OKCheck the following. 10A fuse [No. 12, located in fuse block (J/B)] Harness for
