Page 2177 of 3189

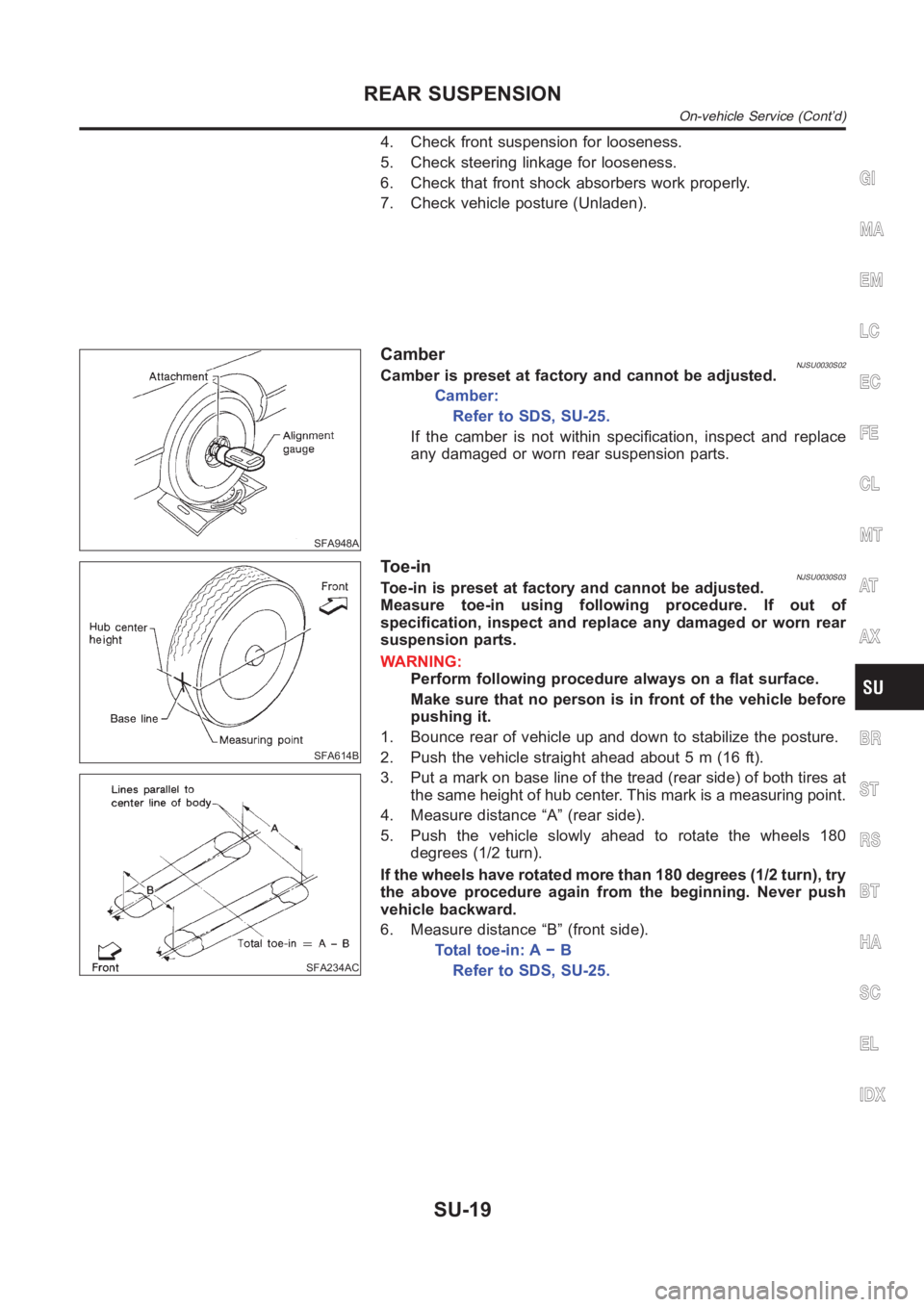

NISSAN ALMERA N16 2003 Electronic Repair Manual 4. Check front suspension for looseness. 5. Check steering linkage for looseness. 6. Check that front shock absorbers work properly. 7. Check vehicle posture (Unladen). SFA948A CamberNJSU0030S02Camber

Page 2178 of 3189

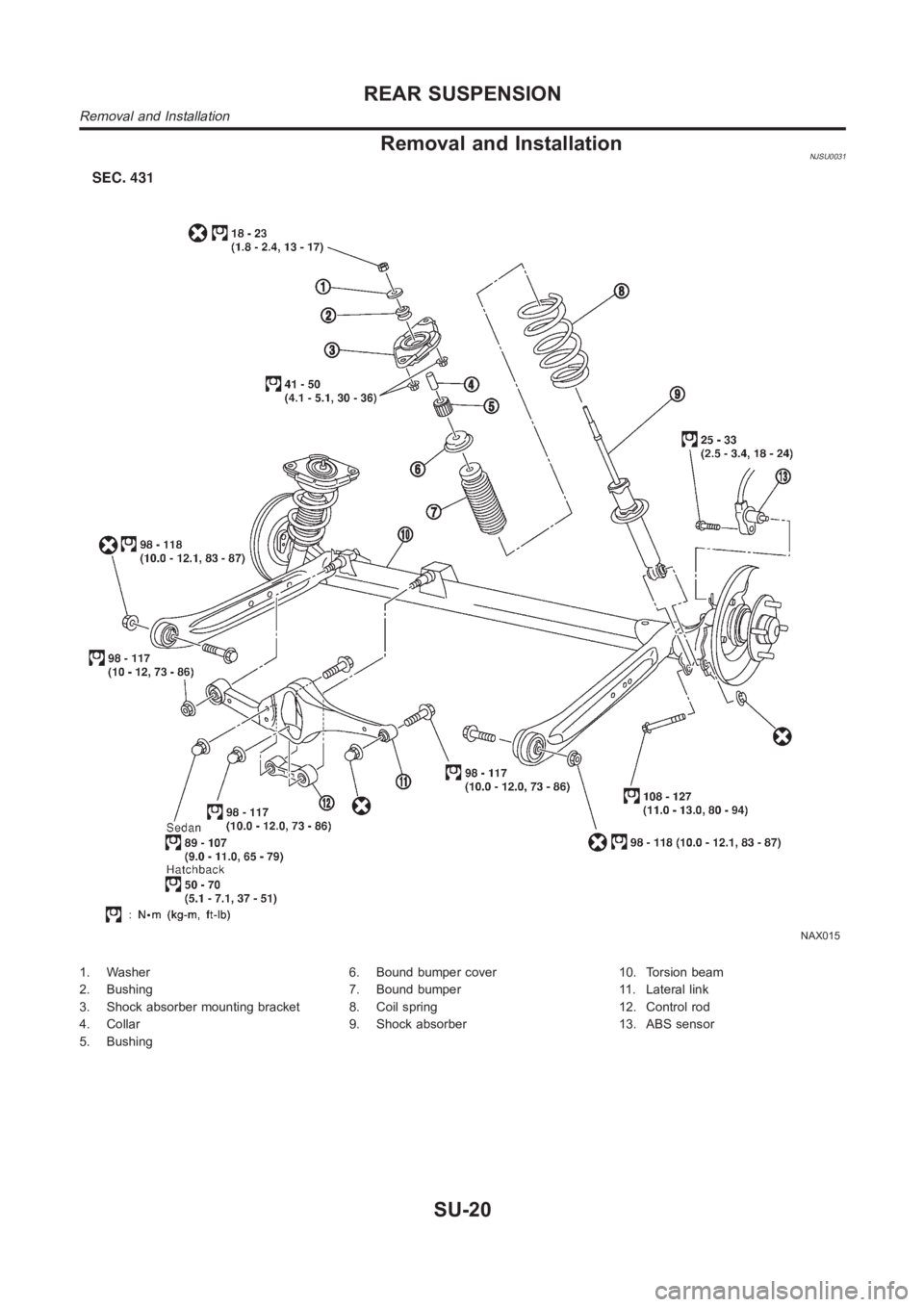

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJSU0031 NAX015 1. Washer 2. Bushing 3. Shock absorber mounting bracket 4. Collar 5. Bushing6. Bound bumper cover 7. Bound bumper 8. Coil spring 9. Shock absorber10. Torsion be

Page 2179 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SRA695A SSU038 REMOVALNJSU0031S01CAUTION: Before removing the rear suspension assembly, disconnect the ABS wheel sensor from the assembly. Failure to do so may result in damage to the sensor wires and

Page 2180 of 3189

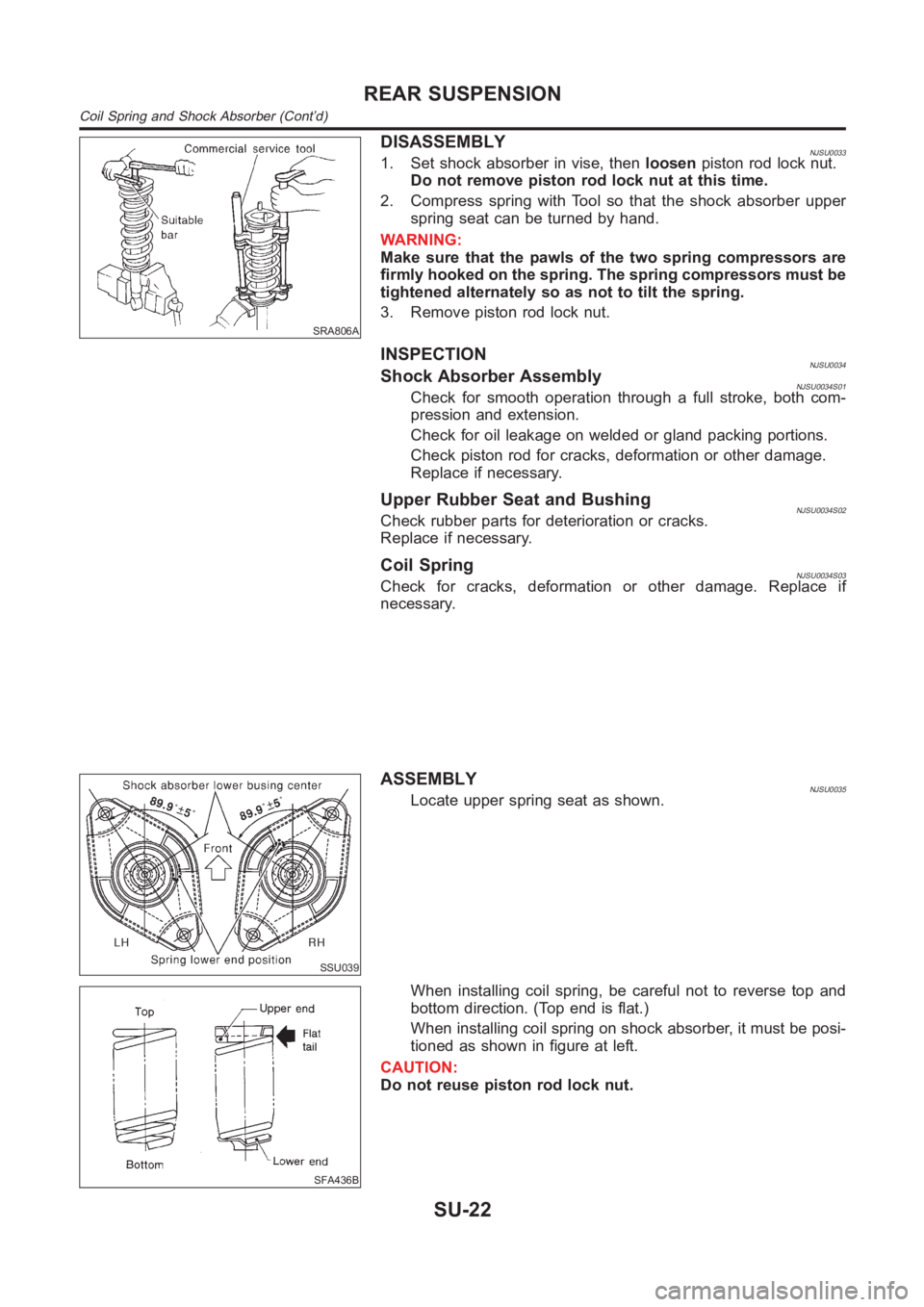

NISSAN ALMERA N16 2003 Electronic Repair Manual SRA806A DISASSEMBLYNJSU00331. Set shock absorber in vise, thenloosenpiston rod lock nut. Do not remove piston rod lock nut at this time. 2. Compress spring with Tool so that the shock absorber upper s

Page 2181 of 3189

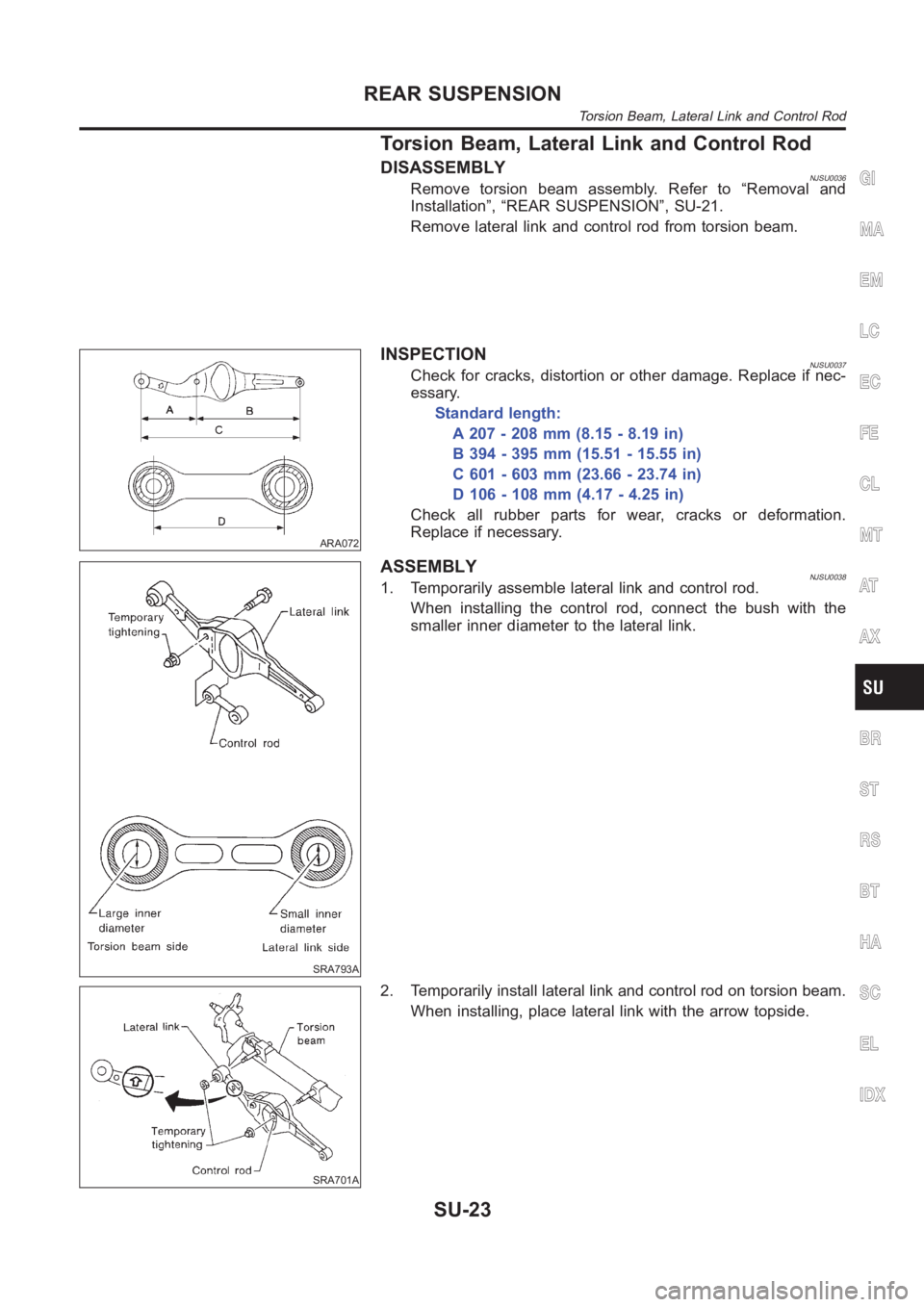

NISSAN ALMERA N16 2003 Electronic Repair Manual Torsion Beam, Lateral Link and Control Rod DISASSEMBLYNJSU0036Remove torsion beam assembly. Refer to “Removal and Installation”, “REAR SUSPENSION”, SU-21. Remove lateral link and control rod f

Page 2182 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SRA702A 3. Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque. 4. Install torsion beam assembly. Refer to “Removal and Installation”, “REAR

Page 2183 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Service Data and Specifications (SDS) GENERAL SPECIFICATIONS (REAR)=NJSU0039 Suspension type Multi-link beam suspension Shock absorber type Double-acting hydraulic REAR WHEEL ALIGNMENT (UNLADEN*)NJSU0

Page 2184 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NOTES
