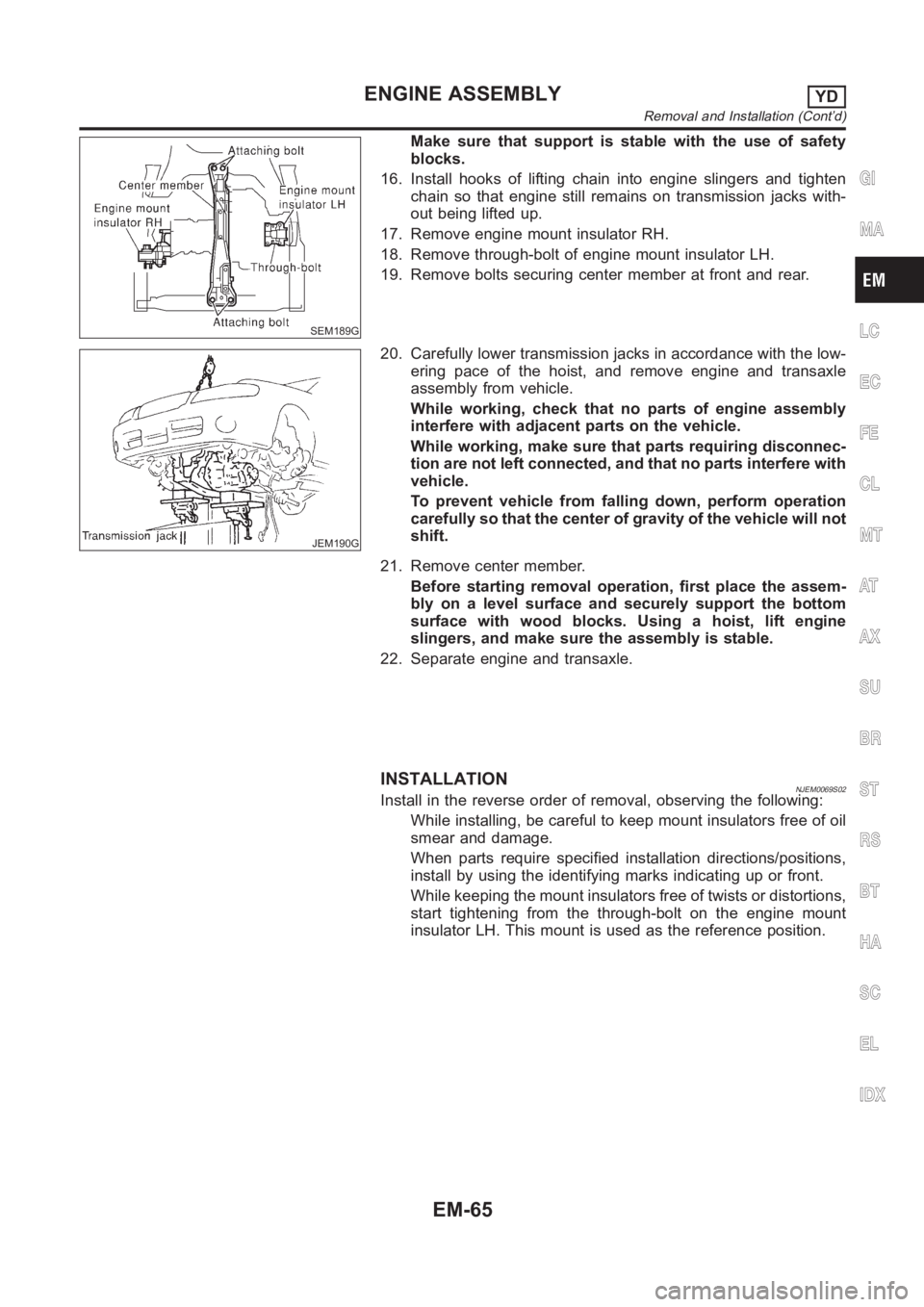

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM189G Make sure that support is stable with the use of safety blocks. 16. Install hooks of lifting chain into engine slingers and tighten chain so that engine still remains on transmission jacks wit

Page 250 of 3189

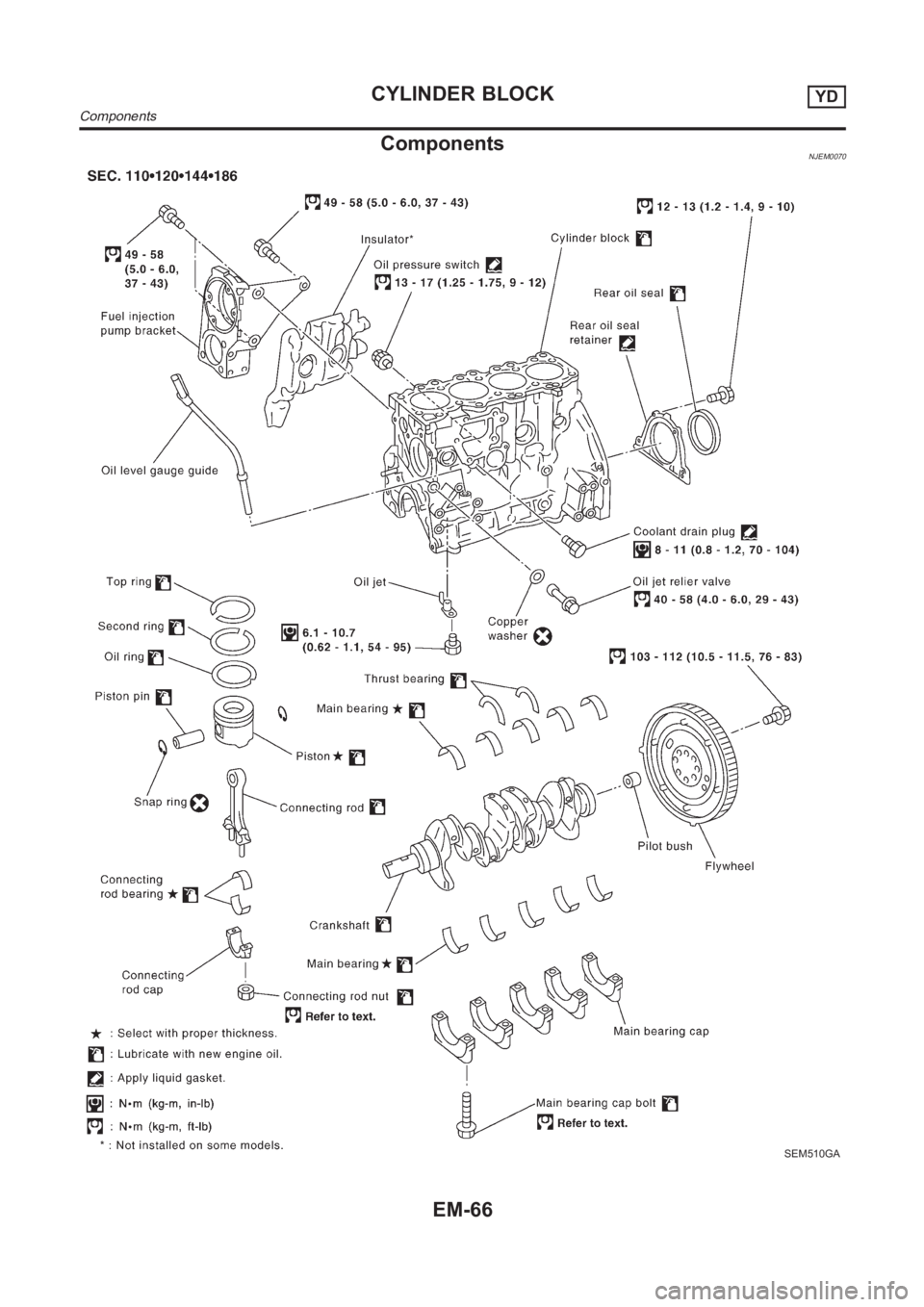

NISSAN ALMERA N16 2003 Electronic Repair Manual ComponentsNJEM0070 SEM510GA CYLINDER BLOCKYD Components EM-66

Page 251 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJEM0071CAUTION: When installing bearings, pistons, or other sliding parts, lubricate contacting surfaces with new engine oil. Place removed parts such as bearings and bearing

Page 252 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM193G d. Hoist up engine and install it on the engine stand (SST). Another method is to set engine sub-attachment and engine attachment on engine stand beforehand, and then, install engine. 3. Drain

Page 253 of 3189

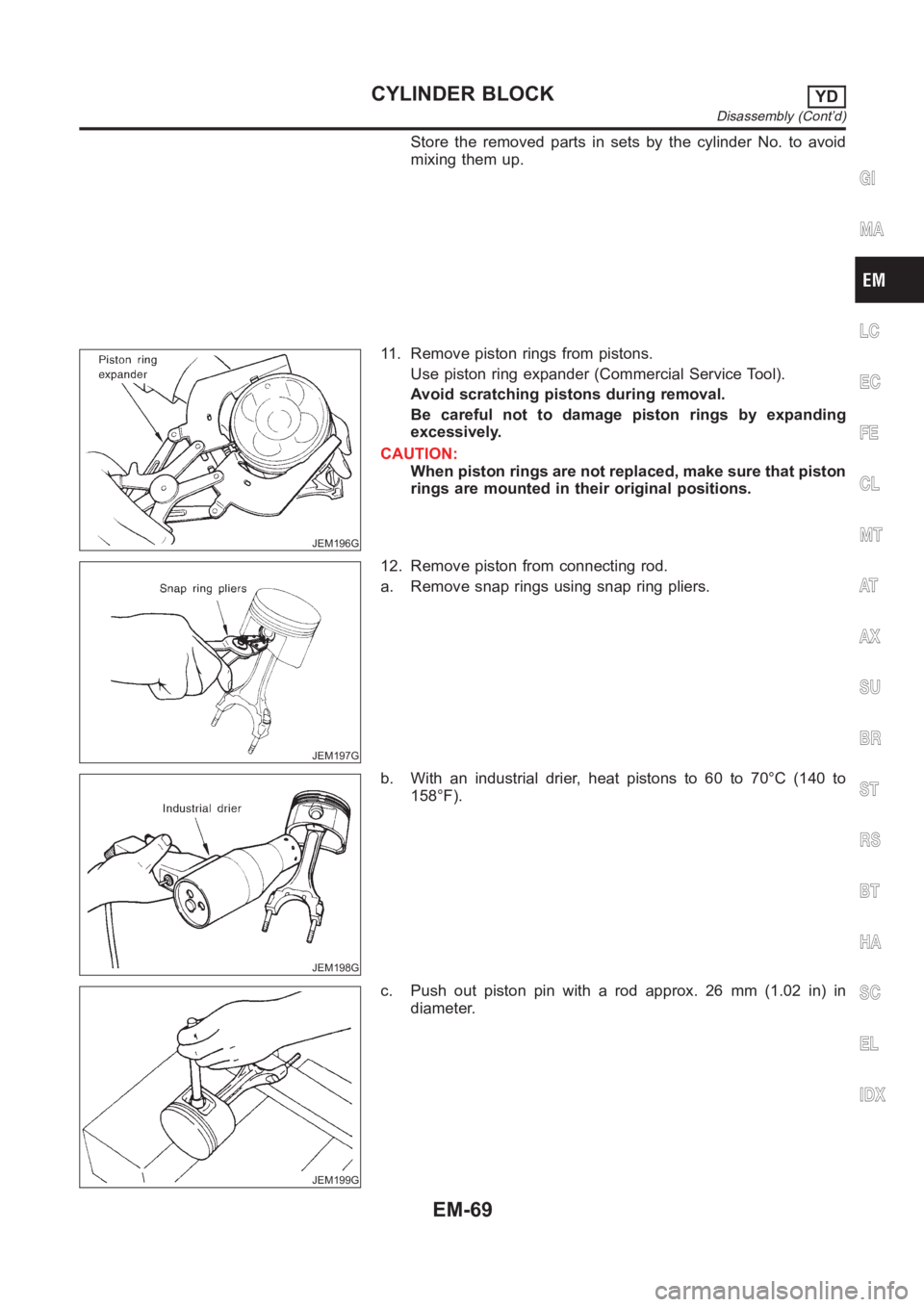

NISSAN ALMERA N16 2003 Electronic Repair Manual Store the removed parts in sets by the cylinder No. to avoid mixing them up. JEM196G 11. Remove piston rings from pistons. Use piston ring expander (Commercial Service Tool). Avoid scratching pistons

Page 254 of 3189

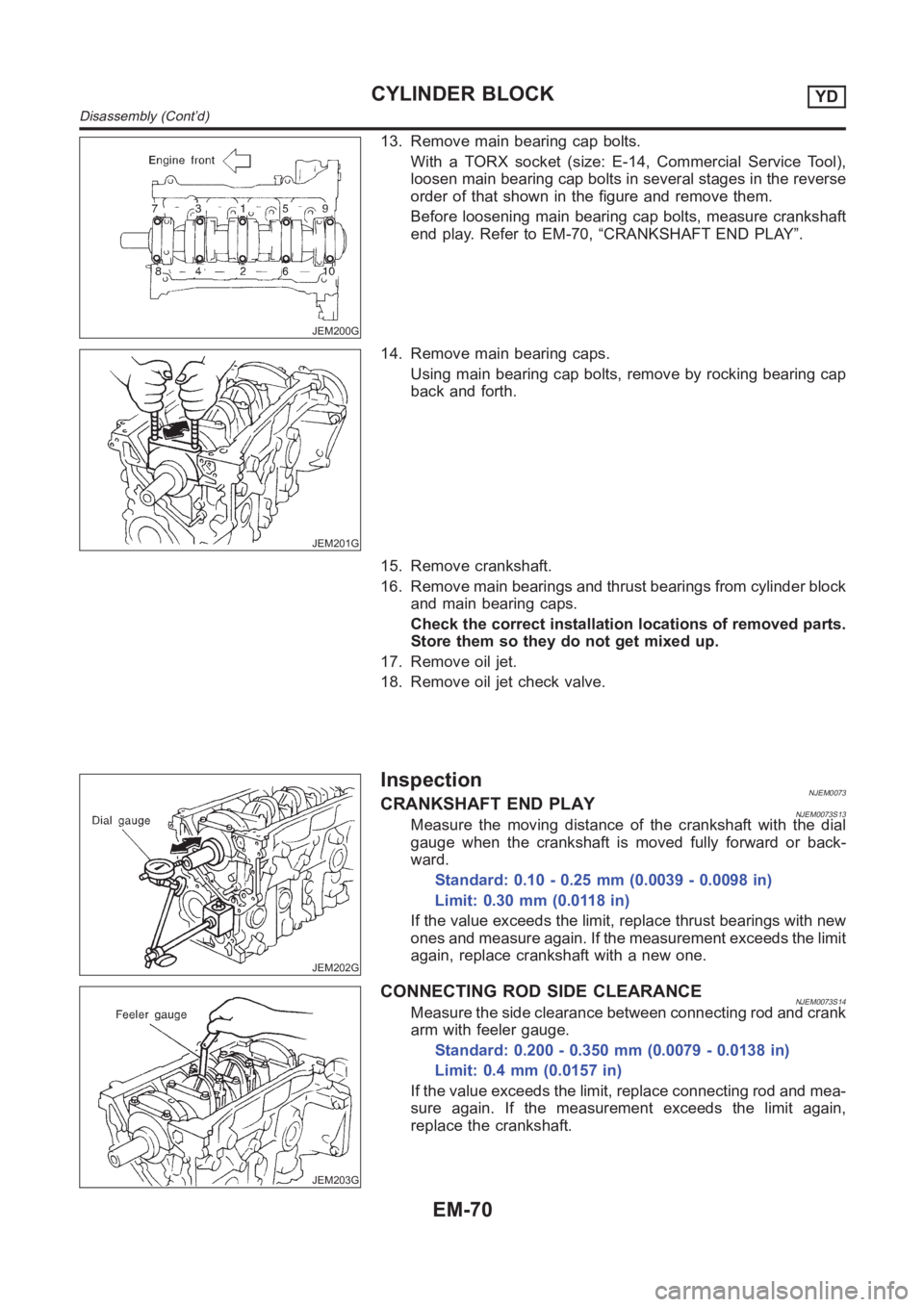

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM200G 13. Remove main bearing cap bolts. With a TORX socket (size: E-14, Commercial Service Tool), loosen main bearing cap bolts in several stages in the reverse order of that shown in the figure an

Page 255 of 3189

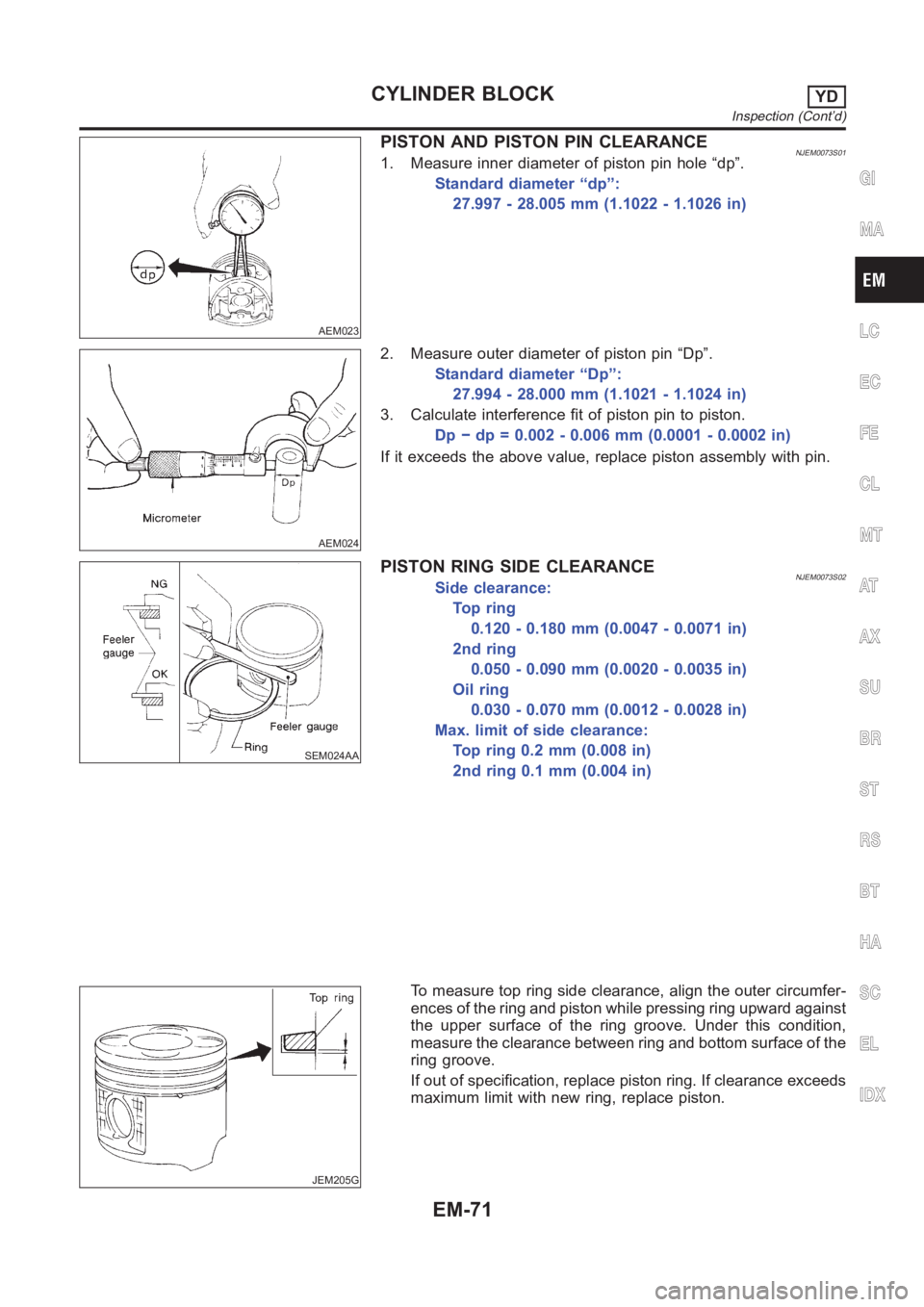

NISSAN ALMERA N16 2003 Electronic Repair Manual AEM023 PISTON AND PISTON PIN CLEARANCENJEM0073S011. Measure inner diameter of piston pin hole “dp”. Standard diameter “dp”: 27.997 - 28.005 mm (1.1022 - 1.1026 in) AEM024 2. Measure outer diam

Page 256 of 3189

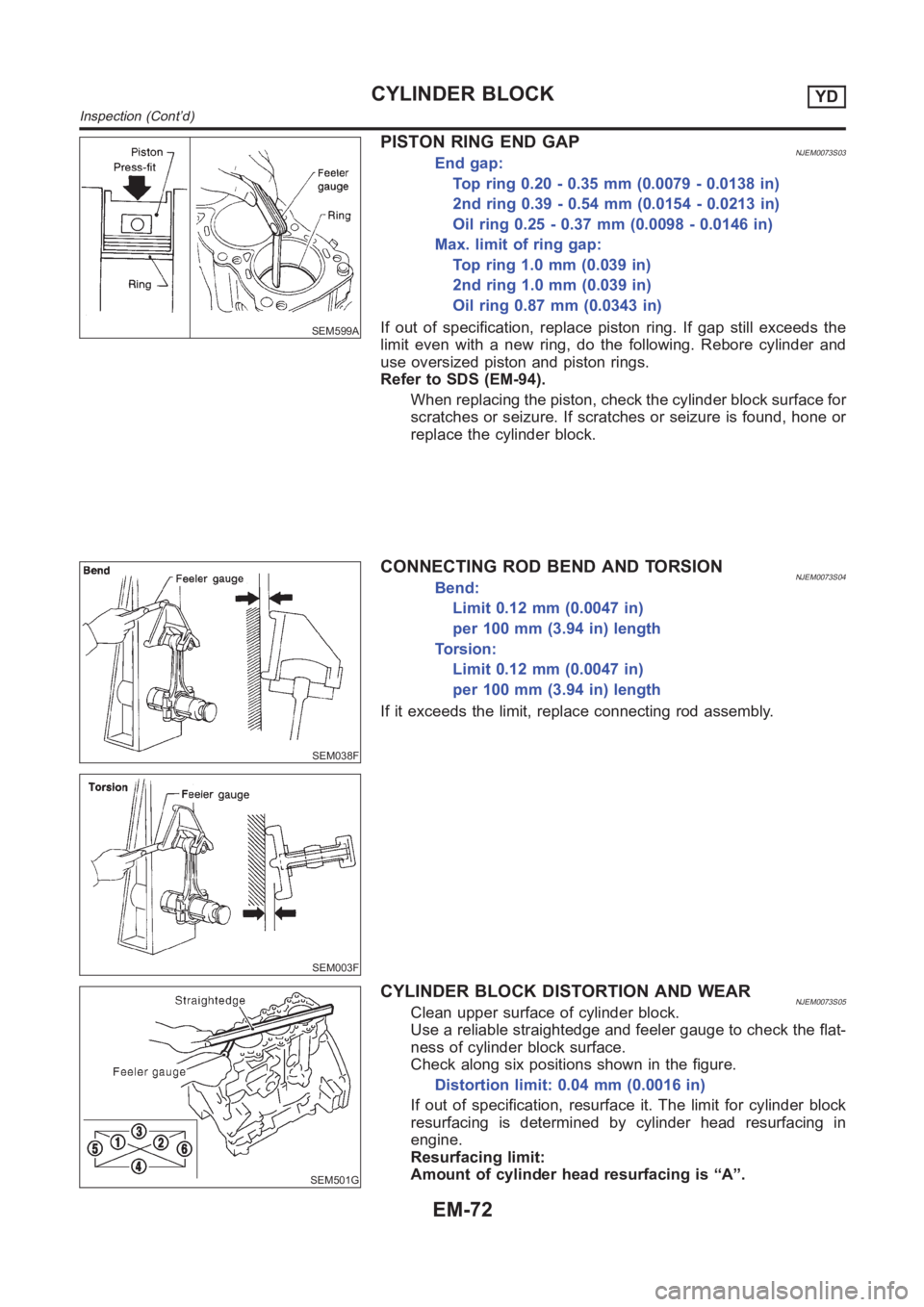

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM599A PISTON RING END GAPNJEM0073S03End gap: Top ring 0.20 - 0.35 mm (0.0079 - 0.0138 in) 2nd ring 0.39 - 0.54 mm (0.0154 - 0.0213 in) Oil ring 0.25 - 0.37 mm (0.0098 - 0.0146 in) Max. limit of ring
