Page 729 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EVAPORATIVE EMISSION SYSTEM EC-399 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC EVAPORATIVE EMISSION SYSTEMPFP:14950 DescriptionEBS00KDJ SYSTEM DESCRIPTION The evaporative emission system is used to

Page 730 of 3189

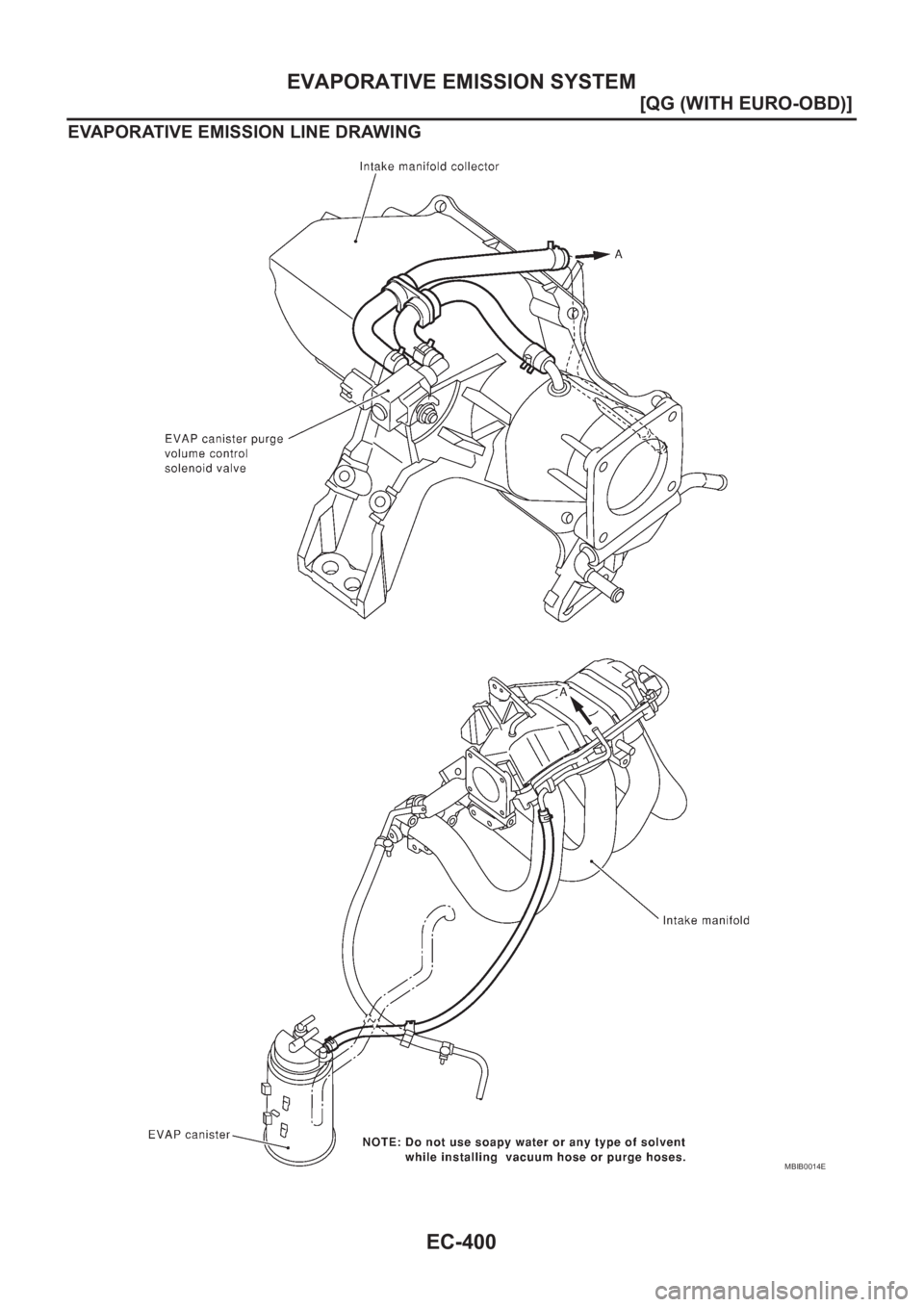

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-400 [QG (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM EVAPORATIVE EMISSION LINE DRAWING MBIB0014E

Page 731 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EVAPORATIVE EMISSION SYSTEM EC-401 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC Component InspectionEBS00KDK EVAP CANISTER Check EVAP canister as follows: 1. Block port B . Orally blow air through p

Page 732 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-402 [QG (WITH EURO-OBD)] POSITIVE CRANKCASE VENTILATION POSITIVE CRANKCASE VENTILATION PFP:11810 DescriptionEBS00KDL SYSTEM DESCRIPTION This system returns blow-by gas to the intake manifold. The

Page 733 of 3189

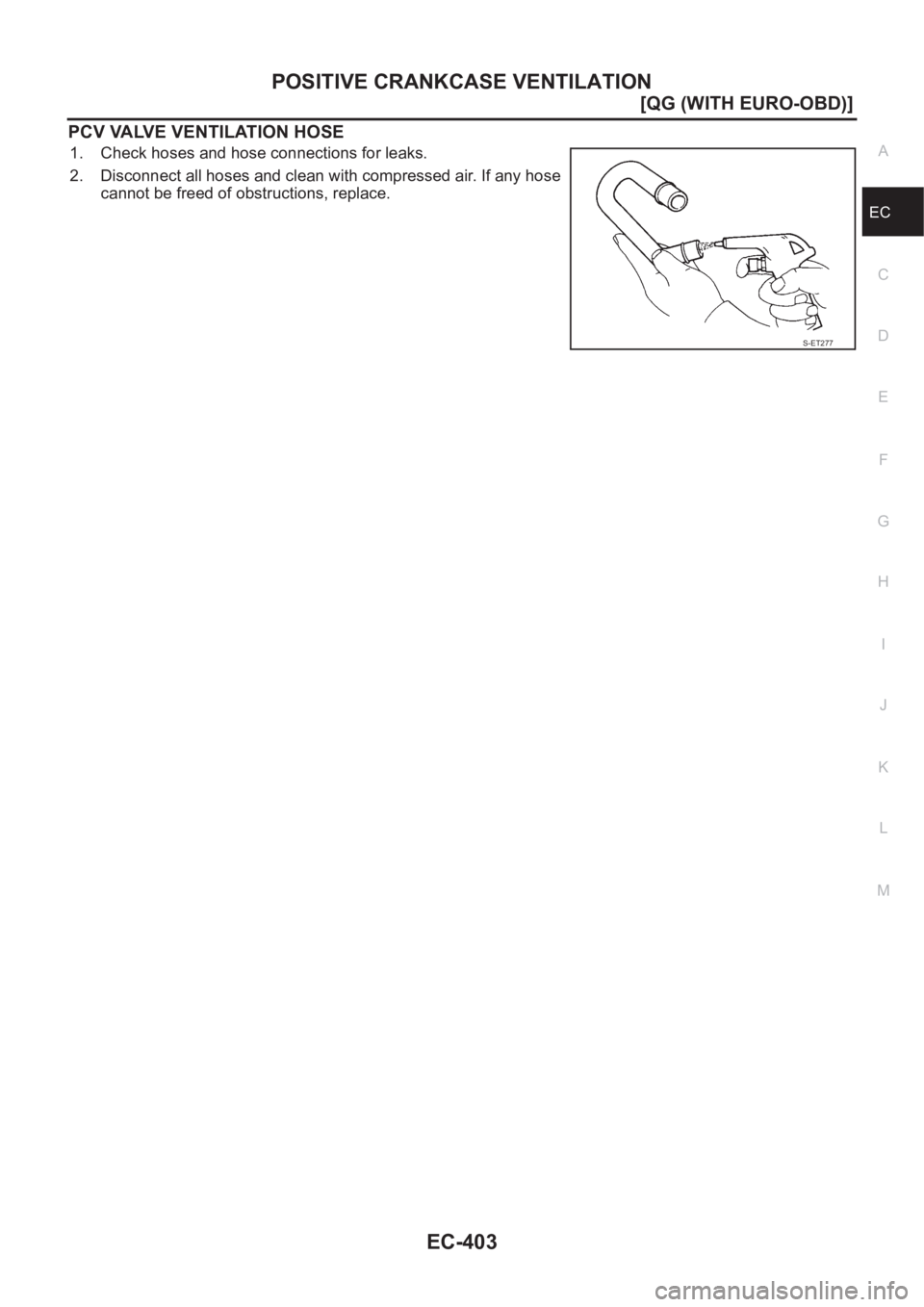

NISSAN ALMERA N16 2003 Electronic Repair Manual POSITIVE CRANKCASE VENTILATION EC-403 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC PCV VALVE VENTILATION HOSE 1. Check hoses and hose connections for leaks. 2. Disconnect all hoses and clean with co

Page 734 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-404 [QG (WITH EURO-OBD)] SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) PFP:00030 Fuel PressureEBS00KDN Idle Speed and Ignition TimingEBS00KDO *1: Under the following c

Page 735 of 3189

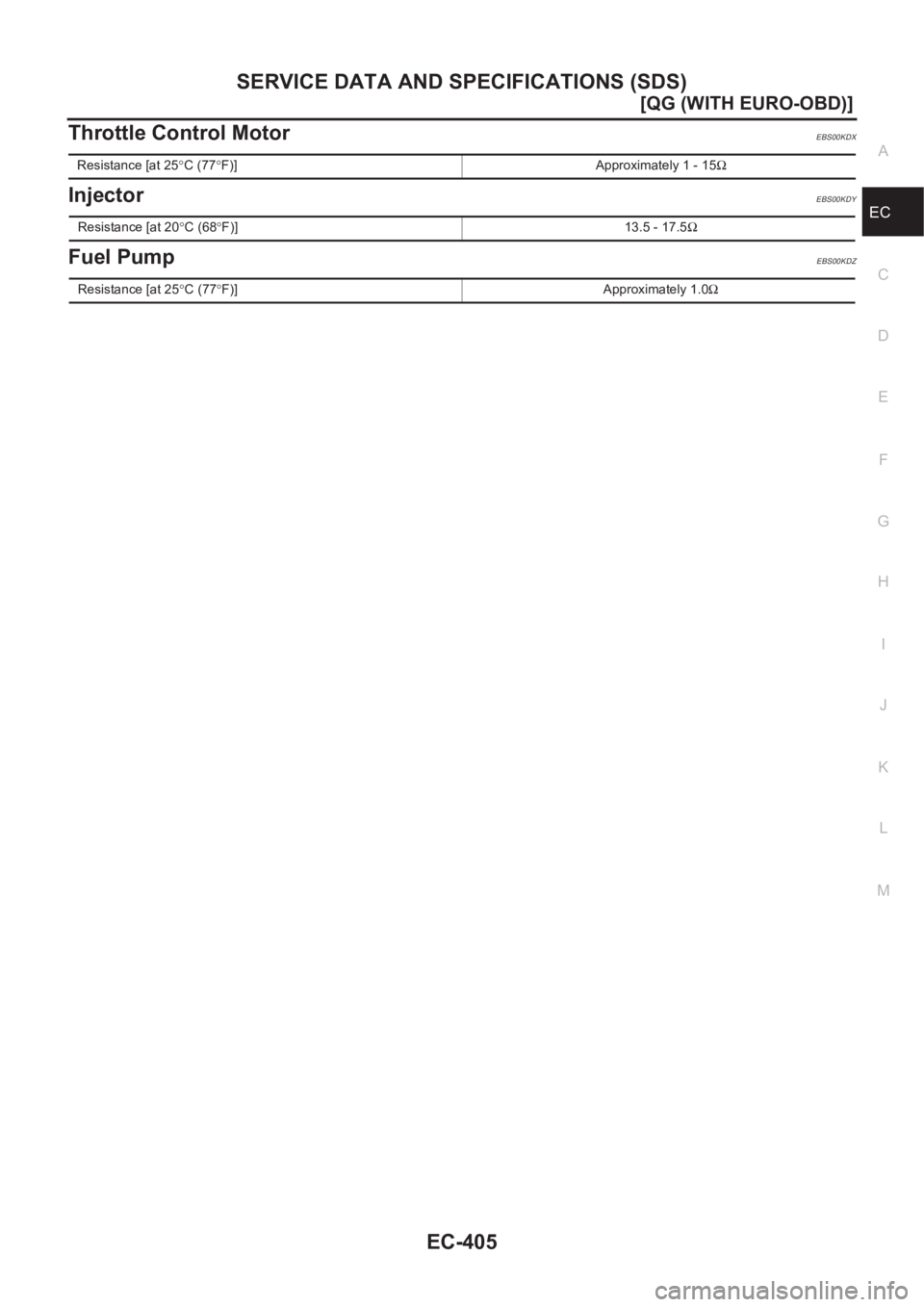

NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EC-405 [QG (WITH EURO-OBD)] C D E F G H I J K L MA EC Throttle Control MotorEBS00KDX InjectorEBS00KDY Fuel PumpEBS00KDZ Resistance [at 25°C (77°F)] Approximatel

Page 736 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-406 [QG (WITHOUT EURO-OBD)] INDEX FOR DTC [QG (WITHOUT EURO-OBD)]INDEX FOR DTCPFP:00024 Alphabetical IndexEBS00KE0 Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type
