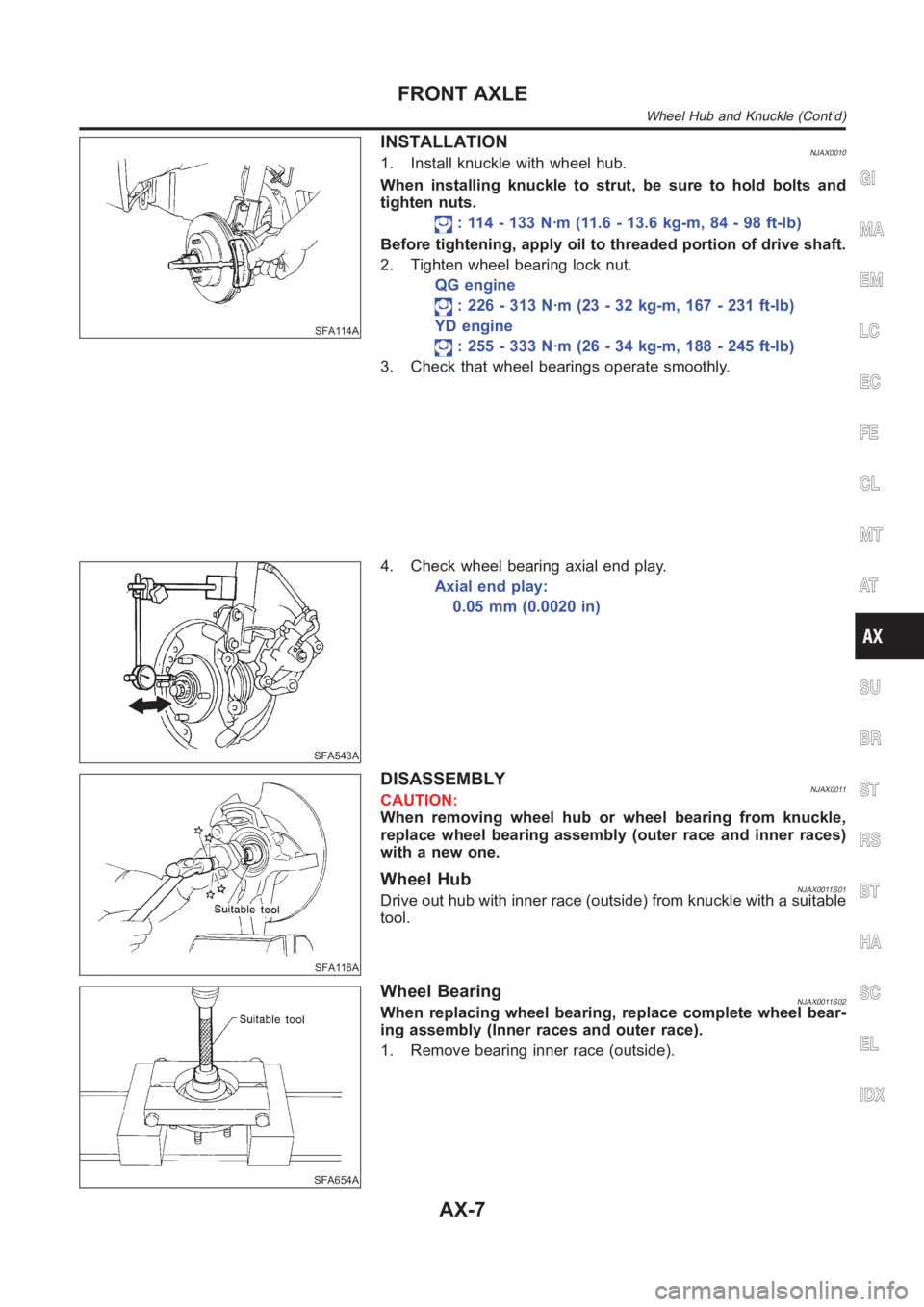

Page 2137 of 3189

SFA114A
INSTALLATIONNJAX00101. Install knuckle with wheel hub.
When installing knuckle to strut, be sure to hold bolts and
tighten nuts.
: 114 - 133 N·m (11.6 - 13.6 kg-m, 84 - 98 ft-lb)
Before tightening, apply oil to threaded portion of drive shaft.
2. Tighten wheel bearing lock nut.
QG engine
: 226 - 313 N·m (23 - 32 kg-m, 167 - 231 ft-lb)
YD engine
: 255 - 333 N·m (26 - 34 kg-m, 188 - 245 ft-lb)
3. Check that wheel bearings operate smoothly.
SFA543A
4. Check wheel bearing axial end play.
Axial end play:
0.05 mm (0.0020 in)
SFA116A
DISASSEMBLYNJAX0011CAUTION:
When removing wheel hub or wheel bearing from knuckle,
replace wheel bearing assembly (outer race and inner races)
with a new one.
Wheel HubNJAX0011S01Drive out hub with inner race (outside) from knuckle with a suitable
tool.
SFA654A
Wheel BearingNJAX0011S02When replacing wheel bearing, replace complete wheel bear-
ing assembly (Inner races and outer race).
1. Remove bearing inner race (outside).
GI
MA
EM
LC
EC
FE
CL
MT
AT
SU
BR
ST
RS
BT
HA
SC
EL
IDX
FRONT AXLE
Wheel Hub and Knuckle (Cont’d)
AX-7

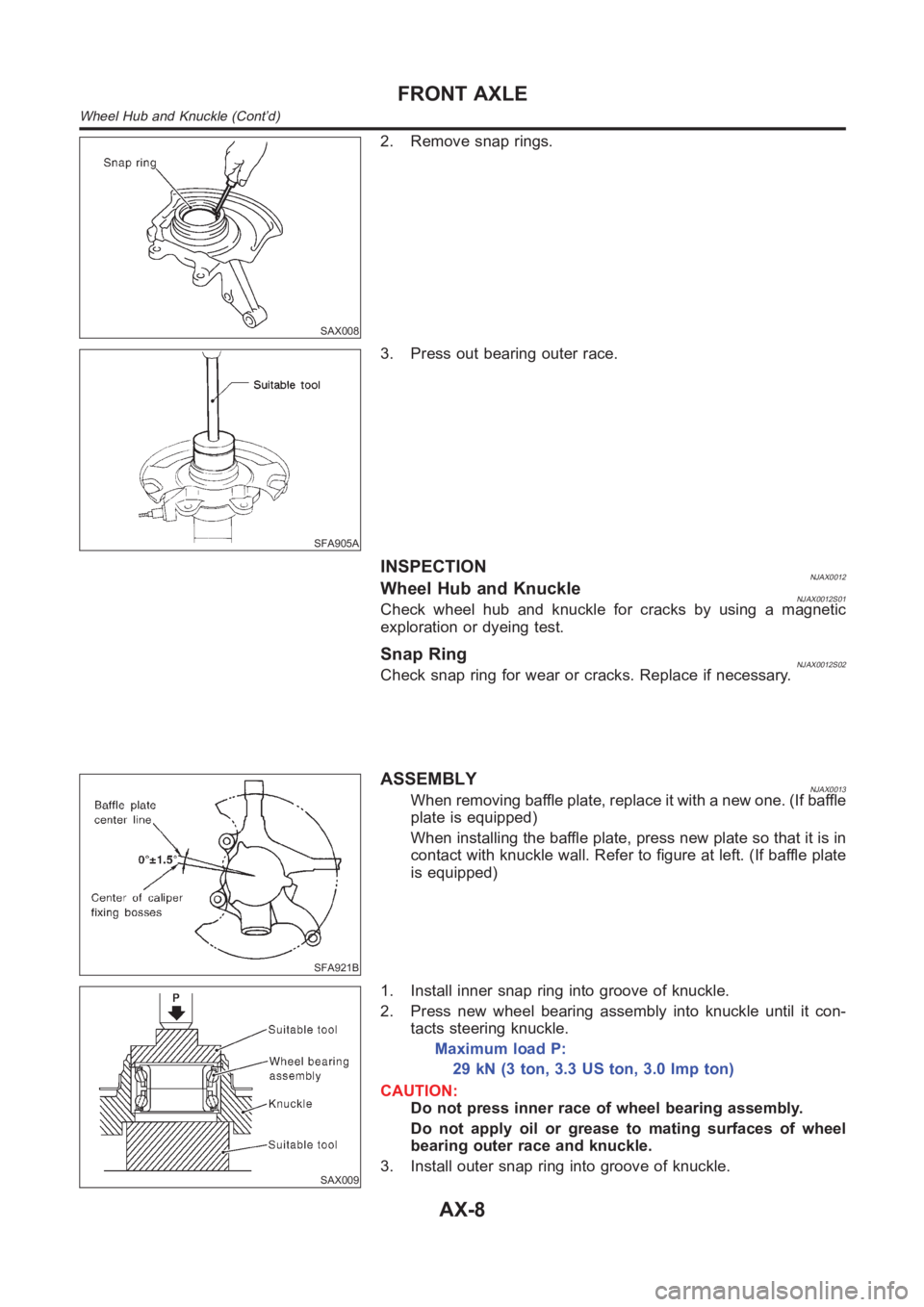

Page 2138 of 3189

SAX008
2. Remove snap rings.
SFA905A
3. Press out bearing outer race.
INSPECTIONNJAX0012Wheel Hub and KnuckleNJAX0012S01Check wheel hub and knuckle for cracks by using a magnetic
exploration or dyeing test.
Snap RingNJAX0012S02Check snap ring for wear or cracks. Replace if necessary.
SFA921B
ASSEMBLYNJAX0013When removing baffle plate, replace it with a new one. (If baffle
plate is equipped)
When installing the baffle plate, press new plate so that it is in
contact with knuckle wall. Refer to figure at left. (If baffle plate
is equipped)
SAX009
1. Install inner snap ring into groove of knuckle.
2. Press new wheel bearing assembly into knuckle until it con-
tacts steering knuckle.
Maximum load P:
29 kN (3 ton, 3.3 US ton, 3.0 Imp ton)
CAUTION:
Do not press inner race of wheel bearing assembly.
Do not apply oil or grease to mating surfaces of wheel
bearing outer race and knuckle.
3. Install outer snap ring into groove of knuckle.
FRONT AXLE
Wheel Hub and Knuckle (Cont’d)
AX-8

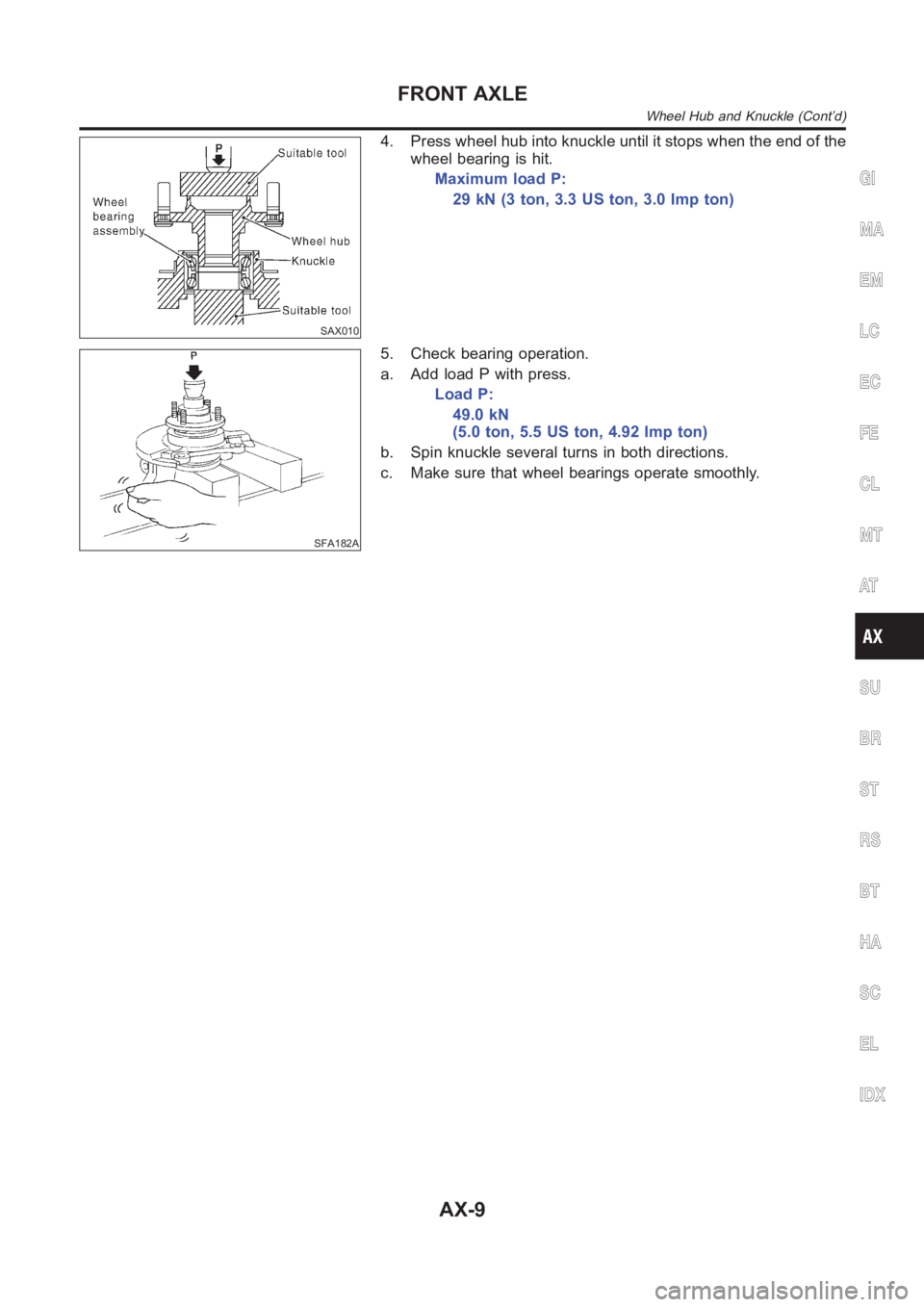

Page 2139 of 3189
SAX010
4. Press wheel hub into knuckle until it stops when the end of the
wheel bearing is hit.
Maximum load P:
29 kN (3 ton, 3.3 US ton, 3.0 Imp ton)
SFA182A
5. Check bearing operation.
a. Add load P with press.
Load P:
49.0 kN
(5.0 ton, 5.5 US ton, 4.92 Imp ton)
b. Spin knuckle several turns in both directions.
c. Make sure that wheel bearings operate smoothly.
GI
MA
EM
LC
EC
FE
CL
MT
AT
SU
BR
ST
RS
BT
HA
SC
EL
IDX
FRONT AXLE
Wheel Hub and Knuckle (Cont’d)
AX-9

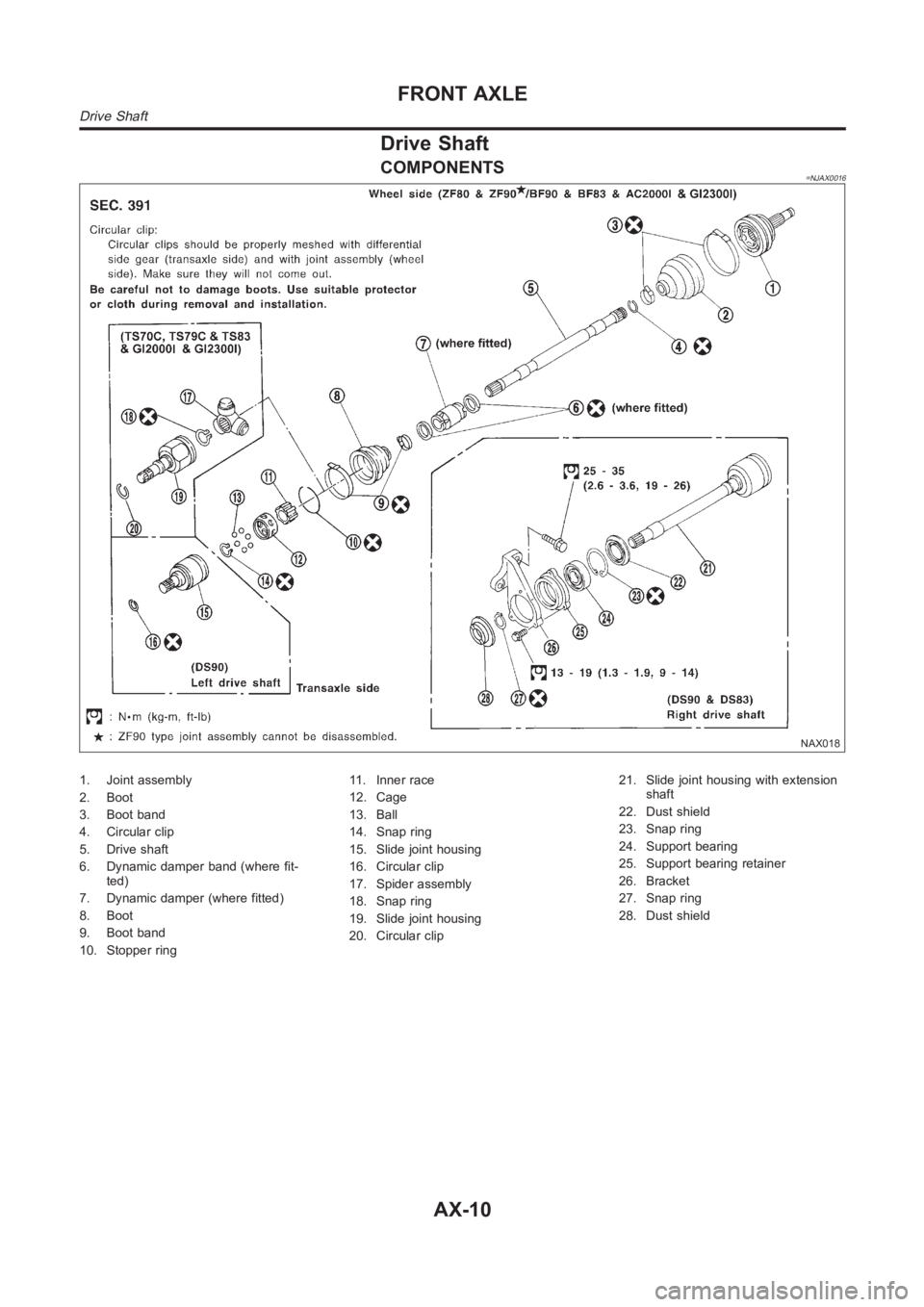

Page 2140 of 3189
Drive Shaft
COMPONENTS=NJAX0016
NAX018
1. Joint assembly
2. Boot
3. Boot band
4. Circular clip
5. Drive shaft
6. Dynamic damper band (where fit-
ted)
7. Dynamic damper (where fitted)
8. Boot
9. Boot band
10. Stopper ring11. Inner race
12. Cage
13. Ball
14. Snap ring
15. Slide joint housing
16. Circular clip
17. Spider assembly
18. Snap ring
19. Slide joint housing
20. Circular clip21. Slide joint housing with extension
shaft
22. Dust shield
23. Snap ring
24. Support bearing
25. Support bearing retainer
26. Bracket
27. Snap ring
28. Dust shield
FRONT AXLE
Drive Shaft
AX-10

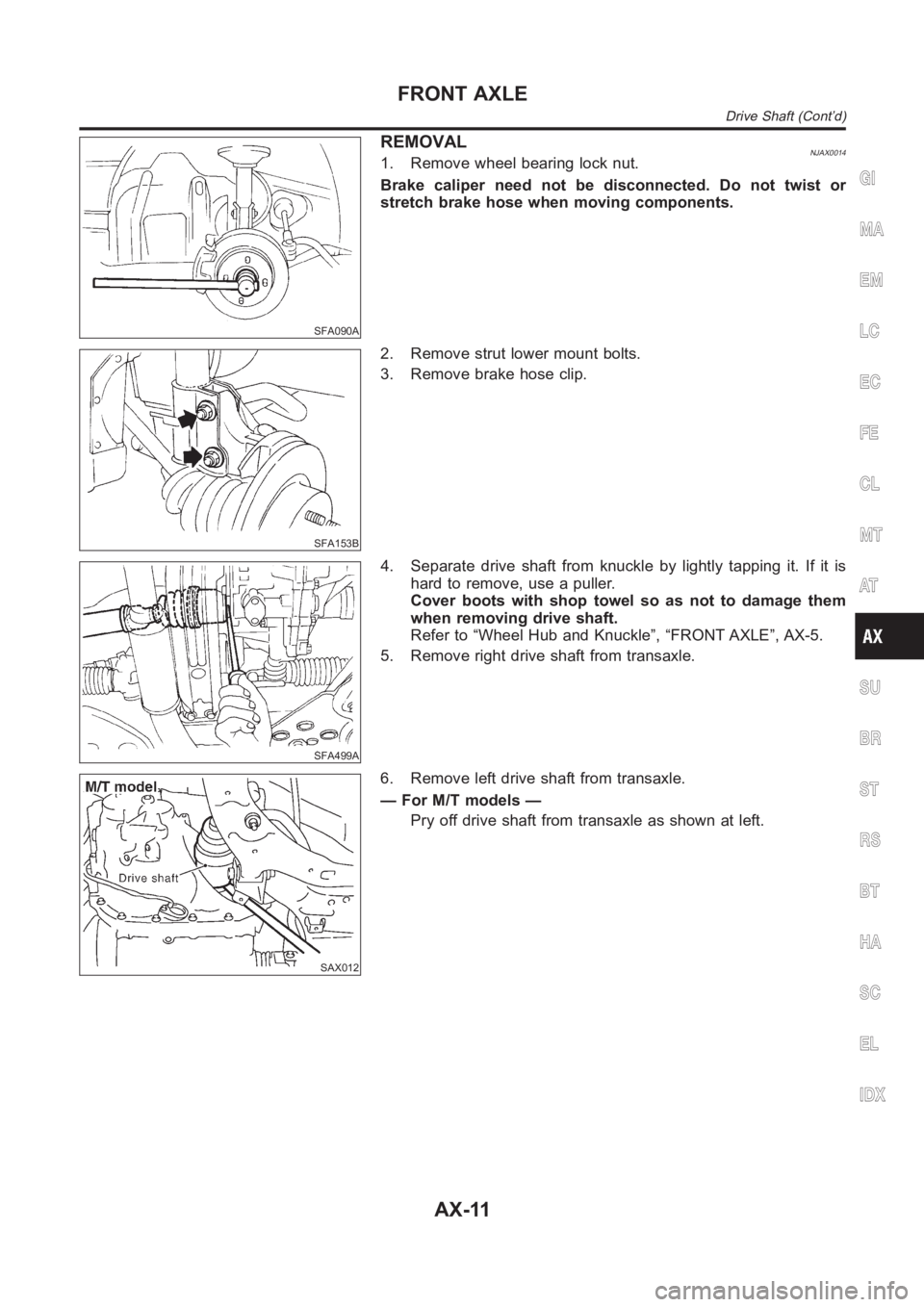

Page 2141 of 3189
SFA090A
REMOVALNJAX00141. Remove wheel bearing lock nut.
Brake caliper need not be disconnected. Do not twist or
stretch brake hose when moving components.
SFA153B
2. Remove strut lower mount bolts.
3. Remove brake hose clip.
SFA499A
4. Separate drive shaft from knuckle by lightly tapping it. If it is
hard to remove, use a puller.
Cover boots with shop towel so as not to damage them
when removing drive shaft.
Refer to “Wheel Hub and Knuckle”, “FRONT AXLE”, AX-5.
5. Remove right drive shaft from transaxle.
SAX012
6. Remove left drive shaft from transaxle.
— For M/T models —
Pry off drive shaft from transaxle as shown at left.
GI
MA
EM
LC
EC
FE
CL
MT
AT
SU
BR
ST
RS
BT
HA
SC
EL
IDX
FRONT AXLE
Drive Shaft (Cont’d)
AX-11

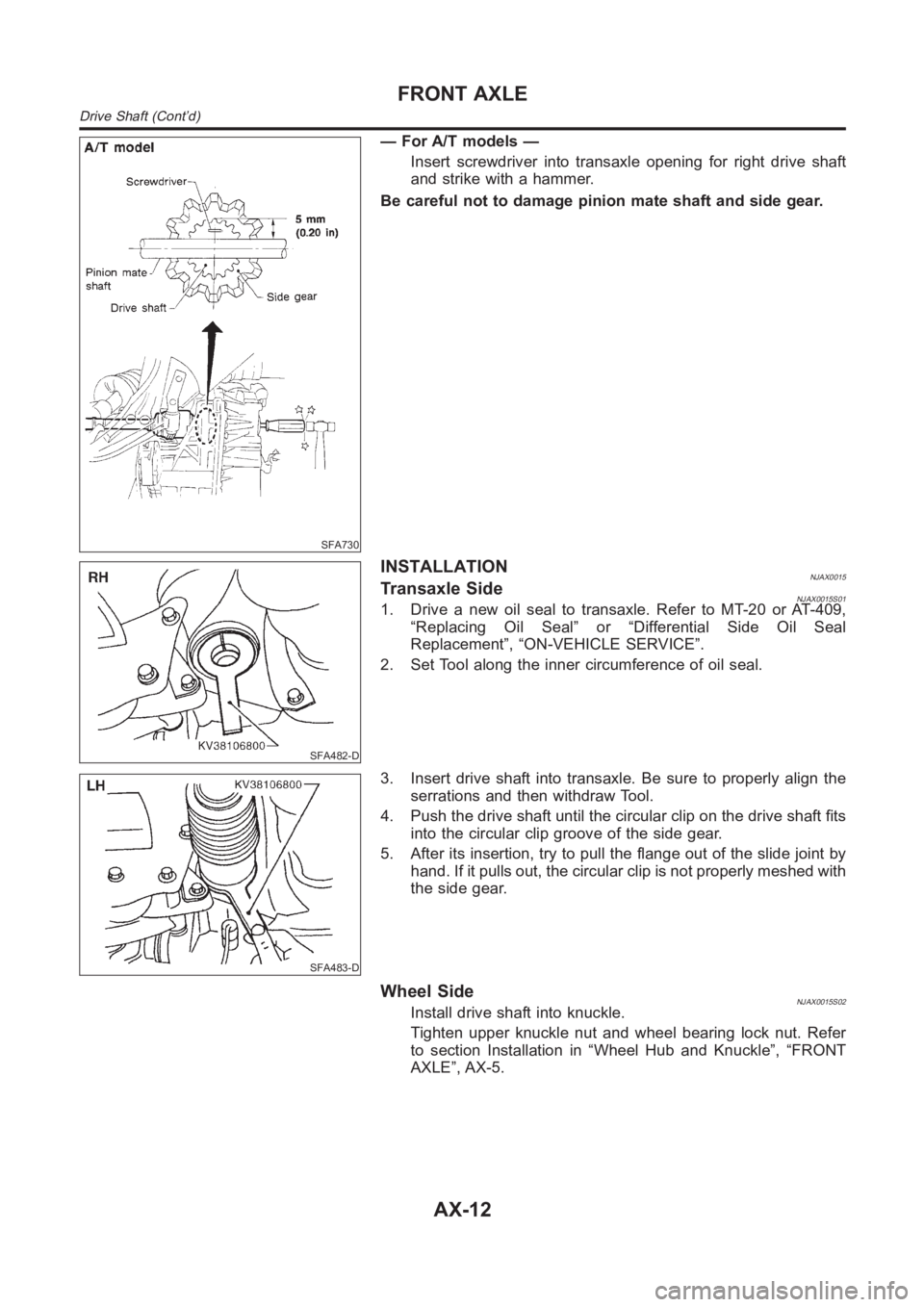

Page 2142 of 3189

SFA730
— For A/T models —
Insert screwdriver into transaxle opening for right drive shaft
and strike with a hammer.
Be careful not to damage pinion mate shaft and side gear.
SFA482-D
INSTALLATIONNJAX0015Transaxle SideNJAX0015S011. Drive a new oil seal to transaxle. Refer to MT-20 or AT-409,
“Replacing Oil Seal” or “Differential Side Oil Seal
Replacement”, “ON-VEHICLE SERVICE”.
2. Set Tool along the inner circumference of oil seal.
SFA483-D
3. Insert drive shaft into transaxle. Be sure to properly align the
serrations and then withdraw Tool.
4. Push the drive shaft until the circular clip on the drive shaft fits
into the circular clip groove of the side gear.
5. After its insertion, try to pull the flange out of the slide joint by
hand. If it pulls out, the circular clip is not properly meshed with
the side gear.
Wheel SideNJAX0015S02Install drive shaft into knuckle.
Tighten upper knuckle nut and wheel bearing lock nut. Refer
to section Installation in “Wheel Hub and Knuckle”, “FRONT
AXLE”, AX-5.
FRONT AXLE
Drive Shaft (Cont’d)
AX-12

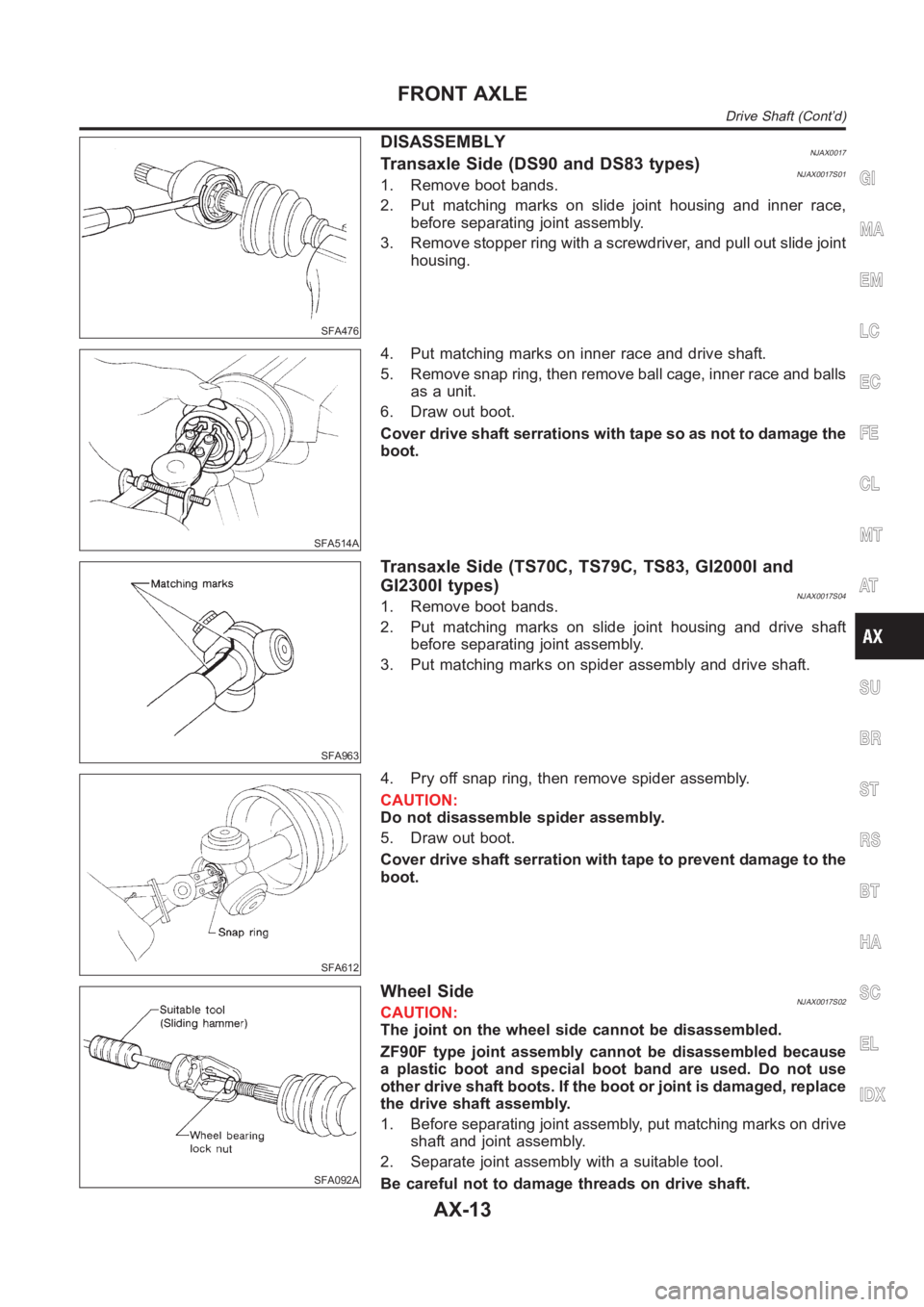

Page 2143 of 3189

SFA476
DISASSEMBLYNJAX0017Transaxle Side (DS90 and DS83 types)NJAX0017S011. Remove boot bands.
2. Put matching marks on slide joint housing and inner race,
before separating joint assembly.
3. Remove stopper ring with a screwdriver, and pull out slide joint
housing.
SFA514A
4. Put matching marks on inner race and drive shaft.
5. Remove snap ring, then remove ball cage, inner race and balls
as a unit.
6. Draw out boot.
Cover drive shaft serrations with tape so as not to damage the
boot.
SFA963
Transaxle Side (TS70C, TS79C, TS83, GI2000I and
GI2300I types)
NJAX0017S041. Remove boot bands.
2. Put matching marks on slide joint housing and drive shaft
before separating joint assembly.
3. Put matching marks on spider assembly and drive shaft.
SFA612
4. Pry off snap ring, then remove spider assembly.
CAUTION:
Do not disassemble spider assembly.
5. Draw out boot.
Cover drive shaft serration with tape to prevent damage to the
boot.
SFA092A
Wheel SideNJAX0017S02CAUTION:
The joint on the wheel side cannot be disassembled.
ZF90F type joint assembly cannot be disassembled because
a plastic boot and special boot band are used. Do not use
other drive shaft boots. If the boot or joint is damaged, replace
the drive shaft assembly.
1. Before separating joint assembly, put matching marks on drive
shaft and joint assembly.
2. Separate joint assembly with a suitable tool.
Be careful not to damage threads on drive shaft.
GI
MA
EM
LC
EC
FE
CL
MT
AT
SU
BR
ST
RS
BT
HA
SC
EL
IDX
FRONT AXLE
Drive Shaft (Cont’d)
AX-13

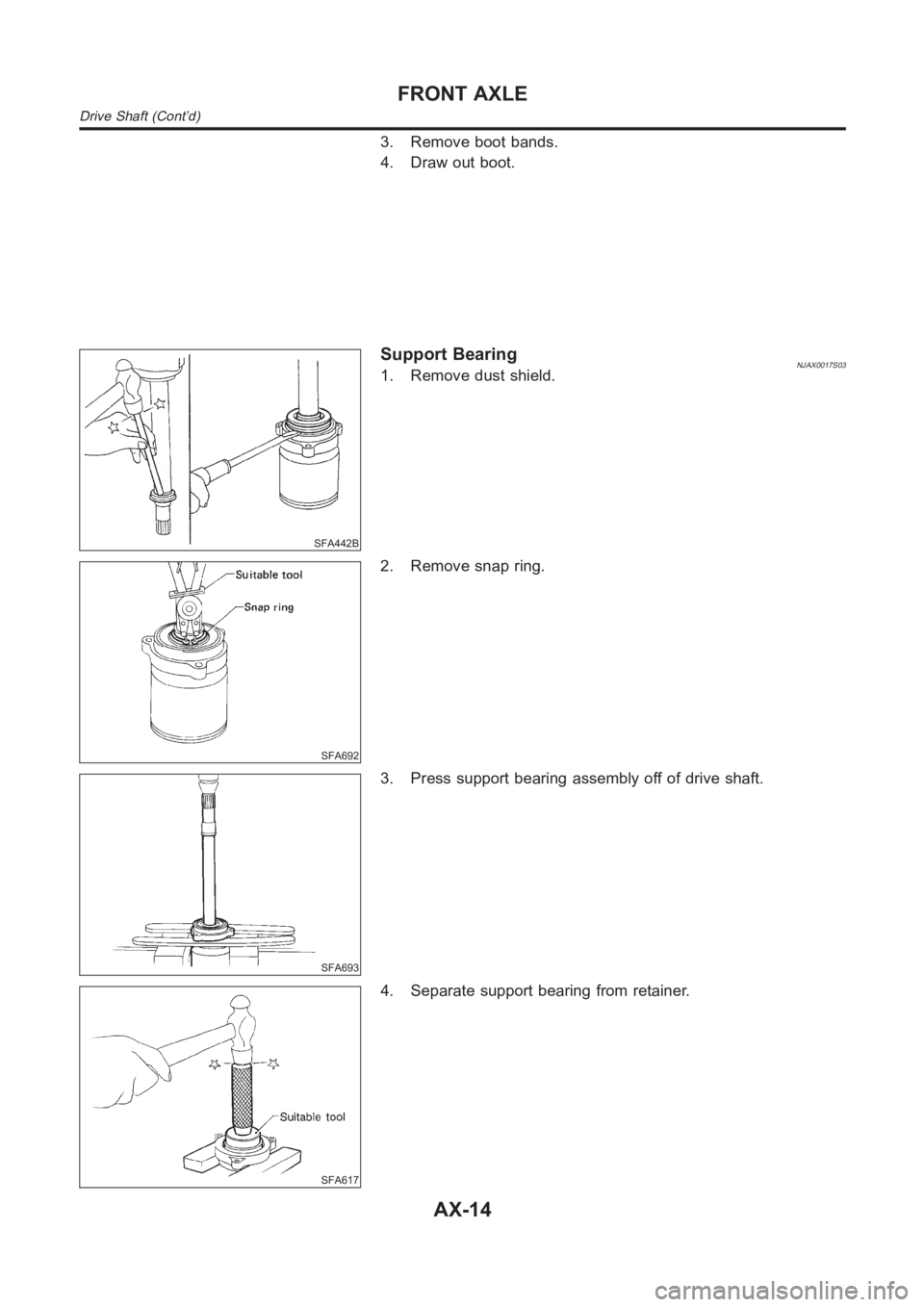

Page 2144 of 3189
3. Remove boot bands.
4. Draw out boot.
SFA442B
Support BearingNJAX0017S031. Remove dust shield.
SFA692
2. Remove snap ring.
SFA693
3. Press support bearing assembly off of drive shaft.
SFA617
4. Separate support bearing from retainer.
FRONT AXLE
Drive Shaft (Cont’d)
AX-14
