Page 2281 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Rear Door Lock=NJBT0011 SBT982 For removal of rear door finisher, refer to “DOOR TRIM”, BT-39. Remove sealing screen. SBT978 OUTSIDE HANDLE ROD ADJUSTMENTNJBT0011S01Rotate rod holder so that rod-t

Page 2282 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBT983 REMOVAL=NJBT0011S02For removal of rear door finisher, refer to “DOOR TRIM”, BT-39. Remove sealing screen. Set the door glass in the full-close position. 1. Remove inside handle escutcheon A

Page 2283 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJBT0012CAUTION: Disconnect ground terminal from battery in advance. Disconnect air bag system line in advance. Never tamper with or force air bag lid open, as this may adverse

Page 2284 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YBT101 *1 RS-29 *2 BT-31 *3 RS-32 INSTRUMENT PANEL ASSEMBLY Removal and Installation (Cont’d) BT-26

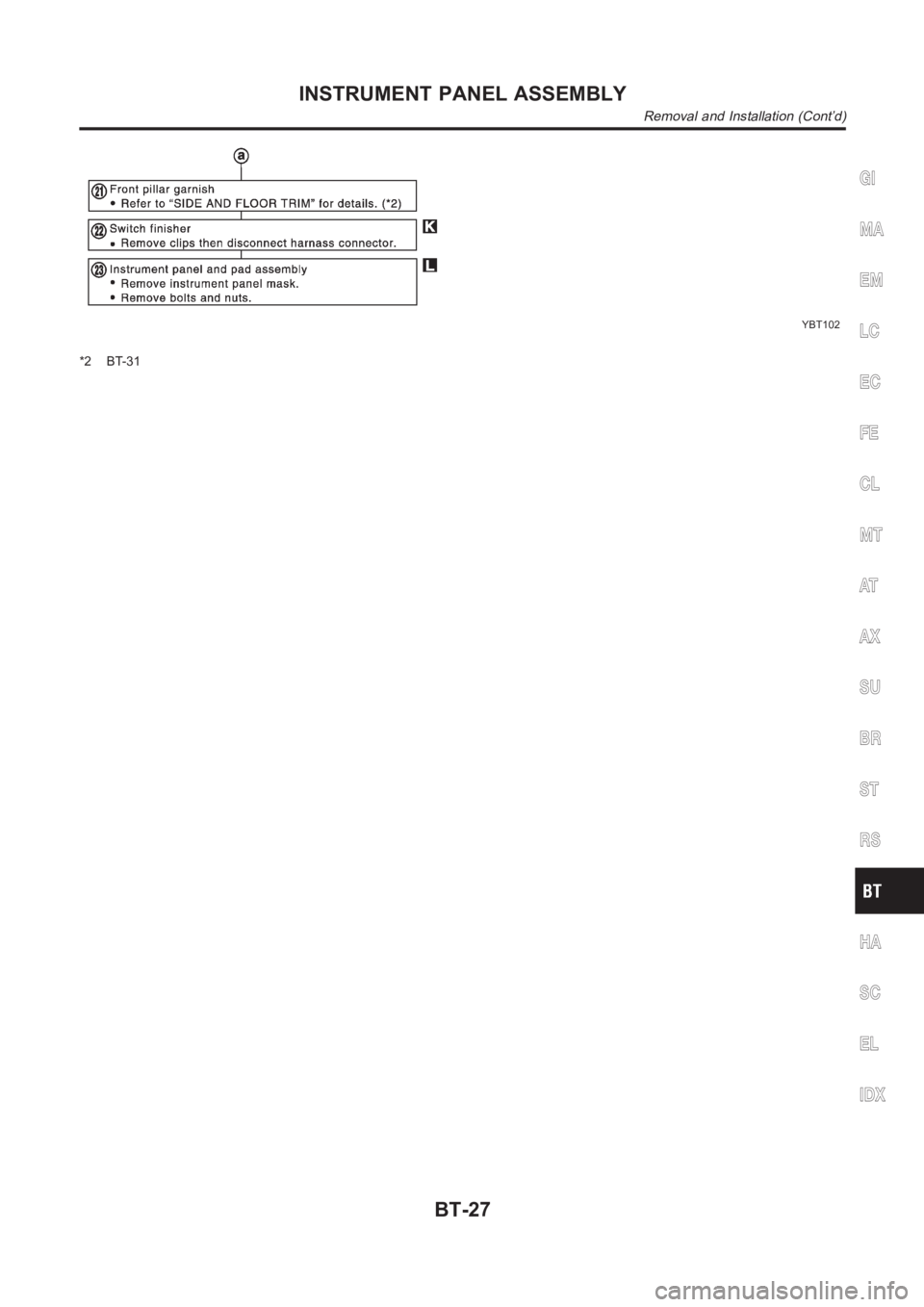

Page 2285 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YBT102 *2 BT-31 GI MA EM LC EC FE CL MT AT AX SU BR ST RS HA SC EL IDX INSTRUMENT PANEL ASSEMBLY Removal and Installation (Cont’d) BT-27

Page 2286 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YBT098 INSTRUMENT PANEL ASSEMBLY Removal and Installation (Cont’d) BT-28

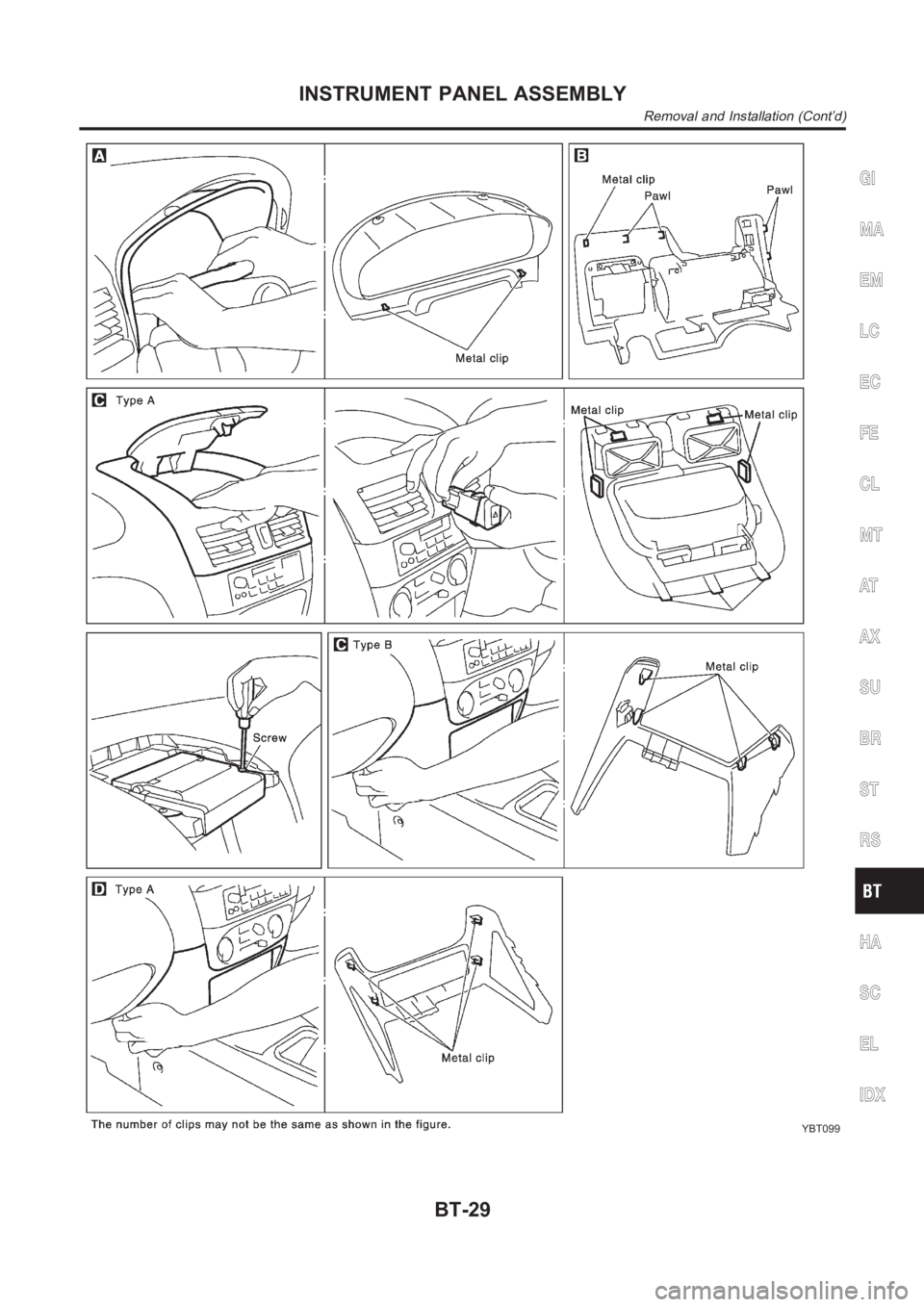

Page 2287 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YBT099 GI MA EM LC EC FE CL MT AT AX SU BR ST RS HA SC EL IDX INSTRUMENT PANEL ASSEMBLY Removal and Installation (Cont’d) BT-29

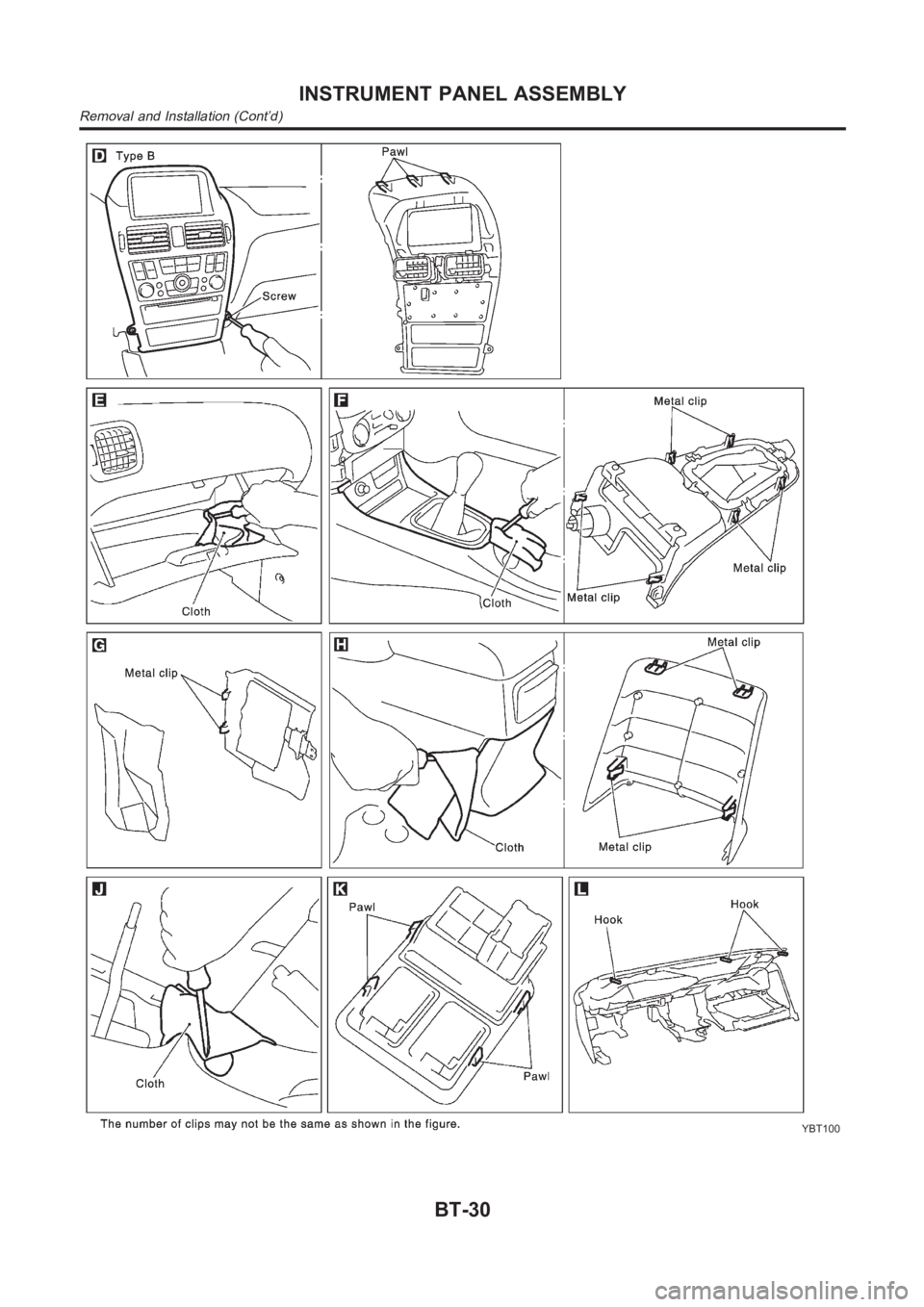

Page 2288 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YBT100 INSTRUMENT PANEL ASSEMBLY Removal and Installation (Cont’d) BT-30
