TROUBLE DIAGNOSIS
ATC-93
C
D
E
F
G
H
I
K
L
MA
B
AT C
High-pressure Side is Too Low and Low-pressure Side is Too High.
Both High- and Low-pressure Sides are Too Low.
Gauge indication Refrigerant cycle Probable cause Corrective action
High-pressure side is too low and
low-pressure side is too high.High and low-pressure sides
become equal soon after com-
pressor operation stops.Compressor pressure opera-
tion is improper.
↓
Damaged inside compressor
packingsReplace compressor.
No temperature difference
between high and low-pres-
sure sidesCompressor pressure opera-
tion is improper.
↓
Damaged inside compressor
packings.Replace compressor.
AC356A
Gauge indication Refrigerant cycle Probable cause Corrective action
Both high- and low-pressure sides
are too low.
●There is a big temperature
difference between receiver
drier outlet and inlet. Outlet
temperature is extremely
low.
●Liquid tank inlet and expan-
sion valve are frosted.Liquid tank inside is slightly
clogged.
●Replace liquid tank.
●Check lubricant for contami-
nation.
●Temperature of expansion
valve inlet is extremely low
as compared with areas
near liquid tank.
●Expansion valve inlet may
be frosted.
●Temperature difference
occurs somewhere in high-
pressure sideHigh-pressure pipe located
between receiver drier and
expansion valve is clogged.
●Check and repair malfunc-
tioning parts.
●Check lubricant for contami-
nation.
Expansion valve and liquid
tank are warm or only cool
when touched.Low refrigerant charge
↓
Leaking fittings or componentsRefer to ATC-145, "
Checking
for Refrigerant Leaks" .
There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted.Expansion valve closes a little
compared with the specifica-
tion.
↓
1. Improper expansion valve
adjustment
2. Malfunctioning expansion
valve
3. Outlet and inlet may be
clogged.
●Remove foreign particles by
using compressed air.
●Check lubricant for contami-
nation.
An area of the low-pressure
pipe is colder than areas near
the evaporator outlet.Low-pressure pipe is clogged
or crushed.
●Check and repair malfunc-
tioning parts.
●Check lubricant for contami-
nation.
Air flow volume is not enough
or is too low.Evaporator is frozen.
●Check intake sensor circuit.
Refer to AT C - 1 0 8 , "
Intake
Sensor Circuit"
●Replace compressor.
AC353A
Page 2074 of 3189

ATC-94
TROUBLE DIAGNOSIS
Low-pressure Side Sometimes Becomes Negative.
Low-pressure Side Becomes Negative.
Gauge indication Refrigerant cycle Probable cause Corrective action
Low-pressure side sometimes
becomes negative.
●Air conditioning system
does not function and does
not cyclically cool the com-
partment air.
●The system constantly func-
tions for a certain period of
time after compressor is
stopped and restarted.Refrigerant does not dis-
charge cyclically.
↓
Moisture is frozen at expan-
sion valve outlet and inlet.
↓
Water is mixed with refriger-
ant.
●Drain water from refrigerant
or replace refrigerant.
●Replace liquid tank.
AC354A
Gauge indication Refrigerant cycle Probable cause Corrective action
Low-pressure side becomes nega-
tive.
Liquid tank or front/rear side of
expansion valve′s pipe is
frosted or dewed.High-pressure side is closed
and refrigerant does not flow.
↓
Expansion valve or liquid tank
is frosted.Leave the system at rest until
no frost is present. Start it
again to check whether or not
the problem is caused by
water or foreign particles.
●If water is the cause, initially
cooling is okay. Then the
water freezes causing a
blockage. Drain water from
refrigerant or replace refrig-
erant.
●If due to foreign particles,
remove expansion valve
and remove the particles
with dry and compressed air
(not shop air).
●If either of the above meth-
ods cannot correct the prob-
lem, replace expansion
valve.
●Replace liquid tank.
●Check lubricant for contami-
nation.
AC362A
Page 2075 of 3189
TROUBLE DIAGNOSIS
ATC-95
C
D
E
F
G
H
I
K
L
MA
B
AT C
Insufficient HeatingEJS001ZR
SYMPTOM: Insufficient heating
INSPECTION FLOW
*1ATC-51, "Operational Check"*2ATC-42, "Self-diagnosis Function",
see No.1.*3AT C - 4 2 , "Self-diagnosis Function",
see No.5.
*4ATC-42, "
Self-diagnosis Function",
see No.7.*5ATC-63, "Air Mix Door Motor Circuit"*6AT C - 4 2 , "Self-diagnosis Function",
see No.14.
RJIA1709E
Page 2076 of 3189
ATC-96
TROUBLE DIAGNOSIS
*7AT C - 5 7 , "LAN System Circuit"*8ATC-69, "Blower Motor Circuit"*9AT C - 6 3 , "Air Mix Door Motor Circuit"
*10 QG engine (With EURO–OBD): EC-
144, "DTC P0117, P0118 ECT SEN-
SOR"
QG engine (Without EURO–OBD):
EC-501, "
DTC P0117, P0118 ECT
SENSOR"
YD engine: EC-84, "P0115 COOL-
ANT TEMP SEN" *11 QG engine: LC-17, "Changing
Engine Coolant"
YD engine: LC-43, "Changing
Engine Coolant" *12 QG engine: LC-17, "Changing
Engine Coolant"
YD engine: LC-43, "Changing
Engine Coolant"
Page 2077 of 3189
TROUBLE DIAGNOSIS
ATC-97
C
D
E
F
G
H
I
K
L
MA
B
AT C
NoiseEJS0022W
SYMPTOM: Noise
INSPECTION FLOW
RJIA1596E
Page 2078 of 3189
ATC-98
TROUBLE DIAGNOSIS
Self-diagnosis
EJS0022X
Symptom: Self-diagnosis cannot be performed.
INSPECTION FLOW
*1ATC-138, "Compressor Clutch"*2ATC-139, "INSTALLATION"*3AT C - 2 0 , "Maintenance of Lubricant
Quantity in Compressor"
*4ATC-51, "Operational Check"*5 QG engine: EM-11, "Checking Drive
Belts"
YD engine: EM-11, "DRIVE BELTS"
*1 EL-11, "POWER SUPPLY ROUT-
ING" *2ATC-109, "
Multiplex Communication
Circuit"
*3AT C - 5 1 , "Operational Check"
*4ATC-29, "SYMPTOM TABLE"
RJIA1710E
Page 2079 of 3189
TROUBLE DIAGNOSIS
ATC-99
C
D
E
F
G
H
I
K
L
MA
B
AT C
Memory FunctionEJS0022Y
Symptom: Memory function does not operate.
INSPECTION FLOW
*1 EL-11, "POWER SUPPLY ROUT-
ING"*2AT C - 5 1 , "Operational Check"*3AT C - 4 2 , "Self-diagnosis Function"
*4AT C - 5 5 , "Power Supply and Ground
Circuit for Auto Amp."
RJIA1711E
Page 2080 of 3189

ATC-100
TROUBLE DIAGNOSIS

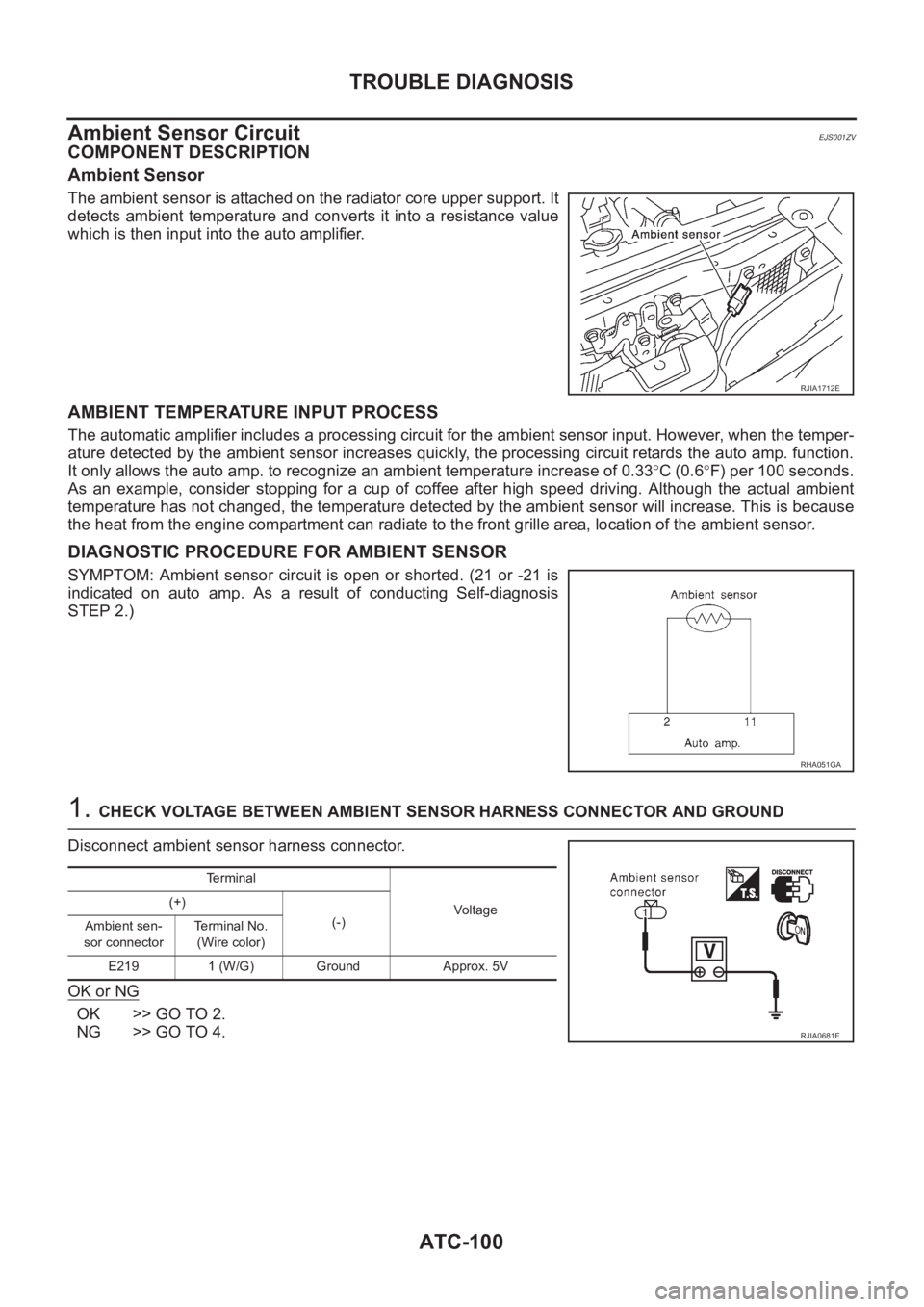

Ambient Sensor Circuit
EJS001ZV
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is attached on the radiator core upper support. It
detects ambient temperature and converts it into a resistance value
which is then input into the auto amplifier.
AMBIENT TEMPERATURE INPUT PROCESS
The automatic amplifier includes a processing circuit for the ambient sensor input. However, when the temper-
ature detected by the ambient sensor increases quickly, the processing circuit retards the auto amp. function.
It only allows the auto amp. to recognize an ambient temperature increase of 0.33°C (0.6°F) per 100 seconds.
As an example, consider stopping for a cup of coffee after high speed driving. Although the actual ambient
temperature has not changed, the temperature detected by the ambient sensor will increase. This is because
the heat from the engine compartment can radiate to the front grille area, location of the ambient sensor.
DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR
SYMPTOM: Ambient sensor circuit is open or shorted. (21 or -21 is
indicated on auto amp. As a result of conducting Self-diagnosis
STEP 2.)
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR HARNESS CONNECTOR AND GROUND
Disconnect ambient sensor harness connector.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
RJIA1712E
RHA051GA
Terminal
Voltage (+)
(-)
Ambient sen-
sor connectorTerminal No.
(Wire color)
E219 1 (W/G) Ground Approx. 5V
