Page 225 of 3189

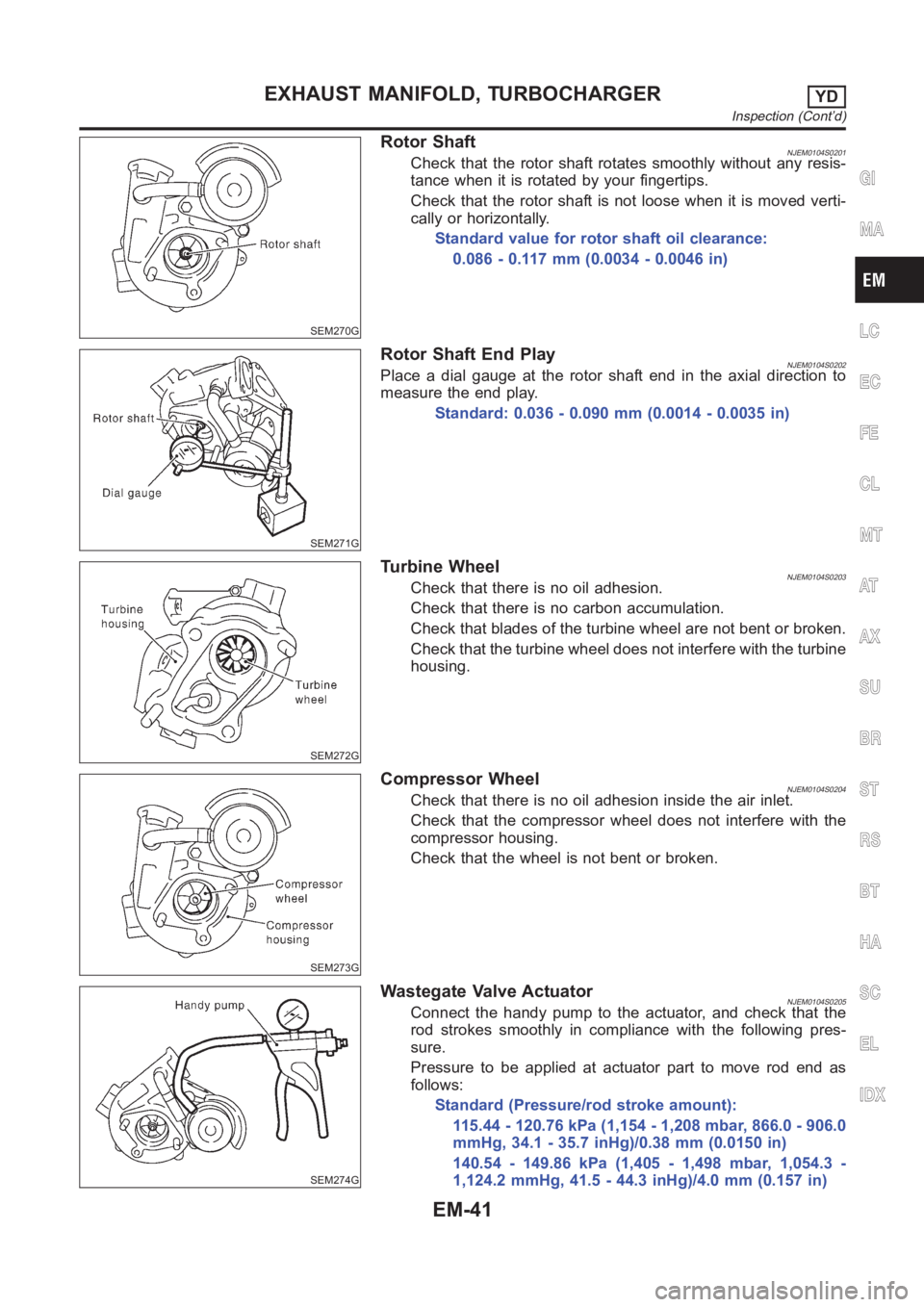

NISSAN ALMERA N16 2003 Electronic Repair Manual SEM270G Rotor ShaftNJEM0104S0201Check that the rotor shaft rotates smoothly without any resis- tance when it is rotated by your fingertips. Check that the rotor shaft is not loose when it is moved ver

Page 226 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Trouble Diagnosis of Turbocharger=NJEM0104S0206Preliminary check: Check that the engine oil level is between MIN and MAX of the dipstick. (When the engine oil amount is more than MAX, the oil flows in

Page 227 of 3189

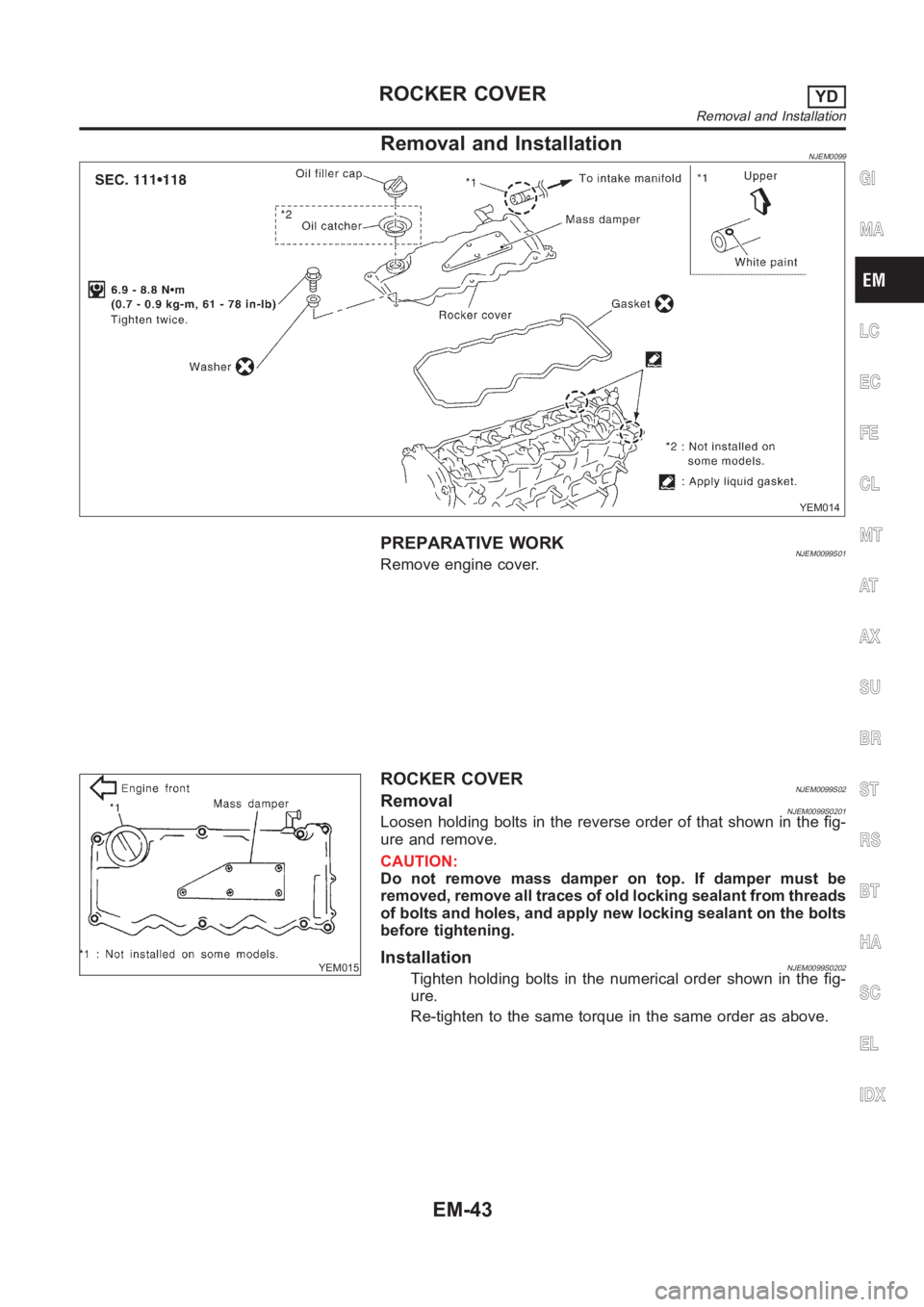

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJEM0099 YEM014 PREPARATIVE WORKNJEM0099S01Remove engine cover. YEM015 ROCKER COVERNJEM0099S02RemovalNJEM0099S0201Loosen holding bolts in the reverse order of that shown in the

Page 228 of 3189

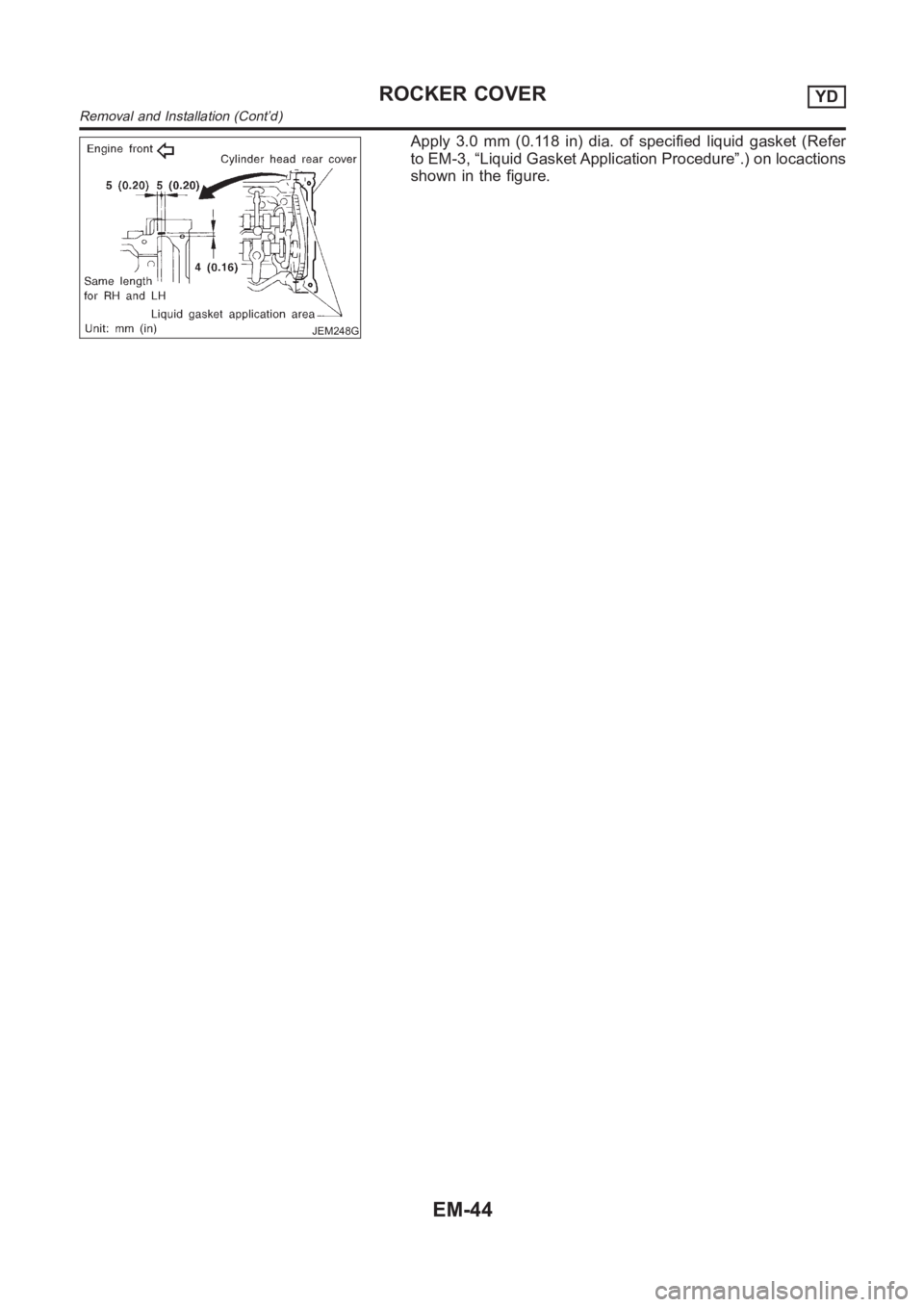

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM248G Apply 3.0 mm (0.118 in) dia. of specified liquid gasket (Refer to EM-3, “Liquid Gasket Application Procedure”.) on locactions shown in the figure. ROCKER COVERYD Removal and Installation (

Page 229 of 3189

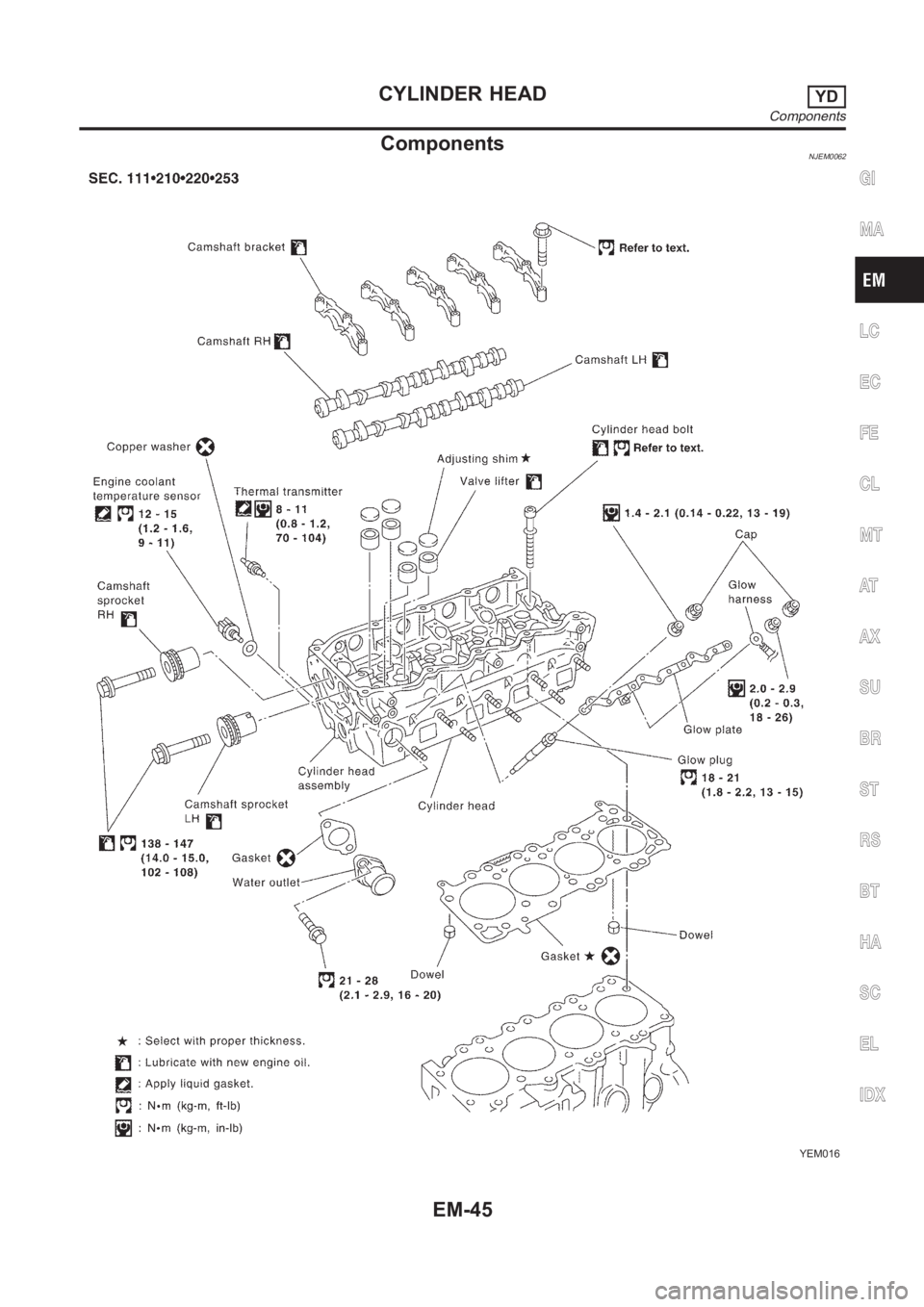

NISSAN ALMERA N16 2003 Electronic Repair Manual ComponentsNJEM0062 YEM016 GI MA LC EC FE CL MT AT AX SU BR ST RS BT HA SC EL IDX CYLINDER HEADYD Components EM-45

Page 230 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual CAUTION: When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil. Apply new engine oil to threads and seat surfaces when insta

Page 231 of 3189

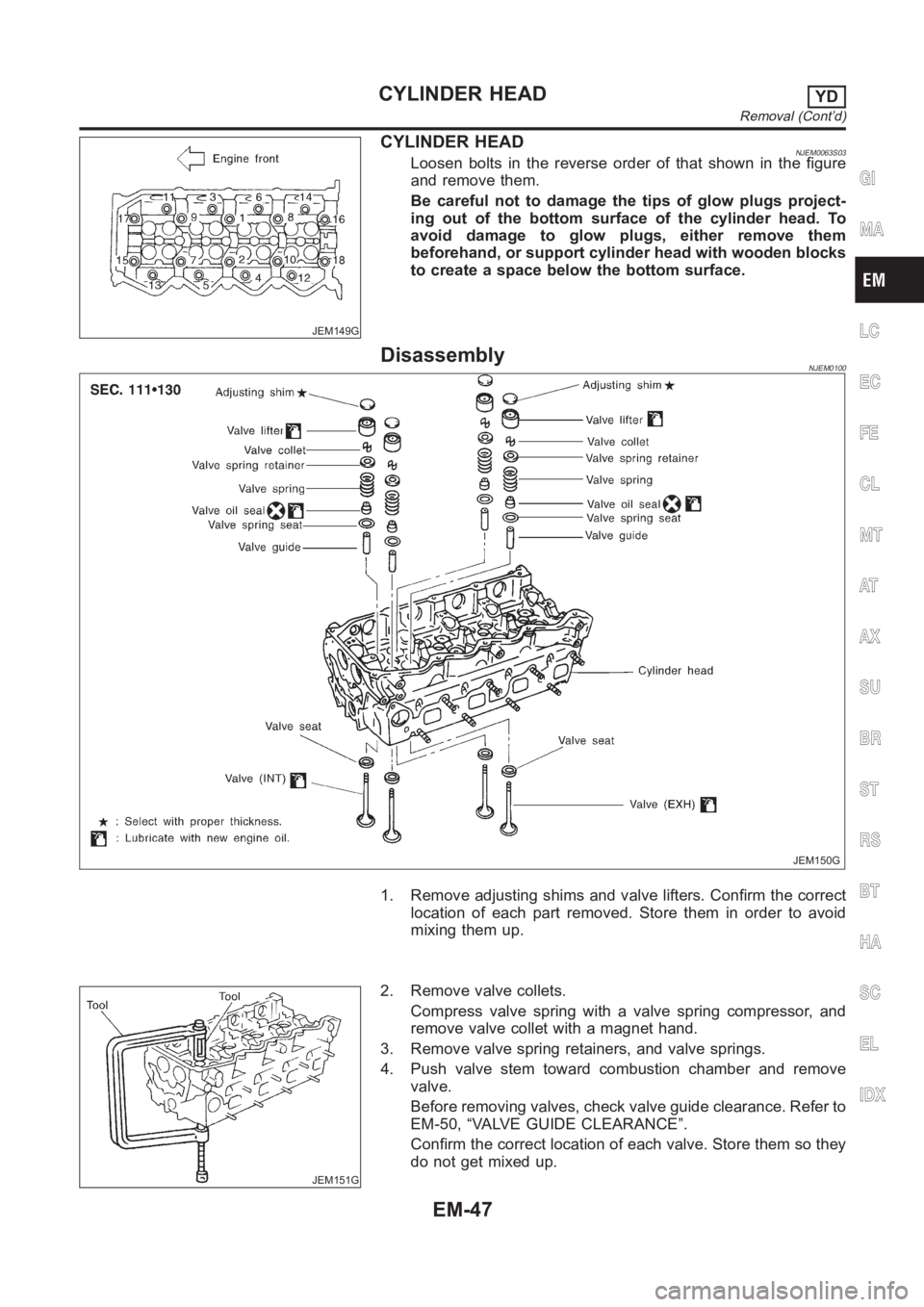

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM149G CYLINDER HEADNJEM0063S03Loosen bolts in the reverse order of that shown in the figure and remove them. Be careful not to damage the tips of glow plugs project- ing out of the bottom surface of

Page 232 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JEM152G For the locations and arrangement of intake and exhaust valves, refer to the figure. JEM153G 5. Remove valve oil seals. Use a valve oil seal puller (SST) for removal. 6. Remove valve spring se
