Page 1041 of 3189
ELECTRICAL LOAD SIGNAL
EC-711
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KMD
YEC311A
Page 1042 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-712
[QG (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring NISSAN ALMERA N16 2003 Electronic Repair Manual EC-712
[QG (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring](/manual-img/5/57350/w960_57350-1041.png)
EC-712
[QG (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KME
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch “ON”.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following
conditions.
OK or NG
OK (With CONSULT-II)>>GO TO 2.
OK (Without CONSULT-II)>>GO TO 3.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
With CONSULT-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 R/YElectrical load signal
(Headlamp signal)[Ignition switch “ON”]
●Lighting switch is “2nd” position.BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Lighting switch is “OFF”.Approximately 0V
Condition Indication
Rear window defogger switch “ON” ON
Rear window defogger switch “OFF” OFF
PBIB0103E
Condition Indication
Lighting switch “ON” at 2nd position ON
Lighting switch “OFF” OFF
PBIB0103E
Page 1043 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual ELECTRICAL LOAD SIGNAL
EC-713
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
Check voltage between ECM terminal 84 and ground NISSAN ALMERA N16 2003 Electronic Repair Manual ELECTRICAL LOAD SIGNAL
EC-713
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
Check voltage between ECM terminal 84 and ground](/manual-img/5/57350/w960_57350-1042.png)
ELECTRICAL LOAD SIGNAL
EC-713
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
Check voltage between ECM terminal 84 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
4.CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to EL-173.
>>INSPECTION END
5.CHECK HEADLAMP FUNCTION
1. Turn lighting switch “ON” at 2nd position.
2. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 6.
NG >> Refer to EL-42 or EL-46.
6.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
WITHOUT DAYTIME LIGHT SYSTEM
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connector.
4. Check harness continuity between ECM terminal 84 and lighting switch terminal 10.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
WITH DAYTIME LIGHT SYSTEM
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Disconnect daytime light relay.
4. Check harness continuity between ECM terminal 84 and daytime light relay terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
Condition Voltage
Lighting switch “ON” at 2nd position Battery voltage
Lighting switch “OFF” Approximately 0V
MBIB0158E
Continuity should exist.
Continuity should exist.
Page 1044 of 3189
EC-714
[QG (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E75, F36
●harness for open and short between ECM and lighting switch
●harness for open and short between ECM and daytime light relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Page 1045 of 3189
MI & DATA LINK CONNECTORS
EC-715
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
MI & DATA LINK CONNECTORSPFP:24814
Wiring Diagram—LHD ModelsEBS00KMF
YEC312A
Page 1046 of 3189
EC-716
[QG (WITHOUT EURO-OBD)]
MI & DATA LINK CONNECTORS
Wiring Diagram—RHD Models
EBS00KMG
YEC313A
Page 1047 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EVAPORATIVE EMISSION SYSTEM
EC-717
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00KMH
SYSTEM DESCRIPTION
The evaporative emission system is used NISSAN ALMERA N16 2003 Electronic Repair Manual EVAPORATIVE EMISSION SYSTEM
EC-717
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00KMH
SYSTEM DESCRIPTION
The evaporative emission system is used](/manual-img/5/57350/w960_57350-1046.png)
EVAPORATIVE EMISSION SYSTEM
EC-717
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00KMH
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E
Page 1048 of 3189
EC-718
[QG (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

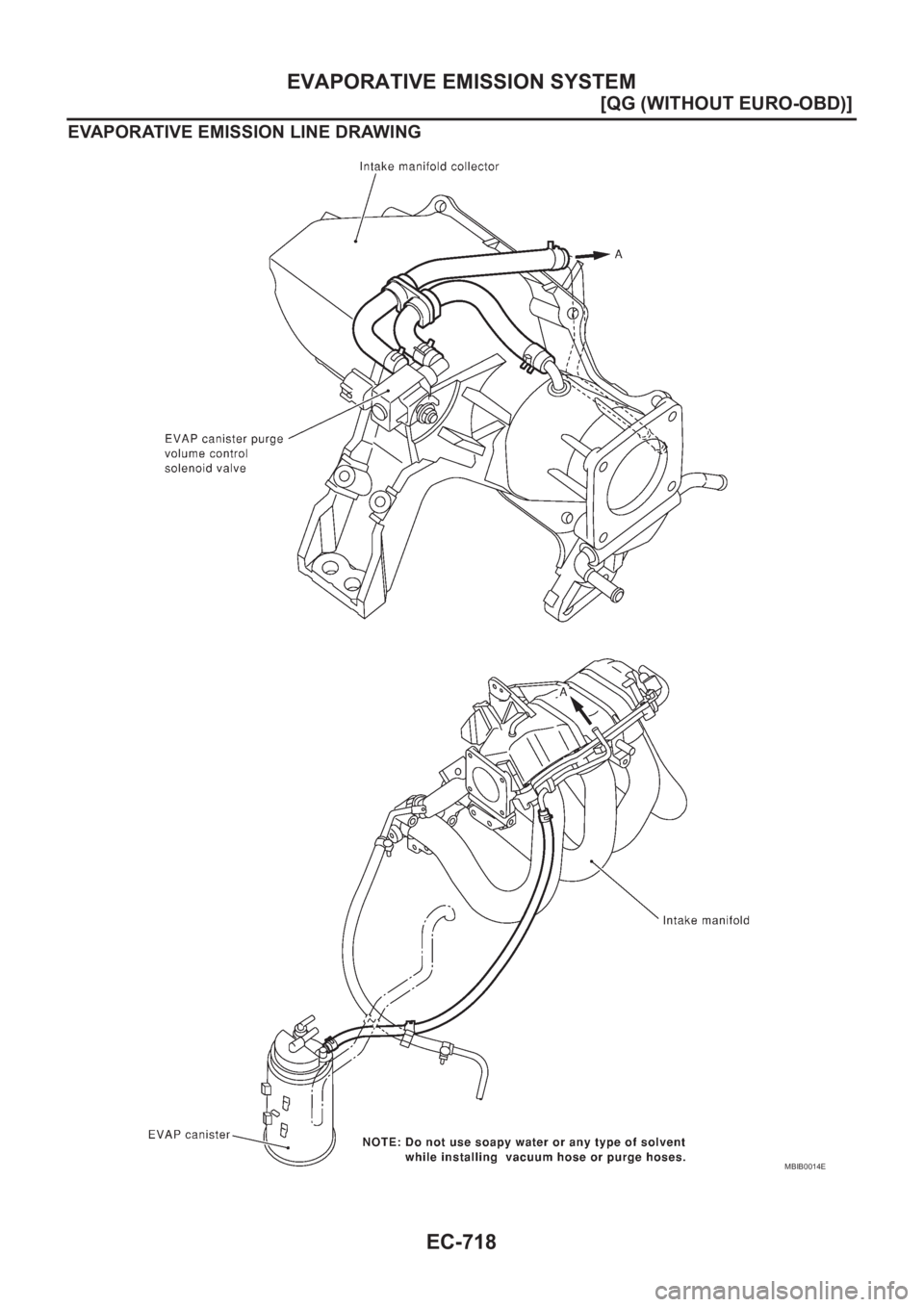

EVAPORATIVE EMISSION LINE DRAWING
MBIB0014E
