Page 2369 of 3189

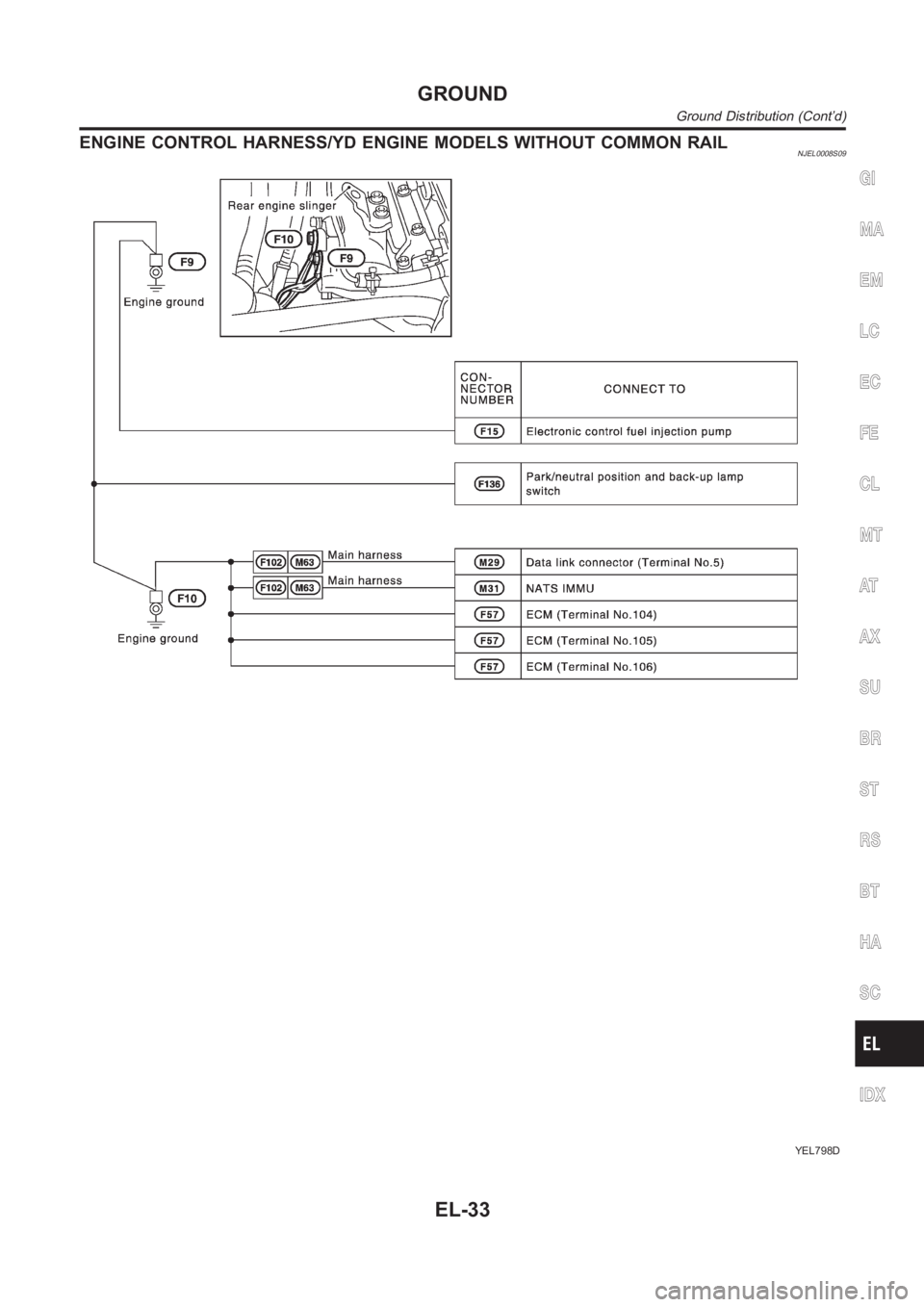

NISSAN ALMERA N16 2003 Electronic Repair Manual ENGINE CONTROL HARNESS/YD ENGINE MODELS WITHOUT COMMON RAILNJEL0008S09 YEL798D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-33

Page 2370 of 3189

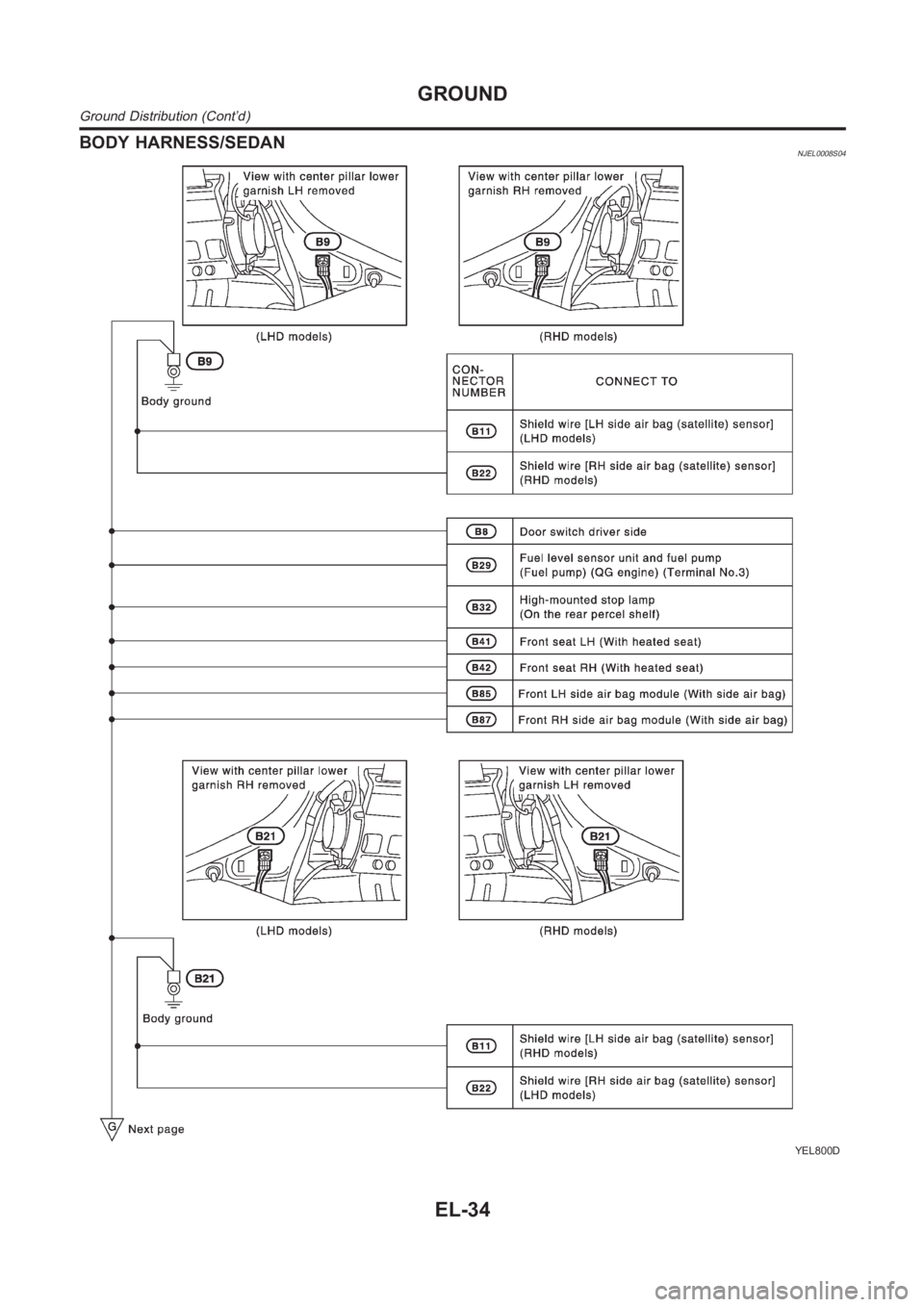

NISSAN ALMERA N16 2003 Electronic Repair Manual BODY HARNESS/SEDANNJEL0008S04 YEL800D GROUND Ground Distribution (Cont’d) EL-34

Page 2371 of 3189

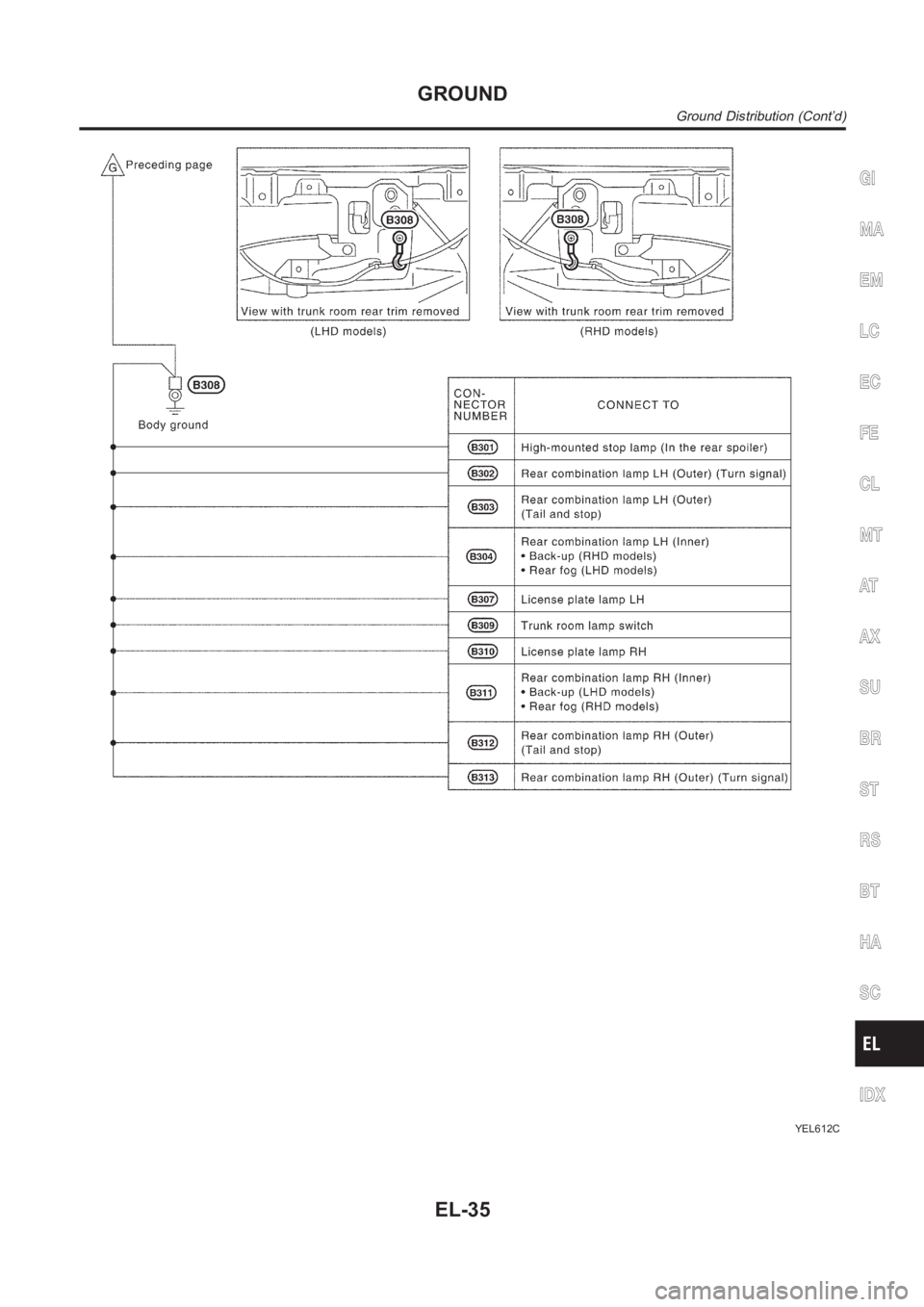

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL612C GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-35

Page 2372 of 3189

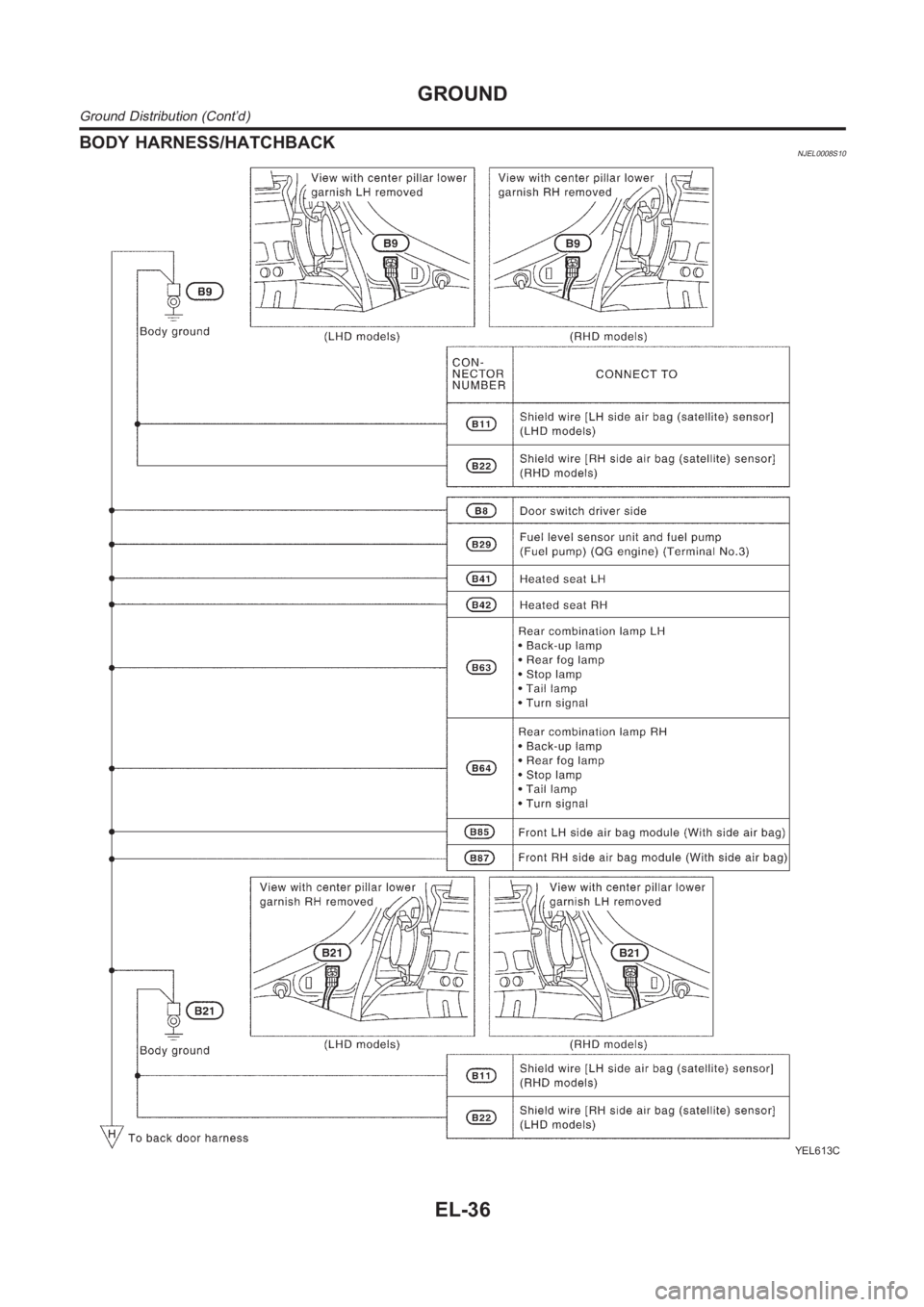

NISSAN ALMERA N16 2003 Electronic Repair Manual BODY HARNESS/HATCHBACKNJEL0008S10 YEL613C GROUND Ground Distribution (Cont’d) EL-36

Page 2373 of 3189

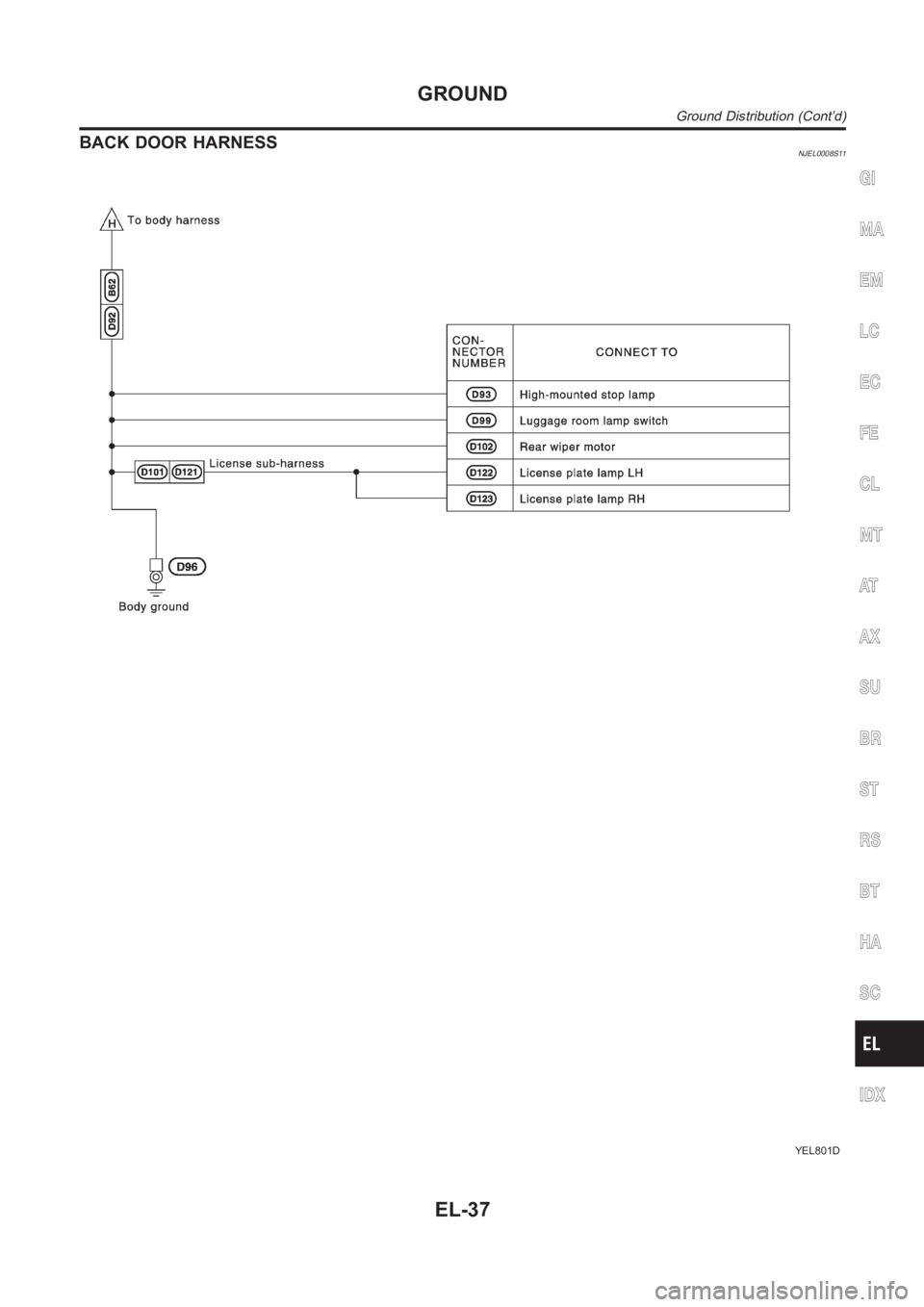

NISSAN ALMERA N16 2003 Electronic Repair Manual BACK DOOR HARNESSNJEL0008S11 YEL801D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-37

Page 2374 of 3189

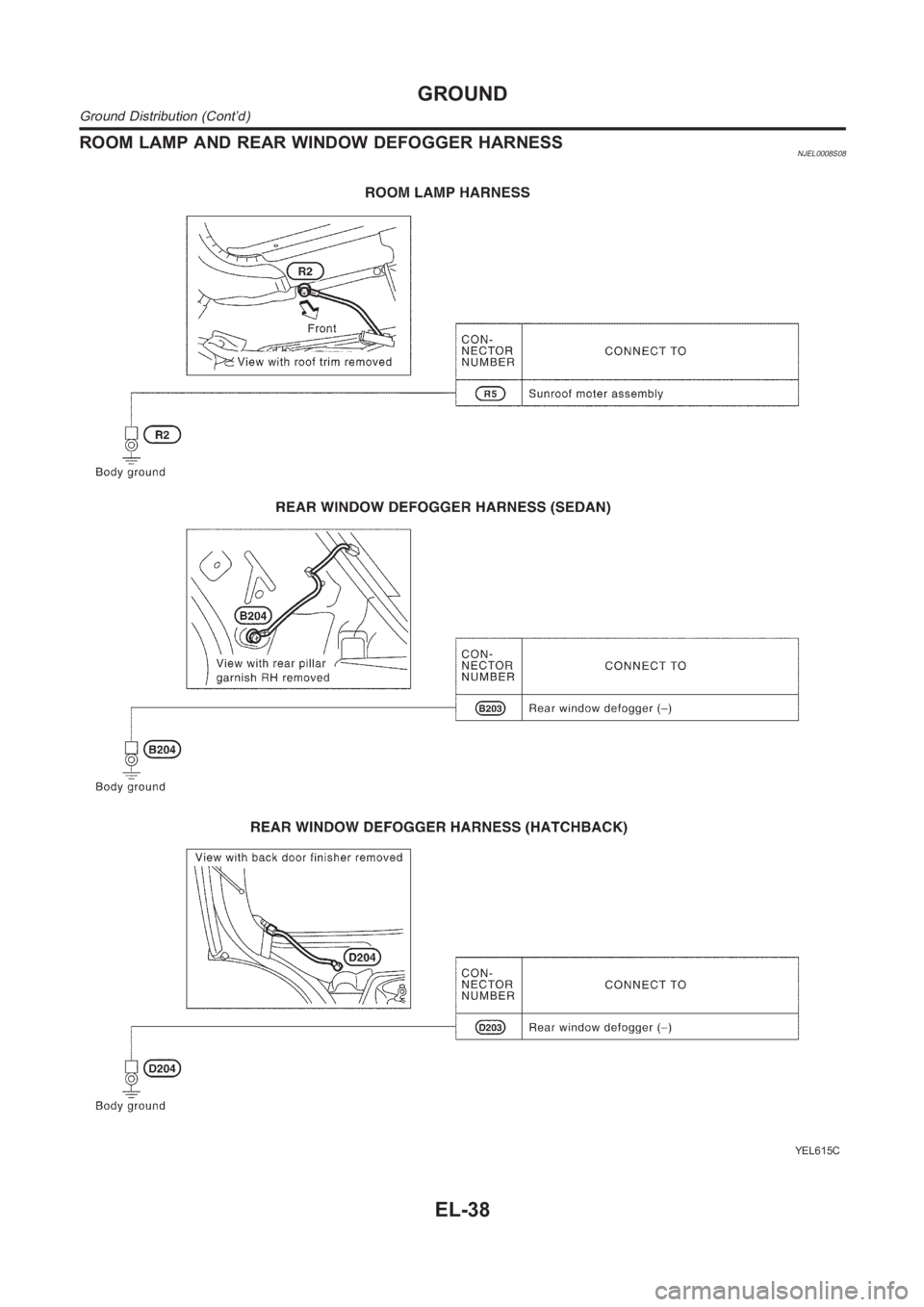

NISSAN ALMERA N16 2003 Electronic Repair Manual ROOM LAMP AND REAR WINDOW DEFOGGER HARNESSNJEL0008S08 YEL615C GROUND Ground Distribution (Cont’d) EL-38

Page 2375 of 3189

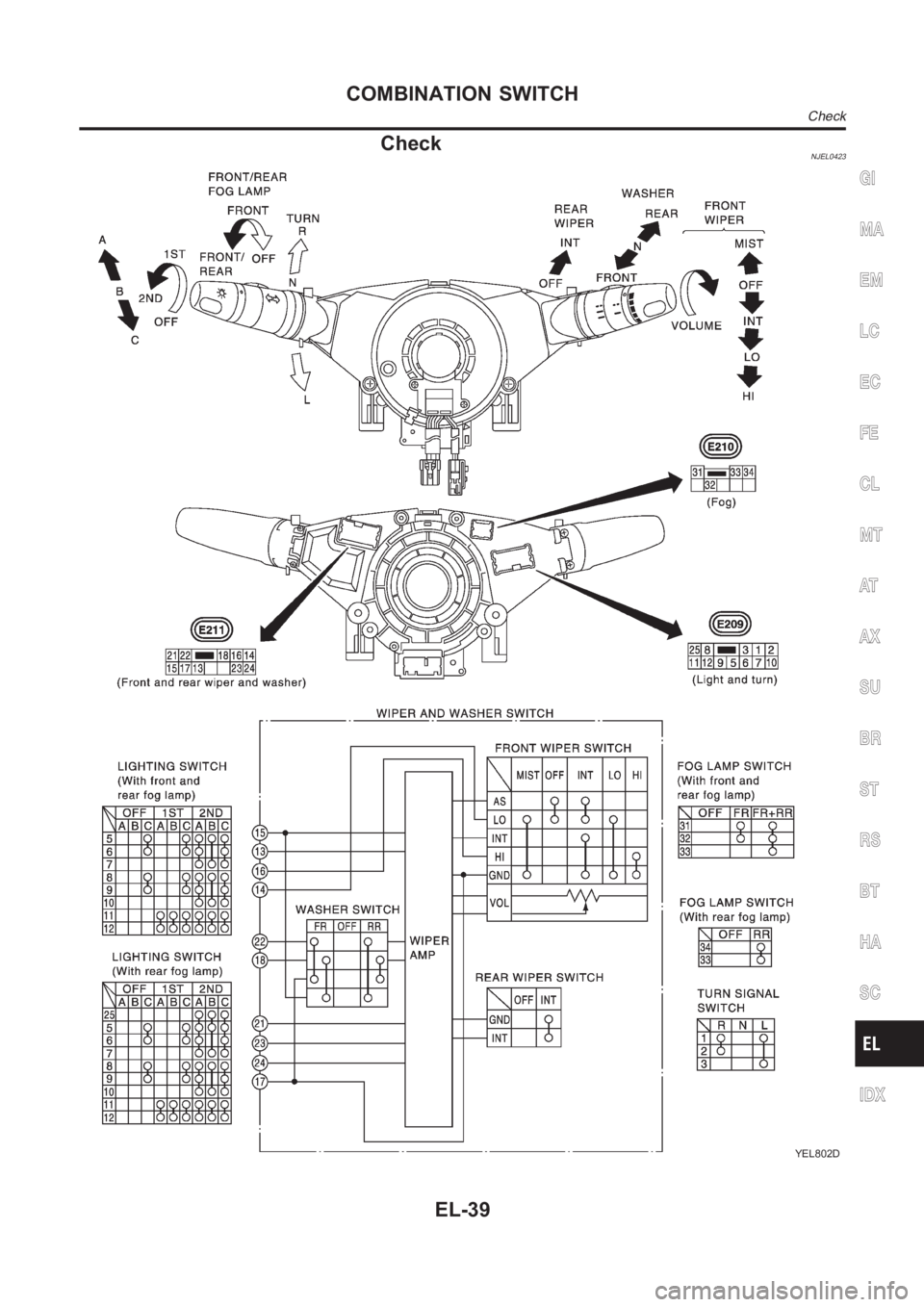

NISSAN ALMERA N16 2003 Electronic Repair Manual CheckNJEL0423 YEL802D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX COMBINATION SWITCH Check EL-39

Page 2376 of 3189

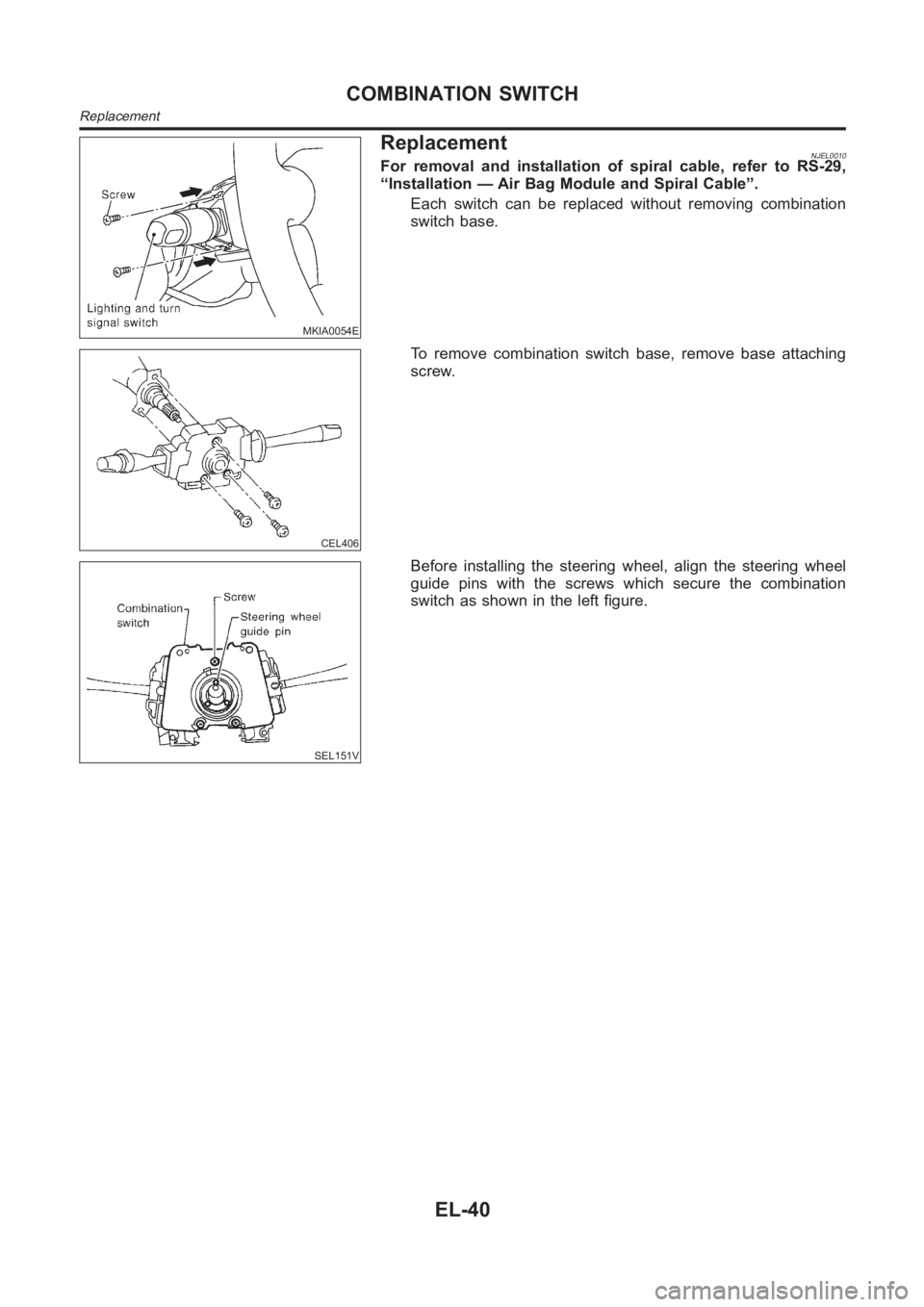

NISSAN ALMERA N16 2003 Electronic Repair Manual MKIA0054E ReplacementNJEL0010For removal and installation of spiral cable, refer to RS-29, “Installation — Air Bag Module and Spiral Cable”. Each switch can be replaced without removing combinat
