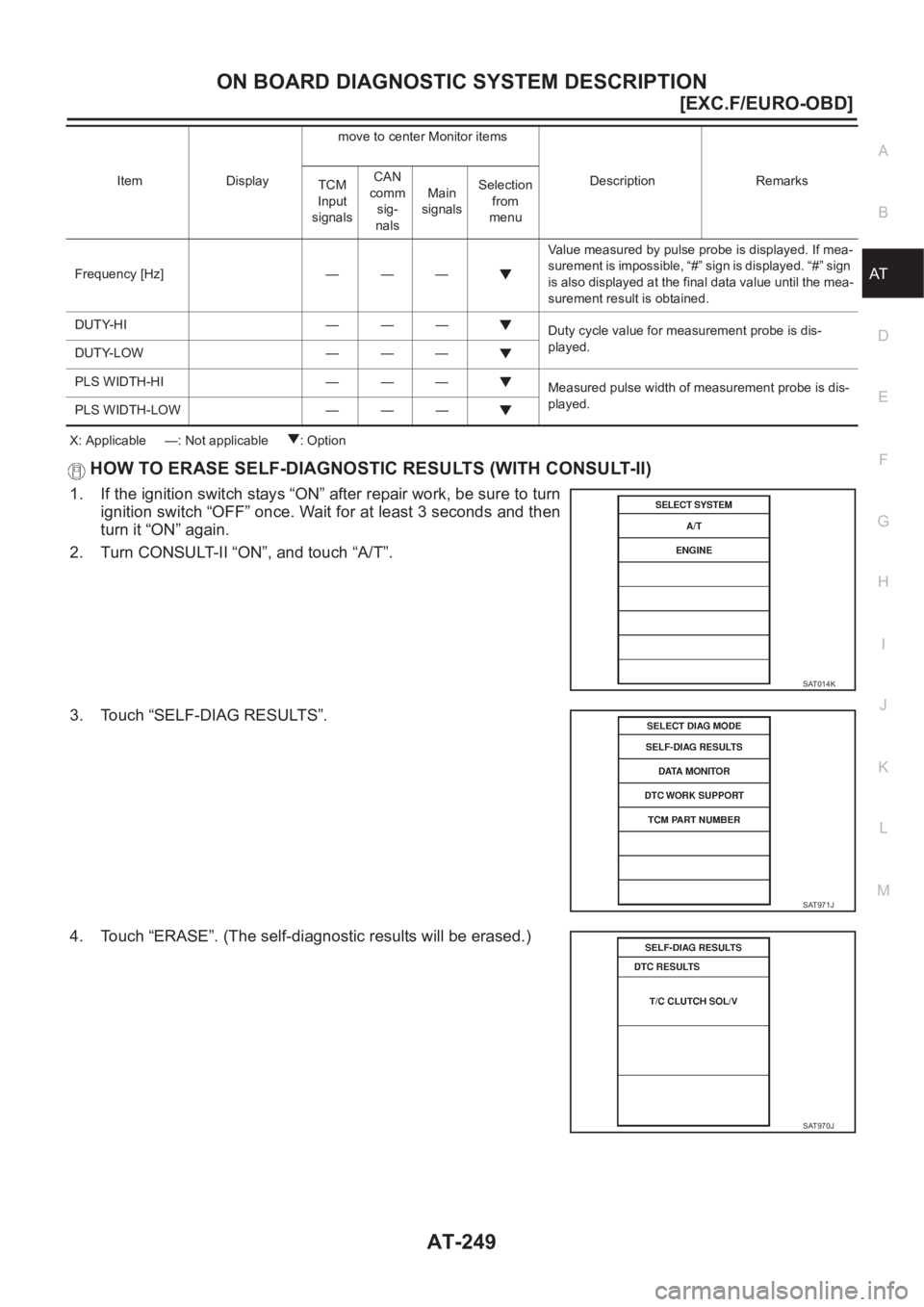

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
X: Applicable —: Not applicable : Option
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITH CONSULT-II)
1. If the ignition switch stays “ON” after repair work, be sure to turn
ignition switch “OFF” once. Wait for at least 3 seconds and then
turn it “ON” again.
2. Turn CONSULT-II “ON”, and touch “A/T”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The self-diagnostic results will be erased.)
Frequency [Hz] — — —Value measured by pulse probe is displayed. If mea-
s u re me nt is im pos si bl e, “# ” si gn i s di sp la y ed. “ # ” si gn
is also displayed at the final data value until the mea-
surement result is obtained.
DUTY-HI — — —
Duty cycle value for measurement probe is dis-
played.
DUTY-LOW — — —
PLS WIDTH-HI — — —
Measured pulse width of measurement probe is dis-
played.
PLS WIDTH-LOW — — —Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
SAT014K
SAT971J
SAT970J
Page 1706 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Diagnostic Procedure Without CONSULT-II
ECS007QO
SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)
1. CHECK O/D OFF INDICATOR LAMP
1. Start NISSAN ALMERA N16 2003 Electronic Repair Manual AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Diagnostic Procedure Without CONSULT-II
ECS007QO
SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)
1. CHECK O/D OFF INDICATOR LAMP
1. Start](/manual-img/5/57350/w960_57350-1705.png)

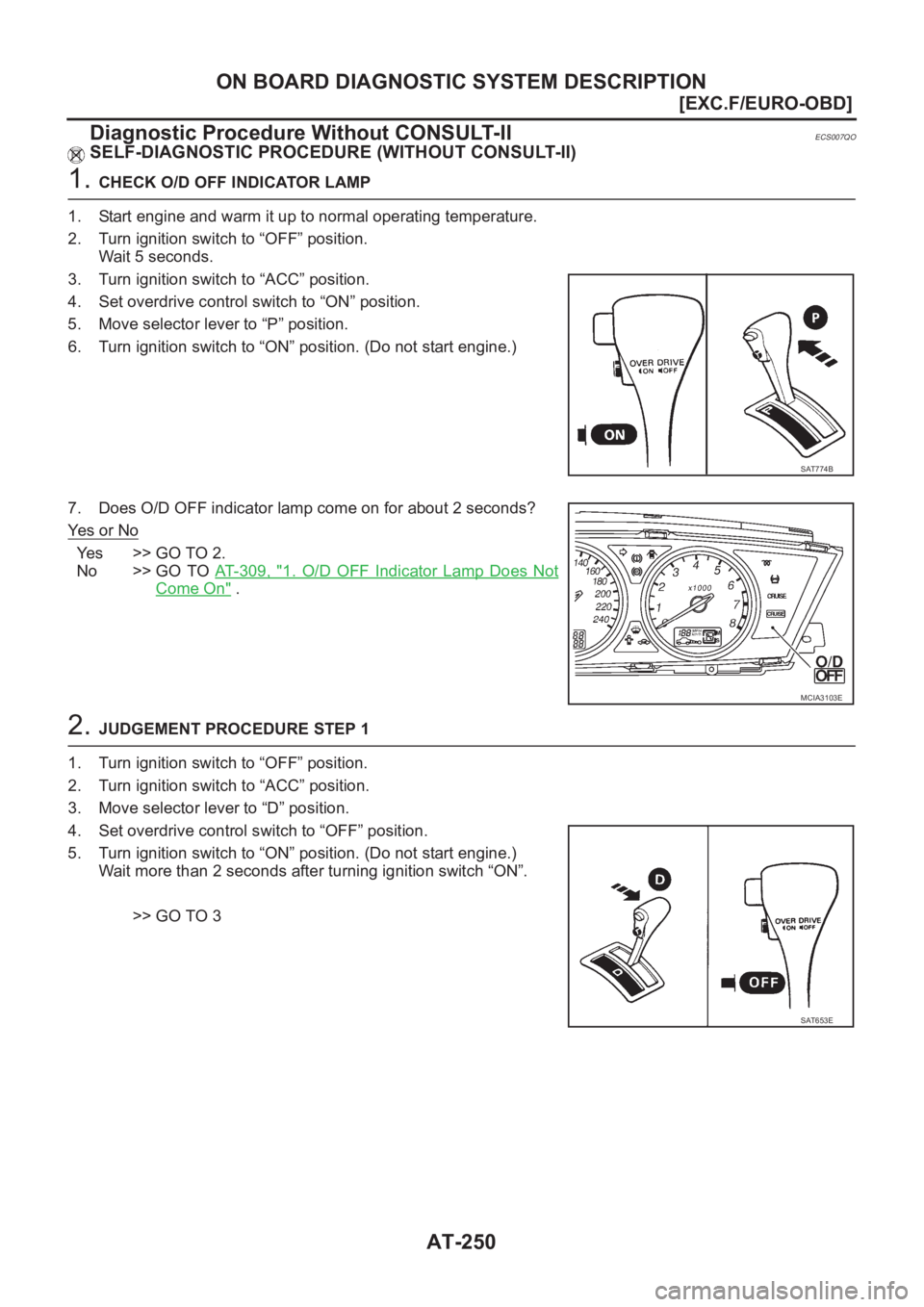

AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Diagnostic Procedure Without CONSULT-II
ECS007QO
SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)
1. CHECK O/D OFF INDICATOR LAMP
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch to “OFF” position.
Wait 5 seconds.
3. Turn ignition switch to “ACC” position.
4. Set overdrive control switch to “ON” position.
5. Move selector lever to “P” position.
6. Turn ignition switch to “ON” position. (Do not start engine.)
7. Does O/D OFF indicator lamp come on for about 2 seconds?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO AT- 3 0 9 , "
1. O/D OFF Indicator Lamp Does Not
Come On" .
2. JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to “OFF” position.
2. Turn ignition switch to “ACC” position.
3. Move selector lever to “D” position.
4. Set overdrive control switch to “OFF” position.
5. Turn ignition switch to “ON” position. (Do not start engine.)
Wait more than 2 seconds after turning ignition switch “ON”.
>> GO TO 3
SAT774B
MCIA3103E
SAT653E
Page 1707 of 3189

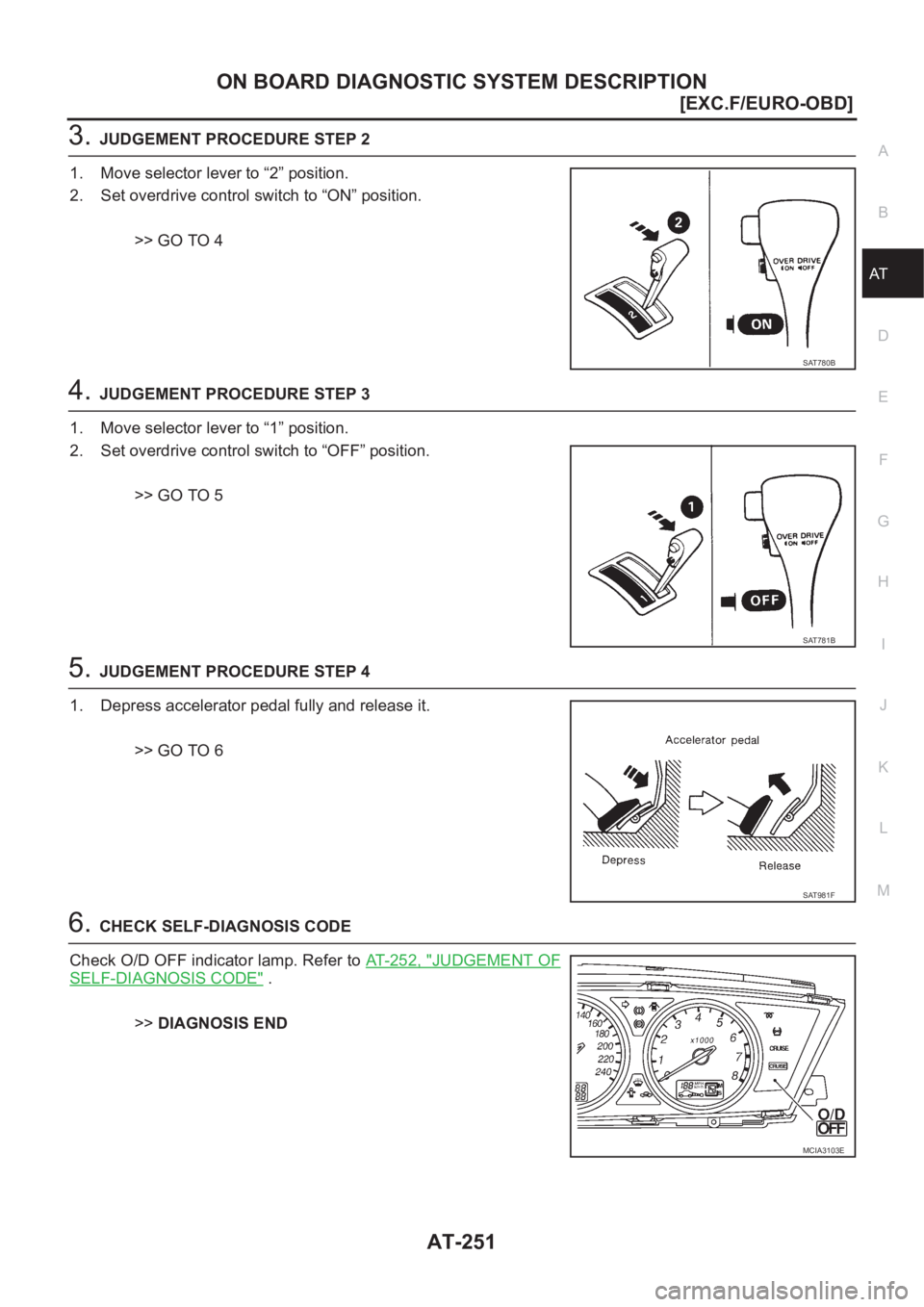

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-251
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to “2” position.
2. Set overdrive control switch to “ON” position.
>> GO TO 4
4.JUDGEMENT PROCEDURE STEP 3
1. Move selector lever to “1” position.
2. Set overdrive control switch to “OFF” position.
>> GO TO 5
5.JUDGEMENT PROCEDURE STEP 4
1. Depress accelerator pedal fully and release it.
>> GO TO 6
6.CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer to AT- 2 5 2 , "
JUDGEMENT OF
SELF-DIAGNOSIS CODE" .
>>DIAGNOSIS END
SAT780B
SAT781B
SAT981F
MCIA3103E
Page 1708 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-252
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self- NISSAN ALMERA N16 2003 Electronic Repair Manual AT-252
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-](/manual-img/5/57350/w960_57350-1707.png)
AT-252
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.
Go to VEHICLE SPEED SENSOR·A/T (REVOLUTION SEN-
SOR).
Refer to AT- 3 4 3
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.
Go to DTC VEHICLE SPEED SENSOR·MTR.
Refer to AT-3483rd judgement flicker is longer than others.
Go to ACCELERATOR PEDAL POSITION (APP) SENSOR.
Refer to AT- 3 5 2
4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.
Go to SHIFT SOLENOID VALVE A.
Refer to AT-3575th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.
Go to SHIFT SOLENOID VALVE B.
Refer to AT- 3 6 2
SCIA0694ESCIA0695E
SCIA0696ESCIA0697E
SCIA0698ESCIA0699E
Page 1709 of 3189
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-253
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.
Go to OVERRUN CLUTCH SOLENOID VALVE.
Refer to AT- 3 6 77th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.
Go to TORQUE CONVERTER CLUTCH SOLENOID VALVE.
Refer to AT-372
8th judgement flicker is longer than others.
A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.
Go to BATT/FLUID TEMP SEN(A/T FLUID TEMP SENSOR
CIRCUIT AND TCM POWER SOURCE).
Refer to AT- 3 7 79th judgement flicker is longer than others.
Engine speed signal circuit is short-circuited or disconnected.
Go to ENGINE SPEED SIGNAL.
Refer to AT-383
O/D OFF indicator lamp:
SCIA0700ESCIA0701E
SCIA0702ESCIA0703E
Page 1710 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-254
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITHOUT CONSULT-II)
1. If th NISSAN ALMERA N16 2003 Electronic Repair Manual AT-254
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITHOUT CONSULT-II)
1. If th](/manual-img/5/57350/w960_57350-1709.png)
AT-254
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITHOUT CONSULT-II)
1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait for at
least 3 seconds and then turn it “ON” again.
2. Perform “SELF-DIAGNOSTIC PROCEDURE (Without CONSULT-II)”. Refer to AT- 2 5 0
.
3. Turn ignition switch “OFF”. (The self-diagnostic results will be erased.)
10th judgement flicker is longer than others.
Line pressure solenoid valve circuit is short-circuited or discon-
nected.
Go to LINE PRESSURE SOLENOID VALVE.
Refer to AT-38811th judgement flicker is longer than others.
The ECM-A/T communication line is open or shorted.
Go to CAN COMMUNICATION LINE.
Refer to AT- 3 9 5
Lamp comes OFF.
PNP switch, overdrive control switch or throttle position switch cir-
cuit is disconnected or TCM is damaged.
Go to 21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor).
Refer to AT-333 Flickers as shown below.
Battery power is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors.—This is a problem.) O/D OFF indicator lamp:
SCIA0704ESCIA0705E
SCIA0706ESAT804H
Page 1711 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-255
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS007QP
The TCM receives a signal from the vehicle NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-255
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS007QP
The TCM receives a signal from the vehicle](/manual-img/5/57350/w960_57350-1710.png)
TROUBLE DIAGNOSIS — INTRODUCTION
AT-255
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS007QP
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via A/T solenoid valves.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II or a circuit tester connected should be per-
formed. Follow the “Work Flow”. Refer to AT- 2 5 9 , "
Work Flow" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a drive ability complaint. The cus-
tomer can supply good information about such problems, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple (AT-256, "
DIAGNOSTIC WORKSHEET" ) should be used.
Start your diagnosis by looking for “conventional” problems first. This
will help troubleshoot drive ability problems on an electronically con-
trolled engine vehicle.
Also check related Service bulletins for information.
SAT631IA
SAT632I
SEF234G
Page 1712 of 3189
AT-256
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

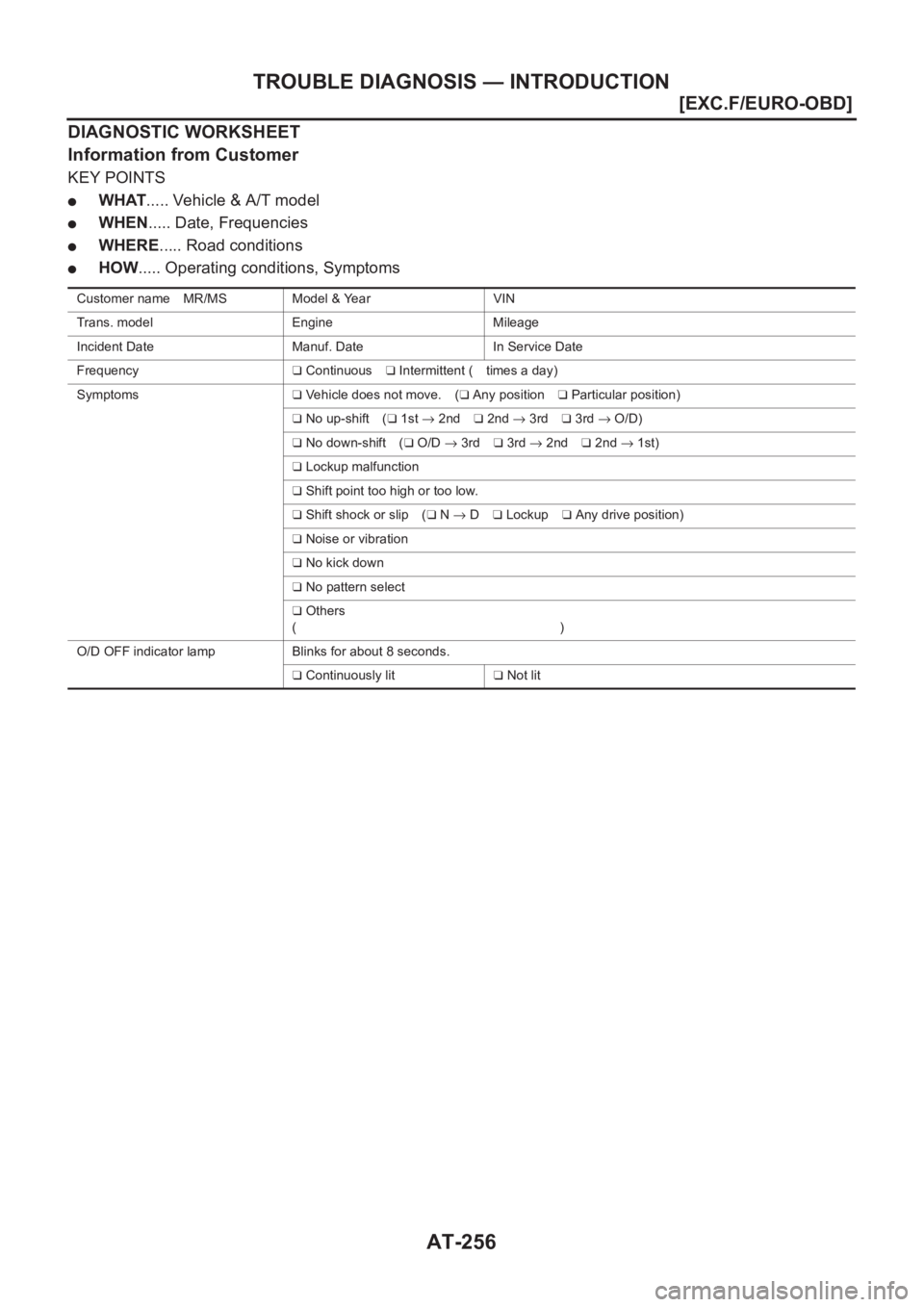

DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
●WHAT..... Vehicle & A/T model
●WHEN..... Date, Frequencies
●WHERE..... Road conditions
●HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp Blinks for about 8 seconds.
❏ Continuously lit❏ Not lit
